CH8C90327WXX-064 Port wireless gateway router

Westell Inc
4 Port wireless gateway router - FCC ID CH8C90327WXX-06 - Westell Inc
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jun 19, 2005
Application Purpose
Original Equipment
Date of Application
Jun 19, 2005
Equipment Note
4 Port wireless gateway router
Frequency Range
2412.00000000 - 2462.00000000
Company
Westell Inc
Country
United States

Documents & Files

Select a file to view

Users Manual

↗
↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

External Photos

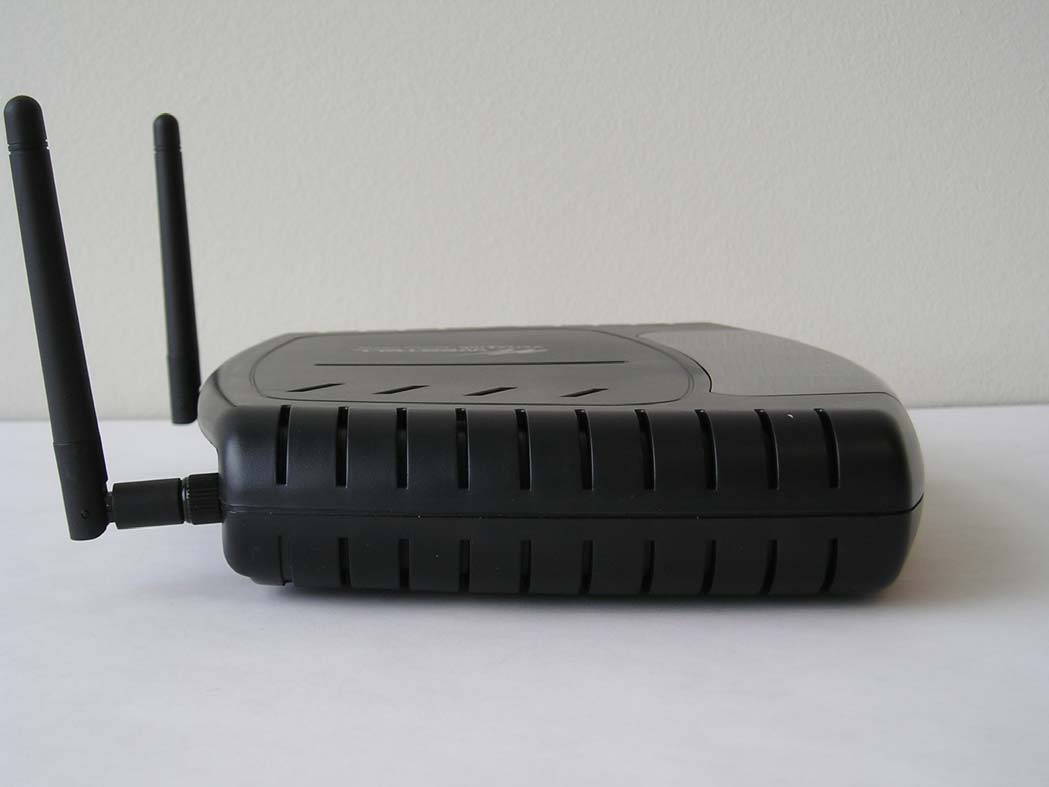

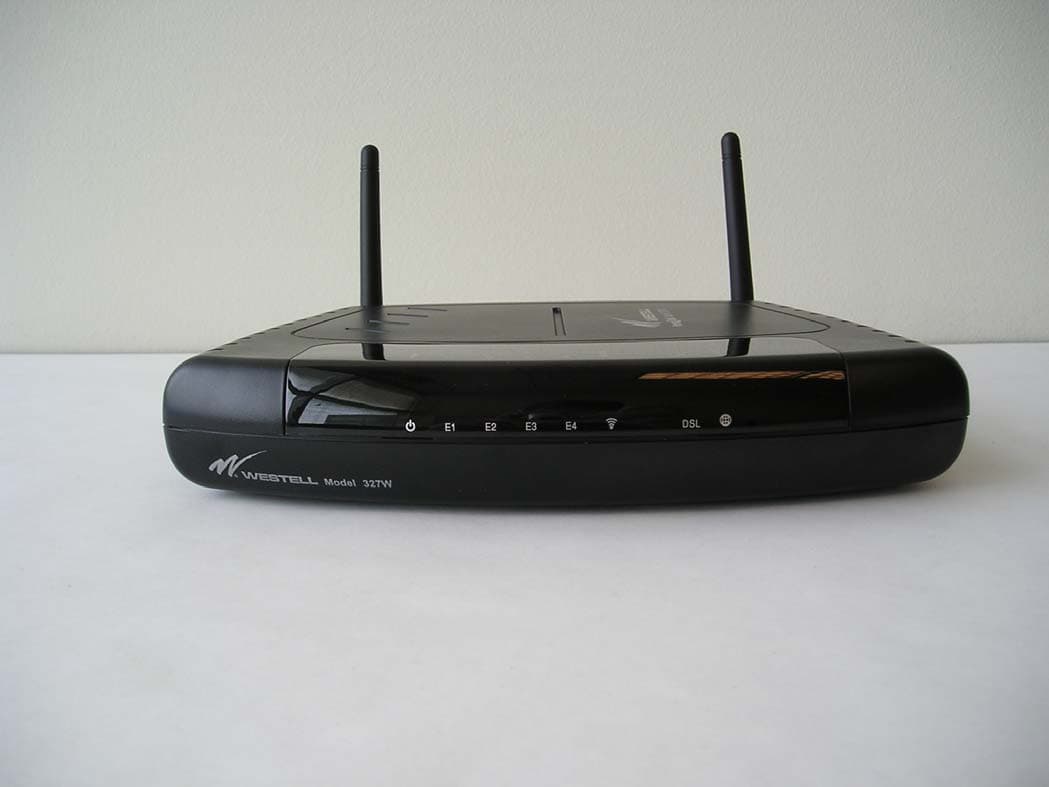

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] External EUT Photographs FCC ID: CH8C90327WXX-06 Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected]

ID Label/Location Info

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] ID Label/Location FCC ID: CH8C90327WXX-06 • Material to be mylar • Text to be Black with White Background • Permanent Adhesive Drawing of label The label will be on the bottom center of the unit. The label is compliant to UL 60950 Section 1.7.13 Durability of Markings. Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Photograph of placement of label:

Internal Photos

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Internal EUT Photographs FCC ID: CH8C90327WXX-06 Photos RF PCB Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Photo of Main PCB: Foil Side Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Photo of Main PCB: Component Side

Operational Description

Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Operational Description FCC ID: CH8C90327WXX-06 The RF section of the EUT is a digitally modulated Spread Spectrum transceiver for use as a wireless LAN. VersaLink combines Westell's industry leading ADSL2+ modem technology with a high performance wireless and flexible router function. It provides wired networking using Ethernet and USB, and the convenience of 802.11b/g wireless. The optional uplink port transforms an Ethernet LAN port into an Ethernet WAN port for alternative access, including fiber, fixed wireless or connection to existing ADSL modems. The 2.4 GHz antenna has a reverse polarity SMA connector on it. The antenna used is a 2 dBi monopole. Wireless Card Description

RF Exposure Info

RP-5394-RF Rev. 1 Page 1 of 1 RF exposure FCC ID: CH8C90327WXX-06 The 2.4 GHz transmitter Peak Power is 24.9 dBm output with 2 dBi antenna gain The following information provides the minimum separation distance for the EUT, as calculated from FCC OET 65 Appendix B, Table 1B “Guidelines for General Population/Uncontrolled Exposure” This calculation is based on the highest EIRP possible from the EUT considering maximum power and antenna gain. The following formulas were used: GP limit is = 1 mW/cm^2 above 1.5 GHz S= E^2/3770 mW/cm^2 E or V/m = (ERP*30)^0.5/d, (d in meters) d = ((ERP*30)/3770*S))^0.5 SPEAKAntennaMSD Freq.GP limitRF power GainERPEd MHzmW/cm^2 dBmdBiwattsV/mmeters 2473124.920.49061.40.062 GP is the limit for general Population/Uncontrolled Exposure MSD is the minimum Seperation Distance NOTE: For mobile or fixed location transmitters, minimum separation distance is 20 cm, even if calculations indicate MPE distance is less MPE for the transmitter is 20 cm.

Test Report

Radiometrics Midwest Corporation (815) 293-0772 – www.radiomet.com Page 1 of 30 Electromagnetic Compatibility Test Report Tests Performed on a Westell, Inc. 4Port Wireless Gateway Router Versalink, Model C90-327W10-07 Radiometrics Document RP-5507 Product Detail: FCC ID: CH8C90327WXX-06 Equipment type: 2.4 GHz Digitally Modulated Transmitter. Test Standards: US CFR Title 47, Chapter I, FCC Part 15 Subpart C FCC Part 15 CFR Title 47: 2004 Industry Canada RSS-210, Issue 5 as required for Category I Equipment This report concerns: Original Grant for Certification FCC Part 15.247 Tests Performed For: Test Facility: Westell, Inc. 750 N. Commons Dr. Aurora, IL 60504 Radiometrics Midwest Corporation 12 East Devonwood Ave. Romeoville, IL 60446 e-mail: [email protected] Test Date(s): (Month-Day-Year) March 21 to May 11, 2005 Document RP-5507 Revisions: Rev. Issue Date Affected Pages Revised By 0 May 31, 2005 1 June 14, 2005 1 Joseph Strzelecki RADIOMETRICS MIDWEST CORPORATION - EMC Test Report Testing of the Westell, Inc., Versalink Model C90-327WXX-07, 4Port Wireless Gateway Router RP-5507 Rev. 1 Page 2 of 30 Table of Contents 1 ADMINISTRATIVE DATA ................................................................................................................... 3 2 TEST SUMMARY AND RESULTS .....................................................................................................3 3 EQUIPMENT UNDER TEST (EUT) DETAILS .................................................................................... 4 3.1 EUT Description ........................................................................................................................... 4 3.1.1 FCC Section 15.203 & RSS-210 Section 5.5 Antenna Requirements ................................... 4 3.2 Related Submittals ....................................................................................................................... 4 4 TESTED SYSTEM DETAILS .............................................................................................................. 4 4.1 Tested System Configuration ....................................................................................................... 4 4.2 Special Accessories ..................................................................................................................... 5 4.3 Equipment Modifications .............................................................................................................. 5 5 TEST SPECIFICATIONS AND RELATED DOCUMENTS.................................................................. 5 6 RADIOMETRICS’ TEST FACILITIES .................................................................................................5 7 DEVIATIONS AND EXCLUSIONS FROM THE TEST SPECIFICATIONS......................................... 6 8 CERTIFICATION ................................................................................................................................ 6 9 TEST EQUIPMENT TABLE ................................................................................................................ 7 10 TEST SECTIONS ............................................................................................................................. 7 10.1 AC Conducted Emissions; Section 15.207................................................................................. 7 Figure 1. Conducted Emissions Test Setup.................................................................................... 9 10.2 Occupied Bandwidth (6 dB)........................................................................................................ 9 10.3 Peak Output Power .................................................................................................................. 13 10.4 Power Spectral Density ............................................................................................................ 13 10.5 Band-edge Compliance of RF Conducted Emissions .............................................................. 13 10.6 Spurious RF Conducted Emissions.......................................................................................... 16 10.7 Spurious Radiated Emissions (Restricted Band) ..................................................................... 25 10.7.1 Radiated Emissions Field Strength Sample Calculation.................................................... 26 Figure 2. Drawing of Radiated Emissions Setup .......................................................................... 26 10.7.2 Spurious Radiated Emissions Test Results (Restricted Band) ..................................... 26-30 Notice: This report must not be reproduced (except in full) without the written approval of Radiometrics Midwest Corporation. RADIOMETRICS MIDWEST CORPORATION - EMC Test Report Testing of the Westell, Inc., Versalink Model C90-327WXX-07, 4Port Wireless Gateway Router RP-5507 Rev. 1 Page 3 of 30 1 ADMINISTRATIVE DATA Equipment Under Test: A Westell, Inc., 4Port Wireless Gateway Router Model: Versalink, Serial Number: none This will be referred to as the EUT in this Report Date EUT Received at Radiometrics: (Month-Day-Year) Test Date(s): (Month-Day-Year) March 21, 2005 March 21 to May 11, 2005 Test Report Written By: Test Witnessed By: Joseph Strzelecki Senior EMC Engineer Barak Balkuv Westell, Inc. Radiometrics’ Personnel Responsible for Test: Test Report Approved By Joseph Strzelecki Senior EMC Engineer NARTE EMC-000877-NE Chris W. Carlson Director of Engineering NARTE EMC-000921-NE 2 TEST SUMMARY AND RESULTS The EUT (Equipment Under Test) is a 4Port Wireless Gateway Router, Versalink Model C90-327WXX- 07, manufactured by Westell, Inc.. The detailed test results are presented in a separate section. The following is a summary of the test results. Emissions Tests Results Environmental Phenomena Frequency Range Basic Standard Test Result RF Radiated Emissions 30 MHz to 25 GHz RSS-210 & FCC Part 15 Pass Conducted Emissions, AC M…

Text truncated - open the document above for the full version.

Test Setup Photos

Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Test Setup Photographs FCC ID: CH8C90327WXX-06 Photographs of Radiated Emissions Test Setup Authorized Agent: Radiometrics Midwest Corporation (815) 293-0772 – [email protected] Photograph of Conducted Emissions Test Setup

Contact Information

Applicant

Joseph Gage(Compliance Engineer)
[email protected]630-375-4724Fax: 630-375-4938

Test Firm

Radiometrics Midwest Corp.Joseph Strzelecki
[email protected]8152930772Fax: 8152930820

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz310.00 mW
Confidentiality
Long Term
Grant Notes
Power Output listed is Conducted. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
