  1. Home/
  2. Westell Inc/
  3. CH8D90327W30-XX

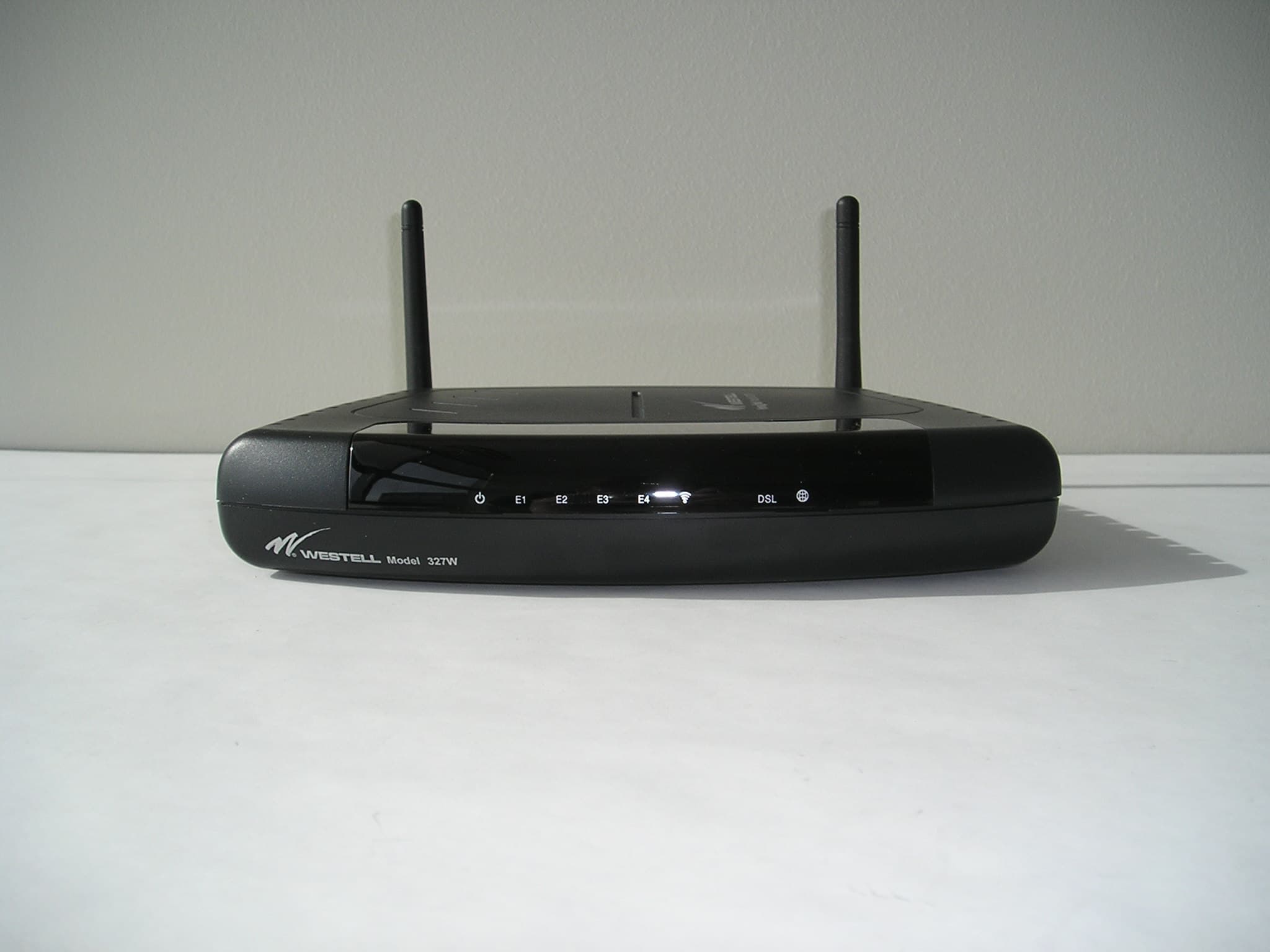

CH8D90327W30-XX802.11g wireless router

Westell Inc
802.11g wireless router - FCC ID CH8D90327W30-XX - Westell Inc
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Mar 27, 2006
Application Purpose
Original Equipment
Date of Application
Mar 27, 2006
Equipment Note
802.11g wireless router
Frequency Range
2412.00000000 - 2462.00000000
Company
Westell Inc
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Not e t ha t the sections highlighted in the index have been removed t o ke e p t he file size be lo w 4Mb. These pages deal with the confiugration of the DSL and wired ethernet internets. No information relating to the wireless interface were contained in the deleted pages. 030-300452 Rev. A BellSouthVersaLinkGateway 3/6/06 – Draft 5 Copyright © 2005 Westell, Inc. 030-300452 Rev. A Draft 4 updates section 3.1, FCC Compliance Note. Draft 5 updates the text in Figure 1 and Table 2 for snap-in wireless antenna VERSALINK™ GATEWAY(MODEL327W) USERGUIDE 030-300452 Rev. A BellSouthVersaLinkGateway 3/6/06 – Draft 5 030-300452 Rev. A ii March 2006 VersaLink Gateway (Model 327W) User Guide CONTENTS 1.PRODUCT DESCRIPTION ..................................................................................................................................1 2.SAFETY INSTRUCTIONS ...................................................................................................................................1 3.REGULATORY INFORMATION ........................................................................................................................2 3.1FCC Compliance Note................................................................................................................................2 3.2Canada Certification Notice .......................................................................................................................3 4.SYSTEM REQUIREMENTS.................................................................................................................................5 5.HARDWARE FEATURES....................................................................................................................................6 5.1LED Indicators ...........................................................................................................................................6 5.2Rear Panel Features ....................................................................................................................................8 6.CUSTOMER INFORMATION ...........................................................................................................................10 6.1Confirming Your DSL Sync.....................................................................................................................10 6.2Setting Up Customer Information ............................................................................................................10 6.3Establishing Your PPP Session ................................................................................................................13 7.MACINTOSH OS X ............................................................................................................................................15 8.CONFIGURING VERSALINK ...........................................................................................................................20 9.HOME SUMMARY.............................................................................................................................................21 9.1Easy Login................................................................................................................................................22 9.2Modem Self Test ......................................................................................................................................26 9.3Remote Access .........................................................................................................................................27 9.4Update Modem .........................................................................................................................................29 9.5Reset Modem............................................................................................................................................49 10. BROADBAND DSL LINE ..................................................................................................................................51 10.1Configure Connection...............................................................................................................................52 10.2Remote Access .........................................................................................................................................60 10.3Statistics....................................................................................................................................................62 10.4WAN ........................................................................................................................................................66 10.5Route ........................................................................................................................................................78 10.6RIP............................................................................................................................................................80 10.7Logs ..........................................................................................................................................................82 11. HOME NETWORK .............................................................................................................................................85 11.1Private LAN..............................................................................................................................................86 11.2IP Passthrough/DMZ – Single Static IP Address Passthrough .................................................................88 11.3NAT/Gaming ............................................................................................................................................94 11.4QoS ......................................................................................................................................................... 105 11.5VLAN …

Text truncated - open the document above for the full version.

RF Exposure Info

MPE Exposure Formula: S = ( P X G ) / ( 4 X π X d^2 ) where: S = power density P = transmitter conducted power in (mW) G = antenna numeric gain d = distance to radiation center (m) or (.02^2 ) = .020 m 2412 MHz (802.11b) Gain =1.6NumericEUT ant.:2dBi Power = 69mWEUT power:18.4dBm MPE limit:1 mW/cm^2 Cable Loss =0dB EIRP =109.65mW109.65mW R (cm) = S (20cm) = 2437 MHz (802.11b) Gain =1.6NumericEUT ant.:2dBi Power = 251mWEUT power:24dBm MPE limit:1 mW/cm^2 Cable Loss =0dB EIRP =398.11mW398.11mW R (cm) = S (20cm) = 2462 MHz (802.11b) Gain =1.6NumericEUT ant.:2dBi Power = 71mWEUT power:18.5dBm MPE limit:1 mW/cm^2 Cable Loss =0dB EIRP =112.20mW112.20mW R (cm) = S (20cm) = S (20cm) = Refers to the calculated power density at 20cm distance Enter Data in Linear Units 0.0222.9538951 Enter Data in Linear Units 5.62853110.079 Enter Data in Linear Units 2.98809960.022 R (cm) = Refers to the calculated safe distance (Formula is SQRT(EIRP/(4*PI()*MPE limit (mW/CM^2))) 2412 MHz (802.11g) Gain =1.6NumericEUT ant.:2dBi Power = 110mWEUT power:20.4dBm MHzMPE limit:1 mW/cm^2 Cable Loss =0dB EIRP =173.78mW173.78mW R (cm) = S (20cm) = 2437 MHz (802.11g) Gain =1.6NumericEUT ant.:2dBi Power = 398mWEUT power:26dBm MHzMPE limit:1 mW/cm^2 Cable Loss =0dB EIRP =630.96mW630.96mW R (cm) = S (20cm) = 2462 MHz (802.11g) Gain =1.6NumericEUT ant.:2dBi Power = 100mWEUT power:20dBm MHzMPE limit:1 mW/cm^2 Cable Loss =0dB EIRP =158.49mW158.49mW R (cm) = S (20cm) = S (20cm) = Refers to the calculated power density at 20cm distance Enter Data in Linear Units R (cm) = Refers to the calculated safe distance (Formula is SQRT(EIRP/(4*PI()*MPE limit (mW/CM^2))) 7.08590080.126 Enter Data in Linear Units 3.55136300.032 Enter Data in Linear Units 3.71873360.035

Test Report

File: R62797 Page 1 of 19 2016-01 Electromagnetic Emissions Test Report and Application for Grant of Equipment Authorization pursuant to FCC Part 15, Subpart C (15.247) DTS Specifications and Industry Canada RSS 210 Issue 5 for an Intentional Radiator on the Westell Tech Inc Model: D90-327W30-06 FCC ID: CH8D90327W30-XX GRANTEE: Westell Tech Inc 750 North Commons Dr. Aurora, IL 60504 TEST SITE: Elliott Laboratories, Inc. 684 W. Maude Avenue Sunnyvale, CA 94086 REPORT DATE: February 8, 2006 FINAL TEST DATE: January 31 and February 2, 2006 AUTHORIZED SIGNATORY: ______________________________ Juan Martinez Senior EMC Engineer Elliott Laboratories, Inc. is accredited by the A2LA, certificate number 2016-01, to perform the test(s) listed in this report. This report shall not be reproduced, except in its entirety, without the written approval of Elliott Laboratories, Inc. Elliott Laboratories, Inc. -- EMC Department Test Report Report Date: February 8, 2006 File: R62797 Page 2 of 19 pages DECLARATIONS OF COMPLIANCE Equipment Name and Model: D90-327W30-06 Manufacturer: Westell Tech Inc 750 North Commons Dr. Aurora, IL 60504 Tested to applicable standards: RSS-210, Issue 5, November 2001 (Low Power License-Exempt Radiocommunication Devices) FCC Part 15.247 (DTS) Measurement Facility Description Filed With Department of Industry: Departmental Acknowledgement Number: IC2845 SV2 Dated August 16, 2007 Departmental Acknowledgement Number: IC2845 SV3 Dated August 16, 2007 I declare that the testing was performed or supervised by me; that the test measurements were made in accordance with the above mentioned departmental standards (through the use of ANSI C63.4:2003 as detailed in section 5.3 of RSS-210, Issue 6); and that the equipment performed in accordance with the data submitted in this report. Signature ______________________________ Name Juan Martinez Title Senior EMC Engineer Company Elliott Laboratories Inc. Address 684 W. Maude Ave Sunnyvale, CA 94086 USA Date: February 8, 2006 Maintenance of compliance with the above standards is the responsibility of the manufacturer. Any modification of the product which may result in increased emissions should be checked to ensure compliance has been maintained (i.e., printed circuit board layout changes, different line filter, different power supply, harnessing or I/O cable changes, etc.). Elliott Laboratories, Inc. -- EMC Department Test Report Report Date: February 8, 2006 File: R62797 Page 3 of 19 pages TABLE OF CONTENTS COVER PAGE..................................................................................................................................................................................1 DECLARATIONS OF COMPLIANCE......................................................................................................................................2 TABLE OF CONTENTS...............................................................................................................................................................3 SCOPE.............................................................................................................................................................................................5 OBJECTIVE...................................................................................................................................................................................5 SUMMARY OF RESULTS...........................................................................................................................................................6 MEASUREMENT UNCERTAINTIES....................................................................................................................................7 EQUIPMENT UNDER TEST (EUT) DETAILS..........................................................................................................................8 GENERAL...................................................................................................................................................................................8 OTHER EUT DETAILS............................................................................................................................................................8 ENCLOSURE..............................................................................................................................................................................8 MODIFICATIONS....................................................................................................................................................................8 SUPPORT EQUIPMENT..........................................................................................................................................................9 EUT INTERFACE PORTS........................................................................................................................................................9 EUT OPERATION DURING TESTING..................................................................................................................................9 TEST SITE....................................................................................................................................................................................10 GENERAL INFORMATION..................................................................................................................................................10 CONDUCTED EMISSIONS CONSIDERATIONS..............................................................................................................10 RADIATED EMISSIONS CONSIDERATIONS..................................................................................................................10 MEASUREMENT INSTRUMENTATION................................................................................................................................11 RECEIVER SYSTEM............................…

Text truncated - open the document above for the full version.

Test Report

Radiometrics Midwest Corporation (815) 293-0772 – www.radiomet.com Page 1 of 16 Electromagnetic Compatibility Test Report Tests Performed on a Westell, Inc. Gateway Router Model D90-327W30-06 Radiometrics Document RP-5745 Test Standards: CENELEC EN 55022: 2003 FCC Part 15 CFR Title 47: 2004 ICES-003: 2004 Digital Apparatus (Industry Canada) ANSI C63.4-2003 Tests Performed For: Test Facility: Westell, Inc. 750 N. Commons Rd. Aurora, IL 60504 Radiometrics Midwest Corporation 12 East Devonwood Romeoville, IL 60446 Test Date(s): (Month-Day-Year) January 9 and 12, 2006 RP-5745 Revisions: Rev. Issue Date Affected Pages Revised By 0 February 7, 2006 1 February 9, 2006 All RADIOMETRICS MIDWEST CORPORATION - EMC Test Report Testing of the Westell, Inc., Model D90-327W30-06, Gateway Router RP-5745 Rev. 0 Page 2 of 16 Table of Contents 1 ADMINISTRATIVE DATA ...................................................................................................................3 2 TEST SUMMARY AND RESULTS .....................................................................................................3 3 TEST SPECIFICATIONS AND RELATED DOCUMENTS..................................................................3 4 RADIOMETRICS’ TEST FACILITIES ................................................................................................. 4 5 EQUIPMENT UNDER TEST (EUT) DETAILS ....................................................................................4 5.1 EUT Description ...........................................................................................................................4 5.2 Tested System Configuration .......................................................................................................5 5.3 Operating Conditions of EUT .......................................................................................................5 5.4 EUT Modifications ........................................................................................................................5 6 DEVIATIONS FROM THE TEST SPECIFICATIONS .........................................................................5 7 EXCLUSIONS FROM THE TEST SPECIFICATIONS ........................................................................5 8 TEST PROCEDURES.........................................................................................................................6 8.1 RF Emissions Measurement Procedures .....................................................................................6 8.1.1 Radiated Emission Measurement Procedures.......................................................................6 8.1.2 Conducted Emission Measurement Procedures....................................................................6 8.1.2.1 Power Line Conducted Emissions Procedures ...............................................................7 9 CERTIFICATION ................................................................................................................................7 10 TEST EQUIPMENT TABLE ..............................................................................................................7 11 TEST SETUP DOCUMENTATION ...................................................................................................7 Figure 1. Drawing of Conducted Emissions Test Setup .................................................................8 Figure 2. Drawing of Radiated Emissions Test Setup ....................................................................9 Figure 3. Photographs of Radiated Emissions Test Setup ...........................................................10 Figure 4. Photographs of Conducted Emissions Test Setup ........................................................12 12 DETAILED TEST RESULTS...........................................................................................................13 12.1 Radiated Emissions Test Results............................................................................................. 13 12.1.1 Conducted Emissions Data................................................................................................15 This report must not be reproduced (except in full) without the written approval of Radiometrics Midwest Corporation. The Results in this report apply only to the equipment tested. RADIOMETRICS MIDWEST CORPORATION - EMC Test Report Testing of the Westell, Inc., Model D90-327W30-06, Gateway Router RP-5745 Rev. 0 Page 3 of 16 1 ADMINISTRATIVE DATA Equipment Under Test: A Westell, Inc., Gateway Router Model: D90-327W30-06 Serial Number: 22247 This will be referred to as the EUT in this Report Date EUT Received at Radiometrics: (Month-Day-Year) Test Date(s): (Month-Day-Year) January 9, 2006 January 9 and 12, 2006 Test Report Written By: Test Witnessed By: Joseph Strzelecki Senior EMC Engineer Steve Hawkins Westell, Inc. Radiometrics’ Personnel Responsible for Test: EUT Checked By: 02-07-06 Date Joseph Strzelecki Senior EMC Engineer NARTE EMC-000877-NE Steve Hawkins Westell, Inc. 2 TEST SUMMARY AND RESULTS The EUT (Equipment Under Test) is a Westell, Inc. Gateway Router Model D90-327W30-06. The detailed test results are presented in a separate section. The following is a summary of the test results. Emissions Tests Results Environmental Phenomena Frequency Range Basic Standard Test Level Test Result Conducted Emissions, AC Mains 0.15-30 MHz EN 55022 Class B Pass RF Radiated Emissions 30-2000 MHz EN 55022 Class B Pass Since the FCC allows the use of the EN55022 limits in place of the FCC part 15 subpart B limits, the Radiated RF and AC Conducted emissions test shows compliance for both the CE and the US market. The test results also conform to ICES-003: 2004 Digital Apparatus (Industry Canada). This test covers the unintentional Radiator portion of the EUT only. This report does not address the emissions from the wireless portion of the EUT above 2 GHz. However the wireless card was transmitting and fully fun…

Text truncated - open the document above for the full version.

Test Setup Photos

Radiated Emissions Test Configuration Photographs Radiated Emissions Test Configuration Photographs

Contact Information

Applicant

Joseph Gage(Compliance Engineer)
[email protected]630-375-4724Fax: 630-375-4938

Technical Contact

Westell IncSteven Hawkins
[email protected]630-898-2500

750 N Commons Drive · Aurora, Illinois · United States

Non-Technical Contact

Elliott LabsDavid Guidotti
[email protected]408 245 7800

Test Firm

Element Materials Technology Fremont NewarkDavid Bare
[email protected]510-578-3500Fax: 510 578 3510

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz398.00 mW
Confidentiality
Long Term
Grant Notes
Power output listed is conducted. The antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
