CNVCCII-9L6 GHz Carry-Coder II

Broadcast Microwave Services, Inc. – 12367 Crosthwaite Circle – Poway, CA 92064 Phone: 800-669-9667, 1-858-391-3050 - Fax: 1-858-391-3049 Email: [email protected] Web: www.bms-inc.com Your digital solution for wireless TV production and terrestrial news gathering. 6GHz CARRY-CODER II User Manual Manual Part Number 6051412900 Rev - Specifications are subject to change without prior notice. This document contains confidential information and is intended for customer use only. It cannot be duplicated without prior authorization from BMS. 6GHz CARRY-CODER II User Manual 6051412900 Rev - 6051412900 Rev - i GLOSSARY 16QAM Quadrature Amplitude Modulation (16 states) 64QAM Quadrature Amplitude Modulation (64 states) ATSC Advanced Television Standard Committee COFDM Coded Orthogonal Frequency Division Multiplex CVBS Composite Video Baseband Signal DCE Data Communication Equipment DVB Digital Video Broadcasting DVB-T Digital Video Broadcasting for Terrestrial TV EMC Electro-Magnetic Compatibility EU European Union GOP Group Of Pictures MPEG Moving Pictures Engineering Group PIN Personal Identification Number PID Packet Identifier QPSK Quad Phase Shift Keying US United States of America LEGEND = Idea (Highlighted operator Information) = Warning (indicates a critical or hazardous point) 6051412900 Rev - ii 6051412900 Rev - iii CONTENTS 1. OVERVIEW ............................................................................................................................................... 1 2. INFORMATION TO USER....................................................................................................................... 3 3. GETTING STARTED ................................................................................................................................ 5 3.1 Installing the Transmitter on the Camera 5 3.2 Installing the Transmitter in the Backpack 5 3.3 Controlling the CARRY-CODER II Transmitter 6 3.4 Transmitter Operating Configuration 6 3.5 CARRY-CODER II Transmitter <EXPERT> Operating Mode Configuration 7 4. OPERATING INSTRUCTIONS................................................................................................................ 9 4.1 Start-Up Indications 9 4.2 Operator Menu Summary 9 4.3 Changing Operator Menu Parameter Values 12 4.4 Setting Transmitter Operating Frequency 13 4.5 Setting Transmitter Output Power 13 4.6 Setting Transmission Mode and Robustness 13 4.7 Recalling and Saving Operating Configurations 14 4.8 Setting Video Input Parameters and Video Mode 14 4.9 Setting Audio Input Parameters and Audio Level 15 4.10 Configuring Data Input (RS-232) 15 4.11 Configuring Transmission Privacy 16 5. USING EXPERT MODE ......................................................................................................................... 17 5.1 Expert Video Parameters 17 5.2 Expert COFDM Parameters 18 6. INPUT/OUTPUT CHARACTERISTICS ................................................................................................21 6.1 Composite Video (CVBS) 21 6.2 Component Video (YUV) 21 6.3 Analog Audio 21 6.4 Data Input 21 6.5 Remote Control Port 21 6.6 RF Output 22 6.7 Power Supply Input 22 7. WARRANTY AND RETURN TO FACTORY....................................................................................... 23 8. CONTACT INFORMATION .................................................................................................................. 24 9. ANNEX A: COFDM Modes Characteristics ........................................................................................... 26 10. PIN OUT INFORMATION.................................................................................................................. 30 Broadcast Microwave Services Inc. 12367 Crosthwaite Circle, Poway, CA 92064-6817 Phone: 858-391-3050. Toll Free: 800-669-9667. Fax: 858-391-3049. Web: www.bms-inc.com 1 WARNING! RF RADIATION EXPOSURE HAZARD This warning is provided by Broadcast Microwave Services (BMS) Inc. for safety purpose. The following information help to reduce the risk of RF exposure hazard. FCC Limit of RF Exposure According to Federal Communication Commission (FCC), the Maximum Permissible Exposure (MPE) for FR radiation has been set to 1.0 mW/cm 2 for the 6 GHz Carry- Coder II with 190 mW output power (OET Bulletin 65). The 6 GHz Carry-Coder II is a non-broadcast transmitter and without an antenna it will not create RF exposure (power density) exceeding the 1.0 W/cm 2 FCC limit. However a high-gain antenna such as a parabolic dish will greatly enhance the 6 GHz Carry-Coder II output power density beyond the MPE limit of 1.0 mW/cm 2 . In this situation a minimum distance from the antenna needs to be calculated in order to keep the MPE always below the safety limit. The calculation has been done for 6 GHz Carry-Coder II based on the formula mentioned in OET Bulletin 56. The calculations have been done for different commonly used antenna in the Public Safety/ Law enforcement applications. Figure 1 shows the plot of the minimum exposure distance for 5dBi, 16dBi, and 30dBi antennas. The 6 GHz Carry-Coder II transmits the maximum power of 190 mW. The minimum exposure distances are found from the cross points of the exposure graphs (for various antennas) with the line of maximum permissible exposure (i.e. 1 W/cm 2 ). Notice that the numbers in Figure 1 predict the worse case scenario, which is straight in front of the antenna (exposing to the antenna main-lobe). Obviously the side-lobe exposures are well below these numbers as the radiation intensity dramatically reduces on the side lobes. "The antenna used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter." Broadcast Microwave Services Inc. 12367 Crosthwaite Circle, Poway, CA 92064-6817 Phone: 858-391-3050. Toll Free: 800-669-9667. Fax: 858-391-3049. Web: www.bms-inc.com 2 Estimated RF Exposure for 6 GHz Carry-Coder II 0.0 1.0 2.0 3.0 4.0 5.0 010020030040050…

Text truncated - open the document above for the full version.

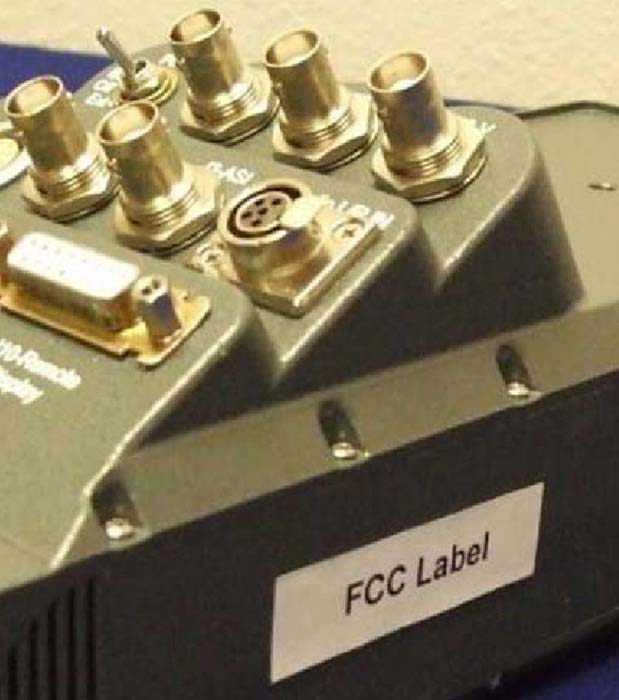

(8014129700) (8014129700) (8014129700) On 6 GHz Carry-Coder II Unit

Broadcast Microwave Services Inc. Made In USA FCC ID : CNVCCII-9L Model No: CCII-9L Sample FCC ID Label for 6 GHz Carry-Coder II Dimensions: 2.5" x 0.5" On 6 GHz Carry-Coder II Unit

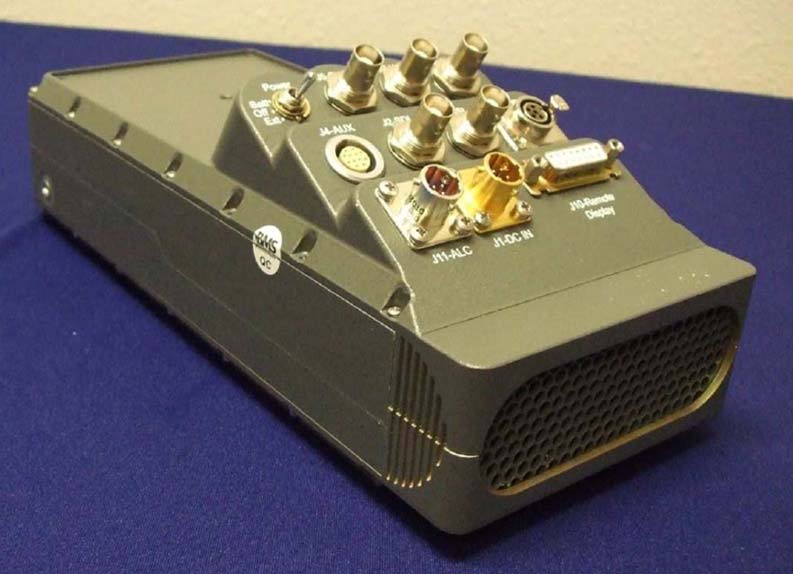

6 GHz Carry-Coder II 8014129700 Digital Board Assembly 7214206010 Digital Board 7214206900 Power Supply 7214215000 PA of Carry-Coder II 7214197000 RFU Board 7214195000 (Front View) Upper Lid Digital Board Assembly Power Supply Board Fans RF Output (Rear View) RFU Board Internal Amp Board RF Output Digital Board MPEG Encoder Front View Rear View Front View Rear View

Front View Rear View Front View Rear View Front View Rear View

Broadcast Microwave Services Inc. 12367 Crosthwaite Circle, Poway, CA 92064-6817 Phone: 858-391-3050. Toll Free: 800-669-9667. Fax: 858-391-3049. Web: www.bms-inc.com 1 EQUIPMENT The 6 GHz Carry-Coder II (CCII-9L) is a non-broadcast mobile transmitter for use in the frequency range of 6425 MHz to 6525 MHz. This product supports the following Emission Designators: FCC ID Modulation Emission Designators CNVCCII-9L Digital 6M0W7D 7M0W7D 8M0W7D Operation under FCC rule part: 74 APPLICATION The 6 GHz Carry-Coder II is designed for use in Broadcast Auxiliary Service (BAS) application (rule part 74) and Law Enforcement Command Posts (rule part 90). The CCII supports transmission of video, audio, and data. The 6 GHz Carry-Coder II operates in digital (COFDM) transmission mode. It features a DVB-T compliant (COFDM) modulator MPEG2 video encoder. The system is designed to support either 6, or 7, or 8 MHz occupied bandwidth. OPERATION A simple diagram of the 6GHz Carry-Coder II is shown in Figure 1. Figure 1 Simplified diagram of the 6 GHz Carr-Coder II Broadcast Microwave Services Inc. 12367 Crosthwaite Circle, Poway, CA 92064-6817 Phone: 858-391-3050. Toll Free: 800-669-9667. Fax: 858-391-3049. Web: www.bms-inc.com 2 A. MPEG2 Encoder The input video is digitally encoded by this circuit. MPEG2 Encoder is the primary interface and accepts various video formats including CVBS, component video, and SDI format. The output of this section is an EMPEG2 signal. B. Data Multiplexer In this section the MPEG2 signal is multiplexed with the serial data which is provided by the control unit. Carry-Coder II may receive data through its RS232 serial input. The received data is directly handed by the Control Unit. C. COFDM Modulator The multiplexed digital data stream is then processed by a COFDM 1 modulator to result a COFDM baseband signal. The baseband signal is then applied to a lowpass filter with two outputs: I and Q signals. D. RF Upconverter I/Q Modulator & IF Signal The beginning of the RF Upconverter is an I-Q Modulator, providing the IF signal from modulating the I and Q signal onto 910MHz (1 st ) local oscillator. Therefore the IF signal will be 910MHz. Upconverter & RF Signal The 910MHz IF signal is then upconverted to the 6GHz RF frequency range. The 2 nd LO frequency can be varied by a synthesizer within the range of 5.515 GHz to 5.615 GHz to adjust the RF output frequency in 6.425 GHz to 6.525 GHz range. Internal Amplifier The 6GHz RF signal then is boosted by the internal amplifier of the Carr-Coder II to give a maximum 250 mW output power. E. Control Unit The Control Unit includes a microcontroller and can be connected to a Remote Control Display. The Control Unit can change the frequency of the 2 nd LO synthesizer. It also sets the output RF power at low, medium, high , and max. The digital modulation schemes such as QPSK, 16QAM, ..etc, COFDM bandwidth, and other digital parameters are set by Control Unit. 1 COFDM: Coded Orthogonal Frequency Division Multiplexing.
