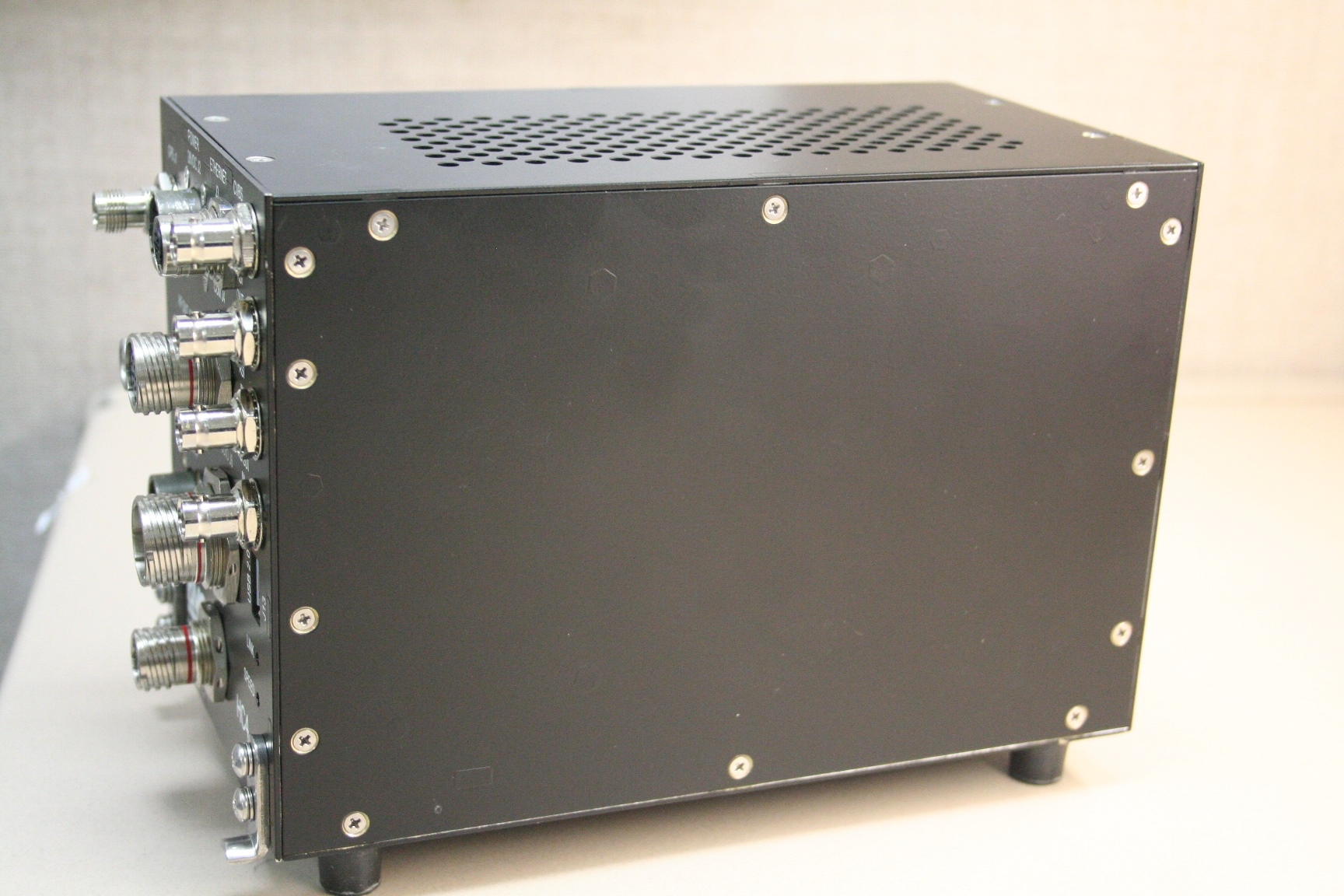

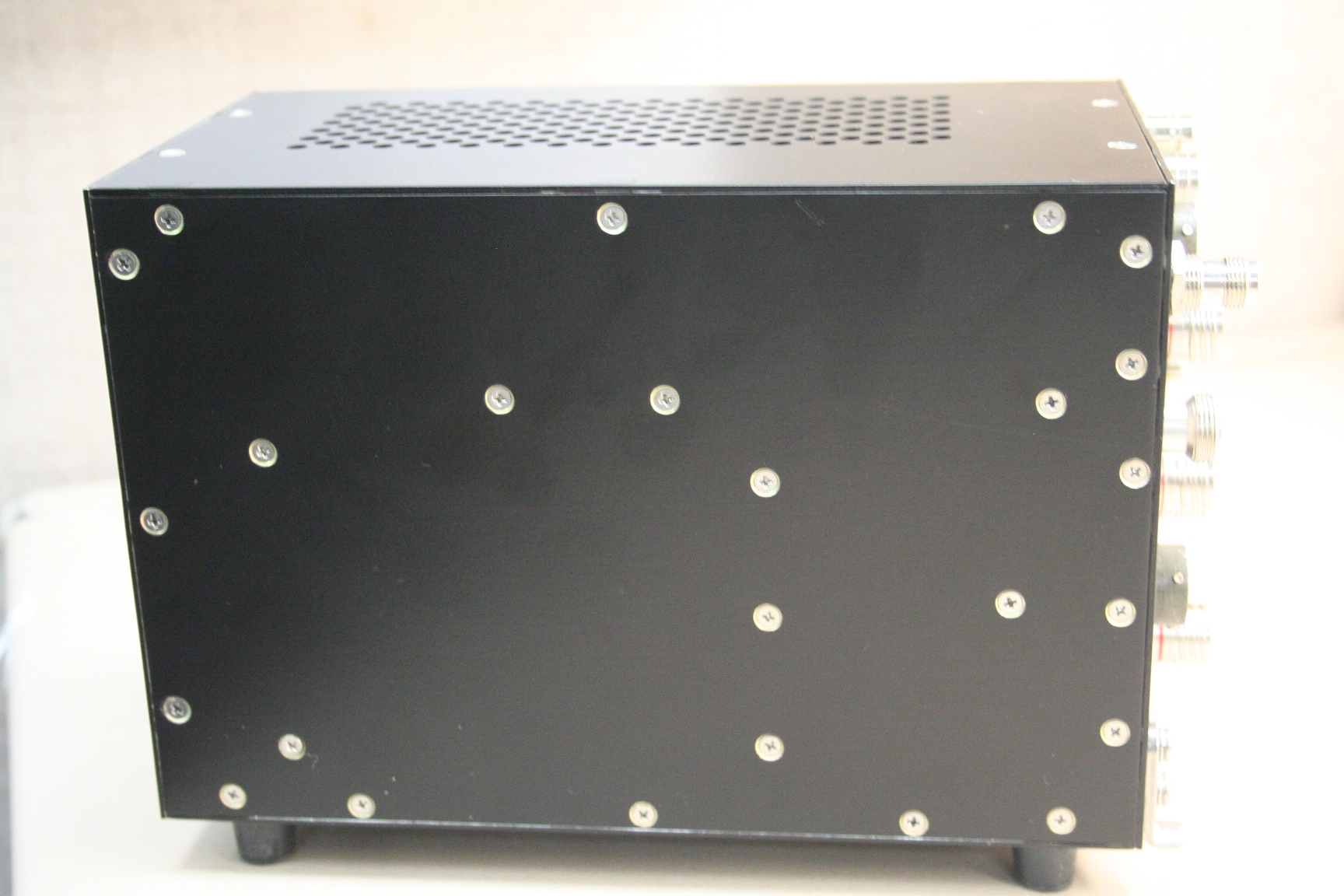

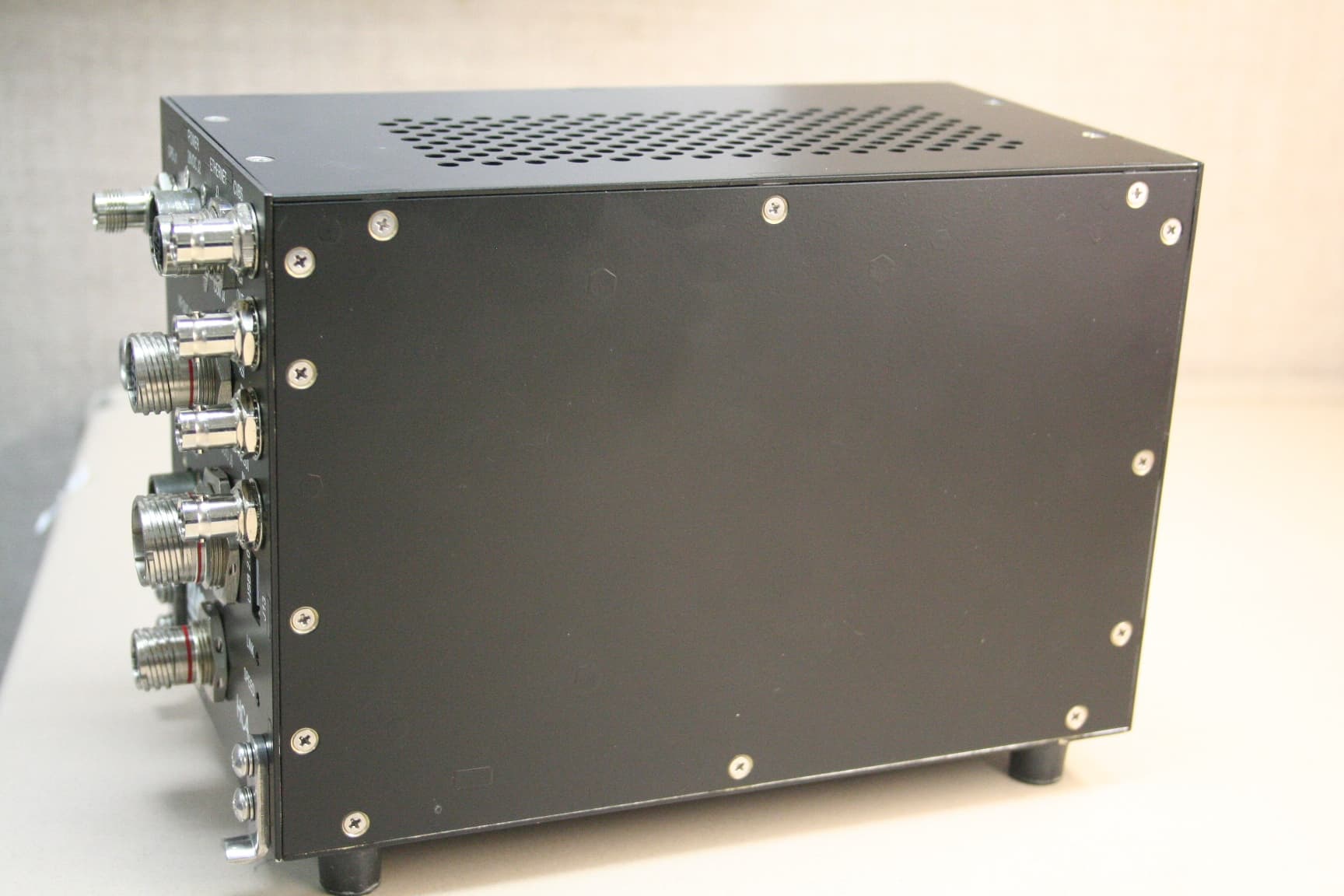

CNVHC4-6LTransmitter

HELI-CODER™ 4 TRANSMITTER Operation Manual Doc. No. 6051452100 Rev.C1 Broadcast Microwave Services, Inc. | www.bms-inc.com Corporate Headquarters 12367 Crosthwaite Circle | Poway, CA 92064 US Phone: +1 800-669-9667 (US) | +1 (858) 391-3050 | Fax: +1 (858) 391-3049 BMS European Office Schwalbacherstr. 12 | 65321 Heidenrod-Kemel GERMANY Phone: +49-6124-7239-00 | Fax: +49-6124-7239-29  2012 Broadcast Microwave Services. All rights reserved. This document and the information contained in it is the property of Broadcast Microwaves Services, Inc. and may be the subject of patents pending and granted. It must not be used for commercial purposes nor copied, disclosed, reproduced, stored in a retrieval system or transmitted in any form or by any means (electronic, mechanical, photocopying, recording or otherwise), whether in whole or in part, without BMS prior written agreement. This printed document is uncontrolled and is for reference only. Users are to verify that this is the latest approved version. Heli-Coder 4 Transmitter Operation Manual | Doc. No. 6051452100 Rev. C Broadcast Microwave Services, Inc. i Document Revision History DRAFT November 2011 Preliminary Release April 2012 Preliminary Update May 2012 Initial Release June 2012 Rev - Add Additional Figures and Software Installation Section. December 2012 Rev A Amend DO-160 compliance table July 2013 Rev B Amend for references to encryption options December 2013 Rev C Amend FCC & Channel Bandwidth June 2014 Rev C1 Conventions Used in This Manual 1. NOTE: Notes provide supplementary information. They are highlighted for emphasis, as in this example, and are placed immediately after the relevant text. CAUTION: Cautions give information which, if strictly followed, will prevent damage to equipment or other goods. They are boxed for emphasis, as in this example, and are placed immediately preceding the point at which the reader requires them. WARNING: Warnings give information which, if strictly observed, will prevent personal injury or death, or damage to personal property or the environment. They are boxed and shaded for emphasis, as in this example, and are placed immediately preceding the point at which the reader requires them. 2. ATTENTION! DO NOT use right-angle connectors or adapters on the RF Power Out cable assemblies. Right-angle connectors may have significant RF power loss at the operating frequencies of this system. 3. FOR ALL BMS TRANSMITTERS – Operation of a BMS transmitter product generally requires a license. It is the responsibility of the user to obtain all required operating licenses. 4. ONLY FOR PRODUCTS AWAITING FCC CERTIFICATION – This device has not been authorized as required by the rules of the US Federal Communications Commission. This device is not, and may not be, offered for sale or lease, or sold or leased, in the US until authorization is obtained. Acceptance Test Procedure (ATP) test data results by product serial number are typically shipped with all units and indicate the equipment to be operating within advertised specifications. Contact BMS to request this data. Read and Follow Instructions! All safety and operating instructions should be read before this product is operated. All operating and use instructions should be followed. This manual should be retained for future reference. EMC Compliance – This equipment is certified to the EMC requirements detailed in the technical specifications. To maintain this certification, only use the cables supplied or if in doubt contact BMS Customer Service. Broadcast Microwave Services, Inc. ii PAGE INTENTIONALLY LEFT BLANK Broadcast Microwave Services, Inc. iii Contents 1 INTRODUCTION .............................................................................................................................................. 1 2 SAFETY ............................................................................................................................................................ 2 3 PRODUCT DEFINITION ................................................................................................................................... 4 3.1 Product Specifications .............................................................................................................................. 2 3.2 Model Information ..................................................................................................................................... 2 4 CONNECTORS AND PINOUTS ....................................................................................................................... 3 5 INSTALLATION ................................................................................................................................................ 7 5.1 Locating the Components......................................................................................................................... 7 5.2 Fasteners ................................................................................................................................................. 8 5.3 Mounting the Transmitter.......................................................................................................................... 8 5.4 Wiring Connections and Signal Interfaces .............................................................................................. 11 5.4.1 Power Input (J2) ................................................................................................................................................. 11 5.4.2 Radio Frequency Output (RF Out) (J5) .............................................................................................................. 11 5.4.3 Serial Digital Video Input (J12) ............................................................................................................................ 11 5.4.4 Composite Video (CVBS) Input (J9) .........................................................................................…

Text truncated - open the document above for the full version.

Broadcast Microwave Services, Inc. | www.bms-inc.com Corporate Headquarters 12367 Crosthwaite Circle | Poway, CA 92064 USA Phone: +1 (858) 391-3050 | Toll-free: 800-669-9667 Fax: +1 (858) 391-3049 BMS European Office Schwalbacherstr. 12 | 65321 Heidenrod-Kemel GERMANY Phone: +49-6124-7239-00 | Fax: +49-6124-7239-29 May 5, 2014 FCC ID Label format and Location Re: FCC ID: CNVHC4-6L Drawing of the label below: Location of the label is seen in the drawing below:

Test Report: 2014 258765 FCC PT74rev1 Applicant: Broadcast Microwave Services 12367 Crosthwaite Circle Dock 10 Poway, CA 92064 Equipment Under Test: HC4-6L FCC ID: CNVHC4-6L In Accordance With: FCC PART 74 Subpart F Tested By: Nemko USA Inc. 2210 Faraday Ave. Suite 150 Carlsbad, CA 92008 TESTED BY: DATE: 30 July 2014 David Light, Wireless Engineer APPROVED BY: DATE: 30 July 2014 Bruce Ketterling, EMC Manager Total Number of Pages: 50 Nemko USA Inc. EQUIPMENT: HC4-6L FCC ID: CNVHC4-6L REPORT NO.: 2014 258765 FCC PT74rev1 Page 2 of 50 DOCUMENT HISTORY REVISION DATE COMMENTS - 20 May 2014 Prepared By: David Light - Initial Release: Tom Tidwell NOTE: Nemko USA, Inc. hereby makes the following statements so as to conform to Chapter 10 (Test Reports) Requirements of ANSI C63.4: 2003 “Methods and Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz”: o The unit described in this report was received at Nemko USA, Inc.'s facilities on 19 May 2014. Testing was performed on the unit described in this report on 19 May 2014. o The Test Results reported herein apply only to the Unit actually tested, and to substantially identical Units. o This report does not imply the endorsement of the Federal Communications Commission (FCC), NVLAP or any other government agency. This Report is the property of Nemko USA, Inc., and shall not be reproduced, except in full, without prior written approval of Nemko USA, Inc. However, all ownership rights are hereby returned unconditionally to Broadcast Microwave Services, and approval is hereby granted to Broadcast Microwave Services and its employees and agents to reproduce all or part of this report for any legitimate business purpose without further reference to Nemko USA, Inc. NVLAP LAB CODE 200116-0 Nemko USA Inc. EQUIPMENT: HC4-6L FCC ID: CNVHC4-6L REPORT NO.: 2014 258765 FCC PT74rev1 Page 3 of 50 Table of Contents Section 1. Summary of Test Results .......................................................................... 5 Section 2. General Equipment Specification .............................................................. 6 Section 3. RF Power Output ....................................................................................... 7 Section 4. Occupied Bandwidth .................................................................................. 9 Section 5. Spurious Emissions at Antenna Terminals .............................................. 19 Section 6. Field Strength of Spurious ....................................................................... 48 Section 7. Frequency Stability .................................................................................. 49 Section 8. Modulation Characteristics ...................................................................... 50 Nemko USA Inc. EQUIPMENT: HC4-6L FCC ID: CNVHC4-6L REPORT NO.: 2014 258765 FCC PT74rev1 Page 4 of 50 CERTIFICATION Nemko USA, Inc., an independent Electromagnetic Compatibility (EMC) Test Laboratory, produced this Test Report. Nemko USA, Inc.’s measurement facility is currently registered with the United States Federal Communications Commission (FCC) in accordance with the provisions of 47 United States Code (CFR) Part 2, Subpart I, Section 2.948(a). A current description of Nemko USA, Inc.’s measurement facility is on file with the FCC. Nemko USA Inc. has additionally satisfied the FCC that it complies with the requirements set forth in 47 CFR Part 2, Subpart I, Section 2.948(d) regarding the accreditation of EMC laboratories. As a result, the FCC has placed Nemko USA Inc. on its list of EMC laboratories approved to perform Declaration of Conformity (DOC) procedure testing. The RFI testing, test data collection and test data evaluation were accomplished in accordance with the ANSI C63.4: 2003 Standard, and in accordance with the applicable sections of the FCC rules (47 CFR Parts 2 and 18)." digital devices. The testing was also accomplished in accordance with Industry Canada's ICES-003 standard for unintentional radiating device per EMCAB-3, Issue 3 (May 1998). The administrative summary of this test report provides a description of the test sample I hereby certify that the test data, test data evaluation, and equipment configurations used to compile this test report are a true and accurate representation of the test sample’s radio frequency interference characteristics as of the test date(s), and, for the design of the test sample. Mike T. Krumweide, EMC Test Supervisor Nemko USA Inc. EQUIPMENT: HC4-6L FCC ID: CNVHC4-6L REPORT NO.: 2014 258765 FCC PT74rev1 Page 5 of 50 Section 1. Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC PART 2 and FCC PART 74 Subpart F. The EUT is a 6 GHz digital video transmitter intended for helicopter applications. Summary Of Test Data Name Of Test Para. No. Result RF Power Output 2.1046 PASS Occupied Bandwidth 2.1049 PASS Spurious Emissions at Antenna Terminals 2.1051 PASS Field Strength of Spurious Emissions 2.1053 PASS Modulation Characteristics 2.1047 PASS Frequency Stability 2.1055 PASS Revisions: 1) Corrected frequency stability data. Section 7. . Nemko USA Inc. EQUIPMENT: HC4-6L FCC ID: CNVHC4-6L REPORT NO.: 2014 258765 FCC PT74rev1 Page 6 of 50 Section 2. General Equipment Specification Manufacturer: Broadcast Microwave Services Part No.: 8014521603 Model No.: HC4-6L Serial No.: B1014 Test Voltage: 28Vdc Frequency Range: 6.425 to 6.525 GHz Date Received In Laboratory: 19 May 2014 Emission Designator(s): 6M00D7W 7M00D7W 8M00D7W Nemko USA Inc. EQUIPMENT: HC4-6L FCC ID: CNVHC4-6L REPORT NO.: 2014 258765 FCC PT74rev1 Page 7 of 50 Section 3. RF Power Output Para. No.: 2.1046(c) Test Performed By: David Light Date of Test: 19 May 2014 Minimum Standard: Subpart F--Television Broadcast Auxiliary Stations Sec. 74.636 Power limitations. (…
