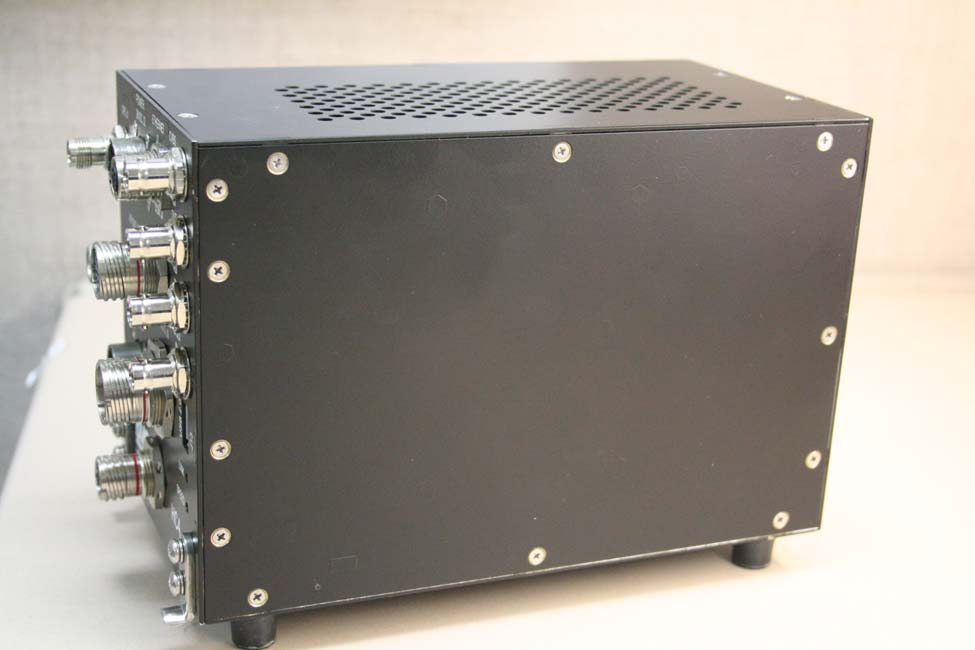

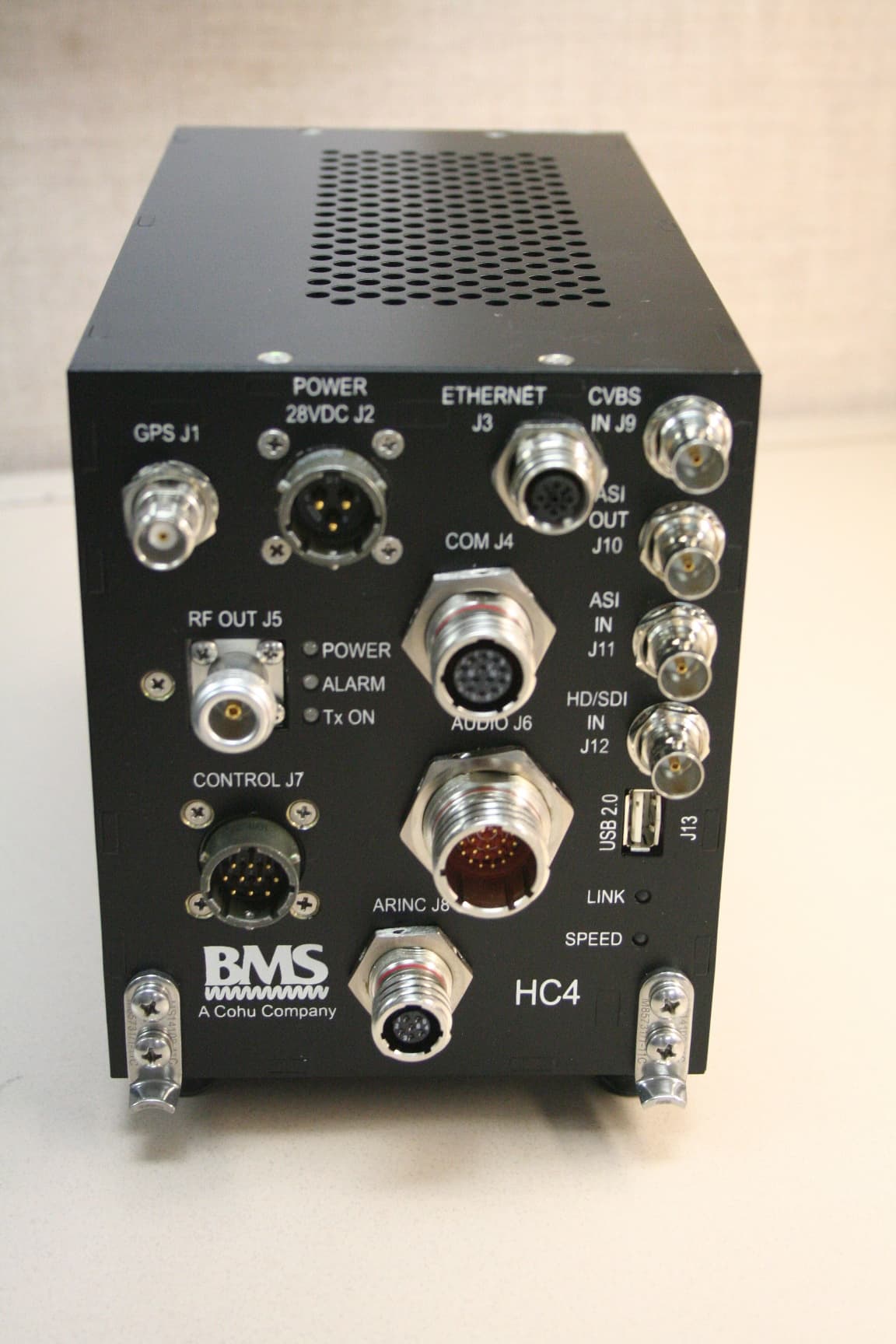

CNVHC4-2Heli-Coder 4 Transmitter

HELI-CODER™ 4 TRANSMITTER Operation Manual Doc. No. 6051452100 Rev.B1 Broadcast Microwave Services, Inc. | www.bms-inc.com Corporate Headquarters 12367 Crosthwaite Circle | Poway, CA 92064 US Phone: +1 800-669-9667 (US) | +1 (858) 391-3050 | Fax: +1 (858) 391-3049 BMS European Office Schwalbacherstr. 12 | 65321 Heidenrod-Kemel GERMANY Phone: +49-6124-7239-00 | Fax: +49-6124-7239-29  2012 Broadcast Microwave Services. All rights reserved. This document and the information contained in it is the property of Broadcast Microwaves Services, Inc. and may be the subject of patents pending and granted. It must not be used for commercial purposes nor copied, disclosed, reproduced, stored in a retrieval system or transmitted in any form or by any means (electronic, mechanical, photocopying, recording or otherwise), whether in whole or in part, without BMS prior written agreement. This printed document is uncontrolled and is for reference only. Users are to verify that this is the latest approved version. Heli-Coder 4 Transmitter Operation Manual | Doc. No. 6051452100 Rev. B1 Broadcast Microwave Services, Inc. i Document Revision History DRAFT November 2011 Preliminary Release April 2012 Preliminary Update May 2012 Initial Release June 2012 Rev - Add Additional Figures and Software Installation Section. December 2012 Rev A Amend DO-160 compliance table July 2013 Rev B Amend for FCC compliance Sept 2013 Rev B1 Conventions Used in This Manual 1. NOTE: Notes provide supplementary information. They are highlighted for emphasis, as in this example, and are placed immediately after the relevant text. CAUTION: Cautions give information which, if strictly followed, will prevent damage to equipment or other goods. They are boxed for emphasis, as in this example, and are placed immediately preceding the point at which the reader requires them. WARNING: Warnings give information which, if strictly observed, will prevent personal injury or death, or damage to personal property or the environment. They are boxed and shaded for emphasis, as in this example, and are placed immediately preceding the point at which the reader requires them. 2. ATTENTION! DO NOT use right-angle connectors or adapters on the RF Power Out cable assemblies. Right-angle connectors may have significant RF power loss at the operating frequencies of this system. 3. FOR ALL BMS TRANSMITTERS – Operation of a BMS transmitter product generally requires a license. It is the responsibility of the user to obtain all required operating licenses. 4. ONLY FOR PRODUCTS AWAITING FCC CERTIFICATION – This device has not been authorized as required by the rules of the US Federal Communications Commission. This device is not, and may not be, offered for sale or lease, or sold or leased, in the US until authorization is obtained. Acceptance Test Procedure (ATP) test data results by product serial number are typically shipped with all units and indicate the equipment to be operating within advertised specifications. Contact BMS to request this data. Read and Follow Instructions! All safety and operating instructions should be read before this product is operated. All operating and use instructions should be followed. This manual should be retained for future reference. EMC Compliance – This equipment is certified to the EMC requirements detailed in the technical specifications. To maintain this certification, only use the cables supplied or if in doubt contact BMS Customer Service. RF Exposure Information – For body worn operation, the device has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions device a minimum of 7.9” (20 cm) from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Broadcast Microwave Services, Inc. ii PAGE INTENTIONALLY LEFT BLANK Broadcast Microwave Services, Inc. iii Contents 1 INTRODUCTION .............................................................................................................................................. 1 2 SAFETY ............................................................................................................................................................ 2 3 PRODUCT DEFINITION ................................................................................................................................... 4 3.1 Product Specifications .............................................................................................................................. 2 3.2 Model Information ..................................................................................................................................... 2 4 CONNECTORS AND PINOUTS ....................................................................................................................... 3 5 INSTALLATION ................................................................................................................................................ 7 5.1 Locating the Components ......................................................................................................................... 7 5.2 Fasteners ................................................................................................................................................. 8 5.3 Mounting the Transmitter.......................................................................................................................... 8 5.4 Wiring Connections and Signal Interfaces .............................................................................................. 11 5.4.1 Power Input (J2) ...................................................................................................................................................... 11 5.4.2 Radio Frequency Output (RF Out) (J5) .................................................................................................................. 11 5.4.3 Serial Digital Video Input (J1…

Text truncated - open the document above for the full version.

Date: 8‐8‐13 FCC ID Label format and Location FCC ID: CNVHC4‐2 Drawing of the label below: Location of the label is seen in the drawing below:

Broadcast Microwave Services, Inc. | www.bms-inc.com Corporate Headquarters 12367 Crosthwaite Circle | Poway, CA 92064 USA Phone: +1 (858) 391-3050 | Toll-free: 800-669-9667 Fax: +1 (858) 391-3049 BMS European Office Schwalbacherstr. 12 | 65321 Heidenrod-Kemel GERMANY Phone: +49-6124-7239-00 | Fax: +49-6124-7239-29 October 16, 2013 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Re: Tune-up/Adjustment affidavit for FCC ID#: CNVHC4-2 The Applicant hereby states the above mentioned product does not require any user tune-up, adjustments, or calibration. The end user only has the option of selecting between (2) two factory set output power levels (10 Watts or 2 Watts). To do so, the user must select either High or Low Power from the external control panel. Sincerely Graham Bunney President Broadcast Microwave Services, Inc.

RF Exposure Discussion for BMS Heli-Coder 4 (HC4) Page 1 of 2 Broadcast Microwave Services, Inc. The Heli-Coder 4 (HC4) is built to best commercial practices and is meant for use in a professional environment. It is assumed that users are familiar with basic RF equipment operation and safety concepts. The following discussion is offered with the recommendation that individuals and organizations establish an RF Safety and Awareness program based on their combination of hardware and usage environment. The FCC reference document is OET Bulletin 65 and can be viewed here; http://www.fcc.gov/Bureaus/Engineering_Technology/Documents/bulletins/oet65/oet65.pdf Link valid as of 2/25/2014 The OET 65 document sets maximum permitted exposure (MPE) and is widely cited within the U. S. and Canada. It is divided into two categories, “controlled” and “uncontrolled” environment. BMS recommends users comply with limits for the uncontrolled environment. The limit table from FCC OET Bulletin 65 is reproduced below. X axis is frequency and Y axis is mW/cm². Using different combinations of frequency, output power, antenna type, etc. results in different MPE limits. Limit your exposure by raising awareness and using some common sense rules: • Default to low power, using hi-power only as required. • Never stand in front of a transmitting directional antenna. • Limit transmission duty cycles (turn on/off as needed). RF Exposure Discussion for BMS Heli-Coder 4 (HC4) Page 2 of 2 Broadcast Microwave Services, Inc. The safe working distance from a transmitting antenna may be calculated from the relationship: • • In which D = safe working distance (meters) • PT = transmitter or combiner power output (watts) • GR = antenna gain ratio = anti log (gain dBi ÷10) • W = power density (watts/square meter) [1 mW/cm 2 = 10 W/m 2 ] MPE DISTANCE CALCULATOR FOR COMMON ANTENNAS ‐ DISTANCE IN INCHES TRANSMITTER OUTPUT (w)10 ANTENNA GAIN dBi 02469111422 UNCONTROLLED ENVIRONMENT: MINIMUM PERMISSABLE DISTANCE INCHES (1.005 mW/cm^2)11.0813.9517.5622.1031.2239.3155.52 139.47 CONTROLLED ENVIRONMENT: MINIMUM PERMISSABLE DISTANCE INCHES (5.005 mW/cm^2)4.966.257.879.9113.9917.6124.8862.50 Table 1: Example MPE distances for a 10W transmitter

Nemko USA, Inc. 2210 Faraday Ave, Suite 150 Carlsbad, CA 92008 Phone (760) 444-3500 Fax (760) 444-3005 Master: FCC Part22HCSU Date February 13, 2002 CERTIFICATION TEST REPORT Report Number: 2013 06236241 FCCR1 Project Number: Q10239539 Nex Number: 236241 Applicant: B ROADCAST MICROWAVE SERVICES 12367 CROSTHWAITE CIRCLEDOCK 10 Poway, CA 92069 Equipment Under Test (EUT): TRANSMITTER Model: HELI-CODER 4 FCC ID: CNVHC4-2 In Accordance With: FCC Part 74, Subpart F TELEVISION BROADCAST AUXILIARY STATIONS Tested By: Nemko USA Inc. 2210 Faraday Avenue, Suite 150 Carlsbad, CA 92008 Authorized By: Alex Chang, EMC/RF Test Engineer Date: F EBRUARY 20, 2014 Total Number of Pages: 146 Nemko USA, Inc. 2210 Faraday Avenue, Suite 150, Carlsbad, CA 92008 Phone (760) 444-3500 Fax (760) 444-3005 DATE DOCUMENT NAME DOCUMENT # PAGE Feb. 20, 2014 Heli-Coder 4 -- FCC Test Report2013 06236241 FCCR1 2 of 146 FCC ID: CNVHC4-2 Page 2 of 146 Table of Contents Section 1. Summary of Test Results ....................................................................................................... 3 1.1 GENERAL ....................................................................................................................................... 3 1.2 REPORT RELEASE HISTORY ............................................................................................................ 4 1.3 DESCRIPTION OF TEST SITE ............................................................................................................ 5 1.4 FACILITY ACCREDITATION AND AUTHORIZATION ............................................................................... 5 1.5 EQUIPMENT UNDER TEST ............................................................................................................... 5 Section 2. Test Results ........................................................................................................................... 6 2.1 SUMMARY OF TEST DATA ............................................................................................................... 6 2.2 TEST CONDITIONS .......................................................................................................................... 6 2.3 MODULATION CHARACTORISTICS .................................................................................................... 7 2.4 RF POWER OUTPUT ....................................................................................................................... 8 2.5 OCCUPIED BANDWIDTH ................................................................................................................ 10 2.6 SPURIOUS EMISSIONS AT ANTENNA TERMINALS ............................................................................ 67 2.7 EMISSION MASKS ......................................................................................................................... 86 2.8 FREQUENCY STABILITY ............................................................................................................... 141 Section 3. Block Diagrams ................................................................................................................... 143 PARA. NO. 2.1046 - R.F. POWER OUTPUT ............................................................................................... 143 PARA. NO. 2.1049 - OCCUPIED BANDWIDTH ............................................................................................. 143 PARA. NO. 2.1051 - SPURIOUS EMISSIONS AT ANTENNA TERMINALS ......................................................... 144 PARA. NO. 2.1053 - FIELD STRENGTH OF SPURIOUS RADIATION ............................................................... 144 PARA. NO. 2.1055 - FREQUENCY STABILITY ............................................................................................. 145 Section 4. Test Equipment List ............................................................................................................. 146 Nemko USA, Inc. 2210 Faraday Avenue, Suite 150, Carlsbad, CA 92008 Phone (760) 444-3500 Fax (760) 444-3005 DATE DOCUMENT NAME DOCUMENT # PAGE Feb. 20, 2014 Heli-Coder 4 -- FCC Test Report2013 06236241 FCCR1 3 of 146 FCC ID: CNVHC4-2 Page 3 of 146 Section 1. Summary of Test Results 1.1 General All measurements are traceable to national standards These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 74; Subpart F. Radiated tests were conducted is accordance with ANSI C63.4-2003. Radiated emissions are made in the 10m Semi-anechoic chamber. A description of the test facility is on file with the FCC and IC. The assessment summary is as follows: Apparatus Assessed: Transmitter Model: Heli-Coder 4 Specification: FCC Part 74 Date Received in Laboratory: May 17, 2013 Compliance Status: Complies Exclusions: None Non-compliances: None Nemko USA, Inc. 2210 Faraday Avenue, Suite 150, Carlsbad, CA 92008 Phone (760) 444-3500 Fax (760) 444-3005 DATE DOCUMENT NAME DOCUMENT # PAGE Feb. 20, 2014 Heli-Coder 4 -- FCC Test Report2013 06236241 FCCR1 4 of 146 FCC ID: CNVHC4-2 Page 4 of 146 1.2 Report Release History Revision Date Comments - June 5, 2013 Prepared By: Alex Chang - June 5, 2013 Initial Release: Alan Laudani 1 FEBRUARY 20, 2014 Revised BW, E-masks, Spurious and Power by D. Light, Added Modulation Characteristics; re-release: Alan Laudani Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. Nemko USA Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko USA Inc. acc…
