CNVHCII-96 GHz Power Amplifier

Broadcast Microwave Services, Inc. – 12367 Crosthwaite Circle – Poway, CA 92064 1 Phone: 800-669-9667, 1-858-391-3050 - Fax: 1-858-391-3049 Email: [email protected] Web: www.bms-inc.com 6GHz / 4W Power Amplifier User Manual (BPA-5CC-9) Specifications are subject to change without prior notice. This document contains confidential information and is intended for customer use only. It cannot be duplicated without prior authorization from BMS. Broadcast Microwave Services, Inc. – 12367 Crosthwaite Circle – Poway, CA 92064 2 Phone: 800-669-9667, 1-858-391-3050 - Fax: 1-858-391-3049 Email: [email protected] Web: www.bms-inc.com WARNING! RF RADIATION EXPOSURE HAZARD This warning is provided by Broadcast Microwave Services (BMS) Inc. for safety purpose. The following information help to reduce the risk of RF exposure hazard. FCC Limit of RF Exposure According to Federal Communication Commission (FCC), the Maximum Permissible Exposure (MPE) for FR radiation has been set to 1.0 mW/cm 2 for the 6 GHz Power Amplifier with maximum 4 Watt output power (OET Bulletin 65). The 6 GHz Power Amplifier (PA) may ba a part of a non-broadcast transmitter and without an antenna it will not create RF exposure (power density) exceeding the 1.0 mW/cm 2 FCC limit. However a high-gain antenna such as a parabolic dish will greatly enhance the 6 GHz PA output power density beyond the MPE limit of 1.0 mW/cm 2 . In this situation a minimum distance from the antenna needs to be calculated in order to keep the MPE always below the safety limit. The calculation has been done for 6 GHz PA based on the formula mentioned in OET Bulletin 56. The calculations have been done for different commonly used antenna in the BAS and Public Safety/ Law enforcement applications. Figure 1 shows the plot of the minimum exposure distance for 5dBi, 16dBi, and 30dBi antennas. The 6 GHz PA transmits the maximum power of 4 Watt. The minimum exposure distances are found from the cross points of the exposure graphs (for various antennas) with the line of maximum permissible exposure (i.e. 1mW/cm 2 ). Notice that the numbers in Figure 1 predict the worse case scenario, which is straight in front of the antenna (exposing to the antenna main-lobe). Obviously the side-lobe exposures are well below these numbers as the radiation intensity dramatically reduces on the side lobes. The antenna used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Broadcast Microwave Services, Inc. – 12367 Crosthwaite Circle – Poway, CA 92064 3 Phone: 800-669-9667, 1-858-391-3050 - Fax: 1-858-391-3049 Email: [email protected] Web: www.bms-inc.com Estim a te d RF Ex posure for 4 W a tt 6GHz Pow e r Am plifie r 0.0 1.0 2.0 3.0 4.0 5.0 0100200300400500600700 Dis tance , cm Power Density, mW/cm^2 Figure 1 Summary In order the keep the RF exposure within the FCC limit, it is necessary to maintain the safe distance from the antenna. The results shown in Figures 1 can be summarized in the following table: Antenna Gain (dBi) Minimum permissible distance from antenna (cm) 5 16 30 40 112 560 Notice the above table indicates worst-case situation (straight in front of the antenna). Broadcast Microwave Services, Inc. – 12367 Crosthwaite Circle – Poway, CA 92064 4 Phone: 800-669-9667, 1-858-391-3050 - Fax: 1-858-391-3049 Email: [email protected] Web: www.bms-inc.com LINEAR POWER AMPLIFIER (BPA-5CC-9) BPA-5CC-9 is a linear power amplifier with 4 watt maximum RF power and operating at 6.425 – 6.525 GHz). This power amplifier is used for increasing the transmitting range by boosting the 6GHz transmitter power to maximum 4 Watts. Application Portable 6GHz COFDM transmitters such as 6GHz Carry-Coder II, are used behind the camera in Electronic News Gathering (ENG). These transmitters are only capable to provide a medium RF power (e.g. 250mW). This seriously limits the distance between the event site and the TV relay station. To extend the transmission range, an external amplifier is needed to boost the transmitter power in order to compensate the path loss and ensure the acceptable Received Signal Level (RSL) at the destination. The BPA-5CC-9 will increase the RF power to the maximum 4W, without adding spurious and distortions to the transmitter output. The output of the power amplifier is directly connected to the 6 GHz transmitting antenna. Figure 1 BPA-5CC-9 Linear Power Amplifier Broadcast Microwave Services, Inc. – 12367 Crosthwaite Circle – Poway, CA 92064 5 Phone: 800-669-9667, 1-858-391-3050 - Fax: 1-858-391-3049 Email: [email protected] Web: www.bms-inc.com Specification: Ch Frequency 6.425 – 6.525 GHz Output Power 4 Watt max. Input Voltage 28 VDC Input Current 7.3 Amp Input RF Power 16 mW (12 dBm) max. Gain @ 12 dBm input 25 dB Gain Flatness ± 0.5 dB Over 50 MHz Gain vs. Temperature ± 1 dB Over Temperature Operating Temperature -20° to +50°C Storage Temperature 40° to +90°C Dimensions 9.5” x 5” x 3” Weight 5 lbs RF Input Connector Type “N” RF Output Connector Type “N” Isolator Protected CONTACT INFORMATION Broadcast Microwave Services, Inc. Phone: 1.858.391.3050 Fax: 1.858.391.3049 Shipping address: 12367 Crosthwaite Circle Poway, CA 92064 Website: http://www.bms-inc.com Email: [email protected] [email protected] Typical application of the 6GHz Power Amplifier is shown in Figure 2. Figure 2 Typical application of the 6GHz Power Amplifier Broadcast Microwave Services, Inc. – 12367 Crosthwaite Circle – Poway, CA 92064 6 Phone: 800-669-9667, 1-858-391-3050 - Fax: 1-858-391-3049 Email: [email protected] Web: www.bms-inc.com The diagram of Figure 2 simply shows the connections, not indicating a practical installation. A more informative diagram is shown in Figure 3. Microphone Video Camera 6 GHz Power Amp RF Out RF Out 4W Max. Optional Battery 6 GHz Carry-Coder II Transmitter Site The antenna mast is located on the roof of the vehicle 6GHz Decoder II Coaxial Cable Power Supply Control Unit Receive Site Coaxial Cab…

Text truncated - open the document above for the full version.

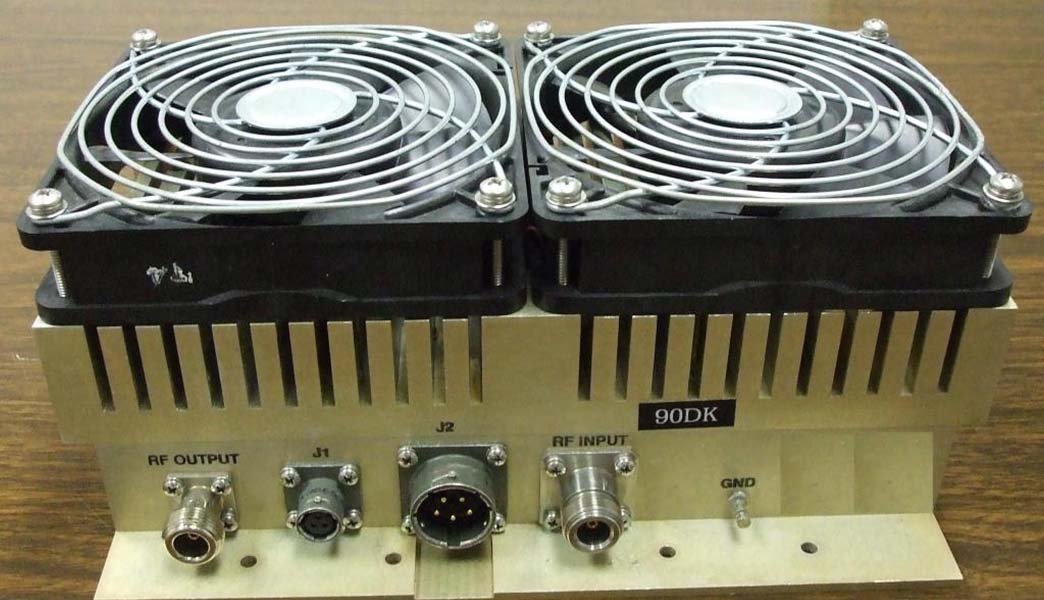

(8014079050) RF Output Power Detector Output (ALC) DC Voltage RF Input Fans Ground (8014079050) RF Output Power Detector Output (ALC) DC Voltage RF Input Fans Ground (8014079050) Location of FCC Label (8014079050) (8014079050)

Broadcast Microwave Services Inc. Made In USA FCC ID : CNVHCII-9 Model No: BPA-5CC-9 Sample FCC ID Label for 6GHz /5W Power Amplifier Dimensions: 2.5" x 0.5" (8014079050) Location of FCC Label

6 GHz Power Amplifier Assembly (8014079050)

Broadcast Microwave Services Inc. 12367 Crosthwaite Circle, Poway, CA 92064-6817 Phone: 858-391-3050. Toll Free: 800-669-9667. Fax: 858-391-3049. Web: www.bms-inc.com 1 WARNING! RF RADIATION EXPOSURE HAZARD This warning is provided by Broadcast Microwave Services (BMS) Inc. for safety purpose. The following information help to reduce the risk of RF exposure hazard. FCC Limit of RF Exposure According to Federal Communication Commission (FCC), the Maximum Permissible Exposure (MPE) for FR radiation has been set to 1.0 mW/cm 2 for the 6 GHz Power Amplifier with maximum 4 Watt output power (OET Bulletin 65). The 6 GHz Power Amplifier (PA) may be a part of a non-broadcast transmitter and without an antenna it will not create RF exposure (power density) exceeding the 1.0 W/cm 2 FCC limit. However a high-gain antenna such as a parabolic dish will greatly enhance the 6 GHz PA output power density beyond the MPE limit of 1.0 mW/cm 2 . In this situation a minimum distance from the antenna needs to be calculated in order to keep the MPE always below the safety limit. The calculation has been done for 6 GHz PA based on the formula mentioned in OET Bulletin 56. The calculations have been done for different commonly used antenna in the BAS and Public Safety/ Law enforcement applications. Figure 1 shows the plot of the minimum exposure distance for 5dBi, 16dBi, and 30dBi antennas. The 6 GHz PA transmits the maximum power of 4 Watt. The minimum exposure distances are found from the cross points of the exposure graphs (for various antennas) with the line of maximum permissible exposure (i.e. 1mW/cm 2 ). Notice that the numbers in Figure 1 predict the worse case scenario, which is straight in front of the antenna (exposing to the antenna main-lobe). Obviously the side-lobe exposures are well below these numbers as the radiation intensity dramatically reduces on the side lobes. Broadcast Microwave Services Inc. 12367 Crosthwaite Circle, Poway, CA 92064-6817 Phone: 858-391-3050. Toll Free: 800-669-9667. Fax: 858-391-3049. Web: www.bms-inc.com 2 Estimated RF Exposure for 4 Watt 6GHz Power Amplifier 0.0 1.0 2.0 3.0 4.0 5.0 0100200300400500600700 Dis tance , cm Power Density, mW/cm^2 Figure 1 Summary In order the keep the RF exposure within the FCC limit, it is necessary to maintain the safe distance from the antenna. The results shown in Figures 1 can be summarized in the following table: Antenna Gain (dBi) Minimum permissible distance from antenna (cm) 5 16 30 40 112 560 Notice the above table indicates worst-case situation (straight in front of the antenna).

Nemko USA, Inc. Phone (858) 755-5525 Fax (858) 452-1810 11696 Sorrento Valley Rd., Suite F San Diego, CA 92121-1024 Test Report: 2007 065696 FCC Applicant: Broadcast Microwave Services 12367 Crosthwaite Circle Dock 10 Poway, CA 92064 (858) 391-3050 x147 (858) 391-3049 - fax Equipment Under Test: Model: BPA-(X)CC Linear Power Amplifier FCC ID: CNVHCII-9 In Accordance With: FCC PART 2 and FCC PART 74 Subpart F Tested By: Nemko USA Inc. 11696 Sorrento Valley Road San Diego, CA 92121-1024 Date: July 12, 2007 Total Number of Pages: 40 Nemko USA Inc. EQUIPMENT: BPA-(X)CC Linear Power Amplifier FCC ID: CNVHCII-9 REPORT NO.: 2007 065696 FCC Page 2 of 40 DOCUMENT HISTORY REVISION DATE COMMENTS - July 12, 2007 Prepared By: F.S.Custodio - July 12, 2007 Initial Release: M. T. Krumweide NOTE: Nemko USA, Inc. hereby makes the following statements so as to conform to Chapter 10 (Test Reports) Requirements of ANSI C63.4: 2003 “Methods and Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz”: o The unit described in this report was received at Nemko USA, Inc.'s facilities on June 25, 2007. Testing was performed on the unit described in this report on June 25, 2007 to July 12, 2007. o The Test Results reported herein apply only to the Unit actually tested, and to substantially identical Units. o This report does not imply the endorsement of the Federal Communications Commission (FCC), NVLAP or any other government agency. This Report is the property of Nemko USA, Inc., and shall not be reproduced, except in full, without prior written approval of Nemko USA, Inc. However, all ownership rights are hereby returned unconditionally to Broadcast Microwave Services, and approval is hereby granted to Broadcast Microwave Services and its employees and agents to reproduce all or part of this report for any legitimate business purpose without further reference to Nemko USA, Inc. Nemko USA Inc. EQUIPMENT: BPA-(X)CC Linear Power Amplifier FCC ID: CNVHCII-9 REPORT NO.: 2007 065696 FCC Page 3 of 40 Table of Contents Section 1. Summary of Test Results...................................................................... 5 Section 2. General Equipment Specification......................................................... 6 Section 3. RF Power Output ................................................................................... 7 Section 4. Modulation Characteristics................................................................. 11 Section 5. Occupied Bandwidth ........................................................................... 15 Section 6. Spurious Emissions At Antenna Terminals ...................................... 19 Section 7. Field Strength of Spurious.................................................................. 29 Section 8. Frequency Stability.............................................................................. 31 Section 9. Test Equipment List............................................................................. 32 APPENDICES Section 6. Spurious Emissions At Antenna Terminals ...................................... 33 Nemko USA Inc. EQUIPMENT: BPA-(X)CC Linear Power Amplifier FCC ID: CNVHCII-9 REPORT NO.: 2007 065696 FCC Page 4 of 40 CERTIFICATION Nemko USA, Inc., an independent Electromagnetic Compatibility (EMC) Test Laboratory, produced this Test Report and performed the Radio Frequency Interference (RFI) testing and data evaluation contained herein. Nemko USA, Inc.’s measurement facility is currently registered with the United States Federal Communications Commission (FCC) in accordance with the provisions of 47 United States Code (CFR) Part 2, Subpart I, Section 2.948(a). A current description of Nemko USA, Inc.’s measurement facility is on file with the FCC. Nemko USA Inc. has additionally satisfied the FCC that it complies with the requirements set forth in 47 CFR Part 2, Subpart I, Section 2.948(d) regarding the accreditation of EMC laboratories. As a result, the FCC has placed Nemko USA Inc. on its list of EMC laboratories approved to perform Declaration of Conformity (DOC) procedure testing. The RFI testing, test data collection and test data evaluation were accomplished in accordance with the ANSI C63.4: 2003 Standard, and in accordance with the applicable sections of the FCC rules (47 CFR Parts 2 and 18)." digital devices. The testing was also accomplished in accordance with Industry Canada's ICES-003 standard for unintentional radiating device per EMCAB-3, Issue 3 (May 1998). The administrative summary of this test report provides a description of the test sample I hereby certify that the test data, test data evaluation, and equipment configurations used to compile this test report are a true and accurate representation of the test sample’s radio frequency interference characteristics as of the test date(s), and, for the design of the test sample. Mike T. Krumweide, EMC Test Supervisor Nemko USA Inc. EQUIPMENT: BPA-(X)CC Linear Power Amplifier FCC ID: CNVHCII-9 REPORT NO.: 2007 065696 FCC Page 5 of 40 Section 1. Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC PART 2 and FCC PART 74 Subpart F. The EUT is a linear power amplifier, in order to exercise the unit; it was connected to a 6GHz Carry- Coder II (CCII) COFDM Digital Wireless Camera System with SN 477 Rev. D. Summary Of Test Data Name Of Test Para. No. Result RF Power Output 2.1046 PASS Modulation Characteristics 2.1047 AS REPORTED Occupied Bandwidth 2.1049 PASS Spurious Emissions at Antenna Terminals 2.1051 PASS Field Strength of Spurious Emissions 2.1053 PASS Frequency Stability 2.1055 PASS Footnotes for 2.1047: EUT is a linear power amplifier. Parts 74 do not express limits or pass/fail criteria for Modulation Characteristics. Test Conditions: Indoor Temperature: 23.3—24.4 °C Humidity: 58-60 % O…

Text truncated - open the document above for the full version.

CNVHCII-9 CNVHCII-9
