CWU-HSTBluetooth Handset

Installation Guide MXA-HST Modero X® Series Bluetooth Handset Overview The MXA-HST Modero X Series Bluetooth Handset (FG5968-17) is an optional accessory for use with the Modero X series of touch panels. The handset allows wireless Bluetooth audio communication via the touch panel, while the handset’s Charging Cradle allows recharging either via a USB connection to the touch panel or via the included electrical adapter. Product Specifications Safety and Battery Charging Information Safety Information •Do not dismantle, open, or shred the battery. •Do not short-circuit the battery. Do not store batteries haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conduc- tive materials. •Do not remove a battery from its original packaging until required for use. •Do not expose batteries to heat or fire. Avoid storage in direct sunlight. •Do not subject the batteries to mechanical shock. •In the event of a cell leaking, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice. •Equipment should be designed to prohibit the incorrect insertion of the battery and its connector. •Store the batteries in a dry place with the temperature between 32° F (0° C) and 104° F (40° C). •Do not maintain the battery on charge when not in use. •Secondary batteries give their best performance when they are operated at normal room temperature: 68° F +/- 5° (20° +/- 5° C). CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. Charging •Use only with approved charger. •Charge with a constant-voltage, constant-current battery charger circuit with the following parameters: Maximum charge voltage 4.20 +/- 0.025 VDC Maximum charge current: 640 mA Charge temperature range: 32° to 104° F (0° C to 40° C) Disposal •When disposing of batteries, keep cells or batteries of different electrochemical systems separate from each other. •Recycle or dispose of this battery in accordance with local regulations. FCC Notice This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Indicator Light Status The indicator light on the back of the MXA-HST (FIG. 1) flashes and changes color based on the handset’s current status. Getting Started To use your MXA-HST Bluetooth handset: 1.Ensure that your handset is fully charged. 2.Pair your charged handset with a Modero X Series touch panel. For more information, please refer to the Pairing the MXA-HST with a Modero X Series Touch Panelsection on page 2 below. FIG. 1 MXA-HST Handset MXA-HST Specifications Power Requirements:TBD Bluetooth Specification:V2.1+EDR Class 2 Bluetooth ProRes Supported: Headset Handsfree, A2DP and AVRCP Range of Frequency:2.4GHz Spectrum Nominal Charging Time: Within 3 hours Talk Time:Up to 5 hours Standby Time:Up to 130 hours Dimensions (HWD): • Handset: 6.88” x 1.62” x .77” (17.46 cm x 4.12 cm x 1.95 cm) • Charging Station: 1.93” x 3.64” 3.01” (5.06 cm x 9.25 cm x 7.65 cm) Weight: • Handset: 0.2 lbs (90.72 g) • Charging Cradle: 0.2 lbs (90.72 g) Certifications:• CE • FCC part 15 Class A Included Accessories: • Power plug, US (FGXXXX) Other AMX Equipment:• International power plug adapters, 3-pack (FGXXXX) Back Front Indicator Light Multi-Function Button Mute Button Volume Up/Volume Down Buttons Indicator Light Handset StatusIndicator Light StandbyFlash white Charging (OFF MODE)Solid blue Fully Charged (OFF MODE)Solid white MuteSolid red Low BatteryFlash red with beep every minute Out of ChargeIndicator light turns off Out of RangeSolid blue for 5 seconds For full warranty information, refer to the AMX Instruction Manual(s) associated with your Product(s). 6/12 ©2012 AMX. All rights reserved. AMX and the AMX logo are registered trademarks of AMX. AMX reserves the right to alter specifications without notice at any time. 3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993 • www.amx.com 93-5968-17 REV: A Charging the MXA-HST The MXA-HST comes with a built-in rechargeable battery. Prior to using the handset for the first time, fully charging the battery is highly recommended. To charge your handset: 1.If you wish to charge your MXA-HST via USB, insert the USB plug of the Charging Cradle (FIG. 2) into an available USB port on the Modero X Series touch panel. 2.Insert the base of the handset into the Charging Cradle. The indicator light on the back of the handset will turn blue while…

Text truncated - open the document above for the full version.

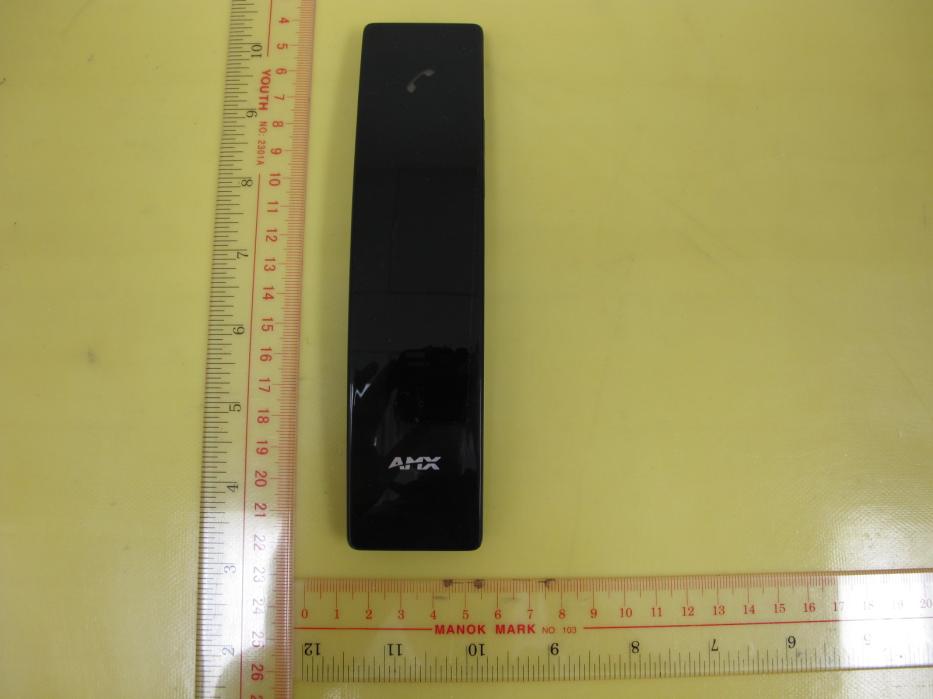

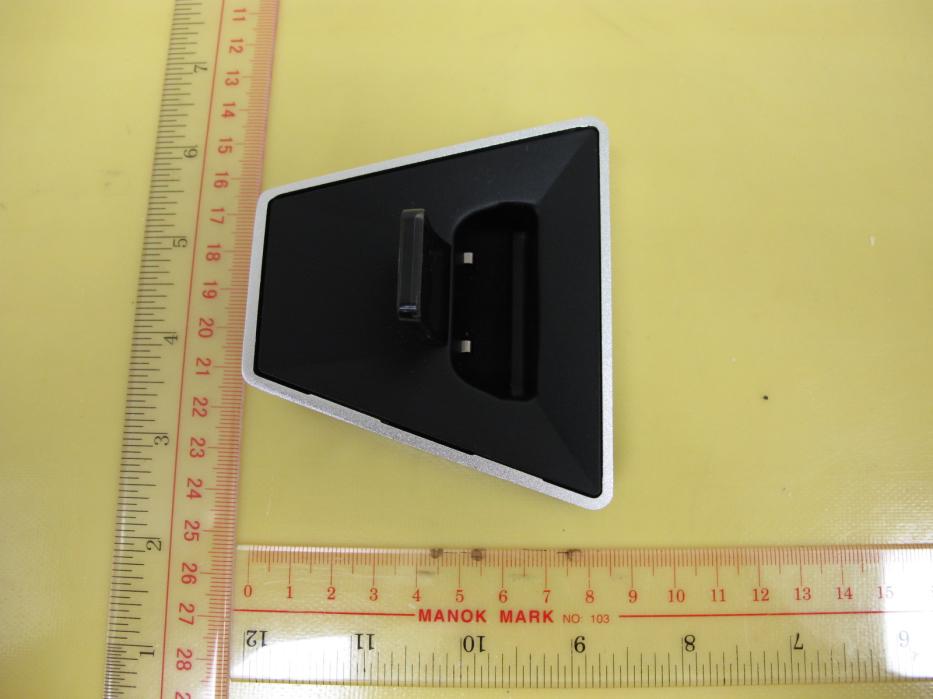

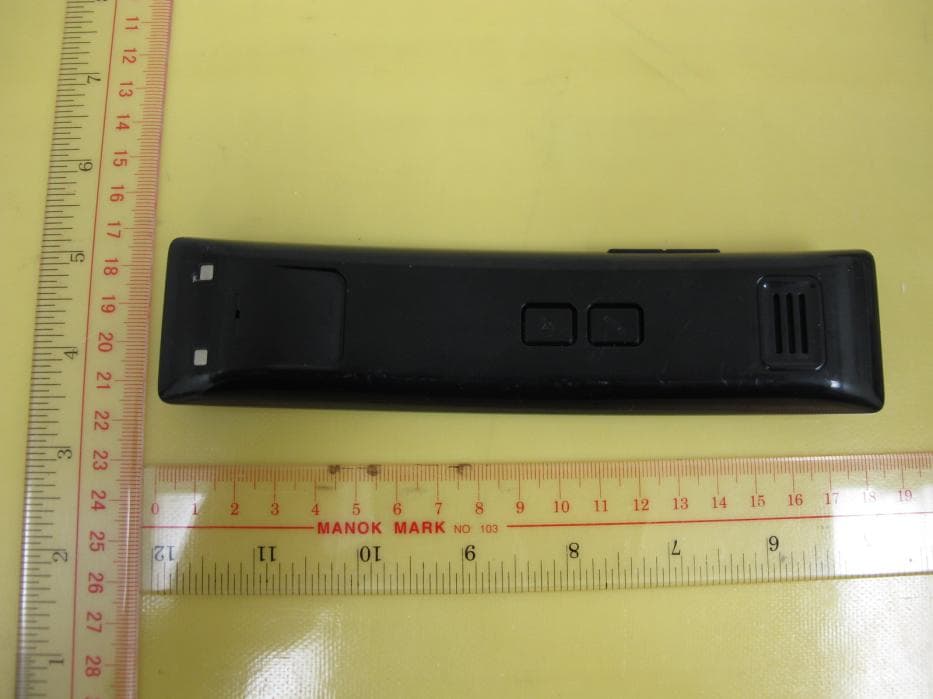

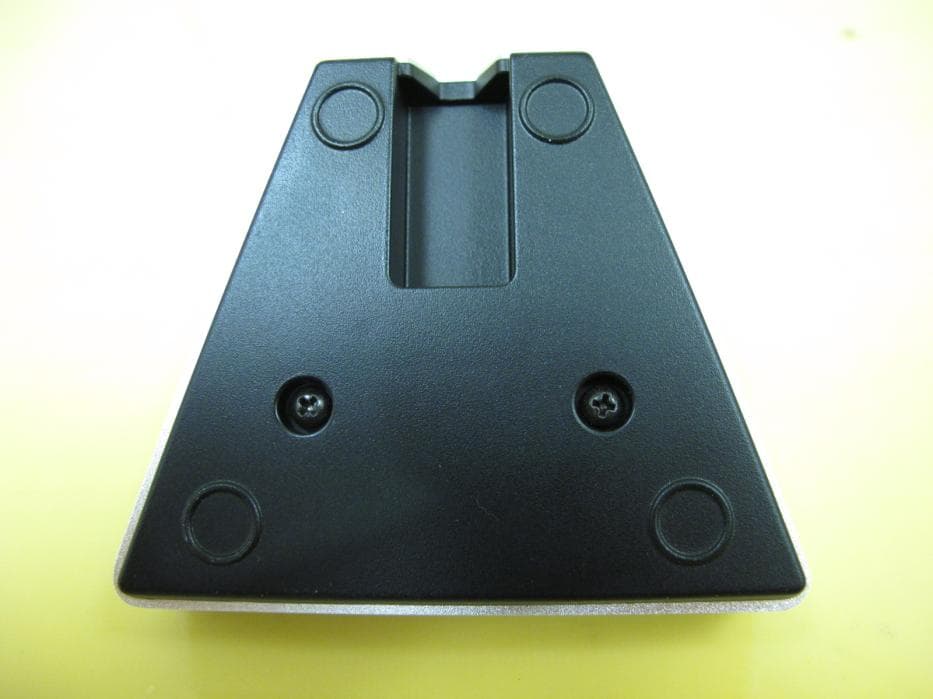

Appendix B Date: 2012-06-06 Report No.: 60.870.12.012.01F Model No.: MXA-HST Photo of EUT – External EUT Photos Page 1 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Handset Appendix B Date: 2012-06-06 Report No.: 60.870.12.012.01F Model No.: MXA-HST Photo of EUT – External EUT Photos Page 2 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Handset Cradle Appendix B Date: 2012-06-06 Report No.: 60.870.12.012.01F Model No.: MXA-HST Photo of EUT – External EUT Photos Page 3 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Cradle Appendix B Date: 2012-06-06 Report No.: 60.870.12.012.01F Model No.: MXA-HST Photo of EUT – External EUT Photos Page 4 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Cradle Appendix B Date: 2012-06-06 Report No.: 60.870.12.012.01F Model No.: MXA-HST Photo of EUT – External EUT Photos Page 5 of 5 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong AC/DC Adaptor

Appendix C Date: 2012-06-06 Report No.: 60.870.12.012.01F Model No.: MXA-HST Photo of EUT – Internal EUT Photos Page 1 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Handset Appendix C Date: 2012-06-06 Report No.: 60.870.12.012.01F Model No.: MXA-HST Photo of EUT – Internal EUT Photos Page 2 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Handset Appendix C Date: 2012-06-06 Report No.: 60.870.12.012.01F Model No.: MXA-HST Photo of EUT – Internal EUT Photos Page 3 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Cradle Appendix C Date: 2012-06-06 Report No.: 60.870.12.012.01F Model No.: MXA-HST Photo of EUT – Internal EUT Photos Page 4 of 4 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong

TEST REPORT Date: 2012-06-06 Report No.: 60.870.12.012.01F Page 1 of 32 TUV SUD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Applicant: AMX LLC 3000 Research Drive Richardson, Tx 75082, USA Description of Samples:Model name: Bluetooth Handset Brand name: AMX Model no.:MXA-HST FCCID:CWU-HST Date Samples Received:2012-05-10 Date Tested:2012-05-10 to 2012-06-04 Investigation Requested:FCC Part 15 Subpart C, Section 15.247 Conclusions:The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks:---- Checked by:Approved by:- Ray Cheung Project Engineer Wireless & Telecom Department Jeff Pong Operation Manager Wireless & Telecom Department ReportNo.: 60.870.12.012.01F Page 2 of 32 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong CONTENT: Cover Page 1 of 32 Content Page 2-3 of 32 1.0General Details 1.1Test Laboratory Page 4 of 32 1.2Applicant Details Page 4 of 32 1.3Equipment Under Test [EUT] Page 5 of 32 1.4 Related Submittal(s) Grants Page 5 of 32 2.0Technical Details 2.1Investigations Requested Page 6 of 32 2.2Test Standards and Results Summary Page 6 of 32 3.0Test Methodology 3.1Radiated Emission Page 7 of 32 3.2Field Strength Calculation Page 7 of 32 3.3Conducted Emission Page 7 of 32 4.0Test Results 4.1 Number of Frequency Hopping Page 8 of 32 4.2 20dB Bandwidth Measurement Page 9-10 of 32 4.3 Hopping Channel Carrier Frequency Separation Page 11 of 32 4.4 Average Time of Occupancy Page 12-18 of 32 4.5 Band Edge Measurement Page 19-20 of 32 4.6 Maximum Output Power Page 21-23 of 32 4.7 Out ofBand Emissionsand Emissions in Restricted Bands Page 24-27 of 32 4.8 Conducted Emission on AC Mains Page 28-30 of 32 ReportNo.: 60.870.12.012.01F Page 3 of 32 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 5.0RF Exposure Compliance Requirement Page 31 of 32 6.0List of Measurement Equipments Page 32 of 32 Appendix A Photos of Test Setup Appendix B External EUT Photos Appendix C Internal EUT Photos ReportNo.: 60.870.12.012.01F Page 4 of 32 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 1.0General Details 1.1Test Laboratory SEM. Test Compliance Service Co. Ltd 3/F, Jinbao Commerce Building, Xin’an Fanshen Road, Bao’an District, Shenzhen. Registration Number: 994117 Tested by: John Zhi 1.2Applicant Details Applicant AMXLLC 3000 Reseach Drive Richardson, Tx 75082, USA. Manufacturer Foshan Shunde Alford Electronics Co. Ltd. Xinjiao Industrial Park, Daliang, Shunde, Foshan City, Guangdong Province, China ReportNo.: 60.870.12.012.01F Page 5 of 32 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 1.3Equipment Under Test [EUT] Description of EUT Product Description:Bluetooth Handset Model No.:MXA-HST Brand Name: AMX FCCID:CWU-HST Rating:-Cradle:.5VDC, 500mA - Handset: 3.7V 640mAh li-ion rechargeable Operated Frequency:2402 - 2480 MHz No. of Operated Channel:79 Accessories and Auxiliary Equipments:- Notebook - Bluetooth dongle - AC/DC power adaptor Antenna Type:Omini-directional Antenna Manufacture of Antenna:Misubishi Antenna Gain:0.5 dBi Antenna Model:N/A General Operation of EUT The EUT is the Bluetooth Handset. FHSS Operation Principle: This module is controlled by Bluetooth microchip to generate Pseudorandom Frequency Hopping Sequence, this module support 79 hopping channels. 1.4Related Submittal(s) Grants This is a signal application subjected to Certificate Authorization. ReportNo.: 60.870.12.012.01F Page 6 of 32 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 2.0Technical Details 2.1Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15 and ANSI C63.4: 2003 2.2Test Standards and Results Summary Tables Test ConditionTest RequirementTest Result PassN/A Number of Frequency Hopping Section 15.247 ( a1 ) 20dB Bandwidth Measurement Section 15.247 ( a1 ) Hopping Channel Carrier Frequency Separation Section 15.247 ( a1 ) Average Time of Occupancy Section 15.247 ( a1 ) Pseudorandom Hopping Algorithm Section 15.247 ( a1 ) Band Edge Measurement Section 15.247 Maximum Output PowerSection 15.247 ( b1 ) Out of Band EmissionSection 15.247 ( d ) Radiated Emission in Restricted Band Section 15.247 ( d ) Conducted Emission on AC Mains Section 15.207 RF ExposureSection 15.247 ( i ) Antenna RequirementSection 15.203 See note 1 Note 1 :The EUT uses a permanently attached antenna, which in accordance to Section 15.203, is considered sufficient to comply with the provisions of this section. Remark: N/A - Not Applicable ReportNo.: 60.870.12.012.01F Page 7 of 32 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong 3.0Test Methodology 3.1Radiated Emission The sample was placed 0.8m above the ground plane on a standard emission test site *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. 3.2Field Strength Calculation The field strength at 3 m was established by adding the meter reading of the spectrum analyzer to the factors associated with antenna correction factor, cable loss, preamplifiers and filter attenuation. The equation is expressed as follow: FS = R + System Factor System Factor = AF + CF +…

Text truncated - open the document above for the full version.

Appendix A Date: 2012-06-06 Report No.: 60.870.12.012.01F Model No.: MXA-HST Photo of Test Setup: Page 1 of 2 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Radiated Emissions Appendix A Date: 2012-06-06 Report No.: 60.870.12.012.01F Model No.: MXA-HST Photo of Test Setup: Page 2 of 2 TÜV SÜD Hong Kong Ltd. 3/F, West Wing, Phase 2, 10 Science Park West Avenue, Shatin, Hong Kong Conducted Emissions
