Installation Guide MVP-9000i Modero Wireless Touch Panel with Intercom Overview The AMX MVP-9000i-XX Modero Wireless Touch Panel is a mobile device that communicates with a NetLinx Master via a standard 802.11a/b/g Wireless Access Point. Panel to panel communication is enabled via a full duplex VoIP intercom interface with SIP integration. The MVP-9000i utilizes a 9" Color Active LCD to display a 800 x 480 pixel image using over 16.7M colors, offers control via four programmable capacitive touch buttons and a capacitive touch directional pad in addition to its touch screen, and features programmable firmware that can be upgraded via the device’s mini-USB port. The MVP-9000i comes in black (MVP-9000i-GB, FG5967-01) and white (MVP-9000i-GW, FG5967-02). For detailed installation, configuration, programming, file transfer, and operating instructions, refer to the MVP-9000i Operation/Reference Guide, available on-line at www.amx.com. Specifications Connector Locations With the unit facing you, the microSD card slot (for loading and saving files such as photos), the mini-AB USB port (for programming and downloading firmware) and the DC power jack are located on the lower left side of the device. The connector for the Table Docking Station is located on the bottom of the device. The MVP-9000i may be operated while docked in a Table Docking Station or Wall Docking Station, connected via the included power supply, or through battery power. The MVP-9000i supports an Ethernet over USB driver for panel downloads and firmware updates through its mini-USB port instead of through a standard Ethernet port. The mini-USB port may also be used, with an adaptor, with USB memory sticks and USB headphones. Note: The mini-USB port cannot be used to power the device or charge the battery. Operation and charging must be done through the Docking Station connector or through the power jack. Warning: Although firmware upgrades can be done over wireless Ethernet; it is strongly recommended that firmware KIT files be transferred over a direct USB connection and only when the panel is connected to a power supply. If battery FIG. 1 MVP-9000i-GB Touch Panel components MVP-9000i Specifications (FG5967-01/02) Dimensions (HWD): • 7.62” x 10.98” x 1.06" (19.35 cm x 27.89 cm x 2.69 cm) Weight:• 3.40 lbs (1.54 kg) Power Requirement (without charging): • Constant current draw: 1.7 A @ 12 VDC • Startup current draw: 1.9 A @ 12 VDC • If panel is mounted onto a TDS or WDS, add 0.1 A to the above figures. Power Requirement (while charging): Panel while charging battery: • Constant current draw: 3.3 A @ 12 VDC • Startup current draw: 3.9 A @ 12 VDC • If panel is mounted onto a TDS or WDS, add 0.1 A to the above figures. Minimum power supply required: • PS3.0 Power Supply (FG423-30) • PS-POE-AT High Power PoE Injector (FG423-81) through the Table Docking Station and Wall Docking Station Power Modes:• ON: All necessary modules are powered up and device remains online with the Netlinx Master. • ASLEEP: Only the backlight will be turned off after the user selectable time of inactivity has elapsed. Panel resumes the ON mode in ~ 1 second. • STANDBY: Power to all components other than the touch screen is turned off after the user selectable time of inactivity has elapsed. Device will turn back on by touching the screen. • SHUTDOWN: Power to all peripherals and components is turned off. The system remains in this mode until it is rebooted. Certifications:• FCC Class B •CE • IEC60950 •RoHS •UL • Telec - Japan approval (pending) Docking Station interface connector Speaker Directional pad Capacitive touch buttons (4) C C Microphone Mini-USB connector Stylus MicroSD card slot DC power jack memory MVP-9000i Specifications (Cont.) Battery Duration:• Four days of normal use (25% On state, 25% Standby, and 50% Shutdown). • Five hours of continuous use (continuous On state). Memory:• 2GB internal microSD (1.5GB accessible to user) Screen Properties:• Screen resolution: 800 x 480 pixels (HV) @ 60 Hz refresh rate • Aspect ratio: 16 x 9 • Brightness (luminance): 400 cd/m2 • Channel transparency: 8-bit Alpha blending • Contrast ratio: 900:1 max. • Display colors: 16.7M colors (8-bit color depth) • Dot/pixel pitch: 0.246 mm • Panel type: TFT Color Active-Matrix Active Screen Area: • 7.75” x 7.40” (196.80 mm x 188.08 mm) • 9" diagonal) Viewing Angle:• Up/Down/Left/Right: 85/85/85/85 Audio:• Mono speaker: 4 Ohm, 2 Watts 300Hz cutoff frequency Infrared Communication: • IR Transmit only, including AMX 38KHz, AMX 455KHz, and 3rd party IR. Operating/Storage Environments: • Operating Temperature: 0° C (32° F) to 40° C (104° F) • Operating Humidity: 20% - 85% RH • Storage Temperature: -20° C (-4° F) to 60° C (140° F) • Storage Humidity: 5% - 85% RH Included Accessories • PS4.4 Power Supply (FG423-45) • Stylus (pre-installed onto the left side of the unit) Other AMX Equipment: • MVP-TDS-9-GB Black Table Docking Station (FG5967-10) • MVP-TDS-9-GW White Table Docking Station (FG5967-11) • MVP-WDS-9-GB Black Wall Docking Station (FG5967-12) • MVP-WDS-9-GW White Wall Docking Station (FG5967-13) • CC-MINIUSB Mini USB to PC Cable Adapter (FG5967-20) • MVP-BP-9 Replacement Battery Pack (FG5967-21) • PS-POE-AT High Power PoE Injector (FG423-81) FIG. 2 MVP-9000i-GW Kickstand View, showing connector locations Mini-USB port DC power jack Stylus Kickstand MiicroSD card slot memory For full warranty information, refer to the AMX Instruction Manual(s) associated with your Product(s). 5/10 ©2010 AMX. All rights reserved. AMX and the AMX logo are registered trademarks of AMX. AMX reserves the right to alter specifications without notice at any time. 3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993 • www.amx.com 93-5967-01 REV: A power or wireless connection fails during a firmware upgrade, the panel flash file system may become corrupted. Setup Pages The panel is equipped with setup pages that allow you to set and con…

Text truncated - open the document above for the full version.

Operation/Reference Guide Touch Panels MVP-9000i 9" Modero ® ViewPoint ® Touch Panel with Intercom Initial Release: 10/14/2010 AMX Limited Warranty and Disclaimer This Limited Warranty and Disclaimer extends only to products purchased directly from AMX or an AMX Authorized Partner which include AMX Dealers, Distributors, VIP’s or other AMX authorized entity. AMX warrants its products to be free of defects in material and workmanship under normal use for three (3) years from the date of purchase, with the following exceptions: •Electroluminescent and LCD Control Panels are warranted for three (3) years, except for the display and touch overlay compo- nents are warranted for a period of one (1) year. •Disk drive mechanisms, pan/tilt heads, power supplies, and MX Series products are warranted for a period of one (1) year. •AMX lighting products are guaranteed to switch on and off any load that is properly connected to our lighting products, as long as the AMX lighting products are under warranty. AMX also guarantees the control of dimmable loads that are properly con- nected to our lighting products. The dimming performance or quality there of is not guaranteed, impart due to the random combi- nations of dimmers, lamps and ballasts or transformers. •AMX software is warranted for a period of ninety (90) days. •Batteries and incandescent lamps are not covered under the warranty. •AMX AutoPatch Epica, Modula, Modula Series4, Modula CatPro Series and 8Y-3000 product models will be free of defects in materials and manufacture at the time of sale and will remain in good working order for a period of three (3) years following the date of the original sales invoice from AMX. The three-year warranty period will be extended to the life of the product (Limited Lifetime Warranty) if the warranty card is filled out by the dealer and/or end user and returned to AMX so that AMX receives it within thirty (30) days of the installation of equipment but no later than six (6) months from original AMX sales invoice date. The life of the product extends until five (5) years after AMX ceases manufacturing the product model. The Limited Lifetime Warranty applies to products in their original installation only. If a product is moved to a different installation, the Limited Lifetime Warranty will no longer apply, and the product warranty will instead be the three (3) year Limited Warranty. All products returned to AMX require a Return Material Authorization (RMA) number. The RMA number is obtained from the AMX RMA Department. The RMA number must be clearly marked on the outside of each box. The RMA is valid for a 30-day period. After the 30-day period the RMA will be cancelled. Any shipments received not consistent with the RMA, or after the RMA is cancelled, will be refused. AMX is not responsible for products returned without a valid RMA number. AMX is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages. AMX is not liable for any claim made by a third party or by an AMX Autho- rized Partner for a third party. This Limited Warranty does not apply to (a) any AMX product that has been modified, altered or repaired by an unauthorized agent or improperly transported, stored, installed, used, or maintained; (b) damage caused by acts of nature, including flood, erosion, or earth- quake; (c) damage caused by a sustained low or high voltage situation or by a low or high voltage disturbance, including brownouts, sags, spikes, or power outages; or (d) damage caused by war, vandalism, theft, depletion, or obsolescence. This limitation of liability applies whether damages are sought, or a claim is made, under this warranty or as a tort claim (including negligence and strict product liability), a contract claim, or any other claim. This limitation of liability cannot be waived or amended by any person. This limitation of liability will be effective even if AMX or an authorized representative of AMX has been advised of the possibility of any such damages. This limitation of liability, however, will not apply to claims for personal injury. Some states do not allow a limitation of how long an implied warranty last. Some states do not allow the limitation or exclusion of inci- dental or consequential damages for consumer products. In such states, the limitation or exclusion of the Limited Warranty may not apply. This Limited Warranty gives the owner specific legal rights. The owner may also have other rights that vary from state to state. The owner is advised to consult applicable state laws for full determination of rights. EXCEPT AS EXPRESSLY SET FORTH IN THIS WARRANTY, AMX MAKES NO OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. AMX EXPRESSLY DISCLAIMS ALL WARRANTIES NOT STATED IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO THE TERMS OF THIS LIMITED WARRANTY. EXCEPT AS OTHERWISE LIMITED BY APPLICABLE LAW, AMX RESERVES THE RIGHT TO MODIFY OR DISCONTINUE DESIGNS, SPECIFICATIONS, WARRAN- TIES, PRICES, AND POLICIES WITHOUT NOTICE. AMX Software License and Warranty Agreement •LICENSE GRANT. AMX grants to Licensee the non-exclusive right to use the AMX Software in the manner described in this License. The AMX Software is licensed, not sold. This license does not grant Licensee the right to create derivative works of the AMX Software. The AMX Software consists of generally available programming and development software, product documenta- tion, sample applications, tools and utilities, and miscellaneous technical information. Please refer to the README.TXT file on the compact disc or download for further information regarding the components of the AMX Software. The AMX Software is sub- ject to restrictions on distribution described in this License Agreement. AMX Dealer, Distribut…

Text truncated - open the document above for the full version.

Elliott TCB 684 West Maude Ave. Sunnyvale, CA. 94085 9/8/2010 Gentlemen: This is your letter of authorization to accept our appointment of Elliott Laboratories, Inc. as our Agent for AMX LLC, 3000 Research, Richardson, TX 75082 to sign applications before Elliott TCB and to make representations to you on our behalf. Elliott Laboratories, Inc. is to receive and exchange data between our company and Elliott TCB. I hereby certify on behalf of AMX LLC, 3000 Research, Richardson, TX 75082 ("Applicant") that neither Applicant nor any party to the application (officers, directors, and 5% shareholders) is subject to a denial of Federal benefits that includes FCC benefits pursuant to section 5301 of the Anti-Drug Abuse Act of 1988. 21 U.S.C. 853a. Sincerely, Heath Sharp Product Verification Engineer

9/8/2010 Elliott TCB 684 West Maude Ave. Sunnyvale, CA. 94085 FCC ID: Dear Examiner: I am writing to avoid the possibility of an inadvertent disclosure of proprietary information. The accompanying Form 731 is being filed with the commission on our behalf by Elliott Laboratories, Inc., a consulting and testing laboratory. Included as exhibits with the enclosed application are block diagrams, schematics, and a detailed description of the theory of operation of the device. It is our intention to provide Elliott TCB and the commission with a full disclosure of our product so that its merits can be evaluated. Indeed, we are pleased to provide any further information that the commission might wish to see. It is not our intention, however, to make our proprietary process a matter of public record. In view of the fact that the block diagrams, schematics, and associated theory of operation disclose the mechanism of our process, we ask that these portions (block diagrams, schematics and theory of operation) of our application be withheld from public inspection as provided under FCC section 0.459. These documents contain details of the proprietary operation of product. These details are not readily discernible - even to technically sophisticated individuals - from our hardware and constitute trade secrets. We request therefore that these documents be segregated from the body of our evaluation report and withheld from public inspection. Thank you for your attention. Please let the undersigned know if Elliott TCB or the Commission disagrees with our position or requires further justification. Sincerely, Heath Sharp Product Verification Engineer

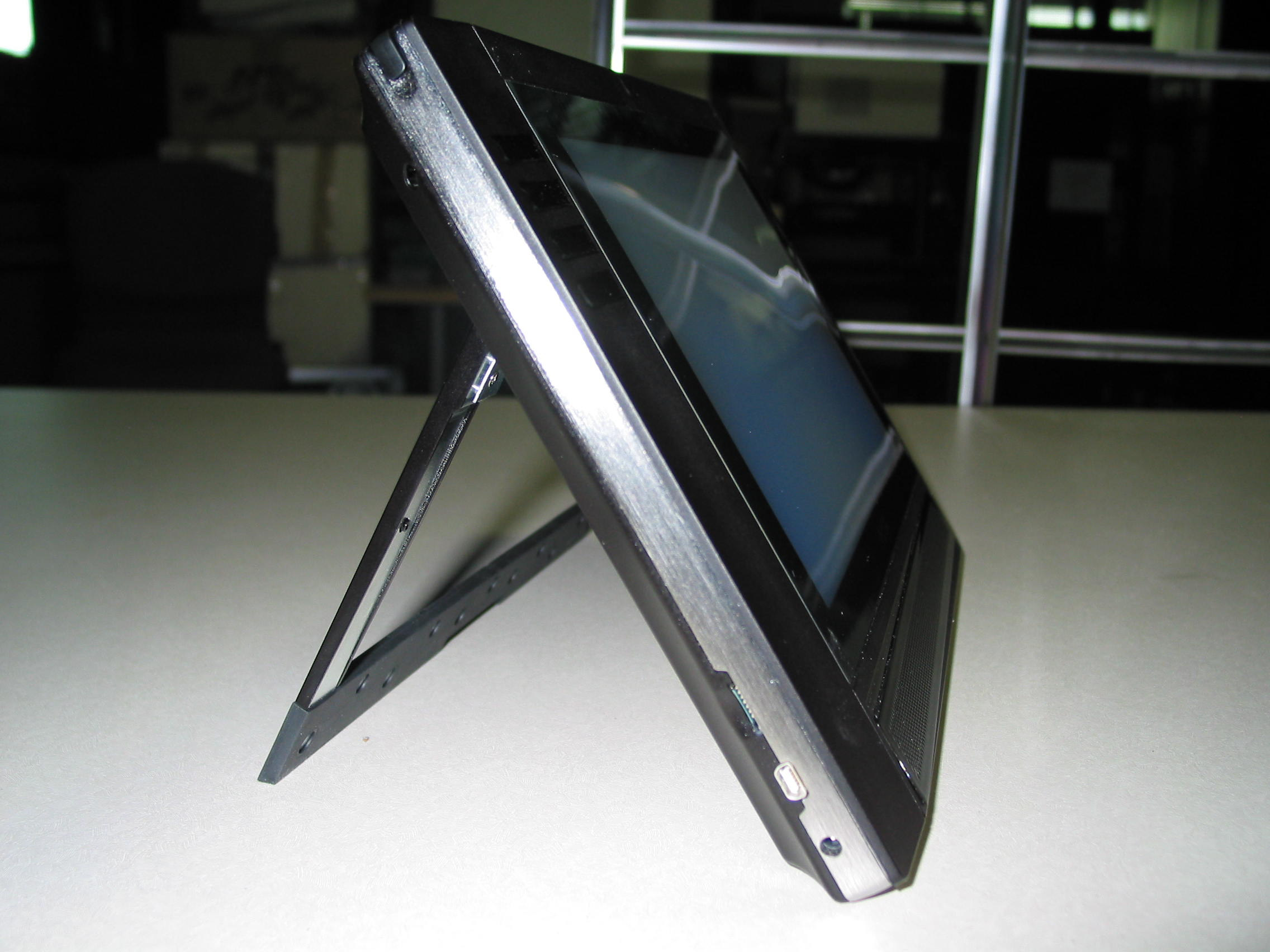

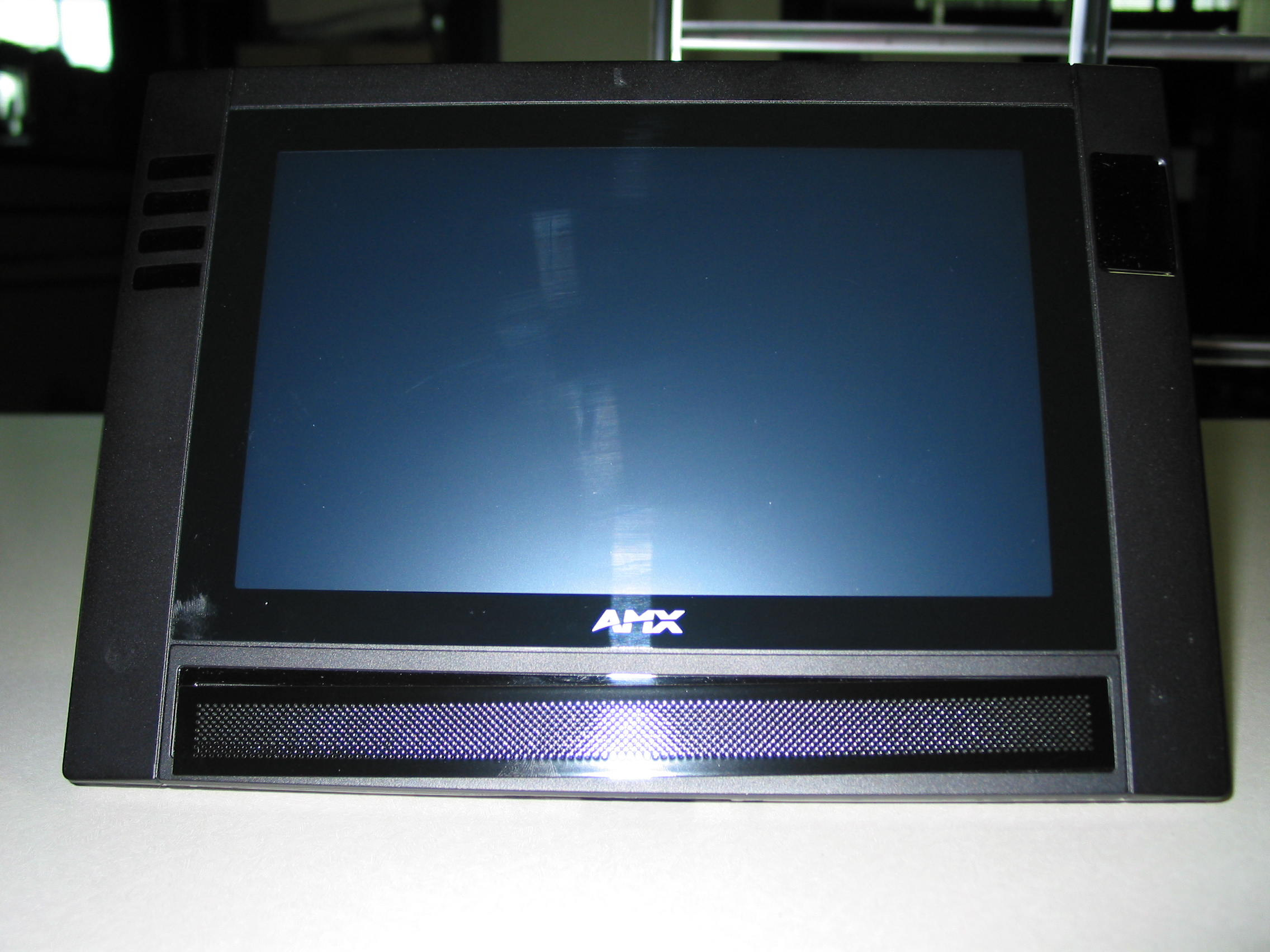

External Photos Front of system (Black enclosure and white enclosure versions) Side of system showing mini USB, USB and power connector Right Side of system Rear of Unit

6 1 32 2 24 1 28 1 32 REF ASSEMBLE SERIAL NUMBER LABEL ON BACKSIDE OF KICKSTAND SEE NOTE 3 SEE NOTE 3 27 1 33 2 33 REF FINAL ASSEMBLY TO BE COMPLETED AFTER FINAL TESTING AND/OR BURN-IN D HGFEDBCA 1 2 3 4 G SCALE HFEDCA 1 2 B 3 4 TM AMX LLC 3000 RESEARCH DRIVE RICHARDSON, TX 75082 REV. SHEET DWG. NO.SIZE ENGINEERING ASSEMBLY, 9.0 TOUCH PANEL EA5967-01 A 5 of 5 1:1 NOTICE: This drawing is the property of AMX LLC. All information contained herein that is not generally known shall be confidential except to the extent the information has been previously established. This drawing may not be copied, reproduced, or used as the basis for manufacture or sale without written permission.

9.710 .860 .2701.9003.925 8X R.020 NOTES: UNLESS OTHERWISE SPECIFIED 3D DATABASE FEATURES TAKE PRECEDENCE OVER 2D DRAWINGS. REFER TO 3D 1. DATABASE FILE (SEE MODEL NAME AND REVISION IN TITLE BLOCK). ALL DIMENSIONS IN INCHES.2. MATERIAL AND COLORS:3. PERMANENT POLYESTER TEXT TO BE ARIAL 6pt. COLOR TO BE PANTONE COLOR GRAY 5C SEE TABLE FOR BACKGROUND COLOR R E V I S I O N S REVECNDESCRIPTIONDATEAPPROVED A16018PROTOTYPE RELEASE2/23/2010J. REAGAN B16969ADD FCC AND IC INFORMATION. ADDED CERTIFICATION LOGOS.9/14/2010J. PORTER C16969ADDED ADDITIONAL TEXT TO LABEL9/20/2010J. PORTER PART TABLE PART NUMBERDESCRIPTIONCOLOR 91-5967-01LABEL, SERIAL NUMBERN/A 91-5967-01BLLABEL, SERIAL NUMBER, BLACKPMS BLACK 91-5967-01WHLABEL, SERIAL NUMBER, WHITEWHITE D HGFEDBCA 1 2 3 4 G SCALE HFE .XXX = ± 0.020 .XX = ± 0.03 ANGLES = ± 1° DO NOT SCALE DRAWING SURFACE FLATNESS .003 TIR PER LINEAR INCH ALL DIMENSIONS ARE IN INCHES TOLERANCE ON DECIMAL DIMENSIONS: .X = ± 0.1 UNLESS OTHERWISE SPECIFIED THIRD ANGLE PROJECTION DCA 1 2 B 3 4 UNLESS OTHERWISE STATED, THE ARTICLE SPECIFIED SHALL BE RoHS COMPLIANT PER EU DIRECTIVE 2002/95/EC TM AMX LLC 3000 RESEARCH DRIVE RICHARDSON, TX 75082 REV. SHEET DWG. NO.SIZE LABEL, SERIAL NUMBER 91-5967-01 C 1 of 1 2:1 NOTICE: This drawing is the property of AMX LLC. All information contained herein that is not generally known shall be confidential except to the extent the information has been previously established. This drawing may not be copied, reproduced, or used as the basis for manufacture or sale without written permission.

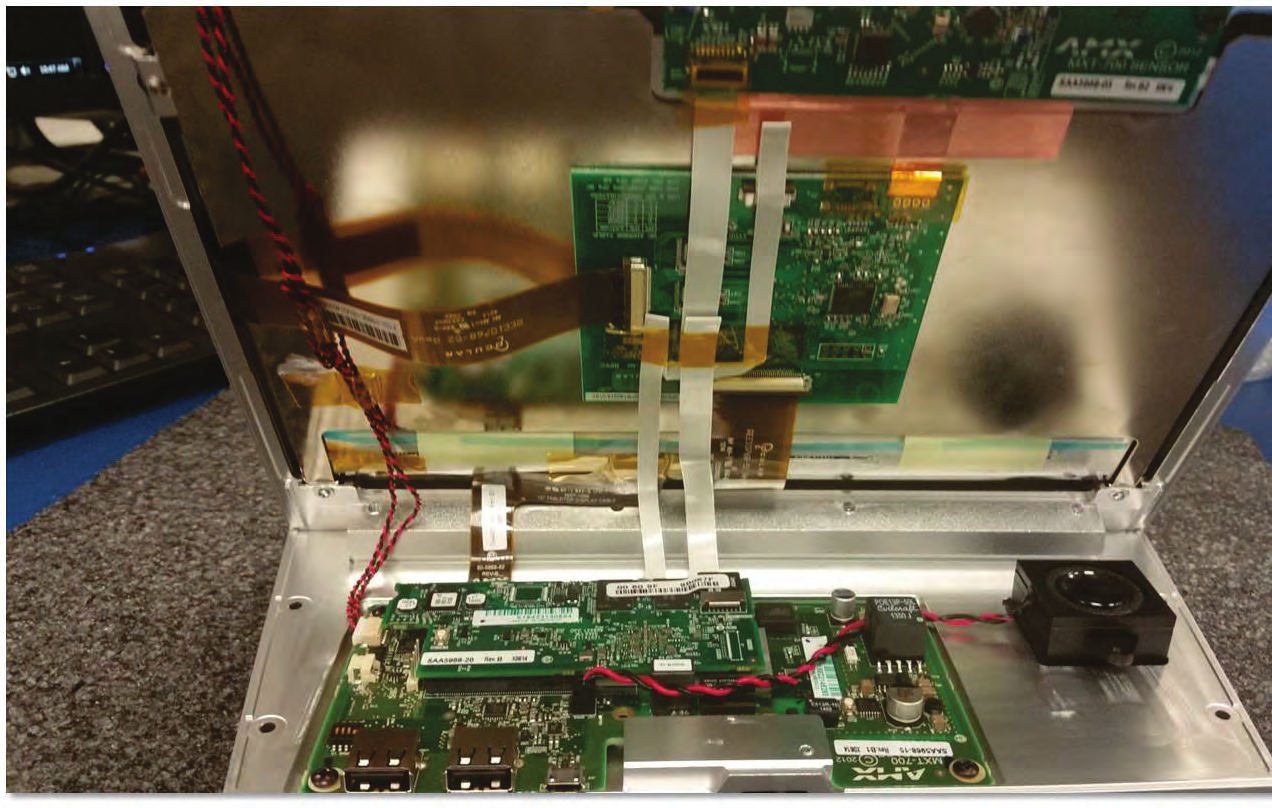

Internal Photos Rear of unit with cover removed showing main board with display board behind it Display and main boards – assembly view Radio Card Additional photos showing top and bottom are provided following the antenna close-up shots. Antennas Close-ups are provided on the next page Main Board Display Board Integrated circuit board antenna (top) and Skycross antenna (bottom) Top and Bottom of WiFi radio card used in the system This card is a radio module, but FCC modular approval is not being used when installed in the host device.

© 2010 RF Exposure Lab, LLC This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. 802 N. Twin Oaks Valley Road, Suite 105 • San Marcos, CA 92069 • U.S.A. TEL (760) 471-2100 • FAX (760) 471-2121 http://www.rfexposurelab.com CERTIFICATE OF COMPLIANCE SAR EVALUATION AMX LLC Dates of Test: September 9-10, 2010 3000 Research Drive Test Report Number: SAR.20100901 Richardson, TX 75082 This wireless mobile and/or portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general exposure limits specified in ANSI/IEEE Std. C95.1-1999 and had been tested in accordance with the measurement procedures specified in IEEE 1528-2003, OET Bulletin 65 Supp. C, RSS-102 and Safety Code 6 (See test report). I attest to the accuracy of the data. All measurements were performed by myself or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. RF Exposure Lab, LLC certifies that no party to this application has been denied FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Jay M. Moulton Vice President Certificate # 2387.01 FCC ID: CWU-MVP9 IC Certificate: 5078B-MVP9 Model(s): MVP9000i Test Sample: Engineering Unit Same as Production Serial No.: Beta Equipment Type: Wireless Computer Classification: Portable Transmitter Next to Body TX Frequency Range: 2412 – 2462 MHz; 5180 – 5240 MHz; 5745 – 5825 MHz Frequency Tolerance: ± 25 ppm Maximum RF Output: 2.4 MHz, (b) 13.29 dBm, (g) 14.87 dBm; 5.2 GHz 11.85 dBm; 5.8 GHz 10.97 dBm Conducted Signal Modulation: DSSS, OFDM Antenna Type (Length): Internal(Ant 1 – Skycross P/N 2-3612-A; Ant 2 – On PCB) Battery: Std. (AMX P/N 57-0027-SA) Battery Pack Application Type: Certification FCC Rule Parts: Part 15C, Sec. 15.247 Industry Canada: RSS-102, Safety Code 6 FCC ID: CWU-MVP9 © 2010 RF Exposure Lab, LLC Page 2 of 132 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Table of Contents 1. Introduction ........................................................................................................................... 3 SAR Definition [5] ...................................................................................................................... 3 2. SAR Measurement Setup ..................................................................................................... 4 Robotic System ......................................................................................................................... 4 System Hardware ..................................................................................................................... 4 System Description ................................................................................................................... 4 E-Field Probe ALS-E-020 ......................................................................................................... 5 3. Robot Specifications ............................................................................................................. 7 4. Probe and Dipole Calibration ................................................................................................ 8 5. Phantom & Simulating Tissue Specifications ........................................................................ 9 SAM Phantom ........................................................................................................................... 9 Brain & Muscle Simulating Mixture Characterization ................................................................ 9 Device Holder ........................................................................................................................... 9 6. Definition of Reference Points ............................................................................................. 10 Ear Reference Point ................................................................................................................ 10 Device Reference Points ........................................................................................................ 10 7. Test Configuration Positions ............................................................................................... 11 Positioning for Cheek/Touch [5] .............................................................................................. 11 Positioning for Ear / 15 ̊ Tilt [5] ................................................................................................ 12 Body Worn Configurations ...................................................................................................... 13 8. ANSI/IEEE C95.1 – 1999 RF Exposure Limits [2] ............................................................... 14 Uncontrolled Environment ....................................................................................................... 14 Controlled Environment .......................................................................................................... 14 9. Measurement Uncertainty ................................................................................................... 15 10. System Validation ........................................................................................................... 16 Tissue Verification ................................................................................................................... 16 Test System Verification ......................................................................................................... 16 11. SAR Test Data Summary ................................................................................................ 17 Procedures Used To Establish Test Signal .............................................…

Text truncated - open the document above for the full version.

File: R80473 Page 1 of 22 EMC Test Report Application for Grant of Equipment Authorization pursuant to Industry Canada RSS-Gen Issue 2 / RSS 210 Issue 7 FCC Part 15, Subpart E Model: MVP-9000i IC CERTIFICATION #: 5078B-MVP9 FCC ID: CWU-MVP9 APPLICANT: AMX 3000 Research Drive Richardson, TX 75080 TEST SITE(S): Elliott Laboratories 41039 Boyce Road. Fremont, CA. 94538-2435 IC SITE REGISTRATION #: 2845B-4, 2845B-5, 2845B-7 REPORT DATE: September 23, 2010 FINAL TEST DATES: August 17, 21, 22, 25, 26, 30, 2010 and September 2, 2010 AUTHORIZED SIGNATORY: ______________________________ Mark Briggs Staff Engineer Elliott Laboratories Elliott Laboratories is accredited by the A2LA, certificate number 2016-01, to perform the test(s) listed in this report, except where noted otherwise. This report shall not be reproduced, except in its entirety, without the written approval of Elliott Laboratories Elliott Laboratories -- EMC Department Test Report Report Date: September 23, 2010 File: R80473 Page 2 of 22 REVISION HISTORY Rev# Date Comments Modified By - 09-21-2010 First release Elliott Laboratories -- EMC Department Test Report Report Date: September 23, 2010 File: R80473 Page 3 of 22 TABLE OF CONTENTS REVISION HISTORY .........................................................................................................................................2 TABLE OF CONTENTS ..................................................................................................................................... 3 SCOPE.................................................................................................................................................................. 4 OBJECTIVE ........................................................................................................................................................ 4 STATEMENT OF COMPLIANCE..................................................................................................................... 5 DEVIATIONS FROM THE STANDARDS ........................................................................................................ 5 TEST RESULTS SUMMARY ............................................................................................................................. 6 UNII / LELAN DEVICES.................................................................................................................................. 6 GENERAL REQUIREMENTS APPLICABLE TO ALL BANDS ...................................................................... 7 MEASUREMENT UNCERTAINTIES .............................................................................................................. 7 EQUIPMENT UNDER TEST (EUT) DETAILS................................................................................................. 8 GENERAL ........................................................................................................................................................ 8 ANTENNA SYSTEM ....................................................................................................................................... 8 ENCLOSURE.................................................................................................................................................... 8 MODIFICATIONS............................................................................................................................................9 SUPPORT EQUIPMENT .................................................................................................................................. 9 EUT INTERFACE PORTS ................................................................................................................................ 9 EUT OPERATION .......................................................................................................................................... 10 TEST SITE ......................................................................................................................................................... 11 GENERAL INFORMATION........................................................................................................................... 11 CONDUCTED EMISSIONS CONSIDERATIONS.......................................................................................... 11 RADIATED EMISSIONS CONSIDERATIONS.............................................................................................. 11 MEASUREMENT INSTRUMENTATION....................................................................................................... 12 RECEIVER SYSTEM ..................................................................................................................................... 12 INSTRUMENT CONTROL COMPUTER ....................................................................................................... 12 LINE IMPEDANCE STABILIZATION NETWORK (LISN) ........................................................................... 12 FILTERS/ATTENUATORS ............................................................................................................................ 13 ANTENNAS ................................................................................................................................................... 13 ANTENNA MAST AND EQUIPMENT TURNTABLE................................................................................... 13 INSTRUMENT CALIBRATION ..................................................................................................................... 13 TEST PROCEDURES ....................................................................................................................................... 14 EUT AND CABLE PLACEMENT .................................................................................................................. 14 CONDUCTED EMISSIONS ..........................................................................…

Text truncated - open the document above for the full version.

Radiated Emissions Test Configuration – System in the Wall Docking Station Radiated Emissions Test Configuration – System in the Table Docking Station Radiated Emissions Test Configuration – System Stand-Alone Test Configuration – AC Conducted Emissions
