CWU-MIOR2Remote Control Transmitter

Operation/Reference Guide Control System Accessories Mio R-2 Remote Control Device Document ID: 041-004-2978 Initial Release: / Last Revised: 04/25/2006 AMX Limited Warranty and Disclaimer AMX Corporation warrants its products to be free of defects in material and workmanship under normal use for three (3) years from the date of purchase from AMX Corporation, with the following exceptions: •Electroluminescent and LCD Control Panels are warranted for three (3) years, except for the display and touch overlay components that are warranted for a period of one (1) year. •Disk drive mechanisms, pan/tilt heads, power supplies, and MX Series products are warranted for a period of one (1) year. •AMX Lighting products are guaranteed to switch on and off any load that is properly connected to our lighting products, as long as the AMX Lighting products are under warranty. AMX Corporation does guarantee the control of dimmable loads that are properly connected to our lighting products. The dimming performance or quality cannot be guaranteed due to the random combinations of dimmers, lamps and ballasts or transformers. •Unless otherwise specified, OEM and custom products are warranted for a period of one (1) year. •AMX Software is warranted for a period of ninety (90) days. •Batteries and incandescent lamps are not covered under the warranty. This warranty extends only to products purchased directly from AMX Corporation or an Authorized AMX Dealer. All products returned to AMX require a Return Material Authorization (RMA) number. The RMA number is obtained from the AMX RMA Department. The RMA number must be clearly marked on the outside of each box. The RMA is valid for a 30-day period. After the 30-day period the RMA will be cancelled. Any shipments received not consistent with the RMA, or after the RMA is cancelled, will be refused. AMX is not responsible for products returned without a valid RMA number. AMX Corporation is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages. AMX Corporation is not liable for any claim made by a third party or by an AMX Dealer for a third party. This limitation of liability applies whether damages are sought, or a claim is made, under this warranty or as a tort claim (including negligence and strict product liability), a contract claim, or any other claim. This limitation of liability cannot be waived or amended by any person. This limitation of liability will be effective even if AMX Corporation or an authorized representative of AMX Corporation has been advised of the possibility of any such damages. This limitation of liability, however, will not apply to claims for personal injury. Some states do not allow a limitation of how long an implied warranty last. Some states do not allow the limitation or exclusion of incidental or consequential damages for consumer products. In such states, the limitation or exclusion of the Limited Warranty may not apply. This Limited Warranty gives the owner specific legal rights. The owner may also have other rights that vary from state to state. The owner is advised to consult applicable state laws for full determination of rights. EXCEPT AS EXPRESSLY SET FORTH IN THIS WARRANTY, AMX CORPORATION MAKES NO OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. AMX CORPORATION EXPRESSLY DISCLAIMS ALL WARRANTIES NOT STATED IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO THE TERMS OF THIS LIMITED WARRANTY. Software License and Warranty Agreement LICENSE GRANT. AMX grants to Licensee the non-exclusive right to use the AMX Software in the manner described in this License. The AMX Software is licensed, not sold. This license does not grant Licensee the right to create derivative works of the AMX Software. The AMX Software consists of generally available programming and development software, product documentation, sample applications, tools and utilities, and miscellaneous technical information. Please refer to the README.TXT file on the compact disc or download for further information regarding the components of the AMX Software. The AMX Software is subject to restrictions on distribution described in this License Agreement. LICENSEE MAY NOT SUBLICENSE, RENT, OR LEASE THE AMX SOFTWARE. Licensee may not reverse engineer, decompile, or disassemble the AMX Software. INTELLECTUAL PROPERTY. The AMX Software is owned by AMX and is protected by United States copyright laws, patent laws, international treaty provisions, and/or state of Texas trade secret laws. Licensee may make copies of the AMX Software solely for backup or archival purposes. Licensee may not copy the written materials accompanying the AMX Software. TERMINATION. AMX RESERVES THE RIGHT, IN ITS SOLE DISCRETION, TO TERMINATE THIS LICENSE FOR ANY REASON AND UPON WRITTEN NOTICE TO LICENSEE. In the event that AMX terminates this License, the Licensee shall return or destroy all originals and copies of the AMX Software to AMX and certify in writing that all originals and copies have been returned or destroyed. PRE-RELEASE CODE. Portions of the AMX Software may, from time to time, as identified in the AMX Software, include PRE-RELEASE CODE and such code may not be at the level of performance, compatibility and functionality of the final code. The PRE-RELEASE CODE may not operate correctly and may be substantially modified prior to final release or certain features may not be generally released. AMX is not obligated to make or support any PRE-RELEASE CODE. ALL PRE-RELEASE CODE IS PROVIDED "AS IS" WITH NO WARRANTIES. LIMITED WARRANTY. AMX warrants that the AMX Software will perform substantially in accordance with the accompanying written materials for a period of ninety (90) days from the date of receipt. AMX DISCLAIMS ALL OTHER WARRANTIES, …

Text truncated - open the document above for the full version.

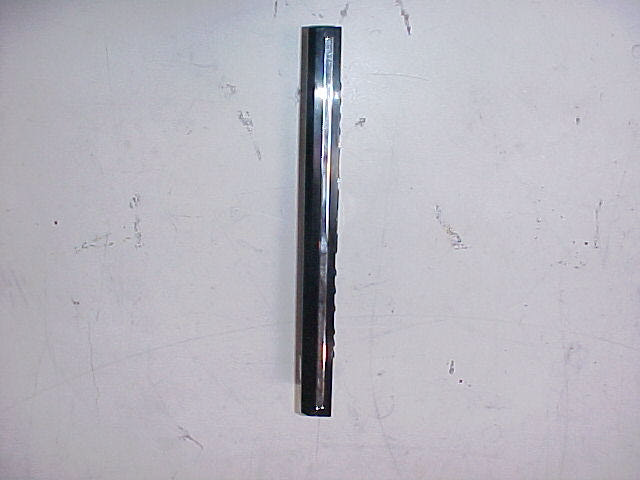

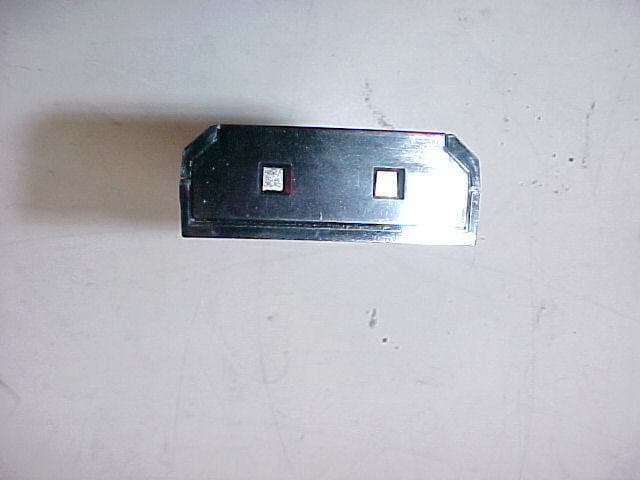

Quick Start Guide Mio R-2 Remote Control Device Overview The Mio R-2 remote provides custom control features, contained in an elegant handheld rechargeable device. The Mio R-2 controls 6 different device modes, supports 3 macro functions and is capable of executing 219 functions. The Mio R-2 can transmit in 38 KHz IR, 455 KHz IR, 418 RF (1-way) (FG147-418), 433 RF (1-way) (FG147-433), or 38 KHz and one of the RF frequencies. Selecting a source device sends a command to the master and runs predetermined events associated with that source. Selecting a macro will run predefined events, which might not be associated with sources listed, then return the device to its previous mode. You need KeypadBuilder to properly program this device. The application and documentation are available from www.amx.com. Touch And Tilt Sensor The Mio R-2 wakes up upon touching either the chrome side rails or pressing a button. When holding the remote and it times out, you can reawaken the device by tilting it. Errant jostling such as a bumped table will not wake the device unless you are holding it. Specifications The Mio R-2 device specifications are as follows: Installing Your Custom Buttons 1.Flip and turn the Mio R-2 device so that the buttons are facing away from you and the device is upside down. 2.Holding the device in both hands, place your thumbs on the battery door and push up to slide the battery door free. 3.Unscrew the 6 screw points indicated in FIG. 2. 4.Turn the unit over so the buttons are facing you. 5.Lift the top assembly away from the PCB. 6.If necessary, push out the standard buttons from the front of the top assembly. 7.Drop on your custom button pad and verify the alignment with the guide posts on the PCB. 8.Place the top assembly back down on the PCB and return the unit over, expos- ing the 6 screw points. 9.Tighten the 6 screw points. 10.Place the battery door back on the device, slide to lock it in place. Inserting Batteries into The Mio R-2 To install your 4 AAA batteries into the Mio R-2 device: 1.Flip and turn the Mio R-2 device so that the buttons are facing away from you and the device is upside down. 2.Holding the device in both hands, place your thumbs on the battery door and slide the battery door free. 3.Insert the batteries as indicated inside the battery compartment. 4.Place the battery door back on the device, slide to lock it in place. Battery Low Indicator When the battery charge level is too low to sustain continuous operation, the LCD flashes, "Battery Low" and the device shuts down. Programming The Mio R-2 Using KeypadBuilder Most functionality of the Mio R-2 is handled using the application, KeypadBuilder. Go to www.amx.com for the KeypadBuilder Instruction Manual. There are a select number of Serial Commands the Mio R-2 recognizes. For a full list and descriptions, consult the Mio R-2 Instruction Manual on www.amx.com. Using Connector Ports on The Mio R-2 The programming jack is used for communication between the device and KeypadBuilder. The programming jack uses a three-wire, 2.5 mm stereo jack, you can order the programming cable (FG10-817) from AMX if you do not currently possess FIG. 1 The Mio R-2 Device Mio R-2 (FG147-418/433) Specifications Battery4 AAA Alkaline Batteries (5 hours battery life) Transmission Frequencies • AMX 38 KHz/455 KHz IR • 418 RF (1-way) (FG147-418) • 433 RF (1-way) (FG147-433) Transmission Range (distance) with Mio IR Receiver • 100 feet at 38KHz (IR) • 50 feet at 455KHz (IR) • 300 feet at 418 (RF) • 200 feet at 433 (RF) Transmission Range (angle) • 140 degrees (+/-70° from perpendicular) horizontally from an axis extending from the end of the remote. (IR) • 40 degrees (+/-20° from perpendicular) vertically from an axis extending from the end of the remote. (IR) Top Components• LED - blue backlit buttons indicate device is awake • Display (OLED) - 128 x 32 pixels, active area is 29.42mm x 7.98mm • Pushbuttons - the power button is red backlit; the rest are blue backlit buttons. 45 buttons; 9 custom buttons (3 macro and 6 device). Rear Component• Programming Port - 2.5 mm stereo female conductor jack •Battery Door • Rechargeable Battery Connection 1 - Power 2 - Guide 3 - Exit 4 - Menu 5 - Information 6 - Move Up 7 - Move Down 8 - Move Left 9 - Move Right 10 - Select 11 - Volume Up 12 - Volume Down 13 - Channel Up 14 - Channel Down 15 - Last Viewed 16 - Mute 26 - Input 28 - Enter 38 - Stop 39 - Record 40 - Pause 41 - Slow Reverse 42 - Play 43 - Slow Forward 44 - Rewind 45 - Forward Power Transmission Mode Current Menu Battery Meter Custom Macro Buttons Custom Mode Options 39 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 26 28 38 40 41 42 43 4445 Numeral Keypad Mio R-2 (FG147-418/433) Specifications (Cont.) Dimensions (HWD)9.50 x 2.00 x .74 (241.3 mm x 50.8 mm x 18.80 mm) Supported Languages:• Arabic • English •French •German •Greek •Hebrew • Hindi • Italian • Japanese • Korean • Mandarin Chinese • Portuguese • Russian • Spanish •Thai Weight• .45 lbs (20 g) without batteries • .55 lbs (25 g) with batteries Operating Environment:• Operating Temperature: 0° to 50° C (32° to 122° F) • Storage Temperature: -10° to 70° C (14° to 158° F) Other AMX Equipment• DB-9 extension cable (FG10-727) • Programming Cable - a 3 wire, 2.5 mm stereo jack (FG10-817) • Custom engraving (FG147-01) • Mio-RCC Kit (FG147-03K) • Mio-RCC Charging Base (FG147-02) • Mio-RBP Rechargeable Lithium Ion Battery (FG147-10) • AXR-RF 418 MHZ RF Receiver (FG782-418) • AXR-RF 433 MHZ RF Receiver (FG782-433) FIG. 2 Internal Mio R-2 Components 6 Screw Points Programming Jack For full warranty information, refer to the AMX Instruction Manual(s) associated with your Product(s). 041-004-2976 4/06 ©2006 AMX. All rights reserved. AMX and the AMX logo are registered trademarks of AMX. AMX reserves the right to alter specifications without notice at any time. 3000 RESEARCH DRIVE, RICHARDSON, TX 75082 • 800.222.0193 • fax 469.624.7153 • technical support 800.932.6993 • www.amx.com 93-0147-01 REV: …
