CWU-NXR-MOZigBee Data Radio

Installation Guide External labeling: This radio module was tested and certified as a stand-alone device according to FCC Rules CFR 47, Part 15, Subpart C. If this device is installed in a manner such that the radio module FCC ID. label is not visible on the outside of the end product, a label must be placed on the end product with the following statement: Contains FCC ID.: CWU-NXR-MO This device complies with Part 15 of the FCC rules. Subject to the following two conditions: 1. This device must not cause harmful interference and 2. This device must accept all interference, including interference that interferes with the operation of this device. USER GUIDE The User manual for the end-device must contain the following statements in a prominent place in the manual. "Modifications not expressly approved by the manufacturer will void the user’s authority to operate the equipment." "Warning: This device has been evaluated and found to be compliant with the FCC Rules for RF Exposure when the device is operated at a minimum separation distance of 2 cm. from the user and nearby persons. Operation of this device at closer distances should be avoided."

Agent Authorization Letter DATE: April 27, 2006 National Technical Systems 1701 East Plano Parkway Suite #150 Plano, TX 75074 Dear Sir or Madam: We, (AMX Corporation 300 Research Dr. Richardson, TX 75082), hereby authorize National Technical Systems 1701 E. Plano Pkwy Suite #150 Plano, TX 972-509-2566 to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. I further certify that the applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. Section 862. This authorization expires on 09/01/2007. Jim Pautler Vice President of Engineering Tel #: 469-624-8000 Fax #: 469-624-7159

Page 1 of 1 2/5/2007http://www.ember.com/images/dia-EM250-block.gif

NXR-MO Request for Modular Approval It is requested that the NXR-MO radio board be approved as a modular device in accordance with FCC Public Notice DA 00-1407. AMX intends to use the NXR-MO module in its line of remote control products. As such AMX declares the following to be true: 1. The NXR-MO must has its own RF shielding. This shielding is an integral part of the transceiver chip as well as the PWB. 2. The NXR-MO transceiver chip has buffered modulation/data inputs. 3. The NXR-MO has its own power supply regulation. In addition the EM250 transceiver chip has its own power supply regulation. 4. The NXR-MO has an integral antenna etched on the PWB. 5. The NXR-MO was tested in a stand-alone configuration using a development “debug” board. The module was not mounted inside any other device during testing. The length of I/O and DC power lines was configured to be worst-case (1.5 meters) for the purposes of testing. AC power line emissions were tested using an off-the-shelf power adapter. No ferrites or emissions suppression device was used for testing. All support equipment used during testing was un-modified. 6. The NXR-MO will have the FCC ID number etched on the PWB. In addition the device in which the NXR-MO is installed will display a label containing the wording “Contains Transmitter Module FCC ID: CWU-NXR-MO” 7. The NXR-MO complies with all of the applicable requirements on CFR 47, Part 15, Subpart C. 8. RF Exposure concerns are addressed in that the maximum rf output of the module is fixed at +4 dBm and the integral antenna gain is fixed at 0 dBi. Using a worst-case exposure model, the resulting exposure levels are found to be 0.8 mW/cm 2 , at a distance of 0.5 cm from the user. The module is intended to be installed in a remote device where the minimum separation distance is > 2 cm.

This device contains transmitter module FCC ID.: CWU-NXR-MO IC: 5078A-NXRMO Model No. NXR-MO Label on outside of final product Label on module

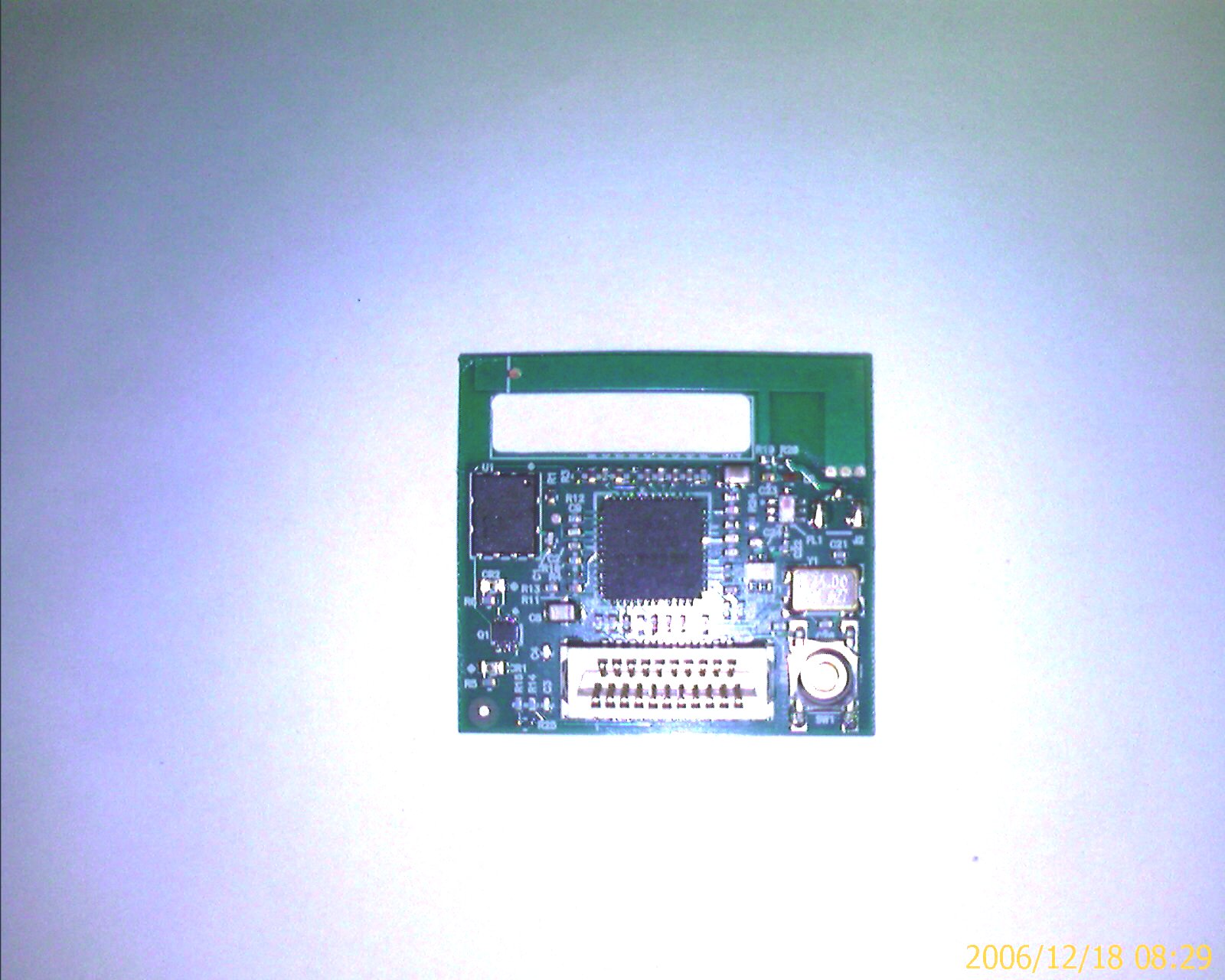

NXR-MO PWB - TOP NXR-MO PWB - BOTTOM

NXR-MO Theory of Operation The NXR-MO is a wireless module that uses a radio chipset based on the Eber EM250 Zigbee radio transceiver chip. The antenna is integral to the device (etched on the PWB). The EM250 chip uses an on-chip 4.8 GHz VCO. A 24 MHz crystal oscillator is used to establish the PLL reference signal. The radio transmitter utilizes an efficient architecture in which the data stream directly modulates the VCO. An integrated PA boosts the output power. The calibration of the TX path as well as the output power is controlled by the digital logic. The radio receiver is a low-IF, super-heterodyne receiver. It utilizes differential signal paths to minimize noise interference, and its architecture has been chosen to optimize co-existence with other devices within the 2.4 GHz band (namely, IEEE 802.11g and Bluetooth). After amplification and mixing, the signal is filtered and combined prior to being sampled by an ADC. Data transmission rate is 250 kbps. Channels are numbered 11 – 26 and are centered on the frequencies below. Channel Center Frequency (MHz) 11 2405 12 2410 13 2415 14 2420 15 2425 16 2430 17 2435 18 2440 19 2445 20 2450 21 2455 22 2460 23 2465 24 2470 25 2475 26 2480 Channel bandwidth is 2 MHz. Occupied bandwidth is 1.6 MHz. The recommended operating range is -40 to +85 degrees Celsius. Over this frequency range the frequency stability is rated at +/- 40 ppm which would be a maximum drift of 99.2 kHz. Modulation is O-QPSK (Offset Quadrature Phase Shift Key) and the rf carrier is spread using Direct Sequence spreading. RF power output is +4 dBm. The nominal gain of the integral antenna is 0 dBi. The NXR-MO is designed as a stand-alone module and is intended to be used by AMX in their line of remote control devices.

Prediction of Maximum Permissible Exposure Equation from page 18 of OET Bulletin 65, Edition 97-01 where: S = power density P = power input to the antenna G = directional power gain of the antenna relative to an isotropic radiator R = distance to the center of radiation of the antenna Max. peak output power at antenna terminal(dBm):4.00 Max. peak output power at antenna terminal(W):0.003 Antenna gain for prediction(dBi):0 Maximum antenna gain(numeric):1 Duty Cycle(%):100 Prediction distance(cm):20 Prediction frequency(MHz):2480 Limit for uncontrolled exposure(mw/cm²): 1.000 S(mw/cm²) = :0.0000005 2 4 PG S RΠ =

Page 13 Schematic of the EM250 RCM SCH0452 B Ember Corporation343 Congress St5th floorBoston MA 02210 11 Wednesday, June 28, 2006 REFERENCE DESIGN EM250 Size Rev Date: Sheet of Title Document Disclaimer The information in this document is subject to changewithout notice. The statements, configurations, technicaldata and recommendations in this document are believed tobe accurate and reliable, but are presented without expressor implied warranty. The information in this document is theproprietary and confidential property of Ember Corporationand is priviliged. No part of the drawing or information maybe duplicated or otherwise used without the expresspermission of Ember. C30.75pF R113.3K C2 1.8pF L35.8nH C198.2pF C10NP C13100nF ANT1 Murata ANCW C12100nF C25 1.0pF DS2 Yellow SERIAL NUMBER LABEL Y1 24 MHz 13 24 J3MC-CARD SWITCH Input 1 Internal 2 GND 3 GND 4 GND 5 GND 6 GND 7 C910uF + R1010K L25.1nH C4 10nF C1610nF C1710nF R1 0 ohm R2 1R C18.0pF L1 5.1nH 710-0452-000 PCB U1 EM250 RF_OUT_N 7 RF_IN_N 4 VDD_SYNTH 46 VDD_IF 8 VDD_RF 5 VDD_VCO 2 RF_IN_P 3 RF_OUT_P 6 VDD_CORE1 18 VDD_PADSA 10 TX_RXB_SW 11 BIAS_R 9 GPIO[0] 21 GPIO[1] 22 GPIO[2] 24 GPIO[3] 25 VDD_PADS 17 VDD_CORE2 44 TEST_MODE 38 nSIF_LOAD 37 SIF_MOSI 36 SIF_MISO 35 VDD_PADS 23 GPIO[4] 26 GPIO[5] 27 GPIO[6] 29 GPIO[7] 30 GPIO[8] 31 GPIO[9] 32 GPIO[10] 33 VDD_PADS 28 VDD_PRE 45 VDD_PADSA 12 GND 49 VDD_FLASH 39 VDD_24MHz 1 SIF_CLK 34 GPIO[11] 19 GPIO[12] 20 GPIO[13] 43 GPIO[14] 42 GPIO[15] 41 GPIO[16] 40 OSC32A 15 OSC32B 14 OSCB 47 OSCA 48 nRESET 13 VREG_OUT 16 C2222pF L6 2.7nH R8 510 C2310nF R3169K L41.8nH C50.75pF C68.2pF R9 100k C14100nF C727pF R6 1R J2HEADER 28 12345678910111213141516171819202122232425262728 Y2 32.768 kHz 12 L5 0 ohm R7 510 C8 27pF J1 12345678910 C2122pF C2010nF C1810nF R40 ohm C241.0pF DS1 Red C1510nF nRESETGPIO_8GPIO_6GPIO_12GPIO_1 nRESET GPIO_4GPIO_10GPIO_0GPIO_11 GPIO_5nSIF_LOAD GPIO_15nSIF_LOADGPIO_5GPIO_3GPIO_7GPIO_14 SIF_MOSI SIF_MOSISIF_MISO GPIO_4SIF_CLK GPIO_16 SIF_MISO GPIO_13GPIO_9SIF_CLKGPIO_2 GPIO_0GPIO_16 RF_N GPIO_3 RF_P GPIO_15SIF_LOADBGPIO_4GPIO_2GPIO_11GPIO_12GPIO_9GPIO_8GPIO_13SIF_CLKGPIO_7GPIO_5GPIO_6SIF_MOSIGPIO_10SIF_MISOGPIO_1GPIO_14 GPIO_13GPIO_14 nRESET 1.8V 1.8V_D 1.8V 1.8V_VCO 1.8V_VCO 1.8V_VCO 1.8V_D 1.8V_D VBRD VBRD VBRD VBRD 1.8V 1.8V 1.8V VBRD VBRD Carrier Board InterfaceConnectorDebug Header Balun Circuit (PS_FRAME) Decoupling Capacitors (PS_DATA) Digital Power Filter VDD_24MHZ (1) VDD_RF (5) VDD_IF (8) VDD_PADSA (10)VDD_PADSA (12) VDD_PRE (45)VDD_SYNTH (46) VDD_CORE (44) VDD_FLASH (39) VDD_CORE (18) VDD_VCO (2) VDD_PADS (17) VDD_PADS (23) VDD_PADS (28) Activity EmberZnet StackIndicators Heartbeat LQW15A LQW15A Figure 5. Schematic of the EM250 RCM After Reading this Document If you have questions or require assistance with the procedures described in this document, please contact an Ember support representative at [email protected]. EM250 Radio Communication Module 120-2001-000C

This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full. NTS Plano, 1701 E. Plano Pkwy., Plano, TX 75074 Tel: (972) 509-2566, Fax: (972) 509-0073 Page 1 of 43 Certification Test Report CFR 47 FCC Part 15, Subpart C Section 15.247 and Industry Canada RSS 210, Issue 6 Model: NXR-MO Module FCC ID. CWU-NXR-MO Project Code: W6373 (Report W6373-WIRELESS-1) Revision: 0 Prepared for: AMX Corp. 3000 Research Dr. Richardson, TX 75082 USA Author: Tom Tidwell Issued: 19 December, 2006 1701 E. Plano Parkway, Suite 150 Plano, Texas 75074 Phone: (972) 509-2566 Fax: (972) 509-0073 National Technical Systems Model: NXR-MO Module Compliance Test Report FCC ID.: CWU-NXR-MO This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full. NTS Plano, 1701 E. Plano Pkwy., Plano, TX 75074 Tel: (972) 509-2566, Fax: (972) 509-0073 Page 2 of 43 Report Summary NTS Plano Accreditation Numbers: FCC: 101741 IC: 46405-4319 File # IC-4319A-1 Standards A2LA Laboratory Cert. No. 0214.19 Applicant: AMX 3000 Research Dr. Richardson, TX 75082 USA Customer Representative: Tuan Tran EUT Description: EUT Description Manufacturer Model Revision Serial Number The EUT is a DTS module AMX NXR-MO A TP0806013 Model: NXR-MO Module Compliance Test Report FCC ID.: CWU-NXR-MO This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full. NTS Plano, 1701 E. Plano Pkwy., Plano, TX 75074 Tel: (972) 509-2566, Fax: (972) 509-0073 Page 3 of 43 Test Summary Deviations from: Appendix Test/Requirement Description Base Standard Test Basis NTS Procedure Pass / Fail Applicable Rule Parts A TX 6 dB Bandwidth No No No PASS 15.247 RSS 210, Issue 6 B TX Peak Power Output No No No PASS 15.247 RSS 210, Issue 6 C TX Peak Power Density No No No PASS 15.247 RSS 210, Issue 6 D TX Conducted Spurious Emissions No No No PASS 15.247, 15.205 RSS 210, Issue 6 E TX Conducted Spurious Emissions Band edge No No No PASS 15.247, 15.205 RSS 210, Issue 6 F TX Radiated Spurious Emissions 30 MHz- 25 GHz No No No PASS 15.247, 15.205 RSS 210, Issue 6 G AC Power line Conducted Emissions No No No N/A 15.207 RSS 210, Issue 6 Note: All testing was done with the module configured in a stand-alone configuration. Test Result: The product presented for testing complied with test requirements as shown above. This is to certify that the preceding report is true and correct to the best of my knowledge. Robert Stevens, Tom Tidwell, Quality Assurance Manager Wireless Test Engineer Model: NXR-MO Module Compliance Test Report FCC ID.: CWU-NXR-MO This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full. NTS Plano, 1701 E. Plano Pkwy., Plano, TX 75074 Tel: (972) 509-2566, Fax: (972) 509-0073 Page 4 of 43 Table of Contents REPORT SUMMARY........................................................................................................................................................ 2 TEST SUMMARY ............................................................................................................................................................. 3 REGISTER OF REVISIONS ..............................................................................................................................…

Text truncated - open the document above for the full version.

Model: NXR-MO Module Compliance Test Report FCC ID.: CWU-NXR-MO The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Plano, 1701 E. Plano Parkway, Suite 150, Plano, Texas 75074 Phone: 972-509-2566 Fax: 972-509-0073 Page 37 of 43 F.11. Test Setup Photos Overall setup showing debug card and power connection X axis – Module card on edge Model: NXR-MO Module Compliance Test Report FCC ID.: CWU-NXR-MO The test results contained in this report refer exclusively to the product(s) presented for testing. The test results do not cover models or products not referred herein. This test report should not be published or duplicated in whole or part without permission from the testing body and the customer. NTS Plano, 1701 E. Plano Parkway, Suite 150, Plano, Texas 75074 Phone: 972-509-2566 Fax: 972-509-0073 Page 38 of 43 X axis – Module card flat Z axis – Module card vertical
