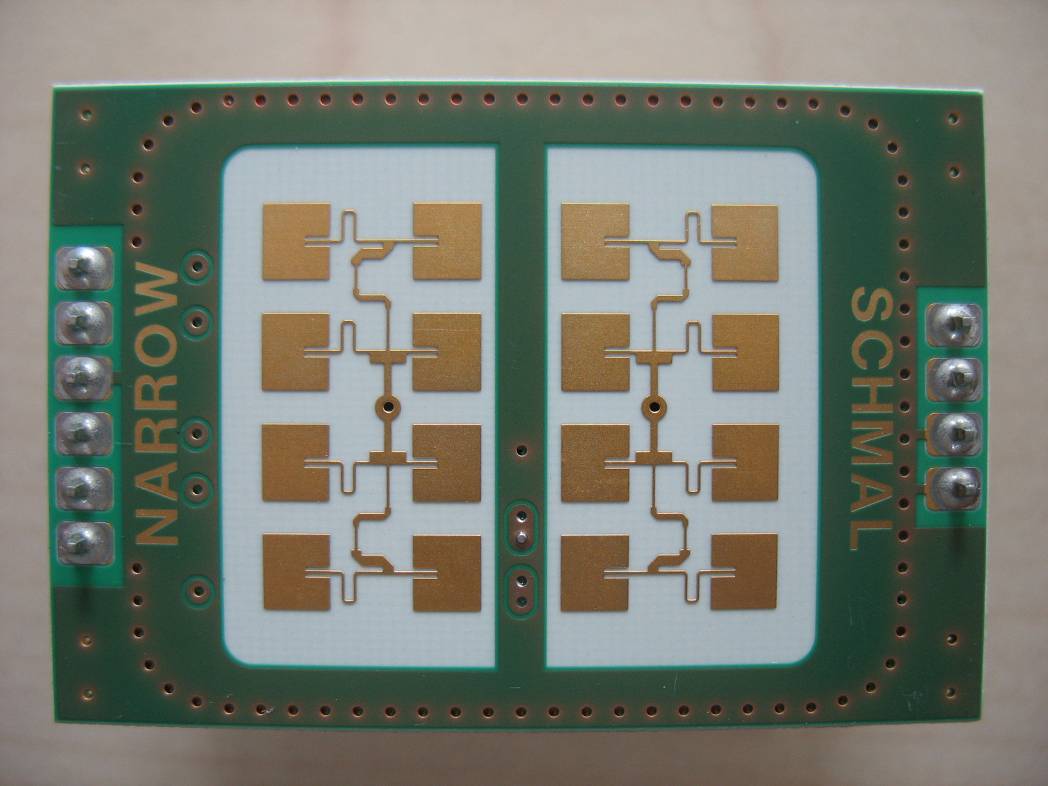

DC9-IVS166K-Band VCO Transceiver

and manufactured in Germany designed Innovation in Radar Technology User Manual CONFIDENTIAL AND PROPRIETARY The information contained in this document shall remain the sole and exclusive property of InnoSenT GmbH and shall not be disclosed by the recipient to third parties without prior consent of InnoSenT in writing. Page 1 USER MANUAL IVS-166 Version 1.0 PRODUCT FAMILY APPLICATIONS FEATURES: DESCRIPTION ADDITIONAL INFORMATION InnoSenT Standard Product. Changes will not be notified as long as there is no influence on form, fit and within this datasheet specified function of the product. RoHS-INFO This product is compliant to the restriction of hazardous substances (RoHS - European Union directive 2011/65/Eu). CERTIFICATES InnoSenT GmbH has established and applies a quality system for: development, production and sales of radar sensors for industrial and automotive sensors. Version The IVS-166 is the FMCW/FSK-version of the IPS- 154. The same outline dimensions as well as the identical antenna pattern make this product perfect for upgrading existing systems 1.0 - 03.12.2013 IVS-166 K-Band VCO Transceiver • Industrial Applications • Door Opener Movement Velocity Direction Presence Distance Angle »VCO-Transceiver centered @ 24GHz »FMCW/FSK capable; therefore measurement of distance as well as recognition of stationary objects possible (depending on modulation) »split transmit and receive path for maximum gain »stereo (dual channel) operation for direction of motion indection »IF-pre-amplifier, bandwith limited for lowest noise performance »compact outline dimensions Innovation in Radar Technology CONFIDENTIAL AND PROPRIETARY The information contained in this document shall remain the sole and exclusive property of InnoSenT GmbH and shall not be disclosed by the recipient to third parties without prior consent of InnoSenT in writing. Page 2 USER MANUAL IVS-166 Version 1.0 ELECTRICAL CHARACTERISTICS PARAMETERCONDITIONSSYMBOLMINTYPMAXUNITS Transmitter transmit frequenciesdepending on V tune f24.000 - 24.250GHz freq @ V tune 5,0V@ 25°Cf 5,0V 24.10024.12524.150GHz varactor tuning voltageV tune 0.510V varactor tuning impedance10k k Ω modulation input150kHz tuning slope40MHz/V temperature drift (frequency) Δf -1MHz/°C output power (EIRP)@ 25°CP out 15dBm Receiver I/Q balanceamplitude6dB phase6090120° IF-outputvoltage offset1. 02.24.0V IF - amplifierbandwidthDC - 50kHz gain20dB Antenna System Pattern (compare with antenna plot on page 3) full beam width @ -3dBazimuthhorizontal45° elevationvertical38° side-lobe suppressionazimuthhorizontal15dB elevationvertical20dB Power supply supply voltageV CC 4.755.005.25V supply currentIF-amp includedI CC 3550mA Environment operating temperatureT OP -20+60°C storage temperatureT STG -40+85°C Mechanical Outlines outline dimensionscompare drawing height length width 8.3 (19) 44.0 30.0 mm Innovation in Radar Technology CONFIDENTIAL AND PROPRIETARY The information contained in this document shall remain the sole and exclusive property of InnoSenT GmbH and shall not be disclosed by the recipient to third parties without prior consent of InnoSenT in writing. Page 3 USER MANUAL IVS-166 Version 1.0 TX- ANTENNA PATTERN Antenna Orientation: PARAMETERCONDITIONSSYMBOLMINTYPMAXUNITS full beam width @ -3dBhorizontal45° vertical38° side-lobe suppressionhorizontal15dB vertical20dB horizontal vertical antenna angle [°] output power [dBm] -40 -35 -3 0 -25 -20 -15 -10 -5 0 -180,0-150,0-120,0-90,0-60,0-30,00,030,060,090,0120,0150,0180,0 Innovation in Radar Technology CONFIDENTIAL AND PROPRIETARY The information contained in this document shall remain the sole and exclusive property of InnoSenT GmbH and shall not be disclosed by the recipient to third parties without prior consent of InnoSenT in writing. Page 4 USER MANUAL IVS-166 Version 1.0 PIN #DESCRIPTIONIN / OUTCOMMENT 1V tune inputvaractor tuning voltage 2enableinputactive low 3V cc inputsupply voltage (+5 V) 4GNDinputanalog ground 5IF1outputsignal I(nphase) 6IF2outputsignal Q(uadrature) 7GNDinputanalog ground 8GNDinputanalog ground 9NCnot connected 10NCnot connected INTERFACE The sensor provides a 2.54mm grid, single row pin header (square pin 0.635mm). MECHANICAL OUTLINES side view bottom view top view 30 4x2.54 44 35.4 4.3 40.5 backside 6x2.54 26.6 PIN1 19 16 all dimensions in mm antenna 7.6 0.7 PIN1 PIN10 PIN10 Innovation in Radar Technology CONFIDENTIAL AND PROPRIETARY The information contained in this document shall remain the sole and exclusive property of InnoSenT GmbH and shall not be disclosed by the recipient to third parties without prior consent of InnoSenT in writing. Page 5 USER MANUAL IVS-166 Version 1.0 NOTICE: This device complies with Part 15 of the FCC Rules [and with Industry Canada licence-exempt RSS standard(s)]. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. NOTICE: Changes or modifications made to this equipment not expressly approved by (manufacturer name) may void the FCC authorization to operate this equipment. Text for User Manual (blue cursive text) For a Class A digital device or peripheral, the instructions furnished the user shall include the following or similar state- ment, placed in a prominent location in the text of the manual: NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against har…
