DC9-VDS005Vehicle detection sensor

OPTEX Co., Ltd. Vehicle detection sensor [Model: VDS-005] Since this module is not sold to general end users directly, there is no user ma nual of module. For the details about this module, please refer to the specification sheet of module. This module should be installed in the host device accor ding to the interface specification (installation pr ocedur e). FCC WARNING(For USA) Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. 1.The antennas cannot be exchanged. 2.To comply with FCC RF exposure compliance requirements, aseparation distance of at least 20cm must be maintained between the antenna of this device and all persons. -NOTICE- -NOTICE- OPTEX Co.,LTD. Manufacturer 5-8-12 Ogoto Otsu 520-0101, Japan TEL.: +81(0)77-579-8700 FAX.: +81(0)77-579-7030 WEBSITE: www.optex.co.jp/as/eng/index.html East coast office 8510 McAlpines Park Drive, Suite 108 Charlotte, NC 28211 U.S.A. TEL.: +1-800-877-6656 FAX.: +1(704)365-0818 WEBSITE: www.optextechnologies.com OPTEX Technologies Inc. Corporate Headquarters North and South America Subsidiary 3882 Del Amo Blvd., Suite 604 Torrance, CA 90503 U.S.A. TEL.: +1-800-877-6656 FAX.: +1(310)214-8655 WEBSITE: www.optextechnologies.com VDS-005 Vehicle Detection Sensor The following information must be indicated on the host device of this module; Contains FCC ID: DC9-VDS005 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The following statements must be described on the user manual of the host device of this module;

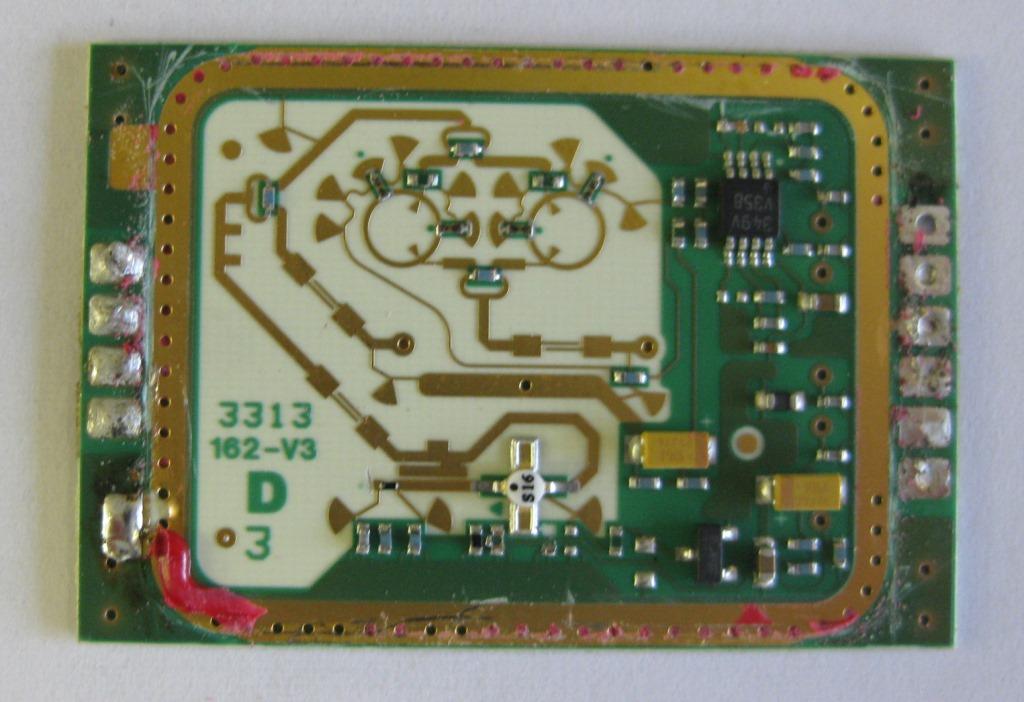

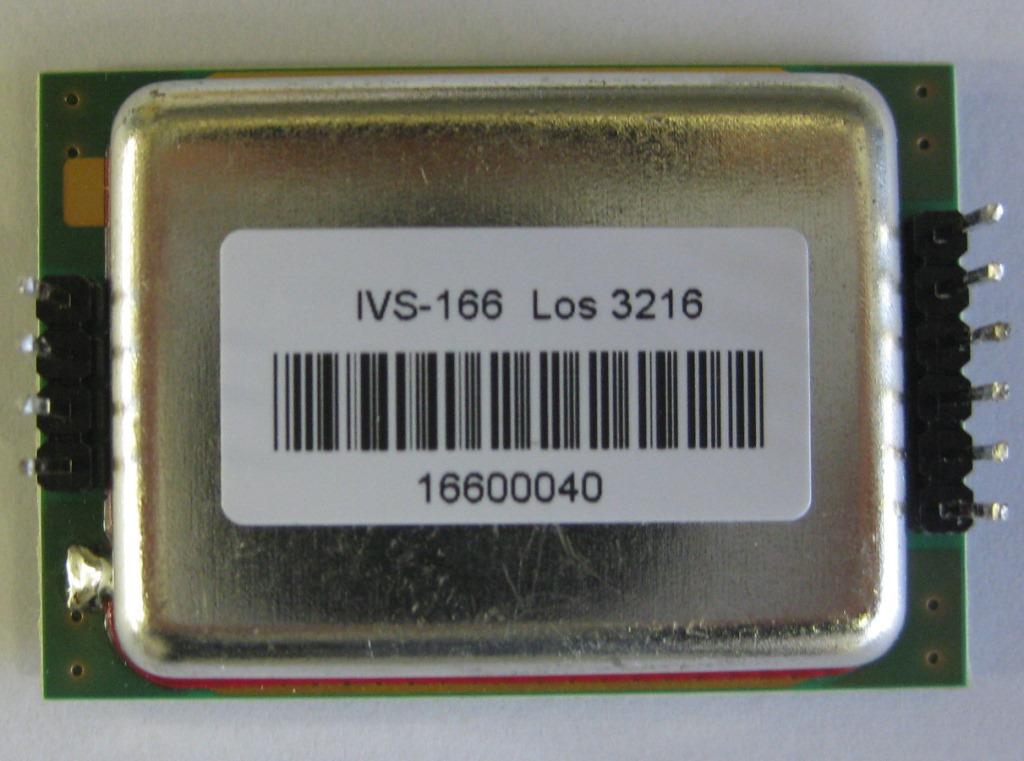

External/ Internal Photo OPTEX Co., Ltd. Vehicle detection sensor [Model: VDS-005] ANTENNA External/ Internal Photo OPTEX Co., Ltd. Vehicle detection sensor [Model: VDS-005] External/ Internal Photo OPTEX Co., Ltd. Vehicle detection sensor [Model: VDS-005]

MODEL:VDS-005 FCC ID:DC9-VDS005 MODEL:VDS-005 FCC ID:DC9-VDS005

External/ Internal Photo OPTEX Co., Ltd. Vehicle detection sensor [Model: VDS-005] ANTENNA External/ Internal Photo OPTEX Co., Ltd. Vehicle detection sensor [Model: VDS-005] External/ Internal Photo OPTEX Co., Ltd. Vehicle detection sensor [Model: VDS-005]

Test report No. : 10102266H-A-R1 Page : 2 of 18 Issued date : January 6, 2014 Revised date : February 3, 2014 FCC ID : DC9-VDS005 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10102266H-A Revision Test report No. Date Page revised Contents - (Original) 10102266H-A January 6, 2014 - - 1 10102266H-A-R1 February 3, 2014 5 Correction of FCC 15.31 (e) and FCC Part 15.203 Antenna requirement sentences in section 3.2. Test report No. : 10102266H-A-R1 Page : 3 of 18 Issued date : January 6, 2014 Revised date : February 3, 2014 FCC ID : DC9-VDS005 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ·············································································· 4 SECTION 2: Equipment under test (E.U.T.) ···································································· 4 SECTION 3: Test specification, procedures & results························································· 5 SECTION 4: Operation of E.U.T. during testing ······························································· 8 SECTION 5: Radiated emission (Electric Field Strength of Fundamental and Spurious Emission) 9 SECTION 6: 20dB Bandwidth and Duty Cycle ······························································· 11 APPENDIX 1: Data of EMI test ·················································································· 12 Radiated Emission (Electric Field Strength of Fundamental and Spurious Emission) ..................... 12 20dB Bandwidth ............................................................................................................................... 13 Duty Cycle ........................................................................................................................................ 14 APPENDIX 2: Test Instruments ·················································································· 16 APPENDIX 3: Photographs of test setup ······································································· 18 Radiated Emission ............................................................................................................................ 18 Test report No. : 10102266H-A-R1 Page : 4 of 18 Issued date : January 6, 2014 Revised date : February 3, 2014 FCC ID : DC9-VDS005 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : OPTEX CO., LTD. Address : 5-8-12 Ogoto, Otsu, Shiga 520-0101 Japan Telephone Number : +81-77-579-8000 Facsimile Number : +81-77-579-7100 Contact Person : Yasuhiro Takada SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Vehicle detection sensor Model No. : VDS-005 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC3.8V Receipt Date of Sample : November 8, 2013 Country of Mass-production : Japan Condition of EUT : Production model Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification Clock frequency(ies) in the system : CPU: 32MHz Radio Specification Radio Type : Transceiver Frequency of Operation : 24.125GHz Modulation : FM-CW Power Supply (radio part input) : DC5.0V Antenna type : Internal Antenna Antenna Gain : 11dBi Test report No. : 10102266H-A-R1 Page : 5 of 18 Issued date : January 6, 2014 Revised date : February 3, 2014 FCC ID : DC9-VDS005 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2013, final revised on September 30, 2013 and effective October 30, 2013 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.249 Operation within the bands 902-928MHz, 2400-2483.5MHz, 5725-5875MHz and 24.0-24.25GHz *The EUT complies with FCC Part 15 Subpart B: 2013, final revised on September 30, 2013 and effective October 30, 2013. 3.2 Procedures and results No. Item Test Procedure SpecificationDeviationWorst marginResults 1 Conducted Emission ANSI C63.4:2003 7. AC powerline conducted emission measurements Section 15.207(a) N/A N/A N/A *1) 2 Electric Field Strength of Fundamental Emission ANSI C63.4:2003 13. Measurement of intentional radiators Section 15.249(a)(e) N/A 10.7dB 24125.830MHz Vertical PK with Duty Factor Complied 3 Electric Field Strength of Spurious Emission ANSI C63.4:2003 13. Measurement of intentional radiators Section 15.205(a)(b) Section 15.209(a) Section 15.249(a)(d)(e) N/A 3.2dB 96516.730MHz Horizontal PK with Duty Factor Complied 4 20dB Bandwidth ANSI C63.4:2003 Reference N/A N/A N/A 5 Frequency Tolerance ANSI C63.4:2003 Section 15.249(b) N/A N/A N/A *2) Note: UL Japan, Inc.’s EMI Work Procedures No. 13-EM-W0420 and 13-EM-W0422. *1) The test is not applicable since this EUT is operated on DC. *2) The test is not required since this EUT does not operate in accordance with FCC15.249(b). *In case any questions arise about test procedure, ANSI C63.4: 2003 is also referred. FCC 15.31 (e) The RF Module has its own regulator. The RF Module is constantly provided voltage (DC5.0V) through the regulator regardless of input voltage. Therefore, this EUT complies with the requirement. FCC Part 15.203 Antenna requirement It is impossible for end users to replace the antenna, because it is printed on the circuit board. Therefore the equipment complies with the requirement of 15.203/212. Test report No. : 10102266H-A-R1 Page : 6 of 18 Issued date : January 6, 2014 Revised date : February 3, 2014 FCC ID : DC9-VDS005 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho…

Text truncated - open the document above for the full version.

Test report No. : 10102266H-A-R1 Page : 18 of 18 Issued date : January 6, 2014 Revised date : February 3, 2014 FCC ID : DC9-VDS005 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Radiated Emission Photo 1 Photo 2 End of Report
