American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 June 6, 2003 RE: OPTEX CO., LTD. FCC ID: DC9EZ-SERIES I have a few comments on this Application. 1.) Please insert RF Exposure warning under you FCC heading. To read something like: Caution 1. To comply with FCC RF exposure compliance requirements, a separation distance of at least 20cm must be maintained between the antenna of this device and all persons. 2. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2.) Please correct analyzer plots as they have the wrong resolution bandwidth. RBW cannot be less that 1Mhz and VBW must be equal to or greater for all readings over 1 GHz. 3.) CFR Pt. 15.207 Power Line Conducted test on EUT is missing from report. 4.) Please submit Schematics that show component values. 5.) Please submit Occupied Bandwidth plots. 6.) Please confirm radiated tests were preformed on three orthogonal planes? 7.) CFR PT. 15.31(1) states when performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse linear-distance for field strength measurements; inverse-linear-distance-squared for power density measurements). Your report doses not show if the distance correction factors on the plots relates to this requirement or not. Please confirm if this is the extrapolation to 3 meters as called for. Thank you, z Page 2 June 6, 2003 Douglas E. Noble Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

July 7, 2003 RE: OPTEX CO., LTD. FCC ID: DC9EZ-SERIES This is reply to your comment on June 6, 2003. 1.) Please insert RF Exposure warning under you FCC heading. To read something like: A1. We’ve already answered this comment on 7/1/2003. 2.) Please correct analyzer plots as they have the wrong resolution bandwidth. RBW cannot be less that 1Mhz and VBW must be equal to or greater for all readings over 1 GHz. A2. Output signal of this transmitter is non-modulation and it is also continuous wave (CW). At this testing, signal level and the spurious is fairly low. Therefore, at signal level testing, we confirmed that there is no change of peak level at RBW=1MHz and VBW=100kHz (VBW is normally higher than RBW, we set VBW=RBW at testing). For reducing the noise floor, RBW and VBW have to be equal to 100kHz. Because if RBW=VBW=1MHz, it is very difficult to measure accurate value with existing measuring instruments. Please see attached “revised test report. pdf”. 3.) CFR Pt. 15.207 Power Line Conducted test on EUT is missing from report. A3. Please refer to additional Test Report “23BE0059-HO-1(FCC15C). pdf”. 4.) Please submit Schematics that show component values. A4. Please refer to attached “Parts list. xls”. 5.) Please submit Occupied Bandwidth plots. A5. Please refer to additional Test Report “23BE0059-HO-1(FCC15C). pdf”. 6.) Please confirm radiated tests were preformed on three orthogonal planes? A6. As you can see in attached “revised test report. pdf” of section 2.5.2, EUT was checked with 3 directions and it is understandable that measurement was performed with the maximum direction. 7.) CFR PT. 15.31(1) states when performing measurements at a distance other than that specified, the results shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade (inverse linear-distance for field strength measurements; inverse- linear-distance-squared for power density measurements). Your report doses not show if the distance correction factors on the plots relates to this requirement or not. Please confirm if this is the extrapolation to 3 meters as called for. A7. At this frequency band, it is almost impossible to measure the accurate value at the distance of 3m. By the tested wavelength, we can assume distance of 25cm as Far Field. This Distance Conversion is shown at section 2.4.1 and 2.4.2 of the “revised test report. pdf”. We followed FCC15.31(f)(1) and used 20dB/ decade.

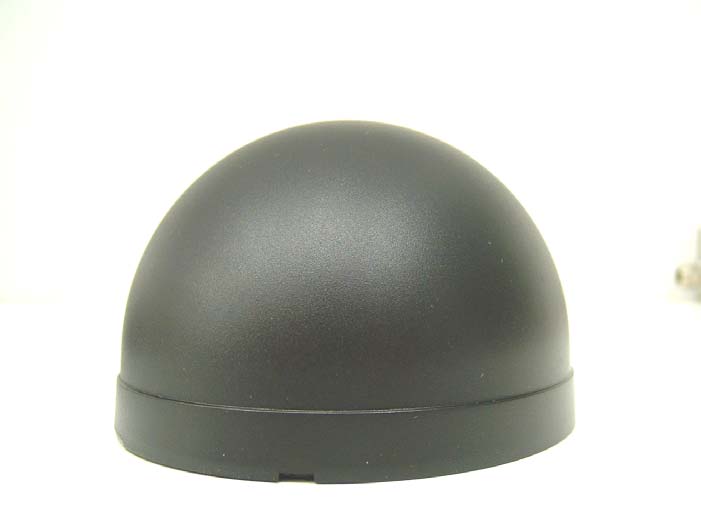

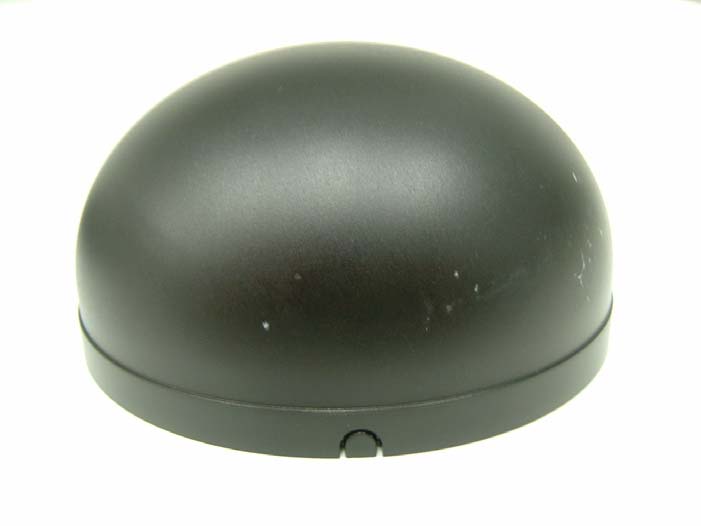

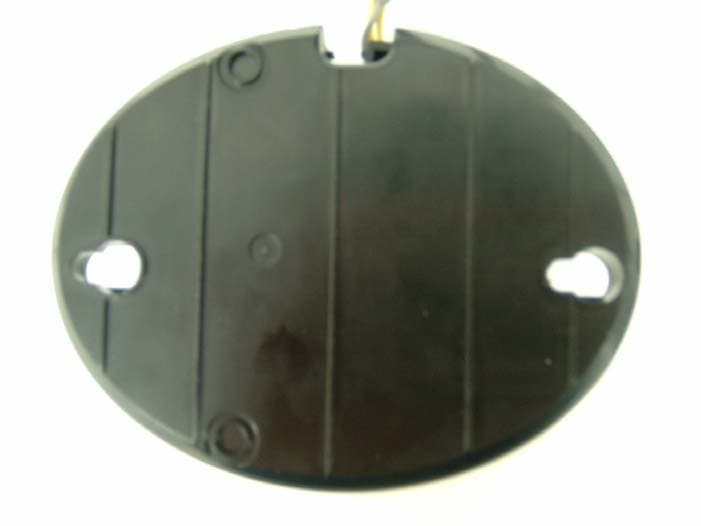

External Photo OPTEX CO., LTD. Model: EZ FCC ID: DC9EZ-SERIES Front View Rear View External Photo OPTEX CO., LTD. Model: EZ FCC ID: DC9EZ-SERIES Top View Bottom View External Photo OPTEX CO., LTD. Model: EZ FCC ID: DC9EZ-SERIES Side View

Label Location

Internal Photo OPTEX CO., LTD. Model: EZ FCC ID: DC9EZ-SERIES Open View Open View2 Internal Photo OPTEX CO., LTD. Model: EZ FCC ID: DC9EZ-SERIES Front View without Cover Rear View with out Cover Internal Photo OPTEX CO., LTD. Model: EZ FCC ID: DC9EZ-SERIES Left Side View without Cover Right Side View without Cover Internal Photo OPTEX CO., LTD. Model: EZ FCC ID: DC9EZ-SERIES Circuit Board (Top) Circuit Board (Bottom)

EZ Technical description EZ is a non-contacting switch for opening and closing an automatic door. EZ has a microwave Doppler (MW) detector. When the detector detects a human, the relay output connected to the output terminal is reversed. Moreover, LED is displayed on red. MW detector transmits and receives K-band microwave (24.125 GHz). If there is a moving object in the detection area, it causes changes in received microwave frequency (Doppler effect). MW detector outputs signals when there are such changes. This product is a fixed office and antennas cannot be exchanged. The antenna is a permanent attachment type antenna. Block diagram description MW SENSOR MW SENSOR transmits and receives K-band microwave (24.125 GHz). If there is a moving object in the detection area, it causes changes in received microwave frequency (Doppler effect). MIXER outputs signals when there are such changes. Fundamental microwave frequency is generated by OSC, and Microwave is emitted from the antenna ( Wire zig-zag array antenna ) through MIXER. The reflections of Microwave at objects in the detection area are received at the antenna, and mixed at MIXER with fundamental microwave frequency. If there is a human moving in the detection area, the microwave frequency is added with moving speed of the human for Doppler effect. Then MIXER outputs the Doppler signals (1～300HZ) to AMPLIFIER. ・ AMPLIFIER The Doppler signal outputted from MIXER is amplified. ・ MICROCOMPUTER MICROCOMPUTER judges whether the detection object is entering into detection area with the signal amplified by AMPLIFIER., and it judges whether the detection object is advancing into detection area. The judged result is outputted to RELAY DRIVE and LED DRIVE. ・RELAY DRIVE When a detection signal is inputted, the relay output connected to the output terminal is reversed. ・ LED DRIVE When a detection signal is inputted, red is made to turn on LED for a display. Moreover, if there is no detection signal, LED for a display will be made to turn on green. ・ DC/DC CONVERTER The inputted voltage (AC12-24V, DC12-30V) is changed into voltage required for each BLOCK.

(ELECTRIC) TYPE DESCRIPTION MANUFACTURER PRINTED CIRCUIT BOARD 1 ①XPC②ＦＲ１③ＦＲ３ TERMINAL BLOCK 1 DT126-4P RATING P≧8A , V≧300Ｖ DINKLE ENTERPRIZE CO .,LTD. 安全重要部品 CONNECTOR 1 CODE 1 CODE 1 SHILD FILM 1 MW SENSOR 1 R1-R6,R8-R25,J1-J13 RESISTOR 36 RATING P≧0.0625W R7 RESISTOR 1 RATING P≧0.1W VR1、VR2 POTENTIOMETE R 2 RATING P≧0.1W , V≧6.3 V C4,C6,C10C12-C26 CAPACITOR 16 RATING Ｖ≧6.3Ｖ C3,C5,C8,C9,C11 CAPACITOR 5 RATING Ｖ≧10Ｖ C1,C2,C7 CAPACITOR 3 RATING Ｖ≧50Ｖ FB1,FB2,FB3 FERRITE BEAD 3 RATING I≧50m A D1,D2 DIODE 2 RATING Ｖr≧40Ｖ , Io=200mA D3 DIODE 1 RATING Ｖr≧90Ｖ , Io=100mA D4,D5 DIODE 1 RATING Ｖz=6.8V ＥＭＣ重要部品 Q1 TRANSISTOR 1 RATING Ｖceo≦-50Ｖ , Ic≦-1A Q2 TRANSISTOR 1 RATING Ｖceo≧50Ｖ , Ic≧1A Q3 TRANSISTOR 1 RATING Ｖceo≦-50Ｖ , Ic≦-0.1A U1 DC-DC CONVERTER 1 RATING Ｖcc≧40Ｖ , Pd≧400mW U2,U3 VOLTAGE REGULATO R 2 RATING Ｖin≧30Ｖ , Pd≧500mW U4 SYSTEM RESET 1 RATING Ｖcc≧10Ｖ , Pd≧400mW U5 MICROCOMPUTER 1 M3850 RATING Ｖcc=5Ｖ , Pd=34mW MITSUBISHI ELECTRIC CORPORATION U6 OPERATIONAL AMPLIFIERS 1 RATING Ｖcc≧32Ｖ , Pd≧300mW X1 CERAMIC RESONATOR 1 L1 COIL 1 RATING I≧200mA ＥＭＣ重要部品 L2 COIL 1 RATING I≧200mA ZNR VARISTOR 1 BREAK DOWN VOLTAGE Vb = 47 V ＥＭＣ重要部品 RY RELAY 1 G5V-1-2 RATING Pd≧150mW OMRON CORPORATION 安全重要部品 PARTS LIST EZ QYT PARTS NAME PARTS NO. PARTICULAR LED LED 1 RATING Ｖf=2Ｖ , If≧20m A

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6–10, D-66117 Saarbrücken, Telephone +49 (0) 681 598 - 0 , Fax +49 (0) 681 598 – 9 075 Test report No.: 2–3190–01–02/03This test report consists of 33 pagesPage 1 of 33 Recognized by the Federal Communications Commission FCC–Identification Number TCB ID: DE0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 166/98-30 Independent ETSI compliance test house ETSI Test report No.:2–3190–01–02/03 Applicant:OPTEX Co. Ltd. Type:Microwave Door Sensor CETECOM ICT Services GmbH Test report No.: 2–3190–01–02/03Date : 16.06.2003Page 2 of 33 Table of contents 1.General information........................................................................................................3 1.1.Notes.........................................................................................................................3 1.2.Testing laboratory......................................................................................................4 1.3.Details of applicant....................................................................................................4 1.4.Application details.....................................................................................................4 1.5.Test item (EUT).........................................................................................................5 1.6.Technical data............................................................................................................5 1.6.1.Operation conditions..................................................................................................5 1.6.2.Equipment under test..................................................................................................5 1.7.Test standards:...........................................................................................................6 1.8.Code of Federal Regulations (CFR 47).......................................................................6 1.9.Industry Canada Standard..........................................................................................6 2.Technical test..................................................................................................................7 2.1.Summary of test results..............................................................................................7 2.2.Test environment.......................................................................................................7 2.3.Measurement and test set-up......................................................................................7 2.4.Test equipment utilized and test set-up.......................................................................8 2.5.Test results...............................................................................................................11 3.Plots, graphs and data sheets......................................................................................14 4.Photographs................................................................................................................28 CETECOM ICT Services GmbH Test report No.: 2–3190–01–02/03Date : 16.06.2003Page 3 of 33 1. General information 1.1. Notes The test results of this test report relate exclusively to the test item specified in 1.5.. CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. Tester : 16.06.2003 Manfred Paschwitz DateNameSignature Technical responsibility for area of testing : 16.06.2003 Klaus Kammerinke DateNameSignature CETECOM ICT Services GmbH Test report No.: 2–3190–01–02/03Date : 16.06.2003Page 4 of 33 1.2. Testing laboratory CETECOM ICT Services GmbH Untertürkheimerstraße 6–10P.O. Box 65 01 55 66117 Saarbrücken66140 Saarbrücken GermanyGermany Telephone:+ 49 (0) 681 598–0 Fax:+ 49 (0) 681 598–9075 e-mail:[email protected] Internet:http://www.cetecom.de Accredited testing laboratory Accredited by: Regulierungsbehörde für Telekommunikation und Post (RegTP) Listed by: Federal Communications Commission (FCC) AuthorityIdentification/Registration No. RegTPTTI-P-G 166/98-30 FCC90462 Testing location, if different from CETECOM ICT Services GmbH: (Not applicable) Name:(Not applicable) 1.3. Details of applicant Name:OPTEX Co. Ltd. Street:5-265-1 Ogoto Town:Otsu 520-0101 Country:Japan Telephone:+81 77 579 8111 Fax:+81 77 579 8137 Contact person Name:Osamu Imanishi Telephone:+81 77 579 8111 Fax:+81 77 579 8137 e mail:o–[email protected] 1.4. Application details Date of receipt of application:28.04.2003 Date of receipt of test item:28.04.2003 Date of test:16.05.2003 CETECOM ICT Services GmbH Test report No.: 2–3190–01–02/03Date : 16.06.2003Page 5 of 33 1.5. Test item (EUT) Description of EUT:Field disturbance sensor System designation:Automatic door opener Type designation:Microwave Door Sensor Manufacturer:OPTEX Co. Ltd. Street:5-265-1 Ogoto Town:Otsu 520-0101 Country:Japan 1.6. Technical data Frequency range:24.000 GHz ... 24.250 GHz Operational frequency:24.129 GHz Field strength EZ: 74.4 mV/m Type of modulation :100H0N0N (CW) Microwave modules:TX / RX – Module with integral antenna Antenna module 1 for EZ:normal cover Normal DC power supply:+12.0 V Extreme DC power supply:+9.0 V ... +30.0 V Normal AC power supply:12.0 V Extreme AC power supply:9.0 V ... 24.0 V 1.6.1. Operation conditions Operation::As soon as the equipment is powered up, TX and RX start operating Purpose of operation:Automatic door opener 1.6.2. Equipment under test ModelMicrowave module EZnormal cover CETECOM ICT Services GmbH Test report No.: 2–3190–01–02/03Date : 16.06.2003…
