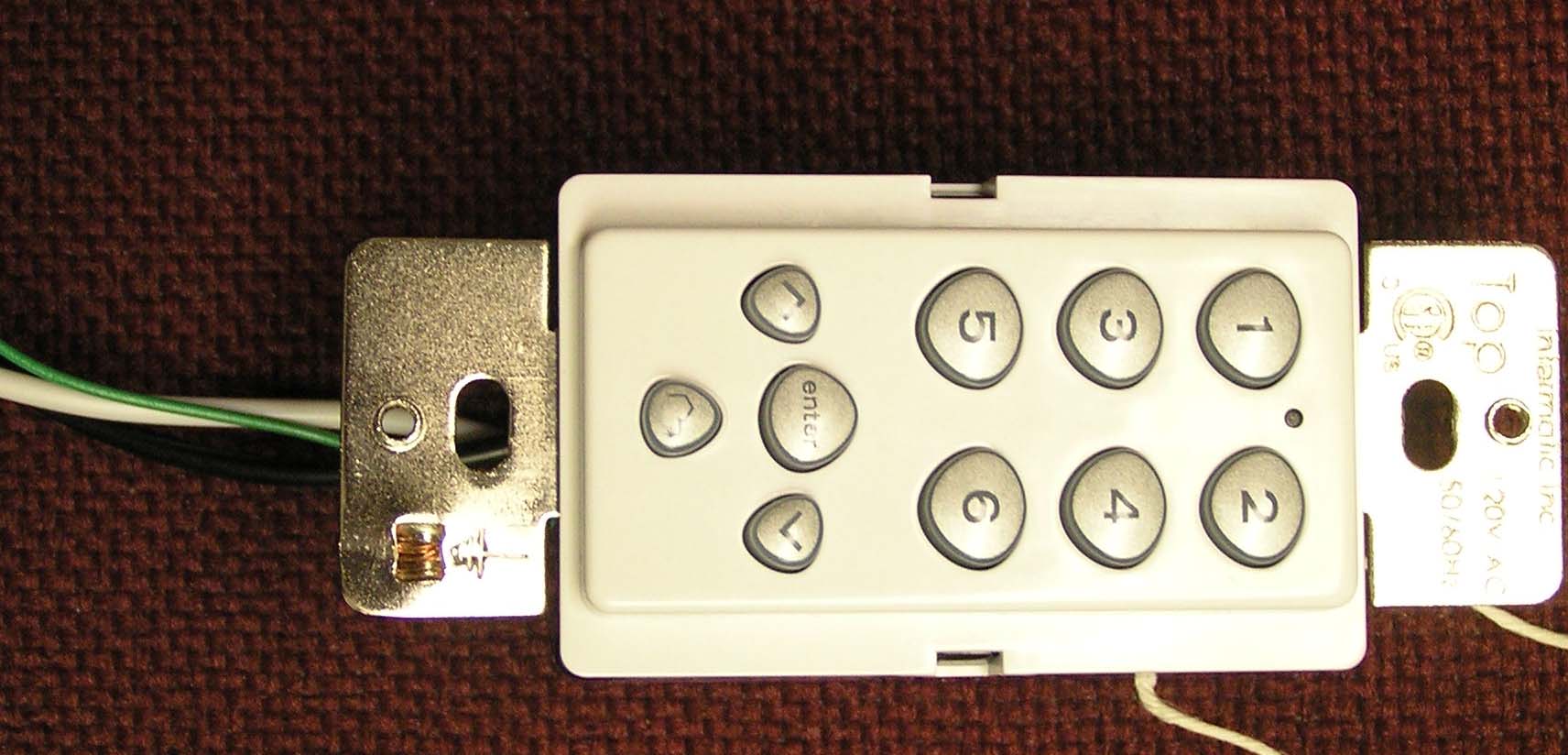

DGZCA5000Mulit-Scene Wall Controller

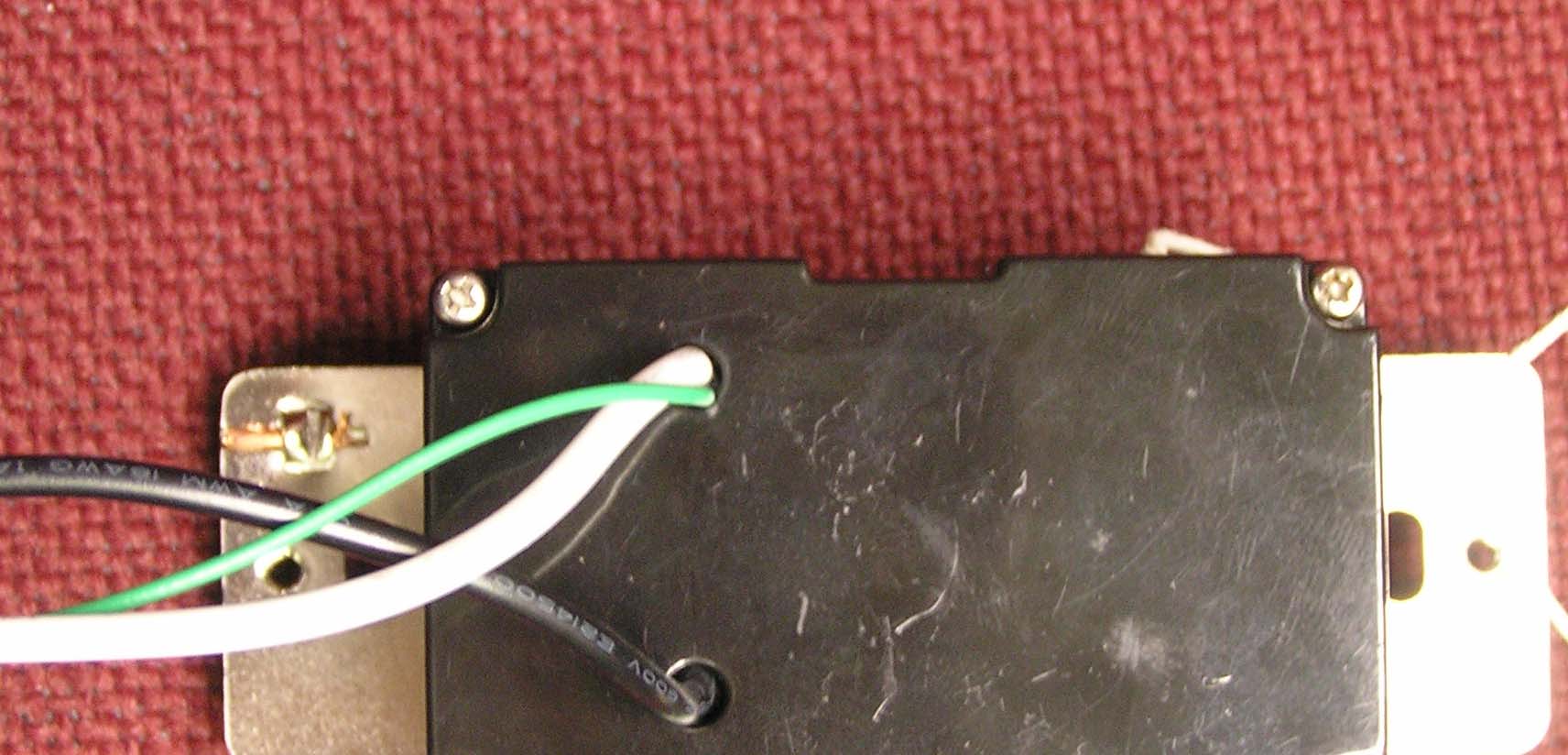

WARNING:Read instructions completely before installation and retain for future reference. WARNING: WARNING: OTHER CAUTIONS: For installation and/or use in accordance with appropriate electrical codes and regulations. Consult a qualified electrician for installation and operation. 1. For remote operation of Z-Wave compatible controls. 2. Use this device only with copper or copper clad wire. Note: Designed to work only in the presence of InTouch™ Server (CA5500B or other). Model CA5000 Multi-Scene Wall Controller Specifications: Ratings: Colors: Connections: RF Information: Network Information: Wireless RF Control 120VAC, 50/60Hz Includes white, ivory, and light almond snap-on face plates. Black-Line, White-Neutral, Green-Ground Minimum Range: 50ft indoor; 100ft outdoor Frequency: 908.42 MHz Mesh Network - Each line powered node acts as a repeater to route distant signals. Data Rate: 9600 bits/second Size: 232 Z-Wave™ Nodes Operating Temperature Range: 32°F (0°C) to 104°F (40°C) Power Consumption: 2.0W Max INSTALLATION: 1. WARNING: TO AVOID FIRE, SHOCK, OR DEATH, TURN OFF POWER AT CIRCUIT BREAKER AND TEST THAT POWER IS OFF BEFORE WIRING. Operation: 2. Refer to wiring diagrams for proper connection of multi-scene wall controller. 3. Check that all wire connections are secure. 4. Place all wires inside junction box. Install multi-scene wall controller using (2) mounting screws furnished. Complete installation with a decorator style wall-plate. 5. Reconnect your electrical power. 6.Press scene number button(s) to focus control activities; Press “Enter” to toggle selected scene(s); Press 7. For programming instructions refer to the(158CA12789).InTouch Installer & Users Guide rs/to raise or lower selected scene(s) level; Press the home key to clear selected scene(s). The CA5000 Multi-Scene Wall Controller is an enhanced radio frequency controller compatible with Z-wave™ enabled networks and devices. Each line powered node in a Z-wave network is designed to act as a repeater forming a mesh network eliminating radio “dead spots” and providing the highest level of reliability. - Multiple location On/Off & Raise/Lower control when used with Z-wave enabled devices. - Allows control of up to 6 individual pre-set scenes containing any number of Z-wave enabled devices. - Features individual scene status feedback for enhanced control. - Separate focus and control buttons allow the user to custom mix scene selections and vary light levels. - Home key provides for quick de-selection of scenes. Features Faceplate Snap FCC STATEMENT OF COMPLIANCE WARNING! Changes or modifications not expressly approved by Intermatic Inc. could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC rules. Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna or device. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Faceplate Color Conversion The faceplate color of this device can be converted to match interior design requirements. Simply use one of the included color plates (white, ivory, or light almond) and proceed as follows (please note that the device must be removed from the junction box to change the faceplate, follow the installation instructions and warnings). 1. Select the color of the faceplate you desire. 2. The faceplate has snaps on its sides. Using a small screwdriver or thumbnail, gently remove the face plate from the housing body. 3. Take the new faceplate and position it properly to the housing body. Notice that the locking snaps will align in only the proper direction. Line up the plastic snaps with the slots in the housing body and snap into place. 4. The faceplate snaps in with an audible click. Ensure that both snaps are secure. Replace the device in the junction box following installation instructions. The color conversion is complete. Providing a Brighter Solution™ 158CA12472REF WIRELESS CONTROLS TM White Standard Installation HotBlack Neutral Wire Connector Ground Green 120VAC 50/60 Hz CA5000 Raise/Lower Buttons Scene Buttons 1 3 5 2 4 6 ENTER Enter & Home Buttons 1 3 5 2 4 6 ENTER LIMITED TEN YEAR WARRANTY If within ten (10) years from date of purchase, this product fails due to a defect in material or workmanship, Intermatic Incorporated will repair or replace, at its sole option. This warranty applies only to the original purchaser and is not transferable. This warranty excludes and this is disclaimed liability for labor for removal of this product or reinstallation. The warranty does not apply to: (a) damage caused by accident, abuse, mishandling, dropping, acts of God, or any negligent use; (b) units which have been subject to unauthorized repair, opened, taken apart, or otherwise modified; (c) units not used in accordancewith directions; (d) damages exceeding the cos…

Text truncated - open the document above for the full version.

MODEL: CA5000 MULTI-SCENE SERVER 120Vac at 50/60 Hz, 2.0W Supply FCC ID: DGZCA5000 IC: 4898A-CA5000 Refer to owners manual for complete instructions USE 75 ̊C COPPER WIRE ONLY SUITABLE FOR INDOOR USE ONLY. INTERMATIC INC., Spring Grove, IL 60081-9698 www.intermatic.com MADE IN CHINA PATENT(S) PENDING CA5000 was154CA24919.qxp 4/28/06 2:20 PM Page 1

Engineering Test Report No. 38294-03 Measurement of RF Interference from a Model CA5000 Multiscene Controller Transceiver For : Intermatic 7777 Winn Road Spring Grove, IL 60081 P.O. No. : 925533 Date Received : May 14, 2007 Date Tested : May 14 and 15, 2007 Test Personnel : Daniel E. Crowder Specification : FCC "Code of Federal Regulations” Title 47 : Part 15, Subpart B, for receivers and Subpart C, : Section 15.249 for Intentional Radiators : Operating within the 902MHz to 928MHz band : Industry Canada RSS-210 : Industry Canada RSS-GEN Test Report By : Daniel E. Crowder Witnessed By : Mike Kass Intermatic Approved By : Raymond J. Klouda Registered Professional Engineer of Illinois - 44894 Elite Electronic Engineering Inc. 1516 Centre Circle Downers Grove, IL 60515 Tel : (630) 495-9770 Fax: (630) 495-9785 www.elitetest.com Engineering Test Report No. 38294-03 THIS REPORT SHALL NOT BE REPRODUCED, EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF ELITE ELECTRONIC ENGINEERING INCORPORATED. Page 2 of 30 TABLE OF CONTENTS PARAGRAPH DESCRIPTION OF CONTENTS PAGE NO. 1 INTRODUCTION ............................................................................................................................................... 4 1.1 Scope of Tests .......................................................................................................................................... 4 1.2 Purpose .................................................................................................................................................... 4 1.3 Deviations, Additions and Exclusions....................................................................................................... 4 1.4 EMC Laboratory Identification .................................................................................................................. 4 1.5 Laboratory Conditions .............................................................................................................................. 4 2 APPLICABLE DOCUMENTS ............................................................................................................................ 4 3 TEST ITEM SET-UP AND OPERATION .......................................................................................................... 5 3.1 General Description .................................................................................................................................. 5 3.1.1 Power Input .......................................................................................................................................... 5 3.1.2 Peripheral Equipment........................................................................................................................... 5 3.1.3 Interconnect Cables ............................................................................................................................. 5 3.1.4 Grounding............................................................................................................................................. 5 3.2 Operational Mode ..................................................................................................................................... 5 3.3 Test Item Modifications............................................................................................................................. 5 4 TEST FACILITY AND TEST INSTRUMENTATION.......................................................................................... 5 4.1 Shielded Enclosure................................................................................................................................... 5 4.2 Test Instrumentation ................................................................................................................................. 5 4.3 Calibration Traceability ............................................................................................................................. 6 4.4 Measurement Uncertainty ........................................................................................................................ 6 5 TEST PROCEDURES ....................................................................................................................................... 6 5.1 Powerline Conducted Emissions .............................................................................................................. 6 5.1.1 Receiver ............................................................................................................................................... 6 5.1.1.1 Requirements .............................................................................................................................. 6 5.1.1.2 Procedures .................................................................................................................................. 6 5.1.1.3 Results ......................................................................................................................................... 6 5.1.2 Transmitter ........................................................................................................................................... 7 5.1.2.1 Requirements .............................................................................................................................. 7 5.1.2.2 Procedures .................................................................................................................................. 7 5.1.2.3 Results ......................................................................................................................................... 7 5.2 Radiated Measurements .......................................................................................................................... 7 5.2.1 Receiver ............................................................................................................................................... 7…

Text truncated - open the document above for the full version.

Figure 2 Test Set-up for Conducted Emissions Figure 3 Test Set-up for Radiated Emissions – 30MHz to 1GHz – Horizontal Polarization - Receiver Test Set-up for Radiated Emissions – 30MHz to 1GHz - Vertical Polarization - Receiver
