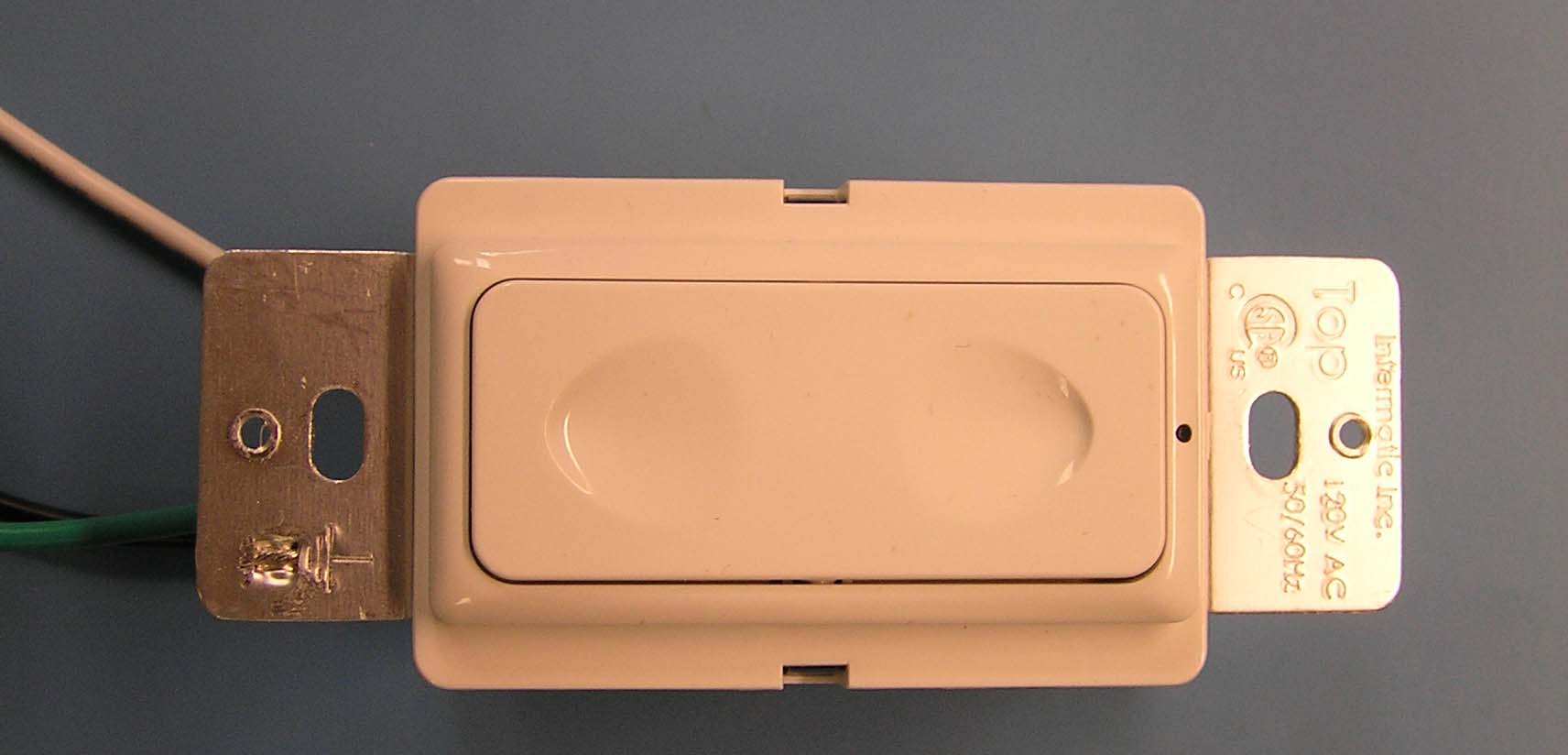

DGZCA5100Accessory Wall Switch Controller

WARNING:Read instructions completely before installation and retain for future reference. WARNING: WARNING: OTHER CAUTIONS: For installation and/or use in accordance with appropriate electrical codes and regulations. Consult a qualified electrician for installation and operation. 1. For remote operation of Z-Wave compatible controls. 2. Use this device only with copper or copper clad wire. Model CA5100 Accessory Wall Switch Controller Specifications: Ratings: Colors: Connections: RF Information: Network Information: Wireless RF Control 120VAC, 50/60Hz Includes white, ivory, and light almond snap-on rocker plates. Black-Line, White-Neutral, Green-Ground Frequency: 908.42 MHz Mesh Network - Each line powered node acts as a repeater to route distant signals. Data Rate: 9600 bits/second Size: 232 Z-Wave™ Nodes Operating Temperature Range: 32°F (0°C) to 104°F (40°C) Power Consumption: 2.0W Max Minimum Range: 50ft indoor; 100ft outdoor INSTALLATION: 1. WARNING: TO AVOID FIRE, SHOCK, OR DEATH, TURN OFF POWER AT CIRCUIT BREAKER AND TEST THAT POWER IS OFF BEFORE WIRING. Operation: 2. If using for a retrofit application, remove wall plate and disconnect switch. ; press and hold top of rocker to transmit raise command; press and hold bottom of rocker to transmit lower command. (158CA12789). 3. Refer to wiring diagrams for proper connection of accessory switch. 4. Check that all wire connections are secure. 5. Place all wires inside junction box. Install accessory switch using (2) mounting screws furnished. Complete installation with a decorator style wall-plate. 6. Reconnect your electrical power. 7.Tap top of rocker to transmit on command; tap bottom of rocker to transmit off command 7. For programming instructions refer to theInTouch Installer & Users Guide The CA5100 Accessory Wall Switch Controller is a Z-wave™ enabled device which is fully compatible with any Z-wave enabled network. Z-wave enabled devices display the Z-wave logo and guarantee connectivity and interoperability between devices. Each line powered node in a Z-wave network is designed to act as a repeater forming a mesh network eliminating radio “dead spots” and providing the highest level of reliability. - Multiple location On/Off & Raise/Lower control when used with Z-wave enabled switches and dimmers. - Pre-set scene control when used with up to 5 Features Z-wave enabled devices. - Full 229 device scene control when used with Intermatic InTouch™ server (CA5500B). This product is compatible with other Z-Waveenabled products™ Rocker Color Conversion The frame and rocker color of this device can be converted to match interior design requirements. Simply use one of the included color plates (white, ivory, or light almond) and proceed as follows (please note that the device must be removed from the junction box to change the rocker, follow the installation instructions and warnings). 1. Select the color of the face you desire. 2. The frame has snaps on its sides. Using a small screwdriver or thumbnail, gently remove the frame and rocker from the housing body. 3. Take the new frame and position it properly to the housing body. Notice that the locking snaps will align in only the proper direction. Line up the plastic snaps with the slots in the housing body and snap into place. 4. The frame snaps in with an audible click. Ensure that both snaps are secure. Replace the device in the junction box following installation instructions. The color conversion is complete. Rocker Frame Snap FCC STATEMENT OF COMPLIANCE WARNING! Changes or modifications not expressly approved by Intermatic Inc. could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC rules. Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna or device. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Providing a Brighter Solution™ 158CA12476REF WIRELESS CONTROLS TM Programming LED Convertible Rocker White Standard Installation HotBlack Neutral Wire Connector Ground Green 120VAC 50/60 Hz CA5100 LIMITED TEN YEAR WARRANTY If within ten (10) years from date of purchase, this product fails due to a defect in material or workmanship, Intermatic Incorporated will repair or replace, at its sole option. This warranty applies only to the original purchaser and is not transferable. This warranty excludes and this is disclaimed liability for labor for removal of this product or reinstallation. The warranty does not apply to: (a) damage caused by accident, abuse, mishandling, dropping, acts of God, or any negligent use; (b) units which have been subject to unauthorized repair, opened, taken apart, or otherwise modified; (c) units not used in accordancewith directions; (d) damages exceeding the cost of the product. Some states do not allow a limitation of damage…

Text truncated - open the document above for the full version.

MODEL: CA5100 ROUTING ACCESSORY SWITCH 120Vac at 50/60 Hz, 2.0W Supply FCC ID: DGZCA5100 IC: 4898A-CA5100 Refer to owners manual for complete instructions USE 75 ̊C COPPER WIRE ONLY SUITABLE FOR INDOOR USE ONLY. INTERMATIC INC., Spring Grove, IL 60081-9698 www.intermatic.com MADE IN CHINA PATENT(S) PENDING CA5100 was154CA24923.qxp 4/25/06 11:59 AM Page 1

Engineering Test Report No. 37188-01 Measurement of RF Interference from a Transceiver Model CA 5100 AC Power Light Switch For : Intermatic Spring Grove, IL P.O. No. : 912940 Date Received : August 30, 2006 Date Tested : August 30, 2006 through September 8, 2006 Test Personnel : Mark E. Longinotti, Brandon Lugo Specification : FCC "Code of Federal Regulations” Title 47 Part 15, Subpart B, for receivers and Subpart C, Section 15.249 for Intentional Radiators Operating Within the 902MHz to 928MHz band Test Report By : Mark E. Longinotti NARTE® Certified EMC Test Engineer, ATL-0154-E Approved By : Raymond J. Klouda Registered Professional Engineer of Illinois - 44894 Elite Electronic Engineering Inc. 1516 Centre Circle Downers Grove, IL 60515 Tel : (630) 495-9770 Fax: (630) 495-9785 www.elitetest.com Engineering Test Report No. 37188-01 THIS REPORT SHALL NOT BE REPRODUCED, EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF ELITE ELECTRONIC ENGINEERING INC. Page 2 of 29 TABLE OF CONTENTS PARAGRAPH DESCRIPTION OF CONTENTS PAGE NO. 1.0 INTRODUCTION.................................................................................................................................................................. 3 1.1 Description of Test Item ..................................................................................................................................................... 3 1.2 Purpose .............................................................................................................................................................................. 3 1.3 Deviations, Additions and Exclusions................................................................................................................................. 3 1.4 Applicable Documents ....................................................................................................................................................... 3 1.5 Subcontractor Identification................................................................................................................................................ 3 1.6 Laboratory Conditions ...................................................................................................................................................... 3 2.0 TEST ITEM SETUP AND OPERATION...............................................................................................................................3 2.1 Power Input........................................................................................................................................................................ 4 2.2 Grounding.......................................................................................................................................................................... 4 2.3 Peripheral Equipment ......................................................................................................................................................... 4 2.4 Interconnect Cables ............................................................................................................................................................ 4 2.5 Operational Mode .............................................................................................................................................................. 4 2.6 Test Item Modifications.................................................................................................................................................... 4 3.0 TEST EQUIPMENT............................................................................................................................................................... 4 3.1 Test Equipment List ........................................................................................................................................................... 4 3.2 Calibration Traceability .................................................................................................................................................... 4 3.3 Measurement Uncertainty................................................................................................................................................. 4 4.0 REQUIREMENTS, PROCEDURES AND RESULTS........................................................................................................... 5 4.1 Powerline Conducted Emissions ...................................................................................................................................... 5 4.1.1 Receiver .................................................................................................................................................................... 5 4.1.1.1 Requirements..................................................................................................................................................... 5 4.1.1.2 Procedures ......................................................................................................................................................... 5 4.1.1.3 Results ............................................................................................................................................................... 5 4.1.2 Transmitter ................................................................................................................................................................ 6 4.1.2.1 Requirements..................................................................................................................................................... 6 4.1.2.2 Procedures ......................................................................................................................................................... 6 4.1.2.3 Results ..........................................................................................................................................................…

Text truncated - open the document above for the full version.

Engineering Test Report No. 37188-01 Page 13 of 29 Figure 2 Test Setup for Conducted Emissions Engineering Test Report No. 37188-01 Page 14 of 29 Figure 3 Test Setup for Radiated Emissions, 908MHz – Horizontal Polarization Test Setup for Radiated Emissions, 908MHz – Vertical Polarization
