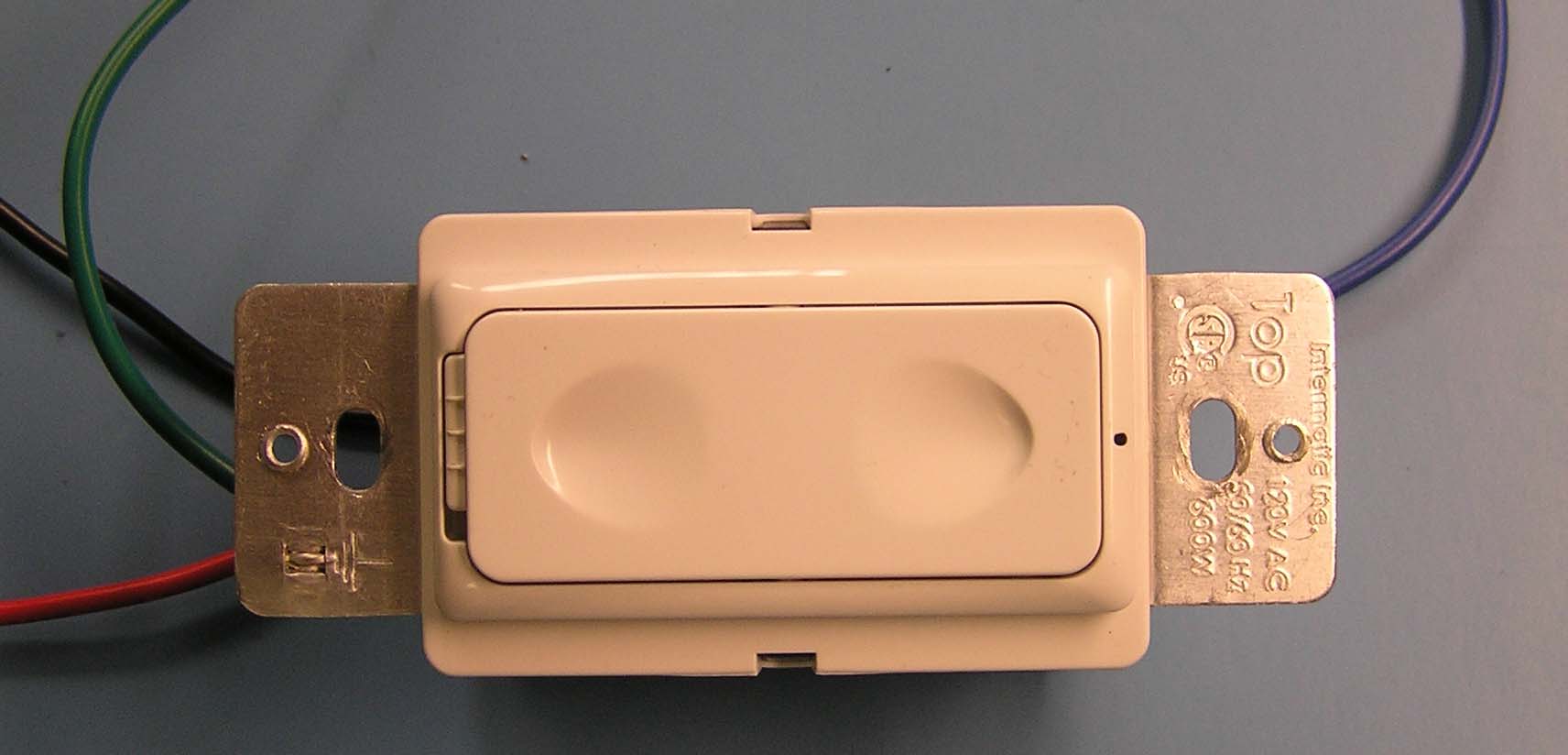

DGZCA600Single-Pole/Multi-Pole 600 Watt Dimmer Switch

WARNING:Read instructions completely before installation and retain for future reference. WARNING: WARNING: CAUTION: CAUTION OTHER CAUTIONS: For installation and/or use in accordance with appropriate electrical codes and regulations. Consult a qualified electrician for installation and operation. To avoid overheating and possible damage to this device and connected equipment, do not attempt to control a receptacle, fluorescent lighting, motor, or transformer. (For Incandescent Only): USE WITH INCANDESCENT OR 120V HALOGEN FIXTURES ONLY. 1. Use only one (1) dimmer per load. For remote operation, use standard 3-way or 4-way electrical devices for ON/OFF operation or use with Z-Wave compatible control for wireless control from any location. 2. Use Air-Gap switch to disconnect power when servicing or changing lamp. 3. Use this device only with 75°C rated copper or copper clad wire. Model CA600 Single-Pole / Multi-Pole Dimmer600 WattSwitch Specifications: Ratings: Colors: Connections: RF Information: Network Information: Single-Pole (One Location) or 3-Way (Multi-Location) or Wireless RF Control 120VAC, 50/60Hz Maximum Wattage: 600W Minimum Wattage: 40W Includes white, ivory, and light almond snap-on rocker plates. Black-Line, Blue-Load, Red-Traveler, Green-Ground Minimum Range: 50ft indoor; 100ft outdoor Frequency: 908.42 MHz Mesh Network - Each line powered node acts as a repeater to route distant signals. Data Rate: 9600 bits/second Size: 232 Z-Wave™ Nodes Operating Temperature Range: 32°F (0°C) to 104°F (40°C) Power Consumption: 2.0W Max Fade-on& Fade-off 1% Dimming (100 Increments) Dimming: INSTALLATION: 1. WARNING: TO AVOID FIRE, SHOCK, OR DEATH, TURN OFF POWER AT CIRCUIT BREAKER AND TEST THAT POWER IS OFF BEFORE WIRING. Operation: 2. For retrofit applications, remove wall plate and disconnect light switch. 3. Refer to wiring diagrams for proper connection of dimmer for intended application. 4. Check that all wire connections are secure. 5. Place all wires inside junction box. Install dimmer using (2) mounting screws furnished. Complete installation with a decorator style wall-plate. 6. Reconnect your electrical power. 7.Tap top of rocker to turn lights on; tap bottom of rocker to turn lights off; press and hold top of rocker to brighten connected load; press and hold bottom of rocker to dim connected load. 8. For programming instructions refer to the(158CA12789).InTouch Installer & Users Guide The CA600 In-Wall Dimmer is a Z-wave™ enabled device which is fully compatible with any Z-wave enabled network. Z-wave enabled devices display the Z-wave logo and guarantee connectivity and interoperability between devices. Each line powered node in a Z-wave network is designed to act as a repeater forming a mesh network eliminating radio “dead spots” and providing the highest level of reliability. - Multiple locationdimming when used with wireless accessory controls. - Multiple location On/Off control using conventional 3-way or 4-way wiring and devices. - Lights fade up or down turned on or off. - Automatically returns to last level in the event of power fluctuations. - Light levels can be set by pressing and holding the rocker until the desired light level is reached. - Mini-scenes allows local control of connected load plus up to 5 additional Z-wave devices. - Full 230 device scene control when used with Intermatic InTouch™ server. - Dimmer always operates local load, does not require central control system. Features On/Off and (CA5500B) This product is compatible with other Z-Waveenabled products™ Rocker Color Conversion The frame and rocker color of this device can be converted to match interior design requirements. Simply use one of the included color plates (white, ivory, or light almond) and proceed as follows (please note that the device must be removed from the junction box to change the rocker, follow the installation instructions and warnings). 1. Select the color of the face you desire. 2. The frame has snaps on its sides. Using a small screwdriver or thumbnail, gently remove the frame and rocker from the housing body. 3. Take the new frame and position it properly to the housing body. Notice that the locking snaps will align in only the proper direction. Line up the plastic snaps with the slots in the housing body and snap into place. 4. The frame snaps in with an audible click. Ensure that both snaps are secure. Replace the device in the junction box following installation instructions. The color conversion is complete. Rocker Frame Snap FCC STATEMENT OF COMPLIANCE WARNING! Changes or modifications not expressly approved by Intermatic Inc. could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC rules. Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna or device. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Con…

Text truncated - open the document above for the full version.

MODEL: CA600 600W IN-WALL DIMMER 120Vac at 50/60 Hz, Max 600W Tungsten Min 40W Tungsten FCC ID: DGZCA600 IC: 4898A-CA600 For permanently installed incandescent fixtures only. For supply connections, use wire rated for at least 75 ̊C USE COPPER WIRE ONLY SUITABLE FOR INDOOR USE ONLY. INTERMATIC INC., Spring Grove, IL 60081-9698 www.intermatic.com MADE IN CHINA PATENT(S) PENDING CA600 was 24918.qxp 4/10/06 1:16 PM Page 1
