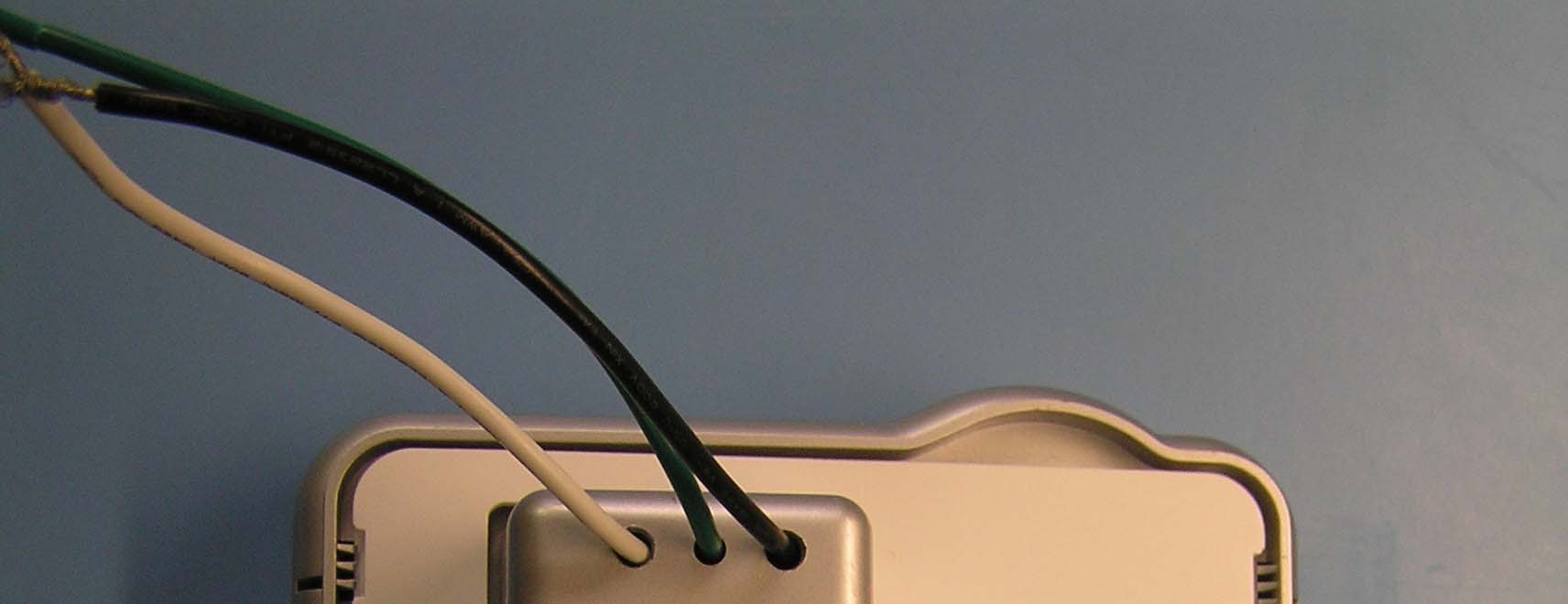

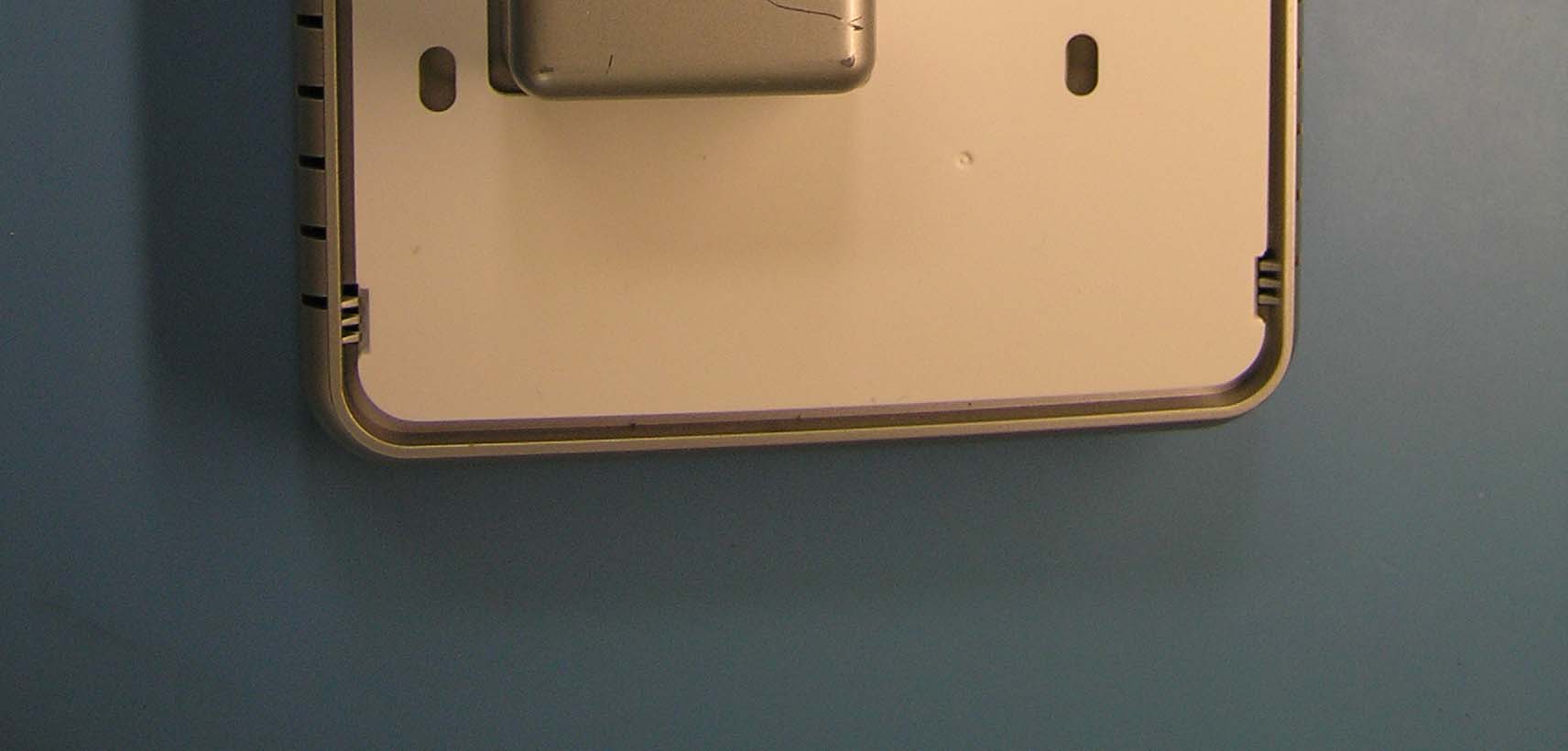

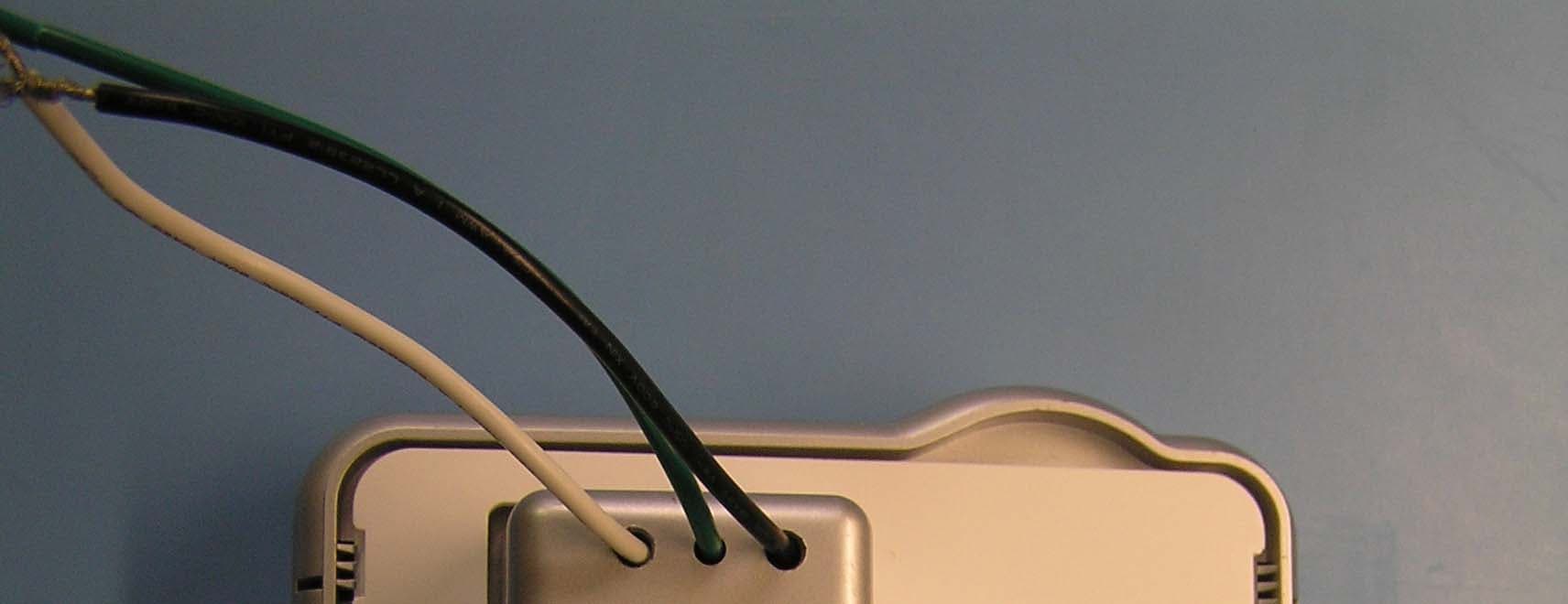

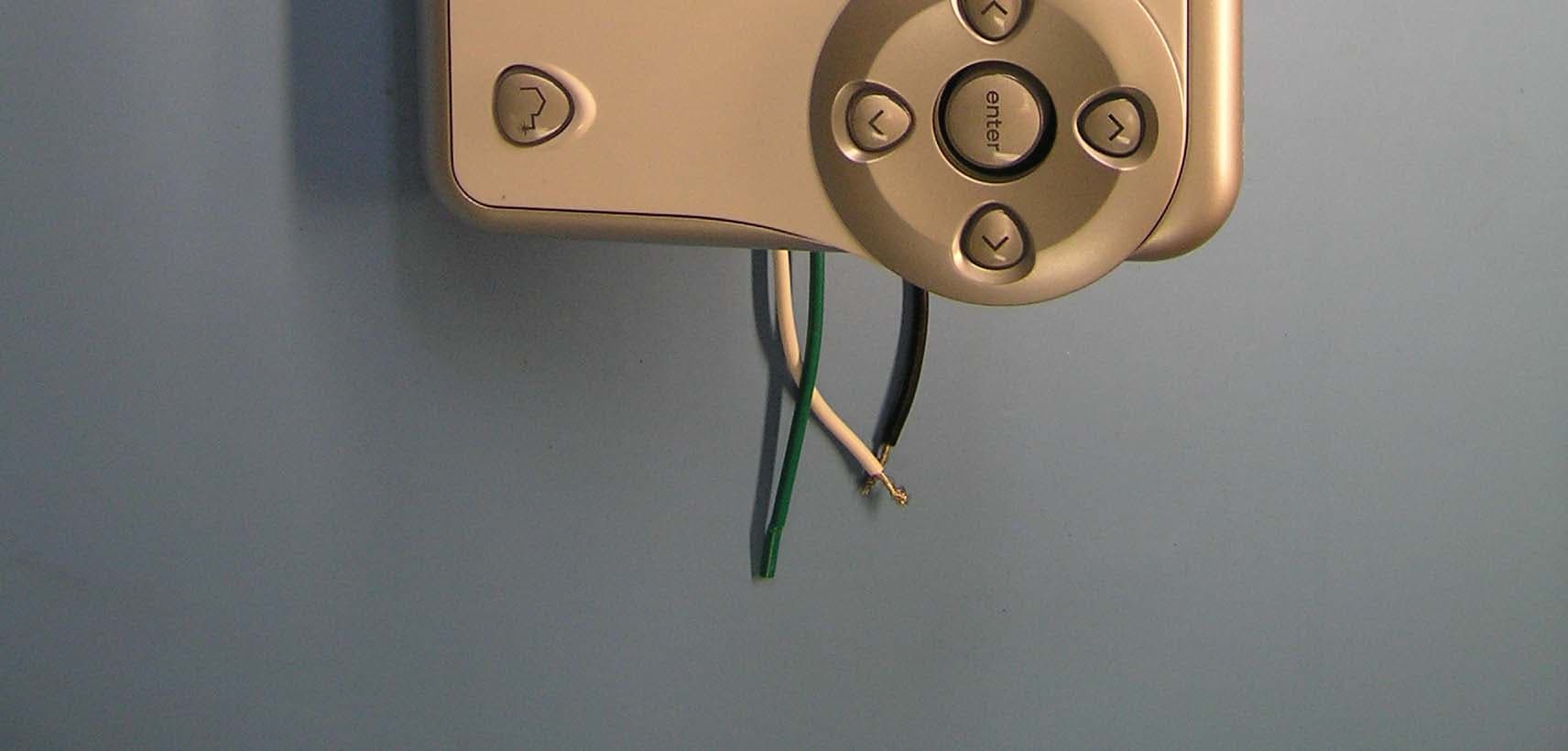

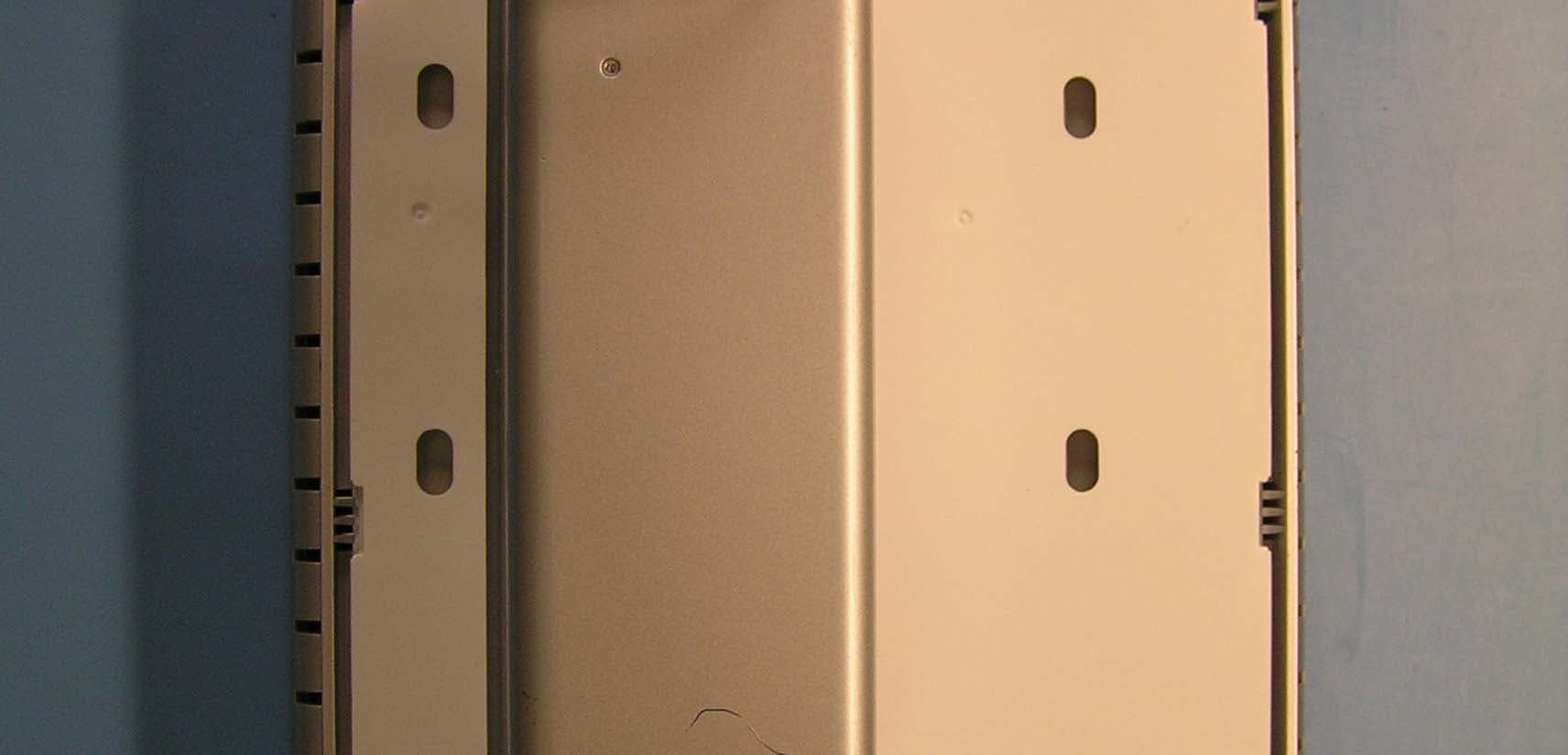

DGZCA7100Master In-Wall Control Station

WARNING:Read instructions completely before installation and retain for future reference. WARNING: WARNING: OTHER CAUTIONS: For installation and/or use in accordance with appropriate electrical codes and regulations. Consult a qualified electrician for installation and operation. 1. For remote operation of Z-Wave compatible controls. 2. Use this device only with copper or copper clad wire. Note: Designed to work only in the presence of InTouch™ Server (CA5500B or other). Model CA7100 Master In-Wall Control Station Specifications: Ratings: Colors: Connections: RF Information: Network Information: Wireless RF Control 120VAC, 50/60Hz Includes white snap-on face plate. Black-Line, White-Neutral, Green-Ground Minimum Range: 50ft indoor; 100ft outdoor Frequency: 908.42 MHz Mesh Network - Each line powered node acts as a repeater to route distant signals. Data Rate: 9600 bits/second Size: 232 Z-Wave™ Nodes Operating Temperature Range: 32°F (0°C) to 104°F (40°C) Power Consumption: 4.0W Max Backlit 128 x 64 Dot LCD Display INSTALLATION: 1. WARNING: TO AVOID FIRE, SHOCK, OR DEATH, TURN OFF POWER AT CIRCUIT BREAKER AND TEST THAT POWER IS OFF BEFORE WIRING. Operation: 2. Requires a 3-gang electrical junction box for installation. 3. Remove t 4. Attach mounting plate to 3-gang electrical junction box using (6) mounting screws furnished. 5. Refer to wiring diagrams for proper connection of master in-wall control station. 6. Check that all wire connections are secure and place all wires inside junction box. 7. Replace master in-wall control station using (3) mounting screws. Complete installation by snapping cover plate back into place. 8. Reconnect your electrical power. 9.Press the “Enter” button to access setup menus. Press scene number button(s) to focus control activities; Press “Enter” to toggle selected scene(s); Press 10. For programming instructions refer to the he face plate. Using a finger or thumb nail, remove the face plate from the housing body by lifting on the right edge by the menu navigation buttons. Remove exposed (3) screws to release mounting plate. (158CA12789).InTouch Installer & Users Guide vw/to lower or raise selected scene(s) lighting level; Press the home key to clear selected scene(s). The CA7100 Master In-Wall Control Station Each line powered node in a Z-wave network is designed to act as a repeater forming a mesh network eliminating radio “dead spots” and providing the highest level of reliability. - Menu driven setup of scenes and events. - Built-in astronomic timing with real-time-clock backup. - Multiple location On/Off & Raise/Lower control when used with Z- wave enabled switches and dimmers. - Allows control of up to 100 individual pre-set scenes containing any number of Z-wave enabled devices. - Features 6 “Quick” pre-set scene activator buttons. - Features individual scene status feedback for enhanced control. - Separate focus and control buttons allows the user to custom mix scene selections and vary light levels. - Home key provides for quick de-selection of scenes and back-out from menu programming. is an enhanced radio frequency controller compatible with Z-wave™ enabled networks and devices. Features Face Color Conversion The face color of this device can be converted to match interior design requirements. 1. Select and obtain the color of the face you desire. 2. The face plate has snaps on 3 sides. Using a finger or thumb nail, remove the face plate from the housing body by lifting on the right edge by the menu navigation buttons. 3. Take the new face plate and position it properly to the housing body. Notice that the left edge has tabs that must be inserted first. Press the plate into position. 4. The face plate snaps in with an audible click. Ensure that all snaps are secure. The color conversion is complete. FCC STATEMENT OF COMPLIANCE WARNING! Changes or modifications not expressly approved by Intermatic Inc. could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC rules. Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna or device. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Providing a Brighter Solution™ 158CA12474REF WIRELESS CONTROLS TM White Standard Installation HotBlack Neutral Wire Connector Ground Green 120VAC 50/60 Hz CA7100 ENTER 654321 SpeakerScene ButtonsHome Button Menu Navigation Controls Backlit 128 x 64 Dot LCD Display ENTER 654321 Wire Connector Installation Connect wires as follows: Screw wire connectors on clockwise making sure no bare conductors show below the wire connector. Secure each connector with electrical tape. Insert wires straight then twist clockwise Secure each connnector with electrical tape LIMITED TEN YEAR WARRANTY If within ten (10) years from date of purchase, this product fails …

Text truncated - open the document above for the full version.

MODEL: CA7100 IN - WALL MASTER CONTROLLER 120Vac 50/60 Hz, 4.0W Supply FCC ID: DGZCA7100 IC: 4898A-CA7100 Refer to owners manual for complete instructions USE 75 ̊C COPPER WIRE ONLY SUITABLE FOR INDOOR USE ONLY. INTERMATIC INC., Spring Grove, IL 60081-9698 www.intermatic.com MADE IN CHINA PATENT(S) PENDING CA7100 was154CA24921.qxp 4/10/06 1:18 PM Page 1

Page 1 of 23 Engineering Test Report No. 35869-01 Measurement of RF Interference from a Model CA7100 In-wall Master Controller Transmitter For : Intermatic Spring Grove, IL P.O. No. : Date Received : November 10, 2005 Date Tested : November 10 and 11, 2005 Test Personnel : Richard E. King Specification : FCC "Code of Federal Regulations” Title 47 Part 15, Subpart C Test Report By : Richard E. King Witnessed by : Bryan Povish Mike Kass Intermatic Approved By : Raymond J. Klouda Registered Professional Engineer of Illinois - 44894 Elite Electronic Engineering Inc. 1516 Centre Circle Downers Grove, IL 60515 Tel : (630) 495-9770 Fax: (630) 495-9785 www.elitetest.com Engineering Test Report No. 35869-01 THIS REPORT SHALL NOT BE REPRODUCED, EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF ELITE ELECTRONIC ENGINEERING INCORPORATED. Page 2 of 23 TABLE OF CONTENTS PARAGRAPH DESCRIPTION OF CONTENTS PAGE NO. 1.0 INTRODUCTION ................................................................................................................................................ 4 1.1 Description of Test Item.................................................................................................................................... 4 1.2 Purpose ............................................................................................................................................................. 4 1.3 Deviations, Additions and Exclusions ............................................................................................................... 4 1.4 Applicable Documents ...................................................................................................................................... 4 1.5 Subcontractor Identification .............................................................................................................................. 4 1.6 Laboratory Conditions..................................................................................................................................... 4 2.0 TEST ITEM SETUP AND OPERATION............................................................................................................. 4 2.1 Power Input...................................................................................................................................................... 5 2.2 Grounding......................................................................................................................................................... 5 2.3 Peripheral Equipment........................................................................................................................................ 5 2.4 Interconnect Cables........................................................................................................................................... 5 2.5 Operational Mode ............................................................................................................................................. 5 3.0 TEST EQUIPMENT............................................................................................................................................. 5 3.1 Test Equipment List .......................................................................................................................................... 5 3.2 Calibration Traceability ................................................................................................................................... 5 3.3 Measurement Uncertainty................................................................................................................................ 5 4.0 REQUIREMENTS, PROCEDURES AND RESULTS.......................................................................................... 6 4.1 Powerline Conducted Emissions ..................................................................................................................... 6 4.1.1 Requirements............................................................................................................................................ 6 4.1.2 Procedures ................................................................................................................................................ 6 4.1.3 Results ...................................................................................................................................................... 6 4.2 Radiated Measurements................................................................................................................................... 6 4.2.1 Requirements............................................................................................................................................ 6 4.2.2 Procedures ................................................................................................................................................ 7 4.2.3 Results ......................................................................................................................................................8 4.3 Occupied Bandwidth Measurements ............................................................................................................... 8 4.3.1 Requirement ............................................................................................................................................. 8 4.3.2 Procedures ................................................................................................................................................ 8 4.3.3 Results ...................................................................................................................................................... 8 5.0 CONCLUSIONS................................................................................................................................................... 8 6.0 CERTIFICATION .........................................................................…

Text truncated - open the document above for the full version.

Engineering Test Report No. 35869-01 Page 12 of 23 Figure 2 Test Setup for Conducted Emissions Engineering Test Report No. 35869-01 Page 13 of 23 Figure 3 Test Setup for Radiated Emissions, 30MHz to 1GHz – Horizontal Polarization Test Setup for Radiated Emissions, 30MHz to 1GHz – Vertical Polarization
