DGZH0002Plug-in Appliance Module

-------------------------------------- DRAFT COPY -------------------------------------- Instructions for Model HA02 – Outdoor Module – using the HA07 Controller <Front cover> User’s Manual *Illustration of HA02 Outdoor Module* <Inside cover> General Description Federal Communications Commission Statement This device complies with part 15 of the FCC rules. Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna or device. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. WARNING! Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Enclosed you will find: 1 Corded Outdoor Module (for use with HA07, HA09, or any Z-wave enabled remote controller) Installation Instructions Corded Outdoor Module: 1. Plug the Outdoor Module into a powered, 125VAC outlet. 2.Plug the device you wish to control into the Outdoor Module receptacle. Maximum rating of the device should not exceed 1000 Watts (8.3A) Tungsten or 1800 Watts (15A) Resistive. Remote Controller 1. Open the battery compartment located on the back of the remote controller by pressing down on the battery compartment tab and pulling the door outward. 2. Insert 4 “AA” alkaline batteries (not included) with polarities as shown. 3. Replace the battery compartment by first inserting the 2 tabs at the bottom of the door, then pressing the door in until the door ‘clicks’ shut. Operating Instructions Creating a Network 1. On the remote controller, the include button is located behind a protective lid. Raise the lid to gain access to the Include and Exclude buttons. 2. Press and release the include button. The INCLude icon in the LCD display will begin to flash indicating that the controller is ready to register modules. 3. On the Plug-in Dimmer, press and release the black button. If successful, the “INCL” icon on the controller will stop flashing and the word “SUCCESSFUL” will turn on steady in the LCD display for 2 seconds. If not successful, the words “NOT SUCCESSFUL” will turn on steady in the LCD display for 2 seconds. 4. Repeat steps 2 & 3 for each module you wish to add to the network. Assigning Modules to Channels 1. On the remote controller, press and hold the ON and OFF buttons for the channel to which you want to assign a module at the same time. After about 3 seconds, the word, “LEARN” will be displayed in the LCD display. This indicates that the controller is ready to assign a module to that channel. You may now release the ON and OFF buttons. 2. Press and hold the Include button. The INCLude icon will turn on. 3. While still holding the Include button in step 3, press and release the black button on the module. Do not release the Include button on the controller yet. 4. Choose a light level by pressing and holding, or pressing and releasing the black button on the module. Possible settings are FULL ON or FULL OFF. 5. After reaching your desired light level, release the Include button on the remote controller. The remote controller will automatically store the light level that you have just set. The word “SUCCESSFUL” will turn on for 2 seconds and the module is now associated to that channel with a default light level assigned. Remotely turning ON and OFF a module 1. To turn ON a module, press and release the ON button for that module’s given channel. 2. To turn OFF a module, press and release the OFF button on for that module’s given channel. Model HA02 – Appliance Module – Specifications Range:>50 feet Ratings:120VAC @ 60Hz, 1000Watts tungsten, 8.3 Amps Tungsten, 1800Watts Resistive, 15 Amps Resistive Suitable for indoor use only. This device complies with part 15 of the FCC rules. Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference, including interference that may cause undesired operation.

July 29, 2004 Attn: Director of Certification Authority to Act as Agent On behalf, I appoint AmericanTCB to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Industry Canada’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Intermatic, Inc. 777 Winn Road, Spring Grove, Illinois 60081 Dated this ____29th ______day of ___July________, 2004. Agency Agreement Expiration Date: January 2005 By: _ ____ Arnom C. Rowe________ (Signature) (Print name) Title: EMC Test Engineer, EMC 001375-NE On behalf of: ___Intermatic, Inc. ________________ (Company Name) Telephone: __847-537-6400 ____________________

Letter of Agency Date: July 28, 2004 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Please be advised that Intermatic, Inc. authorizes D.L.S. Electronic Systems, Inc. to act on our behalf, until otherwise notified, for applications submitted to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Signatory, Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc. FCC Labeling Requirements and Information Date: July 28, 2004 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: FCC Labeling Requirements FCC ID: DGZH0002 The following label information is required by the FCC Rules and Regulations for certified devices. Also attached, please find marketing information required by the FCC Rules and Regulations. Thank you for your attention to these matters. Sincerely, Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc. Request for Confidentiality Date: July 28, 2004 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: DGZH0002 Please be advised that the following information is to be held confidential and behalf of APPLICANT NAME: • Block Diagram • Schematics The application contains technical information which Intermatic, Inc. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Signatory Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc. Modification Letter Date: July 28, 2004 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: DGZH0002 Please be advised that the following information is a list of modifications that will be included in the production process for the above-referenced equipment. Change 1: There were no modifications made during testing. Change 2: Change 3: Change 4: Change 5: Change 6: Change 7: Change 8: Change 9 Change 10: Thank you for your attention to this matter. Signatory Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc. Manufacturer’s Letter Date: July 28, 2004 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: DGZH0002 To Whom It May Concern: Please be advised that the manufacturer will ensure that the above-referenced model will be manufactured in accordance with the FCC Rules and Regulations. Thank you for your attention to this matter. Signatory Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc.

FCC ID: DGZH0002 D.L.S. ELECTRONIC SYSTEMS, INC. 1250 Peterson Drive Wheeling, Illinois 60090 FCC Authorization & Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21045-0429 Gentlemen: We are submitting for Intermatic, Inc., Inc., a Plug-in Appliance ModuleTransmitter, Model Number HA02, with a FCC ID: DGZH0002 for Certification. This unit has been tested and complies to Part 15, Subpart C. If there are any questions in regards to this application, please call D.L.S. Electronic Systems, Inc. at (847) 537 6400. Enclosed you will find a copy of our test report with the information and results of tests that is required under Part 15, Section 15.249. Thank you for your assistance in this matter. Sincerely, Arnom C. Rowe EMC-001375-NE DLS/mm

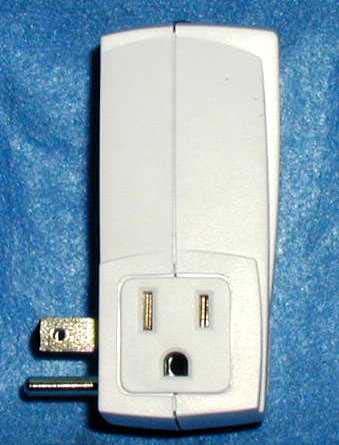

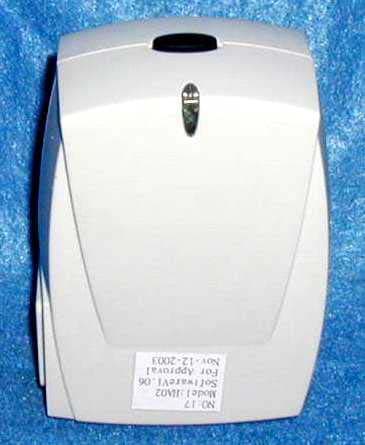

TOP VIEW SIDE VIEW

MODEL: HA02 Appliance Module 120Vac at 60 Hz, 15 Amps Resistive, 1000 Watts Tungsten FCC ID DGZH0002 IC: 4898A-H0002 This device complies with part 15 of the FCC rules. Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference, including interference that may cause undesired operation. SUITABLE FOR INDOOR USE ONLY. Patent(s) Pending INTERMATIC INC., Spring Grove, IL 60081-9698 www.intermatic.com MADE IN CHINA 154HA23819 154HA23819 7/20/04 2:56 PM Page 1

TOP VIEW OF MOTHERBOARD

RF Shielding Removed RF Shielding Removed

Operational Description: HA02 – Appliance Module Power is supplied to the HA02 power Printed Circuit Board (PCB) via a NEUTRAL blade contact and a LINE VOLTAGE blade contact. The 125VAC input voltage is reduced, rectified, and regulated to supply 3.3VDC to the RF module. The relay for applying disconnecting voltage from the light load plugged into the device is controlled by an ASIC control output with a transistor. The RF module PCB is a separate PCB that houses the Z-wave ASIC, crystal, EEPROM, various supporting components, and the RF front end. This entire PCB is completely enclosed by a metal shield connected directly to circuit ground. The RF module PCB is attached to a second mounting PCB via headers. The 908.42MHz antenna measuring approximately 3.25” in length, exits the metal shield via a small hole. The RF module mounting PCB interfaces with the power PCB via a 5-wire ribbon cable. The RF module mounting PCB also contains the LED and the pushbutton traces. The single LED provides feedback function for displaying ON, OFF, or receiving transmission (FLASHING). Local control of the device is achieved via a single pushbutton input directly into the Z-wave ASIC. The pushbutton trace is printed on the bottom side of the LED/Pushbutton PCB. Other interfaces to the power PCB include the 3-prong plug receptacle used for connecting lamp or appliance loads to the output, and the 3-prong plug blades used for plugging the device into a 125VAC grounded receptacle. The basic functions of the HA02 include turn ON or turn OFF. A momentary press and release of the pushbutton will toggle the state of the device ON or OFF.
