-------------------------------------- DRAFT COPY -------------------------------------- Instructions for Model HA03 – Indoor Plug-in Lamp Dimmer – using the HA07 Controller <Front cover> User’s Manual *Illustration of HA03 Dimmer Module* <Inside cover> General Description Federal Communications Commission Statement This device complies with part 15 of the FCC rules. Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna or device. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. WARNING! Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Enclosed you will find: 1 Indoor Plug-in Lamp Dimmer (for use with HA07, HA09, or any Z-wave enabled remote controller) Installation Instructions Plug-in Dimmer: 1. Plug the lamp dimmer into a powered, 125VAC outlet. 2.Plug the lamp you wish to control into the lamp dimmer receptacle. Maximum rating of the lamp should not exceed 300 Watts . Remote Controller 1. Open the battery compartment located on the back of the remote controller by pressing down on the battery compartment tab and pulling the door outward. 2. Insert 4 “AA” alkaline batteries (not included) with polarities as shown. 3. Replace the battery compartment by first inserting the 2 tabs at the bottom of the door, then pressing the door in until the door ‘clicks’ shut. Operating Instructions Creating a Network 1. On the remote controller, the include button is located behind a protective lid. Raise the lid to gain access to the Include and Exclude buttons. 2. Press and release the include button. The INCLude icon in the LCD display will begin to flash indicating that the controller is ready to register modules. 3. On the Plug-in Dimmer, press and release the black button. If successful, the “INCL” icon on the controller will stop flashing and the word “SUCCESSFUL” will turn on steady in the LCD display for 2 seconds. If not successful, the words “NOT SUCCESSFUL” will turn on steady in the LCD display for 2 seconds. 4. Repeat steps 2 & 3 for each module you wish to add to the network. Assigning Modules to Channels 1. On the remote controller, press and hold the ON and OFF buttons for the channel to which you want to assign a module at the same time. After about 3 seconds, the word, “LEARN” will be displayed in the LCD display. This indicates that the controller is ready to assign a module to that channel. You may now release the ON and OFF buttons. 2. Press and hold the Include button. The INCLude icon will turn on. 3. While still holding the Include button in step 3, press and release the black button on the module. Do not release the Include button on the controller yet. 4. Choose a light level by pressing and holding, or pressing and releasing the black button on the module. Possible settings are FULL ON, FULL OFF, and DIMMED. 5. After reaching your desired light level, release the Include button on the remote controller. The remote controller will automatically store the light level that you have just set. The word “SUCCESSFUL” will turn on for 2 seconds and the module is now associated to that channel with a default light level assigned. Remotely turning ON and OFF or dimming a module 1. To turn ON a module, press and release the ON button for that module’s given channel. 2. To turn OFF a module, press and release the OFF button on for that module’s given channel. 3. To dim a module up, press and hold the ON button. To dim a module down, press and hold the OFF button. Model HA03 – Indoor Plug-in Lamp Dimmer – Specifications Range:>50 feet Ratings:120VAC @ 60Hz, 300W tungsten max., 2.5 Amps Tungsten Suitable for indoor use only. This device complies with part 15 of the FCC rules. Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference, including interference that may cause undesired operation. For control of incandescent luminaries only. Pour commande de luminaries a incandescence seulement.

-------------------------------------- DRAFT COPY -------------------------------------- Instructions for Model HA03 – Indoor Plug-in Lamp Dimmer – using the HA09 Controller <Front cover> User’s Manual *Illustration of HA03 Dimmer Module* <Inside cover> General Description Federal Communications Commission Statement This device complies with part 15 of the FCC rules. Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna or device. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. WARNING! Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Enclosed you will find: 1 Indoor Plug-in Lamp Dimmer (for use with HA07, HA09, or any Z-wave enabled remote controller) Installation Instructions Plug-in Dimmer: 1. Plug the lamp dimmer into a powered, 125VAC outlet. 2.Plug the lamp you wish to control into the lamp dimmer receptacle. Maximum rating of the lamp should not exceed 300 Watts . Remote Controller 1. Open the battery compartment located on the back of the remote controller by pressing down on the battery compartment tab and pulling the door outward. 2. Insert 4 “AAA” alkaline batteries (not included) with polarities as shown. 3. Replace the battery compartment by first inserting the 2 tabs at the bottom of the door, then pressing the door in until the door ‘clicks’ shut. Operating Instructions Creating a Network 1. On the remote controller, the include button is located behind a protective sliding door. Slide the door down to gain access to the Include and Exclude buttons. 2. Press and release the include button. The green LED will begin to flash indicating that the controller is ready to register modules. 3. On the Plug-in Dimmer, press and release the black button. If successful, the green LED on the controller will stop flashing and turn on steady for 2 seconds. If not successful, the green LED will stop flashing and the red LED will begin flashing rapidly for 2 seconds. 4. Repeat steps 2 & 3 for each module you wish to add to the network. Assigning Modules to Channels 1. On the remote controller, press and hold the ON and OFF buttons for the channel to which you want to assign a module at the same time. After about 3 seconds, both red and green LED’s will begin to flash at the same time. This indicates that the controller is ready to assign a module to that channel. You may now release the ON and OFF buttons. 2. Press and hold the Include button. The green LED will turn on solid green. 3. While still holding the Include button in step 3, press and release the black button on the module. The green LED will turn OFF and the module is now associated to that channel. Do not release the Include button on the controller yet. 4. Choose a light level by pressing and holding, or pressing and releasing the black button on the module. Possible settings are FULL ON, FULL OFF, and DIMMED. 5. After reaching your desired light level, release the Include button on the remote controller. The remote controller will automatically store the light level that you have just set. Remotely turning ON and OFF or dimming a module 1. To turn ON a module, press and release the ON button for that module’s given channel. 2. To turn OFF a module, press and release the OFF button on for that module’s given channel. 3. To dim a module up, press and hold the ON button. To dim a module down, press and hold the OFF button. Model HA03 – Indoor Plug-in Lamp Dimmer – Specifications Range:>50 feet Ratings:120VAC @ 60Hz, 300W tungsten max., 2.5 Amps Tungsten Suitable for indoor use only. This device complies with part 15 of the FCC rules. Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference, including interference that may cause undesired operation. For control of incandescent luminaries only. Pour commande de luminaries a incandescence seulement.

BLOCK DIAGRAMS FOR HA03 BLOCK DIAGRAM FOR HA03 ANTENNA RF Module Block Diagram RF Transceiver Block Diagram POWER PCB / RELAY BOARD RF MODULE w/ ZENSYS ASIC PLUG INTERFACE RECEPTACLE INTERFACE PUSHBUTTON INTERFACE RF Matching / Filtering 908.42MHz Antenna RF_IN RF_OUT RF Transceiver Crystal 7.376974MHz MCU 7.376974 MHz Flash Memory CRYSTAL 7.376974MHz /N LNA MIXER IF STAGE (150kHz) DEMODULATOR PA VCO (908.27MHz) CONTROL including - MANCHESTER ENCODING / DECODING - PREAMPLE DETECTION - SERIALIZATION / DESERIALIZATION OSC CHARGE PUMP /RPD CPU Interface XOSC_Q1XOSC_Q2 L1 L2 RF_IN RF_OUT BIAS RBIAS VCO INDUCTOR CONNECTIONS BIAS RESISTOR CONNECTION RF (908.42MHz)

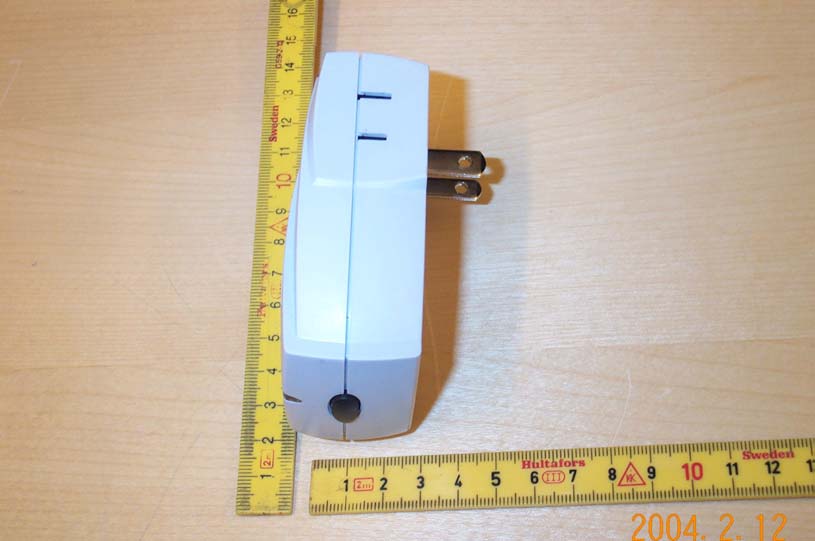

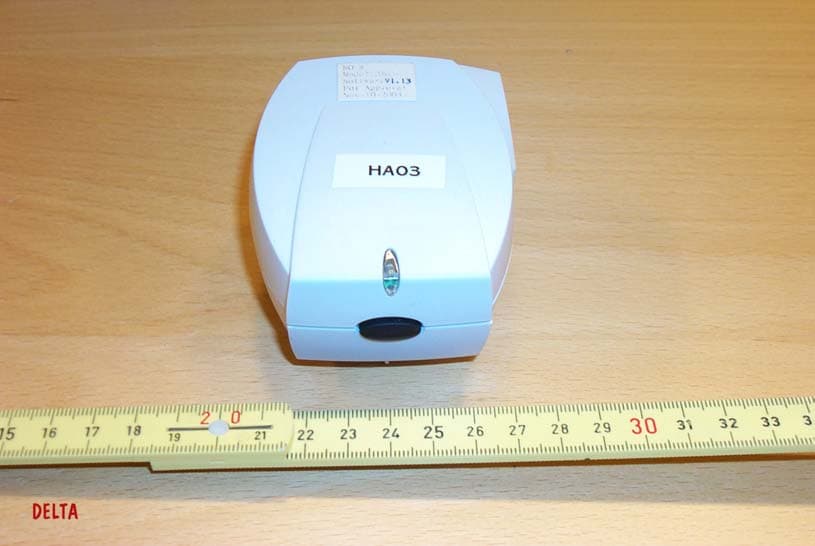

Intermatic Inc. HA03 External photos FCC ID DGZH0003 CANADA 4898A-H0003 Page 1 of 1 Photo 1 HA03 Photo 2 HA03

Intermatic Inc. HA03 Internal photos FCC ID DGZH0003 CANADA 4898A-H0003 Page 1 of 3 Photo 1 HA03 Photo 2 HA03 RF module Push button Antenna Power module Contact for push button Print for RF module Power module Intermatic Inc. HA03 Internal photos FCC ID DGZH0003 CANADA 4898A-H0003 Page 2 of 3 Photo 3 HA03 Photo 4 RF Module. Screens removed. ASIC side of module RF module removed from print Intermatic Inc. HA03 Internal photos FCC ID DGZH0003 CANADA 4898A-H0003 Page 3 of 3 Photo 5 RF Module. Screens removed. ASIC side down.

Operational Description: HA03 – 300W Plug-in dimmer module Power is supplied to the HA03 power Printed Circuit Board (PCB) via a NEUTRAL blade contact and a LINE VOLTAGE blade contact. The 125VAC input voltage is reduced, rectified, and regulated to supply 3.3VDC to the RF module. The LINE input is monitored for zero-cross with isolation circuitry feeding directly into the Z-wave ASIC. The triac for varying the dimming of the light load plugged into the device is controlled by the ASIC triac control output, further isolated by transistor circuitry and an optocoupler. The RF module PCB is a separate PCB that houses the Z-wave ASIC, crystal, EEPROM, various supporting components, and the RF front end. This entire PCB is completely enclosed by a metal shield connected directly to circuit ground. The RF module PCB is attached to a second mounting PCB via headers. A green LED is soldered to the RF module mounting PCB, which is outside the RF shield. This single LED provides feedback function for displaying ON, OFF, dimming, or receiving transmission (FLASHING).The 908.42MHz antenna measuring approximately 3.25” in length, exits the metal shield via a small hole. Local control of the device is achieved via a single pushbutton input directly into the Z-wave ASIC. The pushbutton trace is printed on the bottom side of the RF module mounting PCB. The RF module mounting PCB interfaces with the power PCB via a 6-wire ribbon cable. Other interfaces to the power PCB include the 2-prong plug receptacle used for connecting lamp loads to the dimmer output, and the 2-prong plug blades used for plugging the dimmer module into a 125VAC receptacle. The basic functions of the HA03 include turn ON, turn OFF, dim-up, and dim-down. A momentary press and release of the pushbutton will toggle the state of the device ON or OFF. A press and hold of the button will toggle either a dim-up or dim-down. Releasing the button and executing a press and hold a second time will toggle the opposite dim function (either dim-down or dim-up).

20dan-uk-k DELTA Danish Electronics, Light & Acoustics Venlighedsvej 4 2970 Hørsholm Denmark Tel. (+45) 72 19 40 00 Fax (+45) 72 19 40 01 www.delta.dk This report is issued under the rules of DANAK (Danish Accreditation). Further information about DANAK can be found at www.danak.dk. The report must not be reproduced, except in full, without the written approval of DELTA. Test Report DANAK Reg. no. 19 We help ideas meet the real world Emission tests to FCC and IC requirements of HA03 Performed for Intermatic Inc. DANAK-197369 Project no.: E501839-1 Page 1 of 13 4 annexes 5 March 2004 DANAK-197369 DELTA-E501839-1 Page 2 of 13 VS/BLJ Title Emission tests to FCC and IC requirements of HA03 Test object HA03 FCC ID DGZH0003 IC ID 4898A-H0003 Report no. DANAK-197369 Project no. E501839-1 Test period 12 February 2004 to 1 March 2004 Client Intermatic Inc. Intermatic Plaza Spring Grove, IL 60081 Tel. 815.675.7786 Fax 815.675.7785 Contact person Mr. Patrick J. Alog Manufacturer Intermatic Inc. Specifications FCC: 47 CFR Part 15, Subpart C - Intentional Radiators 47 CFR Part 15, Subpart B class B verification IC: RSS-210 LPD Category I equipment ICES-003 class B verification Results The equipment under test was in compliance with the requirements. Test personnel Henrik Nielsen Karsten Kruse Jensen Date 5 March 2004 Responsible Vagn Sylvest Project Manager - EMC DELTA DANAK-197369 DELTA-E501839-1 Page 3 of 13 VS/BLJ Table of contents Page 1. Summaries 4 1.1 Technical report summary 4 1.1.1 Applicable FCC rules for test 4 1.1.2 Applicable Industry Canada rules for test 5 1.2 Summary of tests 6 2. Test specimen 7 2.1 Test object - HA03 7 3. General test conditions 8 3.1 Test set-up 8 4. Test and results 9 4.1 Conducted emission, AC mains (FCC Part 15, Subpart C) 9 4.2 Radiated electromagnetic field (FCC Part 15, Subpart C) 10 4.3 Peak output field strength 12 4.4 Occupied bandwidth 12 Annex 1 List of instruments (1 page) Annex 2 Photos (2 pages) Annex 3 Test record sheets regarding conducted and radiated emission (7 pages) Annex 4 Peak output power / Occupied bandwidth (2 pages) DANAK-197369 DELTA-E501839-1 Page 4 of 13 VS/BLJ 1. Summaries 1.1 Technical report summary This report contains measurement data from tests performed at DELTA, Hørsholm, Denmark, authorized as DANAK accredited test laboratory. The laboratory is listed at FCC under registration number 90529 and by Industry Canada under file IC 41875-5. USA The tests reported in this document have been performed to demonstrate compliance with the requirements of FCC Part 15C, Section 15.249 "Rules for transmitters in band 902 - 928 MHz (and more bands)". Furthermore, during the tests it was verified that the receiver, and control logic of the unit, was in compliance with the requirements of FCC Part 15B, Section 15.109 Class B. Canada Also, the tests reported in this document have been performed to demonstrate compli- ance with the requirements of RSS-210 covering LPD Class I equipment. Furthermore, during the tests it was verified that the control logic of the unit, was in compliance with the requirements of ICES-003, Section 5.5, Class B. 1.1.1 Applicable FCC rules for test 47 CFR Part 15, Subpart C - Intentional Radiators §15.207 Conducted limits §15.209 Radiated emission limits, general requirements §15.215 Additional provisions to the general radiated emission limitations §15.249 Operation within the bands 902 - 928 MHz, (and more bands). The methods and procedures have been applied as specified in: §15.31 Measurements standards. This point to the following procedure, used during the measurements in this report: ANSI C63.4:2001 Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the range of 9 kHz to 40 GHz. Furthermore, the requirements of the following have been applied: § 15.33 Frequency range of radiated measurements § 15.35 Measurement detector functions and bandwidths. DANAK-197369 DELTA-E501839-1 Page 5 of 13 VS/BLJ 1.1.2 Applicable Industry Canada rules for test RSS-210 LPD Class I equipment. The methods and procedures have been applied as specified in: 5.3 Testing methods 6.2.1 General field strength limits 6.2.2 (m2) 902 - 928 MHz, (and more bands) 5.17 Digital circuits. RSS-212 Test Facilities and Test Methods for Radio Equipment. This point to the following procedure, used during the measurements in this report: ANSI C63.4:1992 Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the range of 9 kHz to 40 GHz. DANAK-197369 DELTA-E501839-1 Page 6 of 13 VS/BLJ 1.2 Summary of tests The results of the emission tests can be summarised as follows: Tests of Intentional Radiator FCC Part 15 Subpart C IC RSS-210 Conducted emission, AC mains Passed Passed Radiated electromagnetic field emission Passed Passed Radiated emission limits, additional provisions Passed N/A Emission in restricted bands Passed Passed Abbreviations Passed : The requirements are met. Failed : The requirements are not met. Not done : No test was performed. N/A : Not applicable. Not relevant : The test was not relevant for the test object. The test results relate only to the object tested. DANAK-197369 DELTA-E501839-1 Page 7 of 13 VS/BLJ 2. Test specimen The EUT is part of a control system. HA03 Plug-In Indoor Lamp Dimmer Module - 300W 300W triac-type plug-in module utilizing RF signals to communicate control and status information to and from a primary controller and/or other secondary controllers. Device is used to control the ON & OFF switching & dimming of loads for incandescent lamps plugged into the module. 2.1 Test object - HA03 Category SRD Manufacturer Intermatic Inc. Model / type HA03 Part no. Tx Car – Rx - TxMod Serial no. - FCC ID DGZH0003 IC ID 4898A-H0003 Supply voltage 120 VAC 60 Hz Operational mode TX/RX Load commanded OFF. Photo of EUT: DANAK-197369 DELTA-E501839-1 Page 8 of 13 VS/BLJ 3. General test conditions 3.1 Test set-up The antenna of the EUT…

Text truncated - open the document above for the full version.

20fotorap-uk-k DELTA Danish Electronics, Light & Acoustics Venlighedsvej 4 2970 Hørsholm Denmark Tel. (+45) 72 19 40 00 Fax (+45) 72 19 40 01 www.delta.dk Photos We help ideas meet the real world Emission tests to FCC and IC requirements of HA03 Performed for Intermatic Inc. Page 1 of 3 This exhibit is an extract of DELTA Test Report E501839-1 DANAK-197369 5 March 2004 containing only the photos of the test set-ups DANAK-197369 DELTA-E501839-1 Page 2 of 3 VS/blj Photo 1 Set-up for conducted emission measurements. The LISN is bonded to the vertical ground plane (wall) of the screened room. Photo 2 Set-up for conducted emission measurements. The LISN is bonded to the vertical ground plane (wall) of the screened room. DANAK-197369 DELTA-E501839-1 Page 3 of 3 VS/blj Photo 3 Set-up for measurements 30 – 1000 MHz. Date is 2004-02-12. Camera time is faulty. Photo 4 Measurement set-up > 1 GHz.
