Intermatic, Inc. Spring Grove, IL 60081 www.intermatic.com Thank you for purchasing Intermatic’s HomeSettings devices. With the HomeSettings program you can reliably and remotely control lighting and appliances. The outstanding features of the HomeSettings HA05 Screw-in Lamp Module includes: • Feedback that will allow you to see whether your device has received the ON/OFF (you cannot DIM with this module) signal. • RF signal reliability – each HomeSettings product has a special feature that virtually guarantees that RF signals are received • Ease of installation • Manual override • Weather resistant housing • Controls compact fluorescent lights up to 42 Watts • Compatible with other Z-wave™ enabled devices The HA05 Screw-in Lamp Module is a Z-wave™ enabled device and is fully compatible with any Home Settings network and any Z-wave™ enabled network. Z-wave™ enabled devices displaying the Z-wave™ logo can also be used with Home Settings modules and controllers regardless of the manufacturer, and Home Settings modules and controllers can also be used in other manufacturer’s Z-wave™ enabled networks. Each module in a Home Settings network is designed to act as a repeater. Repeaters will re-transmit the RF signal to ensure that the signal is received by its intended destination by routing the signal around obstacles and radio dead spots. INSTALLATION _ 1. Screw the HA05 Screw-in Lamp Module into a medium base lampholder that supplies 120VAC, 60Hz. 2. Screw a lightbulb (up to 300 Watts) or a compact fluorescent bulb (up to 42 Watts) into the module. 3. To manually turn ON the HA05 Screw-in Lamp Module, press and release the Program/ON/OFF button. The green indicator LED will turn ON, and the lightbulb screwed into the HA05 Screw-in Lamp Module will also turn ON. 4. To manually turn OFF the HA05 Screw-in Lamp Module, simply press and release the Program/ON/OFF button. The green indicator will turn OFF and the lightbulb screwed into the HA05 Screw-in Lamp Module will also turn OFF. If the lightbulb does not turn ON, check to make sure that the lightbulb is seated properly, and check to make sure that your lightbulb is not broken or defective. For Indoor Use Only MODEL HA05 SCREW-IN LAMP MODULE Intermatic, Inc. Spring Grove, IL 60081 www.intermatic.com 158HA11643 PROGRAMMING _ See the instructions for HA07 Master Remote Control or HA09 Handy Remote Control. FEDERAL COMMUNICATIONS COMMISSION STATEMENT_____________ This device complies with part 15 of the FCC rules. Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna or device. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. WARNING! Changes or modifications not expressly approved by Intermatic Inc. could void the user’s authority to operate the equipment. TECHNICAL INFORMATION Specificatios_ For Indoor and Outdoor Use in damp or wet locations. Not recommended for enclosed fixtures with Wet locations only when turned downward base-above-bulb mounting as shown. 45° or greater from horizontal. Ratings: 300-Watts Tungsten 42-Watts Compact Fluorescent 120 VAC, 60 Hz Enclosed fixtures with base-below-bulb Operating Temperature Range: 0°C to 40°C mounting up to 60-Watts RF range: 50 feet minimum Made In China WARRANTY INFORMATION Specificatios_ LIMITED 6-YEAR WARRANTY If within six (6) years from the date of purchase, this product fails due to a defect in material or workmanship, Intermatic Incorporated will repair or replace it, as its sole option, free of charge. This warranty is extended to the original household purchaser only and is not transferable. This warranty does not apply to: (a) damage to units caused by accident, dropping or abuse in handling, acts of God or any negligent use; (b) units which have been subject to unauthorized repair, opened, taken apart or otherwise modified; (c) units not used in accordance with instructions; (d) damages exceeding the cost of the product; (e) sealed lamps and/or lamp bulbs, LED’s and batteries; (f) the finish on any portion of the product, such as surface and/or weathering, as this is considered normal wear and tear; (g) transit damage, initial installation costs, removal costs, or reinstallation costs. INTERMATIC INCORPORATED WILL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS OR IMPLIED WARRANTIES. ALL IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY AND THE WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY MODIFIED TO EXIST ONLY AS CONTAINED IN THIE LIMITED WARRANTY, AND SHALL BE OF THE SAME DURATION AS THE WARRANTY PERIOD STATED ABOVE. SOME STATES DO NOT ALLOW LIMITATIONS ON THE DURA…
Text truncated - open the document above for the full version.
Letter of Agency Date: March 23, 2005 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Please be advised that Intermatic, Inc. authorizes D.L.S. Electronic Systems, Inc. to act on our behalf, until otherwise notified, for applications submitted to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Signatory, Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc. FCC Labeling Requirements and Information Date: March 23, 2005 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: FCC Labeling Requirements FCC ID: DGZH0005 The following label information is required by the FCC Rules and Regulations for certified devices. Also attached, please find marketing information required by the FCC Rules and Regulations. Thank you for your attention to these matters. Sincerely, Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc. Request for Confidentiality Date: March 23, 2005 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: DGZH0005 Pursuant to 47 CFR Section 0.459 Intermatic, Inc. understands that requests for non disclosure and confidential treatment is being made for the following information as stated under the Code of Federal Regulations Chapter 47, Part 0.459 and behalf of APPLICANT NAME: • Block Diagram • Schematics The above materials contain trade secrets, proprietary and technical information that would customarily be guarded from competitors under 47 CFR section 0.457(d)(2). Disclosure or publication of any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. Intermatic, Inc. understands that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Thank you for your attention to this matter. Signatory Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc. Modification Letter Date: March 23, 2005 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: DGZH0005 Please be advised that the following information is a list of modifications that will be included in the production process for the above-referenced equipment. Change 1: There were no modifications made during testing. Change 2: Change 3: Change 4: Change 5: Change 6: Change 7: Change 8: Change 9 Change 10: Thank you for your attention to this matter. Signatory Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc. Manufacturer’s Letter Date: March 23, 2005 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Application FCC ID: DGZH0005 To Whom It May Concern: Please be advised that the manufacturer will ensure that the above-referenced model will be manufactured in accordance with the FCC Rules and Regulations. Thank you for your attention to this matter. Signatory Arnom C. Rowe EMC ENGINEER EMC-001375-NE D.L.S. Electronic Systems, Inc.
TOP OF UNIT BOTTOM OF UNIT ON/OFF Switch and Program Switch
3.50 REF .75 REF MODEL: HA05 UNIT LABEL 154HA23822-ART 154HA23822 MADE IN CHINA Spring Grove, IL 60081-9698 WWW.INTERMATIC.COM INTERMATIC INC Screw-In Module Screw-In ModuleScrew-In Module Screw-In Module 120Vac @ 60Hz, 120Vac @ 60Hz,120Vac @ 60Hz, 120Vac @ 60Hz, 300 Watts, 2.50 Amps Tungsten 300 Watts, 2.50 Amps Tungsten 300 Watts, 2.50 Amps Tungsten 300 Watts, 2.50 Amps Tungsten FCC ID: DGZH0005 IC: 4898A-H0005 Refer to Owners Manual for complete instructions. FOR USE IN DRY OR DAMP LOCATIONS POUR EMPLACEMENT SECS, HUMIDES OU MOUILLES Patent(s) Pending FCC LABEL
Top Cover Removed Circuit Board Removed Switch Removed Switch Circuit Board Component Side Switch Circuit Board Solder Side Circuit Board Component Side Circuit Board Solder Side COVER REMOVED OVER RF BOARD RF BOARD REMOVED RF BOARD SIDE 1 RF BOARD SIDE 2 INSIDE COVERS
Operational Description: HA05 – Screw-in Lamp Module Power is supplied to the HA05 power Printed Circuit Board (PCB) via a medium base male screwshell with a NEUTRAL contact and a LINE VOLTAGE contact. The 125VAC input voltage is reduced, rectified, and regulated to supply 3.3VDC to the RF module. The relay for applying disconnecting voltage from the light load screwed into the female screwshell of the device is controlled by an ASIC control output with a transistor. The RF module PCB is a separate PCB that houses the Z-wave ASIC, crystal, EEPROM, various supporting components, and the RF front end. This entire PCB is completely enclosed by a metal RF shield connected to circuit ground. The 908.42MHz antenna measuring approximately 3.25” in length, exits the metal RF shield via a small hole. The RF module is mounted directly to the power PCB. An LED/Pushbutton PCB contains the LED and the pushbutton traces. This PCB interfaces with the main power PCB via a 4-wire ribbon cable. The single LED provides feedback function for displaying ON, OFF, or receiving transmission (FLASHING). Local control of the device is achieved via a single pushbutton input directly into the Z- wave ASIC. The pushbutton trace is printed on the bottom side of the LED/Pushbutton PCB. Other interfaces to the power PCB include the medium base female screwshell used for screwing-in a lightbulb, and the medium base male screwshell used for screwing-in the device into a 125VAC medium base female screwshell socket. The basic functions of the HA05 include turn ON or turn OFF. A momentary press and release of the pushbutton will toggle the state of the device ON or OFF.
1250 Peterson Dr., Wheeling, IL 60090 Company: Intermatic Incorporated Model Tested: HA05 Report Number: 11256 FCC Rules and Regulations / Intentional Radiators Operational in the 902-928 MHz, 2400-2483.5 MHz, 5725-5875 MHz, and 24.0-24.25 GHz Bands Part 15, Subpart C, Section 15.249 THE FOLLOWING ''MEETS'' THE ABOVE TEST SPECIFICATION Formal Name: Screw-in Module Kind of Equipment: Lighting Control Test Configuration: Male & female medium base screwshells (Tested at 120 vac, 60 Hz) Model Number(s): HA05 Model(s) Tested: HA05 Serial Number(s): N/A Date of Tests: March 14 & 15, 2005 Test Conducted For: Intermatic Incorporated 7777 Winn Road Spring Grove, Illinois 60081 NOTICE: “This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government”. Please see the "Additional Description of Equipment Under Test" page listed inside of this report. This report must not be reproduced (except in full), without the approval of D.L.S. Electronic Systems. Page - 1 - 1250 Peterson Dr., Wheeling, IL 60090 Company: Intermatic Incorporated Model Tested: HA05 Report Number: 11256 SIGNATURE PAGE Report By: Arnom C. Rowe Test Engineer EMC-001375-NE Reviewed By: William Stumpf OATS Manager Approved By: Brian Mattson General Manager Company Official: Intermatic Incorporated Page - 2 - 1250 Peterson Dr., Wheeling, IL 60090 Company: Intermatic Incorporated Model Tested: HA05 Report Number: 11256 Page -3 - 1250 Peterson Dr., Wheeling, IL 60090 Company: Intermatic Incorporated Model Tested: HA05 Report Number: 11256 Page -4 - 1250 Peterson Dr., Wheeling, IL 60090 Company: Intermatic Incorporated Model Tested: HA05 Report Number: 11256 Page -5 - 1250 Peterson Dr., Wheeling, IL 60090 Company: Intermatic Incorporated Model Tested: HA05 Report Number: 11256 Page -6 - 1250 Peterson Dr., Wheeling, IL 60090 Company: Intermatic Incorporated Model Tested: HA05 Report Number: 11256 Page -7 - 1250 Peterson Dr., Wheeling, IL 60090 Company: Intermatic Incorporated Model Tested: HA05 Report Number: 11256 Page -8 - 1250 Peterson Dr., Wheeling, IL 60090 Company: Intermatic Incorporated Model Tested: HA05 Report Number: 11256 Page -9 - 1250 Peterson Dr., Wheeling, IL 60090 Company: Intermatic Incorporated Model Tested: HA05 Report Number: 11256 Page -10 - 1250 Peterson Dr., Wheeling, IL 60090 Company: Intermatic Incorporated Model Tested: HA05 Report Number: 11256 Page -11 - 1250 Peterson Dr., Wheeling, IL 60090 Company: Intermatic Incorporated Model Tested: HA05 Report Number: 11256 Page -12 - 1250 Peterson Dr., Wheeling, IL 60090 Company: Intermatic Incorporated Model Tested: HA05 Report Number: 11256 Page -13 - 1250 Peterson Dr., Wheeling, IL 60090 Company: Intermatic Incorporated Model Tested: HA05 Report Number: 11256 Page -14 - 1250 Peterson Dr., Wheeling, IL 60090 Company: Intermatic Incorporated Model Tested: HA05 Report Number: 11256 Page -15 - 1250 Peterson Dr., Wheeling, IL 60090 Company: Intermatic Incorporated Model Tested: HA05 Report Number: 11256 TABLE OF CONTENTS i. Cover Page..........................................................................................................................................1 ii. Signature Page....................................................................................................................................2 iii. NVLAP Certificate of Accreditation..............................................................................................3 iv. NVLAP Scope of Accreditation.....................................................................................................4 v. Table of Contents..............................................................................................................................16 1.0 Summary of Test Report...............................................................................................................17 2.0 Introduction...................................................................................................................................17 3.0 Object............................................................................................................................................17 4.0 Test Set-Up...................................................................................................................................18 5.0 Test Equipment.............................................................................................................................19 6.0 Ambient Measurements................................................................................................................20 7.0 Description of Test Sample...........................................................................................................21 8.0 Additional Description of Test Sample......................................................................................... 22 9.0 Photo Information and Test Set-Up..............................................................................................23 10.0 Radiated Photos Taken During Testing........................................................................................ 24 10.0 Conducted Photos Taken During Testing.....................................................................................27 11.0 Results of Tests.............................................................................................................................28 12.0 Conclusion....................................................................................................................................28 TABLE 1 – EQUIPMENT LIST..............................................................................................................29 Appendix A – Electric Field Radiated Emissions Test............................................................................. 31 1.0 Conducted Emission Measurements.................................................................................…
Text truncated - open the document above for the full version.

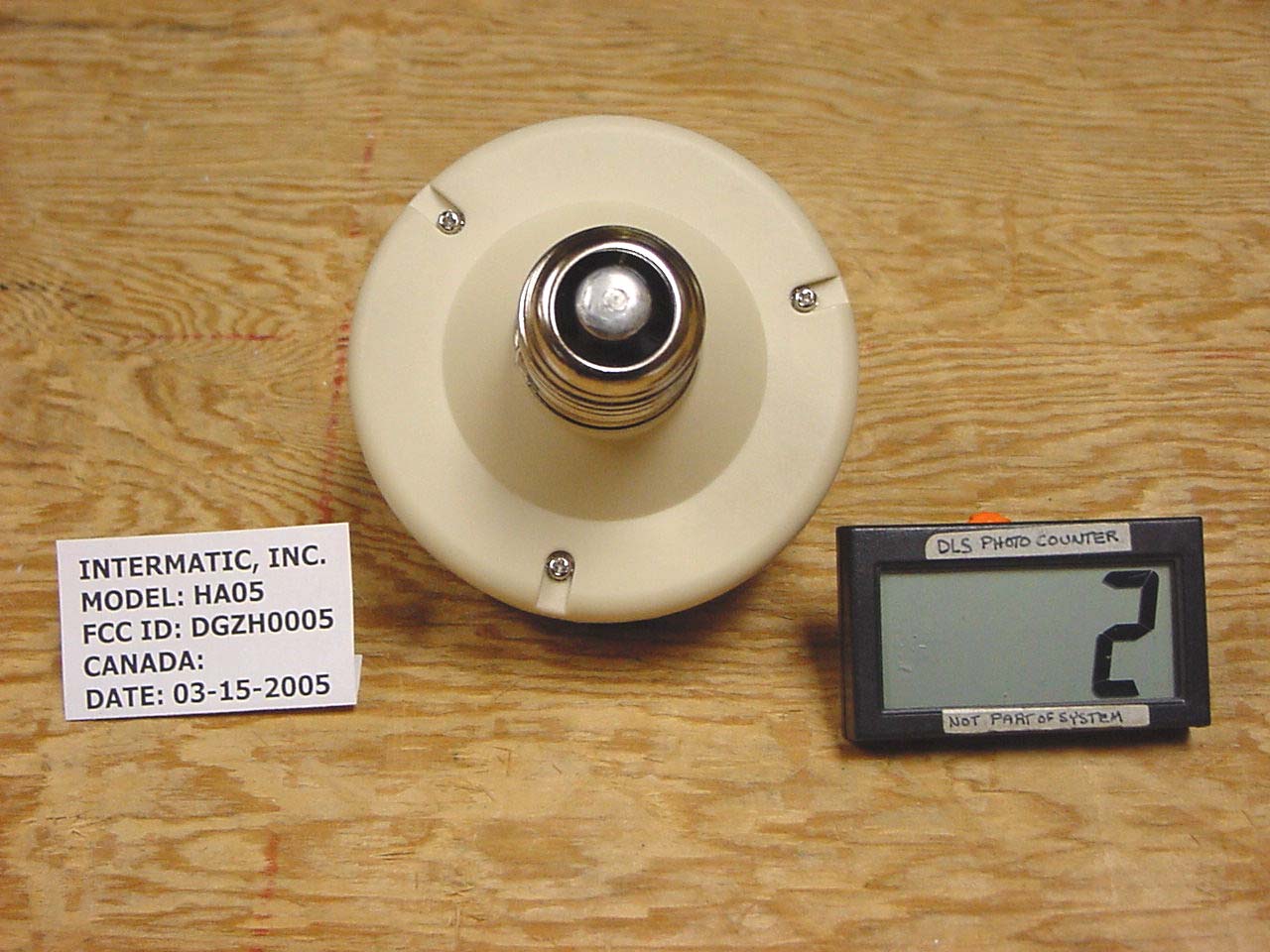

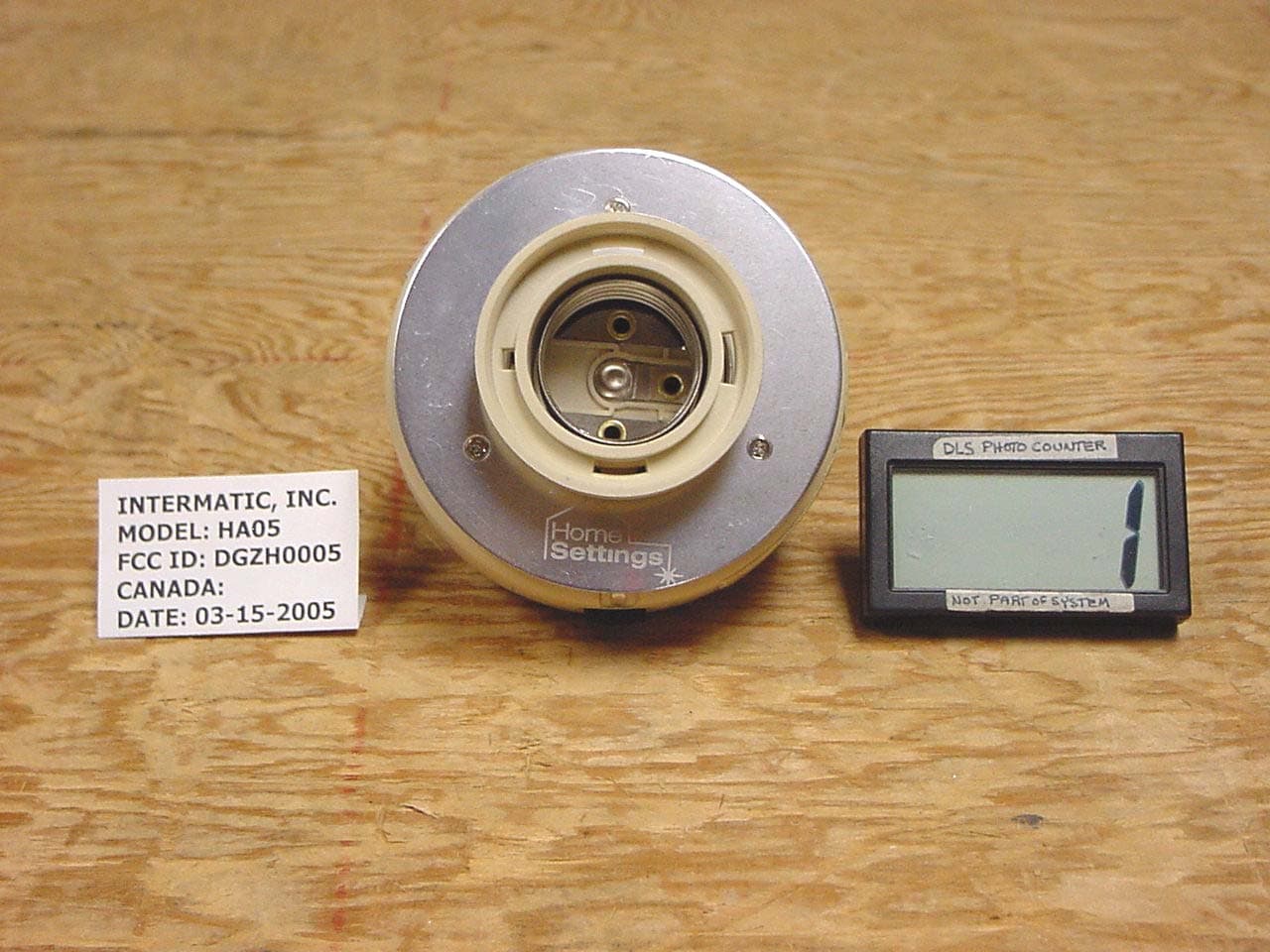

Intermatic, Inc. Model: HA05 FCC ID: DGZH0005 DATE: 3/15/2005 TEST SETUP PHOTOS ID Photo: Front of EUT (Item 0: EUT) Intermatic, Inc. Model: HA05 FCC ID: DGZH0005 DATE: 3/15/2005 TEST SETUP PHOTOS ID Photo: Back of EUT (Item 1: AC Power Cord) Intermatic, Inc. Model: HA05 FCC ID: DGZH0005 DATE: 3/15/2005 TEST SETUP PHOTOS Radiated Test Photo: Front of EUT Intermatic, Inc. Model: HA05 FCC ID: DGZH0005 DATE: 3/15/2005 TEST SETUP PHOTOS Radiated Test Photo: Back of EUT Intermatic, Inc. Model: HA05 FCC ID: DGZH0005 DATE: 3/15/2005 TEST SETUP PHOTOS Radiated Test Photo: Horizontal Position Intermatic, Inc. Model: HA05 FCC ID: DGZH0005 DATE: 3/15/2005 TEST SETUP PHOTOS Conducted Test Photo
1250 Peterson Drive · w, Illinois · United States
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 908.42 MHz - 908.42 MHz | - |
Programmable Switches
Equipment Class
DTS - Digital Transmission System
5 Circuit Digital Control
Equipment Class
DXT - Part 15 Low Power Transceiver, Rx Verified
Hand Held Transceiver
Equipment Class
DXT - Part 15 Low Power Transceiver, Rx Verified
In-Wall Toggle-Style Dimmer Switch
Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
In-Wall Dimmer Switch
Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
