DWN-YSIA5Ysia 5 HP Zigbee 5163795

1 [A] a h b i d f e c g ___ [B] 1 2 3 4 5 ___ [C] 34112 ___ [D] 1 3 2 4 ___ Copyright ©2022. All rights reserved. SOMFY ACTIVITÉS SA, Société Anonyme, capital 35.000.000 Euros, RCS Annecy 303.970.230. Images non contractually binding.07/2022 EN Complete instruction guide (advanced settings, tips and advice) available online on https://www.somfy.info/fr/p/Ysia Please read this guide carefully before installing or using this product. Please also comply with the instructions set out in the enclosed Safety instructions document. 1. In detail (Figure } [A]) a) Transmission indicator LED b) Up button (Short activation enables the application to be raised, switched on or opened. Long acti- vation enables some additional functionality. See complete instructions for more details). c) Stop/my button (enables the application to stop by pressing the button once or switched to the fa- vorite position by pressing the button twice). d) Down button (Short activation enables the application to be lowered, switched off or closed. Long activation enables some additional functionality. See complete instructions for more details). e) Channel or group select LEDs (Ysia 5 Zigbee only) f) Channel or group selector (Ysia 5 Zigbee only) g) Battery cover h) PROG button i) Wall mount 2. Start-up Download the TaHoma application if it is not yet installed on the smartphone. NOTICE Somfy motor can be set and used with this product without TaHoma Box (HUB Optional only). 3. Selection of groups (Figure } [B]) Before using Ysia 5 Zigbee, check that the correct group has been selected. 4. Installation 4.1. Adding/Deleting Ysia Zigbee Follow the instructions on the TaHoma application to add or remove a Ysia Zigbee. 4.2. Wall mounting (Figure } [C]) Open the wall mount (i) and fix it to a flat surface using a screwdriver and an M3-type screw. CAUTION Do not use an electric screwdriver. 5. Replacing the batteries (Figure } [D]) DANGER Read the Safety instructions document. Explosion risk if the battery is replaced by an incorrect type. Insert the batteries types 2 x AAA LR03, 2 x 1.5 V, as indicated by the polarity (+ and - signs) markings in the battery compartment. The power supply terminals must not be short-circuited. 6. Technical data Frequency range used: 2.405GHz MHz - 2.480 GHz. US and Canada maximum e.r.p.< 100 mW. Other countries maximum e.r.p.< 10 mW. The environment in which the product is used might reduce the radio range. The use in the same room as the controlled products is recommended. Radio range: 50 m in Free field (optimal condition). Operating temperature: 0°C (+32°F) to +48°C (+118.4°F). Power supply: Battery type 2 x AAA LR03, 2 x 1.5 V. SOMFY ACTIVITES SA, 74300 CLUSES FRANCE hereby declares that the radio equipment cov- ered by these instructions is in compliance with the requirements of Radio Directive 2014/53/ EU and the other essential requirements of the applicable European Directives. The full text of the EU Declaration of Conformity is available at www.somfy.com/ce. Somfy limited, Yeadon LS19 7ZA UK, hereby declares that the radio equipment covered by these instructions is in compliance with the requirements of UK legislation: the Radio Equip- ment Regulations S.I. 2017 N°1206. The full text of the UKCA declaration of conformity is available at www. somfy.co.uk. FR Notice complète (réglages avancés, conseils et astuces) disponible en ligne sur https://www.somfy.info/fr/p/Ysia Avant d’installer et d’utiliser ce produit, lire attentivement la présente notice. Respecter égale- ment les consignes détaillées dans le document joint Consignes de sécurité. 1. Détail (figure } [A]) a) Voyant DEL de transmission b) Touche montée (une brève pression permet de relever, mettre sous tension ou ouvrir l'équipement. Une pression prolongée permet d'activer certaines fonctionnalités supplémentaires. Voir la notice com- plète pour plus de détails). c) Touche Stop/my ((permet d'arrêter l'équipement en appuyant une fois sur la touche ou de l'amener en position favorite en appuyant deux fois sur la touche). d) Touche descente (une brève pression permet d'abaisser, d'éteindre ou de fermer l'équipement. Une pression prolongée permet d'activer certaines fonctionnalités supplémentaires. Voir la notice complète pour plus de détails). e) DEL de sélection de canal ou de groupe (Ysia 5 Zigbee uniquement) f) Sélecteur de canal ou de groupe (Ysia 5 Zigbee uniquement) g) Couvercle des piles h) Bouton PROG i) Support mural 2. Mise en route Télécharger l’application TaHoma si elle n’est pas encore installée sur le smartphone. INFORMATION Le moteur Somfy peut être réglé et utilisé avec ce produit sans Box TaHoma (HUB en option unique- ment). 3. Sélection des groupes (figure } [B]) Avant toute opération avec la télécommande Ysia 5 Zigbee, s’assurer que le bon groupe est sélectionné. 4. Installation 4.1. Ajout/suppression d'Ysia Zigbee Suivre les consignes sur l’application TaHoma pour ajouter ou supprimer une Ysia Zigbee. 4.2. Support mural (figure } [C]) Ouvrir le support mural (i) et le fixer sur une surface plane à l’aide d’un tournevis et d’une vis de type M3. ATTENTION Ne pas utiliser un tournevis électrique. 5. Remplacement des piles (figure } [D]) DANGER Lire le document Consignes de sécurité. Risque d’explosion si la pile de remplacement n'est pas du type correct. Insérer des piles de type 2 x AAA LR03, 2 x 1.5 V, conformément aux indications de polarité (signes + et -) dans le compartiment à piles. Les bornes d’alimentation ne doivent pas être court- circuitées. 6. Caractéristiques techniques Gamme de fréquences utilisée : 2.405GHz MHz - 2.480 GHz. US et Canada e.r.p. maximum< 100 mW. Autres pays e.r.p. maximum< 10 mW. L'environnement dans lequel le produit est utilisé peut réduire la portée radio. L'utilisation dans la même pièce que les produits commandés est conseillée. Portée radio : 50 m en champ libre (condition optimale). Température de fonctionnement : 0°C (+32°F) à +48°C (+118.4°F). Alimentation secteur : Piles d…

Text truncated - open the document above for the full version.

CFR 47 §2.911 (d)(7) Agent Designation Attestation Date: 02/10/2023 FCC ID: FCC ID: DWN-YSIA1 & DWN-YSIA5 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Somfy Systems, Inc (“the applicant”) as required by section 2.911(d)(7), will also serve as the agent for service of process for the above referenced FCC ID’s. The applicant acknowledges that they will maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the agent information changes. Jim Hellander Somfy Systems, Inc. 121 Herrod Blvd, Dayton, NJ 08810 [email protected] Sincerely yours, Jim Hellander Somfy Systems, Inc. 121 Herrod Blvd, Dayton, NJ 08810 [email protected]

121 Herrod Blvd. Dayton, NJ 08810 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 02/07/23 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: DWN-YSIA5 Somfy Systems, Inc. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Ji m Hellander Somfy Systems, Inc. 121 Herrod Blvd. Dayton, NJ 08810 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 02/07/23 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: DWN-YSIA5 Somfy Systems, Inc. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment Sincerely, Jim Hellander Somfy Systems, Inc.

Date: December 30, 2022 Ref: Application for FCC & ISED Certification on Somfy Tx under FCC ID: DWN-YSIA5 IC: 12049A-YSIA5 Ctrl#: 0048-221230-03 From: Wei Li, Advanced Compliance Laboratory To Whom It May Concern: Dear Sir/ Madam, We, Advanced Compliance Laboratory, as EMC testing lab and agent, would like to represent the applicant, Somfy Systems to apply for your approval on product authorization for new certification under FCC ID: DWN-YSIA5 IC: 12049A-YSIA5. The investigation for the EMC performance of the EUT(s), Ysia 5 HP Zigbee, 5163795 was performed in December 2022 on behalf of the applicant. It was found that EUTs comply with the requirements of FCC Part 15.231, 15.247 & RSS-210, RSS-247, RSS-Gen. The system was configured as the typical condition during the test. Enclosed please find the test data/report with application forms. The measurement facility used to collect the test data is located at Somerset, New Jersey. OATS was listed by IC as “Site 3130A”. Thi s testing site has been listed by FCC (Refer to: 31040/SIT 1300F2) since 1992 and also recognized under NVLAP by NIST (Lab code 200101-0) since 1997 with MRA# US5347. Should you need more information, please contact me at (908) 392-3378 or email me to [email protected]. Your attention is highly appreciated. Sincerely, Wei Li Manager Advanced Compliance Laboratory, Inc. 210 Cougar Court Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 Advanced Compliance Lab

December 6, 2022 FCC ID: DWN-YSIA5 IC: 12049A-YSIA5 FCC and IC Confidentiality Request In accordance with 0.459 & 0.457 of CFR 47, please, accept this letter as an official request to have the schematics, block diagram, operational description of the EUT treated as confidential. The information contained within is a result of extensive investment and development effort by Somfy Systems, Inc. and its disclosure will compromise Somfy's Intellectual Property and competitive edge. We thus ask the FCC and IC NOT to publish the information mentioned above, in order to protect Somfy's Intellectual Property. Regards, Somfy Systems, Inc. Jim Hellander Industrial Operations Mgr.

April 6, 2022 To whom it may concern: We, the undersigned, hereby authorize, Wei Li, Advanced Compliance Lab, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Advanced Compliance Lab on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing Advanced Compliance as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, James Hellander Engineering Mgr. Somfy Systems, Inc.

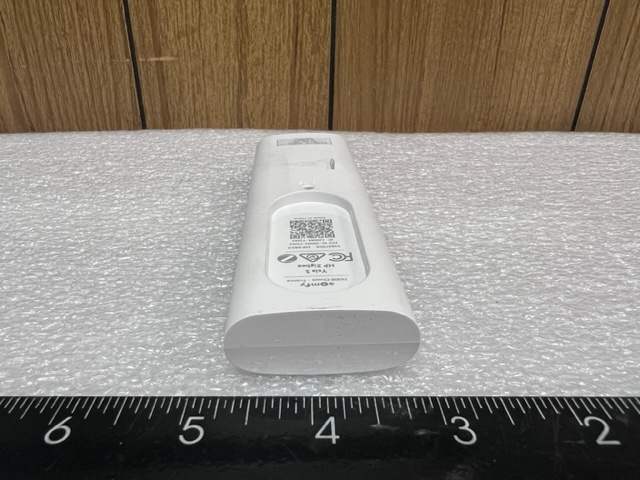

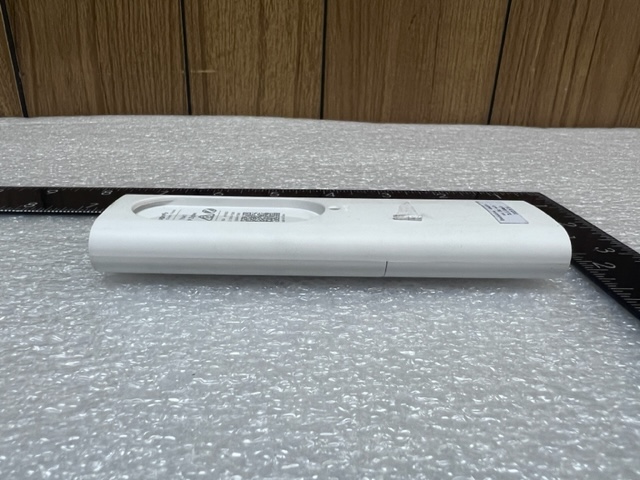

EUT: Ysia 5 HP Zigbee Report No: 0048-221121-02 Model: 5163795 FCC ID: DWN-YSIA5 IC : 12049A-YSIA5 Page 51 of 55 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, tel:(908) 927 9288 PRODUCT PHOTOS EUT- Top View EUT: Ysia 5 HP Zigbee Report No: 0048-221121-02 Model: 5163795 FCC ID: DWN-YSIA5 IC : 12049A-YSIA5 Page 52 of 55 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, tel:(908) 927 9288 EUT- Back View EUT: Ysia 5 HP Zigbee Report No: 0048-221121-02 Model: 5163795 FCC ID: DWN-YSIA5 IC : 12049A-YSIA5 Page 53 of 55 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, tel:(908) 927 9288 EUT- Side View

EUT: Ysia 5 HP Zigbee Report No: 0048-221121-02 Model: 5163795 FCC ID: DWN-YSIA5 IC : 12049A-YSIA5 Page 50 of 54 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, tel:(908) 927 9288 FCC/IC Label for Model # 5163795 SOMFY YSIA 5 HP Zigbee Model: 5163795 FCC ID: DWN-YSIA5 IC: 12049A- YSIA5 This device complies with FCC Part 15C & IC RSS Rules. Operating is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Proposed ID Label for Smart Connect (The statement may be shown in its user manual for small size devices ) ID Label

EUT: Ysia 5 HP Zigbee Report No: 0048-221121-02 Model: 5163795 FCC ID: DWN-YSIA5 IC : 12049A-YSIA5 Page 53 of 54 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, tel:(908) 927 9288 EUT- Inside View EUT: Ysia 5 HP Zigbee Report No: 0048-221121-02 Model: 5163795 FCC ID: DWN-YSIA5 IC : 12049A-YSIA5 Page 54 of 54 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, tel:(908) 927 9288 EUT- Component Side View EUT- Foil Side View

EUT: Ysia 5 HP Zigbee Report No: 0048-221121-02 Model: 5163795 FCC ID: DWN-YSIA5 IC : 12049A-YSIA5 Page 19 of 56 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, tel:(908) 927 9288 7.3 MAXIMUM PERMISSIBLE EXPOSURE LIMITS for FCC RF Exposure Evaluation §1.1310 The criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of §2.1093 of this chapter. LIMITS for FCC SAR Evaluation KDB 447498 D04 Interim General RF Exposure Guidance v01, section 2.1.3 SAR-Based Exemption: “A more comprehensive exemption, considering a variable power threshold that depends on both the separation distance and power, is provided in § 1.1307(b)(3)(i)(B). This exemption is applicable to the frequency range between 300 MHz and 6 GHz, with test separation distances between 0.5 cm and 40 cm, and for all RF sources in fixed, mobile, and portable device exposure conditions.” For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz EUT: Ysia 5 HP Zigbee Report No: 0048-221121-02 Model: 5163795 FCC ID: DWN-YSIA5 IC : 12049A-YSIA5 Page 20 of 56 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, tel:(908) 927 9288 FCC KDB 447498 D01 General RF Exposure Guidance v06, section 4.3.1 & Appendix A provides the SAR Test Exclusion Thresholds (ERP/Condcuted) to verify that the device is exempt from 1-g extremity SAR at different separation distances. As example, for 900MHz Tx: 16mW (12dBm); For 2450MHz Tx: 10mW (10dBm) at ≤5 mm. Details in calculation formula for reference, given in § 1.1307(b)(3)(i)(B) to calculate the exemption: EUT: Ysia 5 HP Zigbee Report No: 0048-221121-02 Model: 5163795 FCC ID: DWN-YSIA5 IC : 12049A-YSIA5 Page 21 of 56 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, tel:(908) 927 9288 LIMITS per ISED RSS-102, Section 2.5 & Table 1 Per 2.5.1 Exemption Limits for Routine Evaluation — SAR Evaluation For limb-worn devices where the 10 gram value applies, the exemption limits for routine evaluation in Table 1 are multiplied by a factor of 2.5. Example: Exclusion Thresholds to verify that the device is exempt from 1-g SAR at separation distance of ≤5 mm: For 900MHz Tx: 16mW (12dBm); For 2450MHz Tx: 4mW (6dBm). Per 2.5.2 Exemption Limits for Routine Evaluation – RF Exposure Evaluation RF exposure evaluation is required if the separation distance between the user and/or bystander and the device’s radiating element is greater than 20 cm, except when the device operates as follows: • below 20 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1 W (adjusted for tune-up tolerance); • at or above 20 MHz and below 48 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 4.49/f 0.5 W (adjusted for tune-up tolerance), where ƒ is in MHz; • at or above 48 MHz and below 300 MHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 0.6 W (adjusted for tune-up tolerance); • at or above 300 MHz and below 6 GHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1.31 x 10 -2 ƒ 0.6834 W (adjusted for tune-up tolerance), where ƒ is in MHz; • at or above 6 GHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 5 W (adjusted for tune-up tolerance). In these cases, the information contained in the RF exposure technical brief may be limited to information that demonstrates how the e.i.r.p. was derived. Summary For FCC and IC, that max. declared power level can be modified by any duty cycle over the time averaging period. Time-averaging period is a time period not to exceed 30 minutes for fixed RF sources or a time period inherent from device transmission characteristics not to exceed 30 minutes for mobile and portable RF sources. For rf exposure, the averaging period is 6 minutes for ISED Canada and for FCC it varies by frequency but 1~60 second for RF exposure or the period specified by product design spec. for RF exposure can be used. So the power value for RF exposure= Declared power x Duty Cycle factor EUT: Ysia 5 HP Zigbee Report No: 0048-221121-02 Model: 5163795 FCC ID: DWN-YSIA5 IC : 12049A-YSIA5 Page 22 of 56 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, tel:(908) 927 9288 CALCULATIONS for MPE distance and Power Density Given E = √ (30 * P * G) / d and S = E ^ 2 / 3770 where E = Field Strength in Volts/meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power Density in milliwatts/square centimeter Combining equations and rearranging the terms to express the distance as a function of the remaining variables yields: d = √ ((30 * P * G) / (3770 * S)) Changing to units of Power to mW and Distance to cm, using: P(mW) = P (W) / 1000 and d (cm) =100 * d (m) yields d = 100 * √ ((30 * (P / 1000) * G) / (3770 * S)) d = 0.282 * √ (P * G / S) where d = distance in cm P = Power in mW G = Numeric antenna gain S = Power Density in mW/cm^2 Substituting the logarithmic form of power and gain using: P (mW) = 10 ^ (P (dBm) / 10) and G (numeric) = 10 ^ (G (dBi) / 10) yi elds d = 0.282 * 10 ^ ((P + G) / 20) / √ S Equation (1) S = 0.0795 * 10 ^ ((P + G)/10)/ d^2 Equation (2) where d = MPE distance in cm P = Power in dBm G = Antenna Gain in dBi S = Power Density Limit in mW/cm^2 Equation (1) and the measured Output power is used to calculate the MPE distance. Equation (2) and the measured Output power is used to calcula…

Text truncated - open the document above for the full version.

MEASUREMENT REPORT 17/02/2023 YSIA 1C 5C ZIGBEE R0 C:\Siemens\tc12\rac4t1240\portal\temp\tc_pellvi01_0_1677139741854\FCC Report VP 17022023.docx Page 3 sur 8 Vincent Pellé 1. PRESENTATION This technical document aims to define the user's exposure to Zigbee frames (distance and radio power) 2. DISTANCE BETWEEN ANTENNA AND USER'S FINGER 2.1. Location of the antenna Back side Front side The antenna is on the opposite side of the buttons 2.2. Normal use in the hand Antenna area 9mm Antenna MEASUREMENT REPORT 17/02/2023 YSIA 1C 5C ZIGBEE R0 C:\Siemens\tc12\rac4t1240\portal\temp\tc_pellvi01_0_1677139741854\FCC Report VP 17022023.docx Page 4 sur 8 Vincent Pellé 2.3. On the wall 2.4. Conclusion in a normal mode, the distance between the finger and the antenna of the remote control is more than 5mm. Antenna area 7mm

EUT: Ysia 5 HP Zigbee Report No: 0048-221121-02 Model: 5163795 FCC ID: DWN-YSIA5 IC : 12049A-YSIA5 Page 1 of 56 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, tel:(908) 927 9288 FCC CFR47 PART 15 SUBPART C & IC RSS-247 TEST REPORT For SOMFY SYSTEMS INC. Ysia 5 HP Zigbee Model Number: 5163795 FCC ID: DWN-YSIA5 IC: 12049A- YSIA5 Report Number: 0048-221121-02 Prepared for SOMFY SYSTEMS INC. 121 Herrod Blvd. Dayton, NJ 08810 USA Prepared by Advanced Compliance Laboratory, Inc. 210 Cougar Court Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 Date: 12/30/2022 210 Cougar Court Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 Advanced Compliance Laboratory EUT: Ysia 5 HP Zigbee Report No: 0048-221121-02 Model: 5163795 FCC ID: DWN-YSIA5 IC : 12049A-YSIA5 Page 2 of 56 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, tel:(908) 927 9288 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ............................................................................................ 3 2. EUT DESCRIPTION .................................................................................................................. 5 3. TEST METHODOLOGY ........................................................................................................... 5 4. FACILITIES AND ACCREDITATION .................................................................................... 5 5. CALIBRATION AND UNCERTAINTY ................................................................................... 7 5.1. MEASURING INSTRUMENT CALIBRATION ............................................................. 7 5.2. MEASUREMENT UNCERTAINTY ................................................................................ 7 5.3. TEST AND MEASUREMENT EQUIPMENT ................................................................. 8 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................. 9 7. APPLICABLE LIMITS AND TEST RESULTS ...................................................................... 10 7.1 6dB &99% BANDWIDTH .............................................................................................. 10 7.2 PEAK OUTPUT POWER ................................................................................................. 14 7.3 MAXIMUM PERMISSIBLE EXPOSURE ...................................................................... 19 7.4 AVERAGE OUTPUT POWER ........................................................................................ 24 7.5 PEAK POWER SPECTRAL DENSITY .......................................................................... 25 7.6 CONDUCTED SPURIOUS EMISSIONS ........................................................................ 29 7.7 RADIATED EMISSIONS ................................................................................................ 34 7.7.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ........................................ 34 7.7.2. TRANSMITTER RADIATED EMISSIONS DATA ................................................ 36 7.8 CONDUCTED EMISSION ................................................................................................ 43 7.9 EUT RECEIVING MODE VERIFICATION ..................................................................... 44 8. SETUP PHOTOS ...................................................................................................................... 46 9. APPENDIX ............................................................................................................................... 50 EUT: Ysia 5 HP Zigbee Report No: 0048-221121-02 Model: 5163795 FCC ID: DWN-YSIA5 IC : 12049A-YSIA5 Page 3 of 56 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, tel:(908) 927 9288 1. TEST RESULT CERTIFICATION COMPANY NAME: SOMFY SYSTEMS INC. EUT DESCRIPTION: Ysia 5 HP Zigbee MODEL: 5163795 DATE TESTED: 11/21/2022 to 12/30/2022 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 15.247 & IC RSS-247:Issue 2& RSS-Gen Issue 5 NO NON-COMPLIANCE NOTED Test Summary Testing Items Per FCC Part 2/ Part 15.247 & IC RSS-247 /RSS-Gen Standard Requirements for DTS Modulation Section Limit Result DTS Bandwidth 15.247(a) (2) RSS-247, 5.2(a) >=500KHz Complies Peak Power Limit 15.247(b) (3) RSS-247, 5.4(d) Conducted: 1W (30dBm) e.i.r.p. 4W(36dBm) Complies Peak Power Spectral Density 15.247(e) RSS-247, 5.2(b) 8dBm/3KHz Complies Emissions ( Conducted) 15.247(d) RSS-247, 5.5 -20dB/-30dB Complies* Spurious ( Radiated) 15.205(a) RSS-247, 5.5 15.209/RSS-Gen Complies RF Safety* 1.1310/RSS-102 1.0/5.0 mW/cm 2 Complies** NOTE: *For mobile or fixed location transmitters, the minimum separation distance is 20 cm, even if calculations indicate that the MPE distance would be less. Advanced Compliance Laboratory, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. EUT: Ysia 5 HP Zigbee Report No: 0048-221121-02 Model: 5163795 FCC ID: DWN-YSIA5 IC : 12049A-YSIA5 Page 4 of 56 Advanced Compliance Laboratory, Inc. 210 Cougar Court, Hillsborough, NJ 08844, tel:(908) 927 9288 Note : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Advanced Compliance Laboratory, Inc. (ACL) and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by ACL, Advanced Compliance Laboratory, Inc. will constitute fraud and shall nullify the document. Approved & Released For ACL By: Tested By: Wei Li Edward Lee Manager EMC Engineer Advanced Compliance Laboratory, Inc. EUT: Ysia 5 HP Zigbee Report No: 0048-221121-02 Model: 5163795 FCC ID: DWN-YSIA5 IC : 12049A-YSIA5 Page 5 of 56 Advanced Compliance Laboratory,…

Text truncated - open the document above for the full version.

Report No.: BL-SZ2250574-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 1 / 33 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe West Road, Nanshan District, ShenZhen, GuangDong Province, China TEST REPORT Applicant: Gemstar Technology(Yangzhou) Co. Ltd Address: Room 606, Guofa building, #3110 Renmin Road, Suzhou, Jiangsu Province Equipment Type: Remote Control Model Name: BV Somfy Zigbee RCU 5C Brand Name: UEI Test Standard: ANSI/IEEE Std 149-1979 Test Date May 18, 2022 Date of Issue: May 27, 2022 ISSUED BY: Shenzhen BALUN Technology Co., Ltd. Tested by: Mai Jintian Checked by: Tolan Tu Approved by: Wei Yanquan (Chief Engineer) _______________ _______________ _______________ Report No.: BL-SZ2250574-901 Tel: +86-755-66850100 E-mail: [email protected] Page No. 2 / 33 Web: www.titcgroup.com Template No.: TRP-Passive-EN (2022-01-12) Add: Block B, 1/F, Baisha Science and Technology Park, Shahe West Road, Nanshan District, ShenZhen, GuangDong Province, China Revision History Version Issue Date Revisions Rev. 01 May 27, 2022 Initial Issue TABLE OF CONTENTS 1 GENERAL INFORMATION ......................................................................................................... 3 1.1 Identification of the Testing Laboratory ................................................................................. 3 1.2 Identification of the Responsible Testing Location ................................................................ 3 2 PRODUCT INFORMATION ......................................................................................................... 4 2.1 Applicant Information ............................................................................................................ 4 2.2 Manufacturer Information ...................................................................................................... 4 2.3 Factory Information ............................................................................................................... 4 2.4 General Description for Equipment under Test (EUT) .......................................................... 4 2.5 Ancillary Equipment .............................................................................................................. 4 2.6 Technical Information ............................................................................................................ 5 3 SUMMARY OF TEST RESULTS ................................................................................................. 6 3.1 Test Standards ...........................................…
