DWNBEECONPCBHome automation gateway module

Smartkiz® PCBA Allée de la Mandallaz Immeuble Variation A 74370 METZ-TESSY France Module’s OEM manual FCC ID: DWNBEECONPCB Contains FCC ID: 2AATL-F23BUUM13 Host labeling requirement The OEM must ensure that the host product is compliant with FCC labeling requirements. Hence, a permanent label must be affixed on a visible and fixed part of the product with the following information: Contains FCC ID: DWNBEECONPCB Contains FCC ID: 2AATL-F23BUUM13 OEM manual requirement The OEM must ensure that the user manual of the host product is compliant with FCC requirements. Hence, the following text must be included: This device complies with FCC RF radiation exposure limits set forth for general population. This device must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located in conjunction with any other antenna or transmitter. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pur- suant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular instal- lation. If this equipment does cause harmful interference to radio or television reception, which can be deter- mined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. P000764A Page 1/2 Model name and referenceSmartkiz PCBA P000765 Operating temperature32°F - 95°F (0°C - 35°C) Power supply5V 2A Frequency used and maximum power used 2.4000 GHz - 2.4845 GHz / erp <100mW 433,050 MHz - 434,790 MHz / erp < 10mW Smartkiz® PCBA Allée de la Mandallaz Immeuble Variation A 74370 METZ-TESSY France Module’s OEM manual FCC ID: DWNBEECONPCB Contains FCC ID: 2AATL-F23BUUM13 Guidelines Labeling and user information : further details can be found in document 784748 from the FCC. Caution The user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The Smartkiz® PCBA is approved to be used in the following host: • LinkPro Z P000764A Page 2/2

June 10, 2020 LIMITED MODULAR APPROVAL Attestation letter Curtis-Straus LLC One Distribution Center Circle #1 Littleton, MA 01460 USA Re: Limited Modular Approval attestation letter FCC ID: DWNBEECONPCB Gentlemen, The Smartkiz PCBA / TaHoma Beecon PCBA meets the requirements for limited modular approval as detailed in FCC Public notice 15.212 requirements. Limited single modular approval is sought as the modules will be sold to 3 rd parties, the list of which will remain under Somfy Systems, Inc. control. This grant is requested with the following known integrator: Company End product U.S. Screen Corporation LinkPro Z Somfy Systems, Inc. understands that any new entry to this list will need to be reviewed and approved with testing, and that Class I or Class II permissive change may be required if the host manufacturer cannot comply to given directions. Compliance to each of the requirements is described below. Clauses Manufacturer’s arguments Limited Modular Approval 15.212 (a)(1)(i) Shielding None shielding provide, Smartkiz PCBA / TaHoma Beecon PCBA is compliant with all FCC part15C requirements without shielding. See Test Report document. 15.212 (a)(1)(ii) Buffered Data/Modulation Chip is compliant with this rule. 15.212 (a)(1)(iii) Power supply regulation Chip is compliant with this rule 15.212 (a)(1)(iv) Antenna The Smartkiz PCBA / TaHoma Beecon PCBA was tested with one ceramic antenna, see “test report” 15.212 (a)(1)(v) Stand-Alone Configuration The Smartkiz PCBA / TaHoma Beecon PCBA was tested in a stand-alone configuration, see “Test setup photos” document. 15.212 (a)(1)(vi) Label See “Label” document and exhibition label sample 15.212 (a)(1)(vii) Operating The Smartkiz PCBA / TaHoma Beecon PCBA is compliant with all applicable FCC and IC rules. Details for maintaining compliance are given in the “User Manual”. 15.212 (a)(1)(viii) RF Exposure The Smartkiz PCBA / TaHoma Beecon PCBA is compliant with all applicable RF exposure requirements. See “RF exposure” document. Please contact me if you have any further question. James Hellander Somfy Systems, Inc. 121 Herrod Blvd. Dayton, NJ 08810 609-395-1300 #2662 [email protected]

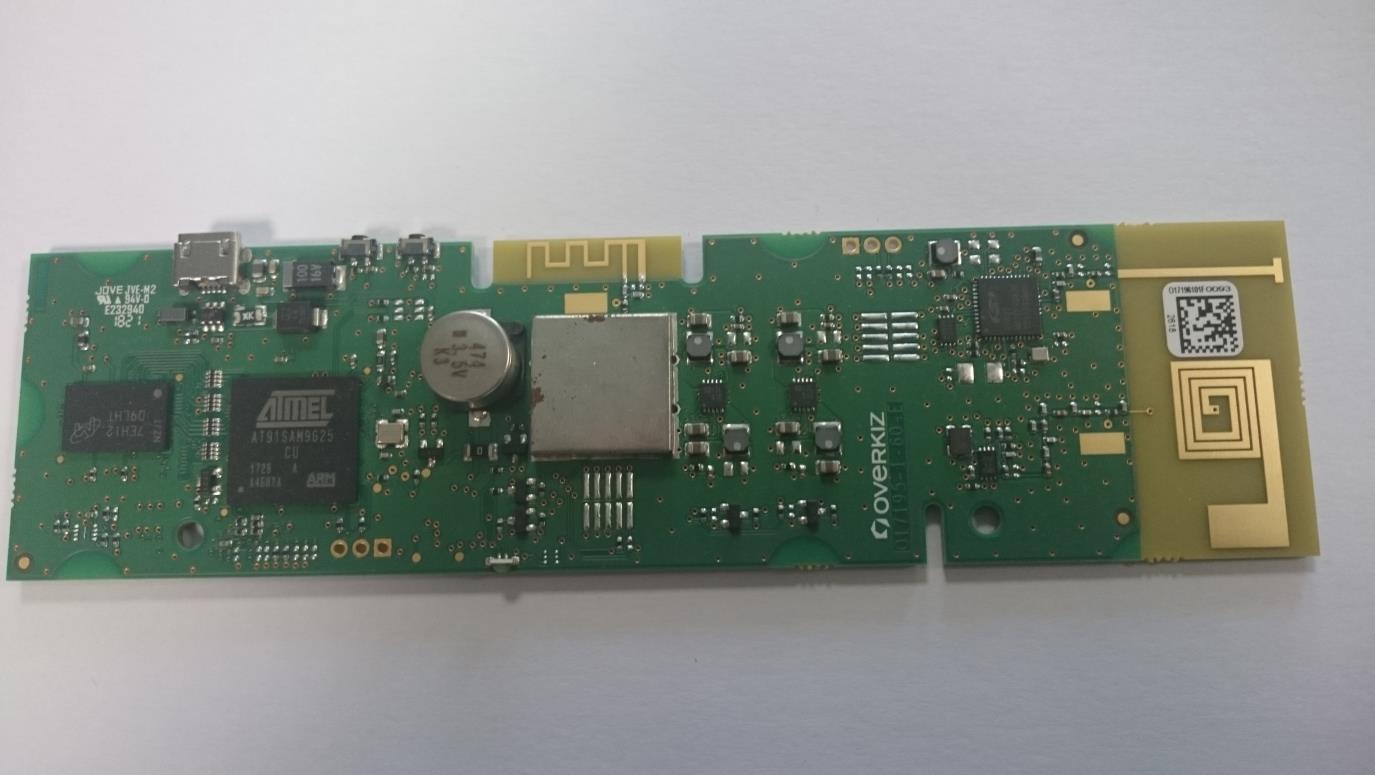

LCIE SUD EST Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS – France Page 1/3 INTERNAL PHOTOS OF EQUIPMENT FCCID: DWNBEECONPCB Zigbee Antenna 433MHz antenna Modular Wifi Modular Antenna LCIE SUD EST Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS – France Page 2/3 LCIE SUD EST Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS – France Page 3/3

LCIE SUD EST Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS - FRANCE Page 1/2 PRODUCT LABELING FCCID: DWNBEECONPCB LCIE SUD EST Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS - FRANCE Page 2/2

LCIE SUD EST Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS – France Page 1/3 INTERNAL PHOTOS OF EQUIPMENT FCCID: DWNBEECONPCB Zigbee Antenna 433MHz antenna Modular Wifi Modular Antenna LCIE SUD EST Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS – France Page 2/3 LCIE SUD EST Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS – France Page 3/3

LCIE SUD EST Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS - FRANCE GENERAL INFORMATION FCCID: DWNBEECONPCB 1.1. Product description Data sheet of equipment LCIE SUD EST Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS - FRANCE 1.2. Tested System Details LCIE SUD EST Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS - FRANCE 1.3. Test Methodology Both conducted and radiated testing were performed according to the procedures in ANSI C63.4 or/and ANSI C63.10, FCC Part 15 SubPart 15C. Radiated testing was performed at an antenna to EUT distance of 10 meters. During testing, all equipment’s and cables were moved relative to each other in order to identify the worst case set-up. 1.4. Test facility Tests have been performed: February 19 to February 21, 2020 This test facility has been fully described in a report and accepted by FCC as compliant with the radiated and AC line conducted test site criteria in ANSI C63.4 or/and ANSI C63.10. This test facility has also been accredited by COFRAC (French accreditation authority for European Union test lab accreditation organization) according to NF EN ISO/IEC 17025, as compliant with test site criteria and competence in 47 CFR Part 15/ANSI C63.4 and EN55032/CISPR32 norms for 89/336/EEC European EMC Directive application. All pertinent data for this test facility remains unchanged.

LCIE SUD EST Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS – FRANCE FCCID: DWNBEECONPCB RF Exposure Information When all the antennas are at least 20cm away from the user’s body (excluding hands and wrists during normal operation of the device), but individual antennas cannot be separated by more than 20cm from each other. [ Pd(1) / LPd(1) ] + [ Pd(2) / LPd(2) ] + ..... + [ Pd(n) / LPd(n) ] < 1, Where; Pd(n) = Power density of n th transmitter at 20cm LPd(n) = Power density limit for the n th transmitter § 1.1310 Radiofrequency radiation exposure limits. Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 2 4 R PG S p = LCIE SUD EST Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS – FRANCE Calculations: For transmitter: Frequency:2405.00 Prediction distance:20.00 Output Power:12.92 Antenna gain(typical):0.00 1.00 Calculation: 12.92(dBm) 19.59(mW) 0.00(dBi) 1.00(numeric) 20.00(cm) 2405.00(MHz) 1.00(mW/cm^2) 0.0039(mW/cm^2) For transmitter: Frequency:433.42 Prediction distance:20.00 Output Power:-17.00 Antenna gain(typical):0.00 0.29 Calculation: -17.00(dBm) 0.02(mW) 0.00(dBi) 1.00(numeric) 20.00(cm) 433.42(MHz) 0.29(mW/cm^2) 0.000004(mW/cm^2) Calculation: Colocation: <1 Power density at prediction frequency: (Pd(2.4GHz) / LPd(2.4GHz)) + (Pd(FM) / LPd(FM)) = 0.0141 mW/cm² <1 0.003911 Maximum peak output power at the antenna terminal: Maximum peak output power at the antenna terminal: Antenna gain(typical): Maximum antenna gain: Prediction distance: Prediction frequency: MHz cm (Portable:0.5cm / Mobile:20cm) at the antenna terminal (dBm) (dBi) MPE limit for uncontrolled exposure at prediction frequency: at the antenna terminal (dBm) cm (Portable:0.5cm / Mobile:20cm) MHz Zigbee MPE limit for uncontrolled exposure at prediction frequency: (dBi) MPE limit for uncontrolled exposure at prediction frequency: Power density at prediction frequency: Maximum peak output power at the antenna terminal: Maximum peak output power at the antenna terminal: Antenna gain(typical): Maximum antenna gain: Prediction distance: Prediction frequency: MPE limit for uncontrolled exposure at prediction frequency: 433 LCIE SUD EST Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS – FRANCE To complete exposure information in this case of co-location with modular 2AATL-F23BUUM13 (Wifi only): Extract from FCC files: So Power density worst case is: 0.0231mw/cm² Conclusion: The device complies with FCC’s RF radiation exposure limit for general population as a mobile device (d>20cm) under the collocation conditions described above.

433MHz Template: Release February 06 th , 2020 This document shall not be reproduced, except in full, without the written approval of the LCIE. This document contains results related only to the items tested. It does not imply the conformity of the whole production to the items tested. . Unless otherwise specified or rule defined by the test method, the decision of conformity doesn’t take into account the uncertainty of measures. This document doesn’t anticipate any certification decision. TEST REPORT N°: 166092-748231-B(FILE#1040131) Version : 02 Subject Radio spectrum matters tests according to standards: 47 CFR Part 15.231 & RSS-210 Issue 9 & RSS-Gen Issue 5 Issued to ASTEEL FLASH DEVELOPPEMENT 43 Chemin du Vieux Chêne 38240 - MEYLAN FRANCE Apparatus under test  Product Home automation gateway module  Trade mark OVERKIZ / SOMFY  Manufacturer OVERKIZ  Model under test Smartkiz PCBA / TaHoma Beecon PCBA  Serial number O17196101F22180055  FCC ID DWNBEECONPCB Conclusion See Test Program chapter Test date February 19, 2020 to February 20, 2020 Test location Moirans Test Site 6500A-1 & 6500A-3 Sample receipt date February 19, 2020 Composition of document 43 pages Document issued on April 7, 2020 Written by : Approved by : Majid MOURZAGH Anthony MERLIN Tests operator Technical manager TEST REPORT N° 166092-748231-B Version : 02 Page 2/43 PUBLICATION HISTORY Version Date Author Modification 01 February 26 , 2020 Majid MOURZAGH Creation of the document 02 March 26, 2020 Majid MOURZAGH Correction on Page 1 Trade Mark & Manufacturer informations Each new edition of this test report replaces and cancels the previous edition. The control of the old editions of report is under responsibility of client. TEST REPORT N° 166092-748231-B Version : 02 Page 3/43 SUMMARY 1. TEST PROGRAM ............................................................................................................................... 4 2. EQUIPMENT UNDER TEST: CONFIGURATION (DECLARED BY PROVIDER) ................................ 5 3. OCCUPIED BANDWIDTH ................................................................................................................... 9 4. 20DB EMISSION BANDWIDTH ........................................................................................................ 12 5. LIMIT OF TRANSMISSION TIME...................................................................................................... 15 6. AC POWER LINE CONDUCTED EMISSIONS.................................................................................. 18 7. FIELD STRENGHT OF EMISSION & FIELD STRENGHT OF HARMONICS .................................... 25 8. UNWANTED EMISSIONS IN RESTRICTED FREQUENCY BANDS ................................................ 30 9. UNCERTAINTIES CHART ................................................................................................................ 43 TEST REPORT N° 166092-748231-B Version : 02 Page 4/43 1. TEST PROGRAM References  47 CFR Part 15.231  RSS 210 Issue 9  RSS Gen Issue 5  ANSI C63.10-2013 Radio requirement: Clause (47CFR Part 15.231 & RSS-249 Issue 2 & RSS-Gen Issue 5) Test Description Test result - Comments Occupied Bandwidth  PASS  FAIL  NA  NP(1) 20 dB bandwidth  PASS  FAIL  NA  NP(1) Frequency Tolerance  PASS  FAIL  NA  NP(1) Limit of Transmission Time  PASS  FAIL  NA  NP(1) Field strength of fundamental & Field strength of harmonics  PASS  FAIL  NA()  NP(1) AC Power Line Conducted Emission  PASS  FAIL  NA(2)  NP(1) Unwanted Emissions into Restricted Frequency Bands  PASS  FAIL  NA  NP(1) Receiver Radiated emissions  PASS  FAIL  NA  NP(1) This table is a summary of test report, see conclusion of each clause of this test report for detail. (1): Limited program (2): EUT not directly or indirectly connected to the AC Power Public Network PASS: EUT complies with standard’s requirement FAIL: EUT does not comply with standard’s requirement NA: Not Applicable NP: Test Not Performed TEST REPORT N° 166092-748231-B Version : 02 Page 5/43 2. EQUIPMENT UNDER TEST: CONFIGURATION (DECLARED BY PROVIDER) 2.1. HARDWARE IDENTIFICATION (EUT AND AUXILIARIES): Equipment under test (EUT): OVERKIZ / SOMFY Smartkiz PCBA / TaHoma Beecon PCBA Serial Number: O17196101F22180055 Equipment Under Test Power supply: During all the tests, EUT is supplied by V nom : 5VDC For measurement with different voltage, it will be presented in test method. Name Type Rating Reference / Sn Comments Supply1  AC  DC  Battery 5Vusb / / Voltage table used (for Power Line Conducted Emissions): Type Measurement performed:  AC  120VAC/60Hz  240VAC/50Hz TEST REPORT N° 166092-748231-B Version : 02 Page 6/43 Inputs/outputs - Cable: Access Type Length used (m) Declared <3m Shielded Under test Comments 1 μUSB 2    / Auxiliary equipment used during test: Type Reference Sn Comments Laptop DELL / Use to set the EUT DUB-E100 USB 2.0 Ethernet Adapter D-Link DUB-E100 S7291J3002309 / USB 2.0 7-Port Mobile Powered Hub / D14-00015584 / USB Testeur / / /- TEST REPORT N° 166092-748231-B Version : 02 Page 7/43 Equipment information: Type: RTS Number of Channel: 1 Spacing channel: None Channel bandwidth: 100 kHz Channel tested: F nom : 433.42 MHz Antenna Type:  Integral  External  Dedicated Antenna connector:  Yes  No  Temporary for test Transmit chains:  1  2 Receiver chains None Type of equipment:  Stand-alone  Plug-in  Combined Duty cycle:  Continuous duty  Intermittent duty  100% duty Equipment type:  Production model  Pre-production model Operating temperature range: Tnom: 20°C Type of power source:  AC power supply  DC power supply  Battery Operating voltage range: Vnom:  120V/60Hz  5 Vdc Antenna Characteristic Antenna assembly Gain (dBi) Frequency Band (MHz) Impedance(Ω) 1 0 433.42 50 CHANNEL PLAN Channel Frequency (MHz) Cnom 433.42 Hardware information Software (if applicable): V. : KIZOS: kizos-P000503-2019.6.4-14i.tar TEST REPORT N° 166092-748231-B Version : 02 P…
