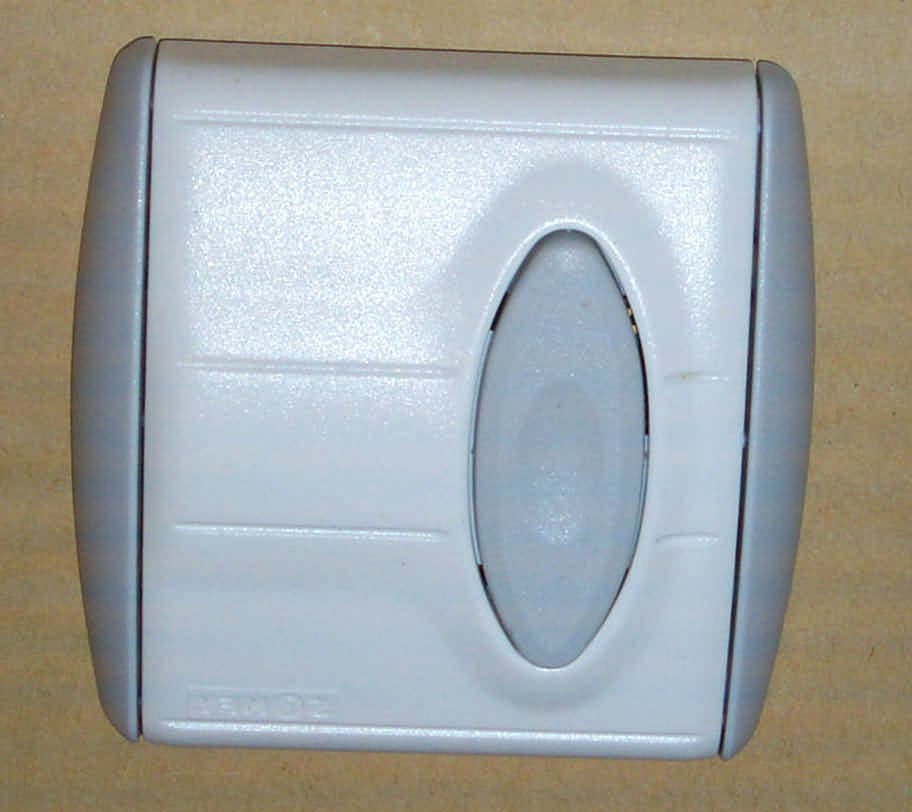

DWNINISCurtain Remote Control Transmitter

CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment

Micro Controller (MCU) Power OnResetBatteryInputsProgWind LevelOrSwitch Modulator Oscillator Amplifier Filter Antenna Block Diagram and Description Inis, Eolis Sensor and Soliris SensorFebruary, 2002 Description ! MCU While powered receives an input ! MCU sends a digital output to the Modulator ! Modulator switches Oscillator and Amplifier on and off to modulate the signal ! Amplifier amplifies the Oscillator signal to a usable level ! Filter removes unwanted frequencies from the signal and matches the Amplifier with the Antenna for optimum power ! The signal is Transmitted from the Antenna

Description ! MCU While powered receives an input ! MCU sends a digital output to the Modulator ! Modulator switches Oscillator and Amplifier on and off to modulate the signal ! Amplifier amplifies the Oscillator signal to a usable level ! Filter removes unwanted frequencies from the signal and matches the Amplifier with the Antenna for optimum power ! The signal is Transmitted from the Antenna

SYSTEM SCHEMATICS Figure 4.1 System Schematics

ADVANCED COMPLIANCE LABORATORY 6 Randolph Way Hillsborough, NJ 08876 Tel: (732) 560-9010 Fax: (732) 560-9173 ELECTROMAGNETIC EMISSION COMPLIANCE REPORT of TRANSMITTER MODEL: INIS FCC ID: DWNINIS February 1, 2002 This report concerns (check one): Original grant x Class II change Equipment type: TRANSMITTER Deferred grant requested per 47 CF 0.457(d)(1)(ii)? yes no x If yes, defer until: (date) Company agrees to notify the Commission by (date) of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? yes no x If no, assumed Part 15, Subpart B for unintentional radiators - the new 47 CFR [10-1-90 Edition] provision. Report prepared for: SOMFY SYSTEM, INC. Report prepared by:Advanced Compliance Lab Report number:0048-020123-02 The test result in this report IS supported and covered by the NVLAP accreditation FCC ID: DWN INIS ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (732) 560-9010 Fax: (732) 560-9173 2 Table of Contents Report Cover Page ........................................................................................................ 1 Table of Contents........................................................................................................... 2 Figures............................................................................................................................ 3 1. GENERAL INFORMATION...................................................................................4 1.1 Verification of Compliance .........................................................................4 1.2 Equipment Modifications............................................................................5 1.3 Product Information....................................................................................6 1.4 Test Methodology ........................................................................................6 1.5 Test Facility..................................................................................................6 1.6 Test Equipment ............................................................................................6 1.7 Statement of the Document Use..................................................................7 2. PRODUCT LABELING............................................................................................8 3. SYSTEM TEST CONFIGURATION.......................................................................9 3.1 Justification..................................................................................................9 3.2 Special Accessories......................................................................................9 3.3 Configuration of Tested System..................................................................9 4. SYSTEM SCHEMATICS .........................................................................................13 5. RADIATED EMISSION DATA...............................................................................14 5.1 Field Strength Calculation .........................................................................14 5.2 Test Methods and Conditions .....................................................................14 5.3 Test Data.......................................................................................................14 5.4 Occupied Bandwidth...................................................................................15 6. PHOTOS OF TESTED EUT ....................................................................................18 FCC ID: DWN INIS ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (732) 560-9010 Fax: (732) 560-9173 3 Figures Figure 2.1 FCC ID Label ..............................................................................................8 Figure 2.2 Location of Label on Back of the EUT......................................................8 Figure 3.1 Radiated Test Setup, Position 1 .................................................................10 Figure 3.2 Radiated Test Setup, Position 2 .................................................................11 Figure 3.3 Radiated Test Setup, Position 3 .................................................................12 Figure 4.1 EUT Schematics ..........................................................................................13 Figure 5.1 Pulse Train Timing .....................................................................................17 Figure 5.2 Occupied Bandwidth ..................................................................................17 Figure 6.1 Front View...................................................................................................19 Figure 6.2 Rear View ....................................................................................................20 Figure 6.3 Component Side ..........................................................................................21 Figure 6.4 Foil Side .......................................................................................................22 FCC ID: DWN INIS ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (732) 560-9010 Fax: (732) 560-9173 4 1. GENERAL INFORMATION 1.1 Verification of Compliance EUT:TRANSMITTER Model:INIS Applicant:SOMFY SYSTEM, INC. Test Type:FCC Part 15C CERTIFICATION Result:PASS Tested by:ADVANCED COMPLIANCE LAB Test Date:Jan. 24, 2002 Report Number:0048-020123-02 The above equipment was tested by Advanced Technologies Lab. Compliance Laboratory for compliance with the requirement set forth in the FCC rules and regulations Part 15, subpart C. This said equipment in the configuration described in the report, shows the maximum emission levels emanating from equipment are within the compliance requirements. The estima…
