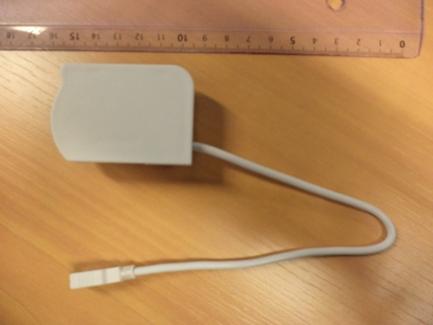

EUT: SWF Basic Remote Control Report No: 0048-140708-03 Model: RFMOD-01 FCC ID:DWNRFMOD IC:12049A-RFMOD Page 38 of 39 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 PRODUCT PHOTOS EUT- Front View EUT- Rear View

EUT: SWF Basic Remote Control Report No: 0048-140708-03 Model: RFMOD-01 FCC ID:DWNRFMOD IC:12049A-RFMOD Page 37 of 39 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 FCC/IC Label This device complies with FCC Part 15C & IC RSS-210 Rules. Operating is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ( statement shown in the manual) ID Label Product Sticker with the FCC/IC ID

EUT: SWF Basic Remote Control Report No: 0048-140708-03 Model: RFMOD-01 FCC ID:DWNRFMOD IC:12049A-RFMOD Page 39 of 39 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 EUT- Inside Views

EUT: SWF Basic Remote Control Report No: 0048-140708-03 Model: RFMOD-01 FCC ID:DWNRFMOD IC:12049A-RFMOD Page 1 of 39 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 FCC CFR47 PART 15 SUBPART C & IC RSS-210 TEST REPORT For Somfy Systems, Inc. RF External Module 2.4GHz Model Number: RFMOD-01 FCC ID: DWNRFMOD IC: 12049A-RFMOD Report Number: 0048-140708-03 Prepared for Somfy Systems, Inc. 121 Herrod Blvd. Dayton, NJ 08810 USA Prepared by Advanced Compliance Laboratory, Inc. 6 Randolph Way Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 Date: 07/21/2014 6 Randolph Way Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 Advanced Compliance Laboratory EUT: SWF Basic Remote Control Report No: 0048-140708-03 Model: RFMOD-01 FCC ID:DWNRFMOD IC:12049A-RFMOD Page 2 of 39 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ........................................................................................ 3 2. EUT DESCRIPTION .............................................................................................................. 4 3. TEST METHODOLOGY ....................................................................................................... 5 4. FACILITIES AND ACCREDITATION ................................................................................. 5 5. CALIBRATION AND UNCERTAINTY................................................................................ 6 5.1. MEASURING INSTRUMENT CALIBRATION ........................................................... 6 5.2. MEASUREMENT UNCERTAINTY ............................................................................. 6 5.3. TEST AND MEASUREMENT EQUIPMENT ............................................................... 7 6. SETUP OF EQUIPMENT UNDER TEST .............................................................................. 8 7. APPLICABLE LIMITS AND TEST RESULTS ..................................................................... 9 7.1 6dB &99% BANDWIDTH ............................................................................................ 9 7.2 PEAK OUTPUT POWER ............................................................................................. 12 7.3 MAXIMUM PERMISSIBLE EXPOSURE ................................................................... 16 7.4 AVERAGE POWER ..................................................................................................... 19 7.5 PEAK POWER SPECTRAL DENSITY ....................................................................... 20 7.6 CONDUCTED SPURIOUS EMISSIONS ..................................................................... 23 7.7 RADIATED EMISSIONS............................................................................................. 24 7.7.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ...................................... 24 7.7.2. TRANSMITTER RADIATED EMISSIONS DATA .............................................. 26 7.8 CONDUCTED EMISSION............................................................................................. 30 8. SETUP PHOTOS ................................................................................................................. 33 9. APPENDIX .......................................................................................................................... 36 EUT: SWF Basic Remote Control Report No: 0048-140708-03 Model: RFMOD-01 FCC ID:DWNRFMOD IC:12049A-RFMOD Page 3 of 39 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 1. TEST RESULT CERTIFICATION COMPANY NAME: SOMFY SYSTEMS, Inc. 121 Herrod Blvd. Dayton, NJ 08810 EUT DESCRIPTION: SWF Basic Remote Unit MODEL: RFMOD-01 DATE TESTED: 07/08/2014 to 07/18/2014 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 15.247 & IC RSS-210:Issue 8 NO NON-COMPLIANCE NOTED Advanced Compliance Laboratory, Inc. tested the above equipment in accordance with the requirements s et forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by A d v a n c e d C o m p l i a n c e L a b o r a t o r y , I n c . ( A C L ) and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by A C L , A d v a n c e d C o m p l i a n c e L a b o r a t o r y , I n c . will constitute fraud and shall nullify the document. Approved & Released For ACL By: Tested By: Wei Li Edward Lee Manager EMC Engineer Advanced Compliance Laboratory, Inc. EUT: SWF Basic Remote Control Report No: 0048-140708-03 Model: RFMOD-01 FCC ID:DWNRFMOD IC:12049A-RFMOD Page 4 of 39 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 2. EUT DESCRIPTION The EUT for this certification is a low power transmitter, using digital modulation & operating in the 2400-2483.5 MHz band. The transmitter has a maximum peak conducted output power as follows: Frequency Range (MHz) Rated Power Selection Tested Average Power (dBm/W)* Tested Peak Power (dBm/W)* 2400-2483.5 4.96 / 0.003 12.26 / 0.017 *Calculated from measured E field intensity EIRP (dBm) = E (dBuV/m) – 95.2 EUT: SWF Basic Remote Control Report No: 0048-140708-03 Model: RFMOD-01 FCC ID:DWNRFMOD IC:12049A-RFMOD Page 5 of 39 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4/C63.10, FCC CFR 47 Part 2 & 15 and IC RSS-210. Test procedure described in FCC “KDB 558074 D01 DTS Measurement Guidance” is used in this report. 4. FACILITIES AND ACCREDITATION The te…

Text truncated - open the document above for the full version.

EUT: SWF Basic Remote Control Report No: 0048-140708-03 Model: RFMOD-01 FCC ID:DWNRFMOD IC:12049A-RFMOD Page 33 of 39 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 8. SETUP PHOTOS Field Strength of Spurious (EUT w/ Internal Antenna) EUT: SWF Basic Remote Control Report No: 0048-140708-03 Model: RFMOD-01 FCC ID:DWNRFMOD IC:12049A-RFMOD Page 34 of 39 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 EUT: SWF Basic Remote Control Report No: 0048-140708-03 Model: RFMOD-01 FCC ID:DWNRFMOD IC:12049A-RFMOD Page 35 of 39 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288
