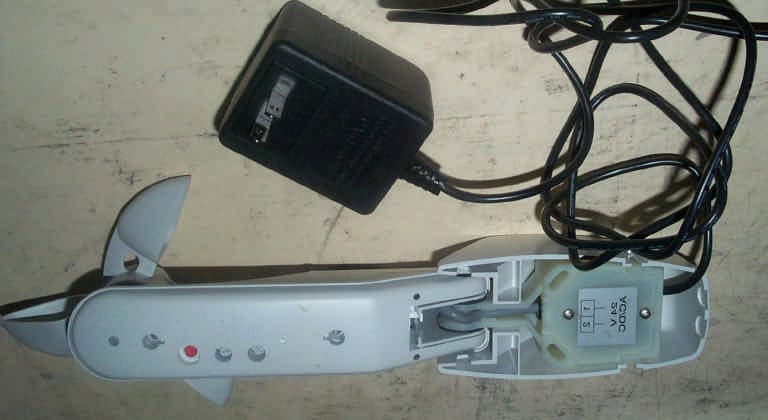

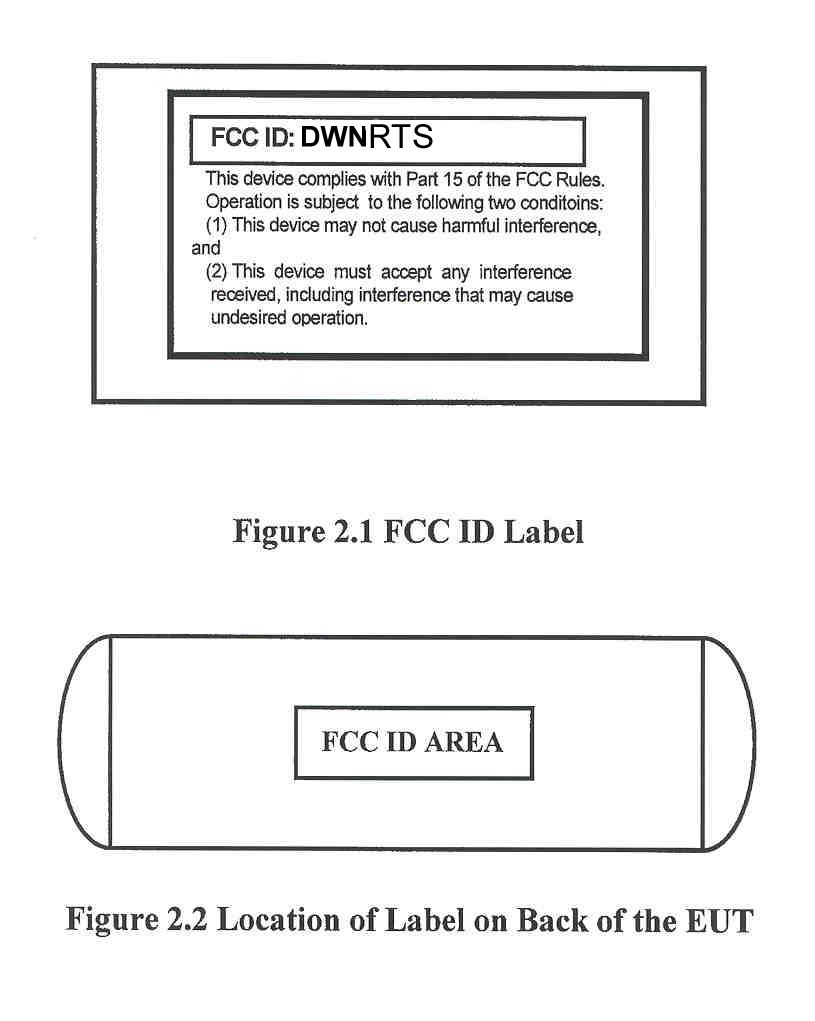

DWNRTSCurtain Remote Controller

CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment

Micro Controller (MCU) Power OnResetBatteryInputsProgWind LevelOrSwitch Modulator Oscillator Amplifier Filter Antenna Block Diagram and Description Inis, Eolis Sensor and Soliris SensorFebruary, 2002 Description ! MCU While powered receives an input ! MCU sends a digital output to the Modulator ! Modulator switches Oscillator and Amplifier on and off to modulate the signal ! Amplifier amplifies the Oscillator signal to a usable level ! Filter removes unwanted frequencies from the signal and matches the Amplifier with the Antenna for optimum power ! The signal is Transmitted from the Antenna

Description ! MCU While powered receives an input ! MCU sends a digital output to the Modulator ! Modulator switches Oscillator and Amplifier on and off to modulate the signal ! Amplifier amplifies the Oscillator signal to a usable level ! Filter removes unwanted frequencies from the signal and matches the Amplifier with the Antenna for optimum power ! The signal is Transmitted from the Antenna

SYSTEM SCHEMATICS Figure 4.1 System Schematics

ADVANCED COMPLIANCE LABORATORY 6 Randolph Way Hillsborough, NJ 08876 Tel: (732) 560-9010 Fax: (732) 560-9173 ELECTROMAGNETIC EMISSION COMPLIANCE REPORT of RTS SENSOR MODEL: RTS FCC ID: DWNRTS February 01, 2002 This report concerns (check one): Original grant x Class II change Equipment type: Low Power TRANSMITTER Deferred grant requested per 47 CF 0.457(d)(1)(ii)? yes no x If yes, defer until: (date) Company agrees to notify the Commission by (date) of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? yes no x If no, assumed Part 15, Subpart B for unintentional radiators - the new 47 CFR [10-1-90 Edition] provision. Report prepared for: SOMFY SYSTEM, INC. Report prepared by:Advanced Compliance Lab Report number:0048-020123-01 The test result in this report IS supported and covered by the NVLAP accreditation FCC ID: DWN RTS ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (732) 560-9010 Fax: (732) 560-9173 2 Table of Contents Report Cover Page ........................................................................................................ 1 Table of Contents........................................................................................................... 2 Figures............................................................................................................................ 3 1. GENERAL INFORMATION...................................................................................4 1.1 Verification of Compliance .........................................................................4 1.2 Equipment Modifications............................................................................5 1.3 Product Information....................................................................................6 1.4 Test Methodology ........................................................................................6 1.5 Test Facility..................................................................................................6 1.6 Test Equipment ............................................................................................6 1.7 Statement of the Document Use..................................................................7 2. PRODUCT LABELING............................................................................................8 3. SYSTEM TEST CONFIGURATION.......................................................................9 3.1 Justification..................................................................................................9 3.2 Special Accessories......................................................................................9 3.3 Configuration of Tested System..................................................................9 4. SYSTEM SCHEMATICS ........................................................................................12 5. CONDUCTED EMISSION DATA...........................................................................13 5.1 Test Methods and Conditions .....................................................................13 5.2 Test Data.......................................................................................................13 6. RADIATED EMISSION DATA...............................................................................15 6.1 Field Strength Calculation .........................................................................15 6.2 Test Methods and Conditions .....................................................................15 6.3 Test Data.......................................................................................................15 6.4 Occupied Bandwidth...................................................................................16 7. PHOTOS OF TESTED EUT ....................................................................................18 FCC ID: DWN RTS ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (732) 560-9010 Fax: (732) 560-9173 3 Figures Figure 2.1 FCC ID Label ..............................................................................................8 Figure 2.2 Location of Label on Back of the EUT......................................................8 Figure 3.1 Radiated Front ...........................................................................................10 Figure 3.2 Radiated Rear ............................................................................................10 Figure 3.3 Conducted Front........................................................................................11 Figure 3.4 Conducted Rear/Side.................................................................................11 Figure 4.1 System Schematics ....................................................................................12 Figure 5.1 Neutral Conducted Emission....................................................................14 Figure 5.2 Line Conducted Emission..........................................................................14 Figure 6.1 Pulse Train Timing .....................................................................................17 Figure 6.2 Occupied Bandwidth ..................................................................................17 Figure 7.1 Front View...................................................................................................19 Figure 7.2 Rear View w/ AC-DC Adaptor ..................................................................20 Figure 7.3 Inside View, Cover Opened........................................................................21 Figure 7.4 Component Side ..........................................................................................22 Figure 7.5 Foil Side ...................................................................................................…
