DWNTELIS4

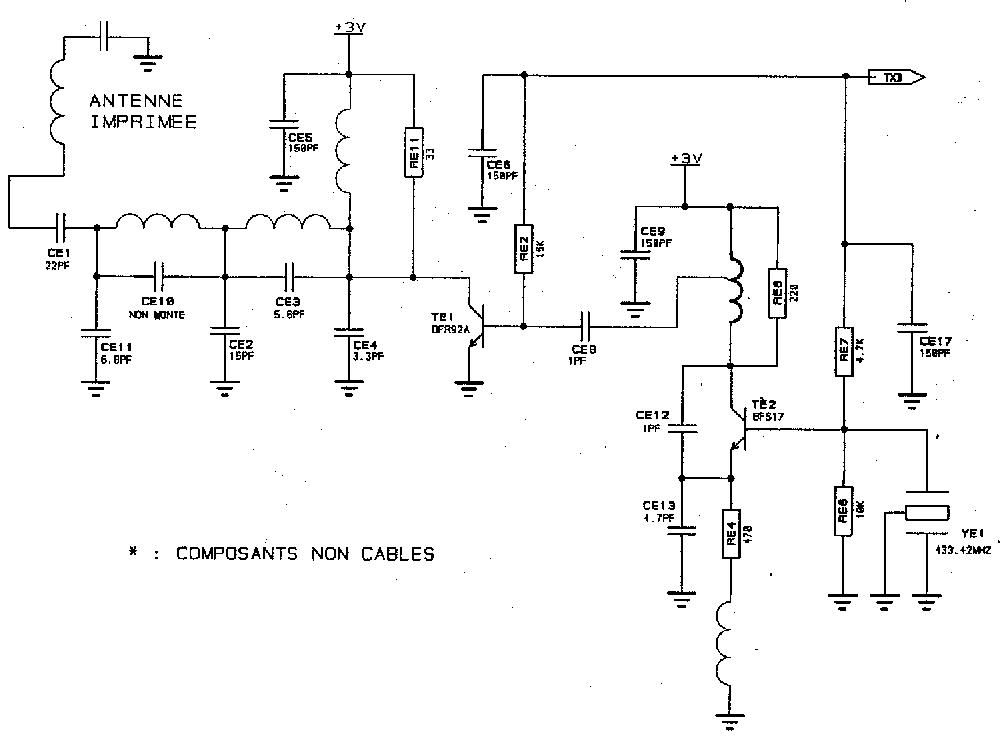

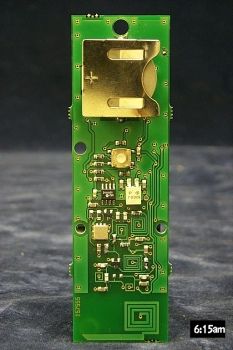

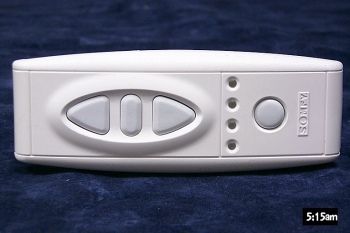

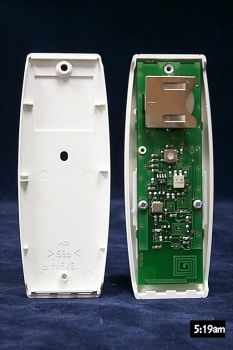

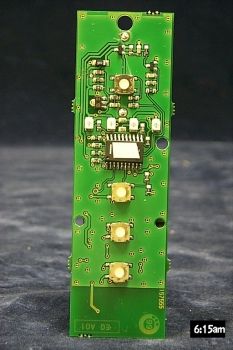

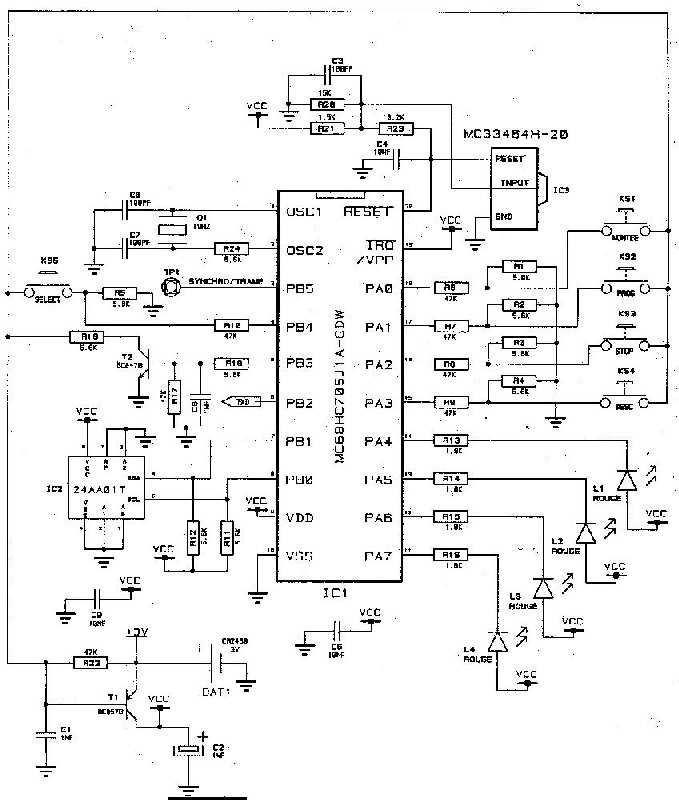

INSTALLATION guide-Telis 4 1. Characteristics: • Power: 3V lithium battery, CR 2430 • Operating Temperature: +5 ° C to +40 ° C • Range: Minimum 90’ • Battery Life: 3 years assuming 4 operations per day 2. Programming: • When the RTS motor is first powered up it is in programming mode. • Press the round channel select button on the front of the transmitter until desired channel LED is illuminated. • Press the PROG button located on the back of the transmitter. • A series of three beeps will be heard from the RTS motor indicating the RTS motor has been successfully programmed. 3. Operation: • Press the round channel select button on the front of the transmitter until desired channel select button is illuminated. • Press the UP, STOP, or DOWN button for desired operation. • During transmission, the LED on the front of the transmitter will illuminate. If it doesn’t replace the battery.

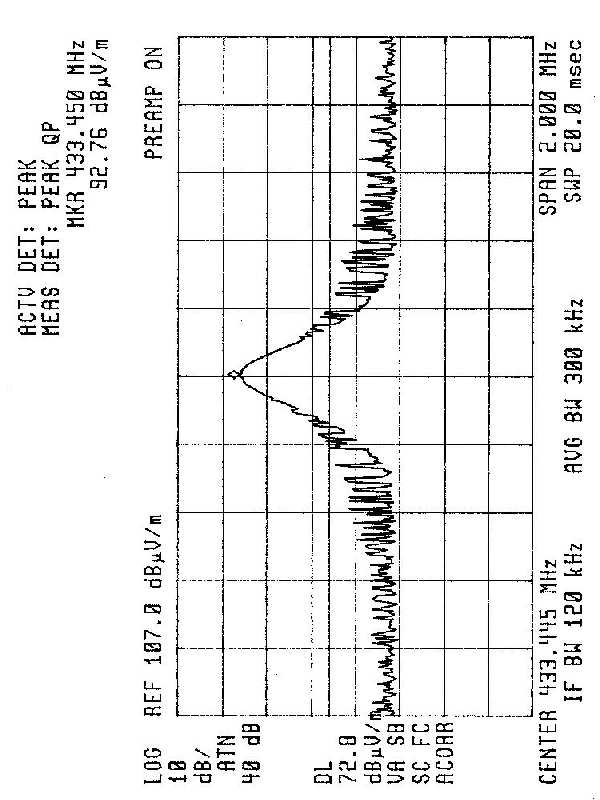

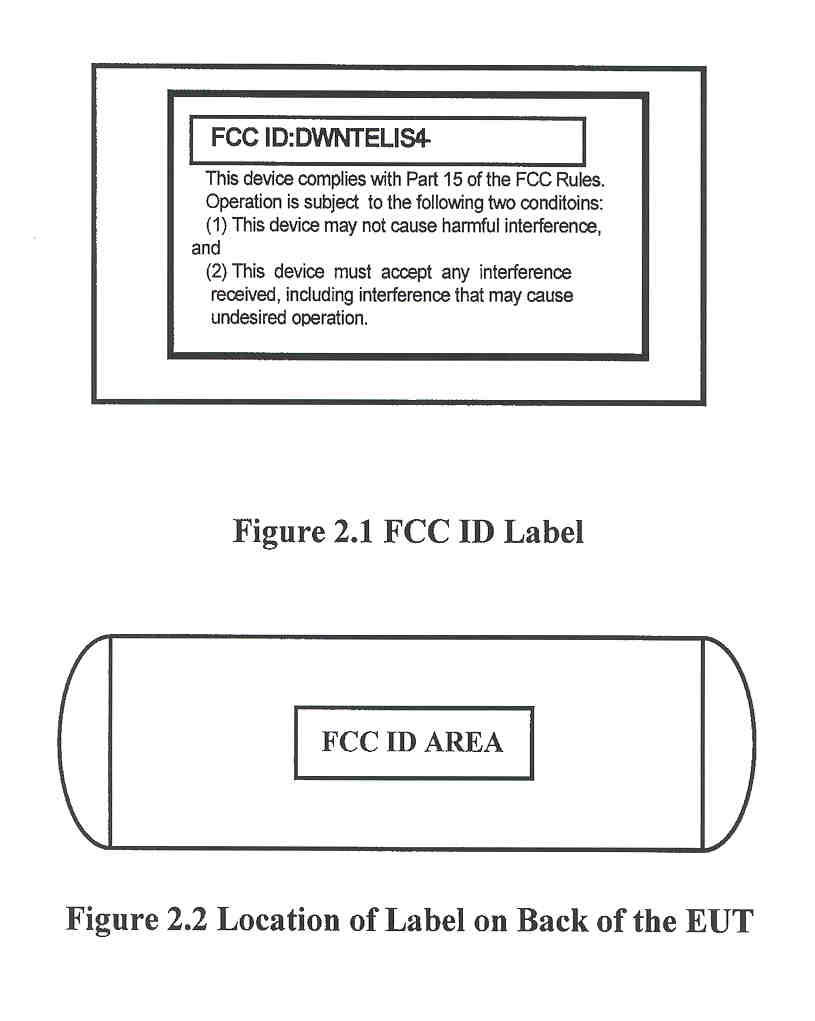

FOUNTAIN TECHNOLOGIES, INC. COMPLIANCE LABORATORY 50 Randolph Rd. Somerset, NJ 08873 Tel: (732) 560-9010 Fax: (732) 560-9173 ELECTROMAGNETIC EMISSION COMPLIANCE REPORT of TRANSMITTER MODEL: TELIS 4 FCC ID: DWNTELIS4 April 25, 2000 This report concerns (check one): Original grant x Class II change Equipment type: TRANSMITTER Deferred grant requested per 47 CF 0.457(d)(1)(ii)? yes no x If yes, defer until: (date) Company agrees to notify the Commission by (date) of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? yes no x If no, assumed Part 15, Subpart B for unintentional radiators - the new 47 CFR [10-1-90 Edition] provision. Report prepared for: SOMFY SYSTEM, INC. Report prepared by:Fountain Compliance Lab Report number:0048-2K0419-01 The test result in this report IS supported and covered by the NVLAP accreditation FCC ID: DWN TELIS4 ——————————————————————————————————————————————— Fountain Compliance Lab 50 Randolph Rd., Somerset, NJ 08873 Tel: (732) 560-9010 Fax: (732) 560-9173 2 Table of Contents Report Cover Page ........................................................................................................ 1 Table of Contents........................................................................................................... 2 Figures............................................................................................................................ 3 1. GENERAL INFORMATION...................................................................................4 1.1 Verification of Compliance .........................................................................4 1.2 Equipment Modifications............................................................................5 1.3 Product Information....................................................................................6 1.4 Test Methodology ........................................................................................6 1.5 Test Facility..................................................................................................6 1.6 Test Equipment ............................................................................................6 1.7 Statement of the Document Use..................................................................7 2. PRODUCT LABELING............................................................................................8 3. SYSTEM TEST CONFIGURATION.......................................................................9 3.1 Justification..................................................................................................9 3.2 Special Accessories......................................................................................9 3.3 Configuration of Tested System..................................................................9 4. SYSTEM SCHEMATICS .........................................................................................12 5. RADIATED EMISSION DATA...............................................................................13 5.1 Field Strength Calculation .........................................................................13 5.2 Test Methods and Conditions .....................................................................13 5.3 Test Data.......................................................................................................13 5.4 Occupied Bandwidth...................................................................................14 6. PHOTOS OF TESTED EUT ....................................................................................17 FCC ID: DWN TELIS4 ——————————————————————————————————————————————— Fountain Compliance Lab 50 Randolph Rd., Somerset, NJ 08873 Tel: (732) 560-9010 Fax: (732) 560-9173 3 Figures Figure 2.1 FCC ID Label ..............................................................................................8 Figure 2.2 Location of Label on Back of the EUT......................................................8 Figure 3.1 Radiated Test Setup, Position 1 .................................................................10 Figure 3.2 Radiated Test Setup, Position 2 .................................................................10 Figure 3.3 Radiated Test Setup, Position 3 .................................................................11 Figure 4.1 EUT Schematics ..........................................................................................12 Figure 5.1 Pulse Train Timing .....................................................................................15 Figure 5.2 Occupied Bandwidth ..................................................................................16 Figure 6.1 Front View...................................................................................................18 Figure 6.2 Rear View ....................................................................................................19 Figure 6.3 Inside View, Cover Opened........................................................................20 Figure 6.4 Component Side ..........................................................................................21 Figure 6.5 Foil Side .......................................................................................................22 FCC ID: DWN TELIS4 ——————————————————————————————————————————————— Fountain Compliance Lab 50 Randolph Rd., Somerset, NJ 08873 Tel: (732) 560-9010 Fax: (732) 560-9173 4 1. GENERAL INFORMATION 1.1 Verification of Compliance EUT:TRANSMITTER Model:TELIS 4 Applicant:SOMFY SYSTEM, INC. Test Type:FCC Part 15C CERTIFICATION Result:PASS Tested by:FOUNTAIN COMPLIANCE LABORATORY Test Date:04/19/00 Report Number:0048-2K0419-01 The above equipment was tested by Fountain Technologies, Inc. Compliance Laboratory for compliance with the requirement set forth in the FCC rules and regulations Part 15, subpart C. This said equipment in the configuration d…
