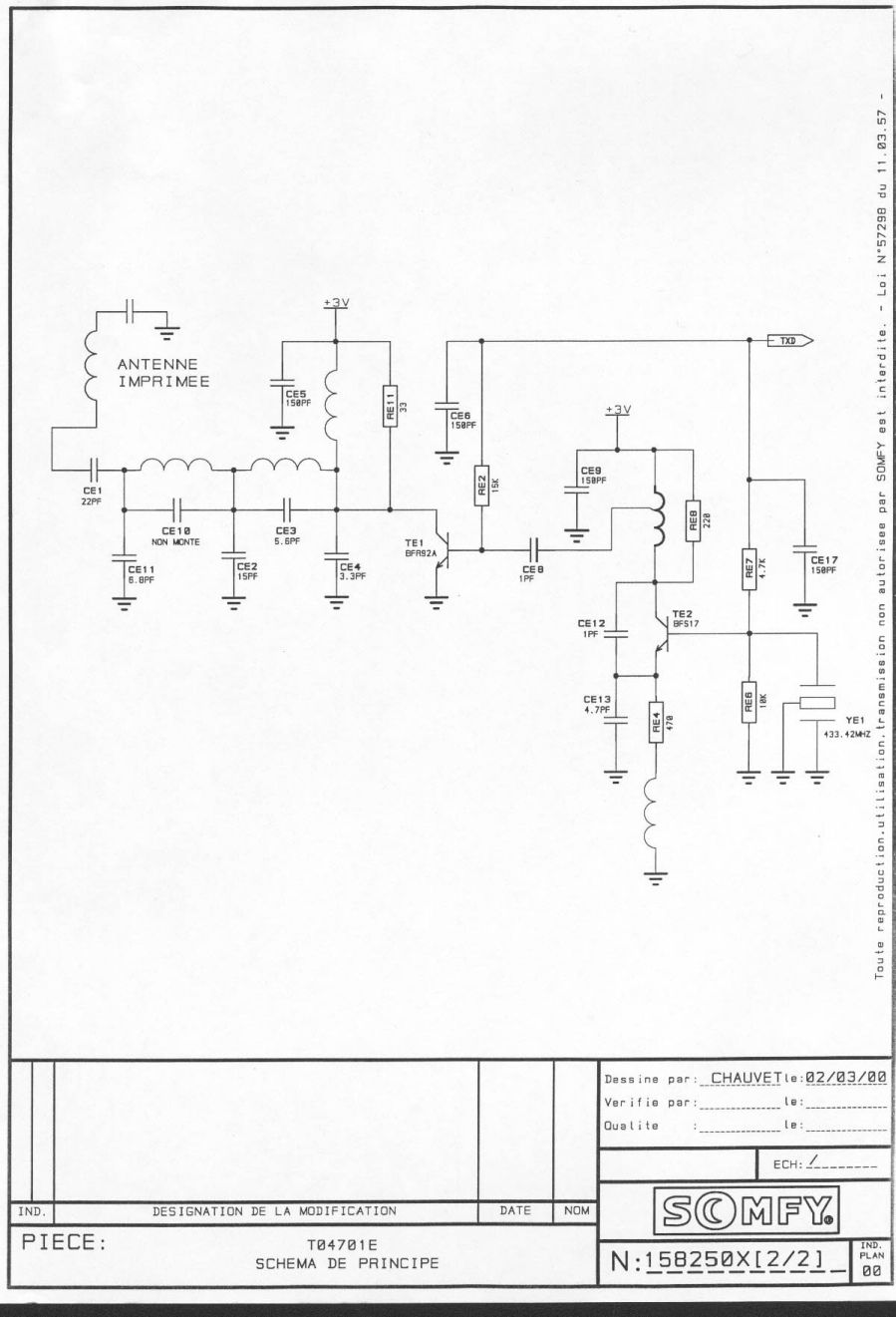

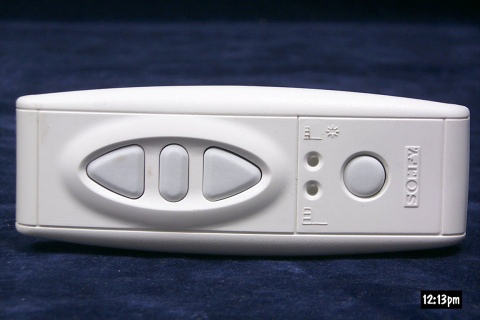

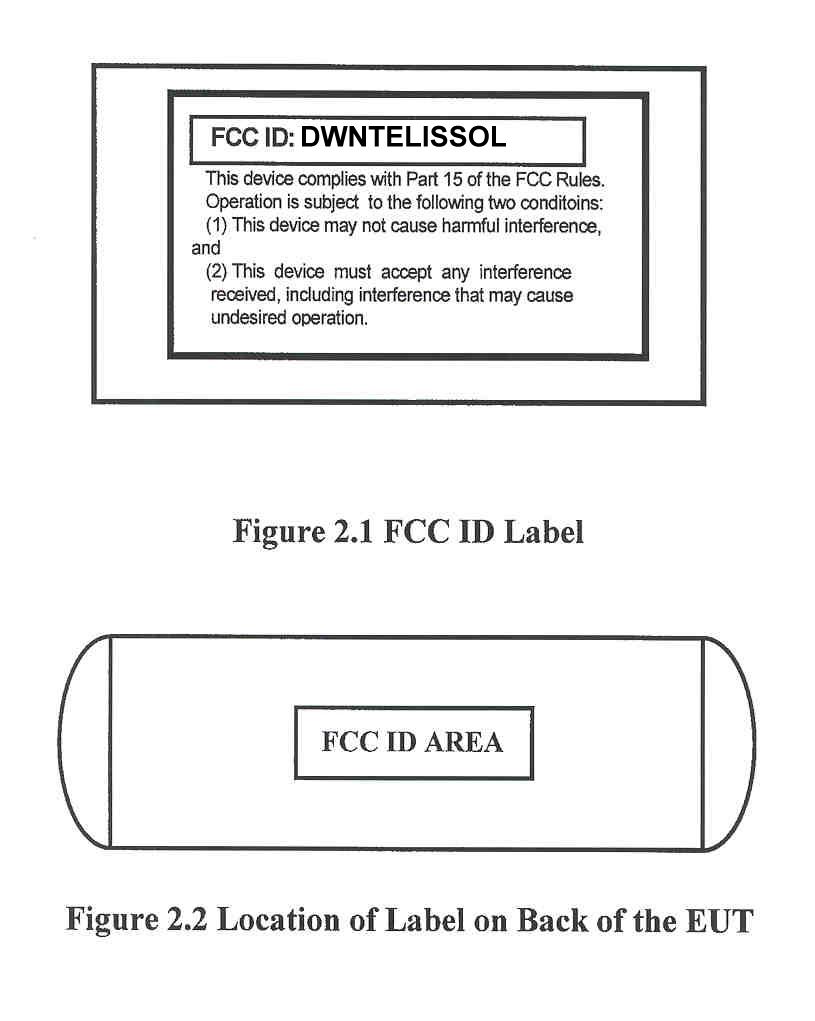

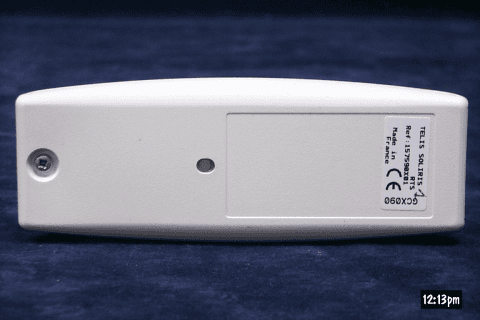

DWNTELISSOLRemote Control Transmitter

CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment

Somfy Telis Soliris RTS Transmitter-Block Diagram May 7, 2001 RF Transmission Down UP Stop Wind Only or Sun & Wind Telis Soliris Handheld Transmitter Program Button 120 VAC Receiver, either stand alone or integrated into RTS Motor. Note: Program button is used to bind transmitter to receiver

From: wei li [[email protected]] Sent: Sunday, April 22, 2001 11:17 AM To: Mike Kuo Subject: RE: Somefy Systems, Inc., FCC ID:DWNTELISSOL, AN01T1273 Hi, Mike. Actually, we got FCC ID for this Tx's previous model ( only the LED indicator difference). Regarding your questions: Subject: RE: Somefy Systems, Inc., FCC ID:DWNTELISSOL, AN01T1273 ------------- Question #1: Please provide additional internal photo to show the solder side of PCB. -----Uploaded. Question #2: Please provide Functional Block Diagram ----Uploaded. Quest ion #3: Please provide User Manual. Please note: User manual does not equal to Operational Description. ----will be sent soon. Question #4: The duty cycle shall be verified via tests. Please provide Duty cycle spectrum plot to show the device complies with specification. Please note: if one complete pulse is over 100ms, you can only use 100ms for calculation. Please refer to section 15.35(c ) of FCC rules. -----FCC accept the plot we provided. Please use the plot on the file. Question #5: Please provide technical information to prove that the device comply with 15.231(a)(1)requirement. -----Yes. Question #6: Please provide FCC compliance information on the associated receiver. If the associated receiver is complied with FCC technical requirement via FCC DoC procedure, please provide a statement to state the receiver with model name is complied with FCC DoC. Otherwise, please provide the FCC ID number for the associated receiver. ----- The receiver is DoC process: DWNSOLIRIS Question #7: Please indicate the detector function used for radi ated emission data. Please note : when the limit is specified with Average detector for frequency below 1000 MHz, the provisions in section 15.35 of FCC rule applied. ----- Quasi-Peak detector & Peaker detector are used for the frequency below 1GHz. Please see the report. Thanks a lot. Wei Li

INSTALLATION guide-Telissol 1. Characteristics: • Power: 3V lithium battery, CR 2430 • Operating Temperature: +5 ° C to +40 ° C • Range: Minimum 90’ • Battery Life: 3 years assuming 4 operations per day 2. Programming: • When the RTS motor is first powered up it is in programming mode. • Press the round channel select button on the front of the transmitter until desired channel LED is illuminated. • Press the PROG button located on the back of the transmitter. • A series of three beeps will be heard from the RTS motor indicating the RTS motor has been successfully programmed. 3. Operation: • Press the round channel select button on the front of the transmitter until desired channel select button is illuminated. • Press the UP, STOP, or DOWN button for desired operation. • During transmission, the LED on the front of the transmitter will illuminate. If it doesn’t replace the battery. • This manually operated transmitter will deactivate immediately after release “ ” button.

ADVANCED COMPLIANCE LABORATORY 6 Randolph Way Hillsborough, NJ 08876 Tel: (732) 560-9010 Fax: (732) 560-9173 ELECTROMAGNETIC EMISSION COMPLIANCE REPORT of LOW POWER TRANSMITTER MODEL: TELISSOL FCC ID: DWNTELISSOL April 4, 2000 This report concerns (check one): Original grant x Class II change Equipment type: TRANSMITTER Deferred grant requested per 47 CF 0.457(d)(1)(ii)? yes no x If yes, defer until: (date) Company agrees to notify the Commission by (date) of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? yes no x If no, assumed Part 15, Subpart B for unintentional radiators - the new 47 CFR [10-1-90 Edition] provision. Report prepared for: SOMFY SYSTEM, INC. Report prepared by: Advanced Compliance Lab Report number: 0048-032701-01 The test result in this report IS supported and covered by the NVLAP accreditation FCC ID: DWNTELISSOL ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (732) 560-9010 Fax: (732) 560-9173 2 Table of Contents Report Cover Page.........................................................................................................1 Table of Contents............................................................................................................2 Figures.............................................................................................................................3 1. GENERAL INFORMATION....................................................................................4 1.1 Verification of Compliance...........................................................................4 1.2 Equipment Modifications..............................................................................5 1.3 Product Information......................................................................................6 1.4 Test Methodology.........................................................................................6 1.5 Test Facility...................................................................................................6 1.6 Test Equipment.............................................................................................6 1.7 Statement of the Document Use...................................................................7 2. PRODUCT LABELING.............................................................................................8 3. SYSTEM TEST CONFIGURATION........................................................................9 3.1 Justification...................................................................................................9 3.2 Special Accessories.......................................................................................9 3.3 Configuration of Tested System...................................................................9 4. SYSTEM SCHEMATICS..........................................................................................12 5. RADIATED EMISSION DATA................................................................................13 5.1 Field Strength Calculation............................................................................13 5.2 Test Methods and Conditions......................................................................13 5.3 Test Data.......................................................................................................13 5.4 Occupied Bandwidth......................................................................................14 6. PHOTOS OF TESTED EUT......................................................................................17 FCC ID: DWNTELISSOL ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (732) 560-9010 Fax: (732) 560-9173 3 Figures Figure 2.1 FCC ID Label................................................................................................8 Figure 2.2 Location of Label on Back of the EUT.........................................................8 Figure 3.1 Radiated Test Setup, Position 1...................................................................10 Figure 3.2 Radiated Test Setup, Position 2...................................................................10 Figure 3.3 Radiated Test Setup, Position 3...................................................................11 Figure 4.1 EUT Schematics............................................................................................12 Figure 5.1 Pulse Train Timing........................................................................................15 Figure 5.2 Occupied Bandwidth......................................................................................16 Figure 6.1 Front View......................................................................................................18 Figure 6.2 Rear View......................................................................................................19 Figure 6.3 Inside View, Cover Opened..........................................................................20 Figure 6.4 Component Side.............................................................................................21 Figure 6.5 Foil Side.........................................................................................................22 FCC ID: DWNTELISSOL ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (732) 560-9010 Fax: (732) 560-9173 4 1. GENERAL INFORMATION 1.1 Verification of Compliance EUT: TRANSMITTER Model: TELISSOL Applicant: SOMFY SYSTEM, INC. 47 Commerce Drive, Cranbury, NJ 08512 Tel: (609) 395-1300 Test Type: FCC Part 15C CERTIFICATION Result: PASS Tested by: ADVANCED COMPLIANCE LAB Test Date: March 30, 2001 Report Number: 0048-032701-01 The above equipment was tested by Advanced Compliance Lab. Compliance Laboratory for compliance with the req…

Text truncated - open the document above for the full version.

FCC ID: DWNTELISSOL ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (732) 560-9010 Fax: (732) 560-9173 11 Figure 3.1 Radiated Test Setup, Position 1 FCC ID: DWNTELISSOL ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (732) 560-9010 Fax: (732) 560-9173 12 Figure 3.2 Radiated Test Setup, Position 2 FCC ID: DWNTELISSOL ——————————————————————————————————————————————— Advanced Compliance Lab 6 Randolph Way, Hillsborough, NJ 08844 Tel: (732) 560-9010 Fax: (732) 560-9173 13 Figure 3.3 Radiated Test Setup, Position 3
