DWNVCSWF Virtual Cord Remote Conrol VC-01

Thank you for purchasing this fine window treatment proudly constructed by us. Your shade has been custom-sized to your personal specifications with the highest standards of quality and craftsmanship. We have confidence that it will provide you with many years of beauty and easy maintenance. Enjoy! Follow the easy step-by-step instructions to install your shade. Should you need additional support, please feel free to call our Customer Service Center at 1-800-221-6352 or email us at [email protected]. We will be glad to help you. Again, we appreciate that you have chosen us to enhance the design and look of your home. Gracias por adquirir este fino tratamiento de ventana orgullosamente fabricado para usted. Su persiana ha sido hecha a la medida del cliente según sus especificaciones personales con los más altos estándares de calidad y trabajo artesanal. Nosotros tenemos la confianza que le proveerá muchos años de belleza y fácil mantenimiento. ¡Disfrútela! Siga las fáciles instrucciones “paso a paso"para instalar su persiana. Si necesita ayuda adicional, favor de proceder con toda libertad llamando al Centro de Servicio al Cliente al teléfono 1-800-221-6352 o enviando un correo electrónico a [email protected]. Estaremos muy dispuestos para ayudarle. Nuevamente, nosotros apreciamos que nos haya escogido para mejorar el diseño y la apariencia de su hogar. Merci d’avoir acheté ce superbe traitement de fenêtre que nous sommes fiers d’avoir exécuté pour vous. Votre store a été fait sur mesure selon votre propre cahier des charges dans un souci d’excellence et de la plus haute technicité. Nous ne doutons pas qu’il vous offrira des années de beauté et d’entretien facile Profitez-en bien ! Pour installer votre store, veuillez suivre les instructions détaillées. Si vous avez des questions n’hésitez pas à prendre contact avec notre Centre de service après-vente en téléphonant au 1-800-221-6352 ou par courrier électronique au [email protected]. Nous vous aiderons avec plaisir. Encore une fois, nous vous remercions de nous avoir choisi pour améliorer et embellir votre intérieur. 2 Determine inside/ceiling or outside mount Determine el montaje interior/de techo o exterior Choisir la pose intérieure/au plafond ou extérieure Place shade in desired location, mark corners Coloque la persiana en la ubicación deseada, marque las esquinas Placer le store dans l’emplacement souhaité, marquer les coins 3 Inside/ceiling mount Montaje de techo/interior • Pose intérieure/au plafond Outside mount Montaje exterior • Pose extérieure 5 Mark screw locations; center additional brackets, if applicable Marque la ubicación de los tornillos; centre los soportes adicionales, si es aplicable Marquer l’emplacement des vis; centrer les supports supplémentaires, le cas échéant Inside/ceiling mount Montaje de techo/interior Pose intérieure/au plafond Outside mount Montaje exterior Pose extérieure Optional extension bracket Soporte de extensión opcional Rallonge (en option) 1/4" 6,4 mm 1/4" to front of bracket for flush mount 6,4 mm desde el frente del soporte para un montaje a ras 6,4 mm jusqu’à l’avant du support pour montage encastré 6 If mounting the battery case, mark battery screw locations If mounting the battery case, mark battery screw locations If mounting the battery case, mark battery screw locations Inside/ceiling mount Montaje de techo/interior • Pose intérieure/au plafond Outside mount Montaje exterior • Pose extérieure On right end of window, hold battery case 1" behind and 2" to the left of the rear bracket screw location and mark. For a second reloadable battery case, mount the second set 5" to the left of the first base and mark. On right end of window, hold battery case 1” behind and 2” to the left of the rear bracket screw location and mark. For a second reloadable battery case, mount the second set 5” to the left of the first base and mark. On right end of window, hold battery case 1” behind and 2” to the left of the rear bracket screw location and mark. For a second reloadable battery case, mount the second set 5” to the left of the first base and mark. On right end of window, hold battery case 1/4" above and to 2" the left of the left bracket screw location and mark. For a second battery case, position base 5" tot he left of the first base and mark screw locations. On right end of window, hold battery case 1/4” above and to 2” the left of the left bracket screw location and mark. For a second battery case, position base 5” tot he left of the first base and mark screw locations. On right end of window, hold battery case 1/4” above and to 2” the left of the left bracket screw location and mark. For a second battery case, position base 5” tot he left of the first base and mark screw locations. 4 Measure in from both ends and mark Mida desde los dos extremos y marque Mesurer à partir de chacune des extrémités et marquer Inside/ceiling mount Montaje de techo/interior • Pose intérieure/au plafond Outside mount Montaje exterior • Pose extérieure 6" 15,2 cm 1/16" drill bit Broca de 1,6 mm Mèche de 1,6 mm 1 Everything needed to install your shade Todo lo necesario para instalar su persiana. Tout le nécessaire pour installer votre store Tools needed • Herramientas necesarias • Outillage nécessaire 4 2 5 1 Shades over 3,600 in 2 (4,200 Roman) will have 2 battery cases • Shades over 3,600 in 2 (4,200 Roman) will have 2 battery cases • Shades over 3,600 in 2 (4,200 Roman) will have 2 battery cases Single cell Celda sencilla Cellulaire simple Double cell Celda doble Cellulaire double Pleated Plisada Plissé Bracket chart (items 3, 4, 8 & 10) Tabla de soportes Tableau des supports Ordered width Bracket quantity Ancho ordenado Cantidad de soportes Largeur commandée Quantité de boîtier Up to 42" • hasta 106,7 cm • jusqu’à 106,7 cm 2 42 1 ⁄16" to 72" • 106,8 cm hasta 182,9 cm • 106,8 cm jusqu’à 182,9 cm 3 72 1 ⁄16" to 102" • 183 cm hasta 259,1 cm • 183 cm j…

Text truncated - open the document above for the full version.

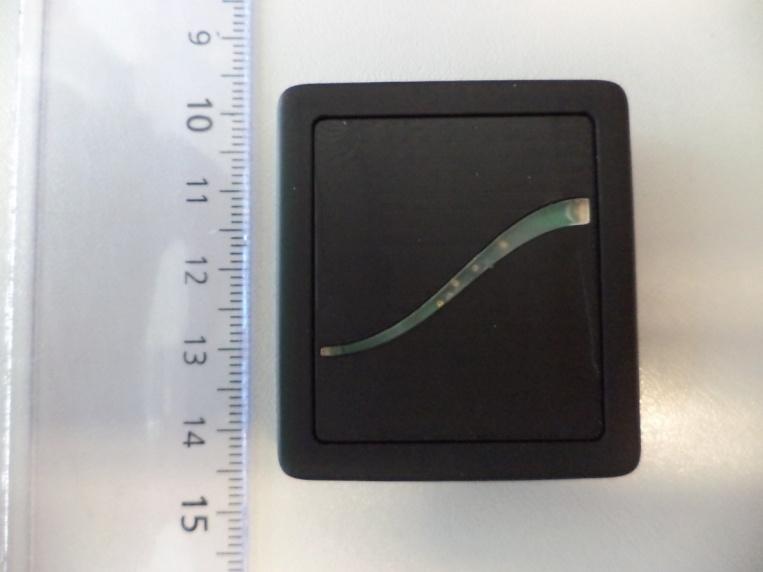

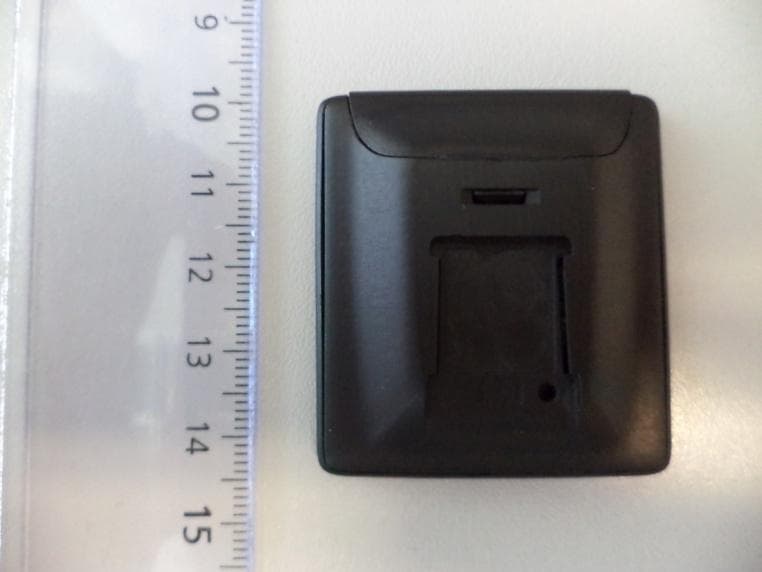

EUT: SWF Virtual Cord Remote Control Report No: 0048-140708-02 Model: VC-01 FCC ID:DWNVC IC:12049A-VC Page 32 of 33 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 PRODUCT PHOTOS EUT- Front View EUT- Rear View

EUT: SWF Virtual Cord Remote Control Report No: 0048-140708-02 Model: VC-01 FCC ID:DWNVC IC:12049A-VC Page 31 of 33 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 FCC/IC Label This device complies with FCC Part 15C & IC RSS-210 Rules. Operating is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ( statement shown in the manual) ID Label Product Sticker with the FCC/IC ID

EUT: SWF Virtual Cord Remote Control Report No: 0048-140708-02 Model: VC-01 FCC ID:DWNVC IC:12049A-VC Page 33 of 33 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 EUT- Inside Views

EUT: SWF Virtual Cord Remote Control Report No: 0048-140708-02 Model: VC-01 FCC ID:DWNVC IC:12049A-VC Page 1 of 33 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 FCC CFR47 PART 15 SUBPART C & IC RSS-210 TEST REPORT For Somfy Systems, Inc. Product: SWF Virtual Cord Remote Control Model Number: VC-01 FCC ID: DWNVC IC: 12049A-VC Report Number: 0048-140708-02 Prepared for Somfy Systems, Inc. 121 Herrod Blvd. Dayton, NJ 08810 USA Prepared by Advanced Compliance Laboratory, Inc. 6 Randolph Way Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 Date: 07/21/2014 6 Randolph Way Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 Advanced Compliance Laboratory EUT: SWF Virtual Cord Remote Control Report No: 0048-140708-02 Model: VC-01 FCC ID:DWNVC IC:12049A-VC Page 2 of 33 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ........................................................................................ 3 2. EUT DESCRIPTION .............................................................................................................. 4 3. TEST METHODOLOGY ....................................................................................................... 5 4. FACILITIES AND ACCREDITATION ................................................................................. 5 5. CALIBRATION AND UNCERTAINTY................................................................................ 6 5.1. MEASURING INSTRUMENT CALIBRATION ........................................................... 6 5.2. MEASUREMENT UNCERTAINTY ............................................................................. 6 5.3. TEST AND MEASUREMENT EQUIPMENT ............................................................... 7 6. SETUP OF EQUIPMENT UNDER TEST .............................................................................. 8 7. APPLICABLE LIMITS AND TEST RESULTS ..................................................................... 9 7.1 6dB &99% BANDWIDTH ............................................................................................ 9 7.2 PEAK OUTPUT POWER ............................................................................................. 12 7.3 MAXIMUM PERMISSIBLE EXPOSURE ................................................................... 16 7.4 AVERAGE POWER ..................................................................................................... 19 7.5 PEAK POWER SPECTRAL DENSITY ....................................................................... 20 7.6 CONDUCTED SPURIOUS EMISSIONS ..................................................................... 23 7.7 RADIATED EMISSIONS............................................................................................. 24 7.7.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS ...................................... 24 7.7.2. TRANSMITTER RADIATED EMISSIONS DATA .............................................. 26 8. SETUP PHOTOS ................................................................................................................. 28 9. APENDIX ............................................................................................................................ 30 EUT: SWF Virtual Cord Remote Control Report No: 0048-140708-02 Model: VC-01 FCC ID:DWNVC IC:12049A-VC Page 3 of 33 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 1. TEST RESULT CERTIFICATION COMPANY NAME: SOMFY SYSTEMS, Inc. 121 Herrod Blvd. Dayton, NJ 08810 EUT DESCRIPTION: SWF Virtual Cord Remote Control MODEL: VC-01 DATE TESTED: 07/08/2014 to 07/18/2014 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 15.247 & IC RSS-210:Issue 8 NO NON-COMPLIANCE NOTED Advanced Compliance Laboratory, Inc. tested the above equipment in accordance with the requirements s et forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by A d v a n c e d C o m p l i a n c e L a b o r a t o r y , I n c . ( A C L ) and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by A C L , A d v a n c e d C o m p l i a n c e L a b o r a t o r y , I n c . will constitute fraud and shall nullify the document. Approved & Released For ACL By: Tested By: Wei Li Edward Lee Manager EMC Engineer Advanced Compliance Laboratory, Inc. EUT: SWF Virtual Cord Remote Control Report No: 0048-140708-02 Model: VC-01 FCC ID:DWNVC IC:12049A-VC Page 4 of 33 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 2. EUT DESCRIPTION The EUT for this certification is a low power transmitter, using digital modulation & operating in the 2400-2483.5 MHz band. The transmitter has a maximum peak conducted output power as follows: Frequency Range (MHz) Rated Power Selection Tested Average Power (dBm/W)* Tested Peak Power (dBm/W)* 2400-2483.5 -3.92 / 0.0004 4.48 / 0.003 *Calculated from measured E field intensity EIRP (dBm) = E (dBuV/m) – 95.2 EUT: SWF Virtual Cord Remote Control Report No: 0048-140708-02 Model: VC-01 FCC ID:DWNVC IC:12049A-VC Page 5 of 33 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4/C63.10, FCC CFR 47 Part 2 & 15 and IC RSS-210. Test procedure described in FCC “KDB 558074 D01 DTS Measurement Guidance” is used in this report. 4. FACILITIES AND ACCREDITATION The test sites and measurement facilities used to collect data are located at Hillsborough, New J ersey, US A The sites …

Text truncated - open the document above for the full version.

EUT: SWF Virtual Cord Remote Control Report No: 0048-140708-02 Model: VC-01 FCC ID:DWNVC IC:12049A-VC Page 28 of 33 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288 8. SETUP PHOTOS Field Strength of Spurious (EUT w/ Internal Antenna) EUT: SWF Virtual Cord Remote Control Report No: 0048-140708-02 Model: VC-01 FCC ID:DWNVC IC:12049A-VC Page 29 of 33 Advanced Compliance Laboratory, Inc. 6 Randolph Way, Hillsborough, NJ 08844, tel:(908) 927 9288
