DWNWRTSImylink Remote Control 1811264

3 myLink WiFi to Radio Technology Somfy Interface Part #1811264 Overview: Connections and Indicators: The myLink WiFi to Radio Technology Somfy® interface is a WiFi to RTS bridge that can control up to 5 channels of RTS motorized products using the Somfy myLink apps for iOS and Android devices. Through the app, users can send immediate RTS commands, create Scenes (a group of motorized products working together) and Schedules (timed events). Users may access their myLinks from anywhere with the apps’ remote access feature. Though the myLink is a single-zone controller, multiple myLinks can be joined within the same system for multi-zone control. The myLink can also serve as an IP to RTS bridge for 3rd party control systems. 2 Features Summary:What’s in the Box:Technical Specifications: ■ myLink ■ Quick Start Guide ■ Control for up to 5 RTS channels per myLink from iOS and Android devices ■ Join multiple myLinks together for multi-zone control ■ Manually activate RTS products ■ Automate window coverings with Scenes and Schedules ■ Supports Up/Down/My/Stop commands and incremental control (tilt/brightness) ■ Plug-and-play installation ■ Multiple users ■ Remote access ■ 110V AC; 50-60Hz ■ Ultra Low Power Wi-Fi (802.11 b/g/n) ■ 4.11L x 2.23W x 1.52H in. ■ Enclosure: ABS UL94V-0 flame rating RoHS compliant UL listed ■ Radio Frequency: RTS 433.32 MHz WiFi: 2.4 GHz ■ iOS Version: 6 and higher ■ Android Version: Jelly Bean and higher ■ Shipping Weight: 1lb 1 Allows device to be secured to outlet Engages setup mode Solid Red: setup mode and is ready to connect to LAN Solid Green: connected to LAN Blinking Green: searching for/connecting to a LAN Flashing Red: RTS signal transmission Solid Amber (green & red): Factory reset mode AC prongs Hold Down Tab Setup Button Status LED AC Prongs 1 2 3 4 ELEMENTFUNCTION 4 Dimensions: BUS DISTRIBUTION MOTOR USER INTERFACE Wiring Best Practice: 2.23” 4.11” 1.52” D-0005Copyright Somfy Systems, Inc. 9/2014

December 3, 2014 To whom it may concern: We, the undersigned, hereby authorize, Wei Li, Advanced Compliance Lab, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Advanced Compliance Lab on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing Advanced Compliance as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, James Hellander Engineering Mgr. Somfy Systems, Inc.

December 3, 2014 FCC ID: DWNWRTSI IC:1209A-WRTSI FCC and IC Confidentiality Request In accordance with 0.459 & 0.457 of CFR 47, please, accept this letter as an official request to have the schematics, block diagram, operational description of the EUT treated as confidential. The information contained within is a result of extensive investment and development effort by Somfy Systems, Inc. and its disclosure will compromise Somfy's Intellectual Property and competitive edge. We thus ask the FCC and IC NOT to publish the information mentioned above, in order to protect Somfy's Intellectual Property. Regards, Somfy Systems, Inc. James Hellander Engineering Mgr.

Application note – Regulatory Approvals RTX4100/RTX4140 – Wi-Fi Module 1 RTX4100 RTX4140 Wi-Fi Modules Application note AN4 Regulatory Approvals Application note – Regulatory Approvals RTX4100/RTX4140 – Wi-Fi Module 2 CONTENT 1 Introduction ............................................................................................................................................ 3 1.1 General Description .................................................................................................................................. 3 1.2 Document History ..................................................................................................................................... 3 1.3 Document References .............................................................................................................................. 3 2 Regulated Approvals ............................................................................................................................... 4 2.1 USA (Federal Communications Commission, FCC, ) ............................................................................ 4 2.1.1 FCC Labeling Requirements ........................................................................................................... 5 2.1.2 End User Manual ........................................................................................................................... 6 2.1.3 RF Exposure ................................................................................................................................... 6 2.2 Canada (Industry Canada, IC) .................................................................................................................... 7 2.2.1 IC labeling requirements ............................................................................................................... 7 2.3 Canada (Industrie Canada, IC)................................................................................................................... 8 2.3.1 Exigences d’étiquetage IC ............................................................................................................. 8 2.4 Europe (Conformité Européenne, ) .................................................................................................... 9 2.4.1 ETSI Documentation Requirements ............................................................................................... 9 2.4.1.1 Modular Approval ......................................................................................................... 10 2.4.1.2 End Host Approval ....................................................................................................... 10 2.5 Japan (Giteki, ) ................................................................................................................................... 11 2.5.1 Labeling requirements ................................................................................................................ 11 Application note – Regulatory Approvals RTX4100/RTX4140 – Wi-Fi Module 3 1 Introduction 1.1 General Description The RTX4100/RTX4140 Wi-Fi Modules are small form-factor, single stream, 802.11b/g/n Wi-Fi modules with on-board low power application processor. It is targeted at applications that send infrequent data packets over the network. Typically, these 802.11 applications will place a higher priority on system cost, power consumption, ease of use, and fast wake-up times as compared to high throughput. The RTX4100/RTX4140 have received regulatory approvals for modular devices in the United States (FCC) and Canada (IC), regulatory approvals in Europe (ETSI), and regulatory approval in Japan (Giteki). The modular approval allows the integrator to place the RTX4100/RTX4140 using either the internal antenna or an approved antenna inside a finished product without having to perform costly regulatory testing. The requirements the integrator must fulfil to use modules without additional testing are listed in this Application Note. 1.2 Document History V1.0 Official release PEW 2012-08-28 V1.1 CE update PEW 2012-10-29 V1.2 Giteki and RTX4140 update PEW 2013-03-12 V1.3 Japanese Construction Certification Number added PEW 2013-09-13 Disclaimer: This document can be subject to change without prior notice. 1.3 Document References There are no sources in the current document. Application note – Regulatory Approvals RTX4100/RTX4140 – Wi-Fi Module 4 2 Regulated Approvals The RTX4100/RTX4140 has been designed to meet most national regulations for world- wide ISM-band use. In particular the radio modules have been certified to the following standards. • FCC Part 15.247 • IC o RSS Gen (CNR-Gen), Issue 3 o RSS-210 (CNR-210), Issue 8 • ETSI o EN 300 328 (V1.7.1) o EN 301 489-01 (V1.8.1) o EN 301 489-17 (V2.1.1) • Giteki o ARIB STD T66 (V3.6) o ARIB RCR STD-33 (V5.4) 2.1 USA (Federal Communications Commission, FCC, ) The RTX4100/RTX4140, with integrated antenna, as well as used with the antennae listed in Table 1 below, have been tested to comply with FCC CFR47 Part 15 sub-part C “Intentional Radiators”. The devices meet the requirements for modular transmitter approval as detailed in FCC Part 15 Section 15.212 Modular Transmitters. The RTX4100/RTX4140 modules can be integrated into a finished product without obtaining subsequent FCC approvals. The RTX4100/RTX4140 modules complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation . Changes or modifications to the equipment not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Both the RTX4100 and the RTX4140 have the same FCC ID. RTX A/S FCC ID: S9J4100 Application note – Regulatory Approvals RTX4100/RTX4140 – Wi-Fi Module 5 According to FC…

Text truncated - open the document above for the full version.

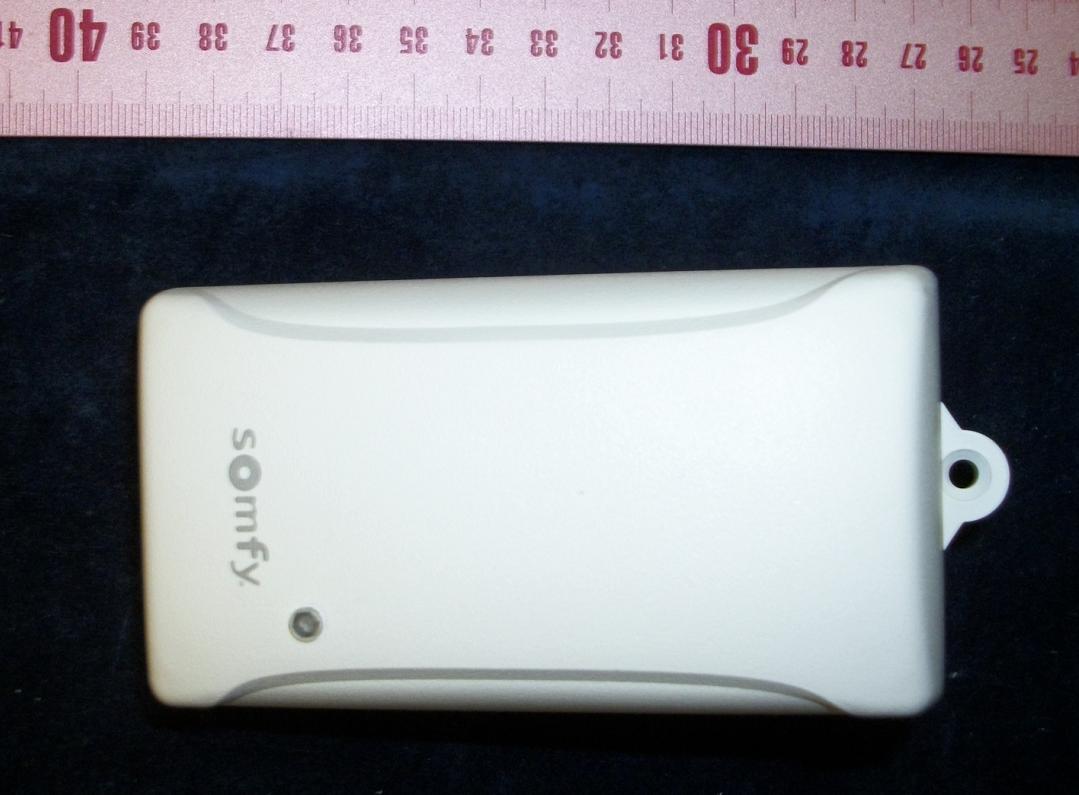

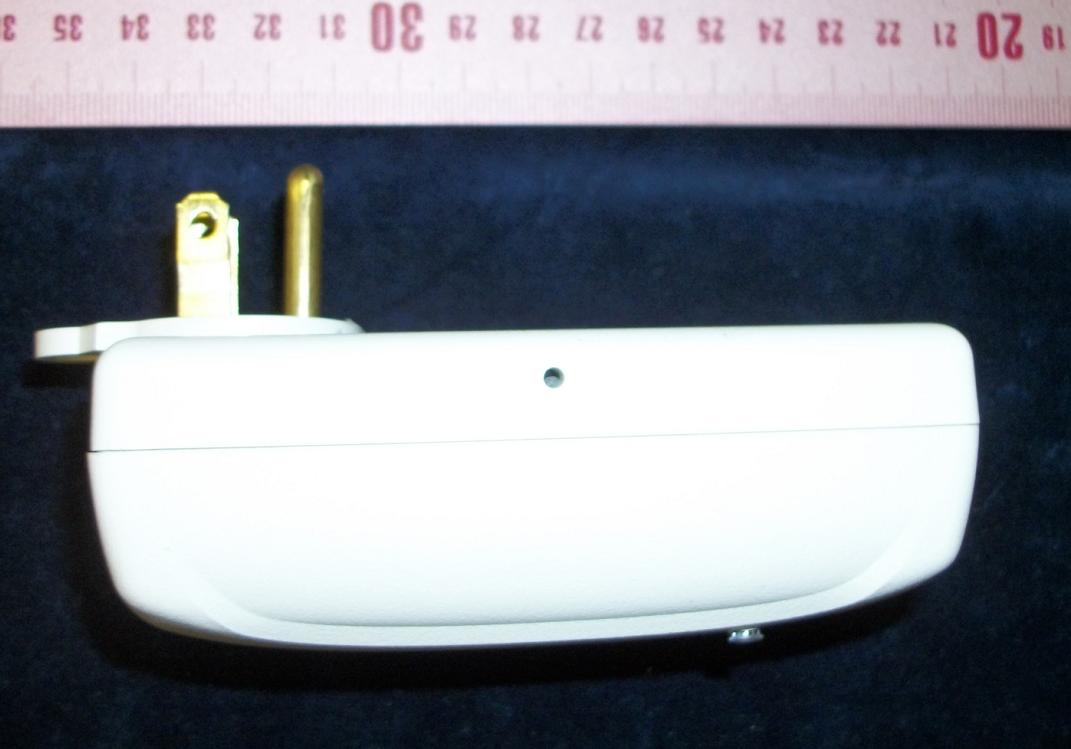

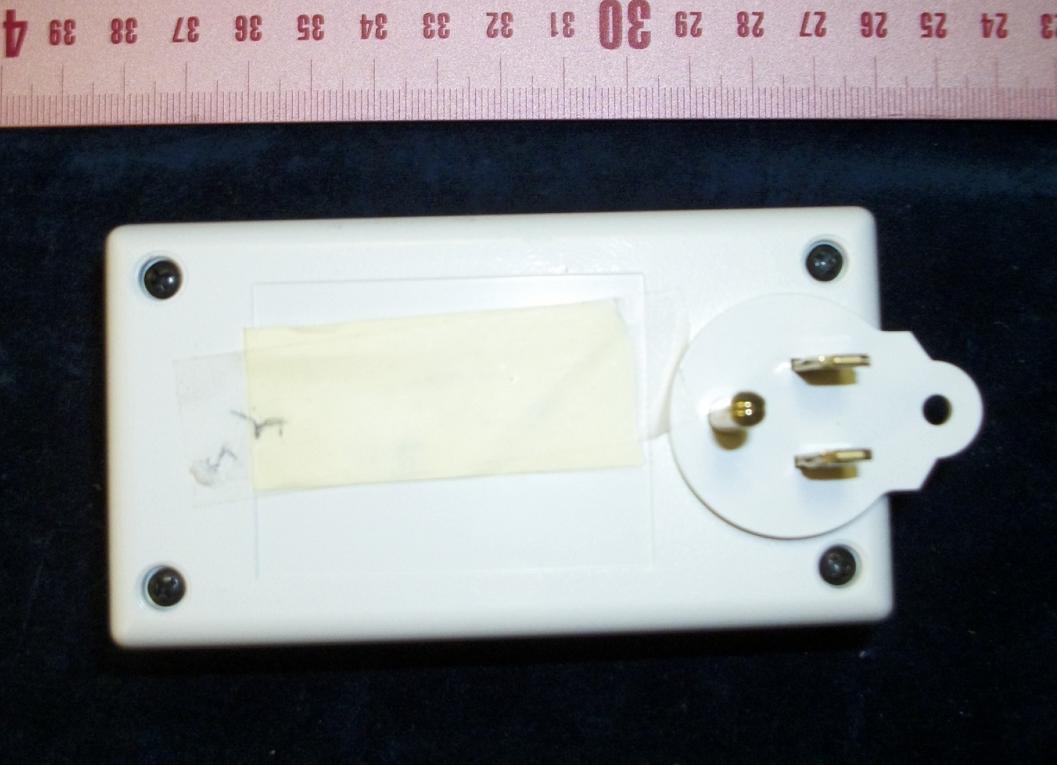

Model No: 1811264 FCC ID: DWNWRTSI IC:12049A-WRTSI ____________________________________________________________________________________ 25 Figure 7.1 Front/back View (1811264) Model No: 1811264 FCC ID: DWNWRTSI IC:12049A-WRTSI ____________________________________________________________________________________ 26 Figure 7.2 Left/Right View (1811264)

Model No: 1811264 FCC ID: DWNWRTSI IC:12049A-WRTSI ____________________________________________________________________________________ 8 2. PRODUCT LABELING Figure 2.1 FCC ID Label Figure 2.2 Location of Label on the Side of EUT Figure 2.2 FCC ID and IC Label Location SOMFY mylink Model: 1811264 FCC ID: DWNWRTSI IC: 12049A-WRTSI Contains FCC:SJ94100 IC: 4979A-4100 This device complies with part 15 of the FCC Rules. Operating is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Figure 2.1 FCC ID Label (statement shown in the manual) ID Label

Model No: 1811264 FCC ID: DWNWRTSI IC:12049A-WRTSI ____________________________________________________________________________________ 26 Figure 7.3 Inside View Model No: 1811264 FCC ID: DWNWRTSI IC:12049A-WRTSI ____________________________________________________________________________________ 27 Figure 7.4 Component Side Model No: 1811264 FCC ID: DWNWRTSI IC:12049A-WRTSI ____________________________________________________________________________________ 28 Figure 7.5 Foil Side

ELECTROMAGNETIC EMISSION COMPLIANCE REPORT of PRODUCT NAME: MYLINK MODEL: 1811264 FCC ID: DWNWRTSI IC: 12049A-WRTSI November 12, 2014 This report concerns (check one): Original grant x Class II change Equipment type: Low Power Intentional Radiator Deferred grant requested per 47 CF 0.457(d)(1)(ii)? yes no x If yes, defer until: (date) Company agrees to notify the Commission by (date) of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? yes no x If no, assumed Part 15, Subpart B for unintentional radiators - the new 47 CFR [10-1-90 Edition] provision. Report prepared for: SOMFY SYSTEMS Inc. Report prepared by: Advanced Compliance Lab Report number: 0048-141014-01 The test result in this report IS supported and covered by the NVLAP accreditation 6 Randolph Way Hillsborough, NJ 08844 Tel: (908) 927 9288 Fax: (908) 927 0728 Advanced Compliance Laboratory Model No: 1811264 FCC ID: DWNWRTSI IC:12049A-WRTSI ____________________________________________________________________________________ 2 Table of Contents Report Cover Page ..................................................................................................... 1 Table of Contents ....................................................................................................... 2 Figures ........................................................................................................................ 3 1. GENERAL INFORMATION................................................................................ 4 1.1 Verification of Compliance ...................................................................... 4 1.2 Equipment Modifications ........................................................................ 5 1.3 Product Information ................................................................................ 6 1.4 Test Methodology ..................................................................................... 6 1.5 Test Facility .............................................................................................. 6 1.6 Test Equipment ........................................................................................ 6 1.7 Statement for the Document Use ............................................................. 7 2. PRODUCT LABELING ........................................................................................ 8 3. SYSTEM TEST CONFIGURATION ................................................................... 9 3.1 Justification .............................................................................................. 9 3.2 Special Accessories ................................................................................... 9 3.3 Configuration of Tested System ............................................................... 9 4. SYSTEM SCHEMATICS ..................................................................................... 13 5. CONDUCTED EMISSION DATA ....................................................................... 14 5.1 Test Methods and Conditions .................................................................. 14 5.2 Measurement Instrument Configuration for Conducted Emission ........ 14 5.3 Testing Data ............................................................................................. 15 6. RADIATED EMISSION DATA............................................................................ 17 6.1 Field Strength Calculation ....................................................................... 17 6.2 Test Methods and Conditions .................................................................. 17 6.3 Test Data ................................................................................................... 17 6.4 Occupied Bandwidth ................................................................................ 18 7. PHOTOS OF TESTED EUT ................................................................................. 24 Model No: 1811264 FCC ID: DWNWRTSI IC:12049A-WRTSI ____________________________________________________________________________________ 3 Figures Figure 2.1 FCC ID Label ........................................................................................... 8 Figure 2.2 Location of Label on Back of the EUT .................................................... 8 Figure 3.1 Radiated Test Setup ................................................................................. 11 Figure 3.2 Conducted Test Setup .............................................................................. 12 Figure 4.1 EUT Schematics ....................................................................................... 13 Figure 5.1 Line Conducted ........................................................................................ 16 Figure 5.2 Neutral Conducted .................................................................................. 17 Figure 6.1 Bandwidth Plot ........................................................................................ 20 Figure 6.2 Pulse Train Timing .................................................................................. 23 Figure 7.1 Front /Back View ..................................................................................... 25 Figure 7.2 Left/Right View ........................................................................................ 26 Figure 7.3 Insider View ............................................................................................. 27 Figure 7.4 Component Side ....................................................................................... 28 Figure 7.5 Foil Side .................................................................................................... 29 Model No: 1811264 FCC ID: DWNWRTSI IC:12049A-WRTSI ____________________________________________________________________________________ 4 1. GENERAL INFORMATION 1.1 Verification of Compliance EUT: MYLINK M…
