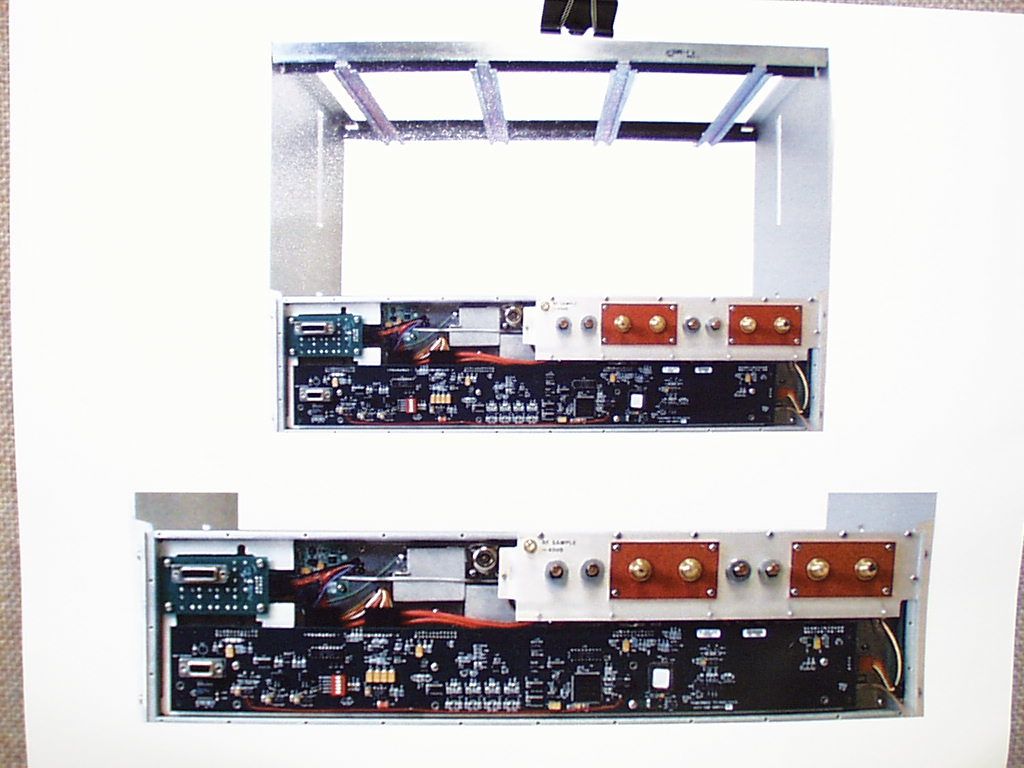

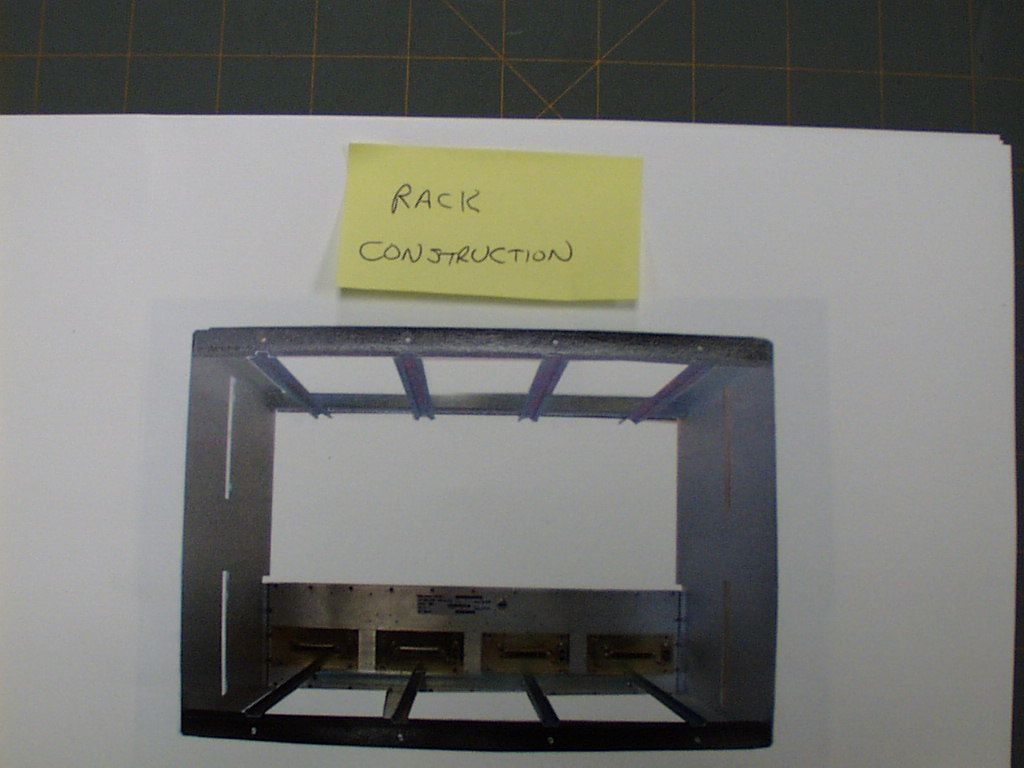

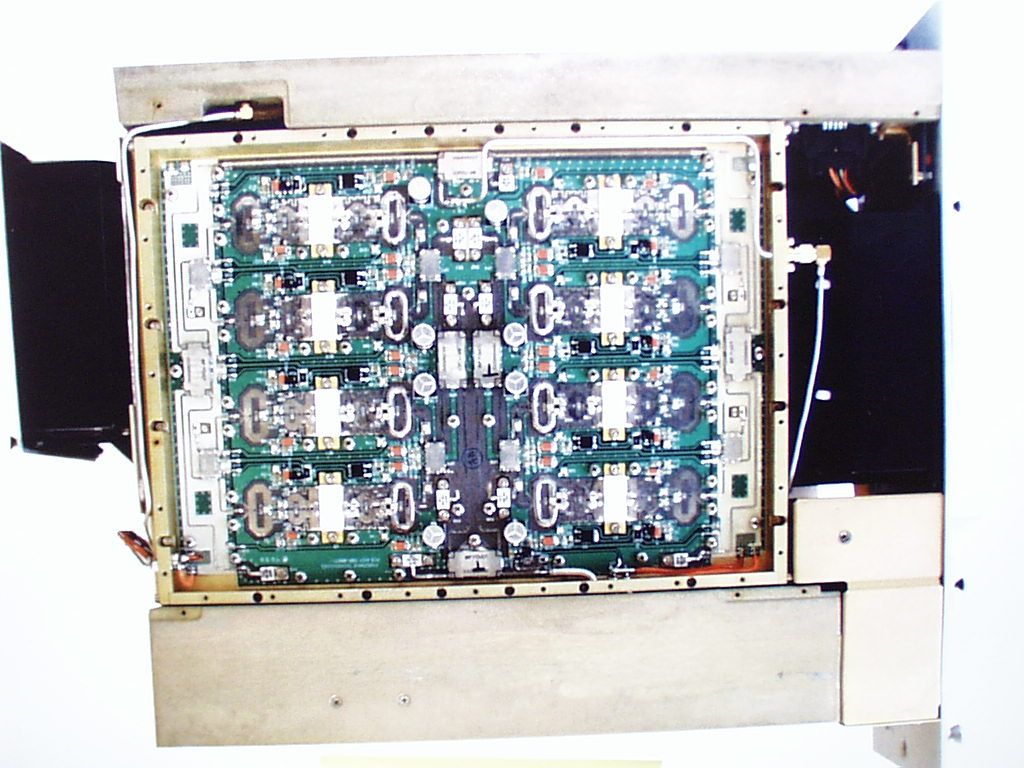

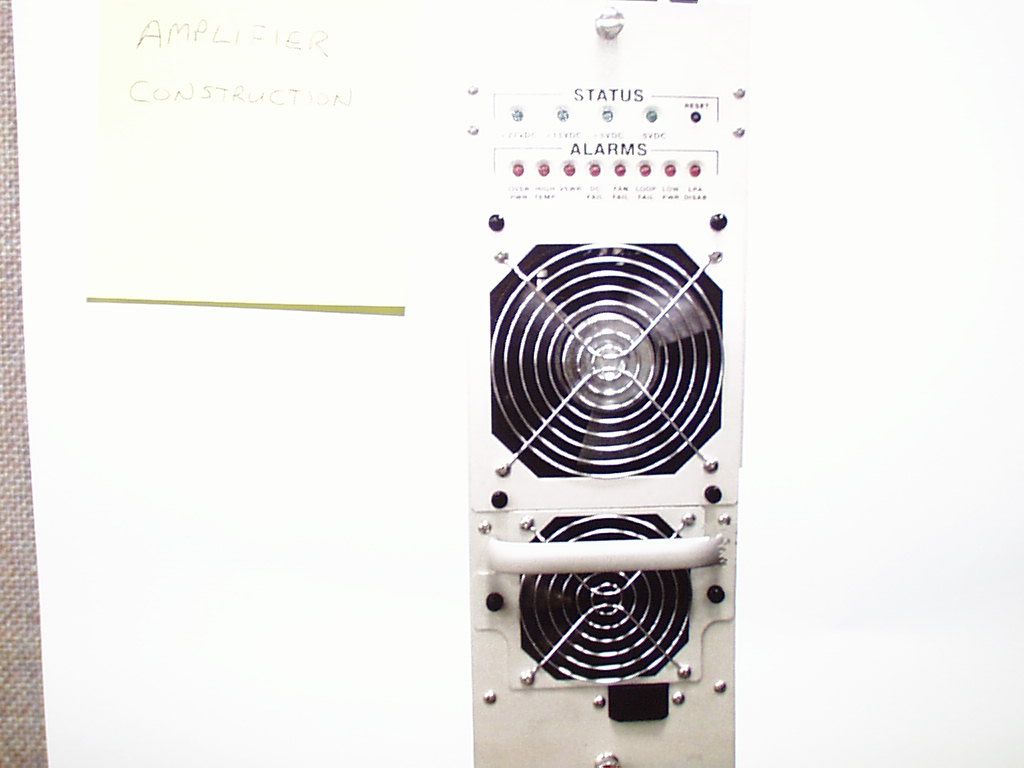

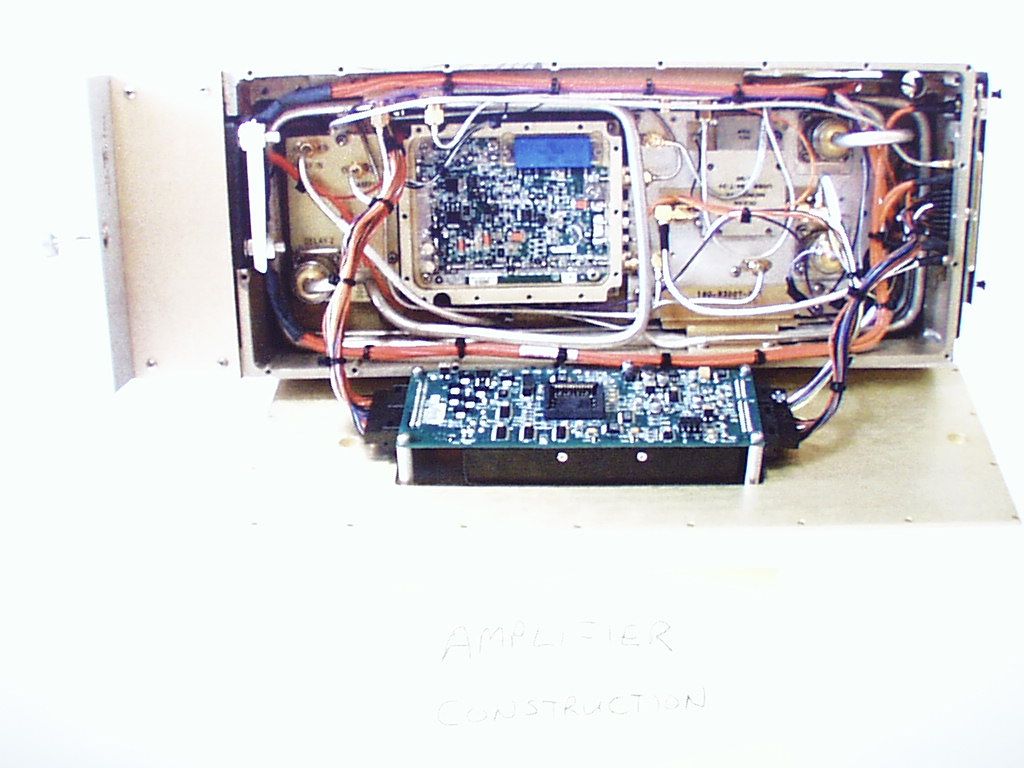

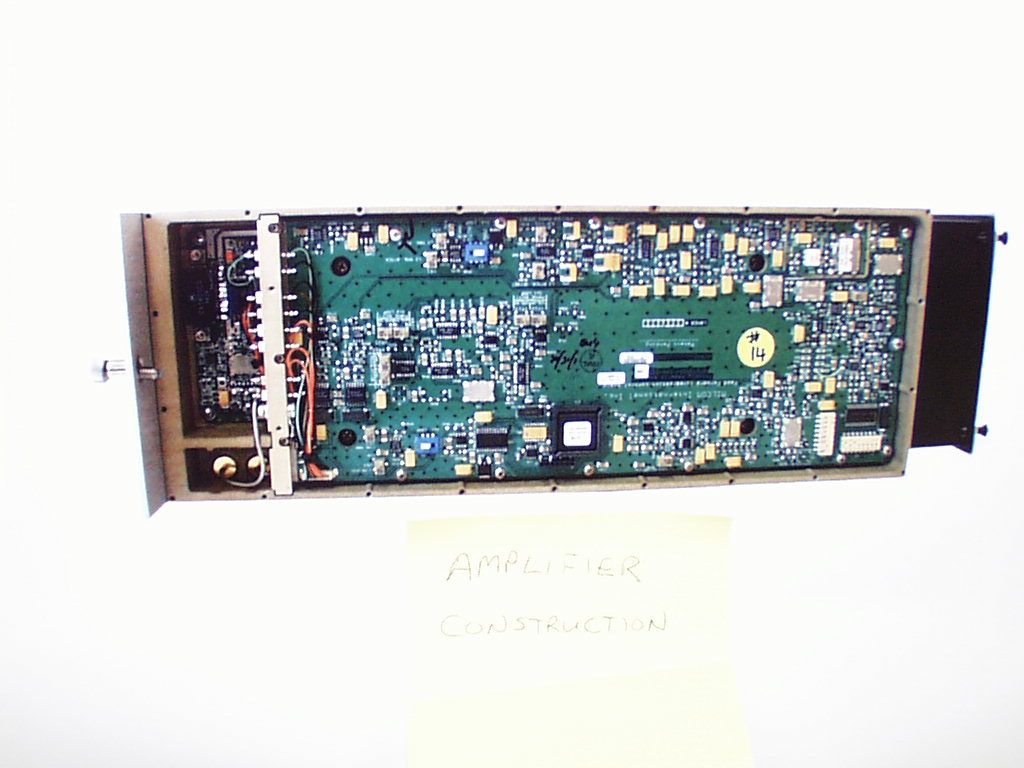

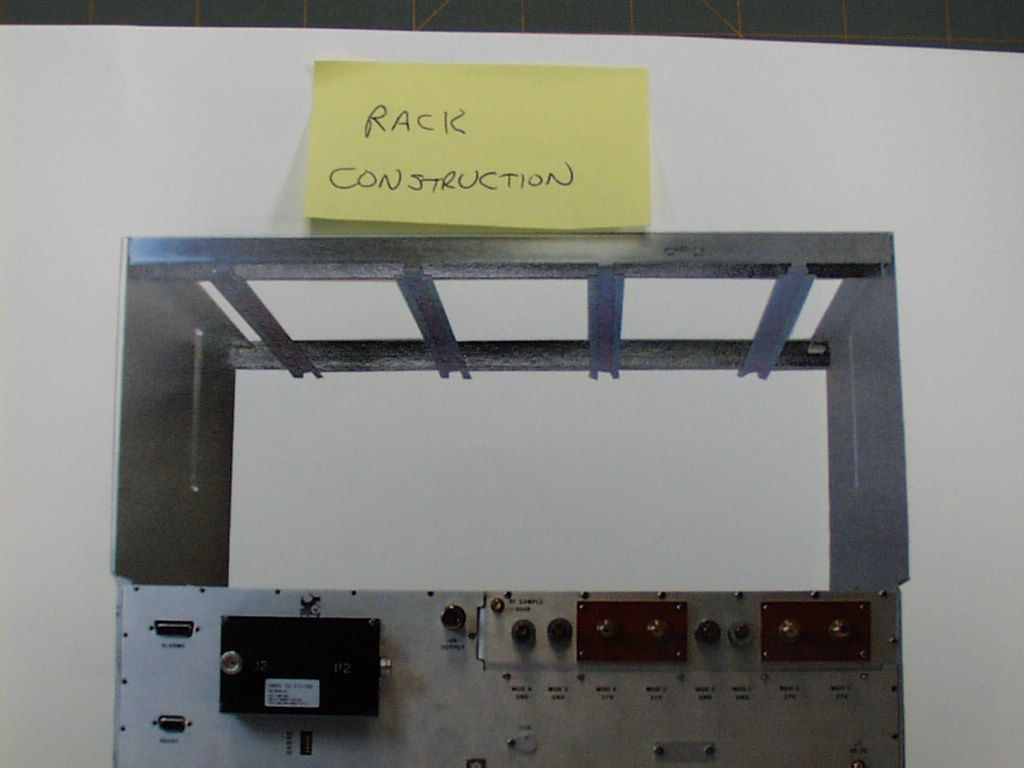

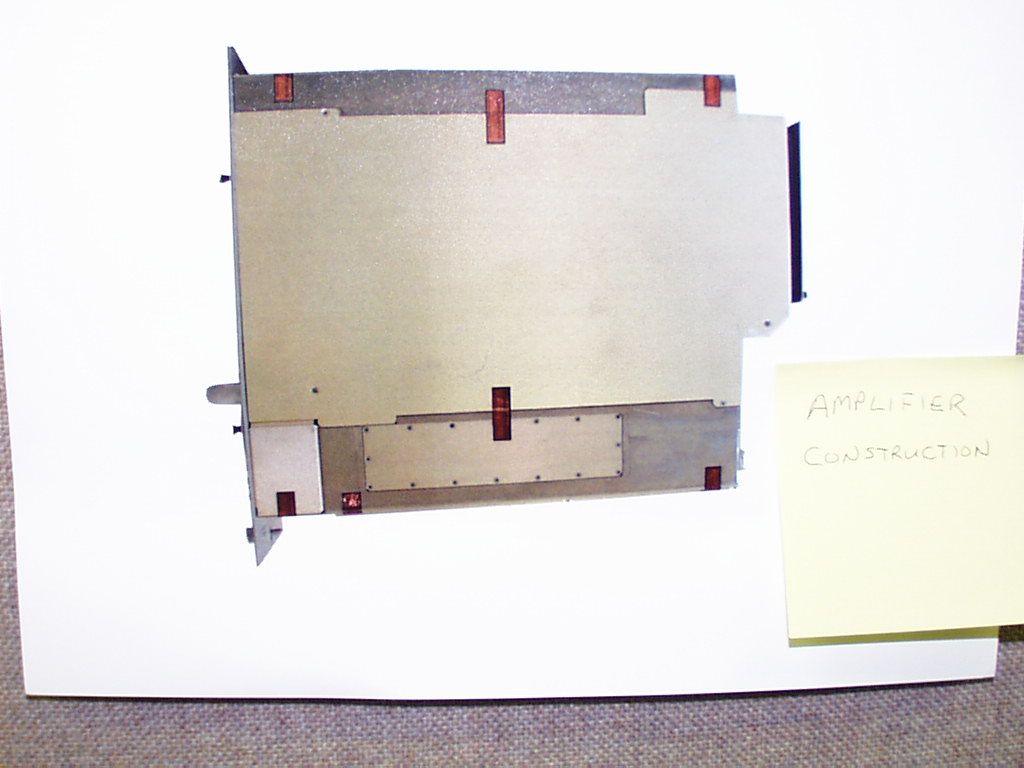

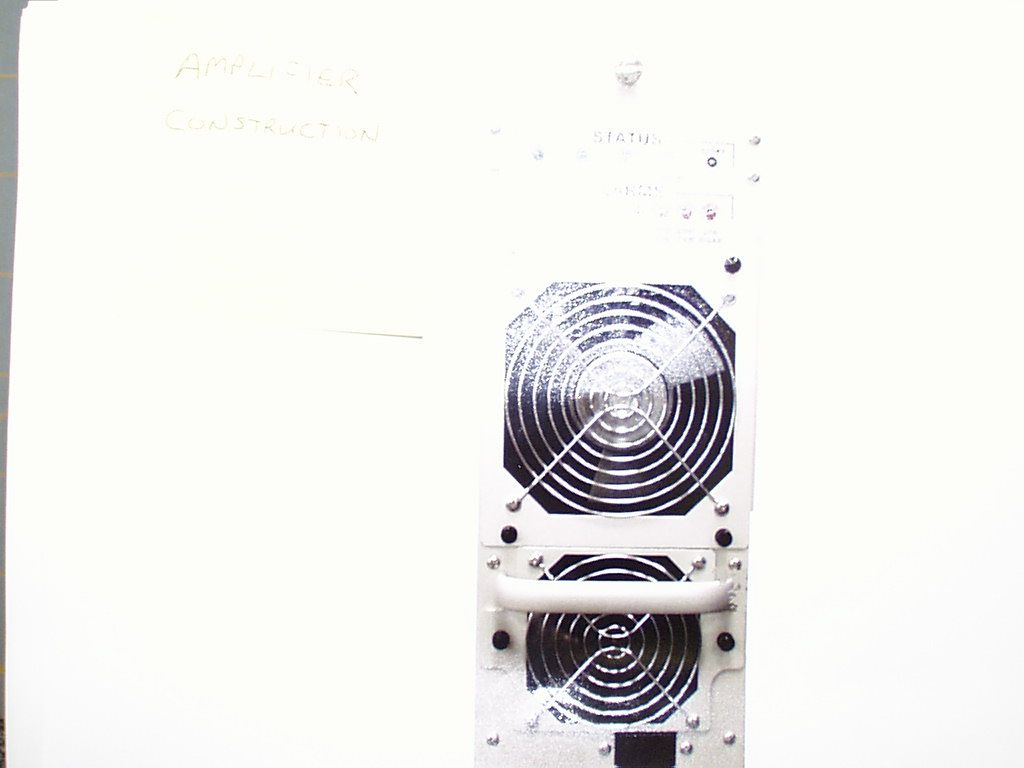

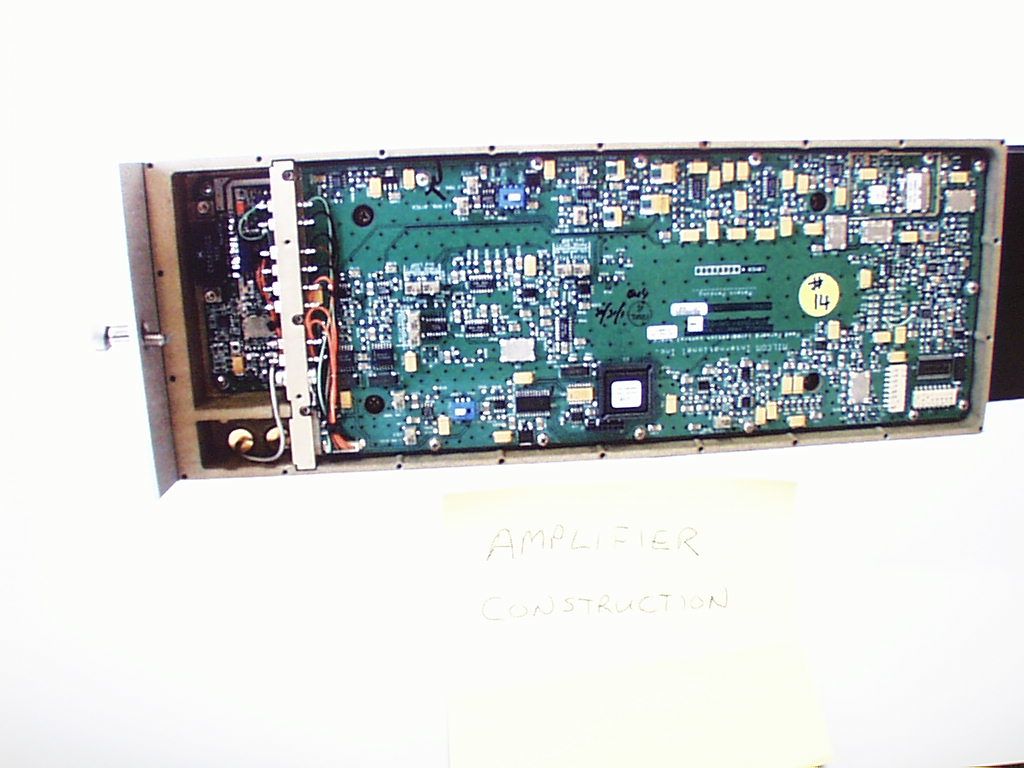

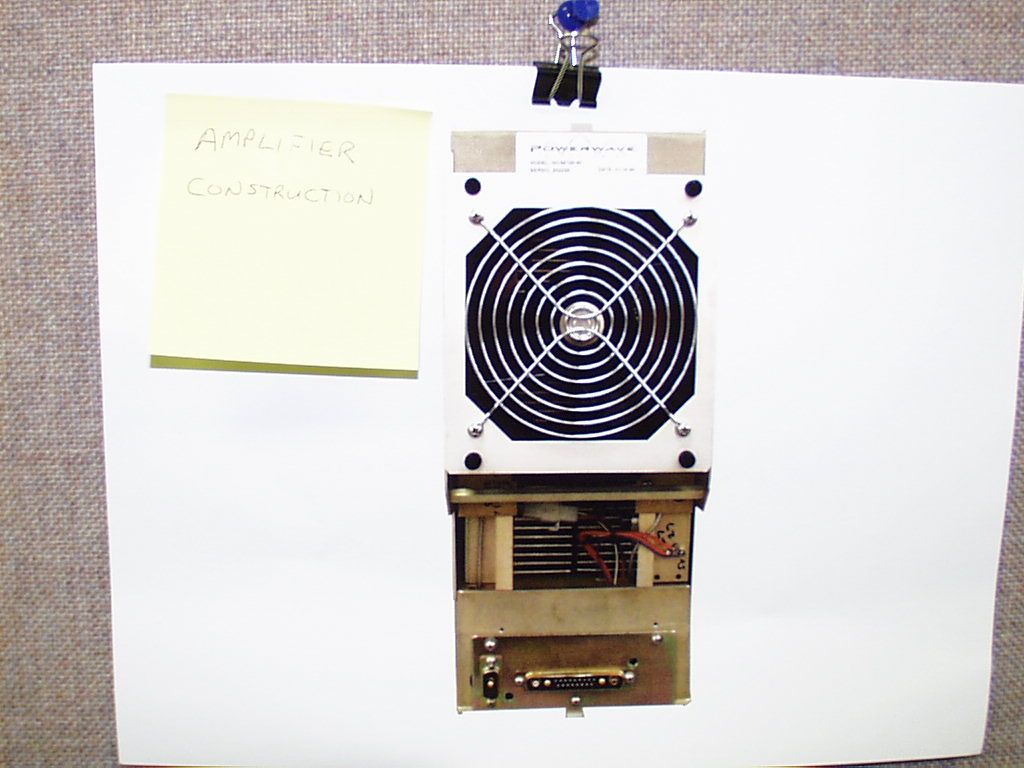

E675JS0035MULTICARRIER CELLULAR AMPLIFIER AND SUBRACK

08 March 1999 Chief, Equipment Authorization Branch Federal Communications Commission P. O. Box 358315 Pittsburgh, PA 15251-5315 RE:Application for POWERWAVE TECHNOLOGIES FCC ID:E675JS0035 Dear Sir/Madam: Transmitted herewith, on behalf of Powerwave Technologies, is the application (FCC Form 731) for the Equipment Authorization by the Type Acceptance Procedure for the Multicarrier Cellular Amplifier and Subrack, Model MCA9129-90 AND MCR4109-1. Please note that TÜV Product Service is the authorized agent for Powerwave Technologies. Direct all communications and send the grant to TÜV Product Service. If you have technical questions concerning this application, please contact me. All other correspondence should be directed to Judy Evans. The phone number is 619 546 3999 or e-mail at [email protected] or [email protected]. Sincerely, Mary Washington EMC Engineer enclosures

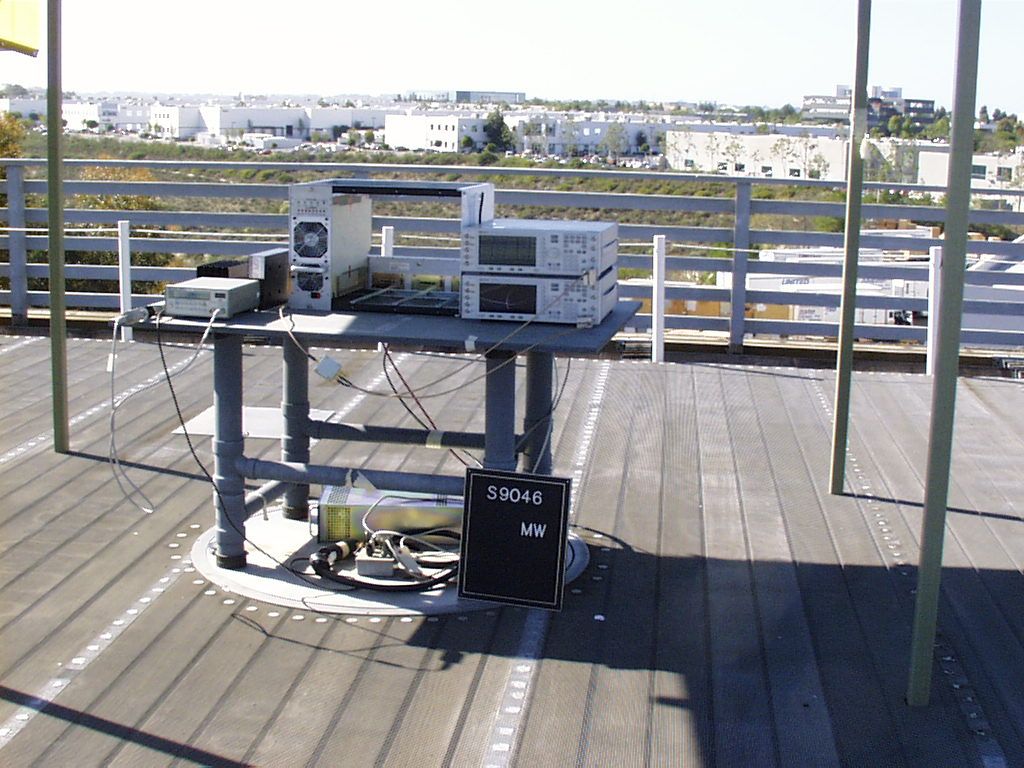

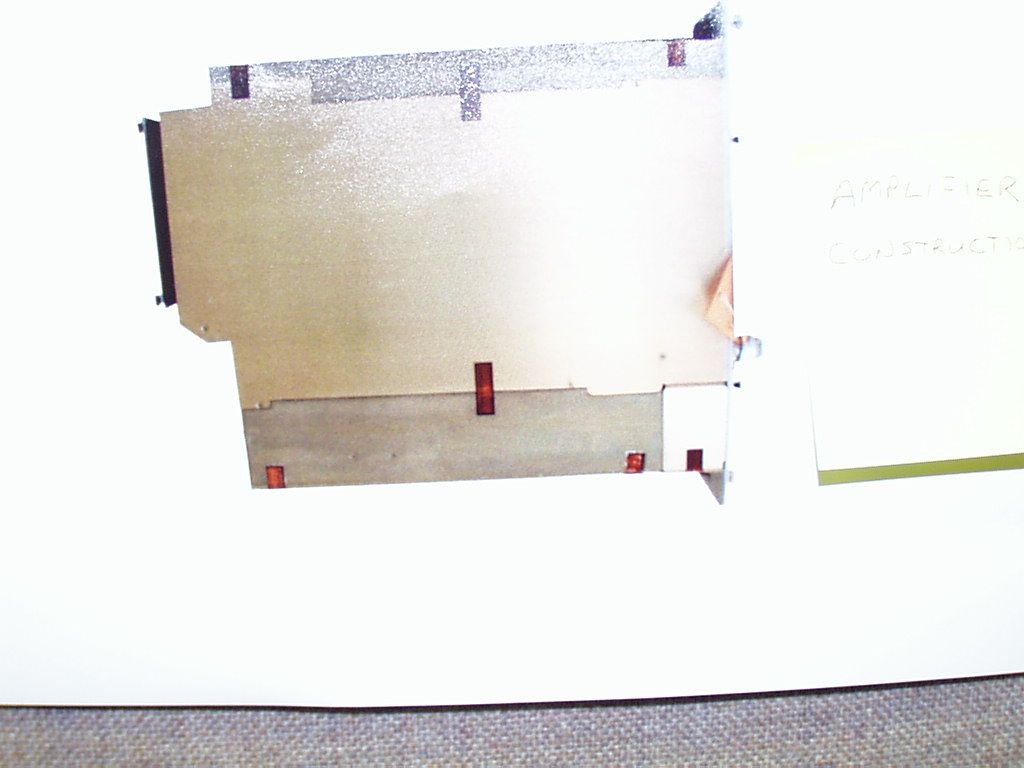

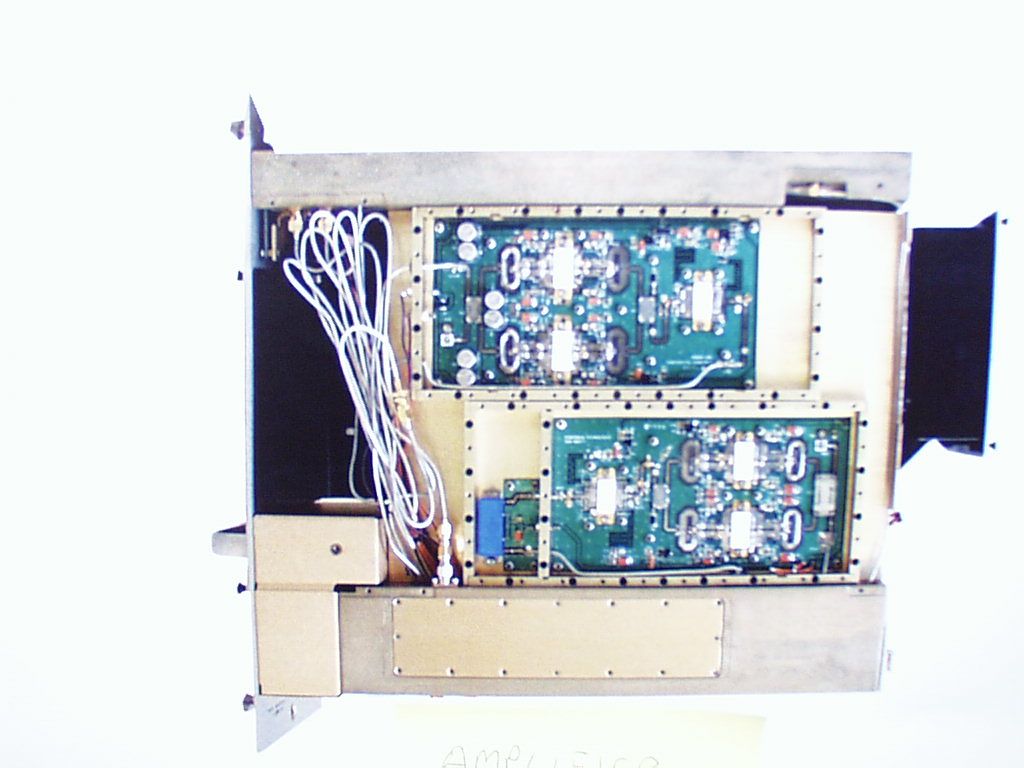

Report No. S9046-08 (FCC ID: E675JS0035) Page 1 Rev.No 1.0 MEASUREMENT AND TECHNICAL REPORT POWERWAVE TECHNOLOGIES 2026 McGaw Avenue Irvine, CA 92614 DATE: 12 March 1999 This Report Concerns: Original Grant: XClass II Change: Equipment Type: Multicarrier Cellular Amplifier and Subrack, Model MCA9129-90 & MCR4109-1 Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes: Defer until: No: X Company Name agrees to notify the Commission by: N/A of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes:*No: (*) FCC Part 2, Paragraphs 2.985, 2.991, and 2993, Part 22, Paragraph 22.917 Report Prepared by: TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 619 546 3999 Fax: 619 546 0364 Report No. S9046-08 (FCC ID: E675JS0035) Page 2 Rev.No 1.0 TABLE OF CONTENTS Pages 1 GENERAL INFORMATION 4 1.1Product Description4 1.2Related Submittal Grant11 1.3Tested System Details11 1.4Test Methodology12 1.5Test Facility13 1.6Part 2 Requirements14 2 PRODUCT LABELING 15 Figure 2.1Location of Label on EUT16, 17 Figure 2.2FCC ID Label18 3 SYSTEM TEST CONFIGURATION 19 3.1Justification19 3.2EUT Exercise Software19 3.3Special Accessories19 3.4Equipment Modifications19 3.5Configuration of Tested System19 Figure 3.1Configuration of Tested System19 4 BLOCK DIAGRAM OF EUT 20 4.1Block Diagram Description20 Figure 4.1Block Diagram of EUT21, 22 5 RADIATED EMISSION DATA 23 Equipment 26 Field Strength Calculation 27 Report No. S9046-08 (FCC ID: E675JS0035) Page 3 Rev.No 1.0 6 CONDUCTED EMISSION DATA 28 Test Setup 29, 30 Equipment 31 Data 32 7Signature page 102 Report No. S9046-08 (FCC ID: E675JS0035) Page 4 Rev.No 1.0 1 GENERAL INFORMATION 1.1Product Description CUSTOMER INFORMATION COMPANY NAME:POWERWAVE TECHNOLOGIES COMPANY ADDRESS:2026 McGaw Avenue Irvine, CA 92614 PHONE NUMBER:949 757 0530 FAX NUMBER/E-MAIL ADDRESS:949 757 6674 / [email protected] CUSTOMER CONTACT:Jeffrey A. Dale PRODUCT DESCRIPTION NAME, MODEL, SERIAL # OF EUT:Multicarrier Cellular Amplifier and Subrack, Model MCA9129-90, MCR4109-1 Report No. S9046-08 (FCC ID: E675JS0035) Page 11 Rev.No 1.0 1 GENERAL INFORMATION (continued) 1.2Related Submittal/Grant None 1.3Tested System Details The FCC IDs for all equipment, plus descriptions of all cables used in the tested system are: None Report No. S9046-08 (FCC ID: E675JS0035) Page 12 Rev.No 1.0 1.4Test Methodology Purpose of Test:To demonstrate compliance with the ANSI C63.4 setup. Test Performed:X1. Conducted Emissions, FCC Part 2, Paragraphs 2.989, 2.991 and Part 22, Paragraph 22,816 2. Radiated Emissions EN55022: 1992 Class B limit, 30 - 1,000 MHz, 10 meters X3. Radiated Emission per FCC Part 2, Paragraph 2.993, & Part 22, Paragraph 22.917 4. Engineering evaluations 5. Frequency Stability, Part 2, Paragraph 2.995, and Part 87, Paragraph 87.133 XRF Output Power, Part 2, Paragraph 2.985, Part 22, Paragraph 22.917 Both Conducted and radiated testing were performed according to the procedures in FCC/ANSI C63.4 and CSA 108.8 - M1983. Radiated testing was performed at an antenna-to-EUT distance of 3 meters (1 - 10 GHz). Report No. S9046-08 (FCC ID: E675JS0035) Page 13 Rev.No 1.0 1.5Test Facility The open area test site and conducted measurement data were tested by: TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 619 546 3999 Fax: 619 546 0364 The Test Site Data and performance comply with ANSI 63.4 and are registered with the FCC, 7435 Oakland Mills Rd, Columbia Maryland 21046. All Measurement Data is acquired according to the content of FCC Measurement Procedure and ANSI C63.4, unless supplemented with additional requirements as noted in the test report. Report No. S9046-08 (FCC ID: E675JS0035) Page 14 Rev.No 1.0 1.6 Part 2 Requirements Frequency range: 869 - 894 MHz Rated RF output power: 100W per amplifier; 360W maximum (4 amplifiers in subrack) Frequency tolerance: N/A Emission Designators: F1D, F2D, F3D, F8W, F9W Microprocessor model Number: N/A Quantity production: Greater than 100 units Types of emission: CDMA, TDMA, AMPS Frequency range: 869 - 894 MHz Range of operating power: 0 - 100 W Maximum power rating: 100 W Voltages and Currents applied: See Block Diagrams, section 4.1 and schematics. Functions of active circuit devices: See Block Diagrams, section 4.1 and schematics. Tune-up Procedure: User Manual Model MCR4109-1 section 3-3; User manual Model MCA9129-90, section 3-4. Description of all circuitry and devices provided for determining and stabilizing frequency: Not applicable, EUT is a power amplifier. Means for limiting spurious radiation: N/A; Means for limiting modulation: N/A; EUT is a power amplifier; Means for limiting power: the alarm logic controls the DC bias voltage which shuts down the amplifier on an input overpower condition. Digital modulation tecnniques: N/A Report No. S9046-08 (FCC ID: E675JS0035) Page 15 Rev.No 1.0 2PRODUCT LABELING Figure 2.1FCC ID Label See following page. Report No. S9046-08 (FCC ID: E675JS0035) Page 19 Rev.No 1.0 3.SYSTEM TEST CONFIGURATION 3.1Justification The Multicarrier Cellular Amplifier and Subrack, Model MCA9129-90, MCR4109-1 was initially tested for FCC emission in the following configuration: See Block Diagram, paragraph 4.1. 3.2EUT Exercise Software None 3.3Special Accessories None 3.4Modification None 3.5Configuration of Tested System See Block Diagram, paragraph 4.1. Report No. S9046-08 (FCC ID: E675JS0035) Page 20 Rev.No 1.0 4BLOCK DIAGRAM OF Multicarrier Cellular Amplifier and Subrack, Model MCA9129-90, MCR4109-1 4.1Block Diagram Description Multicarrier Cellular Amplifier and Subrack, Model MCA9129-90, MCR4109-1 (See page 5 of this document.) See following page for block diagram. Report No. S9046-08 (FCC ID: E675JS0035) Page 23 Rev.No 1.0 5RADIATED EMISSION DATA The following data lists the significant emission frequencies, measured levels, correction factor (which includes cable and antenna corrections), the corrected reading,…

Text truncated - open the document above for the full version.

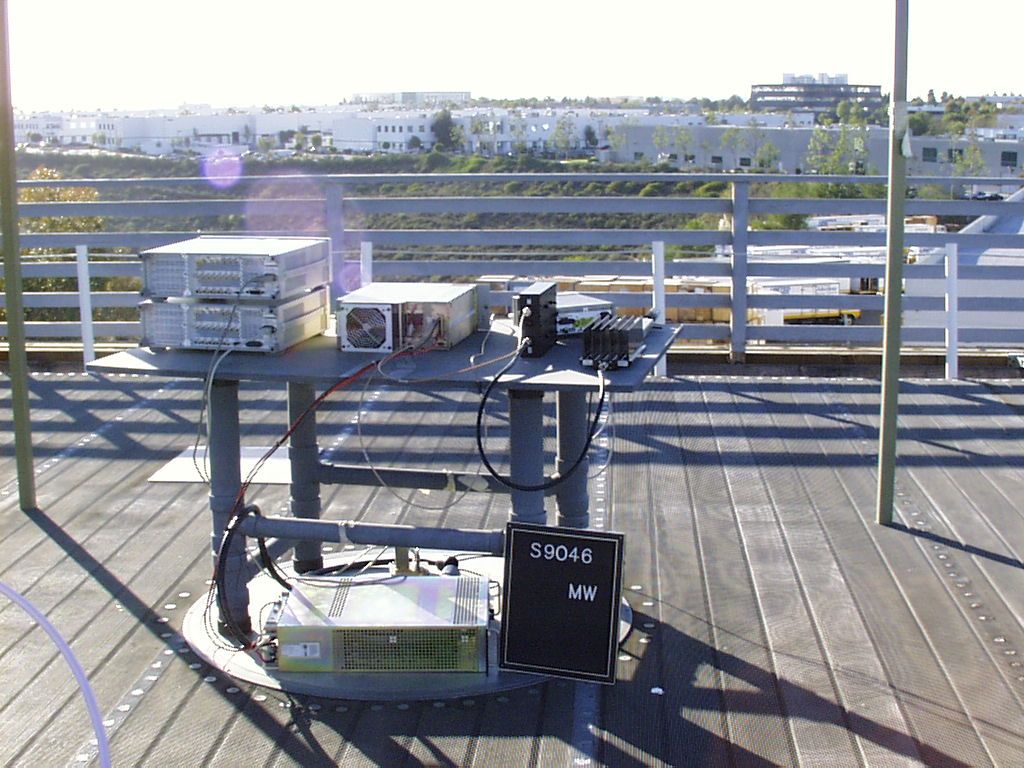

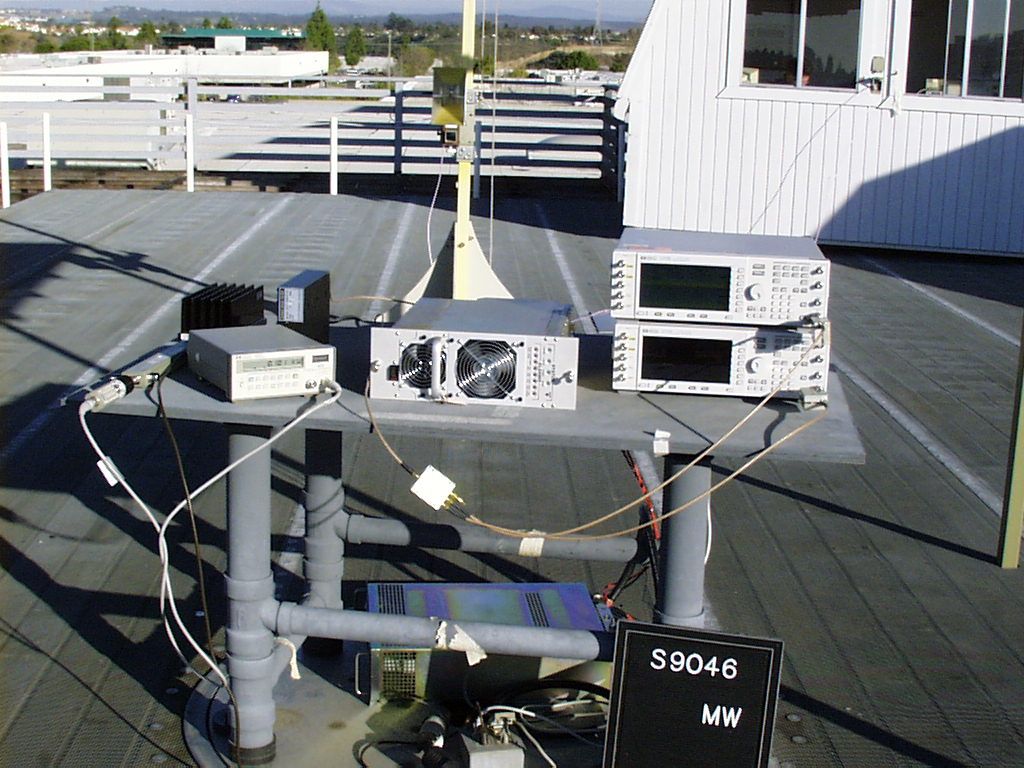

Report No. S9046-08 (FCC ID: E675JS0035) Page 32 Rev.No 1.0 REPORT NO: S9046DATE: 02/04 February 1999 TEST: RF Output Power CUSTOMER:POWERWAVE TECHNOLOGIES, INC. EUT:Multicarrier Cellular Ampliifer and Subrack, Model MCA9129-90 & MCR4109-1 SPECIFICATION:FCC Part 2, Paragraph 2.985 and Part 22, Paragraph 22.917 Frequency (MHz)ModulationOutput PowerConfiguration Tested 2/2/99 869 and 894 869 and 894 869 and 894 Tested 2/4/99 869 and 894 869 and 894 869 and 894 869 and 894 869 and 894 869 and 894 CDMA TDMA Amps (voice) Amps (data) CDMA TDMA Amps (voice) Amps (data) 100W 100W 100W 100W 90W 90W 90W 90W 90W Outside rack Outside rack Outside rack Outside rack Outside rack Inside rack Inside rack Inside rack Inside rack Inside rack
