E675JS0052G3L-900-60-005

PRELIMINARY935-940 MHz 044-05075 Rev. BJanuary 2001 System Integration Manual PRELIMINARY Booster Amplifier Subrack System Integration Manual 044-05075 Rev. BJanuary 2001 iii Table Of Contents Par.Section 1Page No.General DescriptionNo. 1-1Introduction....................................................................................................................................1-1 1-2General Description ......................................................................................................................1-1 1-3Functional And Physical Specifications .........................................................................................1-2 1-3.1MCR20930-1-2 Subrack Specifications.........................................................................................1-3 1-3.2GL3-900 Series Amplifier Specifications ......................................................................................1-5 1-4Booster Amplifier Subrack Major Components .............................................................................1-8 1-5Equipment Changes........................................................................................................................1-8 Section 2 Installation 2-1Introduction....................................................................................................................................2-1 2-2Site Survey .....................................................................................................................................2-1 2-3Electrical Service Recommendations .............................................................................................2-1 2-4 Air Conditioning ............................................................................................................................2-1 2-5Unpacking and Inspection ..............................................................................................................2-2 2-6Installation Instructions ..................................................................................................................2-3 2-7Amplifier Module Power, Alarm, Control, and RF Connector ......................................................2-4 2-8Remote Control and Status.............................................................................................................2-5 Section 3 Operating Instructions 3-1Introduction....................................................................................................................................3-1 3-2Initial Start-Up and Operating Procedures .....................................................................................3-1 Section 4 Principles of Operation 4-1Introduction....................................................................................................................................4-1 4-2RF Input Signal ..............................................................................................................................4-1 4-3RF Output Load .............................................................................................................................4-1 4-4System Functional Description.......................................................................................................4-1 4-5Multi-Carrier Power Amplfier Functional Description ..................................................................4-2 4-5.1Predriver Amplifier ........................................................................................................................4-3 4-5.2Three Stage Driver Amplifier.........................................................................................................4-3 4-5.3Main Amplifier...............................................................................................................................4-3 4-5.4Alarm Monitoring and Control.......................................................................................................4-3 4-5.5Loop Control Circuit ......................................................................................................................4-3 4-6Amplifier Module Cooling .............................................................................................................4-4 4-7Power Distribution .........................................................................................................................4-4 PRELIMINARY Booster Amplifier Subrack System Integration Manual 044-05075 Rev. BJanuary 2001 iv Table Of Contents (Continued) Par.Section 5Page No.MaintenanceNo. 5-1Introduction....................................................................................................................................5-1 5-2Periodic Maintenance.....................................................................................................................5-1 5-3Test Equipment Required For Test ................................................................................................5-1 5-4Performance Test ...........................................................................................................................5-2 5-4.1Amplifier Performance Test ...........................................................................................................5-2 5-4.1.1 Amplifier Spurious Emissions Test ................................................................................................5-2 5-4.1.2 Gain Test ........................................................................................................................................5-2 5-4.1.3 Input Return Loss ...........................................................................................................................5-2 5-5Field Replacement of the Module ..................................................................................................5-5 Section 6 Troubleshooting 6-1Introduction.........................................…

Text truncated - open the document above for the full version.

Report No. 100185-08 (FCC ID:E675JS0052) Page 1 Rev.No 1.0 ATTESTATION STATEMENT All tests according to FCC Part 2, Paragraphs, 2.1046, 2.1051, 2. 1053 and Part 90, Paragraph 90.210 were n - Performed o - Not Performed The Equipment Under Test n - Fulfills the requirements of FCC Part 2, Paragraphs, 2.1046, 2.1051, 2. 1053 and Part 90, Paragraph 90.210. o - Does not fulfill the general approval requirements cited on page 1. - TÜV PRODUCT SERVICE, INC. - Responsible Engineer: Jim Owen (EMC Engineer)

Amplifier Test Setup Diagram MCR 20930-1-2 MCR 20930-1-2 75w 75w RS-485 Alarm Interface VVA C o m b i n e r GAINCTRL Splitter Distribution Circuit Board (DC,Fans, Alarms) ISO ISO -25dB Sample DB9 Alarm Alarm Ctrl 2x +27VDC 2x Ground RF Output GL3-900-60-005 30 dB 935-940 MHz RF Input System Block Diagram Pre Amp Pre Main Main Amp Error Amp Dela y Feed Forward Loop control 2nd Loop Phase & Gain 1st Loop Phase & Gain Dela y Alarms & Display +15 +5 - 5 Power Supply - 30dB - 10dB -40dB RF Out RFL PWR FWD PWR Front Panel Smart Rack +27VD C RF Input 935-940 MHz Multi-Carrier Power Amplifier Functional Block Diagram

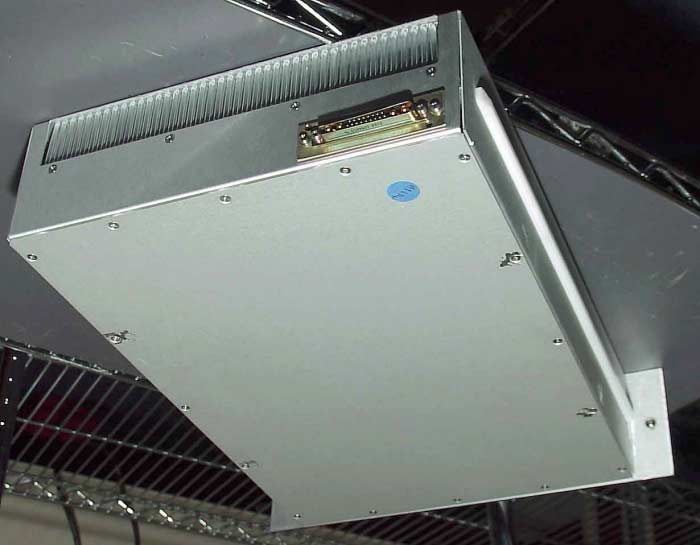

BACK OF UNIT FRONT

1 ST LOOP & PREAMP BACK 1 ST LOOP & PREAMP FRONT BACKSIDE 1 ST LOOP AND PREAMP BACKSIDE PILOT RECEIVER BACKSIDE PREERROR BOTTOM BOTTOM VIEW BOTTOM VIEW XRAY COMBINER BOARD BACK COMBINER BOARD FRONT HIGH GAIN MOD BACK HIGH GAIN MOD FRONT MULTIFUNCTION FULL FRONT MULTIFUNCTION BOARD BACK

MULTIFUNCTION BOARD FRONT A MULTIFUNCTION BOARD FRONT B MULTIFUNCTIONA BOARD FRONT C MULTIFUNCTION BOARD FRONT D PILOT REC & PILOT MOD BACK PILOT REC & PILOT MOD FRONT SECOND LAYER OF BOARD SPLITTER BRD BACK SPLITTER BRD FRONT TOP LAYER OF BRD TOP VIEW WITHOUT TOP COVER TOP TOP VIEW TOP VIEW XRAY View A

1-1January 2001 General Description Introduction This section contains a functional description of Powerwave Technologies Inc.’s, Booster Amplifier Subrack (BAS) system. Refer to figure 1-1 for the system’s functional block diagram. RF Input Signal The maximum input power for all carrier frequencies to the system should not exceed the limits specified in table 1-1. Table 1-1 Booster Amplifier Subrack System Specifications Frequency935-940 MHz Gain+20 dBm, ± 0.2 dBm RF Input Power+31 dBm composite w/variable attenuator set to 0dB attenua- tion. +46 dBm composite w/variable attenuator set to 15 dB at- tenuation. RF Output Power: G3L-900-60-005+47.8 dBm (60 Watts) nominal, 75 Watts (max.) Phase Variation± 5° Alarms+5 Vdc TTL D.C. Power+ 27 Vdc, 55 Amps max Total System Return Loss-19 dBm Channel Spacing12.5 KHz Operating Temperature0 to 65 degrees C Subrack Dimensions12.22(H)x*17(W)x24.5(D) inches Weight (Fully assembled)Approximately 80 Pounds (36.28 kilograms) *Note: Does not include 1-inch right and left side mounting flanges. RF Output Load The load impedance should be as good as possible (VSWR of 1.5:1 or better) in the working band for good power transfer to the load. If the amplifier is operated into a filter, it will maintain its distor- tion characteristics outside the signal band even if the VSWR is infinite, provided the reflected power does not exceed one Watt. A parasitic signal of less than one-Watt incident on the output will not cause distortion at a higher level than the normal forward distortion (i.e. –65 dBc). 1-2January 2001 MCR 20930-1-2 MCR 20930-1-2 MCPA MCPA RS-485 Alarm Interface VVA C o m b i n e r GAIN CTRL Splitter Distribution Circuit Board (DC,Fans, Alarms) ISO ISO -25dB Sample DB9 Alarm Alarm Ctrl 2x +27VDC 2x Ground RF Input RF Output GL3-900-50-005 GL3-900-60-005 30 dB Figure 1-1System Block Diagram System Functional Discription Designed as a subrack for installation in a 2-way transceiver paging base station, the BAS system is comprised of a MCR20930-1-2 Booster Amplifier Subrack (BAS) and two G3L-900-50-005 or G3L- 900-60-005 plug-in multi-carrier power amplifiers (MPCAs). Additionally, the BAS houses a two-way power splitter/combiner and a distribution printed circuit board (PCB). Refer to Appendix A for pinout locations. The RF IN, RF OUT, +27 Vdc and the ALARM summary connector, interface with the host system via front panel cabling. The RF input signal is split equally and applied to the plug-in amplifiers. The output from each am- plifier is an amplified composite signal (refer to table 1-2 for amplifier output specifications). All phase and gain corrections are performed on the signal(s) in the individual amplifier. The amplifier outputs are fed to a power combiner and combined to form a composite RF output (refer to table 1- 2). Refer to figure 1-2 for the System Functional Block Diagram. The distribution printed circuit board (PCB) assembly is used to distribute power to the BAS sys- tem’s internal components. The PCB circuit is a DC/DC converter designed to convert the +27 Vdc input to +12 Vdc and +15 Vdc. Refer to Appendix B for pinout location. 1-3January 2001 Table 1-2 G3L-900 Series Amplifier’s Electrical Specifications Frequency Range935-940 MHz Channel Spacing12.5 KHz Output Power: GL3-900-60-005+47.8 dBm (60 Watts) nominal, 75 Watts (max.) Input Power-10.0 dBm max. RF Gain GL3-900-60-005+58.8 dB ±1.0 dB @ +27Vdc, 25 C RF Gain Flatness over the operating frequency range ±0.1 dB over any 1.25 MHz (over the frequency range). Gain Flatness:±0.5 dB (935 MHz – 940 MHz) Normal Operating Voltage+27 Vdc ±1V Nominal (±5%) 1Vpp ripple (100-120 Hz) max. Current Consumption: GL3-900-60-005 27 Amps @ 27 Vdc, 25 °C, Prf = 75 Watts average Abnormal Operating Voltage+21 Vdc to below +26 Vdc. Above +28 Vdc to +29 Vdc. RF Gain variation by Temp & Voltage TBD Gain Variation Over Dynamic Range ±0.1 dB max./20 dB for 0 to –20 dB rated power output Intermodulation Distortion In-Band Spurious -65 dBc min. (Main signal power to Spurious @ (12.5 kHz) -55 dBc min @ +23 to +24 Vdc Input/Output VSWR.1.5: 1 max @ 65 ± ºC. Load StabilityInfinite VSWR. all phases Output Isolation20 dB min. (shall incorporate an output isolator) Multi-Carrier Power Amplifier (MCPA) Functional Description The MCPA is a linear, feed-forward multi-carrier power amplifier that operates in the 5 MHz fre- quency band from 935 MHz to 940 MHz (refer to table 1-2 for amplifier specifications). Each ampli- fier is a self-contained module and is functionally independent of the other MCPA in the system. The amplifiers are designed for parallel operation to achieve high peak power output (refer to Table 1- 2 for MPCA power specifications). Each MCPA has an alarm board that monitors the amplifier performance. If a failure or fault occurs in an MCPA, it is transmitted to the host system via the D- subminiature 21WA4 connector at the rear of the module. A warning light (LED), which is routed from the amplifier via the J7 connector on the PCB to the front panel of the BAS, will illuminate. The indicator LEDs are identified as Alarm 1 and Alarm 2 which corresponds to their respective ampli- fier. The amplifier is compliant to the requirements of FCC Part 22 with respect to spurious emissions. Constant gain is maintained by continuously comparing active paths with passive references, and correcting for small variations through the RF feedback controls. All gain variations, for example 1-4January 2001 those due to temperature, are reduced to the passive reference variations. The amplifier is com- prised of: A preamp A driver amplifier A main amplifier An error and pre-error amplifier Alarm monitoring and control Pre Amp Pre Main Main Amp Error Amp Delay Feed Forward Loop control 2nd Loop Phase & Gain 1st Loop Phase & Gain Delay Alarms & Display +15 +5 -5 Power Supply -30dB -10dB -40dB RF Out RFL PWR FWD PWR Front PanelSmart Rack +27VDC Figure 1-2 Multi-Carrier Power Amplifier Functional Block Diagram Predrive…

Text truncated - open the document above for the full version.

Printed By: Sara ReevesCompany Confidential - Uncontrolled CopyDate Printed: 18-Apr-2001 13:28:36 Number: D300-01388Rev: B ECO-11185Status: Production Printed By: Sara ReevesCompany Confidential - Uncontrolled CopyDate Printed: 18-Apr-2001 13:26:06 Number: D300-01167Rev: D ECO-11857Status: Production Printed By: Sara ReevesCompany Confidential - Uncontrolled CopyDate Printed: 18-Apr-2001 13:27:44 Number: D300-01500Rev: B ECO-11185Status: Production Printed By: Sara ReevesCompany Confidential - Uncontrolled CopyDate Printed: 18-Apr-2001 13:26:57 Number: D300-01000Rev: B ECO-08298Status: Production Printed By: Sara ReevesCompany Confidential - Uncontrolled CopyDate Printed: 18-Apr-2001 13:30:19 Number: D300-01220Rev: C ECO-11185Status: Production Printed By: Sara ReevesCompany Confidential - Uncontrolled CopyDate Printed: 18-Apr-2001 13:29:28 Number: D300-01219Rev: E ECO-09692Status: Production Printed By: Sara ReevesCompany Confidential - Uncontrolled CopyDate Printed: 18-Apr-2001 13:31:06 Number: D300-01734Rev: A ECO-11149Status: Prototype

Report No. 100185-08 (FCC ID:E675JS0052) Page 1 Rev.No 1.0 MEASUREMENT AND TECHNICAL REPORT POWERWAVE TECHNOLOGIES 2026 McGaw Avenue Irvine, CA 92614 DATE: 20 April 2001 This Report Concerns:Original Grant: XClass II Change: Equipment Type:Seahawk 900, Model G3L-900-60 Deferred grant requested per 47 CFR 0.457(d)(1)(ii)?Yes: Defer until: No: X Company Name agrees to notify the Commission by:N/A of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37?Yes:*No: X (*) FCC Part 2, Paragraphs, 2.1046, 2.1051, 2. 1053 and Part 90, Paragraph 90.210 Report Prepared by: TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 546 3999 Fax: 858 546 0364 Report No. 100185-08 (FCC ID:E675JS0052) Page 2 Rev.No 1.0 TABLE OF CONTENTS Pages 1 GENERAL INFORMATION3 1.1Product Description3 1.2Related Submittal Grant5 1.3Tested System Details5 1.4Test Methodology5 1.5Test Facility6 1.6Part 2 Requirements7 2 SYSTEM TEST CONFIGURATION8 2.1Justification8 2.2EUT Exercise Software8 2.3Special Accessories8 2.4Equipment Modifications8 2.5Configuration of Tested System8 3RADIATED EMISSION EQUIPMENT/DATA9 Field Strength Calculation13 4 CONDUCTED EMISSION EQUIPMENT/DATA11 5Attestation Statement25 Report No. 100185-08 (FCC ID:E675JS0052) Page 3 Rev.No 1.0 1 GENERAL INFORMATION 1.1Product Description EUT DescriptionMulti-channel power Amplifier EUT NameSeahawk 900 Model No.: G3L-900-60 Serial No.: -- Product Options: N/A Configurations to be tested: 75 Watt MAX output Power Requirements Voltage: 27 VDC (If battery powered, make sure battery life is sufficient to complete testing.) # of Phases: N/A Current (Amps/phase(max)): 27 A Current (Amps/phase(nominal)): N/A Typical Installation and/or Operating Environment TELCOM EUT Power Cable PermanentORRemovableLength (in meters): ShieldedORUnshielded Not Applicable EUT Interface Ports and Cables InterfaceShielding TypeTypeTermination Connector TypePort Termination RF IN/OUT / DC POWER 0 METALIZED D-SUB RF CONNECTIONS / DC POWER Report No. 100185-08 (FCC ID:E675JS0052) Page 4 Rev.No 1.0 1.1 Product Description (continued) EUT Operating Modes to be Tested 1. Rf applied to reach 75 Watt output EUT System Components DescriptionModel #Serial #FCC ID # Power amplifier module G3L-900-60 Support Equipment DescriptionModel #Serial #FCC ID # HP SIGNAL GENERATOR E4436B US39260103 HP POWER METER E4419B GB40201926 RF CABLES AND CONNECTORS Oscillator Frequencies Frequency Derived FrequencyComponent # / LocationDescription of Use 15 MHz 15 MHz Y1 MULTIFUNCTION BRD CLOCK Power Line Filters ManufacturerModel #Location in EUT Spectrum Control 52-978-107-FA3 Multifunction Brd. Panasonic ELK-E103FA Multifunction Brd. Critical EMI Components (Capacitors, ferrites, etc.) DescriptionManufacturerPart # or ValueQtyComponent # / Location Ferrite Fair-Rite274302144710FB1-FB10 / Multifunction brd Bandpass FilterPanasonicELK-E103FA 1FL17 / Multifunction Brd. EMC Critical Detail Inductive filters, capacitive filters, noise filters Report No. 100185-08 (FCC ID:E675JS0052) Page 5 Rev.No 1.0 1 GENERAL INFORMATION (continued) 1.2Related Submittal/Grant None 1.3Tested System Details The FCC IDs for all equipment, plus descriptions of all cables used in the tested system are: None 1.4Test Methodology Purpose of Test:To demonstrate compliance with the ANSI C63.4 setup. Test Performed:X1. Conducted Emissions, FCC Part 2, Paragraphs 2.1051 and Part 90, Paragraph 90.210 2. Radiated Emissions EN55022: 1992 Class B limit, 30 - 1,000 MHz, 10 meters X3. Radiated Emission per FCC Part 2, Paragraph 2.153 4. Engineering evaluations 5. Frequency Stability, Part 2, Paragraph 2.995, and Part 87, Paragraph 87.133 XRF Output Power, Part 2, Paragraph 1.1046, Part 90, Paragraph 90.210 Both Conducted and radiated testing were performed according to the procedures in FCC/ANSI C63.4 and CSA 108.8 - M1983. Radiated testing was performed at an antenna-to-EUT distance of 3 meters (1 - 10 GHz). Report No. 100185-08 (FCC ID:E675JS0052) Page 6 Rev.No 1.0 1.5Test Facility The open area test site and conducted measurement data were tested by: TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 619 546 3999 Fax: 619 546 0364 The Test Site Data and performance comply with ANSI 63.4 and are registered with the FCC, 7435 Oakland Mills Rd, Columbia Maryland 21046. All Measurement Data is acquired according to the content of FCC Measurement Procedure and ANSI C63.4, unless supplemented with additional requirements as noted in the test report. Report No. 100185-08 (FCC ID:E675JS0052) Page 7 Rev.No 1.0 1.6 Part 2 Requirements Equipment Specifications Frequency range in MHz Rated RF power output in watts Frequency tolerance %, Hz, ppm Emission designator (see 47 CFR §2.201 and §2.202) Microprocesso r model number 935 - 940 75 WGXW DC voltages applied to and dc currents into the several elements of the final radio frequency amplifying device for normal operation over the power range. 27 Vdc / 32 A For equipment employing digital modulation techniques... N/A If equipment is an AM broadcast stereophonic exciter-generator: N/A Report No. 100185-08 (FCC ID:E675JS0052) Page 8 Rev.No 1.0 2.SYSTEM TEST CONFIGURATION 2.1Justification The Seahawk was initially tested for FCC emission in the following configuration: See Block Diagram. 2.2EUT Exercise Software None 2.3Special Accessories None 2.4Modification None 2.5Configuration of Tested System See Block Diagram. Report No. 100185-08 (FCC ID:E675JS0052) Page 9 Rev.No 1.0 3RADIATED EMISSION EQUIPMENT/DATA The following data lists the significant emission frequencies, measured levels, correction factor (which includes cable and antenna corrections), the corrected reading, and the limit. See following page(s). See test setup photos for radiated emissions test setup. Low, mid and high channels were tested. All emissions (spurious and harmonics) were greater than 20 dB below the limit. Frequency ran…

Text truncated - open the document above for the full version.

Power SupplyAmplifierAttenuator Directional Coupler Attenuator Power SensorPower Meter EUT EUT EUT TEST SETUP
