E675JS0057Single-Channel Cellular Amplifier

869-894 MHz  Copyright Powerwave Technologies, Inc., December 2001. All rights reserved 044-xxxxx Rev.xDecember 2001 Model SCA 9350-30 Single-Channel Cellular Amplifier Installation & Service Manual SCA 9350-30 Installation and Service Manual  Copyright Powerwave Technologies, Inc., December 2001. All rights reserved 044-xxxxx Rev. xiiDecember 2001 December 2001 Powerwave Technologies, Inc.Tel: (714) 466-1000 1801 East St. Andrew Place(888) 797-9283 Santa Ana, CA 92705Fax: (714) 466-5800 Web Site: www.powerwave.com © 2001 Powerwave Technologies Incorporated. All rights reserved. Powerwave Technologies, and the Powerwave logo are registered trademarks Powerwave Technologies, Inc. reserves the right to make changes to the documentation and equipment, including but not limited to component substitution and circuitry changes. Changes that impact this manual may subsequently be incorporated in a later revision of this manual. SCA 9350-30 Installation and Service Manual  Copyright Powerwave Technologies, Inc., December 2001. All rights reserved 044-xxxxx Rev. xDecember 2001 iii Table Of Contents Par.Section 1Page No. General DescriptionNo. 1-1Introduction ................................................................................................................................... 1-1 1-2General Description....................................................................................................................... 1-1 1-3Functional and Physical Specifications ......................................................................................... 1-1 1-4Equipment Changes ....................................................................................................................... 1-1 Section 2 Installation 2-1Introduction ................................................................................................................................... 2-1 2-2Electrical Service Recommendations ............................................................................................ 2-1 2-3Unpacking and Inspection ............................................................................................................. 2-1 2-4Installation Instructions ................................................................................................................. 2-2 2-5Amplifier Module Connectors ....................................................................................................... 2-2 2-5.1Data I/O Connector........................................................................................................................ 2-3 2-5.2Amplifier RF Connectors .............................................................................................................. 2-4 2-5.3DC Power Connector..................................................................................................................... 2-4 Section 3 Operating Instructions 3-1Introduction ................................................................................................................................... 3-1 3-2Location and Function of Amplifier Indicators ............................................................................. 3-1 3-3Initial Start-Up and Operating Procedures..................................................................................... 3-1 Section 4 Principles of Operation 4-1Introduction ................................................................................................................................... 4-1 4-2RF Input Signal.............................................................................................................................. 4-1 4-3RF Output Load ............................................................................................................................. 4-1 4-4SCA 9350-30 Amplifier ................................................................................................................ 4-1 4-4.1Driver Amplifier ............................................................................................................................ 4-2 4-4.2Main Amplifier .............................................................................................................................. 4-2 4-4.3Power Distribution......................................................................................................................... 4-2 4-4.4Multifunction Board ...................................................................................................................... 4-2 Section 5 Maintenance 5-1Periodic Maintenance .................................................................................................................... 5-1 SCA 9350-30 Installation and Service Manual  Copyright Powerwave Technologies, Inc., December 2001. All rights reserved 044-xxxxx Rev. xDecember 2001 iv Section 6 Troubleshooting 6-1Introduction ................................................................................................................................... 6-1 6-2Trouble shooting............................................................................................................................ 6-1 6-3Return for Service Procedures ....................................................................................................... 6-1 6-3.1Obtaining an RMA ........................................................................................................................ 6-1 6-3.2Repackaging for Shipment............................................................................................................. 6-1 List Of Illustrations FigurePage No.No. 1-1SCA 9350-30 Amplifier ................................................................................................................ 1-3 2-1SCA 9350-30 Front Panel View .................................................................................................... 2-2 2-2Data I/O Connecto…

Text truncated - open the document above for the full version.

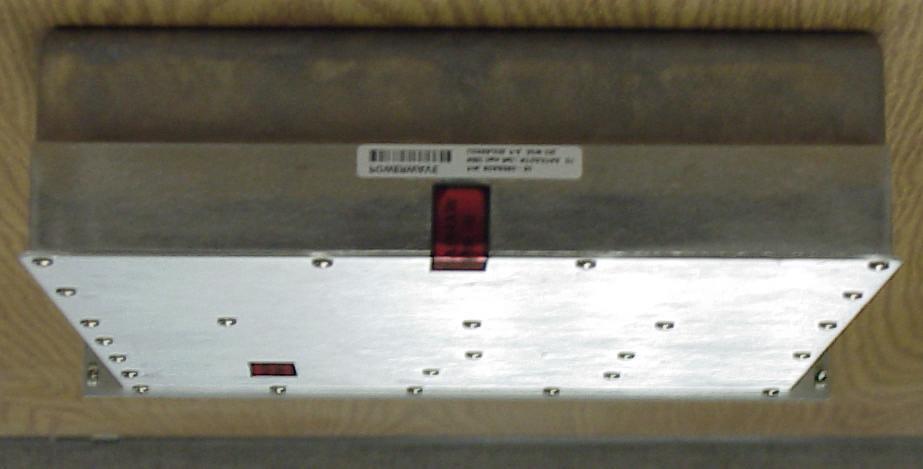

POWERWAVE TECHNOLOGIES INCORPORATED CANADA: FCC ID: E67 5JS0057 XX XXXXXXXXX XXXXXXXXXXX

SCA 9350-30 Installation and Service Manual  Copyright Powerwave Technologies, Inc., December 2001. All rights reserved 044-xxxxx Rev.x4-1December 2001 Section 4 Principles of Operation 4-1 Introduction This section contains a functional description of the single-carrier SCA 9350-30 amplifier. 4-2 RF Input Signal The maximum input power should not exceed the levels to produce the maximum rated RF output power in table 1-1. This level is approximately 0 dBm, but should be set through the base- transceiver station’s software interface. See the BTS manual for detailed instructions. 4-3 RF Output Load The load impedance should be as good as possible (1.5:1 or better) in the working band for good power transfer to the load. 4-4 SCA 9350-30 Amplifier The amplifier, figure 4-1, has an average output power of 30 watts, and is designed to support transmission in GMSK and EDGE modulation. With an input signal of approximately 0 dBm, the amplifier will operate at its rated output power. The amplifier is comprised of: Driver Amplifier Main Amplifier Multifunction Board DC/DC Converter Module Main Amp Temp Sense Det Driver DAC MCU RS-485 Intfc 20-pin SCSI 3 PWR Conn Red/ Grn Input Filter/ Protection Current Sense DC/DC -48/+26 5 V Reg. Power Supply +26 Multifunction Figure 4-1 SCA 9350-30 Amplifier Block Diagram SCA 9350-30 Installation and Service Manual  Copyright Powerwave Technologies, Inc., December 2001. All rights reserved 044-xxxxx Rev.x4-2December 2001 4-4.1 Driver Amplifier The driver amplifier is a two-stage amplifier which provides approximately 28 dB of gain in the 25 MHz frequency band from 869 to 894 MHz. The amplifier is mounted directly on a heat sink, which is temperature monitored by a thermal sensor. 4-4.2 Main Amplifier The main amplifier is a single-stage Class AB amplifier with approximately 13 dB gain and a P1dB of +50 dBm. The amplifier’s output is protected from output mismatches. The amplifier is de- signed to meet spectral mask requirements for GSM and EDGE signals when operated up to +45.2 dBm. The amplifier is mounted directly on a heat sink. 4-4.3 Power Distribution The amplifier module operates on a –48 VDC nominal power supply consuming 2.9 amps (typi- cally) current at full power. A DC/DC converter to supply internal circuitry with +26 VDC and +5 VDC. 4-4.4 Multifunction Board The multifunction board enables communication between the amplifier and the base-transceiver station in which it is installed, and stores information about the amplifier. It includes gain control and two gain stages providing 7 dB gain. The multifunction board also monitors several amplifier performance parameters and reports output power so that the BTS can maintain the output power within specified limits. When these parameters are beyond acceptable levels, the amplifier will alarm. The multifunction board is mounted directly on a heat sink, which is temperature monitored by a thermal sensor. The alarms are: Temperature Alarm - If the internal temperature reaches 90°C, the PA shuts down and com- municates an alarm through the digital interface. DC/DC Alarm - If the output voltage of the converter falls below 23.5V, the PA shuts down and communicates an alarm through the digital interface. Over-current Alarm - If the output current of the DC/DC converter goes above a nominal threshold (7.5 A), the PA shuts down and communicates an alarm through the digital interface. Communication Alarm - If the serial interface detects an error in transmission (parity, over- run, framing), an alarm is sent for one burst only during the very next burst. The PA operation is not affected.

FCC CFR47 PART 22 CERTIFICATION TEST REPORT FOR 869-894MHz SINGLE-CHANNEL GSM/EDGE AMPLIFIER MODEL: SCA9350-30 FCC ID: E675JS0057 REPORT NUMBER: 01U1077 ISSUE DATE: DECEMBER 20, 2001 Prepared for POWERWAVE TECHNOLOGIES, INC. 1801 E. St. ANDREW PLACE SANTA ANA, CA 92705 USA Prepared by COMPLIANCE CERTIFICATION SERVICES, INC. 561 F MONTEREY ROAD MORGAN HILL, CA 95037 USA TEL: 408-463-0885 FAX: 408-463-0888 REPORT NO: 01U1077 DATE: DECEMBER 20, 2001 FCC ID: E675JS0057 EUT: 869-894MHz SINGLE-CHANNEL AMPLIFIER PAGE 2 OF 64 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS PAGE 1. FCC CERTIFICATION INFORMATION....................................................................................................3 2. TEST FACILITY..............................................................................................................................................4 3. ACCREDITATION AND LISTING...............................................................................................................4 4. MEASUREMENT INSTRUMENTATION....................................................................................................4 5. MEASURING INSTRUMENT CALIBRATION...........................................................................................4 6. UNITS OF MEASUREMENT.........................................................................................................................5 7. EQUIPMENT MODIFICATIONS..................................................................................................................5 8. TEST EQUIPMENT LIST................................................................................................................................6 9. EUT SETUP PHOTOS.....................................................................................................................................7 10. EXTERNAL I/O CABLE CONSTRUCTION DESCRIPTION.................................................................11 11. CONFIGURATION BLOCK DIAGRAM....................................................................................................11 12. PART 2: CERTIFICATION TEST REQUIREMENT:.............................................................................12 SECTION 2.1046: RF POWER OUTPUT............................................................................................................12 SECTION 2.1047: MODULATION CHARACTERISTICS.................................................................................18 SECTION 2.1049: OCCUPIED BANDWIDTH...................................................................................................18 SECTION 2.1051: SPURIOUS EMISSION AT ANTENNA TERMINALS........................................................28 SECTION 2.1055: FREQUENCY STABILITY...................................................................................................42 RADIATED EMISSIONS.....................................................................................................................................42 ATTACHMENTS.....................................................................................................................................................51 EUT PHOTOGRAPHS............................................................................................................................................52 REPORT NO: 01U1077 DATE: DECEMBER 20, 2001 FCC ID: E675JS0057 EUT: 869-894MHz SINGLE-CHANNEL AMPLIFIER Page 3 of 57 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. FCC CERTIFICATION INFORMATION The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 2.1033(c)(1) Applicant: POWERWAVE TECHNOLOGIES, INC. 1801 E. St. ANDREW PLACE SANTA ANA, CA 92705 Contact person: CLINT LAWRENCE Telephone number: (916) 941-3167 2.1033(c)(2) FCC ID: E675JS0057 2.1033(c)(4) Types of Emissions: G7W (EDGE), GXW (GSM) 2.1033(c)(5) Frequency Range: 869 – 894 MHz 2.1033(c)(6) Range of Operation Power: 33 Watts 2.1033(c)(7) Maximum Power Rating: 33 Watts 2.1033(c)(8) DC Voltage and DC Current: -48Vdc @ 2.9 A; typical Section 22.913(a); Maximum ERP. The effective radiated power (ERP) of base transmitters and cellular repeaters must not exceed 500 Watts. TYPE OF EQUIPMENT: CELLULAR AMPLIFIER MEASUREMENT DISTANCE: 3 METER TECHNICAL LIMIT: FCC 22.359, 22.917 FCC RULES: PART 22 EQUIPMENT AUTHORIZATION PROCEDURE CERTIFICATION MODIFICATIONS MADE ON EUT YES (REFER TO PAGE 7) NO The above equipment was tested by Compliance Certification Services for compliance with the requirements set forth in the FCC CFR 47, PART 22. The results of testing in this report apply to the product/system, which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. TESTED BY: REVIEWED and RELEASED BY: KERWIN CORPUZ STEVE CHENG ASSOCIATE EMC ENGINEER EMC ENGINEERING MANAGER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 01U1077 DATE: DECEMBER 20, 2001 FCC ID: E675JS0057 EUT: 869-894MHz SINGLE-CHANNEL AMPLIFIER Page 4 of 57 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be repro…

Text truncated - open the document above for the full version.

REPORT NO: 01U1077 DATE: DECEMBER 20, 2001 FCC ID: E675JS0057 EUT: 869-894MHz SINGLE-CHANNEL AMPLIFIER Page 7 of 64 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 9. EUT SETUP PHOTOS Occupied Bandwidth Input Setup REPORT NO: 01U1077 DATE: DECEMBER 20, 2001 FCC ID: E675JS0057 EUT: 869-894MHz SINGLE-CHANNEL AMPLIFIER Page 8 of 64 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Occupied Bandwidth Output Setup 1 – 9GHz Radiated Emission Setup REPORT NO: 01U1077 DATE: DECEMBER 20, 2001 FCC ID: E675JS0057 EUT: 869-894MHz SINGLE-CHANNEL AMPLIFIER Page 9 of 64 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Substitution Method Setup Part15 front view Radiated Emission Setup REPORT NO: 01U1077 DATE: DECEMBER 20, 2001 FCC ID: E675JS0057 EUT: 869-894MHz SINGLE-CHANNEL AMPLIFIER Page 10 of 64 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Part15 back view Radiated Emission Setup Part15 front view Conducted Emission Setup REPORT NO: 01U1077 DATE: DECEMBER 20, 2001 FCC ID: E675JS0057 EUT: 869-894MHz SINGLE-CHANNEL AMPLIFIER Page 11 of 64 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO:CCSUP4031A 561 F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL:(408) 463-0885 FAX:(408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. Part15 back view Conducted Emission Setup
