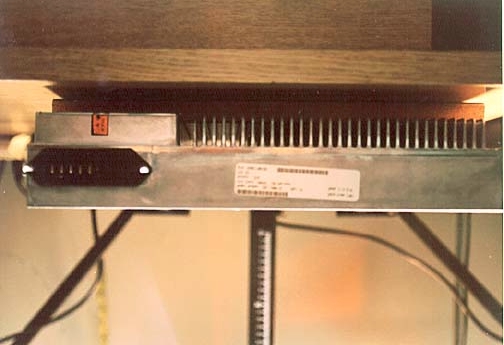

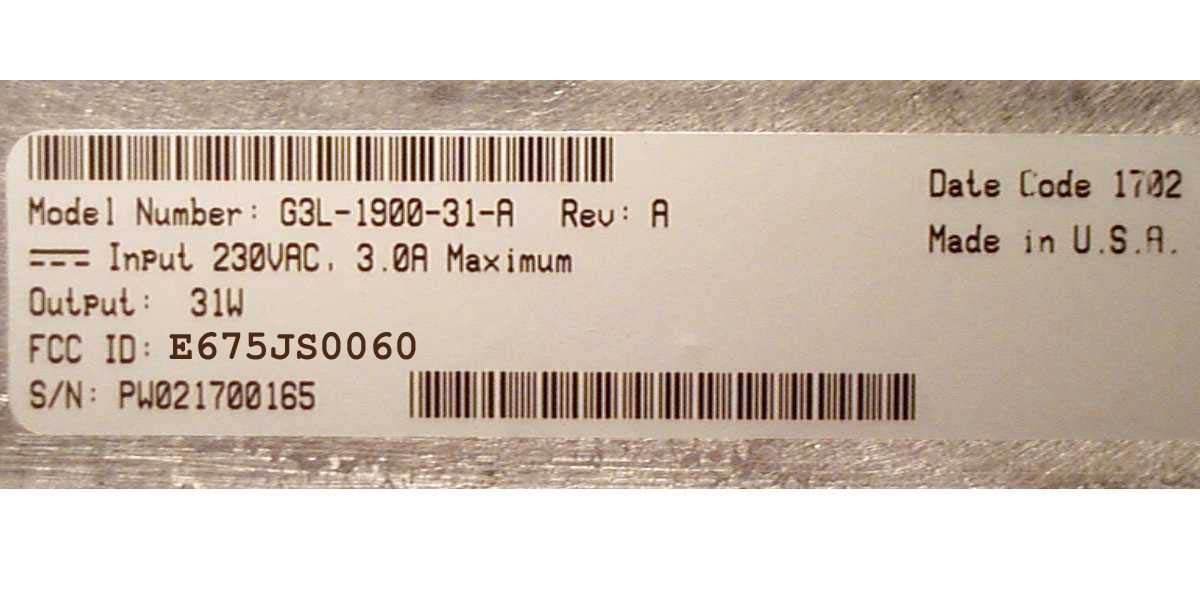

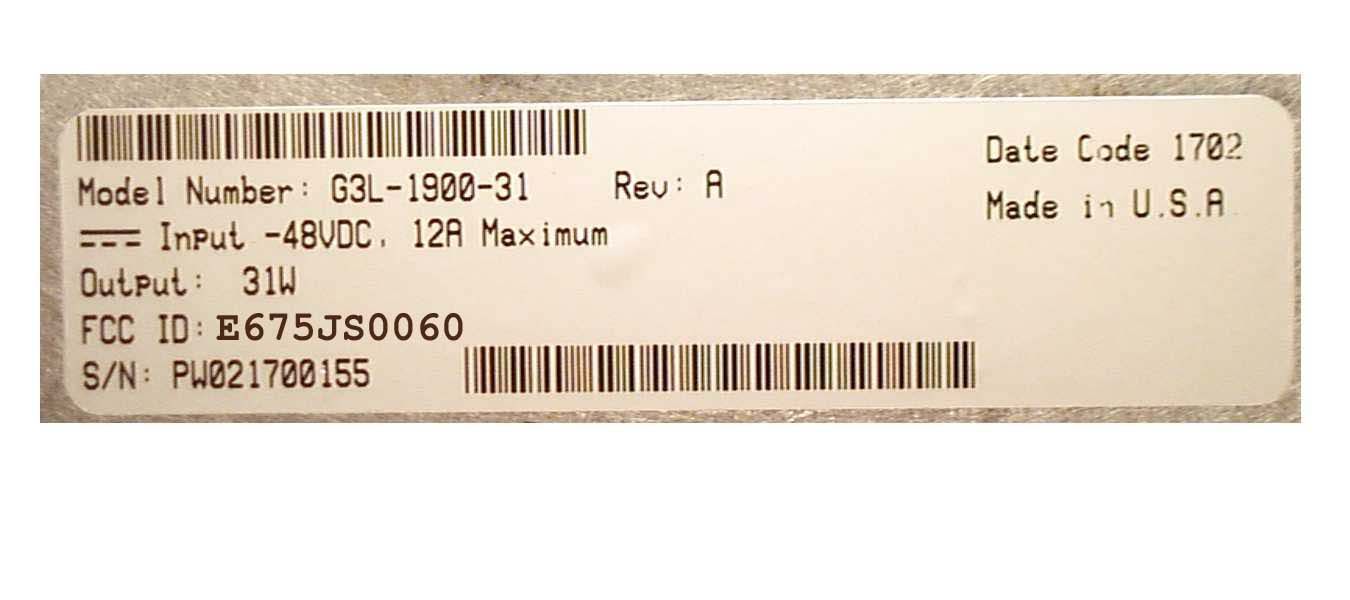

Copyright Powerwave Technologies, Inc., June 2002. All rights reserved 044-05116 Rev. A1-1June 2002 Section 1 General Description 1-1 Introduction This manual contains information and procedures for the operation of the model G3L-1900-31 and G3L-1900-31-A Wideband (WCDMA) Multi-Carrier Power Amplifier (MCPA). The manual is organized into the following sections and appendix. Section 1General Description Section 2Operation Appendix ASpecifications 1-2 General Description The amplifiers are wideband, linear, feed-forward power amplifiers (WPAs) that operate in the 60 MHz frequency bandwidth from 1930 to 1990 MHz with an instantaneous bandwidth of 20 MHz. The amplifier provides linear amplification for single or multi-carrier WCDMA signals. The amplifi- ers communicate with the base station via a TLCI control interface bus; passing alarm and meas- urement information to the base station and receiving control information from the base station. 1-3 Hardware Interface There are three groups of interface connections located on the amplifier chassis. These are RF, power, and control interface (TLCI bus) as described in the paragraphs that follow. 1-3.1 RF The RF interface is located on the power amplifier front panel consists of the RF-In (TX-In) and RF-Out (TX-Out) connectors as shown in Figure 1-1. 1-3.2 Power Supply Power supply voltages (-48 VDC or 230 VAC) from the base station subrack are connected to the amplifier via connector X3, pins A – D located on the power amplifier rear panel as shown in figure 1-1. Table 1-1 lists the voltages and descriptions for each pin. Table 1-1 Primary Power Connections Signal Group X3 Connector Pin Signal NameDescription ALAC Phase (isolated from amplifier chassis) BNAC Zero (isolated from amplifier chassis) AC CPEAC Protective Ground (connected to chassis) D-48VDCDC Minus (isolated from amplifier chassis) DC E+48VDCDC Plus (isolated from amplifier chassis) G3L-1900-31/G3L-1900-31-A Operation Manual
Copyright Powerwave Technologies, Inc., June 2002. All rights reserved 044-05116 Rev. A1-2June 2002 1-3.3 TLCI Bus Communications The purpose of the TCLI bus is to provide a communications interface between the power ampli- fier and base station. The bus is connected from the base station subrack to the X3 connector lo- cated on the power amplifier rear panel as shown in figure 1-1. Table 1-2 lists the signal names and descriptions for each pin of the 24-pin connector. Table 1-2 TLCI Bus Connections Signal Group X3 Connector PinSignal NameDescription 2AXMTP 3AXMTN 18ARCVP TLCI 19ARCVN Ethernet, 10BASE-T 5WPA_ID_BIT0Hard-coded WPA ID 13WPA_ID_BIT1BIT0=LSB, BIT!=MSB WPA ID 21WPA_ID_BIT2OPEN=1=Logical High Gnd=0=Logical Low 1 4 8 9 10 11 12 17 20 GND 24 GroundConnected to WPA chassis ground Free6, 7, 14. 15, 16, 22, 23 Reserved for WPA manufacture G3L-1900-31/G3L-1900-31-A Operation Manual
Copyright Powerwave Technologies, Inc., June 2002. All rights reserved 044-05116 Rev. A1-3June 2002 1-4 Alarms The WPA generates the following alarms and communicates then to the base station via the TLIC bus:
VSWR
Gain
Temperature
Over-Drive
Power Supply
Linearization The base station is able to query the current alarm status from the WPA. Fault status is cleared at unit reset which means that any alarm detected after reset is reported to the base station. The alarm status always represents existing conditions. 1-4.1 VSWR The WPA supervises the output (load) VSWR and gives the alarm based on the following limits as listed in table 1-3. Table 1-3 VSWR Alarm Limits VSWR Alarm StatusLimits VSWR alarm ONVSWR at the output>6.0:1 @ phase 0-360º VSWR alarm OFFVSWR at the output<3.0:1 or when the VSWR alarm is dis- abled @ phase 0-360º 1-4.2 Gain The WPA supervises the gain of the unit and gives the gain alarm according to the limits listed in table 1-4. Table 1-4 Gain Alarm Limits Gain Alarm StatusLimits Gain alarm ON Gain deviates more than 1.5 dB from specified nominal gain or if the carrier cancellation loop is out of lock, the gain alarm is activated Gain alarm OFFGain is within the specified range or disabled 1-4.3 Temperature The WPA monitors the internal temperature. The measured temperature must represent the base plate temperature of the main power amplifier. The alarm is given according to the limits listed in table 1-5. G3L-1900-31/G3L-1900-31-A Operation Manual
Copyright Powerwave Technologies, Inc., June 2002. All rights reserved 044-05116 Rev. A1-4June 2002 Table 1-5 Temperature Alarm Limits Temperature Alarm StatusLimits Temperature alarm ONInternal base plate temperature is equal or higher than 92ºC Temperature alarm OFFInternal base plate temperature decreases more than 10ºC from the alarm on temperature 1-4.4 Overdrive The overdrive alarm causes an automatic WPA shutdown. 1-4.5 Power Supply The WPA monitors the internal DC supply voltages and gives the power supply alarm if any of the voltages are out of the specified range. This alarm causes an automatic WPA shutdown. 1-4.6 Linearization In case of poor output signal, the linearization ca…
