E675JS0081900 MHz Repeater

User’s Manual ALR Compact Repeater VD203 67/EN - EnglishFuture on Demand. User’s Manual ALR Compact Repeater Low Power Band Selective Repeater – English ALLGON Systems ABALR Compact Repeater VD203 67/EN - User’s ManualRev. 1A 2000-07i This document describes installation, commissioning and the design of the Allgon ALR Compact Repeater. Communication between the Allgon ALR Compact Repeater and an operator is carried out either by using Allgon OMT32 (Operation and Maintenance Terminal), or Allgon OMS (Operation and Maintenance System). OMT32 is described in the AR Repeaters and OMT32, User’s Manual. OMS is described in the Advanced Repeater OMS, User’s Manual. Hardware and software mentioned in this document are subjected to continuous development and improvement. Consequently, there may be minor discrepancies between the information in the document and the performance and design of the product. Specifications, dimensions and other statements mentioned in this document are subject to change without notice. In this document, the ’<>’ brackets are used to indicate function keys contrary to a series of key strokes ’<Del>’ = the Del(ete) key, ’Del’ = D, e, l. Allgon and its suppliers shall not be liable for any damages related to the software or hardware, or for any other damages whatsoever caused of the use of or inability to use any Allgon product. This is applicable even if Allgon has been advised of the damage risk. Under any circumstances, Allgon’s entire liability shall be limited to replace such defective software or hardware which was originally purchased from Allgon. Teflon is a registered trademark of Du Pont. Other trademarks mentioned in this document are trademarks or registered trademarks of their respective owners. This document is produced by El, Tele & Maskin Ingenjörsfirma AB, Huddinge, Sweden. Printed in Sweden. Allgon Systems AB, SE-187 80 Täby, Sweden Phone: +46 8 540 822 00 – Fax: +46 8 540 834 80 – Internet: www.allgon.com This document or parts of it may not be reproduced without the written permission of Allgon Systems AB. Infringements will be prosecuted. All rights reserved. Copyright © Allgon Systems AB, Sweden, 1994-2000. ALLGON Systems ABALR Compact Repeater VD203 67/EN - User’s ManualRev. 1A 2000-07ii C ontents A bbreviations ............................................................................................................... v 1 . Safety ....................................................................................................................... 1-1 Static Electricity .................................................................................................. 1-2 2 . Introduction ............................................................................................................. 2-1 Repeater Type .................................................................................................... 2-2 Using Repeaters ................................................................................................. 2-3 Shaded Area ................................................................................................. 2-4 Sports Arena ................................................................................................... 2-5 3 . Installation ................................................................................................................ 3-1 Siting the Repeater ............................................................................................ 3-1 Sunshine ......................................................................................................... 3-1 Shelter ............................................................................................................. 3-1 Outdoor Installation and Service Limitations .............................................. 3-1 Dimensions and Weight .................................................................................... 3-2 Mounting ............................................................................................................. 3-3 Connection ........................................................................................................ 3-6 Connection Ports and Station Ground ............................................................ 3-9 Station Ground .............................................................................................. 3-9 P112 PC Port .................................................................................................. 3-10 P113 Parking Device ..................................................................................... 3-10 P118 Repeater to Repeater Link Port .......................................................... 3-10 P119 Alarm Port ............................................................................................. 3-11 P120 Door Switch .......................................................................................... 3-12 P124 Repeater to Repeater Link Port .......................................................... 3-12 P130 RCC Port ............................................................................................... 3-12 Mains Breakdown Relay .................................................................................... 3-13 4 . Commissioning ........................................................................................................ 4-1 Starting the Repeater ........................................................................................ 4-2 Indicators ....................................................................................................... 4-3 Repeater Configuration .................................................................................... 4-4 5 . Functional Description and Design ....................................................................... 5-1 Repeater Design ................................................................................................…

Text truncated - open the document above for the full version.

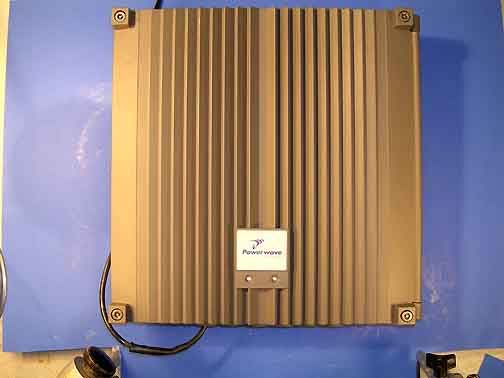

Front Back Top Bottom Side 1 Side 2

Description AB C D E E D C BA 1 2 345 5 4 3 2 1 This document and its content is th e property of LGPALLGON AB and must not be copied, reproduced, transmitted or disclosed to any third partywithout our consent. Contravention will be prosecuted. This document and its content is th e property of LGPALLGON AB and must not be copied, reproduced, transmitted or disclosed to any third partywithout our consent. Contravention will be prosecuted. Treatment Tolerance accISO 2768-1 Drawn by/Date CAD-file Drawing no. Page Size Rev Scale Finish Note Note Name Material PART No No Pos -00 2 A4 .VD203 79/1 . .VD203 93/1-201 . . C . . . . . . . . Printed label VD203 93/1 Font Si z e N O T E: The Powerwave logotype is shown in a simplified mode, M ater i a l Silver coluored metalized polyester Brady B-486 "Mondo Bondo" or similar. TJn 031201 N ote : The label material should be made of UL-recognized material according to category PGJI2. The print coluor should be in black. . when printing the label use a correct file for the Powerwavelogotype. This device complies with part 15 and, 22 or 24 or 90 of the FCC rules.Operation is subject to thefolliwing two conditions:(1)This device may not couse harmful interference,and (2)this device must accept any interferense recived,including interference that may couse undesired operation. 1 23 1,2,3 = Text alternative according to document VD204 60/1 FCC: E675JS0081 MODEL: ALR 1200 Canada: A= ARIAL BOLD 3 mmB= ARIAL 1,6 mm 1:1 X Font A Font B -0 02 Specifies Item VD203 93/1 NA. Security INTERNAL. Status RELEASED. This document is issued by means of a computerized system. RELEASED means that the document has been electronically approved. INTERNAL means that all employees can access the document. It may only be distributed outside the company toa specific receiver if approved by authorized employee.

ALLGON SYSTEM AB Utfärdare/Issued by Kjell Knuutinen Dattum/Date 2003-06-11 Godkänd/Approved Dok nr/Doc no ALR1200/901-201 Rev F Sida/Page Dok namn/Doc name PRODUCT SPECIFICATION Fil/file ALR1200-901_F.doc COMPACT repeater with adjustable bandwidth 900 MHz version, EGSM, 15 MHz BW Product Number: ALR1200/901 1. Electrical specification (typical values) The repeater complies with the requirements of ETS 300 609-4 Frequency tuning band Up link 880 – 915 MHz Frequency tuning band Down link 925 – 960 MHz Filter bandwidth standard, adjustable 0.5 – 15 MHz Filter setting resolution 25 kHz Duplex spacing 45 MHz Gain adjustment range 55-70 dB Gain (max variation –25 to +55 °C) 5 dB Gain step resolution 1 dB Filter sensitivity @ 400 kHz offset > 20 dB Filter sensitivity @ 600 kHz offset > 30 dB Filter sensitivity @ 1 MHz offset > 35 dB Output power, PEP + 25 dBm Output power, 2 carrier + 19 dBm/carrier Pass band ripple 5 dB Max absolute group delay 6 μs Noise figure at 70 dB gain, 25° C 8 dB Maximum input power +13 dBm Receiver input port return loss 14 dB Power supply voltage 85 - 265 VAC Power consumption 55 W 2. Environmental specification Temperature range -13 to + 131 °F Temperature range -25 to + 55 °C Casing class NEMA4/IP65 3. Mechanical specification Dimensions. (W x H x D) 15.2 x 15.2 x 4.3 Inches 385 x 385 x 110 mm Mechanical outline See Compact Low Weight < 22 lbs < 10 kg RF-connectors N-type female Lock type Allgon Safety bolts

DC Voltages - 83984 14 Vdc, 4A into the output devices.

Page 1 of 33 Report No.: FC05-051 POWERWAVE TECHNOLOGIES, INC. TEST REPORT FOR THE 900MHZ CELLULAR REPEATER, ALR 1200 FCC PART 90 COMPLIANCE DATE OF ISSUE: OCTOBER 18, 2005 PREPARED FOR: Powerwave Technologies, Inc. 1801 E. St. Andrew Place Santa Ana, CA 92705 PREPARED BY: Mary Ellen Clayton CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 P.O. No.: 71687 W.O. No.: 83984 Date of test: July 18 - October 5, 2005 Report No.: FC05-051 This report contains a total of 33 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 33 Report No.: FC05-051 TABLE OF CONTENTS Administrative Information .............................................................................................3 Conditions for Compliance ..............................................................................................4 Approvals .........................................................................................................................4 Equipment Under Test (EUT) Description ......................................................................5 Equipment Under Test .....................................................................................................5 Peripheral Devices ...........................................................................................................5 Temperature and Humidity During Testing.....................................................................6 FCC 2.1033(c)(3) User’s Manual ....................................................................................6 FCC 2.1033(c)(4) Type of Emissions ..............................................................................6 FCC 2.1033(c)(5) Frequency Range................................................................................6 FCC 2.1033(c)(6) Operating Power.................................................................................6 FCC 2.1033(c)(7) Maximum Power Rating ....................................................................6 FCC 2.1033(c)(8) DC Voltages .......................................................................................6 FCC 2.1033(c)(9) Tune-Up Procedure ............................................................................6 FCC 2.1033(c)(10) Schematics and Circuitry Description..............................................6 FCC 2.1033(c)(11) Label and Placement ........................................................................6 FCC 2.1033(c)(12) Submittal Photos ..............................................................................6 FCC 2.1033(c)(13) Modulation Information ...................................................................6 FCC 2.1033(c)(14)/2.1046/90.635(b) - RF Power Output ..............................................7 FCC 2.1033(c)(14)/2.1047(b) - Audio Frequency Response...........................................8 FCC 2.1033(c)(14)/2.1047(b) - Modulation Limiting Response.....................................8 FCC 2.1033(c)(14)/2.1049(i) – Input Plots .....................................................................9 FCC 2.1033(c)(14)/2.1049(i) – Output Plots ...................................................................16 FCC 2.1033(c)(14)/2.1051/90.669(a) - Spurious Emissions at Antenna Terminal .........23 FCC 2.1033(c)(14)/2.1053/90.669(a) - Field Strength of Spurious Radiation ................24 Bandedge Plots ................................................................................................................29 Page 3 of 33 Report No.: FC05-051 ADMINISTRATIVE INFORMATION DATE OF TEST: July 18 - October 5, 2005 DATE OF RECEIPT: July 18, 2005 FREQUENCY RANGE TESTED: 9kHz-10GHz MANUFACTURER: Powerwave Technologies, Inc. 1801 E. St. Andrew Place Santa Ana, CA 92705 REPRESENTATIVE: Jeffrey Dale TEST LOCATION: CKC Laboratories, Inc. 110 Olinda Place Brea, CA 92621 TEST METHOD: FCC Part 90, ANSI/TIA/EIA-603-B (2002) PURPOSE OF TEST: To demonstrate the compliance of the 900MHz Cellular Repeater, ALR 1200 with the requirements for FCC Part 90 Class devices. Page 4 of 33 Report No.: FC05-051 CONDITIONS FOR COMPLIANCE No modifications to the EUT were necessary to comply. APPROVALS Steve Behm, Director of Engineering Services QUALITY ASSURANCE:TEST PERSONNEL: Joyce Walker, Quality Assurance Administrative Manager Eddie Wong, EMC Engineer Page 5 of 33 Report No.: FC05-051 EQUIPMENT UNDER TEST (EUT) DESCRIPTION The customer declares the EUT tested by CKC Laboratories was representative of a production unit. EQUIPMENT UNDER TEST 900MHz Cellular Repeater Manuf: Powerwave Technologies Model: ALR 1200 Serial: NA FCC ID: pending PERIPHERAL DEVICES The EUT was not tested with peripheral devices. Page 6 of 33 Report No.: FC05-051 TEMPERATURE AND HUMIDITY DURING TESTING The temperature during testing was within +15°C and + 35°C. The relative humidity was between 20% and 75%. FCC 2.1033(c)(3) USER’S MANUAL The necessary information is contained in a separate document. FCC 2.1033 (c)(4) TYPE OF EMISSIONS 16K0F3E and iDEN FCC 2.1033 (c)(5) FREQUENCY RANGE 935MHz – 940MHz FCC 2.1033 (c)(6) OPERATING POWER 16K0F3E – 0.3162 Watts, iDEN – 0.0800 Watts FCC 2.1033 (c)(7) MAXIMUM POWER RATING 500 Watts FCC 2.1033 (c)(8) DC VOLTAGES The necessary information is contained in a separate document. FCC 2.1033 (c)(9) TUNE-UP PROCEDURE The necessary information is contained in a separate document. FCC 2.1033(c)(10)SCHEMATICS AND CIRCUITRY DESCRIPTION The necessary information is contained in a separate document. FCC 2.1033(c)(11) LABEL AND PLACEMENT The necessary information is contained in a separate document. FCC 2.1033(c)(12) SUBMITTAL PHOTOS The necessary information is contained in a separate document. FCC 2.1033 (c)(13) MODULATION INFORMATION AMP Page 7 of 33 Report No.: FC05-051 FCC 2.1033(c)(14)/2.1046/90.635(b) - RF POWER…

Text truncated - open the document above for the full version.

Page 1 of 51 Report No.: FC05-051A POWERWAVE TECHNOLOGIES, INC. ADDENDUM TEST REPORT FOR THE 900MHZ CELLULAR REPEATER, ALR 1200 FCC PART 90 COMPLIANCE DATE OF ISSUE: FEBRUARY 23, 2006 PREPARED FOR: Powerwave Technologies, Inc. 1801 E. St. Andrew Place Santa Ana, CA 92705 PREPARED BY: Mary Ellen Clayton CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 P.O. No.: 71687 W.O. No.: 83984 Date of test: July 18, 2005 – February 23, 2006 Report No.: FC05-051A This report contains a total of 51 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 51 Report No.: FC05-051A TABLE OF CONTENTS Administrative Information .............................................................................................3 Conditions for Compliance ..............................................................................................4 Approvals .........................................................................................................................4 Equipment Under Test (EUT) Description ......................................................................5 Equipment Under Test .....................................................................................................5 Peripheral Devices ...........................................................................................................5 Temperature and Humidity During Testing.....................................................................6 FCC 2.1033(c)(3) User’s Manual ....................................................................................6 FCC 2.1033(c)(4) Type of Emissions ..............................................................................6 FCC 2.1033(c)(5) Frequency Range................................................................................6 FCC 2.1033(c)(6) Operating Power.................................................................................6 FCC 2.1033(c)(7) Maximum Power Rating ....................................................................6 FCC 2.1033(c)(8) DC Voltages .......................................................................................6 FCC 2.1033(c)(9) Tune-Up Procedure ............................................................................6 FCC 2.1033(c)(10) Schematics and Circuitry Description..............................................6 FCC 2.1033(c)(11) Label and Placement ........................................................................6 FCC 2.1033(c)(12) Submittal Photos ..............................................................................6 FCC 2.1033(c)(13) Modulation Information ...................................................................6 FCC 2.1033(c)(14)/2.1046/90.635(b) - RF Power Output ..............................................7 FCC 2.1033(c)(14)/2.1047(b) - Audio Frequency Response...........................................8 FCC 2.1033(c)(14)/2.1047(b) - Modulation Limiting Response.....................................8 FCC 2.1033(c)(14)/2.1049(i) – Input Plots .....................................................................9 FCC 2.1033(c)(14)/2.1049(i) – Output Plots ...................................................................22 FCC 2.1033(c)(14)/2.1051/90.669(a) - Spurious Emissions at Antenna Terminal .........35 FCC 2.1033(c)(14)/2.1053/90.669(a) - Field Strength of Spurious Radiation ................36 Bandedge Plots ................................................................................................................43 Page 3 of 51 Report No.: FC05-051A ADMINISTRATIVE INFORMATION DATE OF TEST: July 18, 2005 – February 23, 2006 DATE OF RECEIPT: July 18, 2005 FREQUENCY RANGE TESTED: 9kHz-10GHz MANUFACTURER: Powerwave Technologies, Inc. 1801 E. St. Andrew Place Santa Ana, CA 92705 REPRESENTATIVE: Jeffrey Dale TEST LOCATION: CKC Laboratories, Inc. 110 Olinda Place Brea, CA 92621 TEST METHOD: FCC Part 90, ANSI/TIA/EIA-603-B (2002) PURPOSE OF TEST: To demonstrate the compliance of the 900MHz Cellular Repeater, ALR 1200 with the requirements for FCC Part 90 devices. Addendum A is to add new test data for the bi- directional portion of the EUT. Page 4 of 51 Report No.: FC05-051A CONDITIONS FOR COMPLIANCE No modifications to the EUT were necessary to comply. APPROVALS Steve Behm, Director of Engineering Services QUALITY ASSURANCE:TEST PERSONNEL: Joyce Walker, Quality Assurance Administrative Manager Eddie Wong, EMC Engineer Page 5 of 51 Report No.: FC05-051A EQUIPMENT UNDER TEST (EUT) DESCRIPTION The customer declares the EUT tested by CKC Laboratories was representative of a production unit. EQUIPMENT UNDER TEST 900MHz Cellular Repeater Manuf: Powerwave Technologies Model: ALR 1200 Serial: NA FCC ID: pending PERIPHERAL DEVICES The EUT was not tested with peripheral devices. Page 6 of 51 Report No.: FC05-051A TEMPERATURE AND HUMIDITY DURING TESTING The temperature during testing was within +15°C and + 35°C. The relative humidity was between 20% and 75%. FCC 2.1033(c)(3) USER’S MANUAL The necessary information is contained in a separate document. FCC 2.1033 (c)(4) TYPE OF EMISSIONS 16K0F3E and iDEN FCC 2.1033 (c)(5) FREQUENCY RANGE 935MHz – 940MHz (downlink) and 896MHz – 901MHz (uplink) FCC 2.1033 (c)(6) OPERATING POWER 16K0F3E – 0.3162 Watts, iDEN – 0.0800 Watts FCC 2.1033 (c)(7) MAXIMUM POWER RATING 500 Watts FCC 2.1033 (c)(8) DC VOLTAGES The necessary information is contained in a separate document. FCC 2.1033 (c)(9) TUNE-UP PROCEDURE The necessary information is contained in a separate document. FCC 2.1033(c)(10)SCHEMATICS AND CIRCUITRY DESCRIPTION The necessary information is contained in a separate document. FCC 2.1033(c)(11) LABEL AND PLACEMENT The necessary information is contained in a separate document. FCC 2.1033(c)(12) SUBMITTAL PHOTOS The necessary information is contained in …

Text truncated - open the document above for the full version.

RF Output Power PHOTOGRAPH SHOWING DIRECT CONNECT TEST SETUP PHOTOGRAPH SHOWING RADIATED EMISSIONS Radiated Emissions - Front View PHOTOGRAPH SHOWING RADIATED EMISSIONS Radiated Emissions - Back View PHOTOGRAPH SHOWING RADIATED EMISSIONS Radiated Emissions - Loop Antenna
