E675JS0098RF Power Amplifier Frame

044-05298 Rev A November 2007 INDOOR MCPA PLATFORM INSTALLATION AND SERVICE MANUAL PAF INDOOR MCPA PLATFORM PAF-19XX-EX-XXX © 2007 Powerwave Technologies Incorporated. All rights reserved. Powerwave Technologies, and the Powerwave logo are registered trademarks. This Powerwave product is intended only for installation in a RESTRICTED ACCESS LOCATION and is designed to operate within the Normal Operating (typical operating) ranges or conditions specified in this document. Operation of this equipment beyond the specified ranges in this document may cause: 1. Spurious emissions that violate regulatory requirements. 2. The equipment to be automatically removed from service when maximum thresholds are exceeded. 3. The equipment to not perform in accordance with its specifications. It is the Operator's responsibility to ensure this equipment is properly installed and operated within Powerwave operat- ing specifications to obtain proper performance from the equipment and to comply with regulatory requirements. For PERMANENTLY CONNECTED EQUIPMENT, a readily accessible disconnect device shall be incorporated in the building installation wiring. PAF-19XX-EX-XXXWarnings, Cautions, and Notes 044-05298 Rev Ai Warnings, Cautions, and Notes Warnings, Cautions, and Notes are found throughout this manual where applicable. The associated icons are used to quickly identify a potential condition that could result in the consequences described below if precautions are not taken. Notes clarify and provide additional information to assist the user. WARNING: This warning symbol means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical and RF circuitry and be familiar with standard practices for preventing accidents CAUTION: This caution symbol means reader be careful. In this situation, the user might do something that could result in equipment damage or loss of data. NOTE This note symbol means reader take note. Notes contain helpful suggestions or references to material not covered in the document. Procedures are not contained in notes. Revision RecordPAF-19XX-EX-XXX ii044-05298 Rev A Revision Record Revision Letter Date of ChangeReason for Change ANovember 2007Initial release 044-05298 Rev Ai Table of Contents Chapter 1 - Product Description Introduction ................................................................................................................................................... 1-1 Scope of Manual ........................................................................................................................................... 1-1 Product Description ....................................................................................................................................... 1-1 Functional And Physical Specifications ........................................................................................................ 1-1 Chapter 2 - Controls and Indicators Introduction ................................................................................................................................................... 2-1 Subrack ......................................................................................................................................................... 2-1 Ethernet Connector Pinout ..................................................................................................................... 2-2 RS-485 Interface .................................................................................................................................... 2-3 Filter I/O (if used) .................................................................................................................................... 2-3 MCPA ............................................................................................................................................................ 2-3 Filter (if used) ................................................................................................................................................ 2-4 Circuit Breaker Panel .................................................................................................................................... 2-6 Chapter 3 - Installation Introduction ................................................................................................................................................... 3-1 Site Survey .................................................................................................................................................... 3-1 Space Requirements .................................................................................................................................... 3-1 Unpacking and Inspection ............................................................................................................................. 3-1 Electrical Service Recommendations ........................................................................................................... 3-1 Cooling Requirements .................................................................................................................................. 3-2 Installation Instructions ................................................................................................................................. 3-2 PAF ......................................................................................................................................................... 3-2 Seismic Brace (Optional) ........................................................................................................................ 3-3 DC Connections ..................................................................................................................................... 3-3 RS-485 Alarm Interface .............................................................................…

Text truncated - open the document above for the full version.

044-05298 Rev A4-1 Chapter 4 Maintenance Introduction This chapter contains periodic maintenance and performance test procedures for the PAF-19XX-EX-XXX Multi-Carrier Power Amplifier (MCPA) system. Periodic Maintenance Periodic maintenance requirements are listed in Table 4-1, as well as the intervals at which the tasks should be performed. Troubleshooting The following paragraphs contain a list of problems that could occur and a few suggested actions that can correct the problem. If the suggested corrective action does not eliminate the problem, please contact your Powerwave field representative or the factory for further instructions. NOTE Do not break seals on equipment under warranty or warranty will be null and void. Do not return equipment for warranty or repair service until factory shipping instructions are received. Table 4-1 Periodic Maintenance TaskIntervalAction Inspection: Cables and Connec- tors 12 MonthsInspect signal and power cables for frayed insulation. Check RF connectors to be sure that they are tight OptionalAntenna VSWR sweep Cleaning: Fans and Equipment Clean as required depending on equipment operating environment System Component Part NumbersPAF-19XX-EX-XXX 4-2044-05298 Rev A Clearing Alarm Faults Setting the MCPA front panel OFF/ON/RESET switch to RESET can clear many alarm faults. An attempt to reset the MCPA should be your first course of action. 24-Hour technical support service is available at our main phone number 888-797-9283 or 714-466-1000; select the "System Operator Technical Support" option to receive assistance from Powerwave's Applications Support Group. Refer to Table 4-2 for troubleshooting suggestions. System Component Part Numbers Table 4-3 lists the model/part numbers for ordering individual system components and manuals. Field Replacement Procedures The following parts and modules can be replaced in the field on site by a qualified technician with experience maintaining RF power amplifiers and similar equipment: Table 4-2 Troubleshooting ProblemSuggested Action MCPA Inoperative (MCPA front panel LED red) 1.Set MCPA OFF/ON/RESET toggle switch momentarily to RESET 2.Check for proper power supply voltage 3.Verify all RF connections 4.Contact your field representative or factory Table 4-3 System Components Part Number List Model/Part NumberManual NumberDescription System Maximum Quantity G3L-830-160-160 Watt, 1900 MHz MCPA12 800-09666-001-Subrack Fan Assembly2 per subrack MCR40830-1-4-Subrack, 4-way combined3 800-07829-002-Panel, blank, MCPAas required FIL-19XX-Filter, 1900 MHz3 800-11185-600-Panel, Circuit Breaker 1 1002530-Circuit Breaker, 50 A12 1002529-Circuit Breaker, 15 A2 700-18766-001-Cable, RF, 7/16 DIN-R-MA 3 700-18767-001-Cable, Filter, DB-15 to DB-153 700-18133-100-Cable, Filter, DC1 ❑ MCPA ❑ Fiter ❑ Cooling Fans ❑ Circuit Breaker Panel ❑ Subrack PAF-19XX-EX-XXXField Replacement Procedures 044-05298 Rev A4-3 MCPA To replace an MCPA module, shown in Figure 4-1, perform the steps in Table 4-3. Figure 4-1 MCPA Removal and Replacement CAUTION: To prevent damage to MCPA rear connector, support rear of MCPA when removing from subrack. The MCPA weight is approximately 20 lbs (9.1 kg). Table 4-4 MCPA Removal and Replacement Procedure StepAction 1.Set MCPA front panel OFF/ON/RESET switch to OFF 2.Rotate MCPA module quarter-turn fasteners counterclockwise 3.With steady even pressure, use handle on front of MCPA to pull module out of enclosure as shown in Figure 4-1 4.Replace MCPA module in reverse order of removal S T A T U S R E SET S T A T U S RE S ET S TA T U S R ESE T PC I/O PC I/O PC I/O S T A T U S R E S E T P C I / O O N O F F Alc ate l Lucent Alc ate l Lucent Alc ate l Lucent Alc ate l Lucent MCPA Quarter-Turn Fasteners Field Replacement ProceduresPAF-19XX-EX-XXX 4-4044-05298 Rev A Subrack Cooling Fans Refer to Chapter 3 - Air Conditioning for cooling-fan operating parameters before replacing fans. To replace an inside or rear mounted cooling fan or change the fan mounting configuration, proceed as follows: Inside Mount To replace the inside mounted fan, shown in Figure 4-2, perform the steps in Table 4-4. Figure 4-2 Inside Mount Cooling Fan Removal and Replacement CAUTION: To prevent damage to MCPA rear connector, support rear of MCPA when removing from subrack. MCPA weight is approximately 20 lbs (9.1 kg). CAUTION: The replacement fan may operate when the power connector is connected. Ensure that no objects (fingers, screwdrivers, etc.) intrude into the fan area. Table 4-5 Inside Mount Cooling Fan Removal and Replacement Procedure StepAction 1.For fan assembly located behind blank panels, rotate quarter-turn fasteners on each panel counter-clockwise to remove panels from subrack, then proceed to Step 4 2.For fan assembly located behind MCPAs, set each front panel OFF/ON/RESET switch to OFF 3.Read above Caution. Rotate quarter-turn fasteners on each MCPA counter-clockwise and remove MCPAs from subrack 4.Disconnect fan power connector and pull out snap fasteners to remove fan 5.Install replacement fan assembly in reverse order of removal RF OUT ETHERNET RS485 FILTER I/O CDMA1CDMA2CDMA3CDMA4CDMA5CDMA6 DIGITAL Cooling Fan Snap Fasteners (4) Power/Sense Connector Assembly PAF-19XX-EX-XXXField Replacement Procedures 044-05298 Rev A4-5 Rear Mount Rear mounted fans may be changed without shutting down the system. To replace the fans, shown in Figure 4-3, perform the steps in Table 4-5. Figure 4-3 Rear Mount Cooling Fan Removal and Replacement CAUTION: The replacement fan may operate when the power connector is connected. Ensure that no objects (fingers, screwdrivers, etc.) intrude into the fan area. Table 4-6 Rear Mount Cooling Fan Removal and Replacement Procedure StepAction 1.At rear of subrack, pull out snap fasteners that secure defective fan assembly to fan-mounting bracket 2.Pull fan outward, and disconnect fan power connector 3.See Caution. Install replacement fan assembly in reverse order of removal DC POWER +27V RETURN 0 12 30 12 3 C…

Text truncated - open the document above for the full version.

Non-Conformities FCC ID: E675JS0098 (CKC CS Ref # E07-000125-FCC-01) The items listed below represent requests for information following review of this application for certification under United S tates (FCC) regulations. Further question may arise pending review of responses to these items. OK # Non-Conformity or Co mment Submitted Response Respondent / Date of Response * FCC Notes: Ref KDB 754507 X 1 In the ID label information provided, the maximum RF output is stated at 630W. However the application form states and the test report supports 500W. Please clarify which is correct and revise documentation as necessary. A corrected label has been uploaded. CKC Labs - 12/7/07 X 2 Please clarify the system constructio n; there are three sub frames of four amplifiers each. What exactly constitute s the amplifier modules? Presently, the grant conditions are stated as “ Equipment construction limited to 4 identical amplifier modules. ” Is each amplifier sub frame its own certified module or is the whole rack certified as a system - are there 12 amplifer modules? If the whole rack is certified, is the composite output power higher than 500W? If output power is limited to 500W per antenna port, please identify how many antenna ports exist. Each subrack contains four amplifier modules. There are three subracks in each frame but they all have separate outputs and operate independently from one another. CKC Labs - 12/7/07 X 3 What is the minimum output power rating (assumed to be zero watts) please clarify. 0 W CKC Labs - 12/7/07 X 4 Please confirm rule part listed should be 24H (presently form 731 has part 15C). Yes, the 731 form should reference part 24H instead of 15C. CKC Labs - 12/7/07 5 6

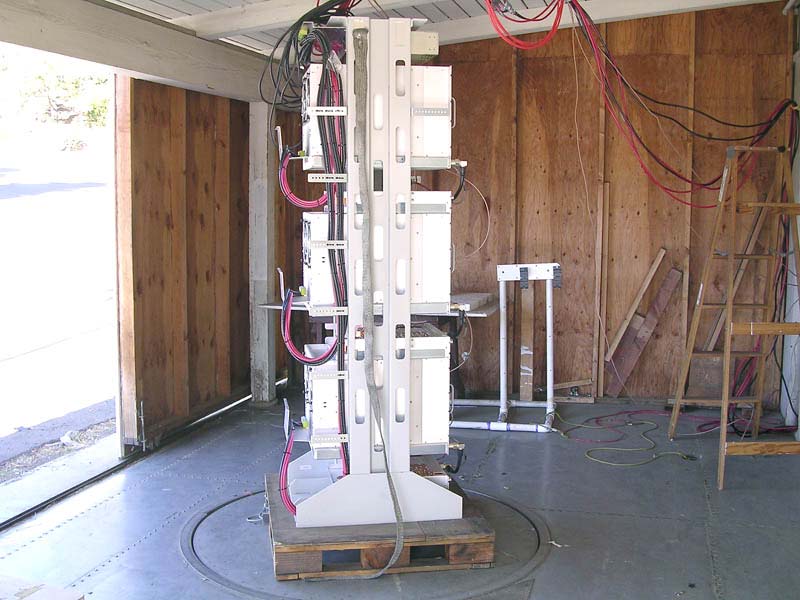

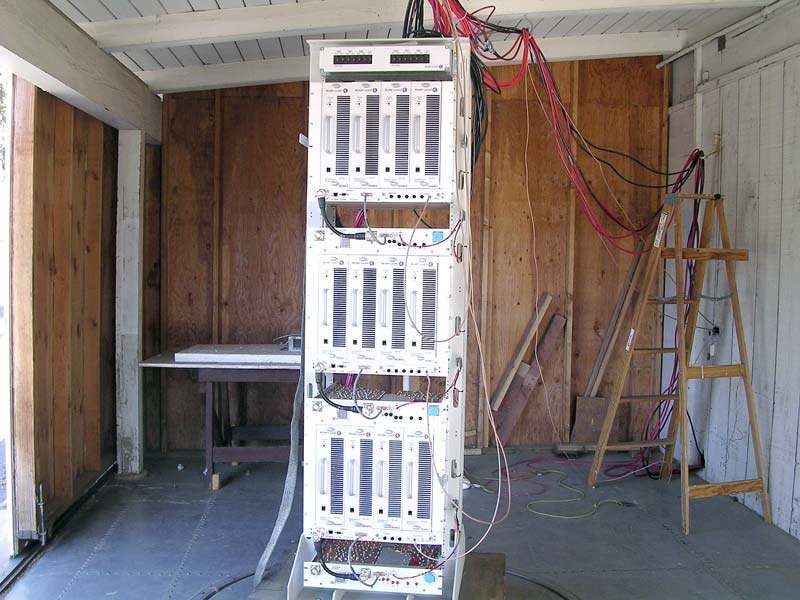

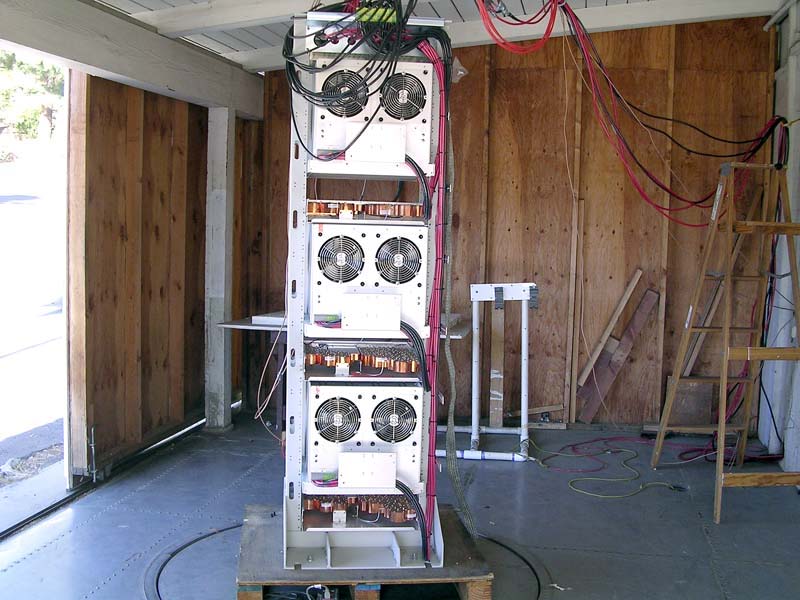

EUT Front EUT Back EUT Side 1 EUT Side 2

DC Voltages 27 Vdc, 3A into the multi-carrier amplifier module output devices.

044-05298 Rev A1-1 Chapter 1 Product Description Introduction This manual contains information and procedures for installation, operation, and maintenance of the PAF-19XX-EX-XXX Multi-Carrier Power Amplifier (MCPA) Indoor System. The manual is organized into chapters as follows. Scope of Manual This manual is intended for use by service technicians familiar with similar types of equipment. It contains service information required for the equipment described and is current as of the printing date. Changes which occur after the printing date may be incorporated by a complete manual revision or alternatively as additions. Product Description The PAF-19XX-EX-XXX system, shown in the Figure 1-1 block diagram, is an 1900 MHz, 4-way combined, frame-mounted BTS solution. The PAF system contains three MCPA subracks, each capable of containing up to four MCPAs, three filters, and one DC circuit breaker panel. The MCPA subrack, shown in Figure 1-3, contains linear, feed-forward MCPAs that operate in the 1930 - 1990 MHz range. Each subrack is also equipped with automatic power control (APC), an ethernet connection, an RS-485/RS-232 connection, a filter I/O port, and two cooling fans. The subrack is installed on sliding rails so that it can be pulled forward to allow access to the rear of the subrack. The MCPA, shown in Figure 1-4, is a 1900 MHz module that produces a typical output of 160 watts (52.0 dBm) before system losses, with an instantaneous bandwidth of 25 MHz. The filter assembly, shown in Figure 1-5, if used, supresses unwanted signals and non-linear components of the signal from the amplifiers. The circuit breaker panel, shown in Figure 1-8, consists of two +27 VDC input buses (A and B), and a system circuit breaker panel. The panel receives +27 VDC from the BTS and then distributes circuit breaker protected DC power to the individual subracks. Functional And Physical Specifications PAF-19XX-EX-XXX system functional and physical specifications are listed in Chapter 5. ❑ Chapter 1 - Product Description ❑ Chapter 2 - Controls and Indicators ❑ Chapter 3 - Installation ❑ Chapter 4 - Maintenance ❑ Chapter 5 - Specifications

Initial Start-Up and Power Setting ProceduresPAF-19XX-EX-XXX 3-6044-05298 Rev A Figure 3-5 MCPA Front Panel Features Initial Start-Up and Power Setting Procedures The following paragraphs provide initial startup, and power setting procedures. Initial Start Up To complete initial startup, perform the instructions listed in Table 3-8. Table 3-5 MCPA Installation Procedure StepAction 1.Inspect MCPA 21-pin connector. Verify all pins are straight, no pins are recessed, and alignment shield is not bent 2.Set MCPA power OFF/ON/RESET switch to OFF 3.Rotate MCPA quarter-turn fasteners counter-clockwise to unlock position shown in Figure 3-8 4.Install MCPA(s) into subrack. To secure each MCPA, rotate quarter-turn fasteners clockwise to lock position as shown in Figure 3-8 CAUTION: Excessive input power may damage MCPA. Before applying power, ensure MCPA inputs and outputs are properly terminated at 50 ohms. Do not operate MCPA without a load attached. Refer to Chapter 5 for input power requirements. Table 3-6 Initial Startup Procedure StepAction 1.Verify all input and output cables are properly connected 2.Turn on +27 VDC supply to MCPA 3.Set all MCPA front panel OFF/ON/RESET switches to ON (middle) position 4.Allow MCPAs to warm up for at least two minutes before taking power readings Unlocked Locked LED Status Indicator RF Switch: RESET ON OFF Quarter-Turn Fasteners ON OFF ON OFF Alcatel Lucent Alcatel Lucent

Page 1 of 26 Report No.: FC07-099 POWERWAVE TECHNOLOGIES, INC. TEST REPORT FOR THE POWER AMPLIFIER FRAME, PAF-1930-EX-XXX FCC PART 24 TESTING DATE OF ISSUE: NOVEMBER 16, 2007 PREPARED FOR: Powerwave Technologies, Inc. 1801 E. St. Andrew Place Santa Ana, CA 92705 PREPARED BY: Mary Ellen Clayton CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 P.O. No.: 115894 Date of test:October 9 – November 13, 2007 W.O. No.: 87159 Report No.: FC07-099 This report contains a total of 26 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 26 Report No.: FC07-099 TABLE OF CONTENTS Administrative Information .............................................................................................3 Approvals .........................................................................................................................3 Conditions During Testing ...............................................................................................3 Equipment Under Test (EUT) Description ......................................................................4 Equipment Under Test .....................................................................................................4 Peripheral Devices ...........................................................................................................4 Temperature and Humidity During Testing .....................................................................5 FCC 2.1033(c)(3) User’s Manual ....................................................................................5 FCC 2.1033(c)(4) Type of Emissions ..............................................................................5 FCC 2.1033(c)(5) Frequency Range ................................................................................5 FCC 2.1033(c)(6) Operating Power .................................................................................5 FCC 2.1033(c)(7) Maximum Power Rating ..........................................................................................................................................Er ror! Bookmark not defined. FCC 2.1033(c)(8) DC Voltages .......................................................................................5 FCC 2.1033(c)(9) Tune-Up Procedure ............................................................................5 FCC 2.1033(c)(10) Schematics and Circuitry Description ..............................................5 FCC 2.1033(c)(11) Label and Placement ........................................................................5 FCC 2.1033(c)(12) Submittal Photos ..............................................................................5 FCC 2.1033(c)(13) Modulation Information ...................................................................5 FCC 2.1033(c)(14)/2.1046/24.232(b) - RF Power Output ..............................................6 FCC 2.1033(c)(14)/2.1049(i) – Input and Output Plots ...................................................8 FCC 2.1033(c)(14)/2.1051/24.238(a) - Spurious Emissions at Antenna Terminal .........15 FCC 2.1033(c)(14)/2.1053/24.238(a) - Field Strength of Spurious Radiation ................19 Blockedge ........................................................................................................................22 Intermodulation ................................................................................................................25 Page 3 of 26 Report No.: FC07-099 ADMINISTRATIVE INFORMATION DATE OF TEST: October 9 – November 13, 2007 DATE OF RECEIPT: October 9, 2007 REPRESENTATIVE: Jeffrey Dale MANUFACTURER: Powerwave Technologies, Inc. 1801 E. St. Andrew Place Santa Ana, CA 92705 TEST LOCATION: CKC Laboratories, Inc. 110 Olinda Place Brea, CA 92823 FREQUENCY RANGE TESTED: 9 kHz-20 GHz TEST METHOD: FCC Part 24 PURPOSE OF TEST: To perform the testing of the Power Amplifier Frame, PAF-1930-EX- XXX with the requirements for FCC Part 24 devices. APPROVALS QUALITY ASSURANCE: TEST PERSONNEL: Steve Behm, Director of Engineering Services Septimiu Apahidean, EMC Engineer Eddie Wong, EMC Engineer CONDITIONS DURING TESTING Ferrite Steward 28A2026_0A2 added to data line in all amplifier modules. Page 4 of 26 Report No.: FC07-099 EQUIPMENT UNDER TEST (EUT) DESCRIPTION The customer declares the EUT tested by CKC Laboratories was representative of a production unit. EQUIPMENT UNDER TEST Power Amplifier Frame Manuf: Powerwave Technologies Model: PAF-1930-EX-XXX Serial: NA PERIPHERAL DEVICES The EUT was tested with the following peripheral device(s): Power Supply Manuf: Power Ten Model: P63C00330 Serial: 9917C0030 ESG Manuf: Agilent Model: 4433B Serial: US40051692 ESG Manuf: Agilent Model: 4433B Serial: US40051840 ESG Manuf: Agilent Model: 4433B Serial: US40051852 Power Meter Manuf: Agilent Model: E4419B Serial: MY40510694 Page 5 of 26 Report No.: FC07-099 TEMPERATURE AND HUMIDITY DURING TESTING The temperature during testing was within +15°C and + 35°C. The relative humidity was between 20% and 75%. FCC 2.1033(c)(3) USER’S MANUAL The necessary information is contained in a separate document. FCC 2.1033 (c)(4) TYPE OF EMISSIONS F9W FCC 2.1033 (c)(5) FREQUENCY RANGE 1930-1990 MHz. FCC 2.1033 (c)(6) OPERATING POWER 500 Watts FCC 2.1033 (c)(8) DC VOLTAGES The necessary information is contained in a separate document. FCC 2.1033 (c)(9) TUNE-UP PROCEDURE The necessary information is contained in a separate document. FCC 2.1033(c)(10) SCHEMATICS AND CIRCUITRY DESCRIPTION The necessary information is contained in a separate document. FCC 2.1033(c)(11) LABEL AND PLACEMENT The necessary information is contained in a separate document. FCC 2.1033(c)(12) SUBMITTAL PHOTOS The necessary information is contained in a separate document. FCC 2.1033 (c)(13) MODULATION INFORMATION 1X EVDO Page 6 of 26 Report No.: FC07…
