EEX-TINY-W3TINY Camera

Digital Surveillance Camera Système de surveillance photographique Fotografisches Überwachungs system TINY-3/S-TINY-3/TINY-W3/S-TINY-W3 model Modèle TINY-3/S-TINY-3/TINY-W3/S-TINY-W3 Modell TINY-3/S-TINY-3/TINY-W3/S-TINY-W3 User manual /Manuel d'utilisation / Bedienungsanleitung www.spypoint.com ggy   TINY-3S-TINY-3 TINY-W3 + Blackbox-D TM S-TINY-W3 + Blackbox-D TM 3 English v.1.4 English Thank you for choosing one of our excellent SPYPOINT products. You can now enjoy many benefits of a full feature and easy to use digital surveillance camera. This 10 MP digital camera was developed and designed by our team of highly qualified engineers. It can take sharp and clean photos or videos either day or night without using any flash. 4 5 English English FEATURES Photo recording: Photo resolution10 MP File formatJPG Time LapsePredefined intervals from 30sec to 1h Multi-shotUp to 6 pictures per detection StampDate, time, temperature and moon phase printed on pictures Capture modeColor by day, black and white by night Video recording: Video resolution1280 x 720 (720p) File formatAVI Sequence lengthAdjustable from 10 to 90sec Capture modeColor by day, black and white by night Sound recording: Automatically recorded in video mode Memory storage: SD/SDHC card up to 32 GB (No internal memory) Viewing: Built-in screen2.4" LCD TV outputComposite video (PAL/NTSC) Computer outputUSB 2.0 Power supply: (accessories sold separately, see «Options») Alkaline or lithium batteries 6x AA Lithium battery packRechargeable battery pack (LIT-09/LIT-C-8) External (12V jack) 12 volt battery (KIT-12V/BATT-12V) 12 volt adapter (AD-12V) Solar panel (12V jack) Solar panel (SP-12V) combined with rechargeable battery pack (LIT-09) 6 7 English English Detection system: Motion sensorPIR Detection angle of the main sensor 30° Detection angle of the side sensors 70° Detection rangeAdjustable from 5 to 50ft Delay between each detection Adjustable from 1 to 30min *Additional 10 sec. setting (see «Delay») Electricity mode (Connected to a 12V DC Main source only) Instant trigger time External trigger1/8" jack for normally open contact Night time illumination system: LEDs38 LEDs TypeInvisible Black LEDs ExposureAutomatic infrared level adjustment Optical field of view: 40° Wireless: Wireless rangeMaximum 500 ft to the Blackbox-D TM controller (supplied with TINY-W3/ S-TINY-W3) Remos Technology This camera is compatible with Spypoint Remos Technology (see «Settings») Recommendations: Operating temperature(-20 °C to + 50 °C) (-4 °F to +122 °F) Storage temperature(-30 °C to + 75 °C) (-22 °F to +167 °F) CONTENTS SPYPOINT TINY-3/S-TINY-3 • Installation strap • USB cable • Audio/video cable • User manual SPYPOINT TINY-W3/ S-TINY-W3 • Blackbox-D TM controller • Installation straps (2) • USB cable • Audio/video cable • User manuals 8 9 English English REAR VIEW BOTTOM VIEW 7. 10.9. 11. 13. 8. 12. OK BUSY 1. 2. 3. 4. 5. 6. 1. Power button 2. Recording indicator LED 3. «UP» button 4. «BACK» button 5. «OK» button 6. «DOWN» button 7. ALK / RECH (switch for battery) 8. SD card slot 9. USB port 10. 12 volts jack 11. External trigger jack 12. TV OUT 13. Removable battery case POWER The battery level is shown in the «Report» mode. (4/4 = full, 1/4= low) When the battery level shows 2/4, the camera will continue to take pictures but we strongly recommend changing the batteries before they are empty. AA batteries This camera requires the use of 6 AA batteries (1.5V). The use of alkaline or lithium batteries is strongly recommended. During the installation of alkaline batteries, place the switch inside the battery case to «ALK» (i.e. alkaline). Insert the batteries in the battery case as indicated and insert it inside the camera (see figure below). Exact polarity must be followed. We also recommend the use of new batteries to ensure maximum performance of your camera. 10 11 English English Lithium battery pack This SPYPOINT camera can be powered by a rechargeable lithium battery LIT-09/LIT-C-8 (sold separately, refer to the section «Options»). This type of battery is less affected by cold temperatures and lasts up to 3 times more than an alkaline battery. During the installation of lithium battery, place the switch inside the battery case to «RECH». Insert the battery in the case as indicated and insert it inside the camera (see figure below) PINTSPY TM INTPSPY ConnectorConnector Top ConnectorConnector Top TINY-3 PINTSPY TM INTPSPY ConnectorConnector TO INSERT THE BATTERY CASE INSIDE THE CAMERA External (12V) The camera can be powered from an external 12 volt DC input such as a 12 volt battery (KIT-12V/BATT-12V, sold separately) or a 12 volt adapter (AD-12V, sold separately). When using a 12 volt connection, we recommend you to remove the alkaline batteries to prevent surcharges. During the installation of 12 volt battery, place the switch inside the battery case to «ALK» (i.e. alkaline). If combined with a lithium battery pack, slide the switch to «RECH». To find the accessories available for the 12 volts, refer to the section «Options». 12 13 English English Solar panel This model also offers the possibility of a connection to a solar panel SP-12V (sold separately, refer to the section «Options») to maintain the charge of the lithium battery (sold separately, refer to the section «Options») or the 12 volt battery (sold separately, refer to the section «Options»). During the installation of the rechargeable lithium battery or 12 volt battery, slide the switch inside the battery case to «RECH» to activate the charging system of the solar panel. MEMORY CARD Using a memory card (sold separately, refer to the section «Options») is required to operate this SPYPOINT camera. When the camera is turned on, the screen displays «Insert memory card» in «Photo», «Video» or «Test» mode if no memory card is used, the camera also beeps. The SD slot of the camera and the controller (supplied with TINY-W3/S-TINY-W3) have a 32 GB memory capacity. Before inserting or re…

Text truncated - open the document above for the full version.

Differences Description We G.G.Telecom state: Product name: TINY Camera Model: TINY-W 3 , TINY-W 2S , TINY 3 , TINY-7, TINY-HD All model’s the function, software and electric circuit are the same , only with a product color and model named different. Signatory Signature Date:2013/7/22 Name: Yan Gagnon Title: President Tel: 514 868 1811 Company: G.G.Telecom

G.G.Telecom SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 G.G.Telecom SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 2013/7/22 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, G.G.Telecom hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product： TINY Camera Model Name： TINY-W 3 , TINY-W 2S , TINY 3 , TINY-7, TINY-HD Trade Name： SPYPOINT FCC ID： EEX-TINY-W3 We affirm that between SIEMIC and ___ G.G.Telecom __, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Signature Date:2013/7/22 Name: Yan Gagnon Title: President Tel: 514 868 1811 Company: G.G.Telecom

G.G.Telecom SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 G.G.Telecom SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 2013/7/22 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: EEX-TINY-W3 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Signature Date:2013/7/22 Name: Yan Gagnon Title: President Tel: 514 868 1811 Company: G.G.Telecom

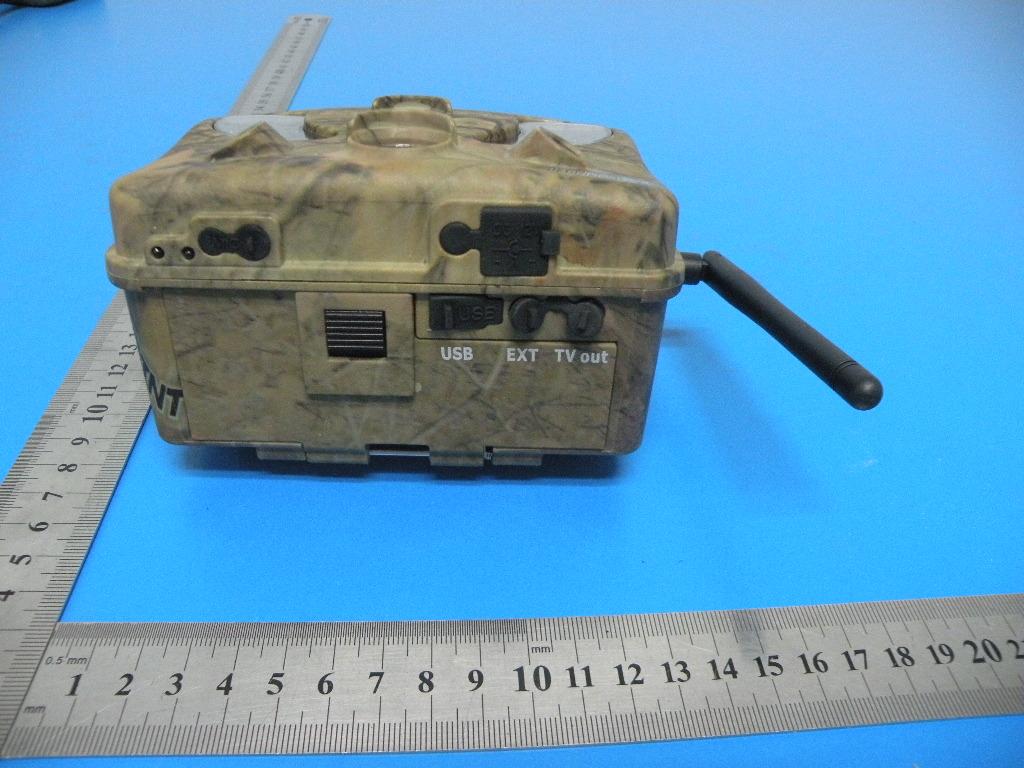

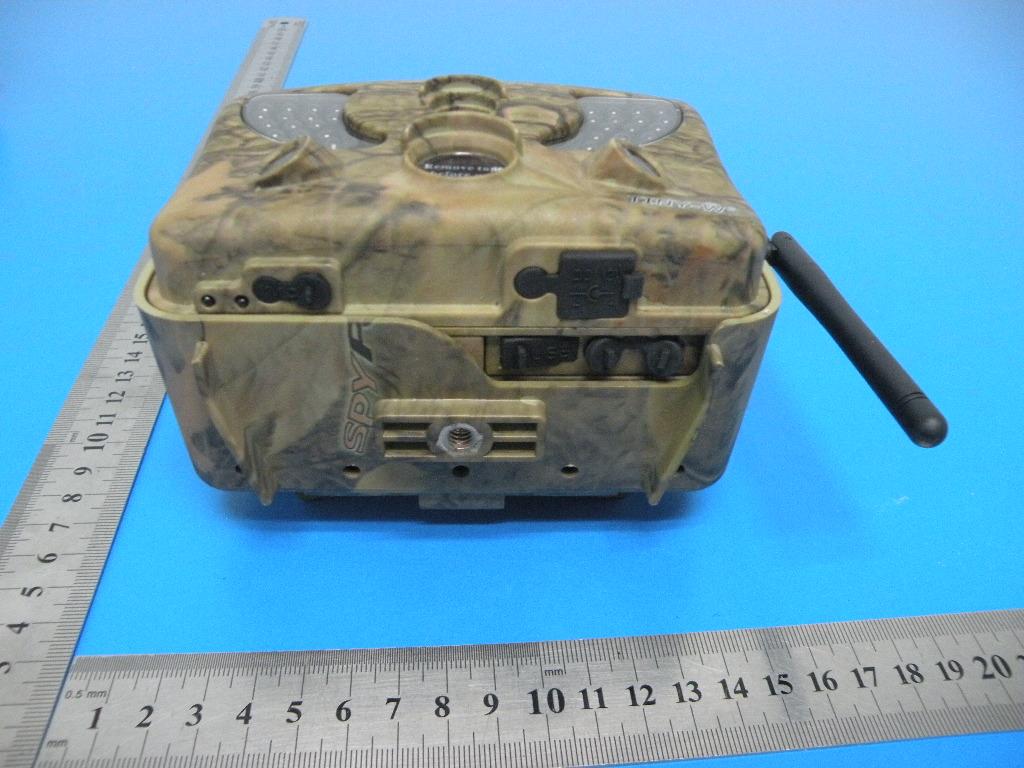

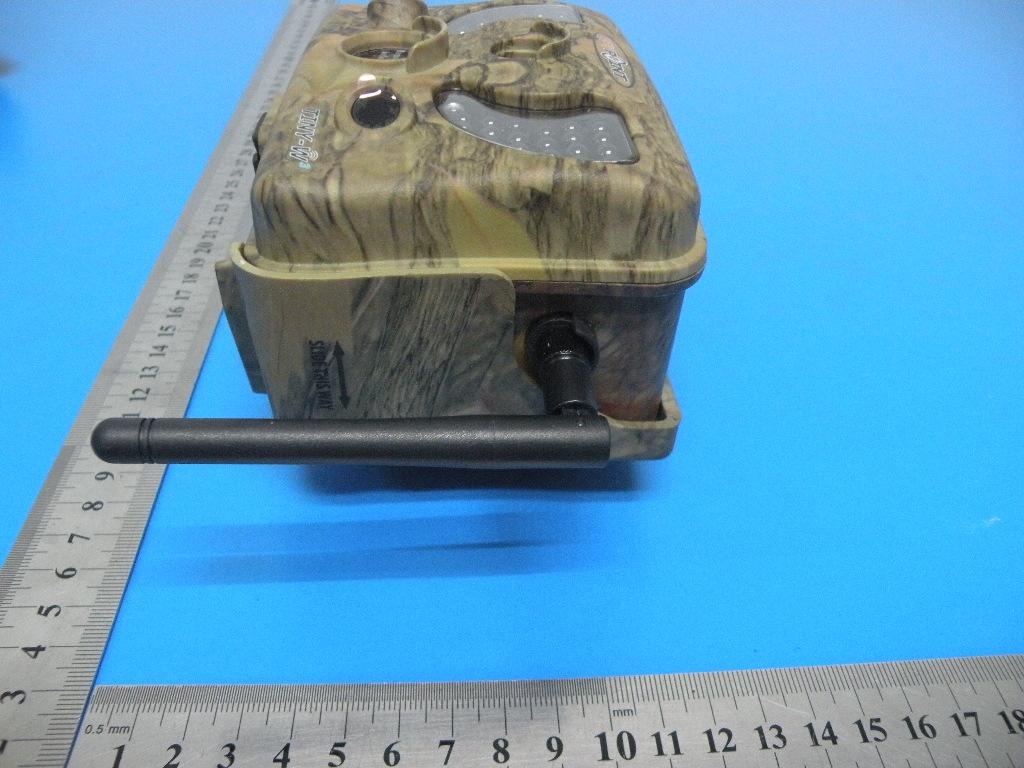

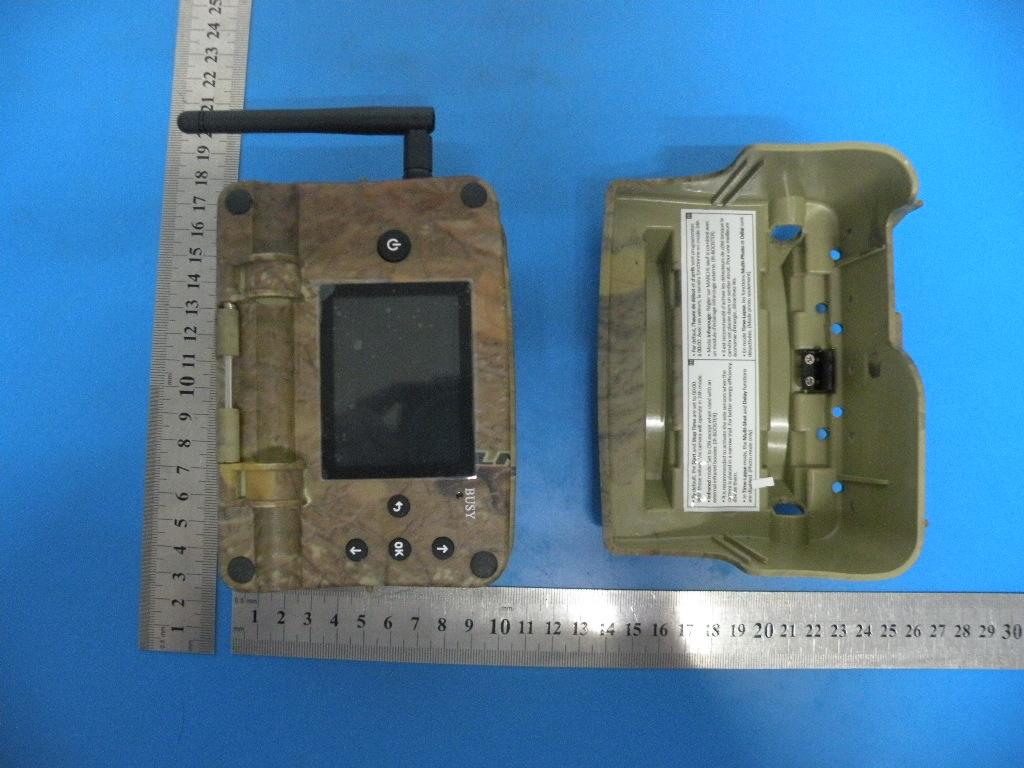

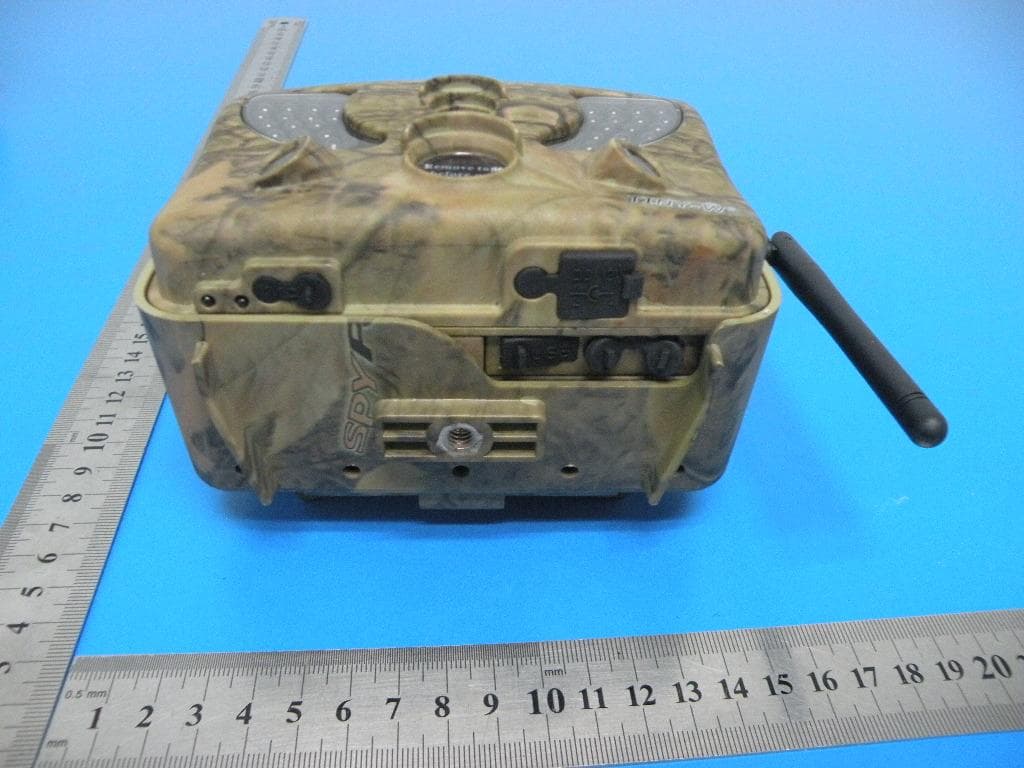

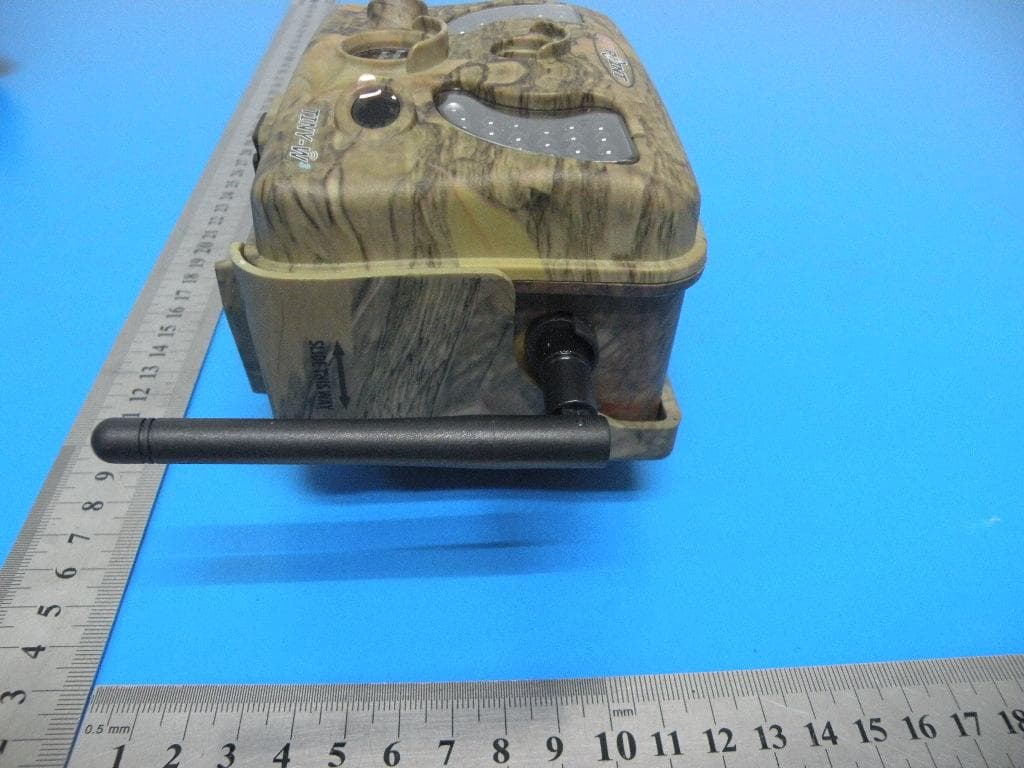

EUT View EUT View EUT View EUT View EUT View EUT View EUT View EUT View

Label: Label Location FCC ID: EEX-TINY-W3 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Top View Bottom View Bottom View Top View Bottom View Top View Top View Top View Bottom View Top View Bottom View 2.4G Antenna Top View Top View 433.92MHz Antenna Bottom View

FCC RADIO TEST REPORT FCC ID: EEX-TINY-W3 Product： TINY Camera Trade Name： SPYPOINT Model Name： TINY-W 3 , TINY-W 2S , TINY 3 , TINY-7, TINY-HD Serial Model： N/A Report No.： NTEK-2013NT0705026F Prepared for G.G.Telecom 120 J-Aurèle-Roux Victoriaville, Quebec Canada, G6T 0N5 Prepared by Shenzhen NTEK Testing Technology Co., Ltd 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. Tel.: +86-0755-61156588 Fax.: +86-0755-61156599 Website:www.NTEK.org.cn Page 2 of 32 Report No.: NTEK-2013NT0705026F ` TEST RESULT CERTIFICATION Applicant’s name ................. : G.G.Telecom Address ................................. : 120 J-Aurèle-Roux Victoriaville, Quebec Canada, G6T 0N5 Manufacturer........................ G.G.Telecom Address.............................. 120 J-Aurèle-Roux Victoriaville, Quebec Canada, G6T 0N5 Product description Product name............................ : TINY Camera Model and/or type reference : TINY-W 3 , TINY-W 2S , TINY 3 , TINY-7, TINY-HD Serial Model： N/A Rating(s) ................................ : DC 9V from battery or DC 12V from adapter with AC 120V/60Hz Standards ............................. : FCC Part15.231 Test procedure ............................... : ANSI C63.4-2003 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personal only, and shall be noted in the revision of the document. Date of Test ........................................... : Date (s) of performance of tests ............. : 05 July. 2013 ~11 July. 2013 Date of Issue .......................................... : 12 July. 2013 Test Result.............................................. : Pass Testing Engineer : (Apple Huang) Technical Manager : (Tom Zhang) Authorized Signatory : (Bovey Yang) Page 3 of 32 Report No.: NTEK-2013NT0705026F ` Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST MODES 8 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 9 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 10 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 11 3 . ANTENNA REQUIREMENT 12 3.1 STANDARD REQUIREMENT 12 3.2 EUT ANTENNA 12 3.3 CONDUCTED EMISSION MEASUREMENT 13 3.3.1 POWER LINE CONDUCTED EMISSION LIMITS 13 3.3.2 TEST PROCEDURE 14 3.3.3 DEVIATION FROM TEST STANDARD 14 3.3.4 TEST SETUP 14 3.2.5 TEST RESULT 15 3.3.5 TEST RESULTS 15 3.4 RADIATED EMISSION MEASUREMENT 17 3.4.1 RADIATED EMISSION LIMITS 17 3.4.2 TEST PROCEDURE 18 3.4.3 DEVIATION FROM TEST STANDARD 18 3.4.4 TEST SETUP 19 3.4.5 TEST RESULTS (BELOW 30MHZ) 21 3.4.6 TEST RESULTS (BETWEEN 30 – 1000 MHZ) 22 4 . BANDWIDTH TEST 27 4.1 TEST PROCEDURE 27 4.2 DEVIATION FROM STANDARD 27 4.3 TEST SETUP 27 4.4 TEST RESULTS 28 5 . TRANSMITTER TIMEOUT 29 5.1 REQUIREMENTS 29 6 . EUT TEST PHOTO 31 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 4 of 32 Report No.: NTEK-2013NT0705026F ` 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15, Subpart C (15.231) Standard Section Test Item Judgment Remark 15.207 Conducted Emission Pass 15.203 Antenna Requirement Pass 15.231 Radiated Spurious Emission Pass 15.231 Occupied Bandwidth Pass 15.231 Transmitter Timeout Pass NOTE: (1) ” N/A” denotes test is not applicable in this Test Report. Page 5 of 32 Report No.: NTEK-2013NT0705026F ` 1.1 TEST FACILITY NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registered No.: 238937 IC Registered No.:9270A-1 CNAS Registration No.:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 RF power,conducted ±0.16dB 3 Spurious emissions,conducted ±0.21dB 4 All emissions,radiated(<1G) ±4.68dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% Page 6 of 32 Report No.: NTEK-2013NT0705026F ` 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment TINY Camera Trade Name SPYPOINT Model Name TINY-W 3 , TINY-W 2S , TINY 3 , TINY-7, TINY-HD Serial Model N/A Model Difference All the model are the same circuit and RF module, except the model name, test mode is TINY-W 3 . Product Description The EUT is a TINY Camera Product Type Low Power Communication Device Transmitter Operation Frequency: 433.92MHz Modulation Type: FSK Number Of Channel 1CH. Antenna Designation: internal Antenna Antenna Gain(Peak) 1dBi Output Power: 72.65 dBuV/m (AV Max.) Note: This test report only 433.92MHz transmitter, the other radio test see the other test report. Operation Frequency: 2402~2477MHz Modulation Type: GFSK Antenna Designation: Reverse SMA connector Antenna Gain(Peak) 2.0 dBi EIRP 88.39 dbuv/m@3m Note: This test report only 433.92MHz transmitter, the other radio test see the other test report. More details of EUT technical specification, please refer to the User's Manual. Note: This radio test report only applies for transmitter 433.92MHz, For other transmitters is tested and reported in another radio test report. Channel List N/A Adapter Output: DC 12V Battery DC 9V Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 7 of 32 Report No.: NTEK-2013NT0705026F ` 2. Table for Filed Antenna Ant . Brand Model Name Antenna Type Connector Gain (dBi) NOTE 1 N/A N/A internal Antenna N/A 1 Antenna Page 8 of 32 Report No.: NTEK-2013N…
