11 Remote control When the camera is on and the REMOTE CONTROL option is enabled, the remote control allows you to take photos and videos in the mode shown on the screen by pressing the START/STOP button. Wireless range up to 40’. Whenever the camera is on, the remote control will be automatically synchronized when the START/STOP button is used to take a video or photo. It is also possible to use only one remote control to control multiple cameras. Examples: • When only one camera is on, the remote control automatically synchronises to this camera when the START/STOP button is used to take a video or photo. • If multiple cameras are on, the remote control automatically synchro- nizes to each camera when the START/STOP button is used to take a video or photo. This means that the remote control will start recording or taking photos simultaneously on each of these cameras. POWER The remote control must be powered by 2 lithium button batteries LIR2032. Insert the batteries in the indicated direction, the polarity of the battery must be respected (+ upwards). DO NOT DISPOSE OF BATTERIES IN THE GARBAGE. HOW TO ATTACH THE REMOTE CONTROL To attach the remote control using the velcro strap (included), just insert the velcro strap into the slots on each side of the back of the remote. RECOMMENDATIONS Do not submerge the remote control in the water. FCC Notice: this device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications or change to this equipment. Industry Canada This device complies with Industry Canada licence-exempt RSS standard(s): Operation is subject to the following Two conditions:(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.The term “IC: “ before the certification/registration number only signifies that the Industry Canada technical specifications were met. This product meets the applicable Industry Canada technical specifications.

G. G. Te l e c o m PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date: July 18, 2013 Authority to Act as an Agent We declare that the following representative (agent) Name Jack kang Position EMC Manager Company Name Shenzhen TCT Testing Technology Co., Ltd Address 1F, Building 1, Yibaolai Industrial Park, Qiaotou Village, Fuyong Town, Baoan District, Shenzhen, China Tel / Fax +86-0755-27673339/+86-0755-27673332 E-Mail [email protected] to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Name XCEL Camera Model Name XCEL HD / XCEL HD HUNT Brand Name XCEL Yours sincerely, Signatory Name Yan Gagnon Position President Company Name G. G. Te l e c o m Address 120 Rue J-Aurele-Roux, Victoriaville, Quebec, G6T 0N5 Canada Tel / Fax 514 868 1811/819-751-7000 E-Mail [email protected] In case of FCC, we certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance.

Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: G.G.Telecom FCC ID: EEX-XCELCAMERA FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 we hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type Description ☒ Schematics All circuitry of devices and component values ☒ Block Diagrams Details of device showing the frequency of all oscillators ☐ Bill Of Materials Parts list of the product for the radio device ☒ Operational Description Description of the circuit functions Note: Exhibit types that are commonly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Bill Of Materials, (4) Operational Descriptions. Any exhibit NOT granted confidentiality is viewable on the FCC website as soon as a grant is issued. These documents contain detailed system and equipment description and related information about the product which we considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, we consider that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours sincerely, Signatory July 18, 2013 Name Yan Gagnon Position President Company Name G. G. Te l e c o m Address 120 Rue J-Aurele-Roux, Victoriaville, Quebec, G6T 0N5 Canada Tel / Fax 514 868 1811/819-751-7000 E-Mail [email protected]

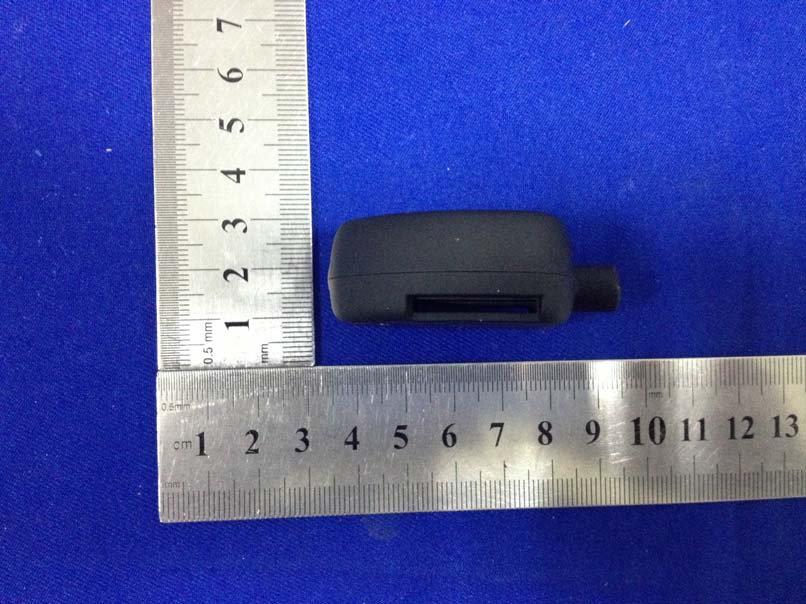

External photo

LABEL ARTWORK AND LOCATION Label Size: L*W=25mm*5mm FCC ID: EEX-XCELCAMERA FCC ID Label Location

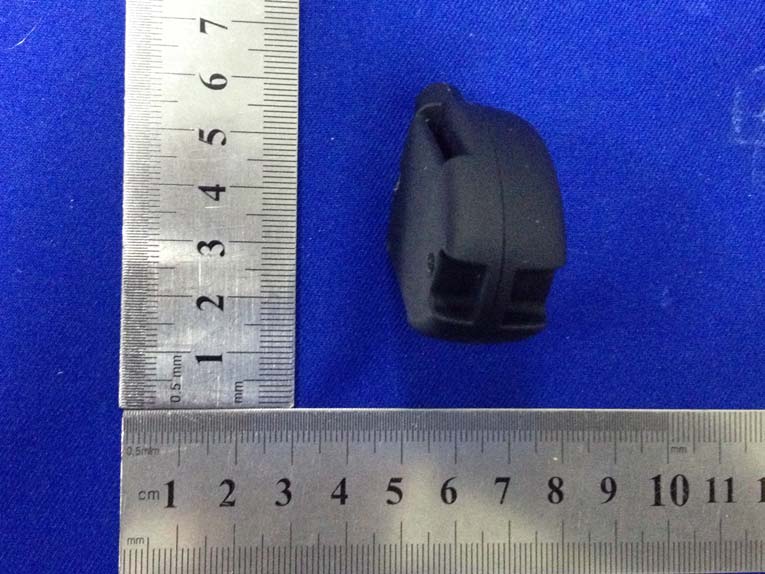

External photo

FCC ID TEST REPORT for XCEL Camera Model: XCEL HD / XCEL HD HUNT FCC ID: EEX-XCELCAMERA Prepared for: G.G.Telecom 120 Rue J-Aurele-Roux, Victoriaville, Quebec, G6T 0N5 Canada Prepared by: Shenzhen TCT Testing Technology Co.,Ltd 1F, Building 1, Yibaolai Industrial Park, Qiaotou Village, Fuyong Town, Baoan District, Shenzhen, Guangdong, China TEL: +86-0755-27363466 FAX: +86-0755-27673332 Report Number：TCT130701024F2-1 Date of Test： July 05~18, 2013 Date of Report： July 18, 2013 The results detailed in this test report relate only to the specific sample(s) tested. It is the Application’s responsibility to ensure that all production units are manufactured with equivalent EMC characteristics. This report is not to be reproduced except in full, without written approval from TCT Testing Technology. FCC ID: EEX-XCELCAMERA Report Number: TCT130701024F2-1 Page 2 of 23 Table of Contents 1.0 General Details ...................................................................................................3 1.1 Test Lab Details...................................................................................................3 1.2 Applicant Details.................................................................................................3 1.3 Description of EUT ..............................................................................................4 1.4 Submitted Sample.................................................................................................4 1.5 Test Duration....................................................................................................... 4 1.6 Test By............................................................................................................4 2.0 List of Measurement Equipment............................................................................5 3.0 Technical Details................................................................................................6 3.1 Summary of Test Results.......................................................................................6 3.2 Test Standards....................................................................................................6 4.0 EUT Modification...............................................................................................6 5.0 Measurement Uncertainty....................................................................................6 6.0 Power Line Conducted Emission Test......................................................................7 6.1 Schematics of the test...........................................................................................7 6.2 Test Method and Test Procedure...............................................................................7 6.3 EUT Operating Condition.......................................................................................7 6.4 Test Equipment...................................................................................................7 6.5 Conducted Emission Limit......................................................................................8 6.6 Test specification.................................................................................................8 6.7 Test result.........................................................................................................8 7.0 Manually Activated Transmitter...............................................................................11 7.1 Test Method and test Procedure..................................................................................11 7.2 Block diagram of Test setup.....................................................................................11 7.3 Limit...............................................................................................................11 7.4 Test Equipment......................................................................................................11 7.5 Test specification.....................................................................................................11 7.6 Test result................................................................................................................12 8.0 Radiation Emission....................................................................................................13 8.1 Test Method and test Procedure..................................................................................13 8.2 Block diagram of Test setup.....................................................................................13 8.3 Limit...............................................................................................................15 8.4 Test Equipment......................................................................................................16 8.5 Test specification.....................................................................................................16 8.6 Test result................................................................................................................17 9.0 Occupied Bandwidth...............................................................................................21 10.0 Antenna Requirement.........................................................................................22 11.0 FCC ID Label...................................................................................................23 FCC ID: EEX-XCELCAMERA Report Number: TCT130701024F2-1 Page 3 of 23 1.0 General Details 1.1 Test Lab Details Name : Shenzhen TCT Testing Technology Co.,Ltd Address: 1F, Building 1, Yibaolai Industrial Park, Qiaotou Village, Fuyong Town, Baoan District, Shenzhen, Guangdong, China Telephone: +86-0755-27673339 Fax: +86-0755-27673332 Site Listed with Federal Communication Commission Registration Number: 572331 For 3m chamber Site Listed with Industry Canada of Ottawa, Canada Registration Number IC: 10668A-1 For 3m chamber 1.2 Applicant Details Applicant: …
