EHA-INBT01BT board

1 Product Name: BT board Brand Name: Intermec Model No: INBT01 User’s Guide 2 Introduction
INBT01 is a Bluetooth Module. This can be made to connect to other Bluetooth wireless devices by integrating the INBT01 module to the user’s device for which Bluetooth functionality is targeted. The module block diagram is shown Figure 1 Figure 1: INBT01 - Block Diagram It consists of 3 main portions 1. Antenna – Transmit/Receive RF Signal to/from other Bluetooth devices 2. BT Module – BM 180 – Used for Transmit/ Receive data to and from other Bluetooth devices 3. UART Interface – Interface to the external UART host The BT Module is integrated to the printer by professional Installation, via the FFC which contains the UART interface to the host CPU, apart from some GPIO lines. It is a 14-pin connector as shown in photo in Figure 2. Figure 2: UART Interface - 14 Pin Connector 3 The Pin assignment is listed in Table 1. Table 1.Connector Pin-out Specifications Product Name BT board Model Number INBT01 Standard V2.1+EDR Frequency Band 2.4GHz ~ 2.48GHz Unlicensed ISM band Modulation Method FHSS (GFSK,
/4 –DQPSK, 8DPSK) Spread Spectrum Frequency Hopping Spread Spectrum Transfer rates (Max) 3Mbits/s RF Output Power 3 dbm (Transmission Typical) Antenna terminal NA Host Interface UART 4 wire interface to host (Rx, Tx, RTS, CTS) Supply Requirement 3.3 VDC, 0.1A Dimension 41.5mm (L)X 23mm(W) X 5.5mm(H) Operating Temperature -10 ~ +50 °C Storage Temperature -20 ~ +60 °C Humidity 10 ~ 90 % non-condensing The Number of Channels & Channel Spacing 79 channel, 1Mhz spacing Table 2: Specifications 1 Ground 2 Power, 3.3V 3 Data_Exit 4 Host_Wake 5 Host_Sleep 6 BT_LED 7 Ground 8 CMD_Data 9 UART_RTS 10 UART_TX 11 UART_CTS 12 UART_RX 13 Power, 3.3V 14 Ground 4 Regulatory Information The Bluetooth radio is designed to be interoperable with any Bluetooth technology product that is based on frequency hopping spread spectrum (FHSS) radio technology and complies with the Bluetooth Specification Version 2.1. The Bluetooth radio, like other radio devices, emits radio frequency electromagnetic energy. The level of energy emitted by this device, however, is less than the electromagnetic energy emitted by other wireless devices such as mobile phones. The Bluetooth radio device operates within the guidelines found in radio frequency safety standards and recommendations. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and committees of scientists who continually review and interpret the extensive research literature. In some situations or environments, the use of a Bluetooth radio device may be restricted by the proprietor of the building or responsible representatives of the applicable organization. Examples of such situations include the following: ∑ Using the Bluetooth radio equipment onboard airplanes, or ∑ Using the Bluetooth radio equipment in any other environment where the risk of interference with other devices or services is perceived or identified as being harmful. If uncertain of the policy that applies to the use of wireless devices in a specific organization or environment (an airport, for example), ask for authorization to use the Bluetooth radio device before turning it on. 5 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
Consult the dealer or an experienced radio/TV technician for help FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 6 This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna, As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumst…

Text truncated - open the document above for the full version.

Date: 2011/09/22 FCC ID: EHA EHAEHA EHA- -- -INBT01 INBT01INBT01 INBT01 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, Kian Meng Lim / Engineer Intermec Technologies Corporation 550 Second Street SE Cedar Rapids Iowa 52401-2029 USA

Agency Authorization Letter Date: 2011/04/27 FCC ID: EHA EHAEHA EHA- -- -INBT01 INBT01INBT01 INBT01 To whom it may concern: We, the undersigned, hereby authorize Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by BV CPS Taoyuan within the scope of this authorization shall have the same effects as our own. This authorization shall expire six months from the original date. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, Kian Meng Lim / Engineer Intermec Technologies Corporation 550 Second Street SE Cedar Rapids Iowa 52401-2029 USA

Date: December 9, 2010 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 To whom it may concern, Agent’s Authorization Letter I, named contact of grantee for Intermec Technologies Corporation, do hereby authorize, until further notice, Kain Meng Lim of Intermec Technologies, to act on my behalf in dealings before the Federal Communications Commission with respect to all matters relating to equipment authorizations under 47 CFR. This authorization maintains that Intermec Technologies Corporation remains responsible for all statements and exhibits in this application. I certify that no party (as defined in 47 CFR 1.2002) to this application, including myself, is subject to a denial of federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 853A. Certified By: Dave Fry Sr. EMC Engineer Intermec Technologies Corporation Dave Fry MS GR05 550 Second Street Cedar Rapids, IA 52401 Desk tel 319.369.3353 Lab tel 319.846.2415 Fax tel 319.846.2475 [email protected] 6001 36 th Avenue West Everett, Washington 98203 United States tel 425.348.2600 fax 425.355.9551 www.intermec.com

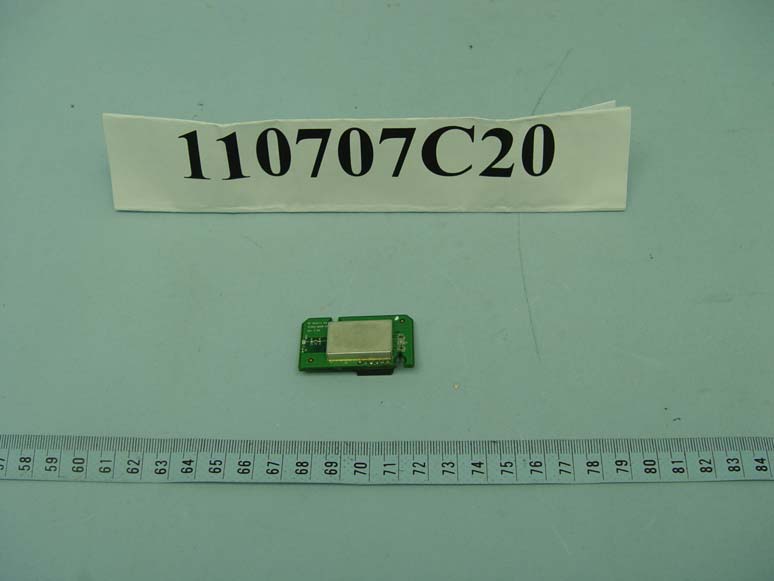

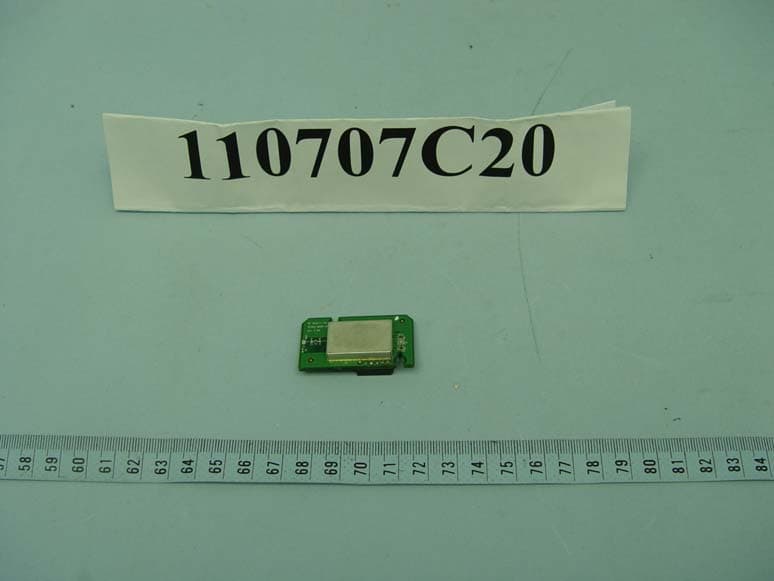

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

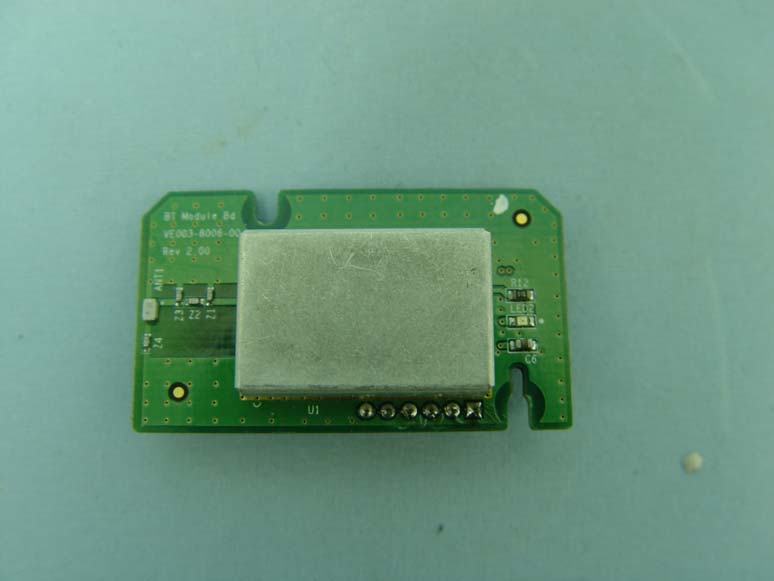

Page 1 CONSTRUCTION PHOTOS OF EUT

FCC ID: EHA-INBT01 Report No.: RF110707C20 Operational Description This device is a BT board. The transmitter of the EUT is powered by 3.3Vdc from the host equipment. The antenna is Chip antenna without antenna connector. For more detailed instruction, please take a look at the user’s manual.
