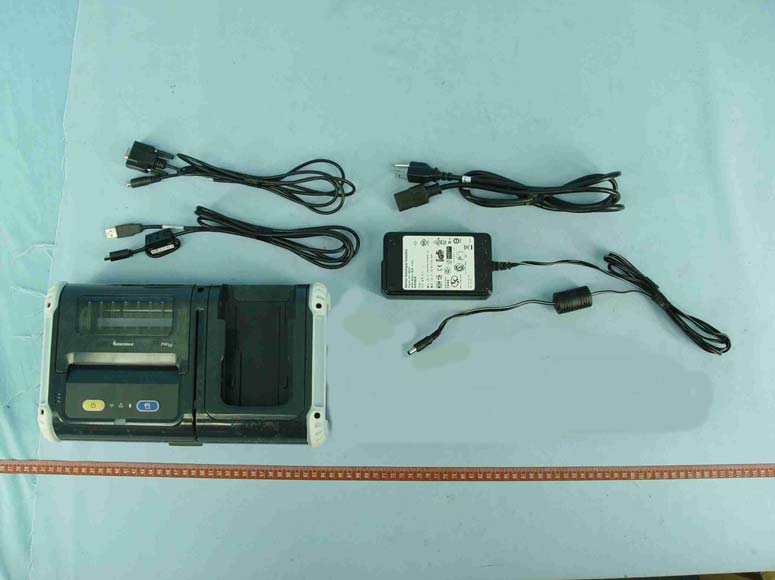

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4

FCC ID: EHA- RN41 A IC: ICES- 003 Class B IC: 1233A- RN41 A

Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14 Page 15 Page 16 Page 17 Page 18 Page 19 Page 20 Page 21 Page 22

FCC ID: EHA-RN41A Report No. RF961114L16A Operational Description The transmitter of the EUT (Workboard Printer) is powered by 14.8Vdc from battery or 12Vdc from adapter or car charger. The antenna is chip antenna without antenna connector. This device is a Frequency Hopping device with 79 hopping frequencies. For more detailed instruction, please take a look at the user’s manual.

FCC ID: EHA-RN41A Report No.: SA961114L16A Reference No.: 970123L11 1 RF EXPOSURE REPORT REPORT NO.: SA961114L16A MODEL NO.:PW50 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Intermec Technologies Corporation ADDRESS: 550 Second street SE, Cedar Rapids, IA 52401, USA ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14 th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. FCC ID: EHA-RN41A Report No.: SA961114L16A Reference No.: 970123L11 2 EUT information: 1. Maximum measured transmitter power: Pout (dBm) Pout (mW) Conducted Power 8.68 7.379 EIRP Power 5.85 3.846 *Note: The antenna is chip antenna with -2.83dBi gain. Threshold for no SAR evaluation is 24.58mW Transmitter power is 3.846mW 2. The closest antenna separation distance from Bluetooth antenna in the EUT (Pw50 Workboard Printer) to the antennas of PDA = 5.05cm. (Please refer to appendix A at end of this document for detail). 3. EUT is collocated with following 6 PDAs (actually are 2 different platforms with different configuration of radio). ITEM MODEL FCC ID FUNCTION REMARK 1 EHA-01CN3 WLAN+BT 2 EHA-02CN3 WLAN+BT+CDMA 3 CN3 EHA-03CN3 WLAN+BT+GSM 4 EHA-06CN3 WLAN+BT 5 EHA-07CN3 WLAN+BT+CDMA 6 CN3e EHA-08CN3 WLAN+BT+GSM Interface 1 (small interface) And according to the FCC “SAR Evaluation Considerations for Handsets with Multiple Transmitters and Antennas” dated Feb 2008, both stand-alone SAR and simultaneous transmission SAR are not required if following conditions met: a). When the output of an unlicensed transmitter is ≤ PRef and its antenna(s) is > 2.5 cm from other antennas, stand-alone SAR evaluation is not required for that unlicensed transmitter. b). When stand-alone SAR evaluation is not required and the antenna is > 5 cm from other antennas, simultaneous transmission SAR evaluation is also not required for that antenna. Therefore, proposed Workboard Printer with 7 specific PDAs comply with the RF exposure requirement and do not need further RF exposure assessment. Appendix: Detailed EUT photos and minimum antenna separation distance Pw50 with CN3 Pw50 with Cn3e FCC ID: EHA-RN41A Report No.: SA961114L16A Reference No.: 970123L11 3 Separation distance when PDA is installed in the printer docking.
