EHA802MIAG-CV60802MIAG-CV60

CV60 Vehicle Mount Computer User's Manual iiCV60 Vehicle Mount Computer User's Manual Intermec Technologies Corporation Corporate Headquarters Cedar Rapids Technical Communications Department 6001 36th Ave. W.550 Second Street SE Everett, WA 98203Cedar Rapids, IA 52401 U.S.A.U.S.A. www.intermec.com The information contained herein is proprietary and is provided solely for the purpose of allowing customers to operate and service Intermec-manufactured equipment and is not to be released, reproduced, or used for any other purpose without written permission of Intermec. Information and specifications contained in this document are subject to change without prior notice and do not represent a commitment on the part of Intermec Technologies Corporation. E 2003 by Intermec Technologies Corporation. All rights reserved. The word Intermec, the Intermec logo, Norand, ArciTech, CrossBar, Data Collection Browser, dcBrowser, Duratherm, EasyCoder, EasyLAN, Enterprise Wireless LAN, EZBuilder, Fingerprint, i-gistics, INCA (under license), InterDriver, Intermec Printer Network Manager, IRL, JANUS, LabelShop, Mobile Framework, MobileLAN, Nor*Ware, Pen*Key, Precision Print, PrintSet, RoutePower, TE 2000, Trakker Antares, UAP, Universal Access Point, and Virtual Wedge are either trademarks or registered trademarks of Intermec Technologies Corporation. Throughout this manual, trademarked names may be used. Rather than put a trademark (™ or ®) symbol in every occurrence of a trademarked name, we state that we are using the names only in an editorial fashion, and to the benefit of the trademark owner, with no intention of infringement. There are U.S. and foreign patents pending. Wi-Fi is a registered certification mark of the Wi-Fi Alliance. Microsoft, Windows, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and/or other countries. Bluetooth is a trademark of Bluetooth SIG, Inc., U.S.A. Contents iiiCV60 Vehicle Mount Computer User’s Manual Contents Before You Beginix......................................................... Safety Summaryix................................................... Donotrepairoradjustaloneix................................... First aidix................................................... Resuscitationix............................................... Energized equipmentix......................................... Safety Iconsx....................................................... Global Services and Supportxi.......................................... Warranty Informationxi........................................ Web Supportxi............................................... Telephone Supportxi........................................... WhoShouldReadthisManual?xii....................................... Related Documentsxii................................................. Introduction1.......................................................... Introducing the CV60 Vehicle Mount Computer2................................. Features3.......................................................... Unpacking the CV60 Vehicle Mount Computer4........................... Accessories for the CV60 Vehicle Mount Computer5........................ Locating the Data Collection PC Connectors6............................. Card/Drive Slot8.................................................... Hard Drive/Memory Location9........................................ SODIMM Memory Slot9............................................. AC-DC Power Supply10............................................... DC-DC Power Supplies10............................................. Maintenance11............................................... Cleaning11................................................... Daily Checks11............................................... Specifications12...................................................... Size12 ....................................................... Environmental12.............................................. Processor/Memory/Storage12..................................... System Software12............................................. Power System13............................................... Wired Connectivity13.......................................... Wireless Connectivity13......................................... Peripherals/Accessories13........................................ FCC Notice14................................................ 1 Contents ivCV60 Vehicle Mount Computer User's Manual Operation15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Startup Requirements16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Startup Sequence16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Options17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Hard Drive Installation17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Solid State Drive Installation18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SODIMM Slot18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Card/Drive Slot19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PC Card Installation19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Radio Installation Options20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 802.11 Radio20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Wireless Printing Radio Module20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . PicoLink Radio21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

6001 36 th Avenue West Everett, Washington 98203 United States tel 425.348.2600 fax 425.355.9551 www.intermec.com 12-OCT-2004 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: EHA802MIAG-CV60 To whom it may concern, Description: Intermec Technologies Corporation hereby declares that the CV60 forklift mount data collection computer utilizes a radio configuration application for the 802MIAG radio that restricts users to the following frequencies for products sold in the United States: 2.400 – 2.4835 GHz Band, only Channels 1 through 11 will be available 5.150 – 5.350 GHz Band, only Channels 36 through 64 will be available 5.725 – 5.825 GHz Band, only Channels 149 through 161 will be available Contact Information: Please contact me by telephone at (319) 369-3865 or by e-mail ([email protected]) if there are questions or additional information needed concerning this filing. Yours truly, Scott J. Holub Regulatory Compliance Engineer III Intermec Technologies Corporation 550 Second Street S.E. Cedar Rapids, IA 52401 USA

6001 36 th Avenue West Everett, Washington 98203 United States tel 425.348.2600 fax 425.348.2633 www.intermec.com November 03, 2003 To Whom It May Concern: Intermec Technologies, Corp., the undersigned, hereby authorizes Northwest EMC, Inc., to act on our behalf, as our agent, in the following matters related to the FCC and Industry Canada approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Northwest EMC, Inc. within the scope of this authorization shall have the same affect as our own. This authorization shall expire 12 months from original date. If you have any questions, regarding this application, please feel free to contact me (phone: 425 348 2600, fax: 425 348 2633, email: [email protected] ). Sincerely, Cheryl D. White Compliance Engineer Intermec Technologies Corp.

NORTHWEST EMC, INC. 22975 NW Evergreen Parkway, Suite 400 Hillsboro, OR 97124 Sept 30, 2004 Dear Application Examiner: On behalf of Intermec Corporation, Northwest EMC Inc is submitting this application for the certification of Intermec’s 802MIAG-CV60 transmitter, FCC ID: EHA802MIAG- CV60. It operates in the 2.4 – 2.4835 GHz, 5.15 – 5.35 GHz, and 5.725 – 5.825 GHz bands. It is a mobile spread spectrum transmitter that is compliant with IEEE 802.11a/b/g specifications, and will be used only in the applicant’s CV60 Forklift- mounted computer terminal. The CV60 contains the subject radio FCC ID: EHA802MIAG-CV60 co-located with a Bluetooth radio FCC ID:EHABTM210. Each radio transmits through its own antenna. The technical reports and exhibits demonstrate compliance with FCC rules 47 CFR 15.247 and 47 CFR 15E. Your efforts in reviewing this application are greatly appreciated. Best regards, Greg Kiemel, Director of Engineering Northwest EMC, Inc.

4-OCT-2004 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Frequency Hopping Spread Spectrum Transceiver Certification To whom it may concern, Application: Intermec Technologies Corporation, 550 Second Street SE, Cedar Rapids, Iowa 52401-2029 herein submits for Certification of a forklift mounted terminal with a Frequency Hopping Spread Spectrum Transceiver FCC ID: EHA802MIAG-CV60. Intermec is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Intermec requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Intermec trade secrets and confidential information that Intermec does not customarily release to the public and which is otherwise not generally available to the pubic. Confidentiality is requested for the following exhibits: • Operational Description • Schematics • Frequency Block Diagram Description: This equipment is a model CV60 forklift mounted computer terminal. The CV60 is used primarily for inventory control applications in the warehousing and manufacturing sectors. Contact Information: Please contact me by telephone at (319) 369-3865 or by e-mail ([email protected]) if there are questions or additional information needed concerning this filing. Yours truly, Scott J. Holub Regulatory Compliance Engineer III Intermec Technologies Corporation 550 Second Street S.E. Cedar Rapids, IA 52401 USA 6001 36 th Avenue West Everett, Washington 98203 United States tel 425.348.2600 fax 425.355.9551 www.intermec.com

Northwest EMC TCB Approval Opinion Revision 05//02 ITRM0042 Information about the Applicant Applicant: Intermec Technologies Corporation Address: 550 Second St. SE City, State, Zip Cedar Rapids, IA 52401-2023 Test Requested By: Scott Holub Model: 802MIAG-CV60 FCC ID: FCC ID: EHA802MIAG-CV60 Agent Northwest EMC Approval Type Certification Equipment Type Intentional Radiator Rule Part 15.247 and 15E Overview This application is for the certification of Intermec’s 802MIAG-CV60 transmitter, FCC ID: EHA802MIAG- CV60. It operates in the 2.4 – 2.4835 GHz, 5.15 – 5.35 GHz, and 5.725 – 5.825 GHz bands. It is a mobile spread spectrum transmitter that is compliant with IEEE 802.11a/b/g specifications, and will be used only in the applicant’s CV60 Forklift-mounted computer terminal. The CV60 contains the subject radio FCC ID: EHA802MIAG-CV60 co-located with a Bluetooth radio FCC ID:EHABTM210. Each radio transmits through its own antenna. Recommendation All items have been resolved and completed to my satisfaction; therefore I recommend this application for approval. Signature 10/15/2004 Dean Ghizzone, TCB Committee Northwest EMC TCB Approval Opinion Revision 05//02 ITRM0042 Opinion Specification Requirements Description 15.207 Conducted Power Line Emissions Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report. Reference: Technical Report Specification Requirements Description 15.247(a)(1)(ii) Bandwidth Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report Reference: Technical Report Specification Requirements Description 15.247(b)(1) Power Output Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report Reference: Technical Report Specification Requirements Description 15.247( c ) Spurious Emissions, Antenna Conducted Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report Reference: Technical Report Specification Requirements Description 15.247( c ) Spurious Emissions, Radiated Emissions Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report. Reference: Technical Report Northwest EMC TCB Approval Opinion Revision 05//02 ITRM0042 Specification Requirements Description 15.247(f) Power Spectral Density Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report Reference: Technical Report Specification Requirements Description 15.247(c) Band Edge Compliance Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report. Reference: Technical Report Specification Requirements Description 2.1091 RF Exposure Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted MPE estimates demonstrating compliance. Reference: Technical Report Specification Requirements Description Additional Requirements Requirements for a Digital Device Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report. Reference: Technical Report Northwest EMC TCB Approval Opinion Revision 05//02 ITRM0042 Specification Requirements Description 15.403(c) Emission Bandwidth Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report. Reference: Technical Report Specification Requirements Description 15.403(e) Peak transmit power Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report. Reference: Technical Report Specification Requirements Description 15.403(d) Power Spectral Density Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report. Reference: Technical Report Specification Requirements Description 15.407(a)(6) Peak excursion of the modulation envelope Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report. Reference: Technical Report Northwest EMC TCB Approval Opinion Revision 05//02 ITRM0042 Specification Requirements Description 15.407(b) Undesirable emission Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report. Reference: Technical Report Specification Requirements Description 15.407(g) Frequency Stability Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report. Reference: Technical Report Specification Requirements Description 15.207 Conducted Power Line Emissions Opinion: The Equipment meets the intent specified by the requirements listed above. Discussion: The Applicant has submitted test results in the form of a test report. Reference: Technical Report

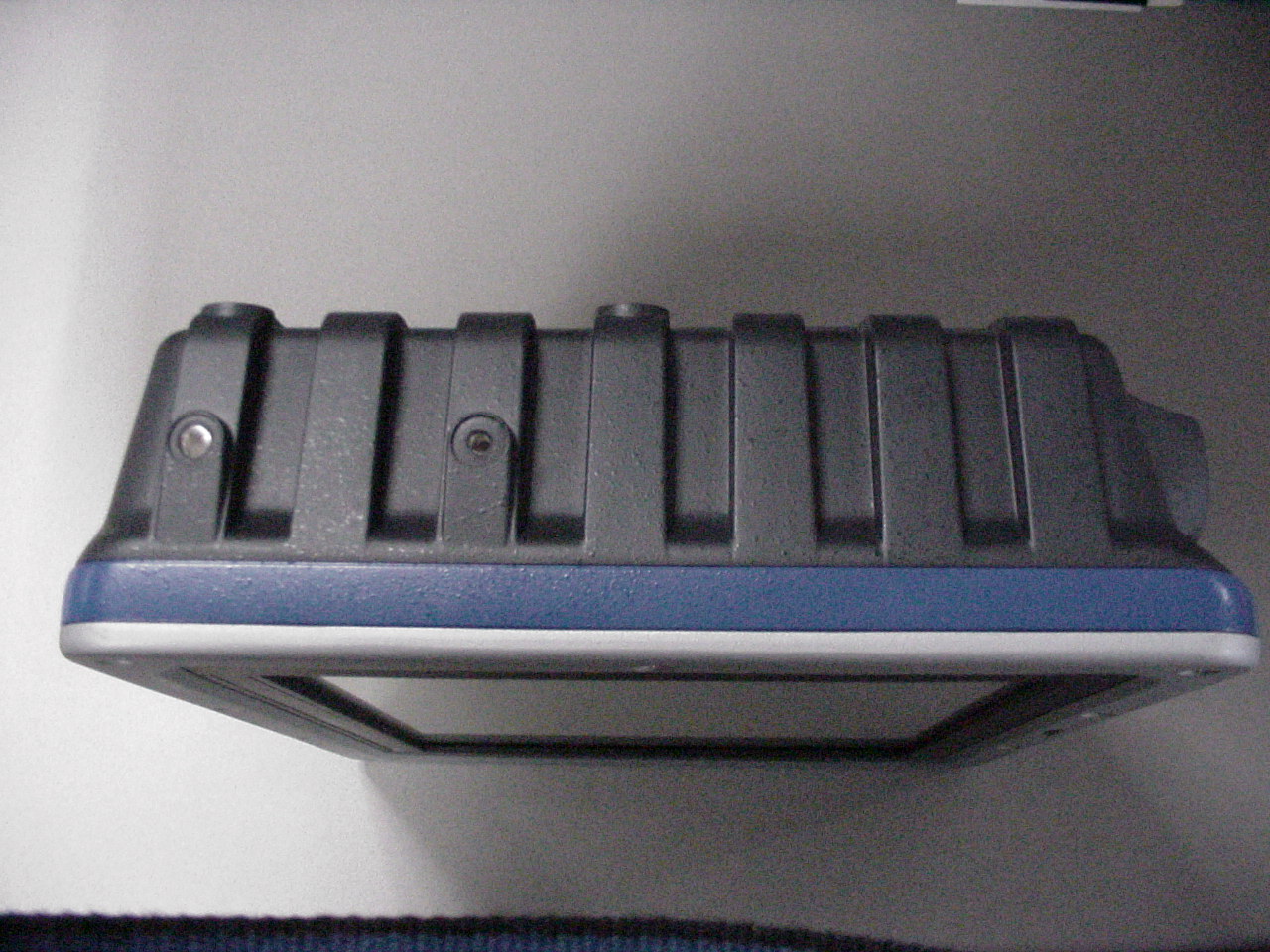

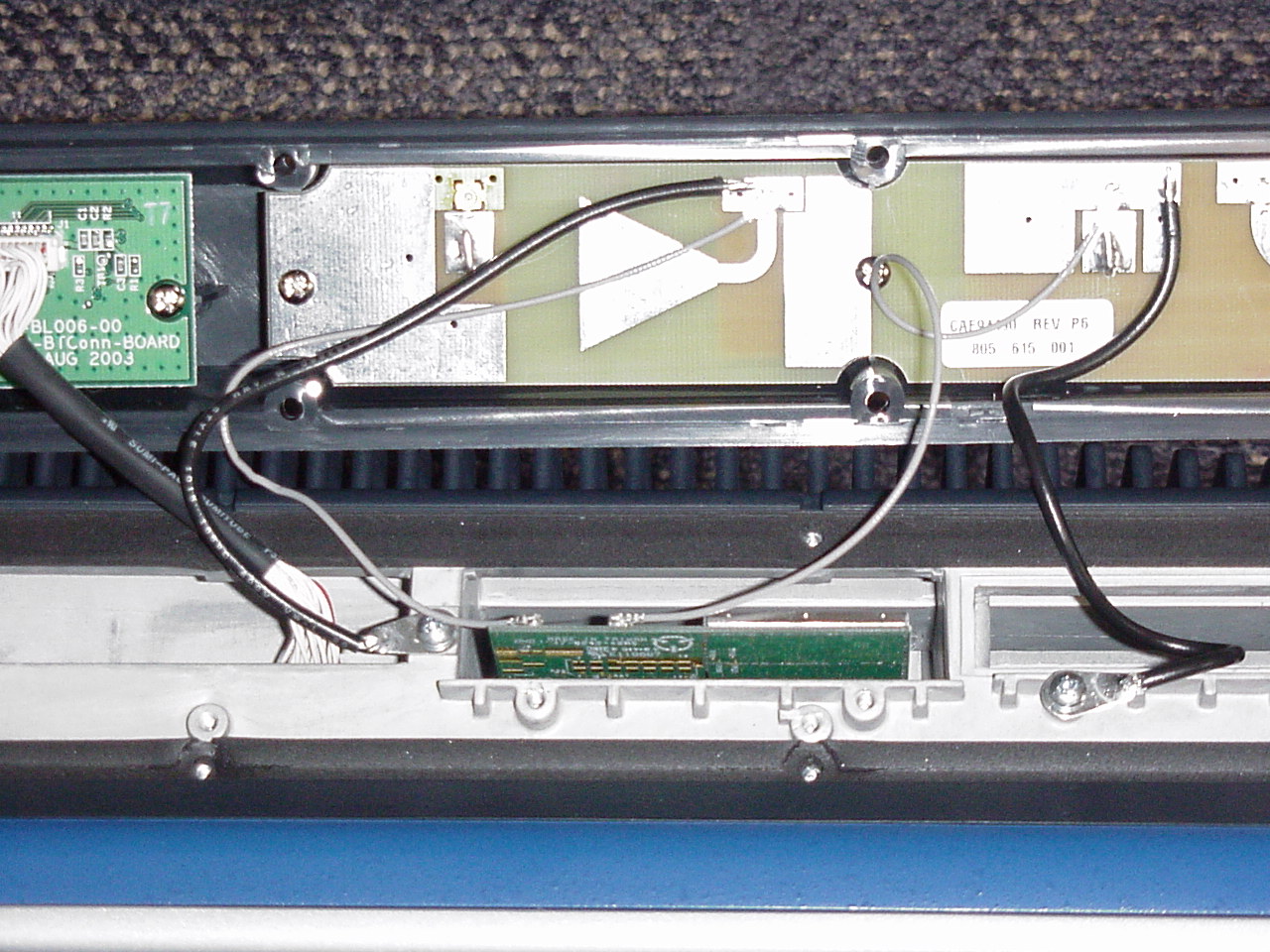

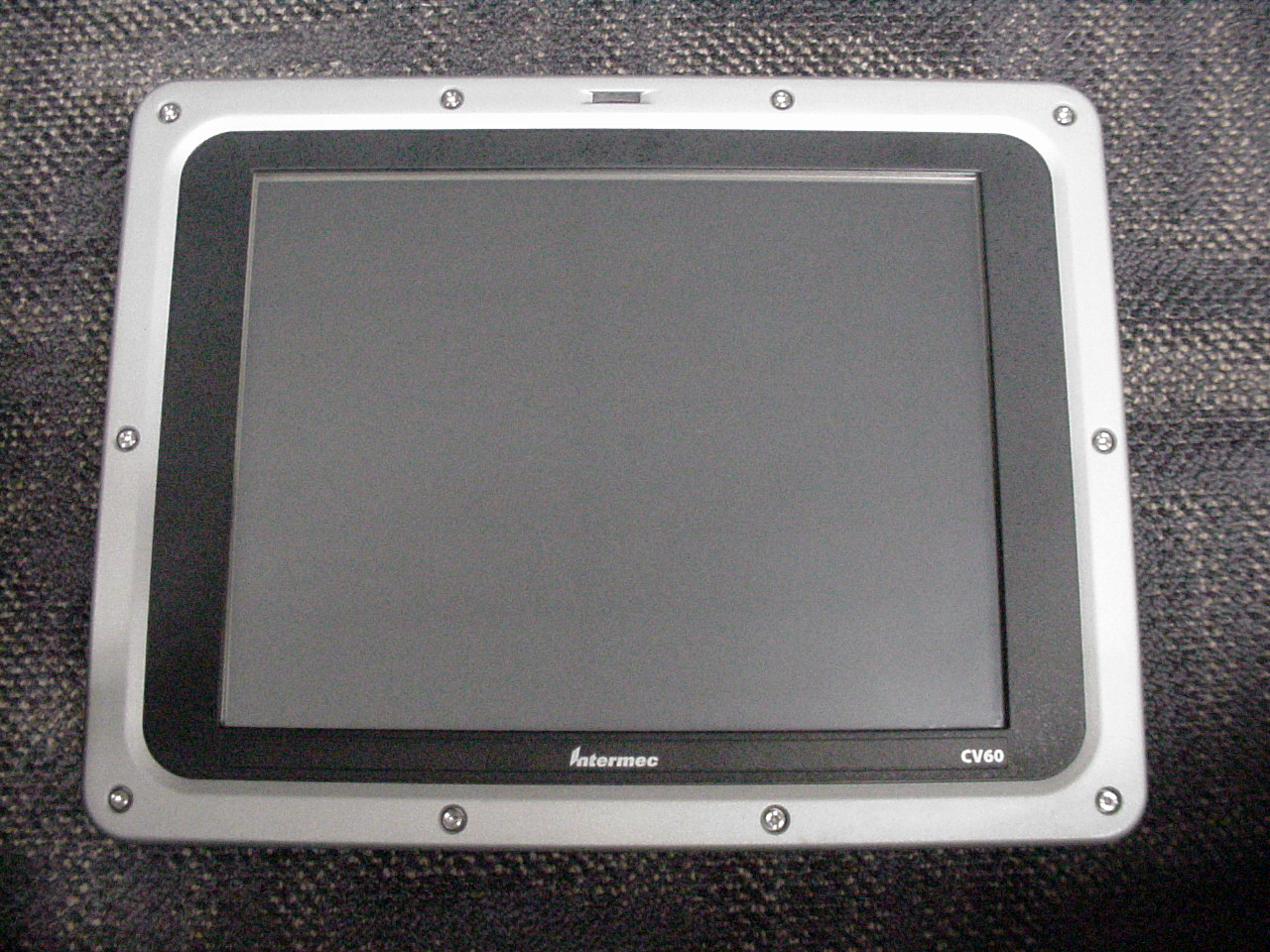

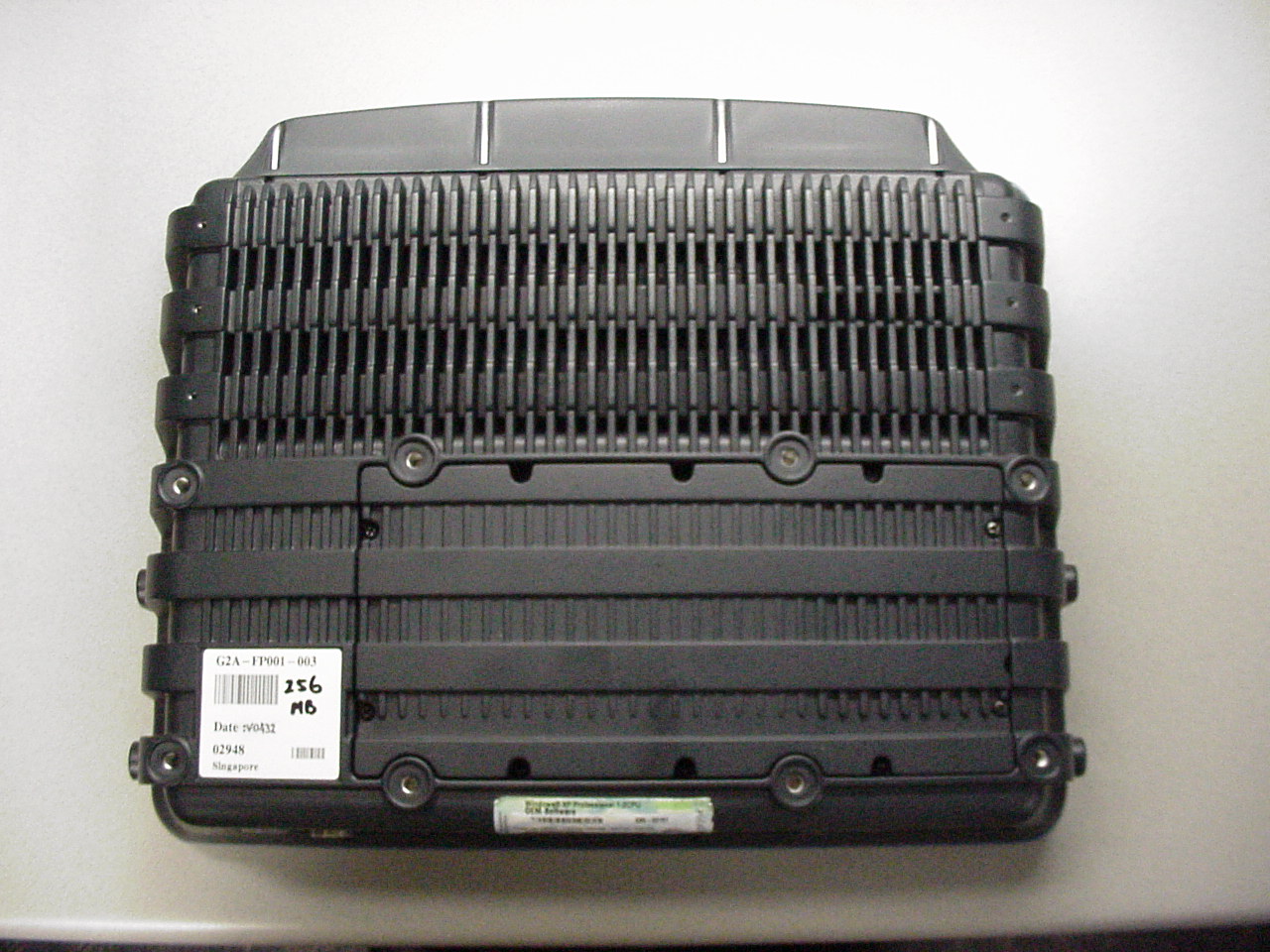

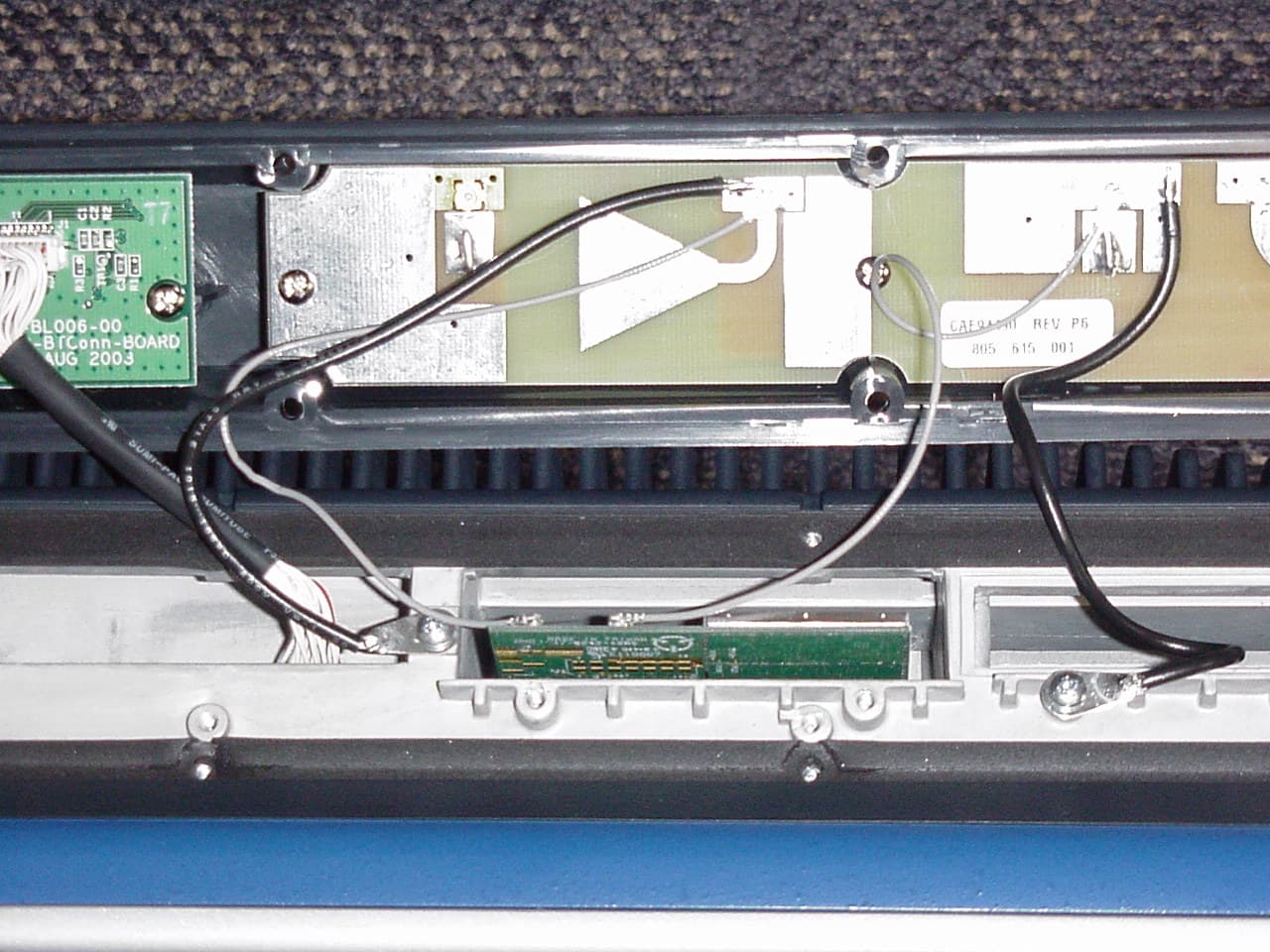

CV60 Photos to Support the EHA802MIAG-CV60 Filing Scott Holub October, 2004 CV60 Unit Front View CV60 Rear View CV60 Right Side View CV60 Left Side View CV60 Top View CV60 Bottom View CV60 with Antenna Radome Removed – Shows Radio Placement CV60 Shows Antenna Board and 802MIAG Radio Module

CV60 Showing Top of 802MIAG Antenna Board CV60 Showing Bottom of 802MIAG Antenna Board CV60 Showing Placement of Bluetooth Module CV60 Showing Rear Compartment for Hard Disk Drive and RAM Memory CV60 With Screen Removed CV60 With Screen and I/O Board Removed CV60 I/O Board Top View CV60 I/O Board Bottom View

073570B SIZECAGE CODEDRAWING NUMBER SCALE 1/1SHEET 27 33825 6001 36TH AVENUE WEST EVERETT, WA 98203 REVISIONS DESCRIPTIONECN -001 REV A ART. ADDED SHEET 27 REV E 301281 9-13-04GMO/AJH DATEAPPROVED PRE-RELEASE PRE-RELEASE CV60 Bottom View

Intermec Technologies Corporation 802MIAG-CV60 October 04, 2004 Report No. ITRM0039 Report Prepared By www.nwemc.com 1-888-EMI-CERT © 2004 Northwest EMC, Inc 22975 NW Evergreen Parkway Suite 400 Hillsboro, Oregon 97124 Certificate of Test Issue Date: October 04, 2004 Intermec Technologies Corporation Model: 802MIAG-CV60 Emissions Specification Test Method Pass Fail FCC 15.247(a) Occupied Bandwidth:2003 ANSI C63.4:2001 FCC 15.247(b) Output Power:2003 ANSI C63.4:2001 FCC 15.247(c) Band Edge Compliance:2003 ANSI C63.4:2001 FCC 15.247(c) Spurious Conducted Emissions:2003 ANSI C63.4:2001 FCC 15.247(c) Spurious Radiated Emissions:2003 ANSI C63.4:2001 FCC 15.247(d) Power Spectral Density:2003 ANSI C63.4:2001 FCC 15.207:2003 AC Powerline Conducted Emissions ANSI C63.4:2001 Modifications made to the product See the Modifications section of this report Test Facility • The measurement facility used to collect the data is located at: Northwest EMC, Inc.; 22975 NW Evergreen Parkway, Suite 400; Hillsboro, OR 97124 Phone: (503) 844-4066 Fax: 844-3826 This site has been fully described in a report filed with and accepted by the FCC (Federal Communications Commission) and Industry Canada. Approved By: Greg Kiemel, Director of Engineering This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested, the specific description is noted in each of the individual sections of the test report supporting this certificate of test. Northwest EMC Revision History Revision 05/05/03 Revision Number Description Date Page Number 00 None Northwest EMC Accreditations and Authorizations Revision 04/01/04 FCC: Accredited by NVLAP for performance of FCC radio, digital, and ISM device testing. Our Open Area Test Sites, certification chambers, and conducted measurement facilities, have been fully described in reports filed with the FCC and accepted by the FCC in letters maintained in our files. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by the FCC as a Telecommunications Certification Body (TCB). This allows Northwest EMC to certify transmitters to FCC specifications in accordance with 47 CFR 2.960 and 2.962. NVLAP: Northwest EMC, Inc. is recognized under the United States Department of Commerce, National Institute of Standards and Technology, National Voluntary Laboratory Accreditation Program for satisfactory compliance with the requirements of ISO/IEC 17025 for Testing Laboratories. The NVLAP accreditation encompasses Electromagnetic Compatibility Testing in accordance with the European Union EMC Directive 89/336/EEC, ANSI C63.4, MIL-STD 461E, DO-160D and SAE J1113. Additionally, Northwest EMC is accredited by NVLAP to perform radio testing in accordance with the European Union R&TTE Directive 1999/5/EEC, the requirements of FCC, and the RSS radio standards for Industry Canada. Accreditation has been granted to Northwest EMC, Inc. under Certificate Numbers: 200629-0, 200630-0, and 200676-0. Industry Canada: Accredited by NVLAP for performance of Industry Canada RSS and ICES testing. Our Open Area Test Sites and certification chambers comply with RSS 212, Issue 1 (Provisional) and have been filed with Industry Canada and accepted. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by NIST and recognized by Industry Canada as a Certification Body (CB) per the APEC Mutual Recognition Arrangement (MRA). This allows Northwest EMC to certify transmitters to Industry Canada technical requirements. CAB: Designated by NIST and validated by the European Commission as a Conformity Assessment Body (CAB) to conduct tests and approve products to the EMC directive and transmitters to the R&TTE directive, as described in the U.S. - EU Mutual Recognition Agreement TÜV Product Service: Included in TUV Product Service Group's Listing of Recognized Laboratories. It qualifies in connection with the TUV Certification after Recognition of Agent's Testing Program for the product categories and/or standards shown in TUV's current Listing of CARAT Laboratories available from TUV. A certificate was issued to represent that this laboratory continues to meet TUV's CARAT Program requirements. Certificate No. USA0401C Northwest EMC Accreditations and Authorizations Revision 04/01/04 TÜV Rheinland: Authorized to carryout EMC tests by order and under supervision of TÜV Rheinland. This authorization is based on "Conditions for EMC- Subcontractors" of November 1992. NEMKO: Assessed and accredited by NEMKO (Norwegian testing and certification body) for European emissions and immunity testing. As a result of NEMKO's laboratory assessment, they will accept test results from Northwest EMC, Inc. for product certification (Authorization No. ELA 119). Technology International: Assessed in accordance with ISO Guide 25 defining the general international requirements for the competence of calibration and testing laboratories and with ITI assessment criteria LACO196. Based upon that assessment Interference Technology International, Ltd., has granted approval for specifications implementing the EU Directive on EMC (89/336/EEC and amendments). The scope of the approval was provided on a Schedule of Assessment supplied with the certificate and is available upon request. Australia/New Zealand: The National Association of Testing Authorities (NATA), Australia has been appointed by the ACA as an accreditation body to accredit test laboratories and competent bodies for EMC standards. Accredited test reports or assessments by competent bodies …

Text truncated - open the document above for the full version.

Northwest EMC Spurious Conducted Emissions Revision 10/1/03 Justification The individuals and/or the organization requesting the test provided the modes, configurations and settings available to evaluate. While scanning the radiated emissions, all of the EUT parameters listed below were investigated. This includes, but may not be limited to, antennas, tuned transmit frequency ranges, operating modes, and data rates. Channels in Specified Band Investigated: Low Mid High Operating Modes Investigated: Single channel continuous transmit Data Rates Investigated: 1 Mbps (802.11b) 5.5 Mbps (802.11b) 11 Mbps (802.11b) 6 Mbps (802.11g) 36 Mbps (802.11g) 54 Mbps (802.11g) Output Power Setting(s) Investigated: Maximum default Power Input Settings Investigated: 120 VAC, 60 Hz. Other Settings Investigated: 802.11(b) 802.11(g) Frequency Range Investigated Start Frequency 0 MHz Stop Frequency 25 GHz Software\Firmware Applied During Test Exercise software Continuous Transmit- Receive (cTxRx) Version 2.3.0.0 Description The system was tested using special software developed to test all functions of the device during the test. Northwest EMC Spurious Conducted Emissions Revision 10/1/03 EUT and Peripherals Description Manufacturer Model/Part Number Serial Number Host Device Intermec Technologies Corporation CV60 02932 Keyboard Cherry G84- 4110PPAUS/00 C 000435 J50 Mouse (USB) Belkin F8E201-USB 29U0 211006039 DC Power Supply Skynet SNP-PA57 035228227 EUT- 802.11(a)/(b)/(g) radio 802MIAG-CV60 PRISM 3886 000DF01504A8 Cables Cable Type Shield Length (m) Ferrite Connection 1 Connection 2 DC Leads Yes 2.0 PA DC Power Supply Host Device AC Power No 2.0 No DC Power Supply AC Power Keyboard PA 1.6 PA Keyboard Host Device Mouse (USB) PA 1.2 PA Mouse (USB) Host Device PA = Cable is permanently attached to the device. Shielding and/or presence of ferrite may be unknown. Measurement Equipment Description Manufacturer Model Identifier Last Cal Interval Spectrum Analyzer Tektronix 2784 AAO 02/26/2003 24 mo Test Description Requirement: Per 47 CFR 15.247(c), in any 100 kHz bandwidth outside the authorized band, the maximum level of radio frequency power must be at least 20dB down from the highest emission level within the authorized band. The measurement is made with the spectrum analyzer’s resolution bandwidth set to 100 kHz, and the video bandwidth set to greater than or equal to the resolution bandwidth. Configuration: The spurious RF conducted emissions were measured with the EUT set to low, medium, and high transmit frequencies. The measurements were made using a direct connection between the RF output of the EUT and the spectrum analyzer. The EUT was transmitting at various data rates using direct sequence modulation. For each transmit frequency, the spectrum was scanned throughout the specified frequency range. Completed by: NORTHWEST2 EMC Rev BETA 01/30/01 EUT: 802MIAG-CV60Work Order: ITRM0039 Serial Number: 000DF01504A8Date: 09/03/04 Customer: INTERMEC TechnologiesTemperature: 72 degrees F Attendees: NoneTested by: Rod PeloquinHumidity: 43% RH Customer Ref. No.: N/APower: 120VAC/60HzJob Site: EV06 TEST SPECIFICATIONS Specification: FCC Part 15.247(c)Year: 2003Method: FCC 97-114, ANSI C63.4Year: 1992 SAMPLE CALCULATIONS COMMENTS EUT OPERATING MODES DEVIATIONS FROM TEST STANDARD REQUIREMENTS RESULTS Pass SIGNATURE Tested By: DESCRIPTION OF TEST EMISSIONS DATA SHEET Antenna Conducted Spurious Emissions 0MHz-3GHz - Low Channel - 802.11(g) 6 Mbps None Modulated by PRBS at 6 Mbps data rate, 802.11(g) modulation scheme Maximum level of any spurious emission outside of the authorized band is 20 dB down from the fundamental. NORTHWEST2 EMC Rev BETA 01/30/01 EUT: 802MIAG-CV60Work Order: ITRM0039 Serial Number: 000DF01504A8Date: 09/03/04 Customer: INTERMEC TechnologiesTemperature: 72 degrees F Attendees: NoneTested by: Rod PeloquinHumidity: 43% RH Customer Ref. No.: N/APower: 120VAC/60HzJob Site: EV06 TEST SPECIFICATIONS Specification: FCC Part 15.247(c)Year: 2003Method: FCC 97-114, ANSI C63.4Year: 1992 SAMPLE CALCULATIONS COMMENTS EUT OPERATING MODES DEVIATIONS FROM TEST STANDARD REQUIREMENTS RESULTS Pass SIGNATURE Tested By: DESCRIPTION OF TEST EMISSIONS DATA SHEET Antenna Conducted Spurious Emissions 3GHz-6.5GHz - Low Channel - 802.11(g) 6 Mbps None Modulated by PRBS at 6 Mbps data rate, 802.11(g) modulation scheme Maximum level of any spurious emission outside of the authorized band is 20 dB down from the fundamental. NORTHWEST2 EMC Rev BETA 01/30/01 EUT: 802MIAG-CV60Work Order: ITRM0039 Serial Number: 000DF01504A8Date: 09/03/04 Customer: INTERMEC TechnologiesTemperature: 72 degrees F Attendees: NoneTested by: Rod PeloquinHumidity: 43% RH Customer Ref. No.: N/APower: 120VAC/60HzJob Site: EV06 TEST SPECIFICATIONS Specification: FCC Part 15.247(c)Year: 2003Method: FCC 97-114, ANSI C63.4Year: 1992 SAMPLE CALCULATIONS COMMENTS EUT OPERATING MODES DEVIATIONS FROM TEST STANDARD REQUIREMENTS RESULTS Pass SIGNATURE Tested By: DESCRIPTION OF TEST EMISSIONS DATA SHEET Antenna Conducted Spurious Emissions 6.5GHz-15GHz - Low Channel - 802.11(g) 6 Mbps None Modulated by PRBS at 6 Mbps data rate, 802.11(g) modulation scheme Maximum level of any spurious emission outside of the authorized band is 20 dB down from the fundamental. NORTHWEST2 EMC Rev BETA 01/30/01 EUT: 802MIAG-CV60Work Order: ITRM0039 Serial Number: 000DF01504A8Date: 09/03/04 Customer: INTERMEC TechnologiesTemperature: 72 degrees F Attendees: NoneTested by: Rod PeloquinHumidity: 43% RH Customer Ref. No.: N/APower: 120VAC/60HzJob Site: EV06 TEST SPECIFICATIONS Specification: FCC Part 15.247(c)Year: 2003Method: FCC 97-114, ANSI C63.4Year: 1992 SAMPLE CALCULATIONS COMMENTS EUT OPERATING MODES DEVIATIONS FROM TEST STANDARD REQUIREMENTS RESULTS Pass SIGNATURE Tested By: DESCRIPTION OF TEST EMISSIONS DATA SHEET Antenna Conducted Spurious Emissions 15GHz - 25GHz - Low Channel - 802.11(g) 6 Mbps None Modulated by PRBS at 6 Mbps data rate, 802.11(g) modulation scheme Maximum leve…

Text truncated - open the document above for the full version.

Northwest EMC Power Spectral Density Revision 10/1/03 Justification The individuals and/or the organization requesting the test provided the modes, configurations and settings available to evaluate. While scanning the radiated emissions, all of the EUT parameters listed below were investigated. This includes, but may not be limited to, antennas, tuned transmit frequency ranges, operating modes, and data rates. Channels in Specified Band Investigated: High Mid Low Data Rates Investigated: 1 Mbit 802.11b 5.5 Mbit 802.11b 11 Mbit 802.11b 6 Mbit 802.11g 36 Mbit 802.11g 54 Mbit 802.11g Output Power Setting(s) Investigated: Maximum default Power In…

Text truncated - open the document above for the full version.
