CK60 Series Mobile Computer User’s Manuali CK60 Handheld Computer with Windows CE User's Manual iiCK60 Handheld Computer with Windows CE User’s Manual Intermec Technologies Corporation Corporate HeadquartersCedar Rapids Technical Communications 6001 36th Ave.W. 550 Second Street SE Everett, WA 98203Cedar Rapids, IA 52401 U.S.A.U.S.A. www.intermec.com The information contained herein is proprietary and is provided solely for the purpose of allowing customers to operate and service Intermec-manufactured equipment and is not to be released, repro- duced, or used for any other purpose without written permission of Intermec. Information and specifications contained in this document are subject to change without prior noticed and do not represent a commitment on the part of Intermec Technologies Corporation. © 2005 by Intermec Technologies Corporation. All rights reserved. The word Intermec, the Intermec logo, Norand, ArciTech, CrossBar, Data Collection Browser, dcBrowser, Duratherm, EasyADC, EasyCoder, EasyLAN, Enterprise Wireless LAN, EZBuilder, Fin- gerprint, i-gistics, INCA (under license), InterDriver, Intermec Printer Network Manager, IRL, JANUS, LabelShop, Mobile Framework, MobileLAN, Nor*Ware, Pen*Key, Precision Print, Print- Set, RoutePower, SmartSystems, TE 2000, Trakker Antares, and Virtual Wedge are either trade- marks or registered trademarks of Intermec Technologies Corporation. Throughout this manual, trademarked names may be used. Rather than put a trademark (™ or ®) symbol in every occurrence of a trademarked name, we state that we are using the names only in an editorial fashion, and to the benefit of the trademark owner, with no intention of infringement. There are U.S. and foreign patents pending. Bluetooth is a trademark of Bluetooth SIG, Inc., U.S.A. Contents CK60 Handheld Computer with Windows CE User’s Manualiii Contents Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ix Safety Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ix Safety Icons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . x Global Services and Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi Who Should Read this Manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi Related Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii Patent Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xii 1 Using the CK60 Handheld Computer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Introducing the CK60 Handheld Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Learning Software Build Versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Resetting Your CK60 Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Performing a Warm-Boot on the CK60 Computer. . . . . . . . . . . . . . . . . . . . . . . . . 3 Performing a Cold-Boot on the CK60 Computer. . . . . . . . . . . . . . . . . . . . . . . . . . 3 Scanning Bar Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Scanning with the 2D Area Imager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Supported Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Using the Ambient Light Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Using the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Changing and Installing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Maximizing Battery Life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Checking the Battery Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Using the Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 32-Key Large Numeric Keypad. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 45-Key Full Alphanumeric Keypad. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 58-Key Full Alphanumeric Keypad. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Using the Color-Coded Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Capitalizing All Characters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Typing Alphabetical Characters on the 45-Key Keypad . . . . . . . . . . . . . . . . . . . . 11 Using the Power (I) Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Turning on the Keypad Backlight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Using the Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Using the Speakers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Enabling the Speaker and Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . 13 Disabling the Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Using the Status Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Using the Secure Digital Card . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

November 8, 2004 To Who It May Concern: Intermec Technologies Corporation, the undersigned, hereby authorizes Northwest EMC, Inc., to act on our behalf, as our agent, in the following matters related to the FCC and Industry Canada approval of our products: report submittal, related correspondence, the signing of all documents related to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Northwest EMC, Inc. within the scope of this authorization shall have the same affect as our own. This authorization shall expire 12 months from original date. If you have any questions regarding this application, please feel free to contact me via phone at 425-356-1765, via fax at 425-348-2633 or via email at [email protected]. Sincerely, Katie Molina Compliance Engineer Intermec Technologies Corporation Safety & Compliance 6001 36 th Avenue West Everett, Washington 98203 United States tel 425 356 1765 fax 425 348 2633

NORTHWEST EMC, INC. 22975 NW Evergreen Parkway, Suite 400 Hillsboro, OR 97124 June 1, 2005 Dear Application Examiner: On behalf of Intermec Technologies Corporation, Northwest EMC, Inc is submitting this application for the original certification of Intermec’s 802UIAG radio module, FCC ID: EHA802UIAG. It is an 802.11 a/b/g radio seeking limited modular approval. Intermec will install the 802UIAG in their CK60 handheld terminal. The CK60 also contains a previously certified Bluetooth radio module, FCC ID: HN2- BTM311. The CK60 will be located within 20 cm of Intermec’s PB42 printer, FCC ID: HN2-PB42. The PB42 printer contains Mitsumi’s Bluetooth radio module. The 802UIAG radio utilizes a single integral antenna. This configuration satisfies the requirements of 47 CFR 15.203. The test reports and exhibits demonstrate compliance with FCC rules 47 CFR 15.247 and 15E as a portable device. Both standalone and co-location configurations have been tested for EMC and SAR compliance. Per 47 CFR 15.407(f), Intermec confirms that both the fundamental emissions and unwanted emissions from the 802UIAG are compliant with the RF Exposure requirements of 47 CFR 2.1093. Your efforts in reviewing this application are greatly appreciated. Best regards, Northwest EMC, Inc.

6001 36 th Avenue West Everett, Washington 98203 United States tel 425.348.2600 fax 425.355.9551 www.intermec.com 27-MAY-2005 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Direct Sequence Spread Spectrum Transceiver Certification To whom it may concern, Application: Intermec Technologies Corporation, 550 Second Street SE, Cedar Rapids, Iowa 52401-2029 herein submits for Certification of a Direct Sequence Spread Spectrum Transceiver FCC ID: EHA802UIAG. Intermec is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Intermec requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Intermec trade secrets and confidential information that Intermec does not customarily release to the public and which is otherwise not generally available to the pubic. Confidentiality is requested for the following exhibits: • Theory of Operation • Schematics • Frequency Block Diagram Description: This equipment is an 802.11a/b/g radio module, which operates in the 2.4 & 5 GHz bands. Limited modular approval is requested since the radio design allows use in multiple hosts of various configurations. Contact Information: Please contact me by telephone at (319) 369-3865 or by e-mail ([email protected]) if there are questions or additional information needed concerning this filing. Yours truly, Scott J. Holub Regulatory Compliance Engineer III Intermec Technologies Corporation 550 Second Street S.E. Cedar Rapids, IA 52401 USA

NORTHWEST EMC, INC. 22975 NW Evergreen Parkway, Suite 400 Hillsboro, OR 97124 July 8, 2005 Dear Application Examiner: Intermec’s 802UIAG radio module, FCC ID: EHA802UIAG is seeking limited modular approval. The radio meets the requirements for limited modular approval as detailed in FCC Public Notice DA00-1407. Compliance to each of the requirements is described below: 1. “The modular transmitter must have its own RF shielding.” The radio portion of the module is contained in its own RF shielding. The shielding is installed at the factory. Please see the Internal Photos exhibit. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs to insure compliance with Part 15 requirements under conditions of excessive data rates or over-modulation. Please see the Schematics exhibit. 3. “The modular transmitter must have its own power supply regulation.” The EUT has its own power supply regulation to insure compliance with Part 15 requirements regardless of the quality or level of external DC supplying the module from the host unit. Please see Schematics exhibit. 4. “The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c).” The EUT meets the FCC antenna requirements. Please see Antenna information exhibit and internal photos exhibit. 5. “The modular transmitter must be tested in a stand-alone configuration.” The EUT was not tested in a stand-alone configuration. The module was installed in Intermec’s CK60 handheld terminal. The CK60 also contains a previously certified Bluetooth radio module, FCC ID: HN2-BTM311. This is why Intermec is seeking limited modular approval of their 802UIAG radio module in this host- specific configuration. 6. “The modular transmitter must be labeled with its own FCC ID number.” The EUT is not labeled with its own FCC ID number since it will always be factory installed by Intermec into their CK60 handheld terminal. The exterior of the CK60 is labeled with the EUT’s FCC ID number. Please see FCC ID label & location exhibit. 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the User Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. Please see the SAR Report. Please contact me if you have additional questions. Your attention to this matter is greatly appreciated. Best regards, Greg Kiemel, Director of Engineering Northwest EMC, Inc.

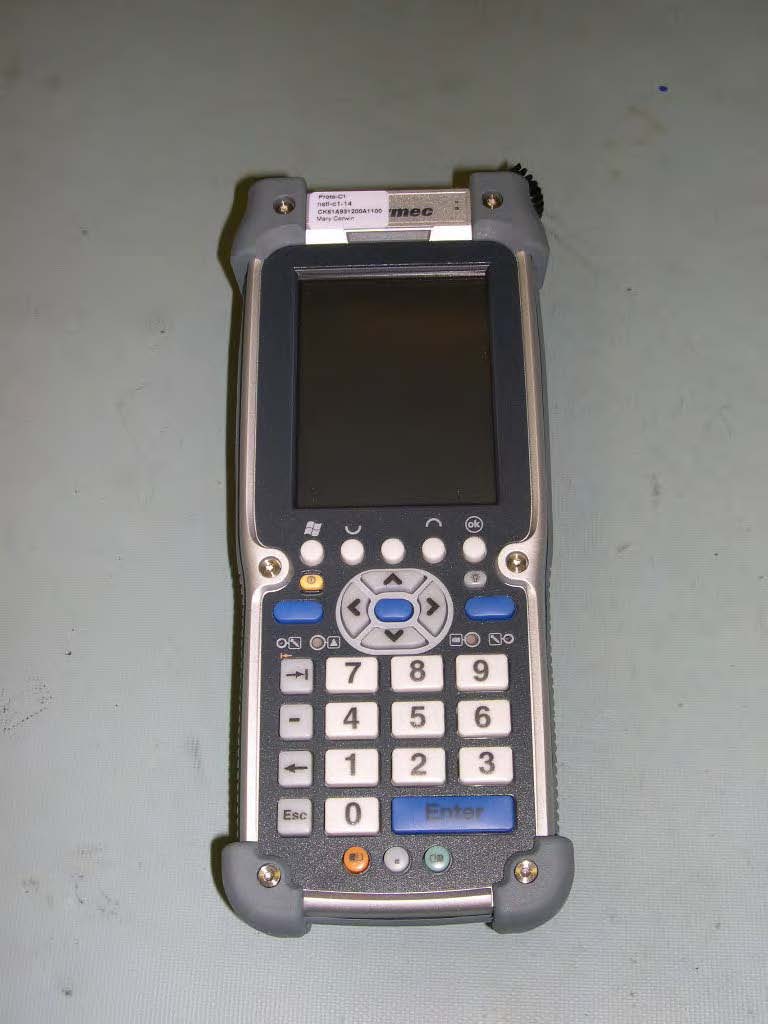

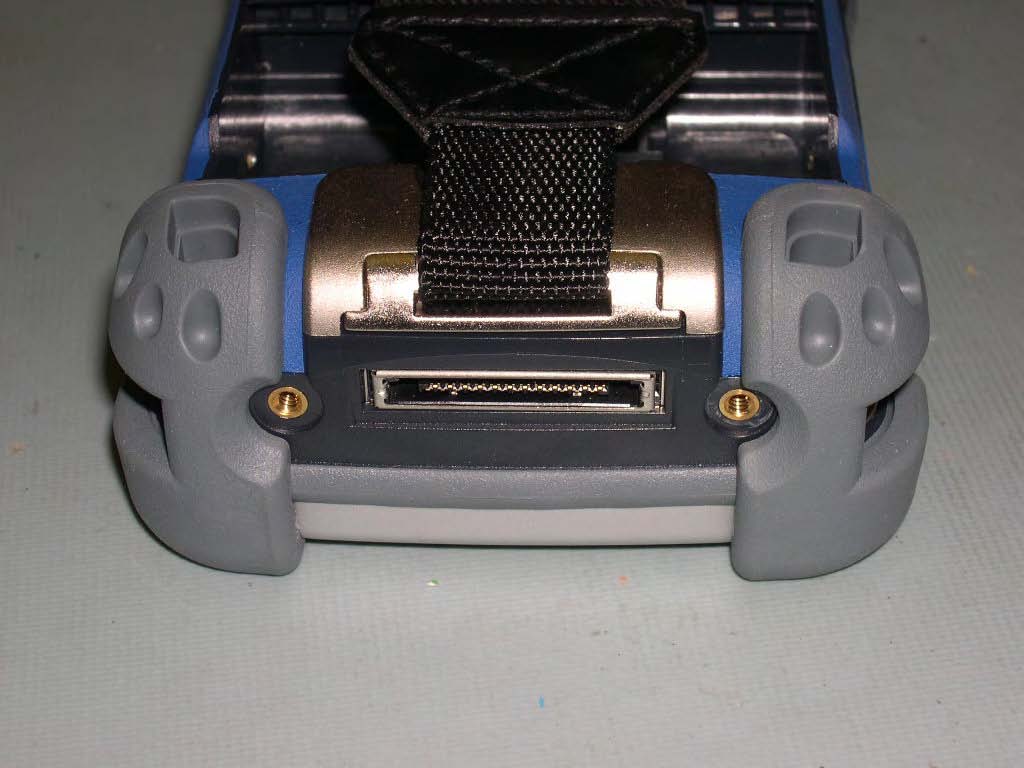

CK60 Unit Photos Front of CK60 Unit Back of CK60 Unit Top End of CK60 Unit Bottom End of CK60 Unit

CK60 Label Placement Back of CK60 Unit with Hand Strap Moved CK60 Label Areas

CK60 Internal Photos CK60 Unit Disassembled Front Section of CK60 Front Section with 802.11a/g Radio Removed CK60 Main Logic Board (MLB) Showing Location of Bluetooth Module 802UIAG Radio Card Front 802UIAG Radio Card Back 802UIAG Antennas Top 802UIAG Antennas Bottom 802UIAG Radio Photos Top of Radio Card Back of Radio Card Top of Radio Card with Shield Removed

Antenna Info Primary : TX and RX 2450 GHz band peak gain : +2 dBi 5 GHz band peak gain : +4 dBi Construction: flex circuit mounted to plastic carrier Size : 1.3x0.8x0.6 inches Secondary: RX Only 2450 GHz band peak gain : +1 dBi 5 GHz band peak gain : +3 dBi Construction: rigid board mounted to plastic carrier Size : 1.7x0.7x0.1 inches

Date/Time: 5/26/2005 11:05:09 AMDate/Time: 5/26/2005 11:10:48 AM Test Laboratory: Compliance Certification Services System Performance Check @ 5.2GHz (Body Tissue) DUT: Dipole 5200-5800MHz; Type: D5GHzV2; Serial: 1003 Communication System: CW 5200MHz; Frequency: 5200 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5200 MHz; σ = 5.42 mho/m; ε r = 49.8; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: deg. C; Liquid Temperature: deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552 ; ConvF(4.28, 4.28, 4.28); Calibrated: 3/19/2005 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/7/2005 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 d=10mm, Pin=250mW/Area Scan (8x8x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 24.6 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 87.5 V/m; Power Drift = 0.095 dB Peak SAR (extrapolated) = 67.1 W/kg SAR(1 g) = 17.8 mW/g; SAR(10 g) = 5.02 mW/g Maximum value of SAR (measured) = 33.5 mW/g 0 dB = 33.5mW/g Date/Time: 5/26/2005 11:23:43 AM Test Laboratory: Compliance Certification Services System Performance Check @ 5.2GHz (Body Tissue) DUT: Dipole 5200-5800MHz; Type: D5GHzV2; Serial: 1003 Communication System: CW 5200MHz; Frequency: 5200 MHz;Duty Cycle: 1:1 d=10mm, Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 30.6 mW/g Date/Time: 5/26/2005 11:50:18 AMDate/Time: 5/26/2005 11:55:56 AM Test Laboratory: Compliance Certification Services System Performance Check @ 5.8GHz (Body Tissue) DUT: Dipole 5200-5800MHz; Type: D5GHzV2; Serial: 1003 Communication System: CW 5800MHz; Frequency: 5800 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5800 MHz; σ = 6.29 mho/m; ε r = 48.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 25.0 deg. C; Liquid Temperature: 24.5 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552 ; ConvF(3.61, 3.61, 3.61); Calibrated: 3/19/2005 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/7/2005 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 d=10mm, Pin=250mW/Area Scan (8x8x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 24.7 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 86.4 V/m; Power Drift = 0.018 dB Peak SAR (extrapolated) = 76.3 W/kg SAR(1 g) = 18.1 mW/g; SAR(10 g) = 5.05 mW/g Maximum value of SAR (measured) = 36.0 mW/g 0 dB = 36.0mW/g Date/Time: 5/26/2005 12:08:47 PM Test Laboratory: Compliance Certification Services System Performance Check @ 5.8GHz (Body Tissue) DUT: Dipole 5200-5800MHz; Type: D5GHzV2; Serial: 1003 Communication System: CW 5800MHz; Frequency: 5800 MHz;Duty Cycle: 1:1 d=10mm, Pin=250mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 14.4 mW/g Date/Time: 5/27/2005 12:11:19 PMDate/Time: 5/27/2005 12:15:39 PM Test Laboratory: Compliance Certification Services System Performance Check @ 2450MHz (Body Tissue) DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:748 Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.92 mho/m; ε r = 53.2; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 25.0 deg. C; Liquid Temperature: 24.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552 ; ConvF(6.94, 6.94, 6.94); Calibrated: 3/19/2005 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/7/2005 - Phantom: SAM 1; Type: SAM 1; Serial: 1185 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 17.2 mW/g d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 96.6 V/m; Power Drift = 0.086 dB Peak SAR (extrapolated) = 24.4 W/kg SAR(1 g) = 12.5 mW/g; SAR(10 g) = 5.81 mW/g Maximum value of SAR (measured) = 17.5 mW/g 0 dB = 17.5mW/g Date/Time: 5/27/2005 12:21:43 PM Test Laboratory: Compliance Certification Services System Performance Check @ 2450MHz (Body Tissue) DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:748 Communication System: CW - 2450 MHz; Frequency: 2450 MHz;Duty Cycle: 1:1 d=10mm, Pin=250mW/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Maximum value of SAR (measured) = 18.0 mW/g

Date/Time: 5/26/2005 3:12:20 PMDate/Time: 5/26/2005 3:43:56 PMDate/Time: 5/26/2005 3:57:21 PM Test Laboratory: Compliance Certification Services Test Position 1 - 815-057-001 Holster for CK60 without Scan Handle (Front Side) DUT: Intermec Technologies Corporation; Type: CK60; Serial: 33390400024 Communication System: 802.11a; Frequency: 5240 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 5240 MHz; σ = 5.48 mho/m; ε r = 49.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 25.0 deg. C; Liquid Temperature: 24.5 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552 ; ConvF(4.28, 4.28, 4.28); Calibrated: 3/19/2005 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/7/2005 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 M-ch/Area Scan (16x23x1): Measurement grid: dx=10mm, dy=10mm Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.015 mW/g M-ch/Zoom Scan (7x7x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 0.834 V/m; Power Drift = -0.205 dB Peak SAR (extrapolated) = 0.049 W/kg SAR(1 g) = 0.00599 mW/g; SAR(10 g) = 0.00184 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.016 mW/g M-ch/Zoom Scan (7x7x8)/Cube 1: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 0.834 V/m; Power Drift = -0.205 dB Peak SAR (extrapolated) = 0.031 W/kg SAR(1 g) = 0.00197 mW/g; SAR(10 g) = 0.000747 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.018 mW/g Date/Time: 5/26/2005 5:05:08 PMDate/Time: 5/26/2005 5:36:41 PM Test Laboratory: Compliance Certification Services Test Position 1 - 815-057-001 Holster for CK60 without Scan Handle (Front Side) DUT: Intermec Technologies Corporation; Type: CK60; Serial: 33390400024 Communication System: 802.11a; Frequency: 5805 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 5805 MHz; σ = 6.3 mho/m; ε r = 48.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 25.0 deg. C; Liquid Temperature: 24.5 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552 ; ConvF(3.61, 3.61, 3.61); Calibrated: 3/19/2005 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/7/2005 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 H-ch (5805 MHz)/Area Scan (16x23x1): Measurement grid: dx=10mm, dy=10mm Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.029 mW/g H-ch (5805 MHz)/Zoom Scan (7x7x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 0.519 V/m; Power Drift = -0.160 dB Peak SAR (extrapolated) = 0.025 W/kg SAR(1 g) = 0.00267 mW/g; SAR(10 g) = 0.000835 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.020 mW/g Date/Time: 5/26/2005 7:36:09 PMDate/Time: 5/26/2005 7:58:38 PM Test Laboratory: Compliance Certification Services Test Position 2 - 815-057-001 Holster for CK60 without Scan Handle (Back Side) DUT: Intermec Technologies Corporation; Type: CK60; Serial: 33390400024 Communication System: 802.11a; Frequency: 5240 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 5240 MHz; σ = 5.48 mho/m; ε r = 49.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 25.0 deg. C; Liquid Temperature: 24.5 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552 ; ConvF(4.28, 4.28, 4.28); Calibrated: 3/19/2005 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/7/2005 - Phantom: SAM 2; Type: SAM 2; Serial: 1050 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 M-ch (5240MHz)/Area Scan (15x18x1): Measurement grid: dx=10mm, dy=10mm Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.996 mW/g M-ch (5240MHz)/Zoom Scan (7x7x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 3.79 V/m; Power Drift = -0.115 dB Peak SAR (extrapolated) = 1.83 W/kg SAR(1 g) = 0.585 mW/g; SAR(10 g) = 0.223 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 1.05 mW/g Date/Time: 5/26/2005 8:12:31 PM Test Laboratory: Compliance Certification Services Test Position 2 - 815-057-001 Holster for CK60 without Scan Handle (Back Side) DUT: Intermec Technologies Corporation; Type: CK60; Serial: 33390400024 Communication System: 802.11a; Frequency: 5240 MHz;Duty Cycle: 1:1 M-ch (5240MHz)/Z Scan (1x1x41): Measurement grid: dx=20mm, dy=20mm, dz=2.5mm Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 1.01 mW/g Date/Time: 5/26/2005 10:43:53 PMDate/Time: 5/26/2005 11:07:37 PM Test Laboratory: Compliance Certification Services Test Position 2 - 815-057-001 Holster for CK60 without Scan Handle (Back Side) DUT: Intermec Technologies Corporation; Type: CK60; Serial: 33390400024 Communication System: 802.11a; Frequency: 5240 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 5240 MHz; σ = 5.48 mho/m; ε r = 49.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 25.0 deg. C; Liquid Temperature: 24.5 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552 ; ConvF(4.28, 4.28, 4.28); Calibrated: 3/19/2005 - Sensor-Surface: 2mm (Mecha…

Text truncated - open the document above for the full version.

Date/Time: 5/27/2005 2:44:53 PMDate/Time: 5/27/2005 2:56:37 PM Test Laboratory: Compliance Certification Services Test Position 1 - 815-057-001 Holster for CK60 without Scan Handle (Front Side) DUT: Intermec Technologies Corporation; Type: CK60; Serial: 33390400024 Communication System: 802.11bg; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2412 MHz; σ = 1.88 mho/m; ε r = 53.3; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 25.0 deg. C; Liquid Temperature: 24.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552 ; ConvF(6.94, 6.94, 6.94); Calibrated: 3/19/2005 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/7/2005 - Phantom: SAM 1; Type: SAM 1; Serial: 1185 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 b mode_L-ch/Area Scan (11x13x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.035 mW/g b mode_L-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 1.55 V/m; Power Drift = -0130 dB Peak SAR (extrapolated) = 0.050 W/kg SAR(1 g) = 0.029 mW/g; SAR(10 g) = 0.016 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.039 mW/g Date/Time: 5/27/2005 3:16:34 PMDate/Time: 5/27/2005 3:28:35 PM Test Laboratory: Compliance Certification Services Test Position 1 - 815-057-001 Holster for CK60 without Scan Handle (Front Side) DUT: Intermec Technologies Corporation; Type: CK60; Serial: 33390400024 Communication System: 802.11bg; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2412 MHz; σ = 1.88 mho/m; ε r = 53.3; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 25.0 deg. C; Liquid Temperature: 24.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552 ; ConvF(6.94, 6.94, 6.94); Calibrated: 3/19/2005 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/7/2005 - Phantom: SAM 1; Type: SAM 1; Serial: 1185 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 g mode_L-ch/Area Scan (11x13x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.024 mW/g g mode_L-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 1.18 V/m; Power Drift = -0.139 dB Peak SAR (extrapolated) = 0.037 W/kg SAR(1 g) = 0.021 mW/g; SAR(10 g) = 0.011 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.028 mW/g Date/Time: 5/27/2005 3:54:44 PMDate/Time: 5/27/2005 4:04:35 PM Test Laboratory: Compliance Certification Services Test Position 2 - 815-057-001 Holster for CK60 without Scan Handle (Back Side) DUT: Intermec Technologies Corporation; Type: CK60; Serial: 33390400024 Communication System: 802.11bg; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2412 MHz; σ = 1.88 mho/m; ε r = 53.3; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 25.0 deg. C; Liquid Temperature: 24.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552 ; ConvF(6.94, 6.94, 6.94); Calibrated: 3/19/2005 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/7/2005 - Phantom: SAM 1; Type: SAM 1; Serial: 1185 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 b mode_L-ch/Area Scan (10x12x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.254 mW/g b mode_L-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 2.45 V/m; Power Drift = -0.189 dB Peak SAR (extrapolated) = 0.351 W/kg SAR(1 g) = 0.205 mW/g; SAR(10 g) = 0.113 mW/g Info: Interpolated medium parameters used for SAR evaluation! Maximum value of SAR (measured) = 0.265 mW/g Date/Time: 5/27/2005 4:19:10 PMDate/Time: 5/27/2005 4:29:04 PM Test Laboratory: Compliance Certification Services Test Position 2 - 815-057-001 Holster for CK60 without Scan Handle (Back Side) DUT: Intermec Technologies Corporation; Type: CK60; Serial: 33390400024 Communication System: 802.11bg; Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2412 MHz; σ = 1.88 mho/m; ε r = 53.3; ρ = 1000 kg/m 3 Phantom section: Flat Section Room Ambient Temperature: 25.0 deg. C; Liquid Temperature: 24.0 deg. C DASY4 Configuration: - Area Scan setting - Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Probe: EX3DV4 - SN3552 ; ConvF(6.94, 6.94, 6.94); Calibrated: 3/19/2005 - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 2/7/2005 - Phantom: S…

Text truncated - open the document above for the full version.
