EHABTS0808520-00080 radio in 700C

207700 Series Color Mobile Computer User’s Manual Programming 7 The following programming information pertains to the 700 Series Color Mobile Computer: SCreating CAB Files(page 208) SCustomization and Lockdown(page 225) SFTP Server(page 227) SKernel I/O Control Functions(page 239) SNetwork Selection APIs(page 255) SNotifications(page 301) SReboot Functions(page 303) SRemapping the Keypad(page 304) ProgrammingChapter —7 208700 Series Color Mobile Computer User’s Manual Creating CAB Files The Windows CE operating system uses a .CAB file to install an applica- tion on a Windows CE-based device. A .CAB file is composed of multiple files that are compressed into one file. Compressing multiple files into one file provides the following benefits: SAll application files are present. SA partial installation is prevented. SThe application can be installed from several sources, such as a desktop computer or a Web site. Use the CAB Wizard application (CABWIZ.EXE) to generate a .CAB file for your application. Creating Device-Specific CAB Files Do the following to create a device-specific .CAB file for an application,in the order provided: 1Create an .INF file with Windows CE-specific modifications(page 208). 2OptionalCreate a SETUP.DLL file to provide custom control of the installation process(page 220). 3Use the CAB Wizard to create the .CAB file, using the .INF file, the optional SETUP.DLL file, and the device-specific application files as parameters(page 223). Creating an .INF File An .INF file specifies information about an application for the CAB Wi- zard. Below are the sections of an .INF file: [Version] This specifies the creator of the file, version, and other relevant informa- tion. Required?Yes SSignature:“signature_name” “$Windows NT$” SProvider:“INF_creator” The company name of the application, such as “Microsoft.” SCESignature “$Windows CE$” Example [Version] Signature = “$Windows NT$” Provider = “Intermec” CESignature = “$Windows CE$” Programming—Chapter 7 209700 Series Color Mobile Computer User’s Manual [CEStrings] This specifies string substitutions for the application name and the default installation directory. Required?Yes SAppName:app_name Name of the application. Other instances of %AppName% in the .INF file are replaced with this string value, such as RP32. SInstallDir:default_install_dir Default installation directory on the device. Other instances of %Install- Dir% in the .INF file are replaced with this string value. Example: \SDMMC_Disk\%AppName% Example [CEStrings] AppName=“Game Pack” InstallDir=%CE1%\%AppName% [Strings] This section is optional and defines one or more string keys. A string key represents a string of printable characters. Required?No Sstring_key:value String consisting of letters, digits, or other printable characters. Enclose valuein double quotation marks ““”” if the corresponding string key is used in an item that requires double quotation marks. No string_keys is okay. Example [Strings] reg_path = Software\Intermec\My Test App ProgrammingChapter —7 210700 Series Color Mobile Computer User’s Manual [CEDevice] Describes the platform for the targeted application. All keys in this section are optional. If a key is nonexistent or has no data, Windows CE does not perform any checking with the exception beingUnsupportedPlatforms.If theUnsupportedPlatformskey exists but no data, the previous value is not overridden. Required?Yes SProcessorType:processor_type The value that is returned bySYSTEMINFO.dwProcessorType.For example, the value for the ARM CPU is 2577 SUnsupportedPlatforms:platform_family_name This lists known unsupported platform family names. If the name specified in the[CEDevice.xxx]section is different from that in the [CEDevice]section, bothplatform_family_namevalues are unsupported for the microprocessor specified by xxx. That is, the list of unsupported platform family names is appended to the previous list of unsupported names. Application Manager will not display the application for an unsupported platform. Also, a user will be warned during the setup process if the .CAB file is copied to an unsupported device. Example [CEDevice] UnsupportedPlatforms = pltfrm1 ; pltfrm1 is unsupported [CEDevice.SH3] UnsupportedPlatforms = ; pltfrm1 is still unsupported SVersionMin:minor_version Numeric value returned byOSVERSIONINFO.dwVersionMinor. The .CAB file is valid for the currently connected device if the version of this device is greater than or equal toVersionMin. SVersionMax:major_version Numeric value returned byOSVERSIONINFO.dwVersionMajor. The .CAB file is valid for the currently connected device if the version of this device is less than or equal toVersionMax. SBuildMin:build_number Numeric value returned byOSVERSIONINFO.dwBuildNumber. The .CAB file is valid for the currently connected device if the version of this device is greater than or equal toBuildMin. SBuildMax:build_number Numeric value returned byOSVERSIONINFO.dwBuildNumber. The .CAB file is valid for the currently connected device if the version of this device is less than or equal toBuildMax. Programming—Chapter 7 211700 Series Color Mobile Computer User’s Manual Example The following code example shows three[CEDevice]sections: one that gives basic information for any CPU and two that are specific to the SH3 and the MIPS microprocessors. [CEDevice]; A “template” for all platforms UnsupportedPlatforms = pltfrm1 ; Does not supportpltfrm1 ; The following specifies version 1.0 devices only. VersionMin = 1.0 VersionMax = 1.0 [CEDevice.ARM]; Inherits all [CEDevice] settings ; This will create a .CAB file specific to ARM devices. ProcessorType = 2577 ; ARM .cab file is valid for ARM microprocessors. UnsupportedPlatforms = ;pltfrm1is still unsupported ; The following overrides the version settings so that no version checking is performed. VersionMin = VersionMax = [CEDevice.MIPS]; Inherits all [CEDevice] settings ; This will create a .CAB file specific to “MIPS” devices. ProcessorType = 4000 ;…

Text truncated - open the document above for the full version.

NORTHWEST EMC, INC. 22975 NW Evergreen Parkway, Suite 400 Hillsboro, OR 97124 July 19, 2004 Dear Application Examiner: On behalf of Intermec Corporation, Northwest EMC Inc is submitting this application for the certification of Intermec’s 8520-00080 transmitter, FCC ID: EHABTS080. It is a Bluetooth radio module. Limited modular approval is sought for use in Intermec’s handheld computer, Model 700C. The 700C contains three co-located radio modules (CDMA, 802.11(b) and this new Bluetooth). The 802.11(b) radio has been previously certified for portable, co-located use in the 700C (FCC ID: HN22011B-2) The CDMA radio is currently seeking authorization (FCC ID: EHAEM3420). The 700C can be used with several mobile accessories. It can be installed in a docking cradle in the Intermec Bluetooth-enabled Printer, Model 6820 (FCC ID: EHABTS080-1). When the 700C is installed in the 6820 printer, both the 8520-00080 and the printer’s Bluetooth radio can transmit simultaneously. The 700C can also be attached to the Intermec Model IP3, which contains a RFID radio in a handheld pistol grip. Since the IP3 uses the same IRDA interface port as the Bluetooth radio, the Bluetooth and RFID radios cannot transmit simultaneously. All other radios can transmit simultaneously. Each radio transmits through its own antenna. The EUT was tested in the 700C for radiated emissions and SAR. These tests were then repeated with the other co-located radios transmitting simultaneously. The technical reports and exhibits demonstrate compliance with FCC rules 15.247 as well as the RF exposure requirements of 2.1093. Your efforts in reviewing this application are greatly appreciated. Best regards, Greg Kiemel, Director of Engineering Northwest EMC, Inc.

6001 36 th Avenue West Everett, Washington 98203 United States tel 425.348.2600 fax 425.355.9551 www.intermec.com 18-JUN-2004 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Frequency Hopping Spread Spectrum Transceiver Certification To whom it may concern, Application: Intermec Technologies Corporation, 550 Second Street SE, Cedar Rapids, Iowa 52401-2029 herein submits for Certification of a Frequency Hopping Spread Spectrum Transceiver FCC ID: EHABTS080. Intermec is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Intermec requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Intermec trade secrets and confidential information that Intermec does not customarily release to the public and which is otherwise not generally available to the pubic. Confidentiality is requested for the following exhibits: • Theory of Operation • Schematics • Parts Placement Description: This equipment is a Bluetooth FHSS radio module, which operates in the 2400-2483.5 MHz band. Limited modular approval is requested since the radio design allows use in multiple hosts of various configurations. Contact Information: Please contact me by telephone at (319) 369-3865 or by e-mail ([email protected]) if there are questions or additional information needed concerning this filing. Yours truly, Scott J. Holub Regulatory Compliance Engineer III Intermec Technologies Corporation 550 Second Street S.E. Cedar Rapids, IA 52401 USA

6001 36 th Avenue West Everett, Washington 98203 United States tel 425.348.2600 fax 425.348.2633 www.intermec.com November 03, 2003 To Whom It May Concern: Intermec Technologies, Corp., the undersigned, hereby authorizes Northwest EMC, Inc., to act on our behalf, as our agent, in the following matters related to the FCC and Industry Canada approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Northwest EMC, Inc. within the scope of this authorization shall have the same affect as our own. This authorization shall expire 12 months from original date. If you have any questions, regarding this application, please feel free to contact me (phone: 425 348 2600, fax: 425 348 2633, email: [email protected] ). Sincerely, Cheryl D. White Compliance Engineer Intermec Technologies Corp.

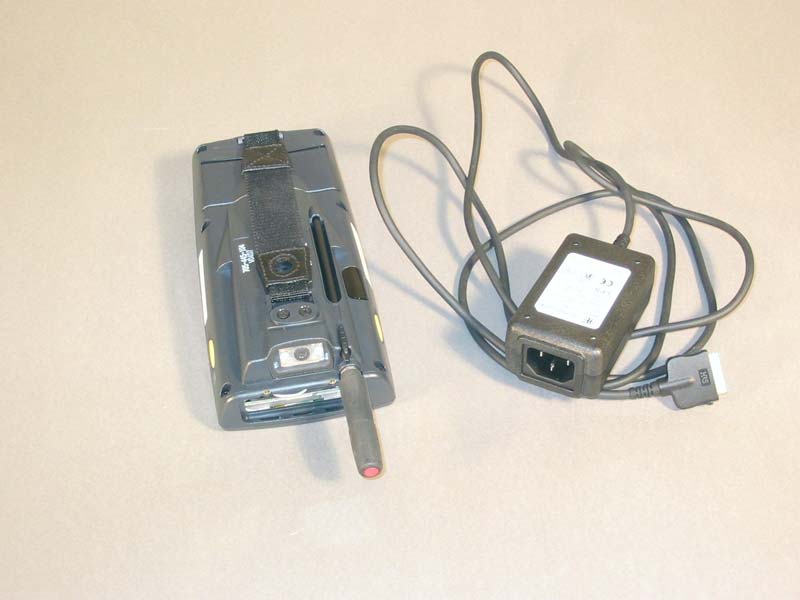

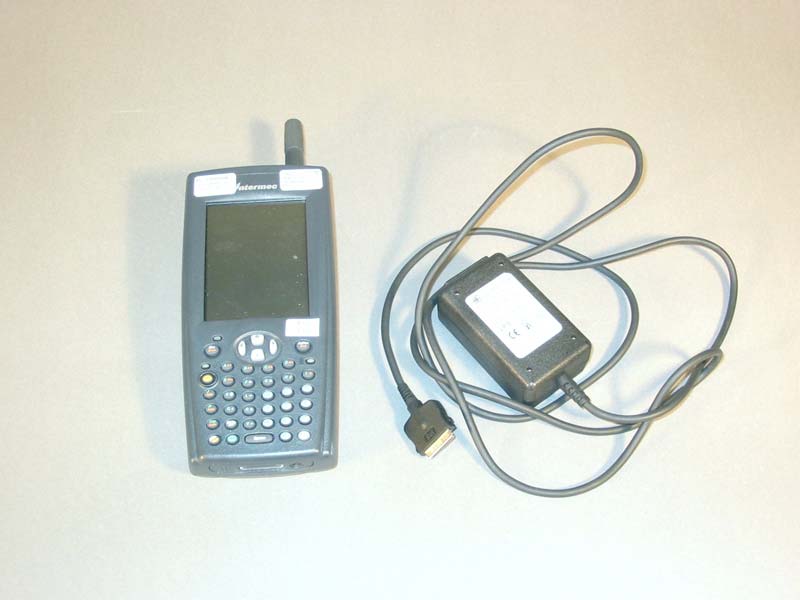

Component Side Solder Side Intermec 700C Handheld Computer – Host device for FCC ID: EHABTS080

Intermec Technologies Corp P/N: 855-053-002 SCKT P/N: 8520-00080B 0406000100 FCC ID: EHABTS080 0406000100 Intermec Technologies Corp P/N: 855-053-001 SCKT P/N: 8520-00087 A FCC ID: EHABTS080 0406000100 0406000100 FCC ID Label Location Component Side Solder Side FCC ID Label will be Located Here 072775B SIZECAGE CODEDRAWING NUMBER SCALE 1/1SHEET 3 33825 6001 36TH AVENUE WEST EVERETT, WA 98203-9280 REVISIONS DESCRIPTIONECN 103409 INITIAL DRAWING CREATION REV 01 RELEASED AT REV AA ART REV B ADDED MEXICO BLUETOOTH CERT NUMBERB XXXXXX ART REV C CHANGED FCC ID NUMBERAJH/C DATEAPPROVED SCALE 1/1: SCALE 2 / 1: ARTMASTER REV X ARTMASTER REV X 700C Hand Held Computer Label with FCC ID: EHABTS080 Installed CONTAINS TX FCC ID: EHABTS080 CANADA: 1223104675A SCýTRCPALBL02-223 IC: ICES-003 Class B FONT SIZE: 5.5 pt. Tested To Comply With FCC Standards FOR HOME OR OFFICE USE Model: 700C MFD: XXXXXXXXX 2002 SN: xxxxxxxxxxx XXXXXXXX4323232XXX CN: 740XXXXXXXXX4XXX 12V 1,5A Made in Singapore N309 I.T.E. 729T HELVETICA FONT SIZE: 4.5 pt. Unless otherwise specified CONTAINS TX FCC ID: EHABTS080 CANADA: 1223104675A SCýTRCPALBL02-223 IC: ICES-003 Class B Tested To Comply With FCC Standards FOR HOME OR OFFICE USE Model: 700C MFD: XXXXXXXXX 2002 SN: xxxxxxxxxxx XXXXXXXX4323232XXX CN: 740XXXXXXXXX4XXX 12V 1,5A Made in Singapore N309 I.T.E. 729T 072775B SIZECAGE CODEDRAWING NUMBER SCALE 1/1SHEET 7 33825 6001 36TH AVENUE WEST EVERETT, WA 98203-9280 REVISIONS DESCRIPTIONECN REV REV C CHANGED FCC NUMBER REV E CHANGED IC NUMBER C E DATEAPPROVED ARTMASTER REV X ���700C Hand Held Computer Label � with FCC ID: EHABTS080 FCC ID: HN22011B-2 Installed ARTMASTER REV X CONTAINS TX FCC ID: HN22011B-2 FCC ID: EHABTS080 IC: 1223A-2011B IC: 1223A-BTS080 Tested To Comply With FCC Standards FOR HOME OR OFFICE USE Model: 700C MFD: XXXXXXXXX 200X SN: xxxxxxxxxxx XXXXXXXX4323232XXX CN: 750XXXXXXXXX4704 12V 1,5A Made in Singapore N309 I.T.E. 729T IC: ICES-003 Class B CONTAINS TX FCC ID: HN22011B-2 FCC ID: EHABTS080 IC: 1223A-2011B IC: 1223A-BTS080 Tested To Comply With FCC Standards FOR HOME OR OFFICE USE Model: 700C MFD: XXXXXXXXX 200X SN: xxxxxxxxxxx XXXXXXXX4323232XXX CN: 750XXXXXXXXX4704 12V 1,5A Made in Singapore N309 I.T.E. 729T IC: ICES-003 Class B 10352011-20-02JMB 10381205-12-03JMB CFB SCALE 1/1: SCALE 2/1: REV F CHANGED FCC IC NUMBER F 10401009-08-03 AJH REV G CHANGED FCC AND IC NUMBERS G XXXXXX06-23-04 072775B SIZECAGE CODEDRAWING NUMBER SCALE 1/1SHEET 11 33825 6001 36TH AVENUE WEST EVERETT, WA 98203-9280 REVISIONS DESCRIPTIONECN REV RELEASED AT REV AA ADDED MEXICO GPRS MARKINGSH300463 103709 DATE 03-22-04 JMB AJH REV J CHANGED FCC ID NUMBERJXXXXXX 06-23-04 AJH 02-13-03 APPROVED 700C Hand Held Computer Label with FCC ID: EHABTS080 FCC ID: EHA700C-SMC45-1 Installed CONTAINS TX FCC ID: EHABTS080 CANADA: 1223104675A FCC ID: EHA700C-SMC45-1 Tested To Comply With FCC Standards FOR HOME OR OFFICE USE Model: 700C MFD: XXXXXXXXX 200X SN: xxxxxxxxxxx XXXXXXXX4323232XXX CN: 760XXXG4XXXX4000 12V 1,5A Made in Singapore N309 I.T.E. 729T IC: ICES-003 Class B REMOVED UNNEEDED FCC & CANADA ID'S FOR BLUETOOTH D ARTMASTER REV X REV X SCALE 1/1: SCALE 2/1: Certificado de Homologacion RTISIMC03-174 CONTAINS TX FCC ID: EHABTS080 CANADA: 1223104675A FCC ID: EHA700C-SMC45-1 Tested To Comply With FCC Standards FOR HOME OR OFFICE USE Model: 700C MFD: XXXXXXXXX 200X SN: xxxxxxxxxxx XXXXXXXX4323232XXX CN: 760XXXG4XXXX4000 12V 1,5A Made in Singapore N309 I.T.E. 729T IC: ICES-003 Class B Certificado de Homologacion RTISIMC03-174 072775B SIZECAGE CODEDRAWING NUMBER SCALE 1/1SHEET 13 33825 6001 36TH AVENUE WEST EVERETT, WA 98203-9280 REVISIONS DESCRIPTIONECN REV RELEASED AT REV AA REV 3 ADDED FCC ID'S06-23-04AJHE DATEAPPROVED 700C Hand Held Computer Label with FCC ID: EHABTS080 FCC ID: HN22011B-2 FCC ID: EHA700C-SMC45-1 Installed IC: ICES-003 Class B Tested To Comply With FCC Standards FOR HOME OR OFFICE USE Model: 700C MFD: XXXXXXXXX 2002 SN: xxxxxxxxxxx XXXXXXXX4323232XXX CN: 760XXXG4XXXX4704 12V 1,5A Made in Singapore I.T.E. 729T N309 FCC ID: EHABTS080 FCC ID: HN22011B-2 FCC ID: EHA700C-SMC45-1 IC: ICES-003 Class B Tested To Comply With FCC Standards FOR HOME OR OFFICE USE Model: 700C MFD: XXXXXXXXX 2002 SN: xxxxxxxxxxx XXXXXXXX4323232XXX CN: 760XXXG4XXXX4704 12V 1,5A Made in Singapore I.T.E. 729T N309 FCC ID: EHABTS080 FCC ID: HN22011B-2 FCC ID: EHA700C-SMC45-1 REMOVED UNNEEDED FCC ID & CANADA IDS FOR BLUETOOTH & 802.11b RADIOS D ARTMASTER REV X SCALE 1/1: ARTMASTER REV X SCALE 2/1: 072775B SIZECAGE CODEDRAWING NUMBER SCALE 1/1SHEET 15 33825 6001 36TH AVENUE WEST EVERETT, WA 98203-9280 REVISIONS DESCRIPTIONECN REV RELEASED AT REV AA ADDED 760 CDMA CONFIGS & SHEET 15 TO DRAWINGD DATEAPPROVED AJH JMB ARTMASTER REV X ARTMASTER REV X 700C Hand Held Computer Label with FCC ID: EHABTS080 FCC ID: HN2SB555-2 Installed CONTAINS TX FCC ID: HN2SB555-2 FCC ID: EHABTS080 Tested To Comply With FCC Standards FOR HOME OR OFFICE USE MODEL: 700C MFD: XXXXXXXXX 2002 SN: xxxxxxxxxxx XXXXXXXX4323232XXX CN: 760XXXC1XXXX4000 OR 760XXXC2XXXX4000 12V 1,5A Made in Singapore N309 I.T.E. 729T CONTAINS TX FCC ID: HN2SB555-2 FCC ID: EHABTS080 Tested To Comply With FCC Standards FOR HOME OR OFFICE USE MODEL: 700C MFD: XXXXXXXXX 2002 SN: xxxxxxxxxxx XXXXXXXX4323232XXX CN: 760XXXC1XXXX4000 OR 760XXXC2XXXX4000 12V 1,5A Made in Singapore N309 I.T.E. 729T 103812 02.13.03 SCALE 1/1: SCALE 2/1: CHANGE TO 09 -10-03 REV F CHANGED FCC IC NUMBERS F 10401009-08-03 REV G CHANGED FCC IC NUMBERS G XXXXXX06-23-04 072775B SIZECAGE CODEDRAWING NUMBER SCALE 1/1SHEET 17 33825 6001 36TH AVENUE WEST EVERETT, WA 98203-9280 REVISIONS DESCRIPTIONECN REV RELEASED AT REV AA ADDED 760 CDMA CONFIGS & SHEET 17 TO DRAWINGD DATEAPPROVED CFB JMB ARTMASTER REV X 700C Hand Held Computer Label with FCC ID: EHABTS080 FCC ID: HN22011B-2 FCC ID: HN2SB555-2 Installed Tested To Comply With FCC Standards FOR HOME OR OFFICE USE 12V 1,5A Made in Singapore I.T.E. 729T MODEL: 700C MFD: XXXXXXXXX 2002 SN: xxxxxxxxxxx XXXXXXXX432…

Text truncated - open the document above for the full version.

Radio Module Location in the Intermec 700C Hand Held Computer Scott Holub 9-JUN-2004 700C Unit with: Siemens MC45 GSM/GPRS Module Socket 8520-00080 Bluetooth Module Intel 2011B 802.11B Module 700C Unit with: Siemens MC45 GSM/GPRS Module Socket 8520-00080 Bluetooth Module Intel 2011B 802.11B Module 700C Unit with: Sierra Wireless SB555 CDMA Module Socket 8520-00080 Bluetooth Module Intel 2011B 802.11B Module 700C Unit with: Sierra Wireless SB555 CDMA Module Socket 8520-00080 Bluetooth Module Intel 2011B 802.11B Module Component Side Solder Side Shields removed

Date/Time: 07/07/04 08:38:22 Test Laboratory: Compliance Certification Services File Name: D1900V2 SN5d043_070704.da4 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d043 Program Name: System Performance Check at 1900 MHz Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.4 mho/m; ε r = 40; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV2 - SN3021; ConvF(5.1, 5.1, 5.1); Calibrated: 7/29/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 1; Type: SAM 1; Serial: 1185 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 d=10mm; Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 89.7 V/m; Power Drift = 0.0 dB Maximum value of SAR (measured) = 10.6 mW/g d=10mm; Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 89.7 V/m; Power Drift = 0.0 dB Maximum value of SAR (measured) = 10.5 mW/g Peak SAR (extrapolated) = 16.7 W/kg SAR(1 g) = 9.47 mW/g; SAR(10 g) = 4.99 mW/g 0 dB = 10.5mW/g Date/Time: 07/07/04 08:38:22 Test Laboratory: Compliance Certification Services File Name: D1900V2 SN5d043_070704.da4 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: D1900V2 - SN:5d043 Program Name: System Performance Check at 1900 MHz Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; σ = 1.4 mho/m; ε r = 40; ρ = 1000 kg/m 3 Phantom section: Flat Section d=10mm; Pin=250mW/Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 89.7 V/m; Power Drift = 0.0 dB Maximum value of SAR (measured) = 10.8 mW/g

Date/Time: 07/12/04 09:20:52 Test Laboratory: Compliance Certification Services File Name: D835V2SN4d002_071204.da4 DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d002 Program Name: System Performance Check at 835 MHz Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.907 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ES3DV2 - SN3023; ConvF(6, 6, 6); Calibrated: 9/23/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 1; Type: SAM 1; Serial: 1185 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 d=15mm, Pin=250mW/Area Scan (7x9x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 55.1 V/m; Power Drift = -0.2 dB Maximum value of SAR (measured) = 2.58 mW/g d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 55.1 V/m; Power Drift = -0.2 dB Maximum value of SAR (measured) = 2.57 mW/g Peak SAR (extrapolated) = 3.46 W/kg SAR(1 g) = 2.38 mW/g; SAR(10 g) = 1.56 mW/g 0 dB = 2.57mW/g Date/Time: 07/12/04 09:20:52 Test Laboratory: Compliance Certification Services File Name: D835V2SN4d002_071204.da4 DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 - SN:4d002 Program Name: System Performance Check at 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.907 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Phantom section: Flat Section d=15mm, Pin=250mW/Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Reference Value = 55.1 V/m; Power Drift = -0.2 dB Maximum value of SAR (measured) = 2.64 mW/g

Date/Time: 07/07/04 09:42:25 Test Laboratory: Compliance Certification Services File Name: 1_L-Touch (Antenna -204).da4 DUT: Intermec Technologies Corporation; Type: EM3420; Serial: N/A Program Name: 1_Left Touch (Antenna -204) Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: PCS CDMA; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.38 mho/m; ε r = 40.1; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ES3DV2 - SN3021; ConvF(5.1, 5.1, 5.1); Calibrated: 7/29/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 1; Type: SAM 1; Serial: 1185 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 M-ch/Area Scan (9x14x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 8.43 V/m; Power Drift = 0.0 dB Maximum value of SAR (measured) = 0.264 mW/g M-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 8.43 V/m; Power Drift = 0.0 dB Maximum value of SAR (measured) = 0.274 mW/g Peak SAR (extrapolated) = 0.358 W/kg SAR(1 g) = 0.260 mW/g; SAR(10 g) = 0.169 mW/g M-ch/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 8.43 V/m; Power Drift = 0.0 dB Maximum value of SAR (measured) = 0.212 mW/g Peak SAR (extrapolated) = 0.293 W/kg SAR(1 g) = 0.199 mW/g; SAR(10 g) = 0.134 mW/g Date/Time: 07/07/04 11:20:12 Test Laboratory: Compliance Certification Services File Name: 1-2_L-Touch (Antenna -102).da4 DUT: Intermec Technologies Corporation; Type: EM3420; Serial: N/A Program Name: 1-2_Left Touch (Antenna -102) Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: PCS CDMA; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.38 mho/m; ε r = 40.1; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ES3DV2 - SN3021; ConvF(5.1, 5.1, 5.1); Calibrated: 7/29/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 1; Type: SAM 1; Serial: 1185 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 M-ch/Area Scan (9x14x1): Measurement grid: dx=15mm, dy=15mm M-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 8.22 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 0.215 mW/g Peak SAR (extrapolated) = 0.289 W/kg SAR(1 g) = 0.201 mW/g; SAR(10 g) = 0.130 mW/g M-ch/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 8.22 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 0.177 mW/g Peak SAR (extrapolated) = 0.243 W/kg SAR(1 g) = 0.170 mW/g; SAR(10 g) = 0.114 mW/g Date/Time: 07/07/04 13:38:00 Test Laboratory: Compliance Certification Services File Name: 1-3_L-Tilt (Antenna -204).da4 DUT: Intermec Technologies Corporation; Type: EM3420; Serial: N/A Program Name: 1-3_Left Tilt (Antenna -204) Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: PCS CDMA; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.38 mho/m; ε r = 40.1; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ES3DV2 - SN3021; ConvF(5.1, 5.1, 5.1); Calibrated: 7/29/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 1; Type: SAM 1; Serial: 1185 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 M-ch/Area Scan (9x13x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 8.12 V/m; Power Drift = 0.1 dB Maximum value of SAR (measured) = 0.499 mW/g M-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 8.12 V/m; Power Drift = 0.1 dB Maximum value of SAR (measured) = 0.505 mW/g Peak SAR (extrapolated) = 0.696 W/kg SAR(1 g) = 0.481 mW/g; SAR(10 g) = 0.301 mW/g Date/Time: 07/07/04 12:42:26 Test Laboratory: Compliance Certification Services File Name: 1-4_L-Tilt (Antenna -102).da4 DUT: Intermec Technologies Corporation; Type: EM3420; Serial: N/A Program Name: 1-4_Left Tilt (Antenna -102) Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: PCS CDMA; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.38 mho/m; ε r = 40.1; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ES3DV2 - SN3021; ConvF(5.1, 5.1, 5.1); Calibrated: 7/29/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 1; Type: SAM 1; Serial: 1185 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 M-ch/Area Scan (9x14x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 7.21 V/m; Power Drift = -0.13 dB Maximum value of SAR (measured) = 0.349 mW/g M-ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 7.21 V/m; Power Drift = -0.13 dB Maximum value of SAR (measured) = 0.377 mW/g Peak SAR (extrapolated) = 0.498 W/kg SAR(1 g) = 0.352 mW/g; SAR(10 g) = 0.224 mW/g Date/Time: 07/07/04 14:07:53 Test Laboratory: Compliance Certification Services File Name: 2-1_R-Touch (Antenna -204).da4 DUT: Intermec Technologies Corporation; Type: EM3420; Serial: N/A Program Name: 2-1_Right Touch (Antenna -204) Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: PCS CDMA; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.38 mho/m; ε r = 40.1; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ES3DV2 - SN3021; ConvF(5.1, 5.1, 5.1); Calibrated: 7/29/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 1; Type: SAM 1; Serial: 1185 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 M-ch/Area Scan (9x13x1): Measu…

Text truncated - open the document above for the full version.

Date/Time: 07/08/04 10:49:17 Test Laboratory: Compliance Certification Services File Name: 1_Left Touch.da4 DUT: Intermec Technologies Corporation; Type: EM3420; Serial: N/A Program Name: 1_Left Touch Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: CDMA; Frequency: 835.89 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 835.89 MHz; σ = 0.911 mho/m; ε r = 41.4; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ES3DV2 - SN3023; ConvF(6, 6, 6); Calibrated: 9/23/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 1; Type: SAM 1; Serial: 1185 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 M-ch (Celluar CDMA, Channel 363, 835MHz, creast factor=1)/Area Scan (9x15x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 11.2 V/m; Power Drift = -0.2 dB Maximum value of SAR (measured) = 0.115 mW/g Info: Interpolated medium parameters used for SAR evaluation! M-ch (Celluar CDMA, Channel 363, 835MHz, creast factor=1)/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 11.2 V/m; Power Drift = -0.2 dB Maximum value of SAR (measured) = 0.114 mW/g Peak SAR (extrapolated) = 0.135 W/kg SAR(1 g) = 0.108 mW/g; SAR(10 g) = 0.081 mW/g Info: Interpolated medium parameters used for SAR evaluation! Date/Time: 07/12/04 10:38:15 Test Laboratory: Compliance Certification Services File Name: 2_Left Tilt.da4 DUT: Intermec Technologies Corporation; Type: EM3420; Serial: N/A Program Name: 2_Left Tilt Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: CDMA; Frequency: 835.89 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 835.89 MHz; σ = 0.911 mho/m; ε r = 41.4; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ES3DV2 - SN3023; ConvF(6, 6, 6); Calibrated: 9/23/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn500; Calibrated: 12/23/2003 - Phantom: SAM 1; Type: SAM 1; Serial: 1185 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 M-ch (Celluar CDMA, Channel 363, 835MHz, creast factor=1)/Area Scan (9x15x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 9.13 V/m; Power Drift = -0.2 dB Maximum value of SAR (measured) = 0.169 mW/g Info: Interpolated medium parameters used for SAR evaluation! M-ch (Celluar CDMA, Channel 363, 835MHz, creast factor=1)/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 9.13 V/m; Power Drift = -0.2 dB Maximum value of SAR (measured) = 0.166 mW/g Peak SAR (extrapolated) = 0.202 W/kg SAR(1 g) = 0.159 mW/g; SAR(10 g) = 0.117 mW/g Info: Interpolated medium parameters used for SAR evaluation! Date/Time: 07/12/04 11:02:00 Test Laboratory: Compliance Certification Services File Name: 3_Right Touch.da4 DUT: Intermec Technologies Corporation; Type: EM3420; Serial: N/A Program Name: 3_Right Touch Ambient Temp.: 24.0 deg. C; Liquid Temp.: 23.0 deg. C Communication System: CDMA; Frequency: 835.89 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 835.89 MHz; σ = 0.911 mho/m; ε r = 41.4; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Config…

Text truncated - open the document above for the full version.
