IP4 Handheld Reader Manual Supplement This Manual Supplement covers the regulatory approvals for your IP4 Reader. Regulatory Safety and Regulatory Approvals Spec Detail ReaderULus Listed Accessory CB Report for international product safety FCC OET Bulletin 65, Evaluating Compliance with FCC Guidelines for Human Exposure to Radio Frequency Elec- tromagnetic Fields, for general population uncontrolled ex- posure. AS/NZS 2772.1 (INT): 1998 Radio Frequency Fields-Part 1: Maximum exposure levels - 3 kHz to 300 GHz, for non aware users. Part 15 of the FCC Rules and with Industry Canada Rules. AN/NZS 4268:2003 Radio Equipment and Systems - Short Range Devices - Limits and Methods of Measurement. Electromagnetic Compatibility Spec Detail ReaderFCC Part 15/Industry Canada ICES-003/CISPR Class B digital emissions Corporate Headquarters 6001 36th Avenue West Ever ett, Washington 98203 U.S.A. tel 425.348.2600 fax 425.355.9551 www.intermec.com IP4 Handheld Reader Manual Supplement *933-000-001* P/N 933-000-001 e 2005 by Inter mec Technologies Corporation. All rights reserved.

578-100-137 Revision A Page 1 of 1 *578-100-137A* *578-100-137A* Compliance Statement Insert Device Name: RF Identification Serial Radio Module Model Number: IM4 FCC ID: EHAIM4 The responsible party for the compliance of this device is: Intermec Technologies Corporation 6001 36 th Avenue West Everett, WA 98203 USA (425) 348-2600 This product conforms to the following approvals. The user(s) of this product are cautioned to use accessories and peripherals approved by Intermec Technologies Corporation. The use of accessories other than those recommended, or changes to this product that are not approved by Intermec Technologies Corporation, may void the compliance of this product and may result in the loss of the users authority to operate the equipment. This device complies with Part 15 of the FCC Rules, and the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Digital Emissions Compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the radio of television receiving antenna. • Increase the separation between the computer equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the radio or television receiver is connected. • Consult the dealer or an experienced radio television technician for help. Canadian Digital Apparatus Compliance This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Warning: per the FCC and Canadian RF (radio frequency) exposure requirements, 1) Antennas must be supplied and installed as recommended by Intermec Technologies Corporation to ensure compliance to RF exposure requirements. The antennas approved for use are listed in the Intermec accessories guide for the IM4 PC Card. Correct antenna mounting is fully described within the Intermec IM4 PC Card Users Guide. 2) When installing and using Intermec Technologies Corporation-approved remote antennas associated the RFID reader, a 20-cm (8-inch) passing distance must be maintained from any body part of the user, or near by persons, and the remote antenna. The antenna must not be touched during transmitter operation. 3) Cables attached to the remote antennas must have a minimum length as provided from Intermec Technologies Corporation to insure the proper losses to control RF exposure. 4) RF safety requirements mandate this device cannot be co-located with other transmitters unless such co-location is specifically approved by the FCC. 5) Integrators of the radio module are obligated to pursue regulatory approval and labeling of this transmitter under FCC Part 2 and Part 15 rules. Industry Canada approval and labeling requirements must be met for marketing of the integrated product in Canada. Warning: Per Canadian RF exposure requirements, 1) The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF field in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada’s website www.hc-sc.gc.ca/rpb Instructions Handheld Reader IP4 2IP4 Handheld Reader Instructions Packing List Checktoensurethatyoureceivetheseitems: SIntermec R Handheld Reader (UHF) SBattery Pack (p/n: 318-014-001) SCompliance Statement SWarranty Card Setting up Your 700 Color Mobile Computer BeforeusingyourHandheldReaderwiththe700ColorMobile Computer you need to load the Handheld Reader CAB files onto your mobile computer. Do that by going to either of these two sources: S700 Series Color Software Tools CD-ROM (p/n: 235-099-001) SIntermec Developer’s Library available on the Intermec web site www.intermec.com 3 IP4 Handheld Reader Instructions Connecting the Handheld Reader to the 700 Color Mobile Computer RF Exposure regulations limit exposure to radiofrequency (RF) radiation. To comply with these regulations, operators of this device must maintain a distance of at least 20 cm. (8 inches) from the cover on the antenna assembly (The cover on the antenna is the dome shaped surface). Whilethedeviceison,theoperator’sbodyand parts of the body such as eyes, hands, or head, must be 20 cm. (8 inches) or farther from the cover of the antenna assembly. Note:DO NOT remove the IR reflector from the inside of the Handheld Reader. This IR reflector aids in the communication of the IrDA signal between the Handheld Reader and your Mobile Computer Note:You also need to install the IR Reflector on your 700 Mobile Computer when using it with your Handheld Reader. Please reference documentInstal- lation Instructions IR Reflector for 700 Color Mobile Computer using an IP3 Reader Handlepn: 962000048A. Gold IR Reflector DO NOT REMOVE 4IP4 Handheld Reader Instructions 1Slide your Mobile Computer into your Handheld Reader. 2Ensure it slides in all the way. Your Mobile Computer com- municates with the Reader via the IrDA. Therefore, the IrDA signal passing from the Handheld Reader must have a good…

Text truncated - open the document above for the full version.

October 12, 2005 To Who It May Concern: Intermec Technologies Corporation, the undersigned, hereby authorizes Northwest EMC, Inc., to act on our behalf, as our agent, in the following matters related to the FCC and Industry Canada approval of our products: report submittal, related correspondence, the signing of all documents related to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Northwest EMC, Inc. within the scope of this authorization shall have the same affect as our own. This authorization shall expire 12 months from original date. If you have any questions regarding this application, please feel free to contact me via phone at 425-356-1765, via fax at 425-348-2633 or via email at [email protected]. Sincerely, Katie Molina Compliance Engineer Intermec Technologies Corporation Safety & Compliance 6001 36 th Avenue West Everett, Washington 98203 United States tel 425 356 1765 fax 425 348 2633

NORTHWEST EMC, INC. 22975 NW Evergreen Parkway, Suite 400 Hillsboro, OR 97124 September 28, 2005 Dear Application Examiner: On behalf of Intermec Technologies Corporation, Northwest EMC Inc is submitting this application for the certification of Intermec’s IM4 transmitter, FCC ID: EHAIM4. It operates in the 902-928 MHz band with a peak output power of 860.99mW. It is a FHSS RFID Reader in a PCMCIA Type II package. Intermec Technologies Corporation is seeking full modular approval under FCC 15.247. The EUT can operate with several different antennas as described in this application. The IM4 module will be factory installed in Intermec products. The IM4 card will also be sold to OEMs who will be responsible for obtaining approvals in their own host devices with their own antenna options. The receiver portion of this radio transceiver has been verified to FCC 15B. The technical reports and exhibits demonstrate compliance with FCC rules 47 CFR 15.247. Your efforts in reviewing this application are greatly appreciated. Best regards, Northwest EMC, Inc.

NORTHWEST EMC, INC. 22975 NW Evergreen Parkway, Suite 400 Hillsboro, OR 97124 October 12, 2004 Dear Application Examiner: Intermec Technologies Corporation Model IM4, FCC ID: EHAIM4, is seeking modular approval. The radio meets the requirements for modular approval as detailed in FCC Public Notice DA00-1407. Compliance to each of the requirements is described below: 1. “The modular transmitter must have its own RF shielding.” The radio portion of the module is contained in its own RF shielding. The shielding is installed at the factory. Please see the Internal Photos exhibit. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs to insure compliance with Part 15 requirements under conditions of excessive data rates or over-modulation. Please see the Schematics exhibit. 3. “The modular transmitter must have its own power supply regulation.” The EUT has its own power supply regulation to insure compliance with Part 15 requirements regardless of the quality or level of external DC supplying the module from the host unit. Please see Schematics exhibit. 4. “The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c).” The EUT meets the FCC antenna requirements. Please see Antenna information exhibit and the "Antenna Requirements" section of the Users Manual exhibit. 5. “The modular transmitter must be tested in a stand-alone configuration.” The EUT was tested in a stand-alone configuration. The module was greater than 10 cm from the host device. Please see test setup photos exhibit and technical report exhibit. 6. “The modular transmitter must be labeled with its own FCC ID number.” The EUT is labeled with its own FCC ID number. Please see FCC ID label & location exhibit. 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detailed instructions for maintaining compliance are given in the User Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. Please see RF Exposure Exhibit. Please contact us if you have additional questions. Your attention to this matter is greatly appreciated. Best regards, Northwest EMC, Inc.

6001 36 th Avenue West Everett, Washington 98203 United States tel 425.348.2600 fax 425.355.9551 www.intermec.com 15-SEP-2005 CONFIDENTIALITY REQUEST CONTAINED WITHIN Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Re: Application for Frequency Hopping Spread Spectrum Transceiver Certification To whom it may concern, Application: Intermec Technologies Corporation, 550 Second Street SE, Cedar Rapids, Iowa 52401-2029 herein submits for Certification of a Frequency Hopping Spread Spectrum Transceiver FCC ID: EHAIM4. Intermec is also the manufacturer of this equipment. Confidentiality: Pursuant to Section 0.459 of the Commission's rules (CFR 47), Intermec requests confidentiality for portions of the material contained in this application and that the identified material be withheld from public inspection following the grant of this authorization. This material contains Intermec trade secrets and confidential information that Intermec does not customarily release to the public and which is otherwise not generally available to the pubic. Confidentiality is requested for the following exhibits: • Theory of Operation • Schematics • Frequency Block Diagram Description: This equipment is a Type II PCMCIA Card RFID Reader module, which operates using FHSS technology in the 902-928 MHz band. Limited modular approval is requested since the radio design allows use in multiple hosts of various configurations. Contact Information: Please contact me by telephone at (319) 369-3865 or by e-mail ([email protected]) if there are questions or additional information needed concerning this filing. Yours truly, Scott J. Holub Regulatory Compliance Engineer III Intermec Technologies Corporation 550 Second Street S.E. Cedar Rapids, IA 52401 USA

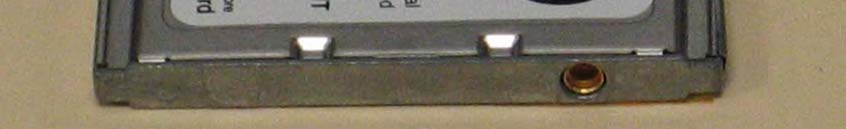

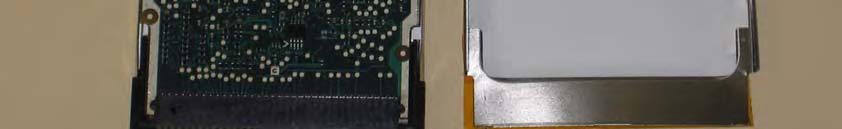

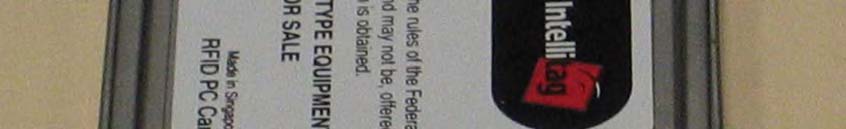

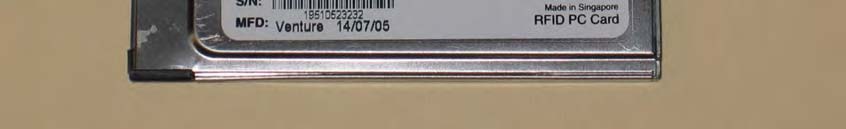

EHAIM4 PCMCIA RFID Reader Photos Top of IM4 PCMCIA Card Bottom of IM4 Card End of IM4 Card with RF Connector IM4 Card with Bottom Shield Removed

611-024 B SIZECAGE CODE DRAWING NUMBER SCALE 1/1USED ONSHEET 1 OF 1 33825 REVISIONS DESCRIPTIONECN INITIAL DRAWING CREATION CAD DB. REF - 073620_A_001 APPROVALSUNLESS OTHERWISE SPECIFIED, DIMENSIONS ARE IN INCHES. .X ± .XX ± .XXX ± ANGLES ± DATE DRAWNC.CRONIN07-31-03 J.BANNIER09-23-03 B.MCDERMOT09-24-03 V.LORD09-24-03 S.ADAMS09-24-03 M.WILLKENS09-25-03 CHECKED RESP ENG QA MFG ENG SAC ID SYSTEM - PC TITLE LABEL, POD, PC CARD, INTELLITAG RFID 6001 36TH AVENUE WEST EVERETT, WA 98203 REV STATUS OF SHEETS SHEET REVISION 12345 REV 01 -001 REV B ART CHANGED TO "MADE IN SINGAPORE". 02 DATEAPPROVED NOTICE This drawing shall not be duplicated or used for any purpose other than that for which provided. The information disclosed herein originated by and is the property of Intermec Technologies Corporation and except for rights expressly granted by written consent, such information shall not be disclosed or disseminated in whole or in part. Intermec Technologies Corporation reserves all patent, proprietary, design, use, sale, manufacturing and reproduction rights thereto. -001 NOTES: UNLESS OTHERWISE SPECIFIED 1. PRINT ON DEMAND LABEL. 2. LABEL : WHITE TEXT AND GRAPHICS : BLACK 3. PRINT LABEL AS SHOWN. 4. REFERENCE : LAYOUT CREATED IN ADOBE ILLUSTRATOR. 5. CHANGES REQUIRE SAC APPROVAL. 6. MATERIAL TRACEABILITY REQUIREMENTS APPLY. SEE INTERMEC MATERIAL TRACEABILITY REQUIREMENTS DOCUMENT 609813 PARAGRAPH 6.1. 8-05-03CDC -001 REV C ART DELETED COPYRIGHT INFO AND ADDED NOTE 6. 03 8-05-03CDC -001 REV D ART CHANGED DIMENSIONS OF LABEL. 04 8-13-03CDC -001 REV E ART CHANGED CONTENT OF LABEL. 05 8-18-03CDC -001 REV F ART CHANGED FCC NUMBERS AND CONTENT. 06 9-04-03CDC -001 REV G ART ADDED ARROW AND CHANGED FONT. 07 9-23-03CDC -001 REV G ART RELEASED AT DRAWING REV A. A 9-23-03CDC EHAIM4 PCMCIA RFID Reader FCC Label Placement Photo Top of IM4 PCMCIA Card CONFIGURATIONDASH NO.TITLE -001IP4XXXXX14 IP4XXXXX03 IP4XXXXX20 -002 -003 GRAPHIC, CERTIFICATION, IP4, FCC GRAPHIC, CERTIFICATION, IP4, ETSI GRAPHIC, CERTIFICATION, IP4, AUSTRALIA 5X CLEAR WINDOWS NOTES: UNLESS OTHERWISE SPECIFIED 1. SEE MECHANICAL DRAWING, ITEM 2, FOR MATERIAL, ADHESIVE, AND OTHER MANUFACTURING DETAILS. 2. TEXT AND GRAPHICS: BRIGHT WHITE. BACKGROUND: INTERMEC BLUE-GRAY COLOR CHIP, ITEM 1 (590656-001). 3. PRE-PRINT LABEL. 4. DIMENSIONS ARE IN INCHES, TOLERANCES APPLY TO GRAPHIC ONLY. 5. FABRICATE USING VENDOR.AI FILE. DO NOT USE PDF FILE OF DRAWING TO FABRICATE PART. 6. CHANGES REQUIRE SAC APPROVAL. 7. BAG PARTS AND MARK BAG WITH 611-058 AND DASH NUMBER TO WHICH MANUFACTURED PER SPECIFICATION 606427. 8. COSMETIC REQUIREMENTS PER SPECIFICATION 044856 APPENDIX "E", CATEGORY II, CLASS A. 9. MATERIAL TRACEABILITY REQUIREMENTS APPLY. SEE INTERMEC MATERIAL TRACEABILITY REQUIREMENTS DOCUMENT 609813, PARAGRAPH 6.1. 10. TOP FOUR CLEAR WINDOWS: DIAMETER = .102 IN. TOP CLEAR WINDOW: x = .252 IN., y = 1.292 IN. BOTTOM CLEAR WINDOW: DIAMETER = .139 IN., x = .340 IN., y = .365 IN. PRODUCT GRAPHIC DOCUMENT REVISIONS HISTORYCNDOC REVDATEDWN/APRVD SHEET REVAA REVISION STATUS OF SHEETS 1234 SHEET REVAA 6001 36TH AENUE WEST EVERETT, WA 98203 CAGE CODEDOCUMENT NUMBERDASH NUMBER 33825 TITLE DRAWN BY GRAPHIC CHECK APPROVALSDATE NOTICE - INTERMEC CONFIDENTIAL: This drawing shall not be duplicated or used for any purpose other than that for which provided. The information disclosed herein originated by and is the property of Intermec Technologies Corporation and except for rights expressly granted by written consent, such information shall not be disclosed or disseminated in whole or in part. Intermec Technologies Corporation reserves all patent, copyright, trademark, proprietary, design, use, sale, manufacturing and reproduction rights thereto. DOCUMENT SIZE: Drawing document size always accommodates scale 1/1 graphics. -001 PART (GRAPHIC) REV A: INITIAL DOCUMENT CREATION30607001 xx-xx-xx XXX/XXX -001 PART REV A: RELEASED AT DOCUMENT REV A306070A xx-xx-xx XXX/XXX 56789101112 222120191817161514132324 611-058 G.OPSTAD09-29-05 J.BANNIER10-05-05 GRAPHIC, CERTIFICATION, IP4, FAMILY RELEASED SEE SEPARATE PARTS LIST FOR ALL DASH NUMBERS SHEET 1 OF 2 PRE-RELEASE PRE-RELEASE

End of IM4 Card with RF Connector IM4 Card with Bottom Shield Removed IM4 Card with Top Shield Removed Bottom of IM4 PCB Top of IM4 PCB with Shields Installed Top of IM4 PCB with Shields Removed

805-616-0XX COMPONENT SPECIFICATION APPROVED SUPPLIERS Manufacturer Address/Telephone 805-616 Manufacturer’s Part No. AeroAntenna Technology Inc. 20732 Lassen Street -001 AT900-4W-MMCXMR-003-00-00-NM Chatsworth, CA 91311 -002 Not Available (818) 993-3842 Radiall/Larsen Antenna 3611 N.E. 112 th Avenue -001 Not Available Technologies Vancouver, WA 98682 -002 ROS-915 (360) 944-7551 1.0 Scope: This specification describes the requirements for a 0 dB gain, circular polarized, ceramic patch antenna as follows: Part No. Application Frequency Gain Cable Length Connector -001 RFID Tag Reader 915 MHz 0 dB 2.5 in. (ref.) R/A MMCX plug -002 RFID Tag Reader 915 MHz 2.5dB 2.5 in. (ref.) R/A MMCX plug 2.0 Quality Assurance: Intermec Receiving Inspection reserves the right to use AQL sampling techniques when inspecting a lot. 3.0 Packaging: All antennas will be packaged in containers capable of protecting them from damage in common carrier shipping and handling. 4.0 Markings: Each container will be labeled or otherwise marked with the manufacturer’s name or trademark, and the part number designation. Major shipping cartons will be marked with the Intermec part number. REVISION HISTORY Rev. File No. Description of Change Date Approved A C3857 Release 8/06/03 J S B C4022 Add -002 part, Revise ¶1.0, ¶5.2, ¶5.3, ¶5.5 thru ¶5.8, ¶5.10, ¶6.1, ¶6.4, ¶6.6 & ¶7.0 1/16/04 J S C C4117 ¶5.5 & ¶5.6 120 degrees typ. was 102 +/-4 degrees 5/27/04 J S REVISION LEVEL C C A SHEET NUMBER 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 COMPONENT ENGR. DATE TITLE J. McROBERTS 7/14/03 Intermec Technologies Corp. CERAMIC PATCH ANTENNA, 915 MHz COGNIZANT ENGR. DATE 550 Second Street S.E. DRAWING NO. B. McDERMOTT - - - Cedar Rapids, IA 52401 805-616-0XX APPROVED DATE Telephone No. (319) 369-3100 K. VORHIES by JS 8/06/03 Facsimile No. (319) 369-3453 Sheet 1 Of 3 5.0 Antenna Specifications: Intermec Part Number 805-616-0XX Sheet 2 5.1 Resonant Frequency: 915 MHz 5.2 Antenna Gain: -001 part, 0 dB -002 part, 2.5 dBic ±1 dB (in horizontal plane) 5.3 Axial Ratio: -001 part, less than or equal to 10dB (@915 MHz ±2 MHz) -002 part, less than 4dB (@915 MHz) -002 part, less than 13dB (@915 MHz ±10 MHz) 5.4 Front to Back Ratio: Not specified 5.5 3dB Beam Width, Horizontal: -001 part, not specified -002 part, 120° typical 5.6 3dB Beam Width, Vertical: -001 part, not specified -002 part, 120° typical 5.7 Return Loss @Resonant Frequency: -001 part, less than or equal to -15dB -002, not specified 5.8 Resonance Bandwidth: -001 part, 915 MHz ±5 MHz -002 part, 915 MHz ±10 MHz 5.9 Return Loss Across Resonance: Less than or equal to -10dB 5.10 Power Rating: -001 part, not specified -002 part, 10 Watts 5.11 Polarization: Right hand circular 5.12 Nominal Impedance: 50 Ohms 6.0 Mechanical Ratings: 6.1 Substrate Material: -001 part, ceramic -002 part, alumina 6.2 Pendant Cable Type: See parts tabulation 6.3 Coaxial Connector: See parts tabulation 6.4 Ambient Operating Temperature: -001 part, -40ºC to +80ºC -002 part, -40ºC to +85ºC 6.5 Storage Temperature: Not specified 6.6 Weight: -001 part, 4 oz. (113 grams, with 2.5 inches coax) -002 part, 5.3 oz. (150 grams, with 2.5 inches coax & MMCX plug) 7.0 Parts Tabulation: Part No. Cable Type Cable Length, L Connector -001 RG-178B/U 2 .50 ±.20 inches Right angle MMCX plug -002 RG-178B/U 2 .50 ±.20 inches Right angle MMCX plug Intermec Part Number 805-616-0XX Sheet 3 8.0 Outline Drawing: RFID antenna, -001 & -002parts 3.10 3.10 L .25 .28 Notes: 1. Dimensions are in inches 2. Tolerances are +/-.03 inches, unless otherwise shown 3. Length of coax assy and connector type are specified in the parts tabulation (Para. 7.0)

805-626-0XX COMPONENT SPECIFICATION APPROVED SUPPLIERS Manufacturer Address/Telephone 805-626 Manufacturer’s Part No. Kathrein Incorporated Scala Division -001 Model 25-578 P.O. Box 4580 -002 Model 25-577 Medford, OR 97501 (541) 779-6500 1.0 Scope: This specification describes the requirements for a 6 dB gain, circular polarized antenna as follows: Part No. Application Frequency Front-to-Back Ratio Connector -001 RFID Tag Reader 865-928MHz greater than 20 dB Rev Sex N -002 RFID Tag Reader 865-928MHz greater than 20 dB Std Sex N 2.0 Quality Assurance: Intermec Receiving Inspection reserves the right to use AQL sampling techniques when inspecting a lot. REVISION HISTORY Rev. File No. Description of Change Date Approved A C4260 Release 5/27/04 J S B C4383 Add -002 part, Revise ¶1.0 & ¶6.3 8/25/04 J S REVISION LEVEL B B A SHEET NUMBER 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 COMPONENT ENGR. DATE TITLE J. McROBERTS 5/14/04 Intermec Technologies Corp. RFID ANTENNA, 900 MHz, 100 W, +6 dB COGNIZANT ENGR. DATE 550 Second Street S.E. DRAWING NO. J. JOHNSON - - - Cedar Rapids, IA 52401 805-626-0XX APPROVED DATE Telephone No. (319) 369-3100 K. VORHIES by JS 5/27/04 Facsimile No. (319) 369-3453 Sheet 1 Of 3 3.0 Packaging: All antennas will be packaged in containers capable of protecting them from damage in common carrier shipping and handling. Intermec Part Number 805-626-0XX Sheet 2 4.0 Markings: Each container will be labeled or otherwise marked with the manufacturer’s name or trademark, and the part number designation. Major shipping cartons will be marked with the Intermec part number. 5.0 Antenna Specifications: 5.1 Frequency: 865 MHz to 928 MHz 5.2 Antenna Gain: 6 dBi 5.3 Axial Ratio: Not specified 5.4 Front to Back Ratio: >20 dB 5.5 H-plane Beam Width: 90º (half-power) 5.6 E-Plane Beam Width: 70º (half-power) 5.7 Downtilt: 0º 5.8 VSWR: 1.5 max. over full frequency range 5.9 Power Rating: 100 Watts maximum input (@50°C) 5.10 Polarization: Vertical 5.11 Nominal Impedance: 50 Ohms 5.12 Intermodulation (2x20w), IM3: -140dBc 6.0 Mechanical Ratings: 6.1 Radome Material: Pulltruded fiberglass, gray color 6.2 Mounting Hardware: Stainless steel 6.3 ctor: -001 part, reverse polarized N style jack Coaxial Conne -002 part, standard polarized N style jack 6.4 Windload: 120 MPH (200 kph) 6.5 Ambient Operating Temperature: Not specified 6.6 Storage Tem…
