EHAWM600-AF11g Compact Flash Module

Wireless-G CompactFlash Card Table of Contents Chapter 1: Introduction1 Welcome1 What’s in this Guide?1 Chapter 2: Getting to Know the Wireless-G CompactFlash Card3 The Front Panel3 Chapter 3: Setting Up the PDA5 Overview5 Setup Wizard5 Chapter 4: Installing the CompactFlash Card8 Overview8 Installing the Card8 Chapter 5: Connecting to a Wireless Network10 Overview10 Connect to a Wireless Network10 Chapter 6: Configuring the Wireless-G CompactFlash Card with the Wireless Network Monitor16 Overview16 Wireless Network Monitor16 Common Problems and Solutions Wireless-G CompactFlash Card List of Figures Figure 2-1: Front Panel3 Figure 3-1: PDA to PC Installation5 Figure 3-2: Welcome5 Figure 3-3: License Agreement5 Figure 3-4: Click Yes6 Figure 3-5: Application Being Installed6 Figure 3-6: Mobile Device7 Figure 3-7: Congratulations7 Figure 4-1: Successful Installation8 Figure 4-2: CompactFlash Installation into PDA8 Figure 4-3: Start Screen9 Figure 4-4: Wireless Network Monitor Icon9 Figure 5-1: Wireless Network Monitor Icon10 Figure 5-2: Status Screen10 Figure 5-3: Configure Wireless Networks11 Figure 5-4: Settings11 Figure 5-5: Configure Network Authentication12 Figure 5-6: PDA Connected12 Figure 5-7: Configure Wireless Networks13 Figure 5-8: Add/Edit Configuration13 Figure 5-9: SSID14 Figure 5-10: Wireless Security (WEP)14 Figure 5-11: Power Management15 Figure 5-12: Select Profile15 Figure 6-1: Wireless Network Monitor Icon16 Figure 6-2: Status Screen16 Figure 6-3: Version Information Screen17 Figure 6-4: Wireless Advanced Screen17 Wireless-G CompactFlash Card Figure 6-5: Network Troubleshooting Screen18 Figure 6-6: More Information Screen18 Figure 6-7: Repair Screen18 Figure 6-8: Contact Screen19 Figure 6-9: Site Survey Screen19 Figure 6-10: Link Test Screen20 1 Chapter 1: Introduction Welcome Wireless-G CompactFlash Card Chapter 1: Introduction Welcome Thank you for choosing the Wireless-G CompactFlash Card. The Wireless-G CompactFlash Card installs directly into your Pocket PC using a CompactFlash Type II slot. The user-friendly software makes it a snap to set up, and you’re ready to share data, printers, or high-speed Internet access over your existing wireless network at speeds up to 54Mbps. It's also compatible with Wireless-B (802.11b) wireless networks. Use the Wireless CompactFlash Card to connect your PDA to wireless networks at the office, at home, or in any of the growing number of public wireless hotspot venues springing up in coffee shops, airport lounges, hotels and convention centers. Use the instructions in this Guide to help you connect the CompactFlash Card, set it up, and configure it to communicate with your PDA and PC. These instructions should be all you need to get the most out of the CompactFlash Card. What’s in this Guide? This user guide covers the steps for setting up and using the Dual-Band Wireless A+G Notebook Adapter. • Chapter 1: Introduction This chapter describes the Adapter’s applications and this User Guide. • Chapter 2: Getting to Know the Wireless-G CompactFlash Card This chapter describes the physical features of the Adapter. • Chapter 3: Setting Up the PDA This chapter instructs you on how to use the Card’s Setup Wizard. • Chapter 4: Installing the CompactFlash Card This chapter shows you how to install CompactFlash Card into your PDA. • Chapter 5: Connecting to a Wireless Network This chapter shows you how to connect the CompactFlash Card to a wireless network. 3 Chapter 2: Getting to Know the Wireless-G CompactFlash Card The Front Panel Wireless-G CompactFlash Card Chapter 2: Getting to Know the Wireless-G CompactFlash Card The Front Panel The CompactFlash Card's LEDs, where information about network activity is displayed, are located on the front panel. PowerGreen. The Power LED lights up when the CompactFlash Card is powered on. LinkGreen. If the Link LED is flickering, the CompactFlash Card is actively sending or receiving data to or from one of the devices on the network. With these, and many other, Intermec products, your networking options are limitless. Go to the Intermec w ebsite at w wwW.. Intermec.co m for more information about products that work with the CompactFlash Card. Figure 2-1: Front Panel 5 Chapter 3: Setting Up the PDA Overview Wireless-G CompactFlash Card Chapter 3: Setting Up the PDA Overview This Setup Wizard will take you through all the steps necessary to install the Card’s software on your PC so it can communicate with the PDA. The role of this module is a mobile device. It should not operate within 20 cm human body. Connect your PDA to your PC. Make sure you have the Microsoft ActiveSync software installed on your PC. Refer to your PDA’s documentation for information on Microsoft ActiveSync software. The module is mainly for industrial devices. Setup Wizard 1. Insert the Setup Wizard CD into your PC's CD-ROM drive. 2. The Setup Wizard's Welcome screen should appear on your monitor. (If it does not, the autorun is not functioning. Start the Setup Wizard manually by clicking the Start button, selecting Run, and typing d:\setup.exe (where "D" is your PC's CD-ROM drive)). Click the Install button to continue this Setup Wizard. Clicking the User Guide button opened this Guide. To exit this Setup Wizard, click the Exit button. 3. The following screen displays the License Agreement. Read the agreement, then if you agree, click Next to continue. Click Cancel to return to the previous screen. Figure 3-3: License Agreement Figure 3-1: PDA to PC Installation Figure 3-2: Welcome 6 Chapter 3: Setting Up the PDA Setup Wizard Wireless-G CompactFlash Card 4. When asked if you want to install the Intermec Wireless-G CompactFlash Card using the default application install directory, click Yes to continue. Click Cancel or No to return to the previous screen. 5. A screen will appear to show that the application is being installed. Do not cancel. Figure 3-5: Application Being Installed Figure 3-4: Click Yes 7 Chapter 3: Setting Up the PDA …

Text truncated - open the document above for the full version.

FCC ID: EHAWM600-AF ADT No. 930729H04 Modular Approval Request Letter Advance Data Technology Oct. 01, 2004 Dear Application Examiner, Intermec Technologies Corporation’s 11g Compact Flash Module, FCC ID: EHAWM600-AF, would like to have your authorization as a modular approval specific to the Notebook Computer, Access Point..etc. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip WL60040. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 3.3V DC powered. The miniPCI interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator are PSC0220. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was placed on an extended card which connected to Notebook Computer as a stand-alone configuration. The EUT was tested via the outside a Notebook Computer. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: EHAWM600-AF ADT No. 930729H04 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Lin Manager of Hsinchu Certification Service Div. Advance Data Technology

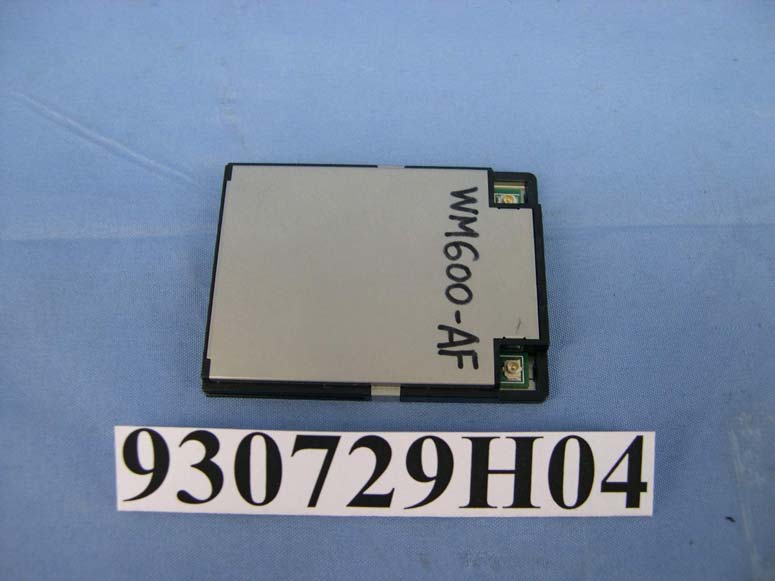

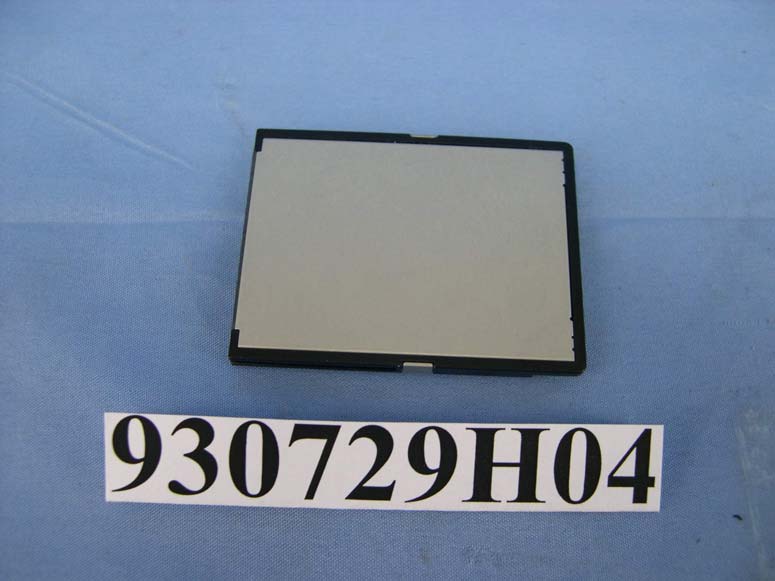

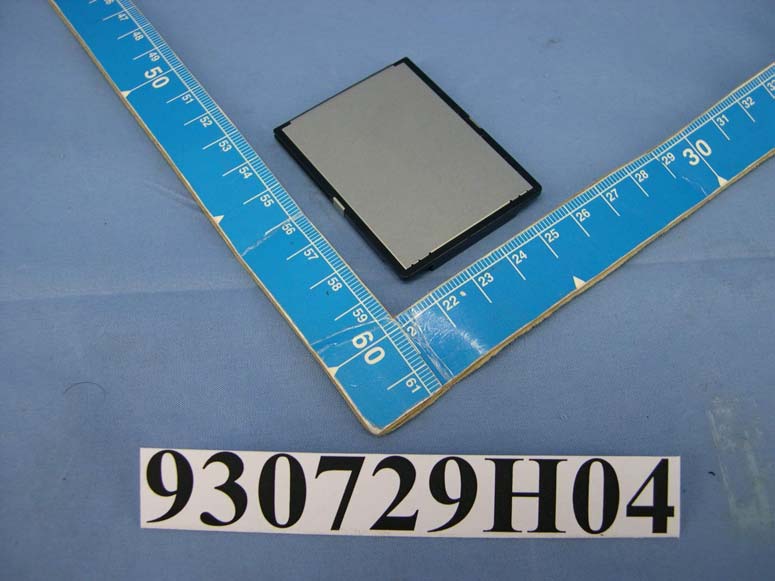

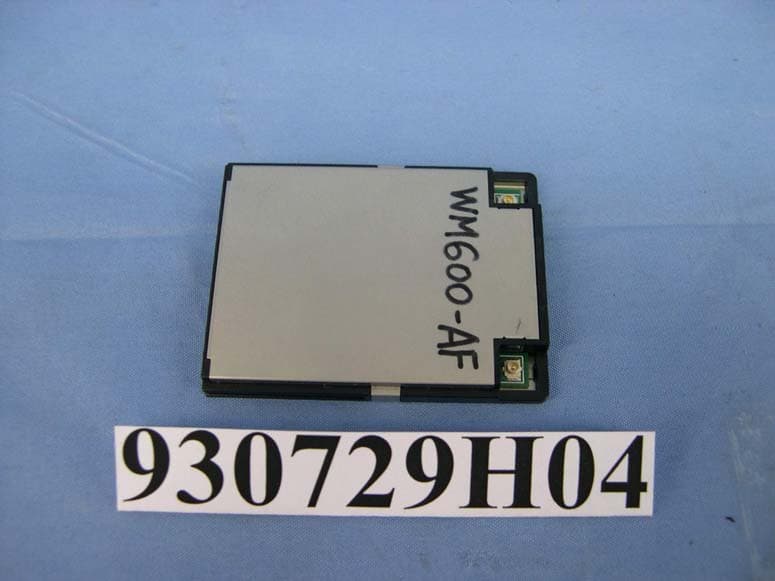

Page 1 CONSTRUCTION PHOTOS OF EUT With PCB antenna (Gain: -4.0dBi) & PIFA antenna (Gain: 0dBi) Page 2 With PCB antenna (Gain: 1.4dBi) Page 3 Page 4

(Fig. 1) FCC ID: EHAWM600-AF FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

For Pilot Run: 1. MAC Label (30*6mm) included in assembly. 2. Add one 30*20mm Label, label contents as below 3. Carton Label (9*10cm) and contents: For Mass Production: 1. Product Label (3*2cm) & label contents: 2. Carton Label (9*10cm) and contents:

Page 5 Page 6 Page 7 Page 8 Page 9 PCB antenna (Gain: -4.0dBi) Page 10 Page 11 PIFA antenna (Gain: 0dBi) Page 12 Page 13 PCB antenna (Gain: 1.4dBi) Page 14

FCC ID: EHAWM600-AF Report No. 930729H04 Operational Description This device is an 11g Compact Flash Module, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (11g Compact Flash Module) is powered by host equipment. The antenna types used in this product are PCB Antenna (RX), PIFA antenna (TX / RX) with miniature coaxial plugs connector and PCB Antenna(TX / RX) with miniature coaxial plugs connector. The other instruction, please have a look at the users manual.

FCC ID: EHAWM600-AF ADT No.: 930729H04 1 RF EXPOSURE REPORT REPORT NO.: SA930729H04 MODEL NO.: WM600-AF ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1; FCC Part 1.1310 FCC Part 1.1307; FCC Part 2.1091 APPLICANT: Intermec Technologies Corporation ADDRESS: 6001 36th Avenue West Everett, WA 98203 USA ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. FCC ID: EHAWM600-AF ADT No.: 930729H04 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz FCC ID: EHAWM600-AF ADT No.: 930729H04 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device FCC ID: EHAWM600-AF ADT No.: 930729H04 4 6. Test Results 6.1 Antenna Gain No. Gain (dBi) Antenna Type Notes -4.0 dBi PCB antenna RX 1 0 dBi PIFA antenna TX / RX 2 1.4dBi PCB Antenna TX / RX 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Antenna 1 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 40.7380278 0.008104554 1.0 6 2437 52.4807460 0.010440688 1.0 11 2462 50.1187234 0.009970780 1.0 Antenna 2 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 40.7380278 0.011187399 1.0 6 2437 52.4807460 0.014412162 1.0 11 2462 50.1187234 0.013763508 1.0 FCC ID: EHAWM600-AF ADT No.: 930729H04 5 For Part 802.11g: Antenna 1 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 28.8403150 0.005737585 1.0 6 2437 25.7039578 0.005113628 1.0 11 2462 27.5422870 0.005479351 1.0 Antenna 3 Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 28.8403150 0.007920072 1.0 6 2437 25.7039578 0.007058772 1.0 11 2462 27.5422870 0.007563610 1.0

FCC ID: EHAWM600-AF Report No.: RF930729H04 1 Issued: Sep. 21, 2004 FCC TEST REPORT REPORT NO.: RF930729H04 MODEL NO.: WM600-AF RECEIVED: Jul. 30, 2004 TESTED: Aug. 3 to Sep. 16, 2004 APPLICANT: Intermec Technologies Corporation ADDRESS: 550 Second Street SE Cedar Rapids, IA 52401 USA ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 77 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0536 No. 2177-01 ILAC MRA FCC ID: EHAWM600-AF Report No.: RF930729H04 2 Issued: Sep. 21, 2004 Table of Contents 1 CERTIFICATION ........................................................................................... 4 2 SUMMARY OF TEST RESULTS................................................................... 5 3 GENERAL INFORMATION ........................................................................... 6 3.1 GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2 DESCRIPTION OF TEST MODES................................................................ 7 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4 DESCRIPTION OF SUPPORT UNITS.......................................................... 8 3.5 CONFIGURATION OF SYSTEM UNDER TEST ........................................... 9 4 TEST TYPES AND RESULTS..................................................................... 10 4.1 CONDUCTED EMISSION MEASUREMENT .............................................. 10 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT............................ 10 4.1.2 TEST INSTRUMENTS ................................................................................ 10 4.1.3 TEST SETUP ...............................................................................................11 4.1.4 EUT OPERATING CONDITIONS................................................................ 12 4.1.5 TEST RESULTS.......................................................................................... 13 4.2 RADIATED EMISSION MEASUREMENT ................................................... 15 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT................................. 15 4.2.2 TEST INSTRUMENTS ................................................................................ 16 4.2.3 TEST PROCEDURES................................................................................. 17 4.2.4 TEST SETUP .............................................................................................. 18 4.2.5 EUT OPERATING CONDITIONS................................................................ 18 4.2.6 TEST RESULTS.......................................................................................... 19 4.2.7 TEST RESULTS – Antenna 1, DSSS .......................................................... 21 4.2.8 TEST RESULTS – Antenna 2, DSSS .......................................................... 24 4.2.9 TEST RESULTS - Antenna 1, OFDM .......................................................... 27 4.2.10 TEST RESULTS - Antenna 2, OFDM .......................................................... 30 4.3 6dB BANDWIDTH MEASUREMENT .......................................................... 33 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................ 33 4.3.2 TEST INSTRUMENTS ................................................................................ 33 4.3.3 TEST PROCEDURE ................................................................................... 34 4.3.4 TEST SETUP .............................................................................................. 34 4.3.5 EUT OPERATING CONDITIONS................................................................ 34 4.3.6 TEST RESULTS-DSSS ............................................................................... 35 4.3.7 TEST RESULTS-OFDM .............................................................................. 39 4.4 MAXIMUM PEAK OUTPUT POWER .......................................................... 43 FCC ID: EHAWM600-AF Report No.: RF930729H04 3 Issued: Sep. 21, 2004 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 43 4.4.2 TEST INSTRUMENTS ................................................................................ 43 4.4.3 TEST PROCEDURES................................................................................. 44 4.4.4 TEST SETUP .............................................................................................. 44 4.4.5 EUT OPERATING CONDITIONS................................................................ 44 4.4.6 TEST RESULTS- DSSS .............................................................................. 45 4.4.7 TEST RESULTS- OFDM ............................................................................. 46 4.5 POWER SPECTRAL DENSITY MEASUREMENT...................................... 47 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 47 4.5.2 TEST INSTRUMENTS ................................................................................ 47 4.5.3 TEST PROCEDURE ................................................................................... 48 4.5.4 TEST SETUP .............................................................................................. 48 4.5.5 EUT OPERATING CONDITIONS................................................................ 48 4.5.6 TEST RESULTS-DSSS ............................................................................... 49 4.5.7 TEST RESULTS-OFDM .................…

Text truncated - open the document above for the full version.

FCC ID: EHAWM600-AF Report No.: RF930729H04 71 Issued: Sep. 21, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST (Antenna 1) FCC ID: EHAWM600-AF Report No.: RF930729H04 72 Issued: Sep. 21, 2004 FCC ID: EHAWM600-AF Report No.: RF930729H04 73 Issued: Sep. 21, 2004 CONDUCTED EMISSION TEST (Antenna 2) FCC ID: EHAWM600-AF Report No.: RF930729H04 74 Issued: Sep. 21, 2004 FCC ID: EHAWM600-AF Report No.: RF930729H04 75 Issued: Sep. 21, 2004 RADIATED EMISSION TEST(Antenna 1) FCC ID: EHAWM600-AF Report No.: RF930729H04 76 Issued: Sep. 21, 2004 RADIATED EMISSION TEST(Antenna 2)
