EV9N2WLAX-5G3UNII WLAN

WaveNet Link AX ATM-25 U-NII Band Digital Radio System Installation and Operations Manual Part Number 100273-001 Version 0.8 October 2000 Wireless Inc. 5452 Betsy Ross Drive Santa Clara, CA. 95054-1101 (408) 727-8383 ii WaveNet Link AX Installation and Operations Manual Notice Information in this document is subject to change without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of Wireless, Inc. © Copyright 2000, Wireless, Inc. All rights reserved. Link AX™ and WaveNet Link™ Series are trademarks of Wireless, Inc. iii WaveNet Link AX Installation and Operations Manual Table of Contents 1.0General Overview ................................................................................................................. 1 1.1WaveNet Link Series Product Family ........................................................................ 1 1.2Introduction to the Link AX ........................................................................................ 1 1.3Regulatory Information .............................................................................................. 2 2.0Link AX Product Profile ......................................................................................................... 3 2.1General Overview ...................................................................................................... 3 2.2Specifications ............................................................................................................ 5 2.3User Interfaces .......................................................................................................... 8 2.4ODU Performance Monitoring ................................................................................... 8 2.5Theory of Operation .................................................................................................. 9 3.0Equipment Installation and Commissioning ........................................................................ 15 3.1Installation ............................................................................................................... 15 3.2ATM25 Data Connectors ......................................................................................... 19 3.3Connect the Power Supply ...................................................................................... 19 3.4Outdoor RF Unit Installation .................................................................................... 20 3.5Indoor Unit ............................................................................................................... 27 3.6DIP Switch Function and Configuration .................................................................. 28 3.7Commissioning ........................................................................................................ 30 4.0Antenna Installation ............................................................................................................. 35 4.1Equipment Inventory List ......................................................................................... 35 4.2Antenna Installation and Rough Alignment ............................................................. 36 4.3RF Cable Install and Seal ........................................................................................ 50 5.0Maintenance and Troubleshooting ...................................................................................... 63 5.1Link AX Maintenance .............................................................................................. 63 5.2Where to get Further Assistance ............................................................................. 64 5.3Return Procedure .................................................................................................... 65 Appendix A Grounding Practices and Lightning Protection Information ....................................... A-1 iv WaveNet Link AX Installation and Operations Manual Figures Figure 2.1Typical Deployment of a Link AX in a Point-to-Point Configuration ............................. 4 Figure 2.2a Outdoor Unit, Front View ............................................................................................10 Figure 2.2b Outdoor Unit, Back View ............................................................................................ 10 Figure 2.2c Outdoor Unit, Front View, Integral Antenna ............................................................... 11 Figure 2.2d Outdoor Unit, Back View, Integral Antenna ............................................................... 11 Figure 2.3Link AX Indoor Unit (IDU) ........................................................................................... 13 Figure 2.4Link AX Block Diagram ............................................................................................... 14 Figure 3.1Power Cord Connection ............................................................................................. 19 Figure 3.2Outdoor Unit Mounting Hardware .............................................................................. 20 Figure 3.3Attaching the Pole or Tilt Mount Adaptor Bracket ...................................................... 21 Figure 3.4Mounting the Outdoor RF Unit to the Bracket ............................................................ 22 Figure 3.5a Mounting Bracket Latch and Stud Mount Detail ......................................................... 23 Figure 3.5b Locking the Mounting Hardware ................................................................................ 24 Figure 3.6a N-Type Antenna and Siamesed Ethernet/Power Connections .................................. 25 Figure 3.6b Ground Connection ....................................................................................................26 Figure 3.7Link Ax Indoor Unit (IDU) .....................…

Text truncated - open the document above for the full version.

ALARMS RESET PWR ON LOC ALM LINK ALM DIGITAL INPUT/OUTPUT 1 CABLE 1 CABLE 2 N2-Link tm WL035902 1 2 N2 Terminal Unit Antenna Outdoor Unit Twin axial cable (650 ft. max length) 1 Meter ODU- Antenna Interconnect cable Optional DC Input AGC Test Point N2-Link tm ALARMS RESET PWR ON LOC ALM LINK ALM DIGITAL INPUT/OUTPUT 1 CABLE 1 CABLE 2 N2-Link tm 1 2 N2 Terminal Unit Antenna Outdoor Unit Twin axial cable (650 ft. max length) 1 Meter ODU- Antenna Interconnect cable Optional DC Input AGC Test Point N2-Link tm AC Power Supply Figure 2.1 - Typical Deployment of a N2-Link in a Point-to-Point Configuration RJ48C 1xDS1/E1 Data I/O (Can be ordered as 75Ω unbalanced interface) AC Power Supply RJ48C 1xDS1/E1 Data I/O (Can be ordered as 75Ω unbalanced interface)

Table 3.1 – Maximum Transmit Power Level Setting vs. Antenna Type( for compliance with FCC EIRP limits) in the 5.3 GHz Band) Antenna TypeManufacturer P/NMaximum Transmit Power Setting 6” External, Flat Panel, Plane Polarized.,17.5 dBiGabriel DFPD.5-520 dBm 9” Integrated, Flat Panel ,P lane Polarized, 18 dBiRadioWaves WFP.75-5.20 dBm

Microwave Antenna Radiation Warning Designed for point-to-point operation, a Link AX microwave radio system uses directional antennas to transmit and receive microwave signals. These directional antennas are usually circular or rectangular in shape, and are usually mounted outdoors on a tower or mast,well above ground level. Referencing OET Bulletin 65 (Edition 97-01,August 1997)from the Federal Communication Commission ’s Office of Engineering &Technology, limits for maximum permissible exposure (MPE)to microwave signals have been adopted by the FCC for General Population/Uncon- trolled environments. This limit is 1.0 mW/cm 2 ,with averaging times of thirty-minutes. The closer you are to the front center-point of a microwave antenna,the greater the power density of its transmitted microwave signal.Unless you are very close,however,microwave exposure levels will fall far below the MPE limits.To determine how close to a microwave antenna you can be and still remain below the MPE limits noted above,“worst case ” predictions of the field strength and power density levels in the vicinity of an Link AX ™ microwave antenna can be made from the following calculations. The equation is generally accurate in the far-field of an antenna, and will over-predict power density in the near-field (i.e.close to the antenna). S =PG/4πR 2 where:S =power density (in mW/cm 2 ) P =power input to the antenna (mW) G =power gain of the antenna in the direction of interest relative to an isotropic radiator R =distance to the center of radiation of the antenna (cm) Note that G,the power gain factor,is usually expressed in logarithmic terms (i.e.,dB),and must be converted using the following equation: G =10 dBi/10 For example,a logarithmic power gain of 17.5 dB is equal to a numeric gain of 56.23. Assuming (1)maximum output power from the Link AX (+12 dBm [15.8 mW ]),(2)no signal loss in the cable connecting the Link AX to the antenna,and (3)the use of a 17.5 dBi gain flat panel antenna,the 1.0 mW/cm 2 MPE power density limit would be reached at a distance of approximately 8.4 cm. The Link AX is classified as a fixed installation product ,and per FCC policy guidelines regarding MPE, antennas used for this Wireless Inc. transmitter must be installed to provide a separation distance of 1.5 meters (5 feet)or more from all persons during normal operation to satisfy FCC RF exposure compliance. Wireless,Inc. fully supports the FCC ’s adopted MPE limits, and recommends that personnel maintain appropriate distances from the front of all directional microwave antennas. Should you have questions about Link AX microwave signal radiation, please contact the Wireless, Inc. Customer Service Department.

NOTE: After switch settings are entered, the screw-on cap is permanently attached using LOK TITE adhesive, to deny user access to the settings.

14 WaveNet Link AX Installation and Operations Manual 8.192 Mbit/sec,4.096 MHz 5.775 GHz +/- 50MHz Baseband Filter Modulator Switchable Attenuation Scrambler and Diff. Encoder Variable Attenuation Power Amp ALC Circuitry Power Control Circuitry Frequency Doubler Prescaler 2.887 GHz +/- 25MHz VCO Loop Filter Dual Frequency Synthesizer Loop Filter 404.88 MHz VCO FPGA Power Programming and Frequency Programming ATM 25 Interface Bridge Chip Descrambler and Decoding Clock Recovery Circuitry Data Slicer Carrier Recovery Circuitry 70 MHz VCO AGC Control Circuitry Baseband Filters Quad Demod. Chip Variable Attenuator Variable Attenuator Variable Attenuator 8.192 Mbit/sec, 4.096 MHz 70 MHz 474.88 MHz 5.300 GHz +/- 50 MHz Preamp Duplexer External Antenna Transmit Chain Frequency Synthesis Receive Chain WL292005 Figure 2.4 - Link AX Block Diagram

Thomas N. Cokenias EMC &Radio Approvals Test & Consulting Services for Commercial, Military, International Compliance P.O. Box 1086 El Granada, CA 94018 5 Sept 2000 FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Attention: Application Examiner Reviewing Engineer Re: Request for confidentiality per Section 0.459 of FCC Rules Applicant: Wireless Inc. FCC ID: EV9N2WLAX-5G3 To whom it may concern, Request is hereby submitted, on behalf of my client Wireless Inc., to withhold from public review certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are requested to be kept confidential: Schematics Rationale for request for confidentiality: Wireless Inc. has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would give them competitive advantage in developing similar products. Sincerely, THOMAS N. COKENIAS EMC Consultant/Agent for Wireless Inc.. Tel 650 726 1263 fax 650 726 [email protected]

5G3 FCC ID Label Mock-up and Location FCC ID: EV9N2WLAX-5G3Wireless Inc. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This devicemay not cause harmful interference, and (2) this device must accept any interference that may cause undesired operation.

9 WaveNet Link AX Installation and Operations Manual 2.5Theory of Operation General Overview The Link AX is a point to point Wireless ATM-25 Extender operating in the 5.3/5.7 GHz U-NII band as authorized in rule sections 15.401 through 15.407. The unit is enclosed in a weather proof outdoor enclosure and is intended to provide data links over distances up to 15 km. The radio in the unit operates full duplex, transmitting and receiving data at the rate of 8.192 Mbps. The radio is modulated using BPSK. Circuit Description The following circuit description is intended to explain the operation of the radio at the block diagram level. This text is written with the idea that the reader has the block diagram readily available, as it will aid in understanding the signal flow in the radio. 2.5.1 Link AX Transmitter The physical interface to the radio consists of ATM-25 cells that are routed to ATM physical interface (PHY) chip. The PHY chip stores the data cells, and then converts them into a synchronous 8.448 Mbps data stream that is fed into the transmitter. To mark cell boundries, a SYNC byte (01111110) is inserted at the beginning of every cell. Zero insertion circuitry, inserts a zero after five consecutive ones, guaranteeing SYNC byte uniqueness while transmiting the cell’s content. The data is differentially encoded and scrambled before it is routed through the transmit baseband filter to provide spectral shaping. The baseband filter is a five pole low pass filter. After amplification, the baseband signal is fed to the modulator consisting of a doubly balanced mixer. The modulator is running directly at the transmitter frequency of 5.775 GHz ± 50 MHz. The local oscillator signal of the mixer is supplied from the frequency synthesizer section, with the frequency dependant on the RF channel selected. From the output of the modulator, the signal is amplified and then passed through a 150 MHz wide bandpass filter to remove any local oscillator products from the output spectrum. After filtering, the signal is passed through a series of amplifier and attenuator stages that are used to control the output power level. With a combination of fixed and variable attenuation the output power can be set to one of four different levels to accommodate different antennas used with the product. The power setting is maintained by an active ALC circuit that samples the transmitter output power and then adjusts the variable attenuator to keep the output power constant over the operating temperature of the unit. The power level is controlled to within +1/-2 dB of the set point. Following the attenuators the signal is fed through additional amplification to bring the output level to a maximum of +14 dBm at the output of power amplifier. A lowpass matching section follows the power amplifier to aid in filtering harmonics of the signal. After passing through the duplexer, the power level at the antenna port is a maximum of +12 dBm. 10 WaveNet Link AX Installation and Operations Manual Figure 2.2a - Outdoor Unit, Front View, External Antenna Figure 2.2b - Outdoor Unit, Back View, External Antenna WL293001 DIP Switch Access Antenna Connection (N Type, Female) ODU Ground Connection Mounting Studs WL292002 Receive Signal Strength Indicator (RSSI) (BNC Type, Female) Siamesed Category 5 ATM and Power cables connections 11 WaveNet Link AX Installation and Operations Manual ODU Ground Connection Mounting Studs WL291003 Receive Signal Strength Indicator (RSSI) (BNC Type, Female) Siamesed Category 5 ATM and Power Cables Connections DIP Switch Access Figure 2.2c - Outdoor Unit, Front View, Integral Antenna Figure 2.2d - Outdoor Unit, Back View, Integral Antenna Outdoor RF unit with integral Antenna WL241008 12 WaveNet Link AX Installation and Operations Manual 2.5.2 Link AX Receiver The receiver in theLink AX is a conventional dual conversion design with IF frequencies of 474.88 MHz and 70 MHz. From the receive port of the duplexer, the low level input signal is passed through a low noise preamplifier that provides 25 dB of gain. Following the preamplifier the signal is passed through a 200 MHz wide bandpass filter to provide image rejection for the first mixer. The signal is then mixed with the first LO to convert the signal to 474.88 MHz. Following further amplification the signal is passed through a five pole, 20 MHz wide bandpass filter. This filter provides image filtering for the second mixer, and also helps attenuate signals on the adjacent receive channels. After filtering, the signal is further amplified and then passed through a variable attenuator stage before it is applied to the second mixer. The output of the second mixer is at 70 MHz. The 70 MHz IF stages provide additional gain along with two sections of variable attenuation for the AGC function. The primary adjacent channel filtering is also at 70 MHz where the signal is passed through a 12 MHz wide SAW filter. The combination of filters provide a minimum of 47 dB of attenuation at the adjacent receive channels (±10.24 MHz). At the end of the 70 MHz IF chain the signal is fed into a quadrature demodulator. The carrier recovery loop consists of a four quadrant multiplier that multiplies I and Q baseband signals to create an error voltage. This error voltage is then amplified and fed back to the 70 MHz VCO. This forms a phase locked loop that is locked to the received carrier frequency. The 70 MHz output is also fed into a wide band logarithmic amplifier that provides a DC voltage output proportional to the 70 MHz signal strength. The DC voltage is then integrated and fed back to the variable attenuator stages to form an AGC control loop. This control loop keeps the signal level at the input to the demodulator chip constant over the entire operating range of the receiver. Data recovery from the I baseband signal begins by passing the I signal through a slicer. The output of the slicer is a digital signal that contains both data and clocking information. A cloc…

Text truncated - open the document above for the full version.

Wireless Inc. MPE Calculations FCC ID: EV9N2WLAX-5G3 15.407(f) RF Exposure Information MPE Calculations for 0 dBm into 18 dBi Antenna: RF Hazard Distance Calculation mW/cm2 from Table1:1.00 Max RF Power TX AntennaMPE P, dBmG, dBiSafe Distance, cm 0.018.02.2 Basis of Calculations: E^2/3770 = S, mW/cm2 E, V/m = (Pwatts*Ggain*30)^.5/d, meters d = ((Pwatts*G*30)/3770*S))^0.5Pwatts*Ggain = 10^(PdBm-30+GdBi)/10) The product antenna will be installed in outdoor locations, on rooftops and on poles, and as such will be at least 2m away from persons during normal operations. The user manual will require a minimum separation of 1.5 m for this product.

vii WaveNet Link AX Installation and Operations Manual Microwave Antenna Radiation Warning Designed for point-to-point operation, a Link AX microwave radio system uses directional antennas to transmit and receive microwave signals. These directional antennas are usually circular or rectangular in shape, and are usually mounted outdoors on a tower or mast, well above ground level. Referencing OET Bulletin 65 (Edition 97-01, August 1997) from the Federal Communication Commission’s Office of Engineering & Technology, limits for maximum permissible exposure (MPE) to microwave signals have been adopted by the FCC for General Population/Uncon- trolled environments. This limit is 1.0 mW/cm 2 , with averaging times of thirty-minutes. The closer you are to the front center-point of a microwave antenna, the greater the power density of its transmitted microwave signal. Unless you are very close, however, microwave exposure levels will fall far below the MPE limits. To determine how close to a microwave antenna you can be and still remain below the MPE limits noted above, “worst case” predictions of the field strength and power density levels in the vicinity of an Link AX ™ microwave antenna can be made from the following calculations. The equation is generally accurate in the far-field of an antenna, and will over-predict power density in the near-field (i.e. close to the antenna). S = PG/4πR 2 where:S = power density (in mW/cm 2 ) P = power input to the antenna (mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (cm) Note that G, the power gain factor, is usually expressed in logarithmic terms (i.e., dB), and must be converted using the following equation: G = 10 dB/10 For example, a logarithmic power gain of 17.5 dB is equal to a numeric gain of 56.23. Assuming (1) maximum output power from the Link AX (+12 dBm [15.8 mW]), (2) no signal loss in the cable connecting the Link AX to the antenna, and (3) the use of a 17.5 dBi gain flat panel antenna, the 1.0 mW/cm 2 MPE power density limit would be reached at a distance of approximately 8.4 cm. The Link AX is classified as a fixed installation product, and per FCC policy guidelines regarding MPE, antennas used for this Wireless Inc. transmitter must be installed to provide a separation distance of 2 meters (6 feet) or more from all persons during normal operation to satisfy FCC RF exposure compliance. Wireless, Inc. fully supports the FCC’s adopted MPE limits, and recommends that personnel maintain appropriate distances from the front of all directional microwave antennas. Should you have questions about Link AX microwave signal radiation, please contact the Wireless, Inc. Customer Service Department.

tel: 650-726-1263 fax: 650-726-1252 internet: [email protected] Thomas N. Cokenias EMC & Radio Type Approvals Test & Consulting Services for Commercial, Military, International Compliance P.O. Box 1086 El Granada, CA 94018 SUPPLEMENTARY INFORMATION CONCERNING RF HAZARD Applicant: Wireless Inc. FCC ID: EV9N2WLAX-5G3 Device: 5.25 – 5.35 GHz UNII Transceiver The referenced device uses an 18 dBi antenna with 0 dBm input, resulting in an MPE of approximately 2.2 cm. The product antenna will be installed in outdoor locations, on rooftops and on poles, and as such will be at least 2m away from persons during normal operations.

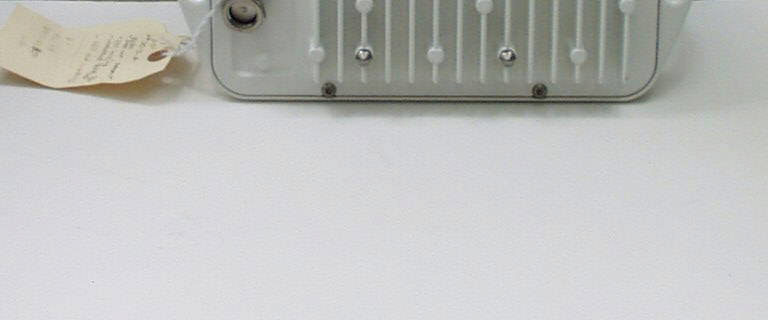

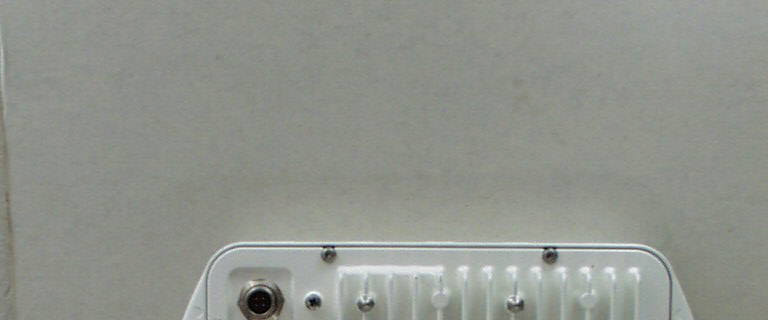

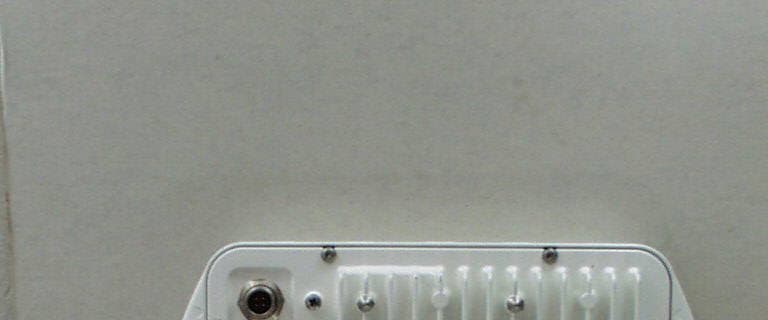

Wireless Inc.FCC ID: EV9N2WLAX-5G3 1 of 30 EXHIBITS EXHIBIT 1:Letter Requesting Confidentiality under Sec. 0.457(d) EXHIBIT 2: Product Description and Operation Overview EXHIBIT 3:Information for which Confidentiality is Requested Schematics EXHIBIT 4:Product Photographs EXHIBIT 5:User Manual and FCC ID Label EXHIBIT 6:RF Hazard Information per Sec. 1.1307 EXHIBIT 7: Report of Measurements Wireless Inc.FCC ID: EV9N2WLAX-5G3 2 of 30 EXHIBIT 1:Letter Requesting Confidentiality under Sec. 0.457(d) Wireless Inc.FCC ID: EV9N2WLAX-5G3 3 of 30 Thomas N. Cokenias EMC &Radio Approvals Test & Consulting Services for Commercial, Military, International Compliance P.O. Box 1086 El Granada, CA 94018 5 Sept 2000 FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Attention: Application Examiner Reviewing Engineer Re: Request for confidentiality per Section 0.459 of FCC Rules Applicant: Wireless Inc. FCC ID: EV9N2WLAX-5G3 To whom it may concern, Request is hereby submitted, on behalf of my client Wireless Inc., to withhold from public review certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are requested to be kept confidential: Schematics Rationale for request for confidentiality: Wirless Inc. has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would give them competitive advantage in developing similar products. If you have questions or need further information, please contact the undersigned. Sincerely, THOMAS N. COKENIAS EMC Consultant/Agent for Wireless Inc. Wireless Inc.FCC ID: EV9N2WLAX-5G3 4 of 30 Tel 650 726 1263 fax 650 726 [email protected] Wireless Inc.FCC ID: EV9N2WLAX-5G3 5 of 30 EXHIBIT 2:Product Description and Operation Overview General Overview The N2-4XE1 is a point to point Wireless Extension operating in the 5.3/5.7 GHz UNII band as authorized in rule sections 15.401 through 15.407.The unit is enclosed in a weather proof outdoor enclosure and is intended to provide data links over distances up to 10 km.The radio in the unit operates full duplex, transmitting and receiving data at the rate of 8.448 Mbps. The radio is modulated using BPSK. The product uses two separate 100 MHz bands within the U-NII frequency spectrum. Within these bands,the N2-4XE1 series operates in one of many independent channels providing for frequency reuse and network flexibility. Synthesized RF channel selection is field configurable,as are the power output options for the selection of antenna sizes.. Frequency Band: Full-duplex operation in the UNII band Frequency Range:5,250 -5,350 MHz Digital Interface: ATM 5.3 GHz TX( Low Band) Frequency Range:5,250 -5,350 MHz Output power:0 dBm +4 dBm +8 dBm +12 dBm The Wireless UNII radio will be professionally installed. Antenna cables are provided with the EUT, antennas are specified for the installer to purchase. At present, there are two antennas specified for use with this radio: RadioWaves Inc. model FP17.5-5.5Integrated 9” x 9” flat panel, 18 dBi GabrielDFPD-55217.5 dBi flat panel antenna The radio will be provided with a 6 ft or a 12 ft long coaxial cable. 6 ft cable cable loss: 1.0 dB 12 ft cable loss:1.9 dB Wireless Inc.FCC ID: EV9N2WLAX-5G3 6 of 30 Cable loss will decrease RF power level delivered to the antenna. A description of the theory of operation and product configuration is found in an attachment to this application and report. Wireless Inc.FCC ID: EV9N2WLAX-5G3 7 of 30 System Interconnection - refer to attachment (block diagram) Wireless Inc.FCC ID: EV9N2WLAX-5G3 8 of 30 EXHIBIT 3:Information for which Confidentiality is Requested Schematics -refer to separate attachment Wireless Inc.FCC ID: EV9N2WLAX-5G3 9 of 30 EXHIBIT 4: Product Photographs -refer to separate attachments Wireless Inc.FCC ID: EV9N2WLAX-5G3 10 of 30 EXHIBIT 5:User Manual and FCC ID Label -refer to separate attachment Wireless Inc.FCC ID: EV9N2WLAX-5G3 11 of 30 EXHIBIT 6: RF Hazard Information Per Sec. 1.1307 - see discussion re 15.407(f) RF Exposure Information, page 19 Wireless Inc.FCC ID: EV9N2WLAX-5G3 12 of 30 EXHIBIT 7:Report of Measurements Wireless Inc.FCC ID: EV9N2WLAX-5G3 13 of 30 FCC CERTIFICATION INFORMATION The following information is in accordance with FCC Rules, 47CFR Part 2. 2.1033(b)1Applicant: Wireless Inc. 5452 Betsy Ross Drive Santa Clara CA 95054-1101 2.1033(b)2FCC ID : EV9N2WLAX-5G3 2.1033(b)3 Installation instructions are found in attached document. 2.1033(b)4 A brief description of the circuit functions is found in attached document 2.1033(b)5 Block diagram is found in attached document 2.1033(b)6 Report of measurements is found below. 2.1033(b)7 Product photographs are attached in JPEG format. 2.1033(b)8 The EUT is operated with accessory devices described below and in the attachments submitted. 2.1033(b) 9 NOT APPLICABLE 2.1033(b)10 - 12 NOT APPLICABLE 2.1091 The Wireless UNII radio will be professionally installed. Antenna cables are provided with the EUT, antennas are specified for the installer to purchase. At present, there is one antenna specified for use with the radio: RadioWaves Inc. model FP17.5-5.5Integrated 9” x 9” flat panel, 18 dBi Gabriel Model No:DFPD .5-526” External , Flat Panel 17.5dBi The radio will be provided with a 6 ft or a 12 ft long coaxial cable. 6 ft cable cable loss: 1.0 dB 12 ft cable loss:1.9 dB Cable loss will decrease RF power level delivered to the antenna. SUMMARY OF TEST RESULTS Wireless Inc.FCC ID: EV9N2WLAX-5G3 14 of 30 15.407 General Technical Requirements The UNII requirements for maximum power, peak power spectral density, minimum 26 dB emissions bandwidth, and maximum EIRP are interdependent variables. In addition, the level of transmitter spectral re-growth at the UNII band edges will limit the power output that may be transmitted into a particular antenna, …

Text truncated - open the document above for the full version.

Wireless Inc.FCC ID: EV9N2WLAX-5G3 1 of 34 EXHIBITS EXHIBIT 1:Letter Requesting Confidentiality under Sec. 0.457(d) EXHIBIT 2: Product Description and Operation Overview EXHIBIT 3:Information for which Confidentiality is Requested Schematics EXHIBIT 4:Product Photographs EXHIBIT 5:User Manual and FCC ID Label EXHIBIT 6:RF Hazard Information per Sec. 1.1307 EXHIBIT 7: Report of Measurements Wireless Inc.FCC ID: EV9N2WLAX-5G3 2 of 34 EXHIBIT 1:Letter Requesting Confidentiality under Sec. 0.457(d) Wireless Inc.FCC ID: EV9N2WLAX-5G3 3 of 34 Thomas N. Cokenias EMC &Radio Approvals Test & Consulting Services for Commercial, Military, International Compliance P.O. Box 1086 El Granada, CA 94018 5 Sept 2000 FCC Laboratory 7435 Oakland Mills Road Columbia, MD 21046 Attention: Application Examiner Reviewing Engineer Re: Request for confidentiality per Section 0.459 of FCC Rules Applicant: Wireless Inc. FCC ID: EV9N2WLAX-5G3 To whom it may concern, Request is hereby submitted, on behalf of my client Wireless Inc., to withhold from public review certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are requested to be kept confidential: Schematics Rationale for request for confidentiality: Wirless Inc. has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would give them competitive advantage in developing similar products. If you have questions or need further information, please contact the undersigned. Sincerely…
