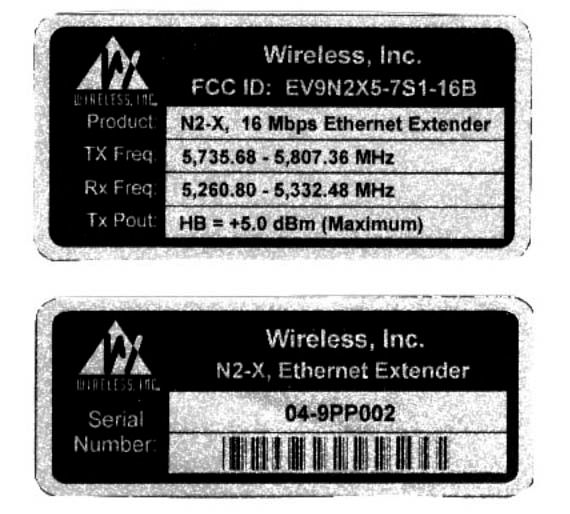

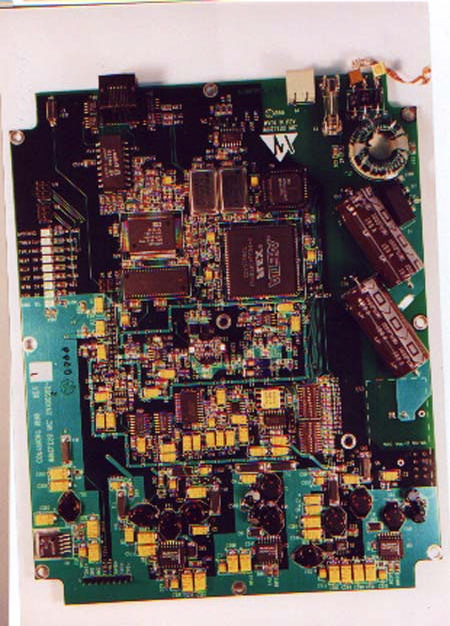

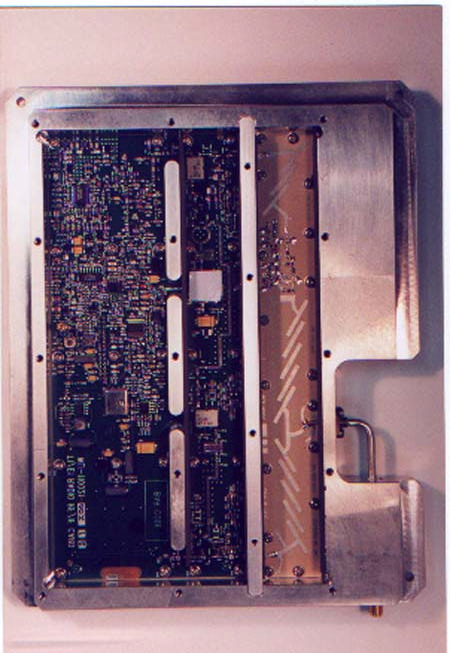

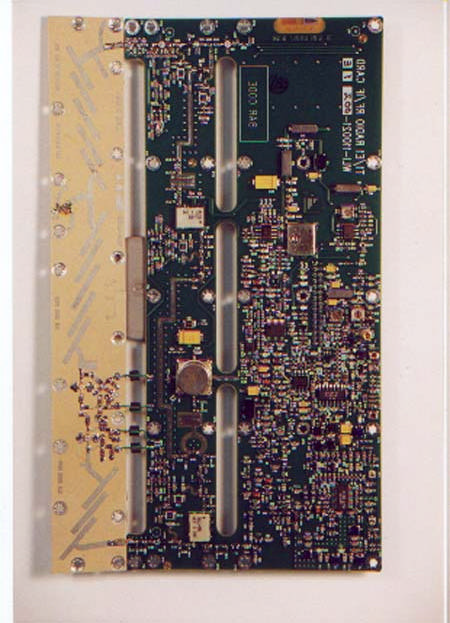

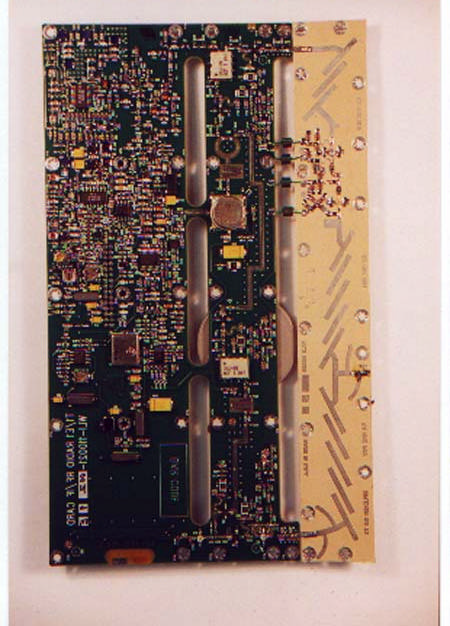

EV9N2X5-7S1-16B

N2-X Ethernet Extender Installation and Operations Manual Part Number 281-104101-201 Version 0.1 February 1999 Wireless, Inc. 19 Davis Drive Belmont, CA 94002-3001 ii N2-X Ethernet Extender Installation and Operation Manual Notice Information in this document is subject to change without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of Wireless, Inc. © Copyright 1999, Wireless, Inc. All rights reserved. N2-Ethernet Extender TM and ACCESS TM Series are trademarks of Wireless, Inc. iii N2-X Ethernet Extender Installation and Operation Manual Table of Contents 1.0General Overview ...............................................................................................................................1 1.1N2-ACCESS Series Product Family................................................................................................1 1.2Introduction to the N2- X Ethernet Extender ..............................................................1 1.3Regulatory Information .........................................................................................................2 2.0N2- X Ethernet Extender Product Profile .........................................................................................3 2.1General Overview ..................................................................................................................3 2.2Specifications .........................................................................................................................7 2.3User Interfaces.....................................................................................................................12 2.4Alarms, Indicators and Displays (Outdoor Unit) .............................................................17 2.5Theory of Operation ............................................................................................................18 3.0Equipment Installation and Commissioning .................................................................................21 3 . 1Installation.............................................................................................................................21 3.2Data Connectors..................................................................................................................28 3.3Outdoor RF Unit Installation ..............................................................................................32 3 . 4Commissioning....................................................................................................................36 4.0Maintenance and Troubleshooting ................................................................................................39 4.1N2- X Ethernet Extender Maintenance .............................................................................39 4.2Identifying and Resolving Receive Signal Strength Issues..........................................40 4.3N2- X Ethernet Extender Digital Board Switch Settings ................................................42 4.4Where to Get Further Assistance .....................................................................................47 4.5Return Procedure ................................................................................................................48 Appendix ANetwork Management ..........................................................................................................A-1 Appendix B Installation Instructions ........................................................................................................B-1 Appendix CAdjustable Panel Antenna Mount .......................................................................................C-1 iv N2-X Ethernet Extender Installation and Operation Manual Figures Figure 2.1 Typical Deployment of a N2-X Ethernet Extender in a Point-to-Point Configuration 4-5 Figure 2.2 User Interfaces........................................................................................................................12 Figure 2.3 Outdoor Unit, Interior Interfaces ...........................................................................................13 Figure 2.4 N2- X Ethernet Extender Bock Diagram ..............................................................................17 Figure 3.1 Power Cord Connection .........................................................................................................23 Figure 3.2a Upper Pole Mounting Bracket ..............................................................................................24 Figure 3.2b Upper Pole Mounting Bracket Equipment .........................................................................24 Figure 3.2c Lower Pole Mounting Bracket ..............................................................................................25 Figure 3.2d Lower Pole Mounting Bracket Equipment .........................................................................25 Figure 3.3a V-Clamps and Hardware ......................................................................................................26 Figure 3.3b V-Clamps and Hardware (Rear View) ................................................................................26 Figure 3.4 N-Type Antenna and Ground Connections .......................................................................27 Figure 4.1 Frequency Selection for the N2-X Ethernet Extender Radio...........................................40 Figure B.1 Two Foot Diameter Antenna ...............................................................................................B-1 Figure B.2Mount Configuration.............................................................................................................B-3 Figure B.3 Mounting Hardware Packed ................................................................................................B-5 Figu…

Text truncated - open the document above for the full version.

P.O. Box 70, Scarborough, Maine 04070 U.S.A. Tel: 207-883-5161 Fax: 207-883-4469 email: [email protected]: http://www.gabrielnet.com Standard (Solid) Parabolic - Plane Polarized - without radome SSP2-52A2(0.6)-28.128.5 29.06.125381.50*(14.0) SSP4-52A4(1.2)-33.634.2 34.63.130461.50*(14.0) SSP6-52A6(1.8)-37.037.5 38.02.130491.50*(14.0) Standard (Solid) Parabolic Antenna - Dual Polarized - without radome SSD2-522(0.6)-28.028.4 28.96.130381.50*(14.0) SSD4-524(1.2)-33.534.1 34.53.130461.50*(14.0) SSD6-526(1.8)-36.937.4 37.92.130491.50*(14.0) M2C-1SE2(0.6)0.40.03 M4C-1SE4(1.2)0.40.03 M6C-1SE6(1.8)0.50.03 5.250 - 5.850 GHz SSP-D52 081498 Gabriel offers a complete line of coaxial cable, cable connectors, and accessories. Call your Gabriel Sales Engineer for more details. Facts & Features •Gabriel Quality and Dependability. •Innovative Feed Design. •Type N Female coax connectors, 50 ohm. •Isolation is 35dB on Dual Polarized models. •Optional radomes available. Model Number Diameter ft (m) VSWR (R.L. max. dB) Gain at Low Mid High dBi XPD dB F/B ratio dB Nominal Mid-Band Beamwidth degrees Standard Frequency GHz Antenna Electrical Specifications 5.250 - 5.850 •Feeds are easily installed from the rear of the antenna, and allow for inspection or replacement from the rear. Smooth polariza- tion adjustment is also obtained from the rear of the antenna. •All aluminum backstructure is designed for most advantageous strength and weight combination. •New environmentally pleasing neutral color. Plane & Dual Polarized Unlicensed "NII" and "ISM" Bands (National Information Infrastructure) (Industrial, Scientific and Medical) Solid Parabolic Antennas 5.250 - 5.850 GHz Gabriel's New Plane and Dual Polarized “NII" and "ISM" band micro- wave antennas combine competitive electrical characteristics with very affordable pricing. These antenna models are a cost effective alternative and our antenna designs carry 55 years of mechanical and electrical design experience. Both Plane and Dual Polarized solid parabolic models are available in 2-ft. (0.6) and 4-ft. (1.2) diameters while employing new state of the art feed designs which terminate with Type “N” connectors. The "NII" and "ISM" band models are designed and manufactured to Gabriel’s high quality standards and the models offered are available for short interval delivery. Rapid deployment is one of the major advantages of these types of communication products and Gabriel is here to support your short lead time programs with these new antennas. * Improved VSWR available. Product information subject to change without notice. Copyright 1998 Gabriel Electronics Incorporated. Optional Radome Specifications Model Number Diameter ft (m) Attenuation @ 5 GHz (dB) VSWR Contribution @ 5 GHz Gabriel "NII" and "ISM" Band 2-ft. (0.6 m) - Plane Polarized - Standard Parabolic Antenna NEW NEW 5.250 - 5.850

Page 1 of 3 Please make the following changes to the N2-X Ethernet Extender Manual: Change antenna gain numbers (dBi) in Table 3.1 to values shown below, and add text between table heading and table as shown: Table 3.1 - Maximum Transmit Power Level Setting vs. Antenna Type (for compliance with FCC EIRP limits) in the 5.3 GHz band Per the following table, in the 5.3 GHz band the highest power setting (approximately +12 dBm) can only be installed with the lowest gain antenna which is the 6” Flat Panel Plane Polarized (DFPD.5-52) with 17.5 dBi. Each radio is shipped from the factory with a standard 6’ coaxial cable for connection between the radio and the antenna. The cable has a nominal loss of approximately 2.6 dB. UNII radios are covered under CFR 47 FCC part 15, 15.407 Subpart E. 15.407.a.2 which states Ptransmit = 11 dBm + 10 log B where B is the -26 dB BW with a 6 dBi antenna. Above 6 dBi antenna gain there is a 1:1 reduction in Ptransmit to maintain the same MAXIMUM EIRP. This is accomplished by the changes in output power setting for the alternative antennas. The FCC EIRP limit for the 5.3 GHz band with our transmitter bandwidth is +28 dBm. With the transmit power set to +12 dBm, the EIRP with the 6” Flat Panel antenna, and standard 6’ coaxial cable will be: 12 dBm + 17.5 dBi –2.6 dB = 26.9 dBm. Antenna TypeManufacturer P/NMaximum Transmit Power Setting (dBm) 2’ diameter dish with radome, Plane Polarized, 28.1 dBiGabriel SSP2-52ARI0 2’ diameter dish with radome, Dual Polarized, 28.1 dBiGabriel SSD2-52ARI0 6” Flat Panel, Plane Polarized, 17.5 dBiGabriel DFPD.5-52+12 12” Flat Panel, Plane Polarized, 23 dBiGabriel DFPD1-52+4 24” Flat Panel, Plane Polarized, 27.5 dBiGabriel DFPD2-520 Page 2 of 3 Please insert the following in section 2.3 on page 10 between the last paragraph in the text that describes the “outdoor unit” interfaces and Table 2.4. This is a duplicate of the above statements. Table X.X - Maximum Transmit Power Level Setting vs. Antenna Type (for compliance with FCC EIRP limits) in the 5.3 GHz band Per the following table, in the 5.3 GHz band the highest power setting (approximately +12 dBm) can only be installed with the lowest gain antenna which is the 6” Flat Panel Plane Polarized (DFPD.5-52) with 17.5 dBi. Each radio is shipped from the factory with a standard 6’ coaxial cable for connection between the radio and the antenna. The cable has a nominal loss of approximately 2.6 dB. UNII radios are covered under CFR 47 FCC part 15, 15.407 Subpart E. 15.407.a.2 which states Ptransmit = 11 dBm + 10 log B where B is the -26 dB BW with a 6 dBi antenna. Above 6 dBi antenna gain there is a 1:1 reduction in Ptransmit to maintain the same MAXIMUM EIRP. This is accomplished by the changes in output power setting for the alternative antennas. The FCC EIRP limit for the 5.3 GHz band with our transmitter bandwidth is +28 dBm. With the transmit power set to +12 dBm, the EIRP with the 6” Flat Panel antenna, and standard 6’ coaxial cable will be: 12 dBm + 17.5 dBi –2.6 dB = 26.9 dBm. Antenna TypeManufacturer P/NMaximum Transmit Power Setting (dBm) 2’ diameter dish with radome, Plane Polarized, 28.1 dBiGabriel SSP2-52ARI0 2’ diameter dish with radome, Dual Polarized, 28.1 dBiGabriel SSD2-52ARI0 6” Flat Panel, Plane Polarized, 17.5 dBiGabriel DFPD.5-52+12 12” Flat Panel, Plane Polarized, 23 dBiGabriel DFPD1-52+4 24” Flat Panel, Plane Polarized, 27.5 dBiGabriel DFPD2-520 Page 3 of 3 Table X.X - Maximum Transmit Power Level Setting vs. Antenna Type (for compliance with FCC EIRP limits) in the 5.7 GHz band, original and July 31, 1998 rules Per the following table, in the 5.7 GHz band the highest power setting (approximately +12 dBm) can only be installed with the lowest gain antenna which is the 6” Flat Panel Plane Polarized (DFPD.5-52) with 17.5 dBi. Each radio is shipped from the factory with a standard 6’ coaxial cable for connection between the radio and the antenna. The cable has a nominal loss of approximately 2.6 dB. UNII radios are covered under CFR 47 FCC part 15, 15.407 Subpart E. 15.407.a.3 which states Ptransmit = 17 dBm + 10 log B where B is the -26 dB BW with a 6 dBi antenna. Above 6 dBi antenna gain there is a 1:1 reduction in Ptransmit to maintain the same MAXIMUM EIRP. This is accomplished by the changes in output power setting for the alternative antennas. The original FCC EIRP limit for the 5.7 GHz band with our transmitter bandwidth is +33 dBm. With the transmit power set to +12 dBm, the EIRP with the 6” Flat Panel antenna, and standard 6’ coaxial cable will be: 12 dBm + 17.5 dBi –2.6 dB = 26.9 dBm. The corresponding settings are included in the following table. Antenna TypeManufacturer P/NMaximum Transmit Power Setting (dBm) 2’ diameter dish with radome, Plane Polarized, 28.1 dBiGabriel SSP2-52ARI0 2’ diameter dish with radome, Dual Polarized, 28.1 dBiGabriel SSD2-52ARI0 6” Flat Panel, Plane Polarized, 17.5 dBiGabriel DFPD.5-52+12 12” Flat Panel, Plane Polarized, 23 dBiGabriel DFPD1-52+8 24” Flat Panel, Plane Polarized, 27.5 dBiGabriel DFPD2-52+4 The FCC will also allow higher EIRP for point to point links with higher gain antennas. Page 703 of the FCC document, CFR 47 FCC part 15, 15.407 Subpart E, FR 40836, July 31, 1998 has the provisions for these power limits. The path length isn’t increased, since the 5.3 GHz transmitter isn’t allowed the higher EIRP. We recommend the higher power settings only when absolutely necessary. This rule states " fixed pt-pt U-NII devices operating in this band may employ transmitting antennas with directional gain up to 23 dBi without the corresponding reduction in transmitter peak output power or peak power spectral density”. Also above 23 dBi antenna gain there is a 1:1 reduction in Pout to maintain the same MAX EIRP. We are in compliance even at the maximum antenna gain and transmitter power, since the corresponding output power is over +27 dBm in our BW and the resulting EIRP for a 6 dBi antenna is +33 dBm. This EIRP limit is further …

Text truncated - open the document above for the full version.

P.O. Box 70, Scarborough, Maine 04070 U.S.A. Tel: 207-883-5161Fax: 207-883-4469 email: [email protected]: http://www.gabrielnet.com 58 5.250 - 5.850 GHz Flat Panel Antennas 5.250 - 5.850 GHz Electrical Specifications Associated Equipment InformationPages Point-to-Point Antenna Specifications................................. 14 - 111 Special Application Antennas.............................................135 - 145 Antenna Mounts & Reference Dimensions.......................112 - 134 Radomes................................................................................122 - 124 Tower Accessories.............................................................146 - 154 Transmission Lines..............................................................155 - 243 Dry Air Pressurizers............................................................244 - 253 5 GHz Directional Flat Panel Antenna 5 GHz - Spread Spectrum / NII Band Directional Flat Panel Antenna (for Point-to-Point applications) Facts & Features • Gabriel Quality and Dependability. • Lightweight and durable construction. • Quick and easy installation. • Feed input, Type N Female connector. (Other types available on request.) • Input connector positioned on back of antenna assembly. • Antenna supplied with paintable rigid radome. • All Gabriel antennas meet or exceed Standards EIA-195-C and EIA-222-F. • Antenna accommodates +/-20° elevation adjustment. (specific installation limitations may apply) • Mini-Mounts accommodate a 1.9 in. to 4.5 in. (48 to 114 mm) O.D. mast pipe. Quick-Align Mounts mount to a 2.375 in. (60 mm) O.D. mast pipe. An optional 1.9 in. (48 mm) to 4.5 in. (114 mm) Mast Clamp Kit is available on request for the Quick-Align Mount. • To adapt the Quick Align Mount for use on a 1.9 in. to 4.5 in. O.D. mast pipe order Mast Clamp Kit MCKQ-19-45 • Special colors and / or logos available on request. • Dual band models are available. Diagonal - Directional Flat Panel - Plane Polarized DFPS.5-52**0.5(0.15)MM17.518.0 18.419.030351.50(14.0) DFPD1-521(0.3)MM23.023.5 23.99.430431.50(14.0) DFPD1-52 (M1)1(0.3)QAM23.023.5 23.99.430431.50(14.0) DFPD2-522(0.6)QAM27.528.0 28.44.630461.50(14.0) NOTE: Product information subject to change without notice. 5.250 - 5.850 VSWR (R.L. max. dB) Frequency GHz Model Number Diameter ft (m) Mount Type Gain at Low Mid High dBi Nominal Mid-Band Beamwidth degrees XPD dB F/B ratio dB MM=Mini - Mount QAM=Quick Align Mount ** Note: The DFPS.5-52 antenna model is square in configuration.

N2-X Ethernet Extender Installation and Operation Manual Part Number 281-104101-201 Version 1.0 December 1999 Wireless, Inc. 5452 Betsy Ross Drive Santa Clara, CA 95054-1101 ii N2-X Ethernet Extender Installation and Operation Manual Notice Information in this document is subject to change without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of Wireless, Inc. © Copyright 1999, Wireless, Inc. All rights reserved. N2-X Ethernet Extender™ and ACCESS™ Series are trademarks of Wireless, Inc. iii N2-X Ethernet Extender Installation and Operation Manual Table of Contents 1.0 General Overview ................................................................................................................. 1 1.1 N2-ACCESS Series Product Family ......................................................................... 1 1.2 Introduction to the N2-X Ethernet Extender .............................................................. 1 1.3 Regulatory Information .............................................................................................. 2 2.0 N2-X Ethernet Extender Product Profile ............................................................................... 3 2.1 General Overview...................................................................................................... 3 2.2 Specifications ............................................................................................................ 7 2.3 User Interfaces ........................................................................................................ 10 2.4 ODU Performance Monitoring ................................................................................. 15 2.5 Theory of Operation ................................................................................................ 15 3.0 Equipment Installation and Commissioning ........................................................................ 21 3.1 Installation ............................................................................................................... 21 3.2 Ethernet Data Connectors....................................................................................... 24 3.3 Connect the Power Supply...................................................................................... 25 3.4 Outdoor RF Unit Installation .................................................................................... 26 3.5 Commissioning ........................................................................................................ 33 4.0 Maintenance and Troubleshooting...................................................................................... 37 4.1 N2-X Ethernet Extender Maintenance .................................................................... 37 4.2 Identifying and Resolving Receive Signal Strength Issues..................................... 38 4.3 Dip Switch Function and Configuration ................................................................... 40 4.4 Where to Get Further Assistance ............................................................................ 42 4.5 Return Procedure .................................................................................................... 43 Appendix A Grounding Practices and Lightning Protection Information....................................... A-1 Appendix B Installation Instructions.............................................................................................. B-1 Appendix C Quick Align Antenna Mount Installation ....................................................................C-1 Appendix D Adjustable Panel Antenna Mount ..............................................................................D-1 iv N2-X Ethernet Extender Installation and Operation Manual v N2-X Ethernet Extender Installation and Operation Manual Figures Figure 2.1 Typical Deployment of a N2-X Ethernet Extender in a Point-to-Point Configuration ...................................................................................... 5-6 Figure 2.2a Outdoor Unit, Front View............................................................................................14 Figure 2.2b Outdoor Unit, Back View ............................................................................................ 14 Figure 2.3 N2-X Ethernet Extender Bock Diagram ................................................................ 19-20 Figure 3.1 Power Cord Connection ............................................................................................. 25 Figure 3.2 Outdoor Unit Mounting Hardware .............................................................................. 26 Figure 3.3 Attaching the Pole Mount Adapter Bracket ................................................................ 27 Figure 3.4 Mounting the Outdoor RF Unit to the Bracket ............................................................ 28 Figure 3.5a Mounting Bracket Latch and Stud Mount Detail......................................................... 29 Figure 3.5b Locking the Mounting Hardware ................................................................................ 30 Figure 3.6a N-Type Antenna and Siamesed Ethernet/Power Connections .................................. 31 Figure 3.6b Ground Connection ....................................................................................................32 Figure 4.1 Frequency Selection for the N2-X Ethernet Extender Radio ..................................... 38 Figure 4.2 Dip Switch Access and Configuration Information ..................................................... 41 Figure B.1 Two Foot Diameter Antenna ..................................................................................... B-1 Figure B.2 Mount Configuration ................................................................................................…

Text truncated - open the document above for the full version.

Corrections to N2-X Ethernet Extender Installation and Operation Manual (12-17-99 .pdf version) Page viii Change second paragraph to read: Referencing OET Bulletin 65 (Edition 97-01, August 1997) from the Federal Communications Commission's Office of Engineering & Technology, limits for the maximum permissible exposure (MPE) to microwave signals have been adopted by the FCC for General Population/Uncontrolled environments. This limit is 1.0 mW/cm 2 , with averaging time of thirty minutes. Change 8 th paragraph to read For example, a logarithmic power gain of 17.5 dB is equal to a numeric gain of 56.23. Change 9 th paragraph to read Assuming (1) maximum output power from the N2-X Ethernet Extender (+12 dBm[15.8 mW]), (2) no signal loss in the cable connecting the N2-X Ethernet Extender to the antenna, and (3) the use of a 17.5 dBi gain flat panel antenna, the 1.0 mW/cm 2 MPE power density limit would be reached at a distance of approximately 8.4 cm. The N2-X Ethernet Extender is classified as a fixed installation product, and per FCC policy guidelines regarding MPE, antenna installers must maintain a separation distance of 20 cm or the resulting calculation of distance from transmitter EIRP, whichever is the greater distance. Page B-2 Make the following changes to Table B.1: - Eliminate last column , heading: 2.5ft (0.8mm) antenna - Correct heading of second column to read: 2ft. (0.6m) Antenna - Correct dimension K, column 2 to read: 24" (610mm) Page 9 Change footnote to Table 2.3 - Recommended Antennas to read: *The 4-foot dish antennas are for use outside the USA only, and are not FCC compliant.

May 26, 1999 Federal Communications Commission Authorization and Evaluation Division Laboratory Division 7435 Oakland Mills Road Columbia, MD 21046 Sir / Madam: We, Wireless Inc., hereby authorize Electronic Compliance Laboratories to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by Electronic Compliance Laboratories on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to the applications authorized hereunder is subject to a denial of benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti- Drug Abuse Act of 1988, 21 U.S.C. 853(a). This agreement expires one year from the current date. Sincerely yours, Bill Anderson Director of Product Development Wireless Inc. Wireless, Inc. 19 Davis Drive Belmont, CA 94002 Phone: 650-595-3300 FAX: 650-595-4907

FCC ID: EV9N2X5-7S1-16B WIRELESS, INC. ELECTRONIC COMPLIANCE LABORATORIES, INC. 1249 BIRCHWOOD DRIVE, SUNNYVALE, CALIFORNIA 94089 408/747-1490 www.eclabs.com 800/707-LABS October 21, 1999 Greg Czumak Federal Communications Commission Equipment Authorization Division Applications Processing Branch 7435 Oakland Mills Rd Columbia, MD 21046 Greg, Please find in the attached files a revised test report and supporting exhibits and documentation for the Wireless, Inc. N2-X Ethernet Extender Bridge product, submitted for approval and certification on or about July 12 th , 1999. FCC ID: EV9N2X5-7S1-16B, Confirmation number: EA94795 My Client has made several changes to the production version so please except the contents of this package for review and disregard what was previously submitted. The N2-X 5.7 GHz Radio has been modified and improved for performance. This product has variable power settings for each of the eight- (8) channels. The unit was tested at each of the power levels for the LO, MID and HIGH channels configured with four (4) different antenna types for your review. The gain of the antennas is paired with the various power settings to meet the limits called out in CFR Title 47, Part 15 of the Rules and Regulations. The report reflects the new limits called out in 15.407. Please review the file titled “N2-X differences” for a description of the design changes in the latest production model. Also enclosed is an original Agent Authorization letter from Wireless, Inc. authorizing Electronic Compliance Laboratories, Inc. to act on their behalf. In addition, all of the exhibits thought necessary to support this application are included, along with a confidentiality package. Due to size of the package the format in which I am submitting is a little different. The report document 9080501A references various appendices, Each appendix is a separate PDF file saved as “APPENDIX A” for example. Let me know if you have any problems with the format and I’ll make the adjustments as you see fit. The Theory of Operations can be located in “APPENDIX J” with the other confidential information. The following documents are being sent to replace the exhibits of the application presently in Technical Review. These documents are being submitted for FINAL consideration for Certification: FCC ID: EV9N2X5-7S1-16B WIRELESS, INC. ELECTRONIC COMPLIANCE LABORATORIES, INC. 1249 BIRCHWOOD DRIVE, SUNNYVALE, CALIFORNIA 94089 408/747-1490 www.eclabs.com 800/707-LABS 9080501A.PDFTest report Appendix A.PDFRadiated/Conducted results Appendix B.PDFExpalnation of Test Methodology Appendix C.PDFPeak Power Measurements Appendix D.PDFOut of Band Data and Plots Appendix E.PDFSet-up Configurations/Photos Appendix F.PDFRestricted Band Data /Harmonics Appendix G.PDFAntenna Data Sheets Appendix H provided in the report Appendix I.PDFEUT Photos Appendix J.PDFConfidentiality Material/ Proprietary Info. Labels.jpegLabel Photos Letters.PDFMisc. Letters 5.7ghzMPEMPE distance calculations Greg, I received the formal pre-grant sample request for both of the units. My hopes are that you would review this package and let me know if this will still be a requirement. The unit was tested very thoroughly and they are pretty solid radios. I was looking at my schedule and thinking about yours, and this will be just another thing I’ll have to prepare for. The stack is getting higher, so as soon as you know something. I would appreciate a notification and at that point, if it’s not a problem, I would request to take your earliest available opening and I will make sure the unit or units will be hand carried there for testing. Just an effort to try and expedite the time involved and to eliminate any complications or hassles with the shipping or whatever... If there are any questions or problems please don’t hesitate to contact me at the number listed above, or by email, [email protected]. I look forward to hearing from you and I’ll talk to you then. Sincerely, Chip Matheny Chief Technical Officer

Date: January 4, 2000 FCC Labora…
