EW4-AGBWAGame Boy Advance Wireless Adapter

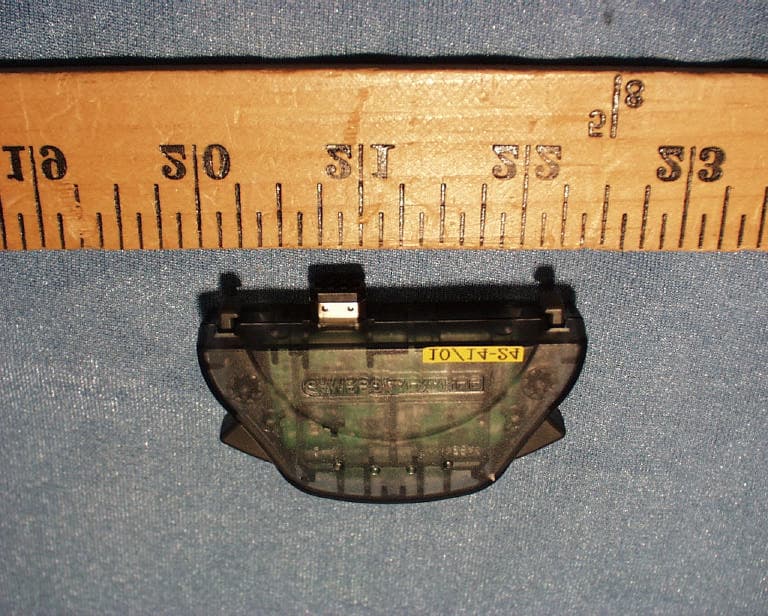

Game Boy Advance Wireless Adapter Instruction Manual 1. Features The Wireless Adapter is a peripheral device for the Game Boy Advance series. Network play for a maximum of five players is possible by connecting the Wireless Adapter to a Game Boy Advance. 2. Connection After confirming that the Power Switch is OFF on the Game Boy Advance, plug in the Wireless Adapter 6 PIN plug into the Game Boy Advance External Extension Connector. 3. Use The Wireless Adapter will automatically begin to operate after being connected to the Game Boy Advance and turning the Power Switch ON. 4. Specifications Model name: AGB-015 Dimensions: 62.0 mm (width) x 37.7 mm (height) x 14.7 mm (depth) Weight: approx. 16 g Radio Frequency: 2.4 GHz bandwidth, ISM band Maximum power consumption: 115 mW (power supplied by Game Boy Advance during use) 5. FCC Certification, Instructions to the User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Change the direction the Wireless Adapter is facing. • Consult the dealer or an experienced radio/TV technician for help IMPORTANT! In order to comply with the FCC RF exposure requirements, the antenna provided with this unit must be used. Do not use a different antenna or cable. Doing so may result in the installed system exceeding the RF exposure requirement. NEED HELP WITH INSTALLATION, MAINTENANCE OR SERVICE? Customer Service Visit www.nintendo.com or call 1-800-255-3700 Mon – Sat: 6:00 a.m. to 9:00 p.m. (Pacific Time) or Sun: 6:00 a.m. to 7:00 p.m. (Pacific Time) (Times subject to change) Nintendo of America Inc. P.O. Box 957 Redmond, WA 98073-0957 U.S.A. www.nintendo.com

FCC ID and IC Label format Applicant : MITSUMI ELECTRIC CO., LTD . FCC ID: EW4-AGBWA IC Certification Number: 4250A-AGBWA Model No: AGB-015 FCC ID: EW4-AGBWA IC: 4250A-AGBWA MODEL NO./MODELE NO. AGB-015

FCC CFR47 PART 15 SUBPART C CERTIFICATION TEST REPORT FOR MITSUMI ELECTRONIC CO., LTD EUT: WIRELESS ADAPTER FOR GAMEBOY ADVANCED MODEL NUMBER: AGB-015 FCC ID: EW4-AGBWA REPORT NUMBER: 03I2313-1 ISSUE DATE: NOVEMBER 12, 2003 Prepared for MITSUMI ELECTRONIC CO., LTD 1601, SAKAI ATSUGI KANAGAWA 243-8533, JAPAN Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 03I2313-1 DATE: NOVEMBER 13,2003 EUT: WIRELESS ADAPTER FOR GAMEBOY ADVANCED FCC ID: EW4-AGBWA Page 2 of 32 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION..........................................................................................3 2. EUT DESCRIPTION...............................................................................................................4 3. TEST METHODOLOGY.........................................................................................................4 4. FACILITIES AND ACCREDITATION...................................................................................4 5. CALIBRATION AND UNCERTAINTY..................................................................................5 5.1. MEASURING INSTRUMENT CALIBRATION......................................................................5 5.2. MEASUREMENT UNCERTAINTY.......................................................................................5 5.3. TEST AND MEASUREMENT EQUIPMENT.........................................................................6 6. SETUP OF EQUIPMENT UNDER TEST................................................................................7 7. APPLICABLE LIMITS AND TEST RESULTS.......................................................................9 7.1. 99% BANDWIDTH.............................................................................................................9 7.2. Duty Cycle.......................................................................................................................12 7.3. RADIATED EMISSIONS...................................................................................................14 7.3.1. TRANSMITTER RADIATED SPURIOUS EMISSIONS.............................................14 7.3.2. WORST-CASE RADIATED EMISSIONS BELOW 1 GHZ.........................................20 7.4. POWERLINE CONDUCTED EMISSIONS.........................................................................22 8. SETUP PHOTOS...................................................................................................................26 REPORT NO: 03I2313-1 DATE: NOVEMBER 13,2003 EUT: WIRELESS ADAPTER FOR GAMEBOY ADVANCED FCC ID: EW4-AGBWA Page 3 of 32 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT CERTIFICATION COMPANY NAME: MITSUMI ELECTRONIC CO., LTD 1601, SAKAI ATSUGI, KANAGAWA 243-8533, JAPAN EUT DESCRIPTION: WIRELESS ADAPTER FOR GAMEBOY ADVANCED MODEL: AGB-015 DATE TESTED: OCTOBER 28, 2003 - NOVEMBER 06, 2003 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC PART 15 SUBPART C NO NON-COMPLIANCE NOTED Compliance Certification Services, Inc. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Note: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Approved & Released For CCS By: Tested By: THU CHAN VIEN TRAN EMC SUPERVISOR EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 03I2313-1 DATE: NOVEMBER 13,2003 EUT: WIRELESS ADAPTER FOR GAMEBOY ADVANCED FCC ID: EW4-AGBWA Page 4 of 32 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2. EUT DESCRIPTION EUT Type Wireless Adapter for Gameboy Advanced Chassis Type Plastic Frequency Range 2426.248MHz and 2456.576MHz Number of Channels 2 Channel Spacing 30.328MHz Type of Modulation ASK Duty Cycle of Transmitter 10.8% Antenna Type Invert C Antenna Gain 3.5dBi No of External Connectors and Types One; 6 pin plug Power requirement 3.3 VDC 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4/2001, FCC CFR 47 Part 2 and FCC CFR 47 Part 15. 4. FACILITIES AND ACCREDITATION The open area test sites and conducted measurement facilities used to collect data are located at 561F Monterey Road, Morgan Hill, California, USA. The sites are constructed in conformance with the requirements of ANSI C63.4, ANSI C63.7 and CISPR Publication 22. All receiving equipment conforms to CISPR Publication 16-1, “Radio Interfer…

Text truncated - open the document above for the full version.

Spyder RF Duty Cycle By Tom Balph Frank Latona 7 November 2003 The Spyder RF protocol is based on a TDMA structure. A central node broadcasts to multiple (from 1 to 4) peripheral nodes which, in turn, reply to the central node. The WORST CASE for RF duty cycle occurs with the central node. The central node can transmit at a maximum rate of once every frame of 2.78 milliseconds. Note for future reference, the central node will not always transmit at the beginning of the frame and that it can transmit at different time slots within the frame. The maximum of data bits for one transmission is 179 bytes x 8 bits/byte = 1432 bits. With a data rate of 4.798 MHz, the transmit duration is 1432 bits x (1/4.798 MHz) = 298.46 microseconds. Figure 1 below shows a trace from the RF signal analyzer (Rohde & Schwartz DSIQ 3) that illustrates a single TX duration. Ref Lvl -20 dBm Ref Lvl -20 dBm RF Att 10 dB A UnitdBm TRG RBW 10 MHz VBW 200 kHz 1MA SWT 600 Ì s Center 2.441 GHz60 Ì s/ SGL -110 -100 -90 -80 -70 -60 -50 -40 -30 -120 -20 Date: 6.NOV.2003 17:47:52 Figure 1: Maximum TX duration of 298.46 microseconds (horizontal scale is 60 microseconds/division) The maximum worst case can be implemented through use of special software in the test platform. As stated above, there will be a 298.46 microsecond TX that occurs on average of every 2.78 milliseconds. Figure 2 below shows this repetition rate with a horizontal time scale of 2.8 milliseconds/division and a total span of 28 milliseconds. Note the average occurrence of one TX per timescale division. THIS TRANSLATES TO A WORST CASE DUTY CYCLE of 298.46 microsec / 2780 microsec = 0.1073 or 10.7%. Ref Lvl -20 dBm Ref Lvl -20 dBm RF Att 10 dB A UnitdBm TRG RBW 10 MHz VBW 200 kHz 1AP SWT 28 ms Center 2.441 GHz2.8 ms/ SGL -110 -100 -90 -80 -70 -60 -50 -40 -30 -120 -20 Date: 6.NOV.2003 17:45:08 Figure 2: Worst case maximum TX rate of 298.46 microsecond pulses every 2.78 millisecond frame (horizontal scale is 2.8 milliseconds/division) The worst case duty would not occur except under very unusual conditions. Under normal operation, the platform only requires the RF link to communicate on average every 16.7 milliseconds. Note that this communication rate is unrelated to the RF link frame rate. Figure 3 illustrates a NORMAL DUTY CYCLE of 298.46 microsec / 16700 microsec = 0.0178 or 1.8%, even with a maximum TX burst width (data load). Ref Lvl -20 dBm Ref Lvl -20 dBm RF Att 10 dB A UnitdBm TRG RBW 10 MHz VBW 200 kHz SWT 28 ms Center 2.441 GHz2.8 ms/ 1AP SGL -110 -100 -90 -80 -70 -60 -50 -40 -30 -120 -20 Date: 6.NOV.2003 18:12:01 Figure 3: Normal TX rate of 298.46 microsecond pulses every 16.7 millisecond frame (horizontal scale is 2.8 milliseconds/division)

REPORT NO: 03I2313-1 DATE: NOVEMBER 13,2003 EUT: WIRELESS ADAPTER FOR GAMEBOY ADVANCED FCC ID: EW4-AGBWA Page 25 of 31 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 8. SETUP PHOTOS RF MEASUREMENT SETUP EUT X POSITUION REPORT NO: 03I2313-1 DATE: NOVEMBER 13,2003 EUT: WIRELESS ADAPTER FOR GAMEBOY ADVANCED FCC ID: EW4-AGBWA Page 26 of 31 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. EUT Y POSITUION REPORT NO: 03I2313-1 DATE: NOVEMBER 13,2003 EUT: WIRELESS ADAPTER FOR GAMEBOY ADVANCED FCC ID: EW4-AGBWA Page 27 of 31 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. EUT Z POSITUION REPORT NO: 03I2313-1 DATE: NOVEMBER 13,2003 EUT: WIRELESS ADAPTER FOR GAMEBOY ADVANCED FCC ID: EW4-AGBWA Page 28 of 31 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED EMISSIONS SETUP RADIATED FRONT PHOTO REPORT NO: 03I2313-1 DATE: NOVEMBER 13,2003 EUT: WIRELESS ADAPTER FOR GAMEBOY ADVANCED FCC ID: EW4-AGBWA Page 29 of 31 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. RADIATED BACK PHOTO REPORT NO: 03I2313-1 DATE: NOVEMBER 13,2003 EUT: WIRELESS ADAPTER FOR GAMEBOY ADVANCED FCC ID: EW4-AGBWA Page 30 of 31 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP LINE CONDUCTED FRONT PHOTO REPORT NO: 03I2313-1 DATE: NOVEMBER 13,2003 EUT: WIRELESS ADAPTER FOR GAMEBOY ADVANCED FCC ID: EW4-AGBWA Page 31 of 31 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. END OF REPORT LINE CONDUCTED BACK PHOTO
