EW4DWMW314Wireless LAN + BT/BLE Module

User Manual Wireless LAN + BT/BLE Module (DWM-W314) FCC ID: EW4DWMW314 Since this module is not sold to general end users directly, there is no user manual of module. For the details about this module, please refer to the specification sheet of module. This module should be installed in the host device according to the interface specification (installation procedure). The following information must be indicated on the host device of this module; [for FCC] Contains Transmitter Module FCC ID: EW4DWMW314 or Contains FCC ID: EW4DWMW314 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. *If it is difficult to describe this statement on the host product due to the size, please describe in the User's manual. The following statements must be described on the user manual of the host device of this module; [for FCC] FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines. This equipment should be installed and operated keeping the radiator at least 20cm or more away from person’s body.

1601, SAKAI, ATSUGI-SHI, KANAGAWA, 243-8533 JAPAN TEL: +81-46-230-3333 FAX: +81-46-230-3547 Letter of Authorization Date: October 15, 2014 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID : EW4DWMW314 Applicant : Mitsumi Electric Co Ltd To whom it may concern: Please be advised we authorize Yoshihisa Maeda of Consumer Technology Division, UL Japan, Inc. to act on our behalf, until otherwise notified, for applications submitted for Federal Communication Commission Radio equipment applications submitted to UL Japan, Inc. We certify that we are not subject to denial of federal benefits, t hat includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. The application for the subject equipment has not been submitted to another TCB for certification. Thank you for your attention to this matter. Sincerely, Masashi Tsuchida Mitsumi Electric Co Ltd

1601, SAKAI, ATSUGI-SHI, KANAGAWA, 243-8533 JAPAN TEL: +81-46-230-3333 FAX: +81-46-230-3547 Request for Modular Transmitter Approval October 15, 2014 FCC ID : EW4DWMW314 Applicant : Mitsumi Electric Co Ltd This transmitter, model: DWM-W314 is designed by us. It complies with the modular transmitters basic requirements (Item 1 to 8) in FCC Part 15 Subpart C Section 15.212 as indicated below: Modular Approval Checklist: Modular approval requirement Yes No (1) Have its own RF shielding. (2) Have buffered modulation/data inputs. (3) Have its own power supply regulation. (4) Comply with the antenna and transmission system requirements of § 15.203, 15.204(b) and 15.204(c). (5) Tested in a stand-alone configuration. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in FCC § 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module. The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available. (6) Equipped with either a permanently affixed label or must be capable of electronically displaying its FCC ID. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. (7) Comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. (8) Comply with any applicable RF exposure requirements in its final configuration: The modular transmitter complies with FCC radiation exposure requirement. Masashi Tsuchida Mitsumi Electric Co Ltd

1601, SAKAI, ATSUGI-SHI, KANAGAWA, 243-8533 JAPAN TEL: +81-46-230-3333 FAX: +81-46-230-3547 Request for Confidentiality Date: October 15, 2014 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID : EW4DWMW314 Applicant : Mitsumi Electric Co Ltd To whom it may concern: Please be advised that the following information is to be held confidential on behalf of us, referring to the FCC rules 0.457 and 0.459: Block Diagram Theory of Operation Schematics Parts List The application contains technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Masashi Tsuchida Mitsumi Electric Co Ltd

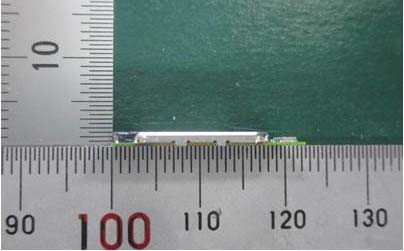

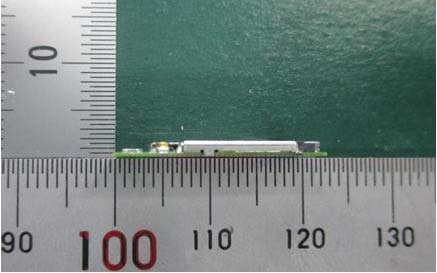

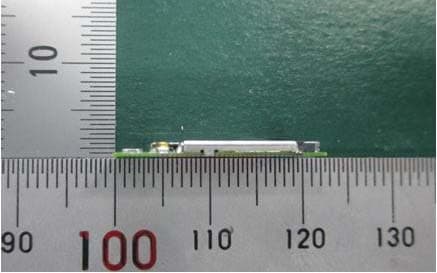

DWM-W314 Overall Appearance Photos外観写真TOP VIEW BOTTOM VIEW LEFT SIDE VIEW RIGHT SIDE VIEW FRONT VIEW BACK VIEW

DWM-W314 Label Design and Location △1 印字デザインおよび位置 認可後、量産時には正しい認可番号を表示する。 After authorized, certification numbers will be displayed on case. DWM-W314 has not ID LABEL so ID shows the top of Sheild case by LASER MARKING and the bottom of PWB by Pattern. TOP SIDETELEC No. 製造ロット BOTTOM SIDE 3mm 3mm 文字高さ：0.8mm 文字高さ：1.0mm

DWM-W314 Internal Pho tos, Antenna Location 内部写真, アンテナ取り付け位置TOP VIEW INTERNAL VIEW(TOP) Antenna

UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Applicant: M ITSUM I ELECTRIC CO., LTD. Type of Equipment : W ireless LAN + BT/BLE M odule Model No. : DWM-W314 FCC ID: EW 4DW M W 314 MITSUMI ELECTRIC CO., LTD. declares that Model : DWM-W314 com plies w ith F C C radiation exposure requirem ent specified in the F C C R ules 2.1091. RF Exposure Calculations: The following inform ation provides the m inim um separation distance for the highest gain antenna provided with the “DWM-W 314“ as calculated from FCC Part 1, §1.1310, TABLE 1 (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system , considering maximum power and antenna gain, and considering a 1.0mW /cm^2 uncontrolled exposure lim it. The Friis form ula used was: S = (P * G) / (4* π * r 2 ) Where P = 10 ^ ( ( specification RF power = 1dBm + tolerance 4dB ) / 10 ) = 3.16 mW (M aximum average output power with tolerance) *1) G = 0.12 Numerical Antenna gain; equal to -9.20 dBi r =20.0 cm For: DW M -W 314S = 0.00008 mW/cm 2 *1) The value is based on the specification provided by the custom er. No. : 10499187S-H RF Exposure / SAR Statement

Test report No. : 10499187S-H Page : 1 of 57 FCC ID : EW4DWMW314 Issued date : November 19, 2014 Revised date : November 21, 2014 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 RADIO TEST REPORT Test Report No.: 10499187S-H Applicant : MITSUMI ELECTRIC CO., LTD. Type of Equipment : Wireless LAN + BT/BLE Module Model No. : DWM-W314 FCC ID : EW4DWMW314 Test regulation : FCC Part15 Subpart C: 2014 Test result : Complied 1. This test report shall not be reproduced in full or partial, without the written approval of UL Japan, Inc. 2. The results in this report apply only to the sample tested. 3. This sample tested is in compliance with the limits of the above regulation. 4. The test results in this test report are traceable to the national or international standards. 5. This test report must not be used by the customer to claim product certification, approval, or endorsement by any agency of the Federal Government. 6. The opinions and the interpretations to the result of the description in this report are outside scopes where UL Japan has been accredited. Date of test: October 20 to 30, 2014 Representative test engineer: Shinichi Takano Engineer Consumer Technology Division Approved by : Toyokazu Imamura Leader Consumer Technology Division RTL02610 The testing in which "Non-accreditation" is displayed is outside the accreditation scopes in UL Japan. There is no testing item of "Non-accreditation". 13-EM-F0429 Test report No. : 10499187S-H Page : 2 of 57 FCC ID : EW4DWMW314 Issued date : November 19, 2014 Revised date : November 21, 2014 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 REVISION HISTORY Original Test Report No.: 10499187S-H Revision Test report No. Date Page revised Contents - (Original) 10499187S-H November 19, 2014 - - 1 10499187S-H November 21, 2014 4 Correction of Equipment type description Test report No. : 10499187S-H Page : 3 of 57 FCC ID : EW4DWMW314 Issued date : November 19, 2014 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 Contents Page SECTION 1: Customer information ....................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ......................................................................... 4 SECTION 3: Test specification, procedures & results .......................................................... 5 SECTION 4: Operation of E.U.T. during testing .................................................................. 8 SECTION 5: Conducted emission ......................................................................................... 10 SECTION 6: Carrier frequency separation ......................................................................... 11 SECTION 7: 20dB bandwidth & Occupied bandwidth (99%) .......................................... 11 SECTION 8: Number of hopping frequency ........................................................................ 11 SECTION 9: Dwell time ......................................................................................................... 11 SECTION 10: Maximum peak output power ...................................................................... 11 SECTION 11: Spurious emissions (Antenna port conducted) ............................................ 11 SECTION 12: Radiated emission .......................................................................................... 12 Contents of APPENDIXES ....................................................................................................... 14 APPENDIX 1: Data of radio tests ......................................................................................... 15 APPENDIX 2: Test instruments ........................................................................................... 54 APPENDIX 3: Photographs of test setup ............................................................................. 55 Test report No. : 10499187S-H Page : 4 of 57 FCC ID : EW4DWMW314 Issued date : November 19, 2014 Revised date : November 21, 2014 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone: +81 463 50 6400 Facsimile: +81 463 50 6401 SECTION 1: Customer information Company Name : MITSUMI ELECTRIC CO., LTD. Address : 2-11-2, Tsurumaki, Tama-shi, Tokyo, 206-8567 JAPAN Telephone Numbe r : +81-42-310-5801 Facsimile Numbe r : +81-42-310-5598 Contact Person : Yuki Takakura SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of equipmen t : Wireless LAN + BT/BLE Module Model No. : DWM-W314 Serial No. : Refer to 4.2 in this report. Rating : DC3.3V Country of Mass- production : Philippines Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No modification by the test lab. Receipt Date of Sample : September 26, 2014 2.2 Product description Model: DWM-W314 (referred to as the EUT in this report) is Wireless LAN + BT/BLE Module. Clock frequency(ies) in the system : 32.768kHz, 26MHz Antenna type : Monopole type chip antenna Antenna gain : -9.2dBi Antenna connector type : None (It exist the connector for only the tests of shipment.) Operation temperature range : -20 to +70 deg.C <Bluetooth part> Equipment type : Transceiver Frequency of operation : 2402-2480MHz Bandwidth / channel spacing : 79MHz / 1MHz (BDR/EDR) & 2MHz (Low Energy) Type of modulation : FHSS (GFSK, π/4-DQPSK, 8DPSK), DSSS (GFSK) ITU code : F1D, G1D <Wireless LAN part> Equipment type : Transceiver Frequency of operation : 2412-2462MHz Bandwidth / channel spacing : 20MHz / 5MHz Type of modulation : DSSS, OFDM ITU code : D1D, G1D * For Wireless LAN part and Bluetooth Low Energy part, refe…

Text truncated - open the document above for the full version.

Test report No. : 10005707S-A Page : 21 of 23 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 APPENDIX 3: Photographs of test setup Conducted emission Front Side Test report No.: 10499187S-H 55 of 57 Test report No. : 10005707S-A Page : 22 of 23 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Radiated emission Front Rear (below 1GHz) Rear (above 1GHz) Test report No.: 10499187S-H 56 of 57 Test report No. : 10005707S-A Page : 23 of 23 UL Japan, Inc. Shonan EMC Lab. 1-22-3 Megumigaoka, Hiratsuka-shi, Kanagawa-ken, 259-1220 JAPAN Telephone : +81 463 50 6400 Facsimile : +81 463 50 6401 Pre-check of the worst position X-axis Y-axis Z-axis END OF REPORT Test report No.: 10499187S-H 57 of 57
