EW4W092Wireless LAN Module

1601,SAKAI,ATSUGI-SHI,KANAGAWA,243-8533 JAPAN TEL;+81-46-230-3751 FAX;+81-46-230-3500 Letter of Authorization Date: September 24, 2013 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID : EW4W092 Applicant : Mitsumi Electric Co Ltd To whom it may concern: Please be advised we authorize Yoshinobu Asai of Application Section, WiSE Japan, UL Verification Service, UL Japan, Inc. to act on our behalf, until otherwise notified, for applications submitted for Federal Communication Commission Radio equipment applications submitted to UL Japan, Inc. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. The application for the subject equipment has not been submitted to another TCB for certification. Thank you for your attention to this matter. Sincerely, Masashi Tsuchida Mitsumi Electric Co Ltd

1601,SAKAI,ATSUGI-SHI,KANAGAWA,243-8533 JAPAN TEL;+81-46-230-3751 FAX;+81-46-230-3500 Declaration of professional installation only for RF Exposure Date: October 29, 2013 FCC ID : EW4W092 Applicant : Mitsumi Electric Co Ltd To whom it may concern: According to KDB447489D01(V05), SAR testing will be excluded if the test separation distance from the antenna and the outer surface of the device is greater than or equal to 8.29mm for the maximum tune-up tolerance (15.8mW [Average]). Please refer to RF Exposure sheet. Considering this point, this module is only for the host device which meets this requirement. OEM Integrators will install based on the installation manual. Thank you for your attention to this matter. Sincerely, Masashi Tsuchida Mitsumi Electric Co Ltd

1601,SAKAI,ATSUGI-SHI,KANAGAWA,243-8533 JAPAN TEL;+81-46-230-3751 FAX;+81-46-230-3500 Request for Modular Transmitter Approval October 23, 2013 FCC ID : EW4W092 Applicant : Mitsumi Electric Co Ltd This transmitter, model: W092 is designed by us. It complies with the modular transmitters basic requirements (Item 1 to 8) in FCC Part 15 Subpart C Section 15.212 as indicated below: Modular Approval Checklist: Modular approval requirement YesNo (1) Have its own RF shielding. (2) Have buffered modulation/data inputs. (3) Have its own power supply regulation. (4) Comply with the antenna and transmission system requirements of § 15.203, 15.204(b) and 15.204(c). (5) Tested in a stand-alone configuration. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in FCC § 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module. The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available. (6) Equipped with either a permanently affixed label or must be capable of electronically displaying its FCC ID. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. (7) Comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. (8) Comply with any applicable RF exposure requirements in its final configuration: The modular transmitter complies with FCC radiation exposure requirement. According to KDB447489D01(V05), SAR testing will be excluded if the test separation distance from the antenna and the outer surface of the device is greater than or equal to 8.2 9mm for the maximum tune-up tolerance (15.85mW [Average]). Please refer to RF Exposure sheet. Considering this point, the only host device which meets this requirement can be used. Masashi Tsuchida Mitsumi Electric Co Ltd

1601,SAKAI,ATSUGI-SHI,KANAGAWA,243-8533 JAPAN TEL;+81-46-230-3751 FAX;+81-46-230-3500 Request for Confidentiality Date: September 24, 2013 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID : EW4W092 Applicant : Mitsumi Electric Co Ltd To whom it may concern: Please be advised that the following information is to be held confidential on behalf of us, referring to the FCC rules 0.457 and 0.459: Block Diagram Theory of Operation Schematics Parts List The application contains technical information which we deem to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Masashi Tsuchida Mitsumi Electric Co Ltd

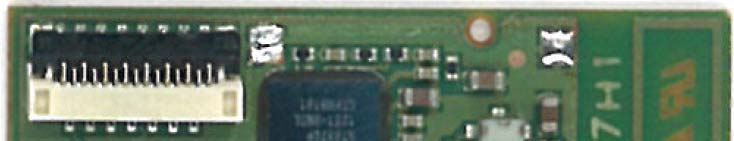

Ｗ０９２ モジュール写真 表面（シールドケース付） 表面（シールドケース無 裏面

W092 Label Drawing Part No. of Drawing WiFi Module Side A Side B

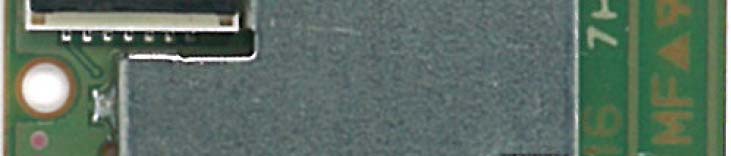

Ｗ０９２ モジュール写真 表面（シールドケース付） 表面（シールドケース無 裏面

October 16, 2013 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID: EW4W092 To whom it may concern, We, UL Japan, Inc, hereby declare that Wireless LAN module, model: W092 (FCC ID:EW4W092 ) of MITSUMI ELECTRIC CO., LTD is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in FCC Part 2 §2.1093. KDB 447498D01(V05) has the following exclusion for portable devices: The 1g and 10g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where •f(GHz) is the RF channel transmit frequency in GHz •Power and distance are rounded to the nearest mW and mm before calculation •The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. This device has f = 2.462 GHz and the maximum tune-up tolerance limit was 15.85mW. The minimum separation distance for this device can be calculated by the following formula. 15.85mW[maximum tune-up tolerance limit] / 3[1g SAR test exclusion threshold] * √2.462=8.29mm [minimum separation distance] If the minimum separation distance is more than 8.29mm, no SAR is required. Thank you for your attention to this matter. Masanori Nishiyama Manager of Head Office EMC Lab. WiSE Japan UL Verification Service UL Japan, Inc.

Test report No. : 10066840H-A-R1 Page : 2 of 56 Issued date : September 30, 2013 Revised date : October 10, 2013 FCC ID : EW4W092 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10066840H-A Revision Test report No. Date Page revised Contents - (Original) 10066840H-A September 30, 2013 - - 1 10066840H-A-R1 October 10, 2013 P. 5 Addition of statement on conformity with KDB558074D1. 1 10066840H-A-R1 October 10, 2013 P.8 Correction of Power settings 1 10066840H-A-R1 October 10, 2013 P.12 Correction of comment *4) Test report No. : 10066840H-A-R1 Page : 3 of 56 Issued date : September 30, 2013 Revised date : October 10, 2013 FCC ID : EW4W092 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 4 SECTION 3: Test specification, procedures & results ............................................................................ 5 SECTION 4: Operation of E.U.T. during testing .................................................................................... 8 SECTION 5: Conducted Emission .......................................................................................................... 10 SECTION 6: Radiated Spurious Emission ............................................................................................ 11 SECTION 7: Antenna Terminal Conducted Tests ................................................................................ 12 APPENDIX 1: Data of EMI test .............................................................................................................. 13 Conducted Emission ......................................................................................................................... 13 6dB Bandwidth ................................................................................................................................. 14 Maximum Peak Output Power .......................................................................................................... 17 Average Output Power ...................................................................................................................... 20 Radiated Spurious Emission ............................................................................................................. 21 Conducted Spurious Emission .......................................................................................................... 28 Conducted Emission Band Edge compliance ................................................................................... 46 Power Density ................................................................................................................................... 47 99% Occupied Bandwidth ................................................................................................................ 51 APPENDIX 2: Test instruments ............................................................................................................. 53 APPENDIX 3: Photographs of test setup ............................................................................................... 54 Conducted Emission ......................................................................................................................... 54 Radiated Spurious Emission ............................................................................................................. 55 Worst Case Position (Horizontal: X-axis/ Vertical:Y-axis) .............................................................. 56 Test report No. : 10066840H-A-R1 Page : 4 of 56 Issued date : September 30, 2013 Revised date : October 10, 2013 FCC ID : EW4W092 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : MITSUMI ELECTRIC CO., LTD Address : 1601, SAKAI, ATSUGI-SHI, KANAGAWA, 243-8533 JAPAN Telephone Number : +81-46-230-4201/46-230-3751 Facsimile Number : +81-46-230-3500 Contact Person : MASASHI TSUCHIDA SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Wireless LAN module Model No. : W092 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 3.3V Receipt Date of Sample : September 17, 2012 Country of Mass-production : Philippines Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification Clock frequency(ies) in the system : 26MHz Radio Specification of WLAN (IEEE802.11b/g/n) Radio Type : Transceiver Frequency of Operation : 2412-2462MHz Modulation : DSSS and OFDM Power Supply (radio part input) : DC3.3V (Digital part), DC1.6V (RF Core), DC1.2V (Digital part) Antenna type : 2.4GHz Pattern Antenna Antenna Gain : 0.41dBi Test report No. : 10066840H-A-R1 Page : 5 of 56 Issued date : September 30, 2013 Revised date : October 10, 2013 FCC ID : EW4W092 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2013, final revised on June 11, 2013 and effective July 11, 2013 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz * The revision on June 11, 2…

Text truncated - open the document above for the full version.

Test report No. : 10066840H-A-R1 Page : 54 of 56 Issued date : September 30, 2013 Revised date : October 10, 2013 FCC ID : EW4W092 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 10066840H-A-R1 Page : 55 of 56 Issued date : September 30, 2013 Revised date : October 10, 2013 FCC ID : EW4W092 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 10066840H-A-R1 Page : 56 of 56 Issued date : September 30, 2013 Revised date : October 10, 2013 FCC ID : EW4W092 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8999 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: X-axis/ Vertical:Y-axis) X-axis Y-axis Z-axis End of Report
