EW4DW092Wireless LAN Module

User’s manual Product: Wireless LAN Module Model: DW 092 FCC ID: EW4DW092 IC: 4634 A- 3149EC For OEM integration only – device ca nnot be sold to general public. Therefore we will not supply the User’s manual, the installation manual is the offi cial for OEM. (Note) OEM integrators and end-users must be provided with specific information required to satisfy RF exposure compliance for the fin al host device. OEM integrators are instructed to ensure that the end us er has no manual instructions to remove or install the device. The antenna of this device must not be co-located or used in conjunction wi th any other antenna or transmitter. OEM integrators must be provided with antenna installation instructions. Only those antennas tested with the device or similar antennas with equal or lesser gain may be used with this transmitter. We will ask OEM to includ e the following Notices requ ired by FCC/ IC on th e product and in the User’s manual. ■ Requirement of Labeling (For FCC) Please describe the following item on the host device of the this module: Contains Transmitter Module FCC ID: EW4DW092 or Contain s FCC ID: EW4DW092 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. (For IC) Please describe the following item on the host device of the this module: Contains Transmitter Module IC: 4634A-3149EC or Contains IC: 4634A-3149EC ■ Requirement of User’s Manual Statement (For FCC) User’s manual shall contain following sentence FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to oper ate the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. When installing in Mobile device This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment has very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keep ing the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). When installing in Portable device This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment has very low levels of RF energy that are deemed to comply without testing of specific absorption ratio (SAR). * Portable device: Distance between the person's body and the antenna is 20cm or less. * Mobile device: Distance between the person's body and the antenna is more than 20cm. (For IC) Indicate the following information. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause unde sired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit acce pter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. * It can be also indicated on the equipment in place of the manual When installing in Mobile device This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without maximum permiss ive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte l es règles d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui es t considérée conforme sans évaluation de l’exposition maximale autorisée. Cependant, cet équipement doit être installé et utilisé en gardant une distance de 20 cm ou plus entre le dispositif rayonnant et le corps (à l’exception des extrémités : mains, poignets , pieds et chevilles). When installing in Portable device This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment and meets RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed to comply without testing of spe cific absorption ratio (SAR). Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et respecte l es règles d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement émet une énergie RF très faible qui es t considérée conforme sans évaluation du débit d’absorption spécifique (DAS).

1601, SAKAI, ATSUGI-SHI, KANAGAWA, 243-8533 JAPAN TEL: +81-46-230-3430 FAX:+81-46-230-3500 Letter Of Agency Date: November 9, 2012 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID: EW4DW092 To Whom It May Concern: Please be advised MITSUMI ELECTRIC CO., LTD. authorizes Yoshinobu Asai of Application Section, WiSE Japan, UL Verification Service, UL Japan, Inc. to act on our behalf, until otherwise notified, for applications submitted for Federal Communication Commission Radio equipment applications submitted to UL Japan, Inc. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. The application for the subject equipment has not been submitted to another TCB for certification. Thank you for your attention to this matter. Sincerely, Masashi Tsuchida MITSUMI ELECTRIC CO., LTD.

1601, SAKAI, ATSUGI-SHI, KANAGAWA, 243-8533 JAPAN TEL:+81-46-230-3430FAX:-81-46-230-3500 November 9, 2012 FCC ID : EW4DW092 Model : DW092 Applicant : MITSUMI ELECTRIC CO., LTD. Request for Modular Transmitter Approval This WLAN Module (Model: DW092) is designed by MITSUMI ELECTRIC CO., LTD.. This modular transmitter complies with the modular transmitters basic requirements (Item 1 to 8) in FCC Part 15 Subpart C Section 15.212 as indicated below: Modular Approval Checklist: Modular approval requirement YesNo (1) Have its own RF shielding. (2) Have buffered modulation/data inputs. (3) Have its own power supply regulation. (4) Comply with the antenna and transmission system requirements of § 15.203, 15.204(b) and 15.204(c). (5) Tested in a stand-alone configuration. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in FCC § 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module. The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available. (6) Equipped with either a permanently affixed label or must be capable of electronically displaying its FCC ID. If the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. (7) Comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. (8) Comply with any applicable RF exposure requirements in its final configuration: The modular transmitter complies with FCC radiation exposure requirement. Masashi Tsuchida MITSUMI ELECTRIC CO., LTD.

1601, SAKAI, ATSUGI-SHI, KANAGAWA, 243-8533 JAPAN TEL: +81-46-230-3430 FAX:+81-46-230-3500 Request for Confidentiality Date: November 9, 2012 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan RE: Certification Application FCC ID: EW4DW092 Please be advised that the following information is to be held confidential on behalf of MITSUMI ELECTRIC CO., LTD., referring to the FCC rules 0.457 and 0.459: Schematics Diagram Block Diagram Parts List Theory of Operation The application contains technical information which MITSUMI ELECTRIC CO., LTD. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Masashi Tsuchida MITSUMI ELECTRIC CO., LTD.

1601, SAKAI, ATSUGI-SHI, KANAGAWA, 243-8533 JAPAN TEL: +81-46-230-3430 FAX:+81-46-230-3500 Request for Short-Term Confidentiality November 9, 2012 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan RE : Certification Application FCC ID : EW4DW092 Please be advised that the following information is to be held in confidence for 180 days from the date of the Grant of Equipment Authorization and behalf of, MITSUMI ELECTRIC CO., LTD., referring to the FCC rules 0.457 and 0.459: External Photos Internal Photos Test Setup Photos User Manual The application contains technical information, which MITSUMI ELECTRIC CO., LTD. deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Sincerely, Masashi Tsuchida MITSUMI ELECTRIC CO., LTD.

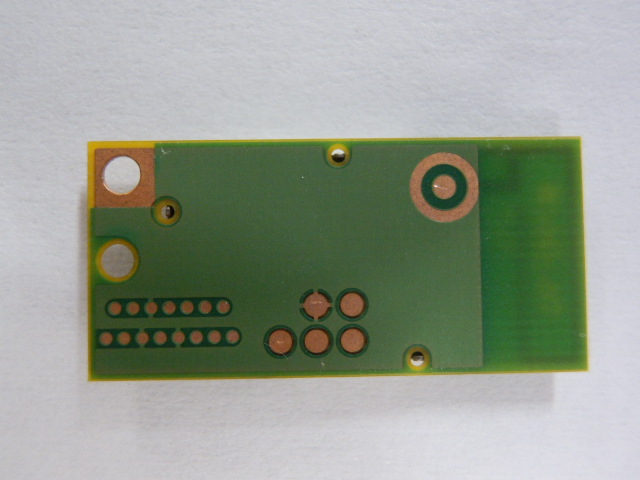

External Photo DW092 Top with Shield Bottom

DW092 Label Drawing 112A29A1234 <Serial No.>112A29A12341: module cord 12: year A: month 29: day A: production line number 1234: serial number 20.3mm 9.2mm 13.0mm 3.2mm Serial No. Country of Origin Part No. of Drawing Label Location Top Bottom

ＤＷ０９２ 内観写真 DW092 Interior View

UL Japan, Inc. Head Office EMC Lab 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan T:: +81.596.24.8116 / F:: +81.596.24.8124 / W:: ul.com/jp November 19, 2012 UL Japan, Inc. 4383-326 Asama-cho, Ise-shi, Mie 516-0021 Japan FCC ID: EW4DW092 To whom it may concern, We, UL Japan, Inc, hereby declare that Wireless LAN module, model: DW092 (FCC ID: EW4DW092) of MITSUMI ELECTRIC CO., LTD is exempt from RF exposure SAR evaluation as its output power meets the exclusion limits stated in FCC Part 2 §2.1093 and FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. Thank you for your attention to this matter. Sincerely, Masanori Nishiyama Manager of Head Office EMC Lab. WiSE Japan UL Verification Service UL Japan, Inc.

Test report No. : 33AE0097-HO-02-A-R1 Page : 2 of 55 Issued date : November 19, 2012 Revised date : November 22, 2012 FCC ID : EW4DW092 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ......................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ........................................................................................... 3 SECTION 3: Test specification, procedures & results ............................................................................ 4 SECTION 4: Operation of E.U.T. during testing .................................................................................... 7 SECTION 5: Conducted Emission ............................................................................................................ 9 SECTION 6: Radiated Spurious Emission ............................................................................................ 10 SECTION 7: Antenna Terminal Conducted Tests ................................................................................ 11 APPENDIX 1: Data of EMI test .............................................................................................................. 12 Conducted Emission ......................................................................................................................... 12 6dB Bandwidth ................................................................................................................................. 13 Maximum Peak Output Power .......................................................................................................... 16 Average Output Power ...................................................................................................................... 19 Radiated Spurious Emission ............................................................................................................. 20 Conducted Spurious Emission .......................................................................................................... 27 Conducted Emission Band Edge compliance ................................................................................... 45 Power Density ................................................................................................................................... 46 99% Occupied Bandwidth ................................................................................................................ 50 APPENDIX 2: Test instruments ............................................................................................................. 52 APPENDIX 3: Photographs of test setup ............................................................................................... 53 Conducted Emission ......................................................................................................................... 53 Radiated Spurious Emission ............................................................................................................. 54 Worst Case Position (Horizontal: X-axis/ Vertical:Y-axis) .............................................................. 55 Test report No. : 33AE0097-HO-02-A-R1 Page : 3 of 55 Issued date : November 19, 2012 Revised date : November 22, 2012 FCC ID : EW4DW092 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : MITSUMI ELECTRIC CO., LTD Address : 1601, SAKAI, ATSUGI-SHI, KANAGAWA, 243-8533 JAPAN Telephone Number : +81-46-230-4195/46-230-3751 Facsimile Number : +81-46-230-3500 Contact Person : HAYATO SHIBANO SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Wireless LAN module Model No. : DW092 Serial No. : Refer to Section 4, Clause 4.2 Rating : DC 3.3V Receipt Date of Sample : September 17, 2012 Country of Mass-production : Philippines Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification Clock frequency(ies) in the system : 26MHz Radio Specification of WLAN (IEEE802.11b/g/n) Radio Type : Transceiver Frequency of Operation : 2412-2462MHz Modulation : DSSS and OFDM Power Supply (radio part input) : DC3.3V (Digital part), DC1.6V (RF Core), DC1.2V (Digital part) Antenna type : 2.4GHz Pattern Antenna Antenna Gain : 0.41dBi Test report No. : 33AE0097-HO-02-A-R1 Page : 4 of 55 Issued date : November 19, 2012 Revised date : November 22, 2012 FCC ID : EW4DW092 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2012, final revised on August 13, 2012 and effective September 12, 2012 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted Emission FCC: ANSI C63.4:2003 7. AC powerline Conducted Emission measurements FCC: Section 15.207 QP 29.6dB, 0.15000MHz, L AV 31.7dB, 0.15000MHz, N Complied - IC: RSS-Gen 7.2.4 IC: RSS-Gen 7.2.4 6dB Bandwidth FCC: "Guidance on Measurement of Digital Transmission Systems Operating under Section15.247" FCC: Section 15.247(a)(2) See data. Complied Conducted IC: RSS-Gen 4.6.2 IC: RSS-210 A8.2(a) Maximum Peak Output Power FCC: "Guidance on Measurement of Digital Transmission Systems Operating under Section15.247" FCC: Section 15.247(b)(3) Complied Conducte…

Text truncated - open the document above for the full version.

Test report No. : 33AE0097-HO-02-A-R1 Page : 53 of 55 Issued date : November 19, 2012 Revised date : November 22, 2012 FCC ID : EW4DW092 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted Emission Photo 1 Photo 2 Test report No. : 33AE0097-HO-02-A-R1 Page : 54 of 55 Issued date : November 19, 2012 Revised date : November 22, 2012 FCC ID : EW4DW092 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated Spurious Emission Photo 1 Photo 2 Test report No. : 33AE0097-HO-02-A-R1 Page : 55 of 55 Issued date : November 19, 2012 Revised date : November 22, 2012 FCC ID : EW4DW092 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position (Horizontal: X-axis/ Vertical:Y-axis) X-axis Y-axis Z-axis End of Report
